    Al, Thank you for your help. I will try not to get myself in a tissy (thank you for making me laugh). I will do as you have offered and you are so right about compromising the seal, hence my concern.
    Your Gato is an inspiration!
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment

    • He Who Shall Not Be Named
      Moderator
      • Aug 2008
      • 12321

      Run a 1/16" bit through there at low speed, and hope for the best. There are more seals where that one came from.

      David
      Who is John Galt?

      Comment

      • beeryboats
        Lieutenant Commander
        • Jun 2011
        • 124

        Originally posted by Merriman
        Run a 1/16" bit through there at low speed, and hope for the best. There are more seals where that one came from.

        David
        Maybe turn the drill backwards? Use friction and not cut it?
        Just an idea.....
        Jay

        Comment

        • He Who Shall Not Be Named
          Moderator
          • Aug 2008
          • 12321

          Sure. Whatever! ....

          Stop over thinking this ****, damit -- we're not assembling Critical assemblies with the shank of a screwdriver here!

          The object of the game is to bore out the resin, not the rubber. The rubber will squirt out of the way of the bit blades, the resin won't.

          David
          Who is John Galt?

          Comment

          • trout
            Admiral
            • Jul 2011
            • 3547

            David, I am sure you are right. My parents use to tell me when my oldest brother was born every injury or sneeze they would go to the doctor or ER. Then by the time I came around (I am theyoungest) it was more the attitude of just rub dirt in it and move along or that gash on your head, we'll put a butterfly bandaid on it and keep playing. LOL
            I will get to the point of knowing what is rocket science and what is not - for now it all seems like critical assemblies!
            Happy New Year to you all - looking forward to a wet 2012!
            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

            Comment

            • He Who Shall Not Be Named
              Moderator
              • Aug 2008
              • 12321

              LOL. Good point. You're right: with experience one does get jadded. At one time I was tip-toeing through this stuff for the first time, and it all seemed do damned critical that things were done, just so. With experience you find what has to be kept tight and what can just slide.

              Oh ... happy new year!

              David
              Who is John Galt?

              Comment

              • trout
                Admiral
                • Jul 2011
                • 3547

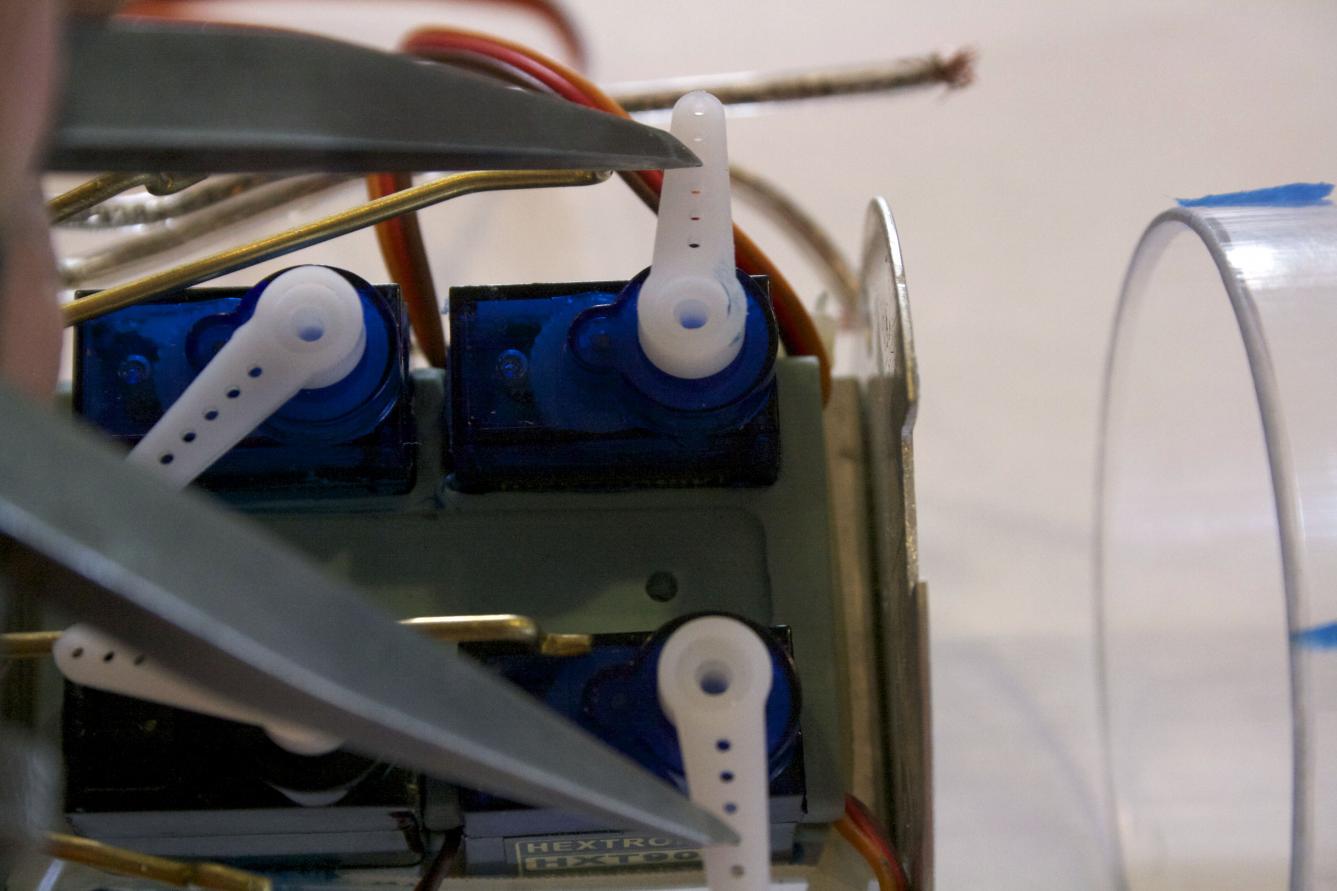

                Had trouble with one of the push rods being very hard to move, I went ahead and put a 1/16” rod in and slowly turned it with silicon oil. After several tries it seemed to be moving better. We will see later how water tight this is.

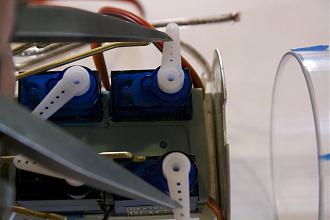

                I had started to install my push rods when I thought I wonder how the fit is with these servos mounted......barnacles, it didn’t.
                Click image for larger version

Name:	push rods 001.jpg
Views:	1
Size:	91.5 KB
ID:	65821

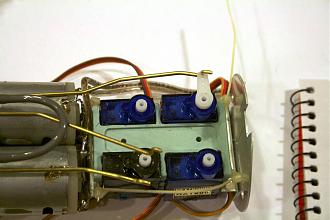

                I had choices, I could grind the center divider down, this would move the servos closer to centerline and bring the servo arms in. This sounds good, but I have seen the receiver stored there in between the servos so if I eliminate that space were does the receiver go?? I am learning that space is a premium. So next choice....
                I could cut the bottom out and move the servos down allowing the widening curve of the tube give room for the arm. This is a better choice, but I want to have a SNORT system in place it goes below the servo deck.
                Click image for larger version

Name:	push rods 001a.jpg
Views:	1
Size:	90.7 KB
ID:	65822

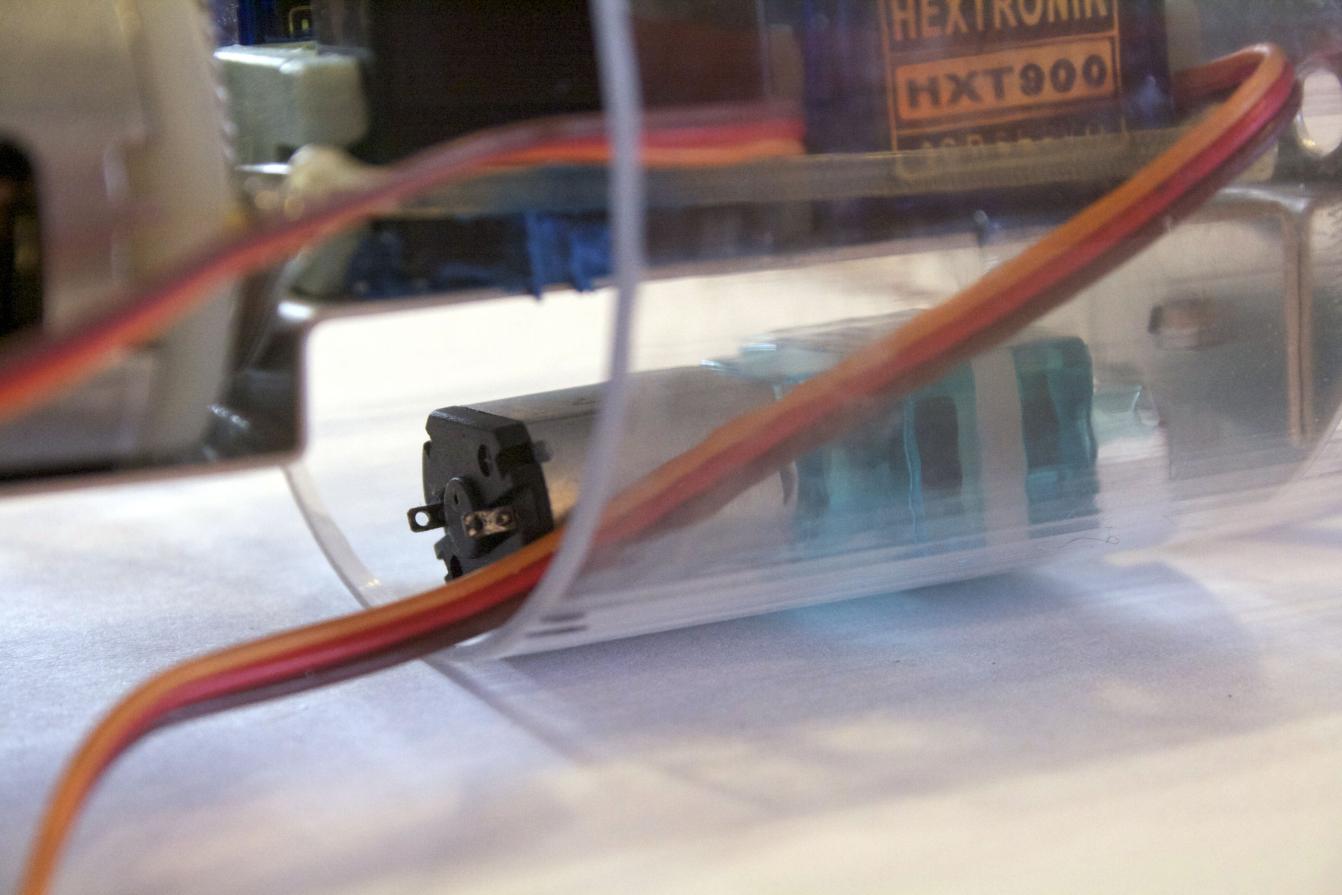

                If I move the servos down enough to allow the arm to swing, there would be NO room for the SNORT pump. So next choice.....
                Why not lower the server AND cut the arm back? A combination of cutting out the bottom of the tray to lower the servos and trim the servo arm back. But how far would I need to trim....I needed to find that out.

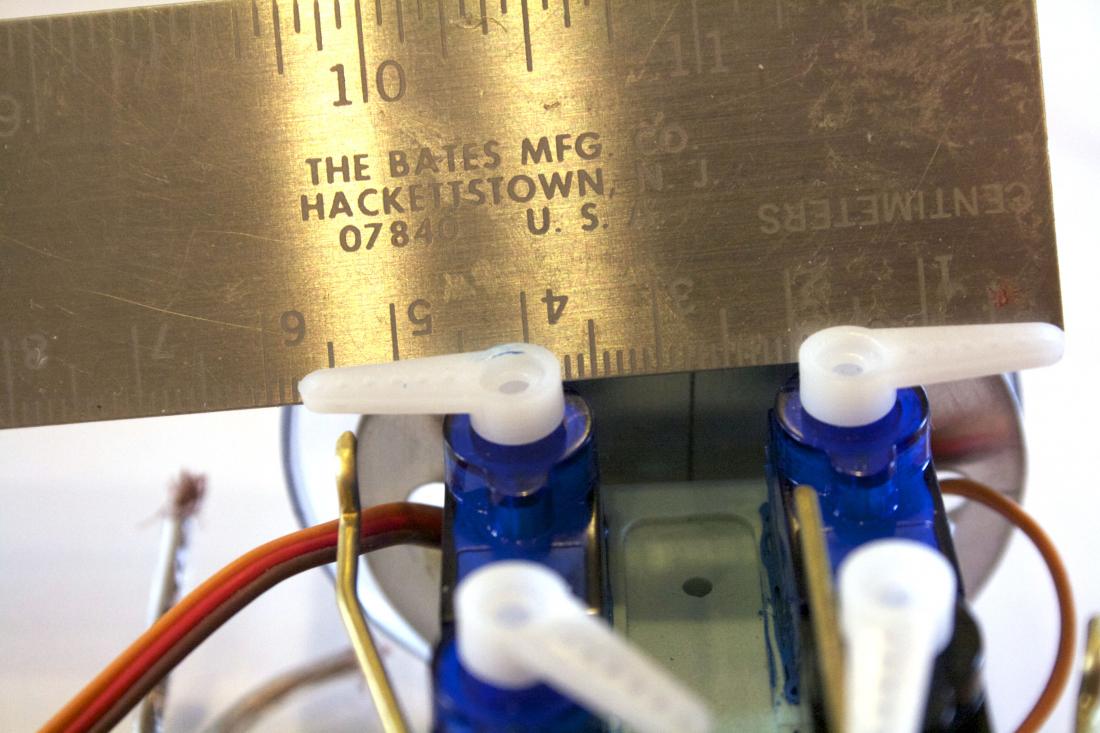

                The servos span ~58mm and that is just to great a distance to accommodate.
                Click image for larger version

Name:	push rods 002.jpg
Views:	1
Size:	93.5 KB
ID:	65823

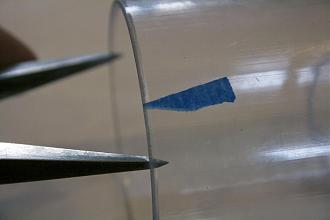

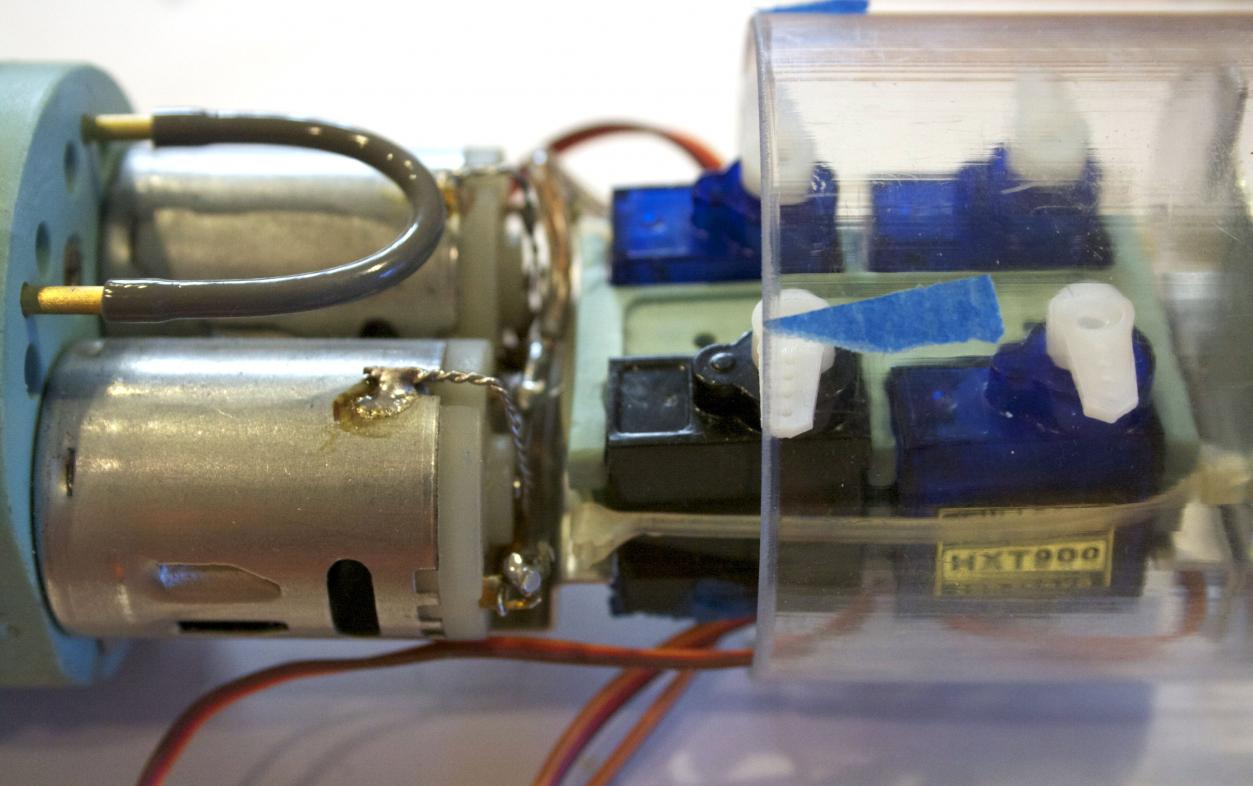

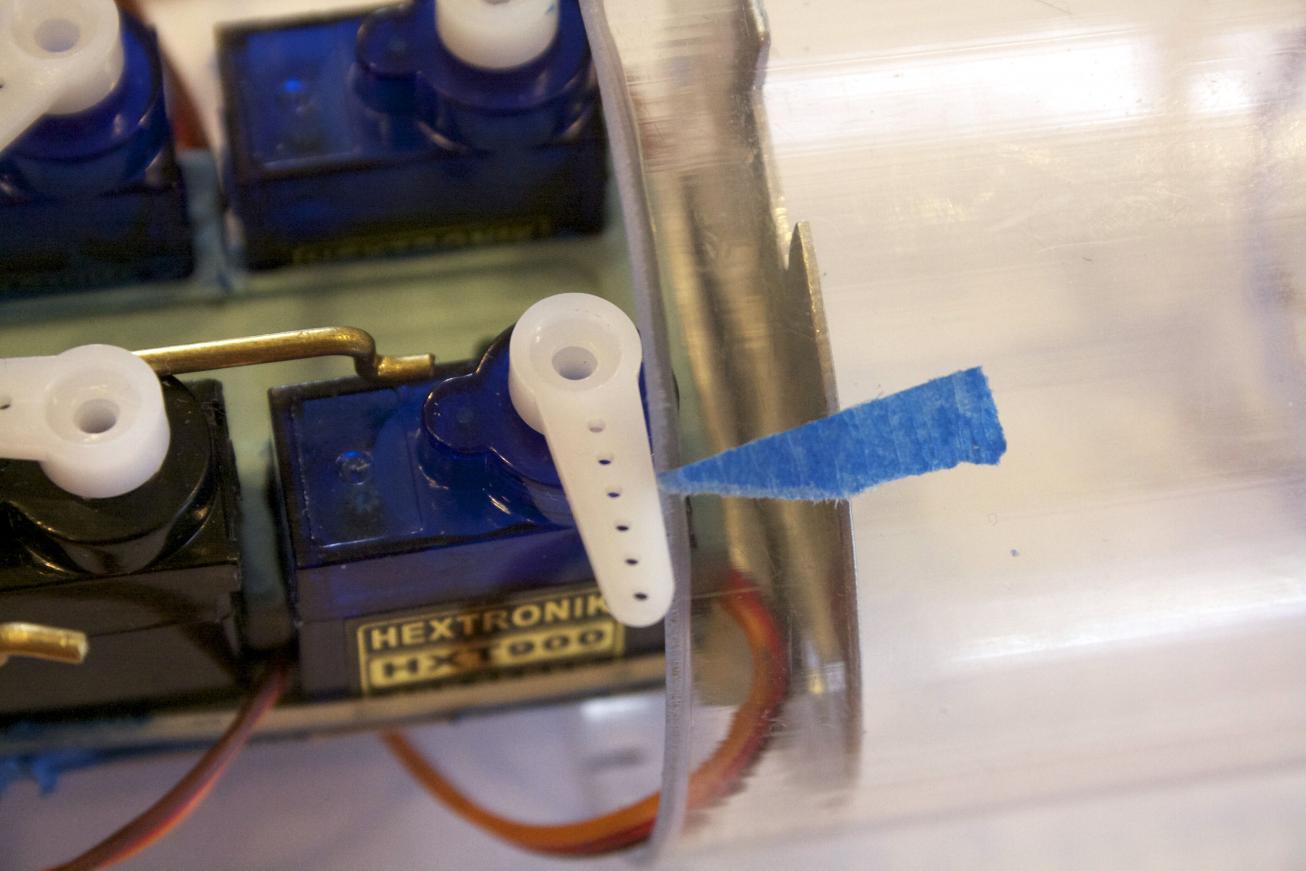

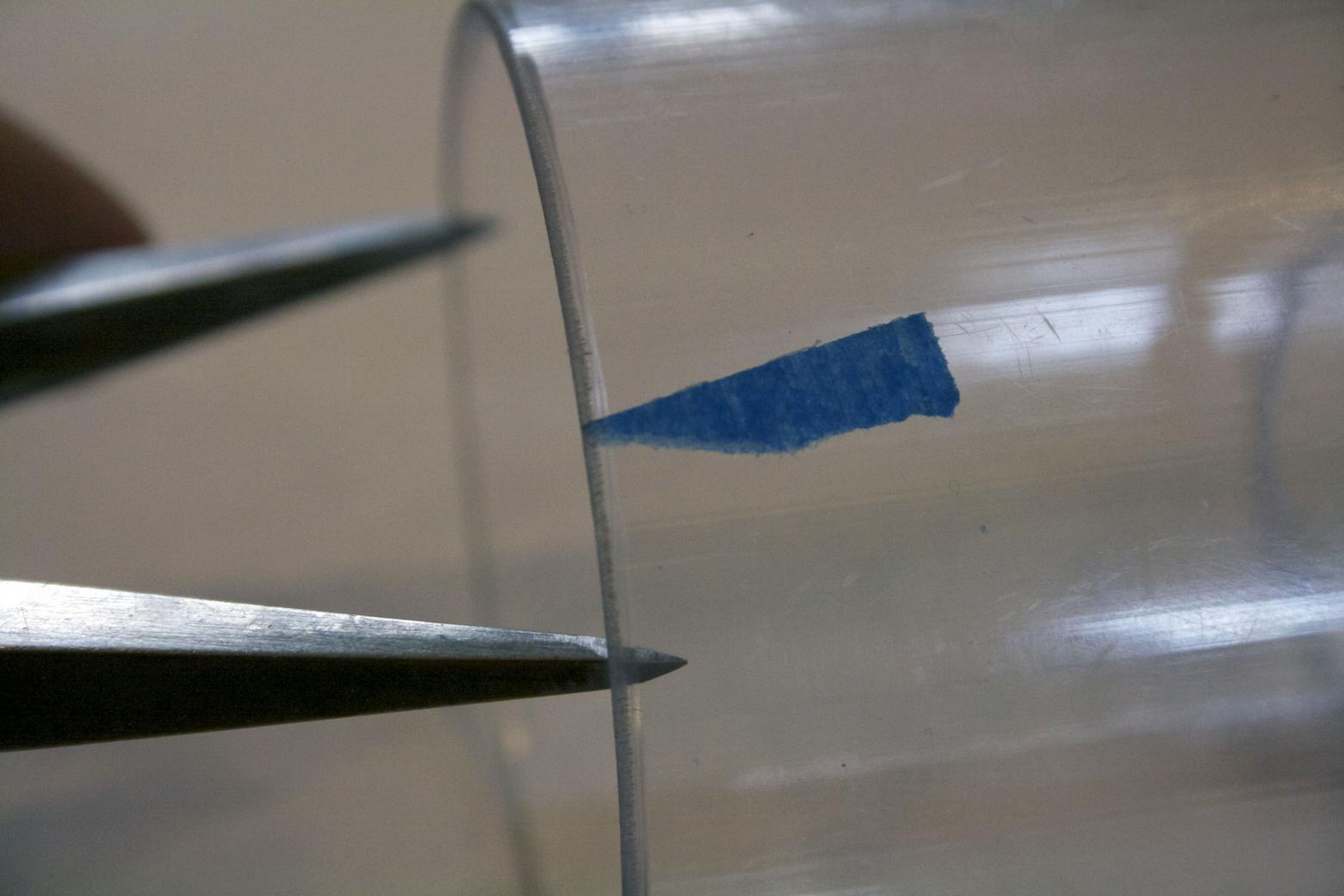

                So I marked with tape where the arms touched the tube.
                Click image for larger version

Name:	push rods 003.jpg
Views:	1
Size:	89.5 KB
ID:	65824
                Then eyeballed about where the server could be placed and still have room for the SNORT pump below. It looked like I could use the fourth hole from the center for the push rod.
                using some calipers I measured the distance and tested that in the tube to see where it met with a little room for the plastic needed around the 4th hole.
                Click image for larger version

Name:	push rods 004.jpg
Views:	1
Size:	88.4 KB
ID:	65825Click image for larger version

Name:	push rods 005.jpg
Views:	1
Size:	107.4 KB
ID:	65826

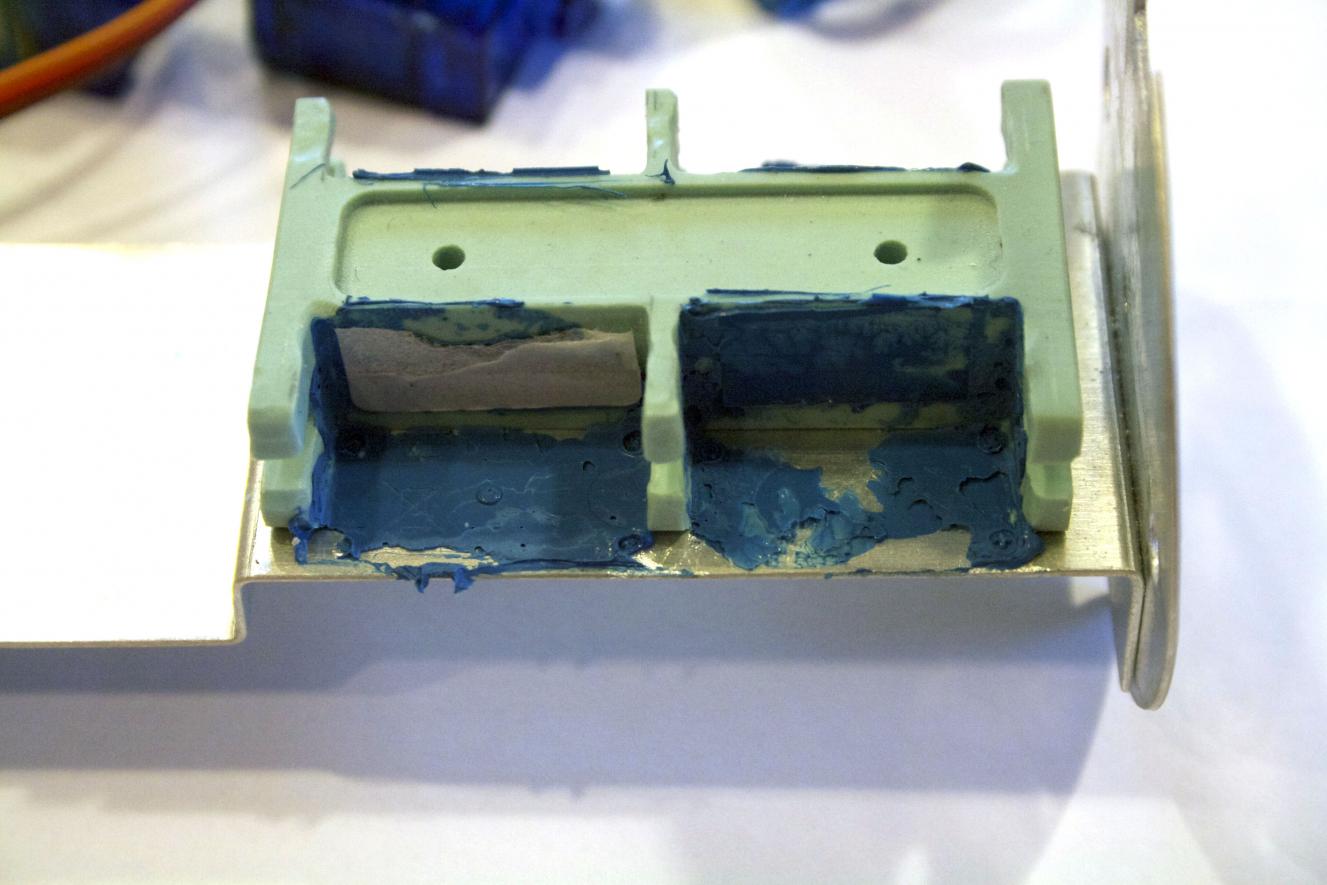

                Yep I think we have a winner. Peeling the servos out of the RTV was not too tough to do. It looked like most of the support will come from the resin center piece and not the areas below the servos themselves.
                Click image for larger version

Name:	push rods 007.jpg
Views:	1
Size:	93.4 KB
ID:	65827

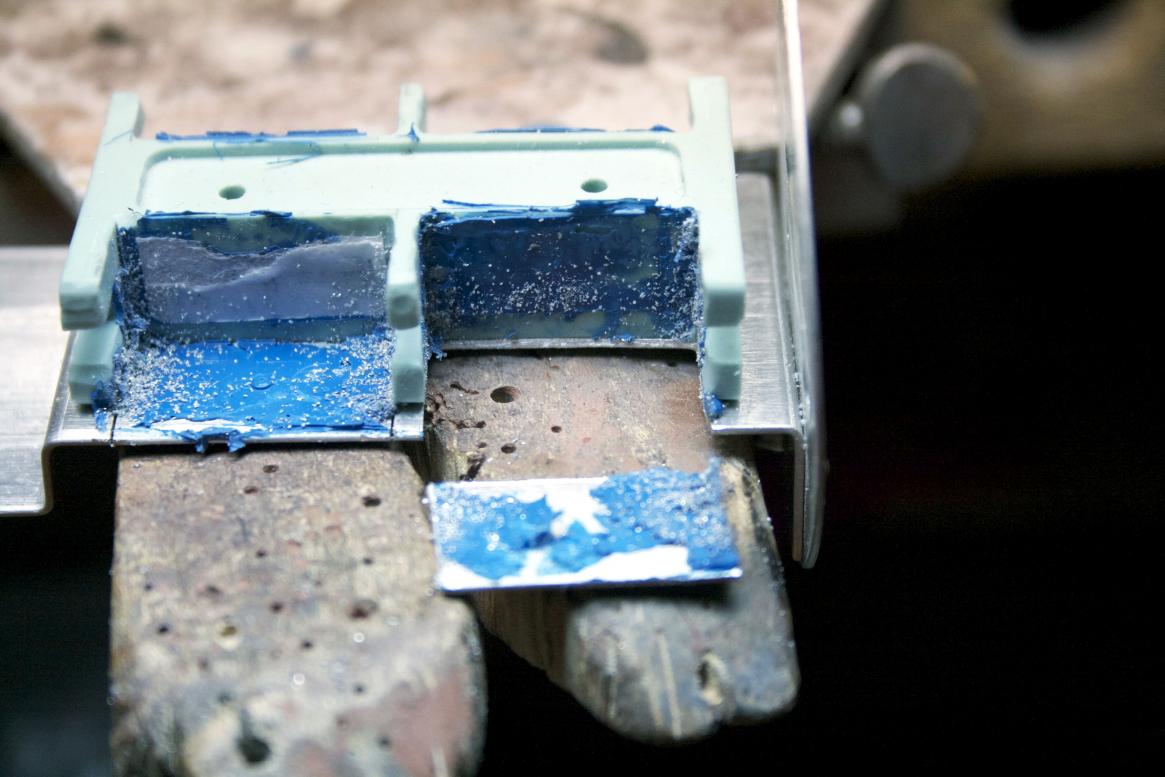

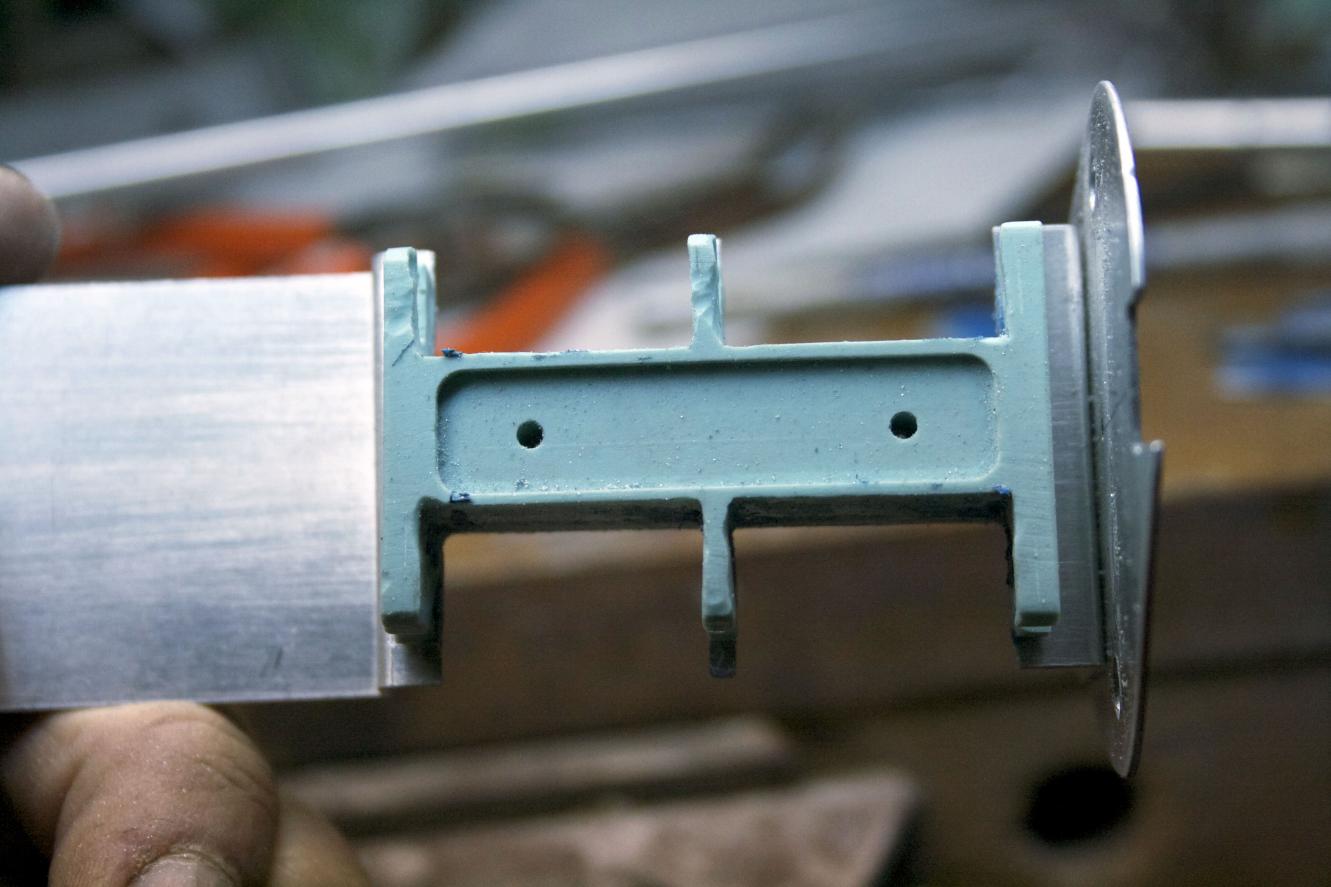

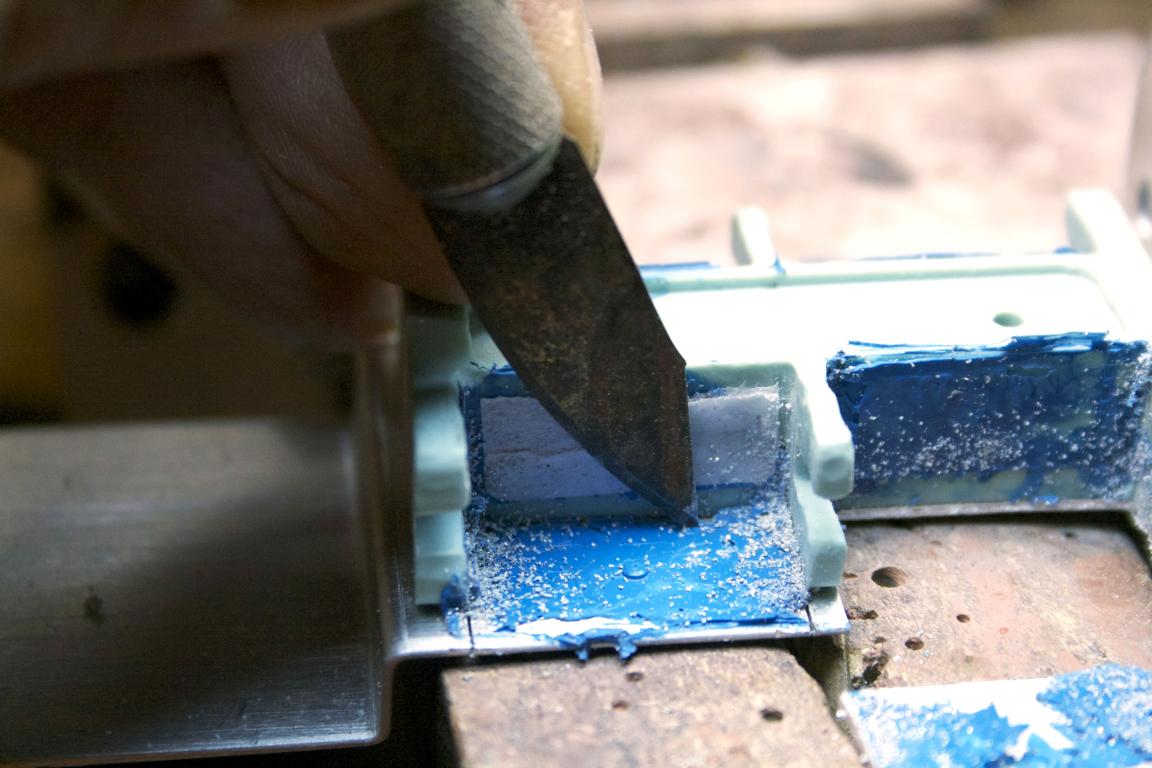

                Off to the bench to cut and remove the bottom pieces. I used my jewelers saw to cut on each side of the bottom aluminum plate. Then scored between my two cut lines and bent the metal until it snapped off.
                Click image for larger version

Name:	push rods 008.jpg
Views:	1
Size:	90.9 KB
ID:	65828Click image for larger version

Name:	push rods 009.jpg
Views:	1
Size:	90.9 KB
ID:	65829

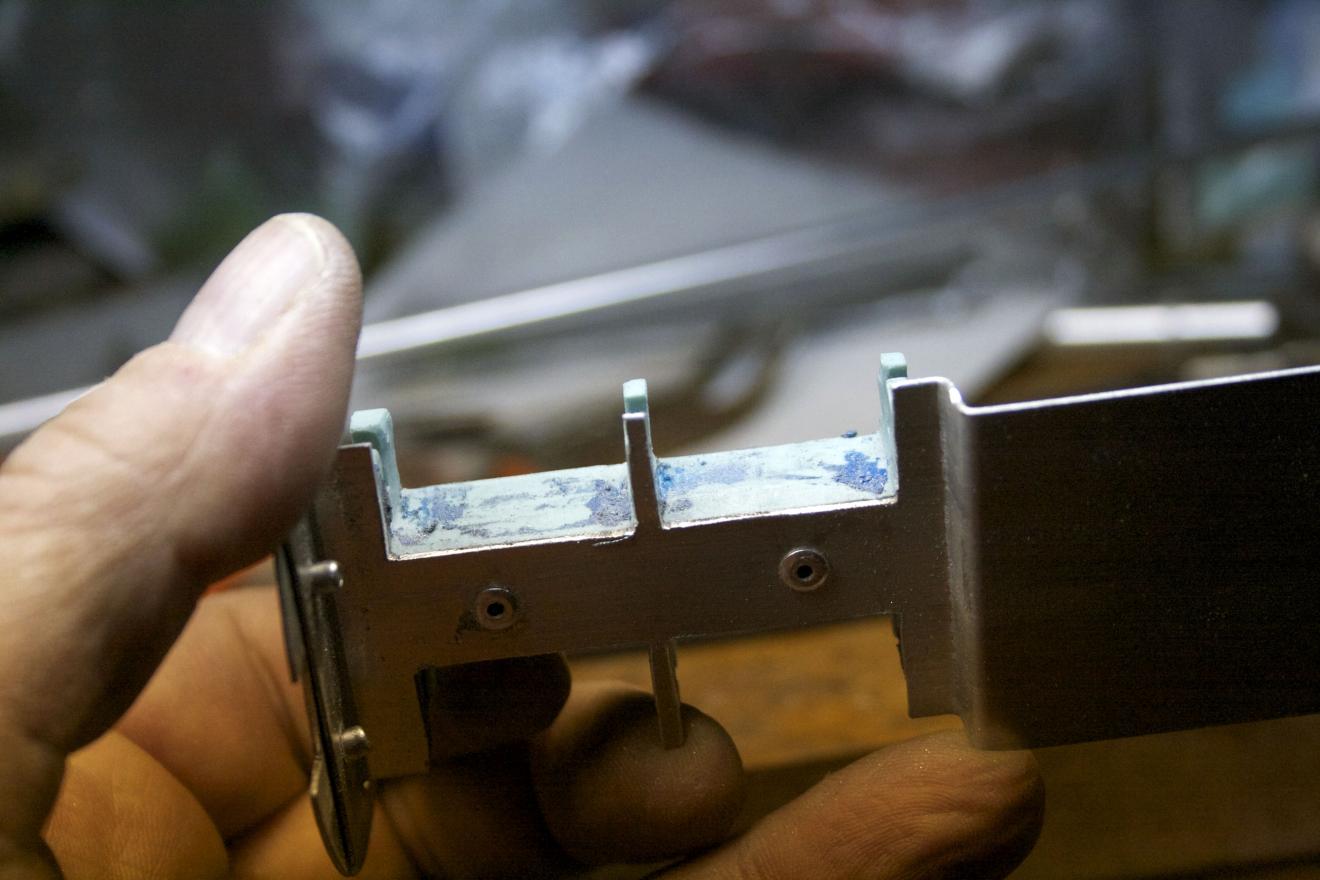

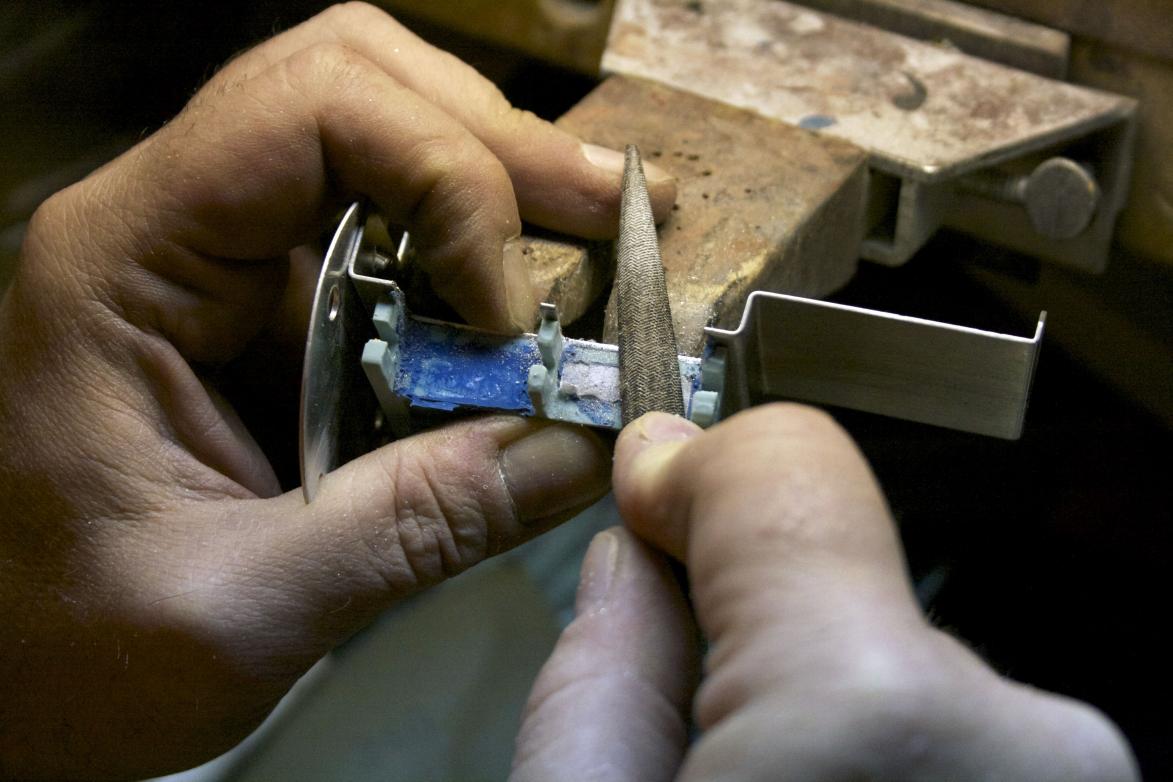

                Then did a little clean up on the edges with a file.
                Click image for larger version

Name:	push rods 010.jpg
Views:	1
Size:	93.1 KB
ID:	65830
                And the finished tray.
                Click image for larger version

Name:	push rods 011.jpg
Views:	1
Size:	92.2 KB
ID:	65831Click image for larger version

Name:	push rods 012.jpg
Views:	1
Size:	93.4 KB
ID:	65832

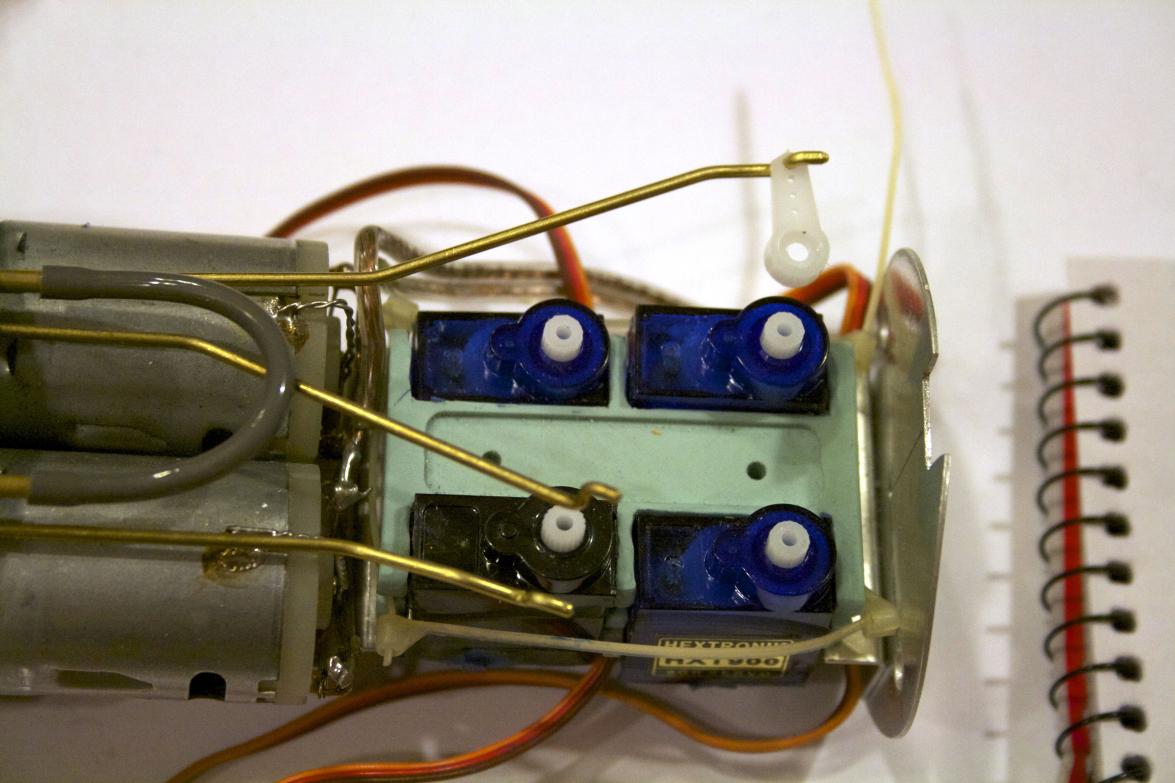

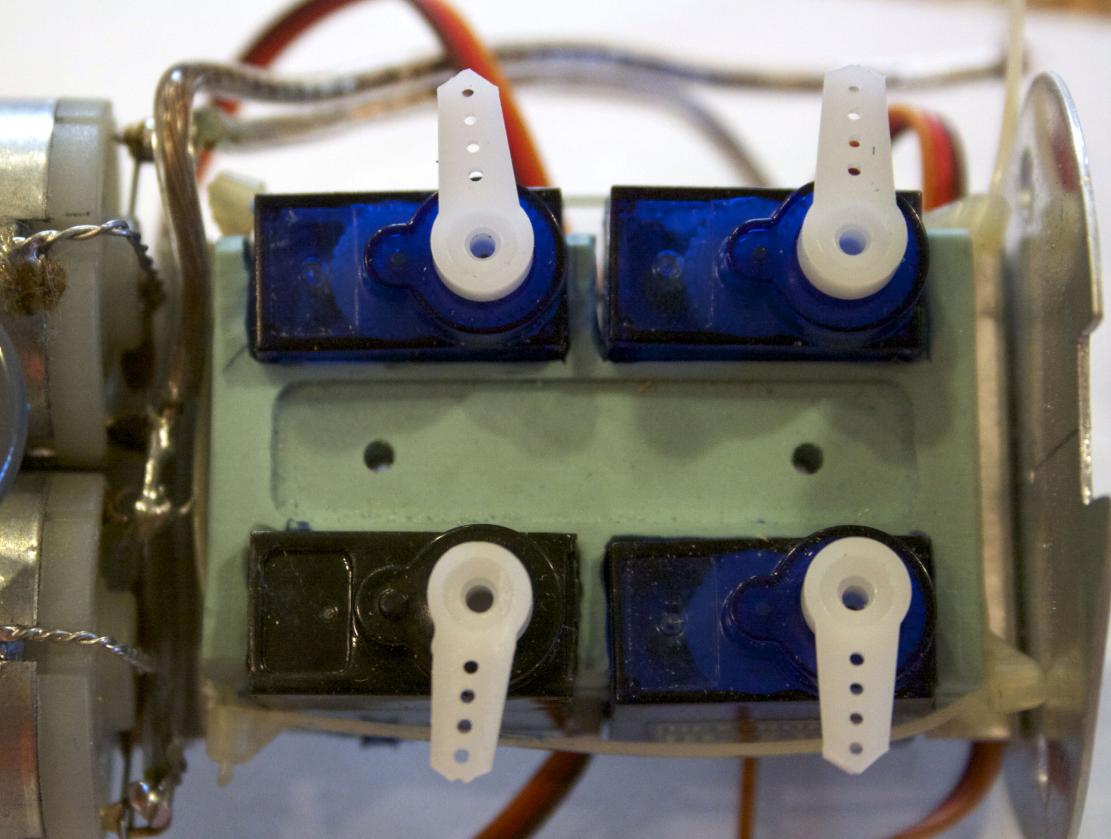

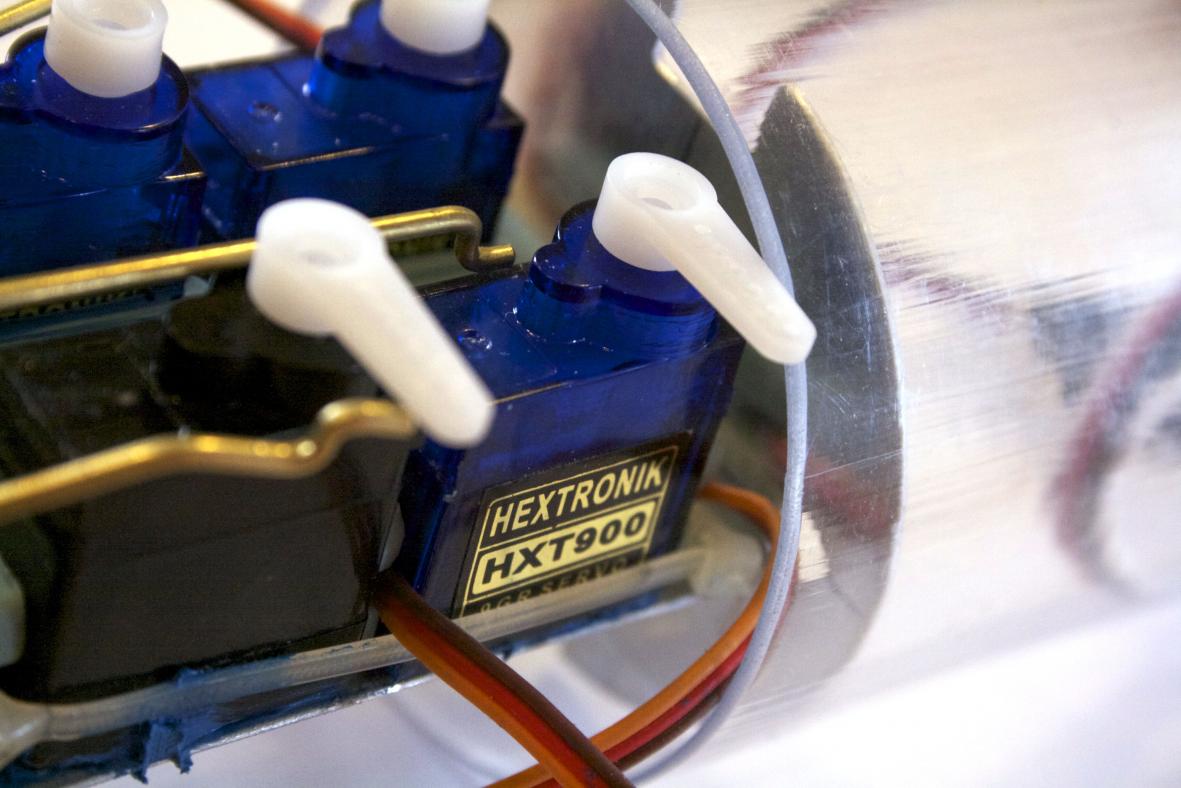

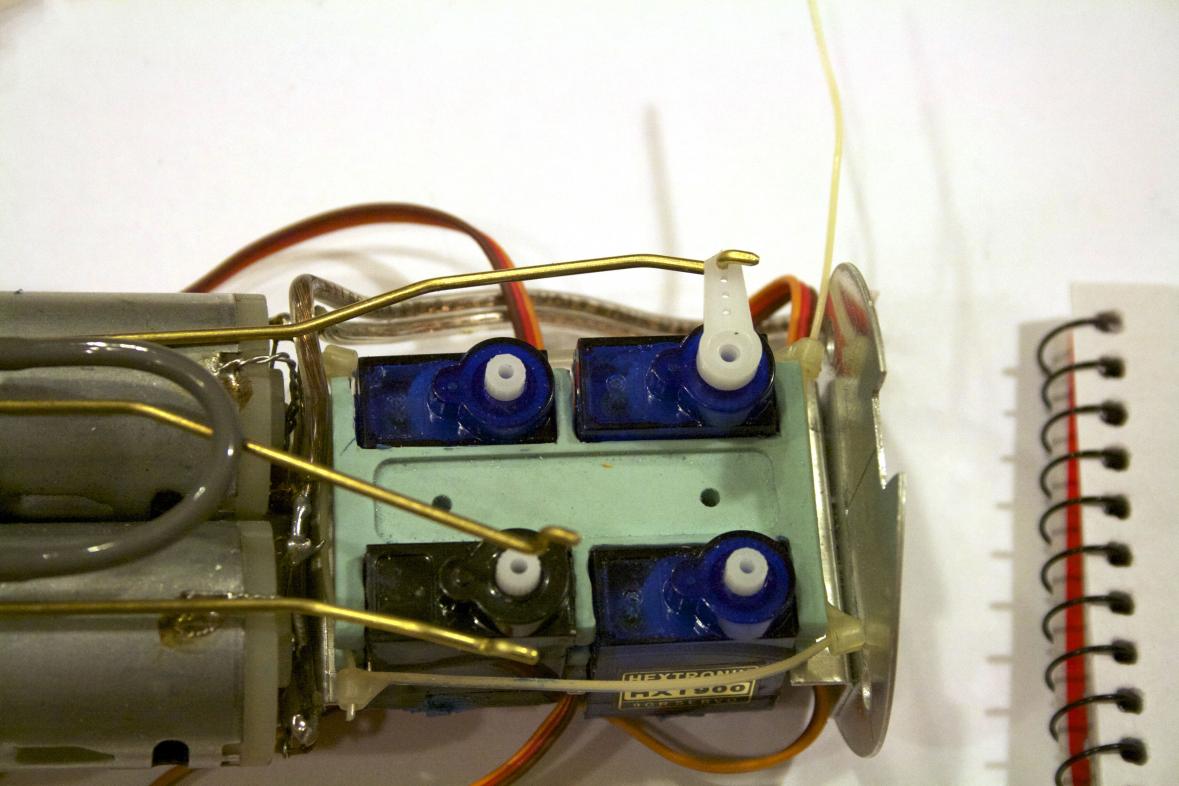

                and a test fit with the arms trimmed back and the servos lowered and SNORT pump below...... and the result is.......
                Click image for larger version

Name:	push rods 013.jpg
Views:	1
Size:	85.1 KB
ID:	65833

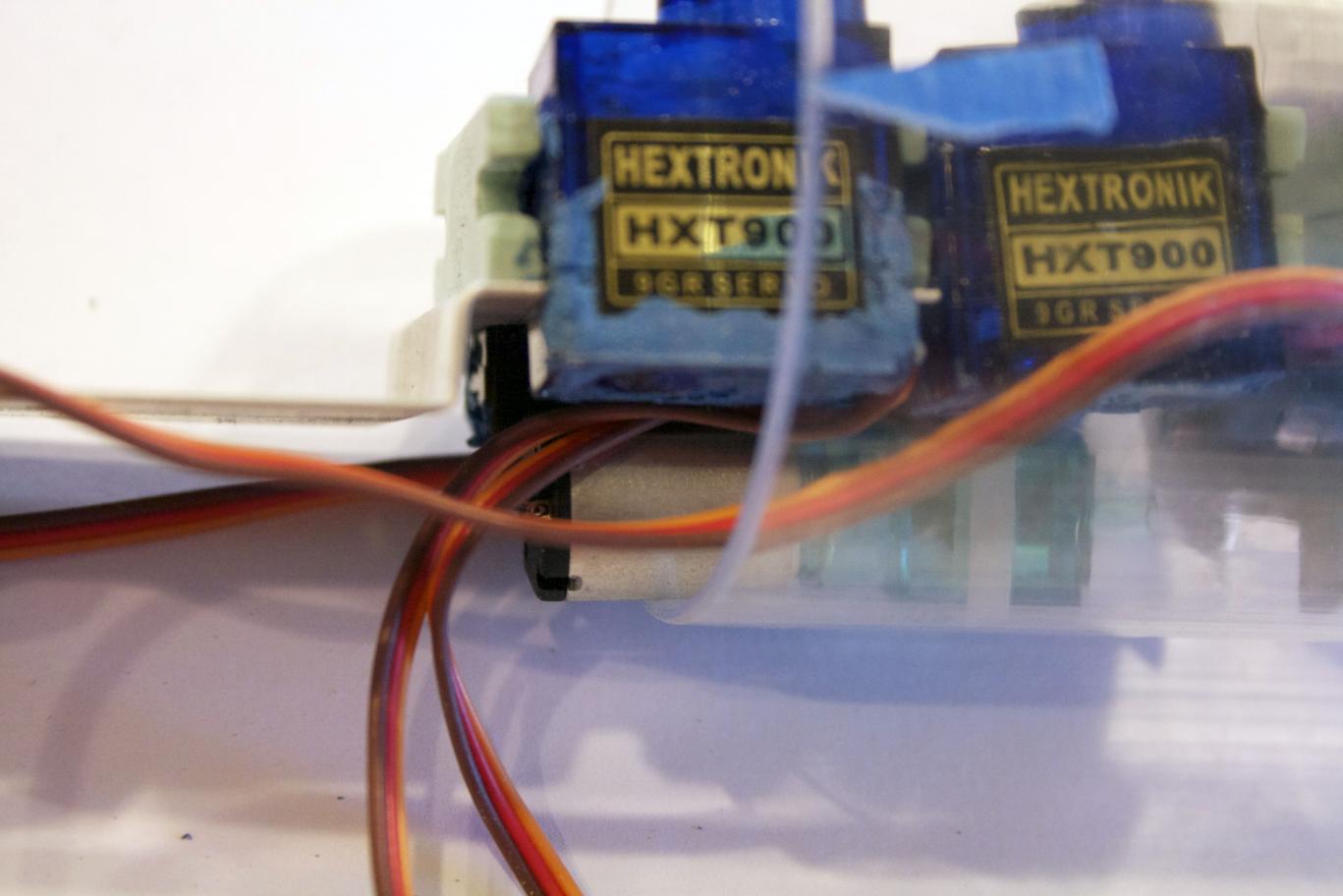

                a fit!
                Click image for larger version

Name:	push rods 014.jpg
Views:	1
Size:	88.5 KB
ID:	65834Click image for larger version

Name:	push rods 015.jpg
Views:	1
Size:	91.1 KB
ID:	65835

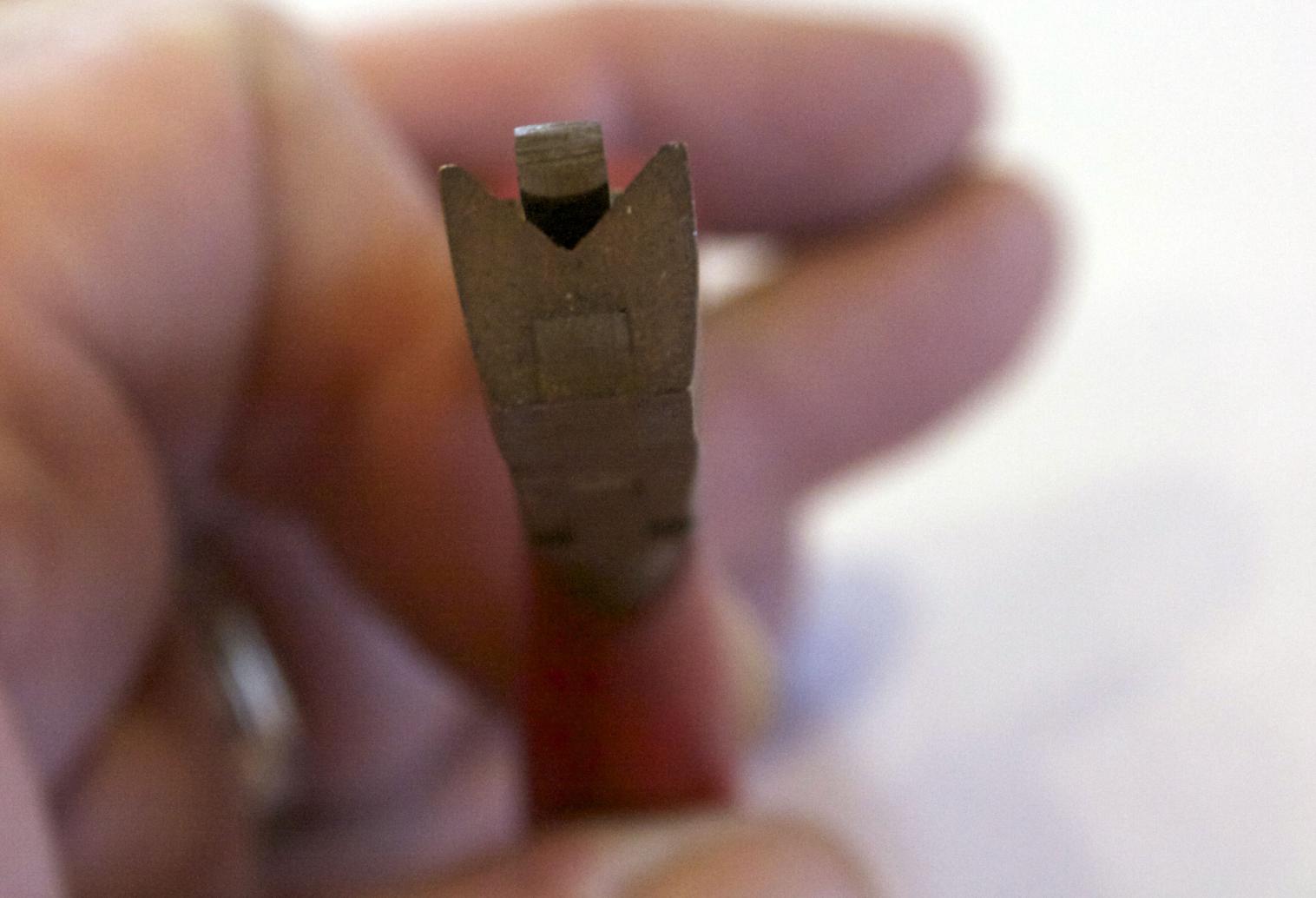

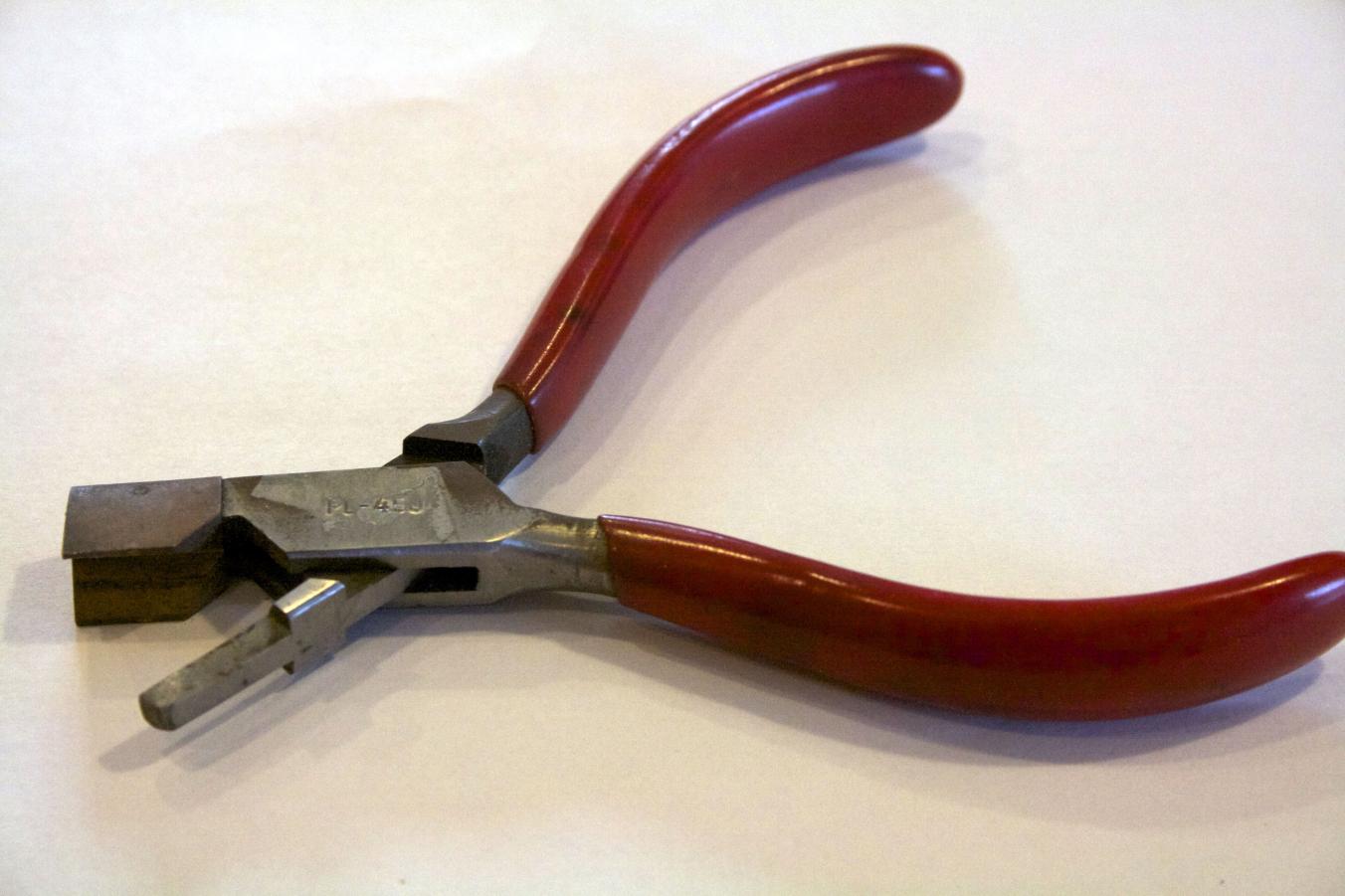

                Now back to installing the push rods. A tool I used for bending rings for sizing was called a Bow Closing Plier - I used a larger plier all the time, but I had this smaller one with a brass jaw that I never used. However it seemed perfect for this application.
                Click image for larger version

Name:	push rods 017.jpg
Views:	1
Size:	102.1 KB
ID:	65836Click image for larger version

Name:	push rods 018.jpg
Views:	1
Size:	112.6 KB
ID:	65837

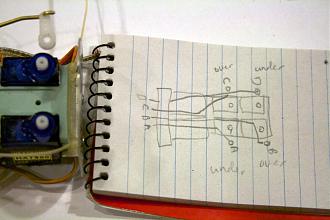

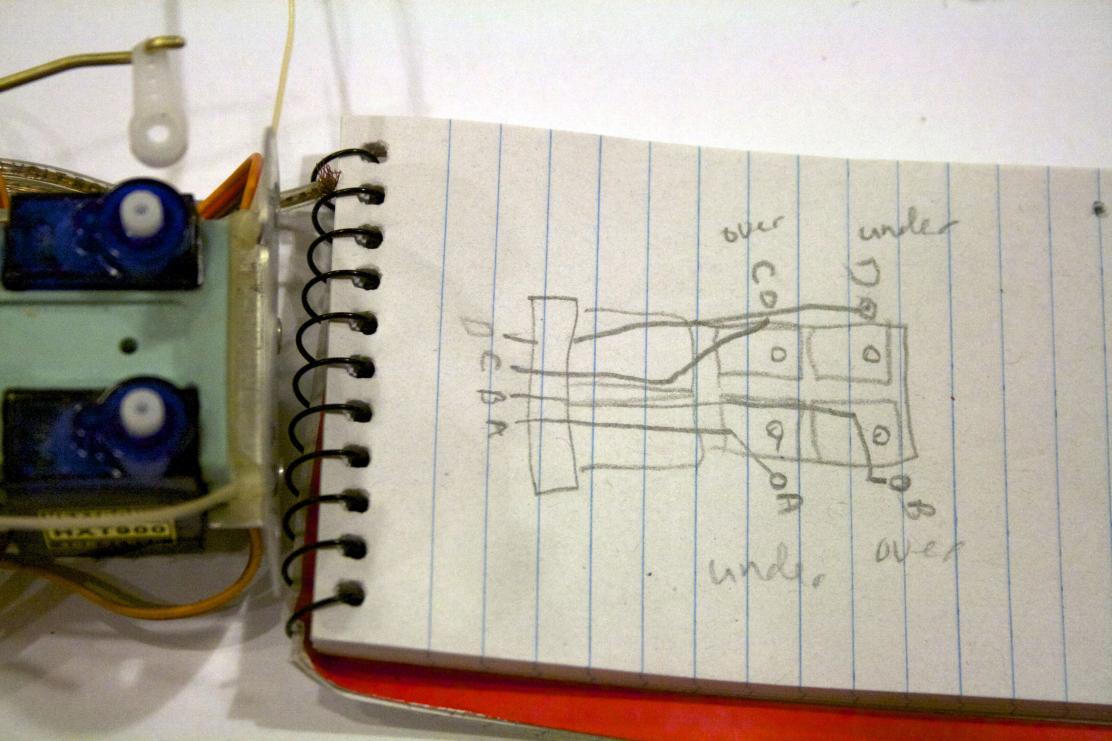

                I drew out the layout that I saw David had used. I noticed he had 2 come in over the top of the arm and 2 come in under the arm.
                Click image for larger version

Name:	push rods 019.jpg
Views:	1
Size:	95.7 KB
ID:	65838

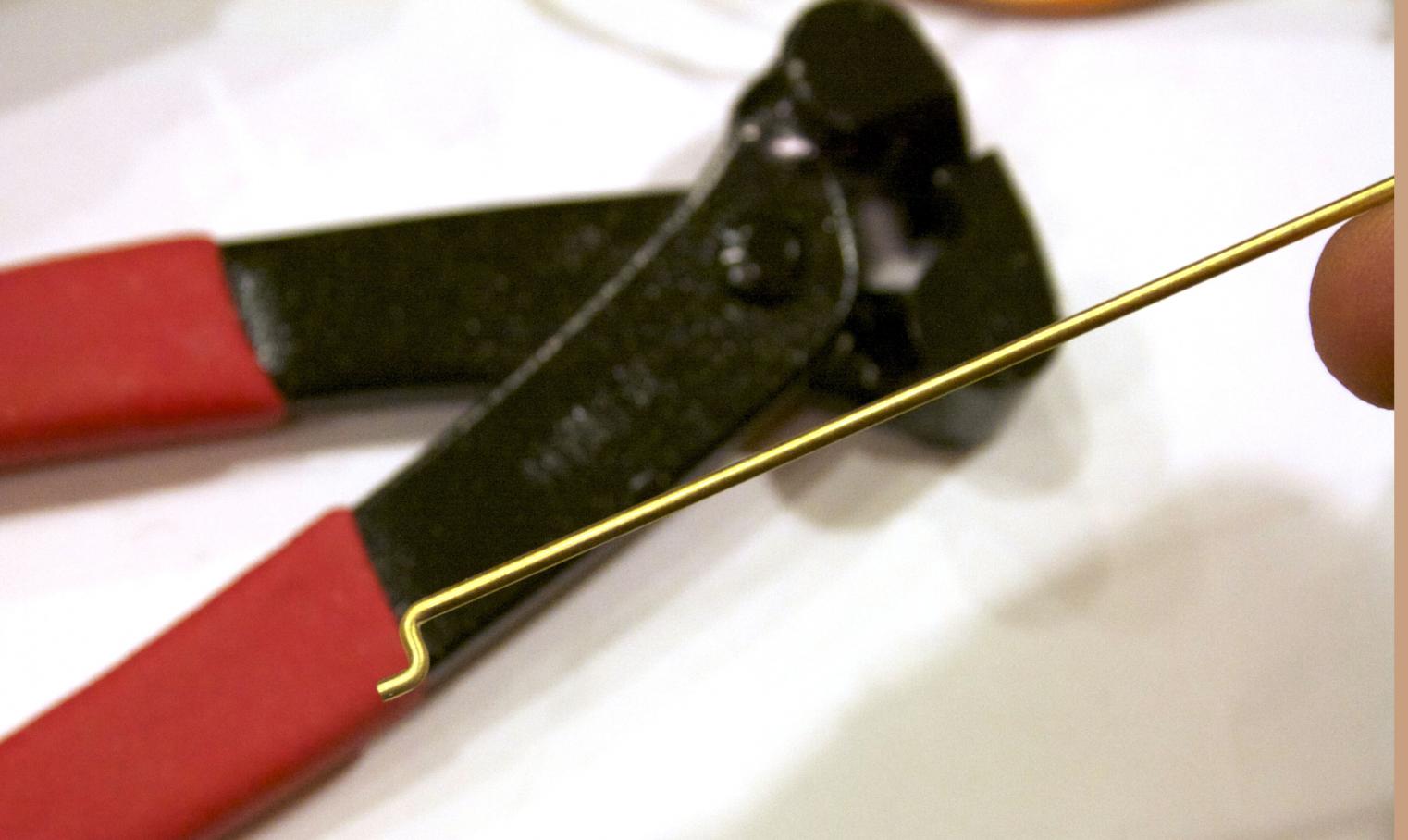

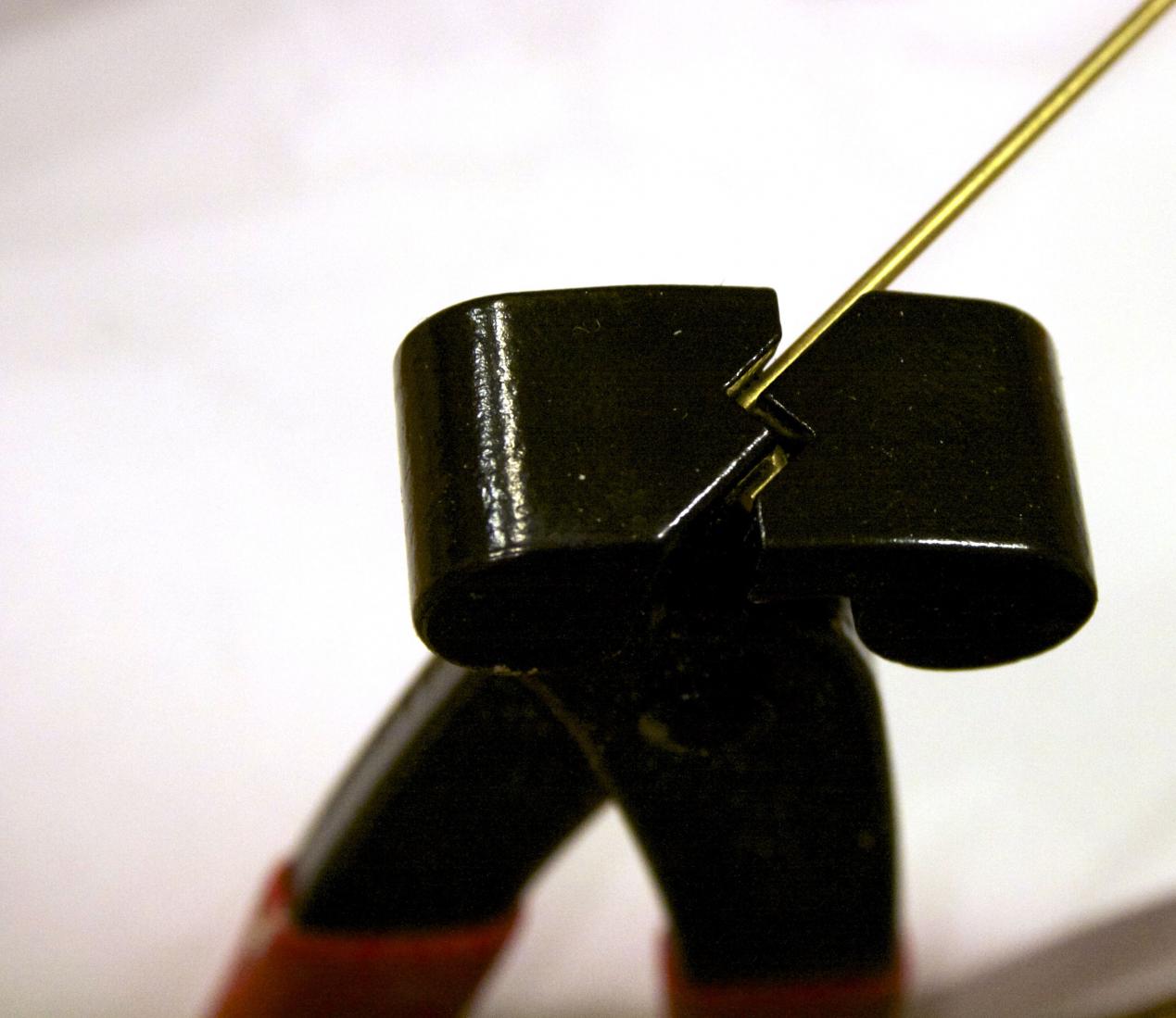

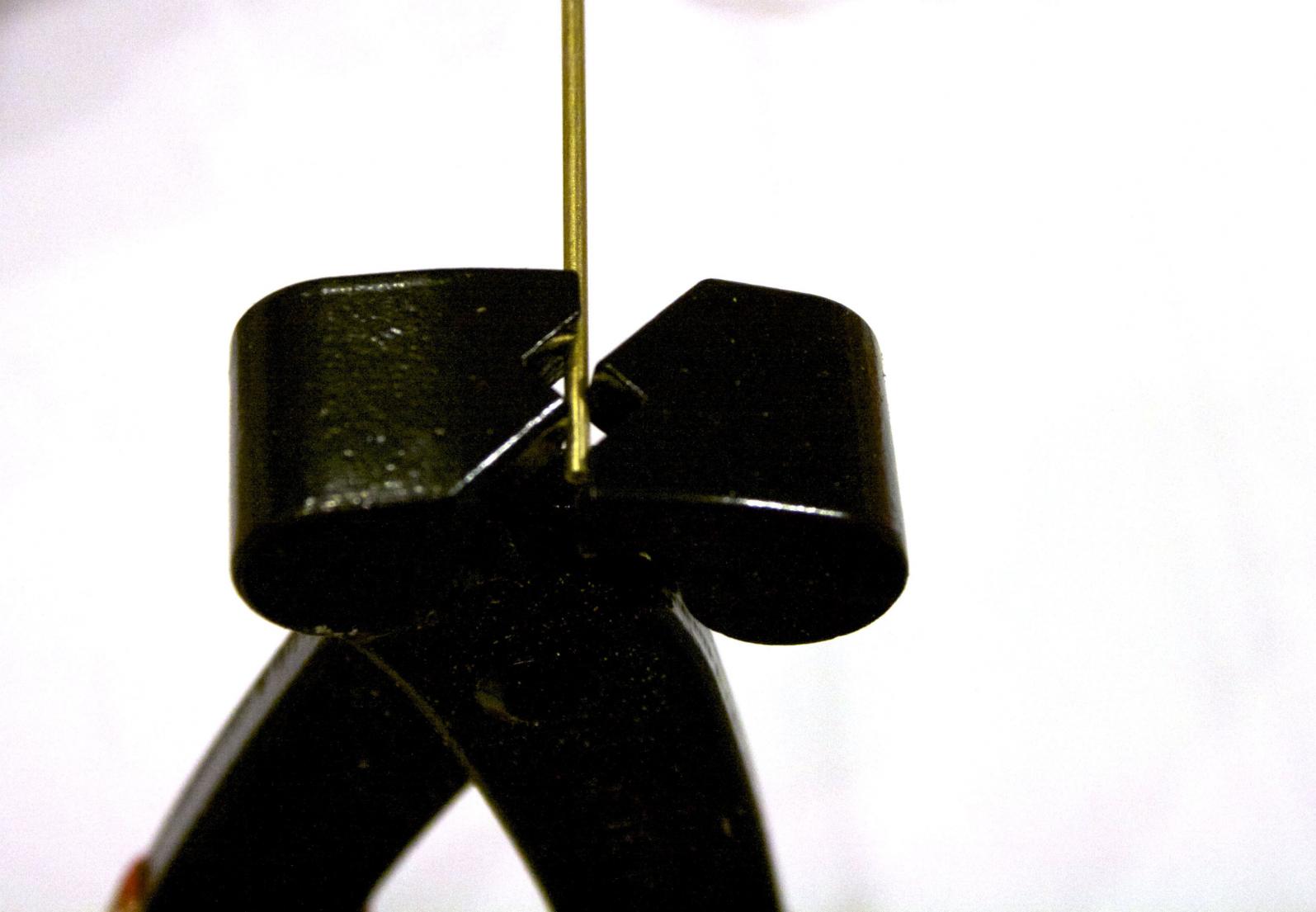

                I needed to make a couple of push rods myself and my son gave me a Z bender for the holidays. This plier is so simple it was fun just bending ends with it.
                Click image for larger version

Name:	push rods 020.jpg
Views:	1
Size:	95.1 KB
ID:	65839Click image for larger version

Name:	push rods 021.jpg
Views:	1
Size:	100.0 KB
ID:	65840Click image for larger version

Name:	push rods 022.jpg
Views:	1
Size:	97.9 KB
ID:	65841

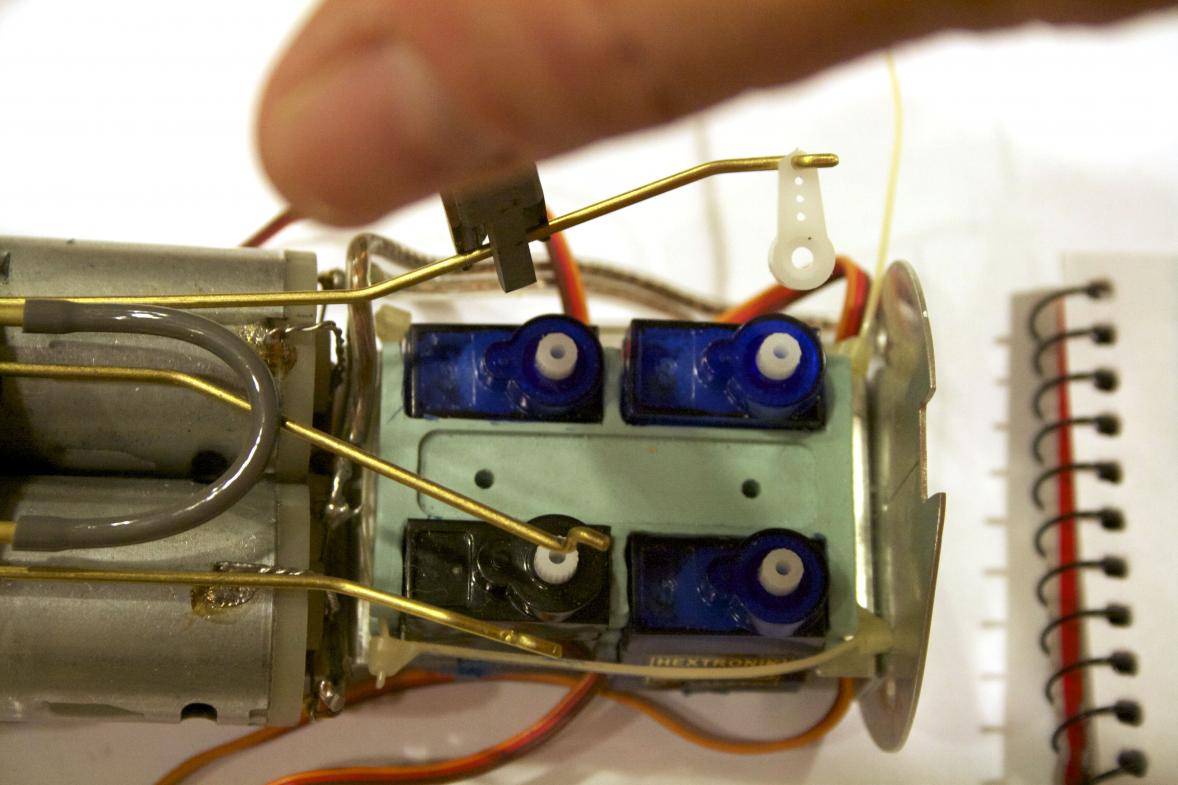

                Then using the bow closing plier with brass jaw it was mostly simple getting things bent.
                Click image for larger version

Name:	push rods 023.jpg
Views:	1
Size:	91.8 KB
ID:	65842Click image for larger version

Name:	push rods 024.jpg
Views:	1
Size:	89.5 KB
ID:	65843Click image for larger version

Name:	push rods 025.jpg
Views:	1
Size:	90.9 KB
ID:	65844


                The one push rod that I am not thrilled with is the one connected to the servo in front of the black servo. Here is a short video:
                <span style="letter-spacing: 0.0px">
                It was an ugly push rod, and I will probably will need to re-do it. However, I will do that once my wFLY TX and Sombra labs RX come in!!!!!!
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                Comment

                • He Who Shall Not Be Named
                  Moderator
                  • Aug 2008
                  • 12321

                  Trout,

                  An excellent posting there! Well illustrated, adequate text, and the video was the crowning touch. And you got your photos posted at just the right size for these tired old eyes.

                  I put my SD pushrods to the second from center hole in the servo bell-crank -- that permits clearance of the pushrod within the cylinder as the servo mount is configured as it arrives. You'll figure that out when you make up the linkage to the fittings kit supplied control surface operating shaft bell-cranks -- their pushrod holes are the same distance from center. Since your servo bell-cranks have more throw than the operating shaft bell-cranks, you'll be over-driving those surfaces right into their stops; your, 'Duh' moment awaits you, sir. Brace yourself.

                  And I love your showing off of the specialized tools used to give form to the servo pushrods. You a Jeweler? You gotta get that right-angle bend out of that one ugly pushrod pal .... as you observed.

                  David
                  Who is John Galt?

                  Comment

                  • trout
                    Admiral
                    • Jul 2011
                    • 3547

                    David,
                    I hear you and will redo my servos to the second hole (and third?), Thank you for saving me from a duh moment....did I miss that bit of information? (looking at the photo I did)
                    Yes, I was a jeweler. Sold my business 20 years ago (Tried to save a marriage, did not help) - went to work for the Judicial branch of our Government.
                    LOL, that pushrod is a really ugly pushrod, one bad turn and it just kept getting uglier from there. David, Is this your setup?
                    Click image for larger version

Name:	David_WTC 3.jpg
Views:	1
Size:	88.4 KB
ID:	65846

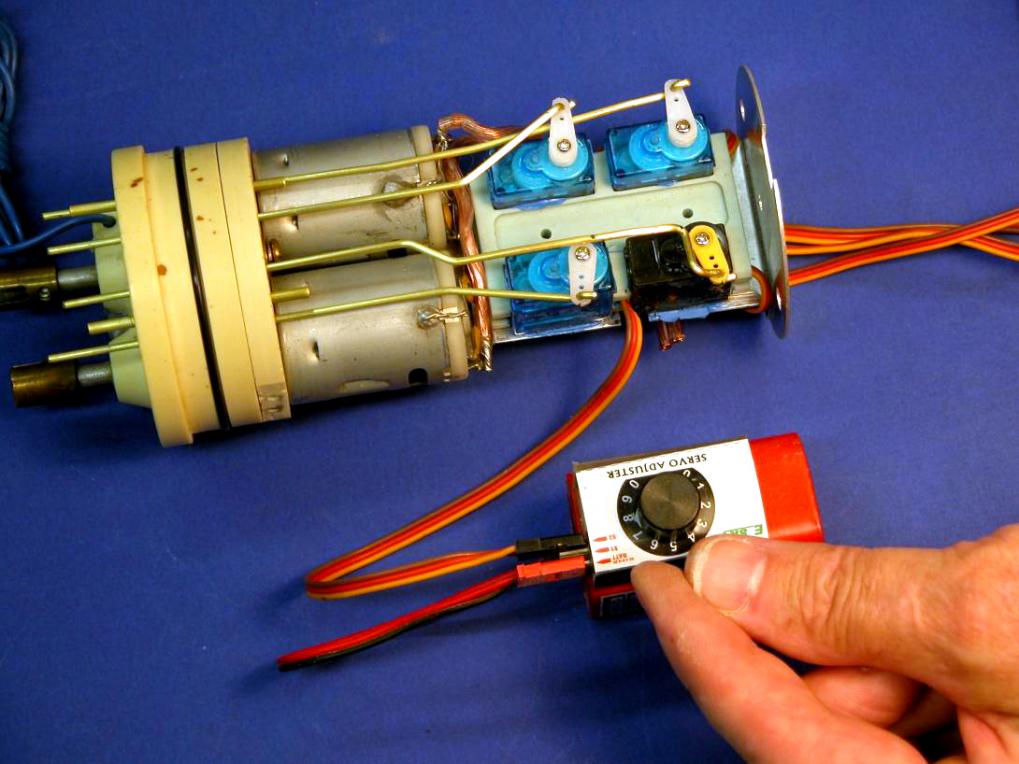

                    If this is yours, I see that you indeed use the second hole on the port side of your driver and the third hole on the starboard side. Is it safe to guess that your setup going from the top of the picture are.....
                    Click image for larger version

Name:	David_WTC Details.jpg
Views:	1
Size:	91.2 KB
ID:	65847
                    Last edited by trout; 01-03-2012, 03:47 AM.
                    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                    Comment

                    • He Who Shall Not Be Named
                      Moderator
                      • Aug 2008
                      • 12321

                      Yeah, that's a recent set-up I did, a customer was having problems so he sent it to me to fix.

                      C is bow plane retract and D is stern planes -- and you want that one in the third hole as you'll need all the throw you can get out of that bell-crank in order to movie the swing-arm enough to fully retract-deploy the bow planes.

                      David
                      Who is John Galt?

                      Comment

                      • trout
                        Admiral
                        • Jul 2011
                        • 3547

                        David,
                        Is there any reason I should not mirror A+B pushrods for C+D? and not do the funky bends that C does? I am getting better at doing these. I got the black servo because its response time was faster and I thought I would use it for the ADF2 for faster responses to pitch. I am going to imagine your response...... it will begin with "Stop over thinking..." So I can just let it stay where it is, or I can rebuild it once more.....we have the technology....
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment

                        • He Who Shall Not Be Named
                          Moderator
                          • Aug 2008
                          • 12321

                          LOL. I've beat you up enough. You now, 'get it'.

                          Yeah, response time only matters in competitive helicopter and pattern events. Dumb, cheap, non-name-brand ugly servos are just fine for our applications.

                          Sure, mirror the geometry of the pushrods. I like symmetry!

                          David
                          Who is John Galt?

                          Comment

                          • trout
                            Admiral
                            • Jul 2011
                            • 3547

                            You got it! Thank you!
                            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                            Comment

                            • trout
                              Admiral
                              • Jul 2011
                              • 3547

                              I reconfigured the servos on the WTC - will post pictures tonight - and did a quick paint on the sub, not going to do much on detail until after sea trials.
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment

                              • trout
                                Admiral
                                • Jul 2011
                                • 3547

                                Here is the updated crayon drawing of the WTC with the pushrod designations and the way I ran the pushrods.
                                Click image for larger version

Name:	WTC layout so far.jpg
Views:	1
Size:	72.4 KB
ID:	65866

                                Please add any comments or suggestions to make this useful to others.
