Another ARKMODEL VII Build Blog

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #31
    Originally posted by He Who Shall Not Be Named View Post
    I would go with a higher capacity ESC, Viper Marine strikes my fancy.

    David
    David,

    I may step up the size of the ESC, those are the ones that Bob Martin used on his 80mm video build, and said would work OK! Would you look at my wiring diagram and tell me if it is correct for the counter rotation I need for the Type VII?

    https://www.youtube.com/watch?v=qdrVB1HJCOc

    Thanks,

    Rob
    "Firemen can stand the heat"
    Last edited by rwtdiver; 03-30-2022, 06:08 PM.

    Comment


    • #32
      Two motors wired in parallel. Check. Polarity between the motors swapped. Check. You're good. Are the motors equipped with spark-suppression?
      Resident Luddite

      Comment


      • #33
        Originally posted by He Who Shall Not Be Named View Post
        Two motors wired in parallel. Check. Polarity between the motors swapped. Check. You're good. Are the motors equipped with spark-suppression?
        Not sure on the spark-suppression David, could you enlighten me on spark suppression? I have not run into that term with RC type motors!

        Rob
        "Firemen can stand the heat"

        Comment


        • #34
          Originally posted by rwtdiver View Post

          Not sure on the spark-suppression David, could you enlighten me on spark suppression? I have not run into that term with RC type motors!

          Rob
          "Firemen can stand the heat"

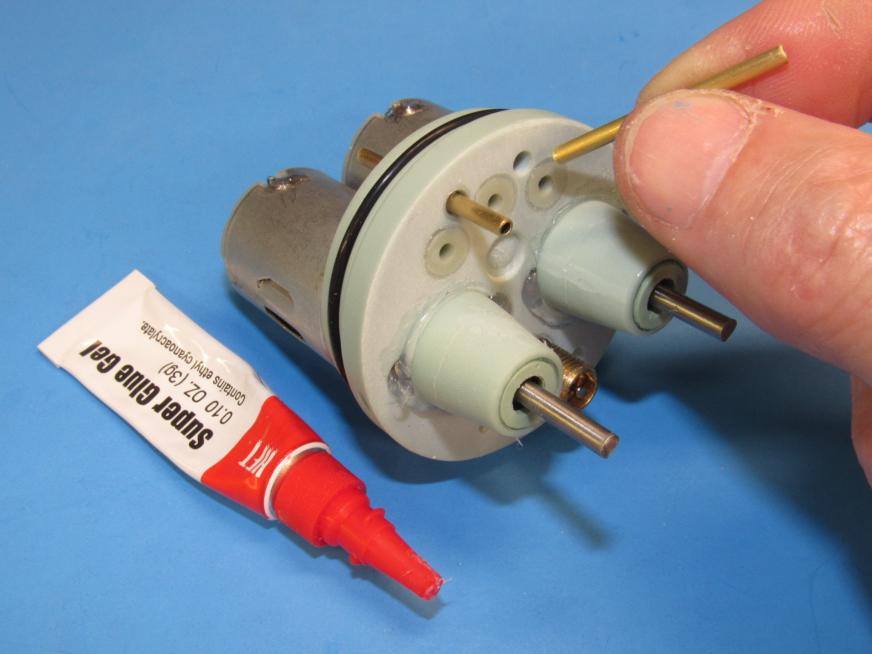

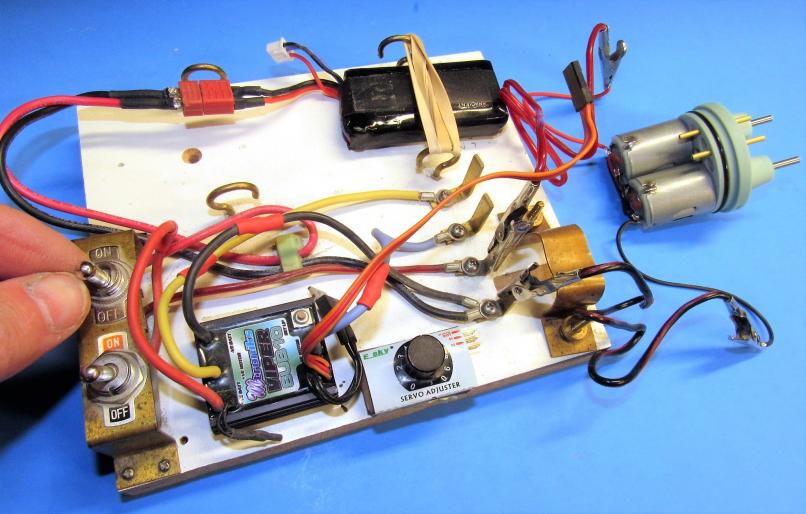

          Two, sometimes three .01uF ceramic capacitors across the motor terminals and ground (motor can).

          If your motor has them pre-installed you'll see a wire coming out of the back-plate and wrapped around a pole -- if that's the case, spark-suppression is already in place. If not, you add your own as I've illustrated below. Same caps, same installation no matter the motor size. Only for brushed motors, I might add. Brushless motors don't need them.


          Click image for larger version  Name:	005.JPG Views:	0 Size:	58.3 KB ID:	160562Click image for larger version  Name:	008.JPG Views:	0 Size:	79.6 KB ID:	160563Click image for larger version  Name:	004 (2).JPG Views:	0 Size:	61.8 KB ID:	160564Click image for larger version  Name:	027.JPG Views:	0 Size:	58.8 KB ID:	160565Click image for larger version  Name:	IMG_1592.JPG Views:	0 Size:	51.4 KB ID:	160568Click image for larger version  Name:	IMG_1594.JPG Views:	0 Size:	56.5 KB ID:	160569
          Click image for larger version  Name:	IMG_1747.JPG Views:	0 Size:	39.5 KB ID:	160570
          Attached Files
          Last edited by He Who Shall Not Be Named; 03-31-2022, 02:23 AM.
          Resident Luddite

          Comment


          • #35
            Originally posted by He Who Shall Not Be Named View Post

            Two, sometimes three .01uF ceramic capacitors across the motor poles and ground (motor can).

            If your motor has them pre-installed you'll see a wire coming out of the back-plate and wrapped around a pole -- if that's the case, spark-suppression is already in place. If not, you add your own as I've illustrated below. Same caps, same installation no matter the motor size. Only for brushed motors, I might add. Brushless motors don't need them.


            Click image for larger version Name:	005.JPG Views:	0 Size:	58.3 KB ID:	160562Click image for larger version Name:	008.JPG Views:	0 Size:	79.6 KB ID:	160563Click image for larger version Name:	004 (2).JPG Views:	0 Size:	61.8 KB ID:	160564Click image for larger version Name:	027.JPG Views:	0 Size:	58.8 KB ID:	160565Click image for larger version Name:	IMG_1592.JPG Views:	0 Size:	51.4 KB ID:	160568Click image for larger version Name:	IMG_1594.JPG Views:	0 Size:	56.5 KB ID:	160569
            Click image for larger version Name:	IMG_1747.JPG Views:	0 Size:	39.5 KB ID:	160570
            Thanks David, now I understand what you are talking about. I do not see any type wire coming out of the back plates at all. I am going to assume at this point that these motors do not have the spark suppression installed.

            I am going to check with Bob and see if he can give me some more information on the motors that are installed in his 70mm and 80mm WTC!

            David, if you do not have spark suppression caps on these brushed motors, could this cause radio interference or any overall interference in other components?

            Thanks for all your help here David, I really do appreciate your help.

            Rob
            "Firemen can stand the heat"

            Comment


            • #36
              Originally posted by rwtdiver View Post

              Thanks David, now I understand what you are talking about. I do not see any type wire coming out of the back plates at all. I am going to assume at this point that these motors do not have the spark suppression installed.

              I am going to check with Bob and see if he can give me some more information on the motors that are installed in his 70mm and 80mm WTC!

              David, if you do not have spark suppression caps on these brushed motors, could this cause radio interference or any overall interference in other components?

              Thanks for all your help here David, I really do appreciate your help.

              Rob
              "Firemen can stand the heat"
              Yes, check with Bob first.

              If these brushed motors are not equipped with spark-suppressors then, yes, there will be a lot of 'electrical noise' running up and down the propulsion and control wiring.

              That 'noise' (RF spikes of about 20mHz emanating at a cycle rate driven by motor speed and number of motor poles) is an artifact of the fundamental motor design; brushed motors employ a rotary mechanical switch (commutator) that turns the armature pole fields off/on as they rotate about the repelling magnets set within the motor case.

              Though todays electronic devices are very well isolated from outside interference sources, its good practice to stop such electrical noise at the source than risk it degrading the performance of the other devices aboard your very expensive submarine play-toy.

              David
              Resident Luddite

              Comment


              • #37
                I'm not the manufacturer of those cylinders, but based on what I've seen during that one cylinder setup I'm guessing those are just standard can motors with no noise suppression. Installation of the caps is quick and easy and does help mitigate any potential RF interference generated from the motors.

                Bob

                Comment


                • #38
                  OK! Thank you, David, for all your help and advice! Now that Bob has chimed in and the fact that he is not the manufacture, and the motors seem to be just the standard can motors. I am going to break out the soldering iron take the motors out and install the caps. I am going to install the caps on the 70mm WTC as well. Not sure but I was having a few glitches when running my Alfa sub, certainly could have been a spark suppression situation. I will keep you posted!

                  Thank you all again for your help and advice! "Still Learning"

                  Rob
                  "Firemen can stand the heat"

                  Comment


                  • #39
                    I do have another question about caps?!

                    Click image for larger version

Name:	ARKMODEL CAPS.jpg
Views:	64
Size:	34.1 KB
ID:	160584

                    Could I use either one of these sizes for the caps?

                    Sorry for the poor quality photo!

                    Rob
                    "Firemen can stand the heat"

                    Comment


                    • #40
                      any size will work, as long it is in the .01uF range of capacitance.

                      David
                      Resident Luddite

                      Comment


                      • #41
                        Originally posted by He Who Shall Not Be Named View Post
                        any size will work, as long it is in the .01uF range of capacitance.

                        David
                        Thanks David. The 104's should work.

                        This is the motor that is in the 70mm and the 80mm WTC and there is no spark suppression on these motors!

                        https://duckduckgo.com/?q=mfa+como+d...&t=crhs&ia=web

                        These manufacture should know that this motor was going into an RC type environment, and should have used the correct motor or at least installed the spark suppression before they installed the motor in the WTC! The motors will need to come out to do a good job of soldering, but you can solder on the power connections at the same time.

                        All the fun stuff to do in our hobby!!

                        Rob
                        "Firemen can stand the heat"

                        Comment


                        • #42
                          Originally posted by SubHuman View Post
                          I'm not the manufacturer of those cylinders, but based on what I've seen during that one cylinder setup I'm guessing those are just standard can motors with no noise suppression. Installation of the caps is quick and easy and does help mitigate any potential RF interference generated from the motors.

                          Bob
                          Bob,

                          To install the caps on the motors on the 80mm WTC is NOT a quick an easy installation! To try and solder the caps on with the motors inside the WTC (and do it right) is not an ideal situation! The motors need to come out. I understand fully that Nautilus Drydocks (Bob Martin) is not responsible for what some of his manufactures do, and if you are in this hobby (submarines) you better be ready for these type situations to pop up! I for one really appreciate the fact that we have Nautilus Drydocks and at one time David M. there for us to have all these products available to purchase!

                          Rob
                          "Firemen can stand the heat"
                          Last edited by rwtdiver; 03-31-2022, 03:55 PM.

                          Comment


                          • #43

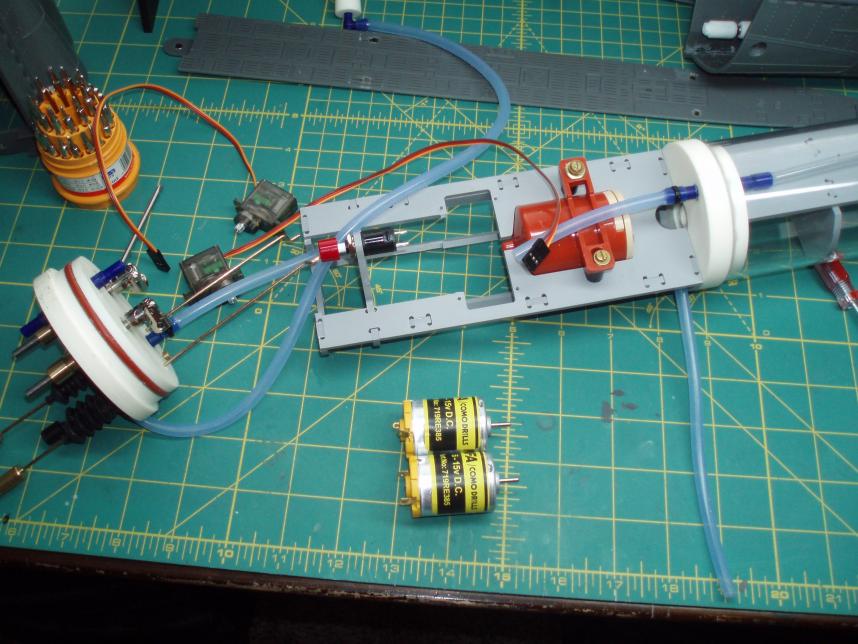

                            I have taken the two motors out from the parts tray!

                            Click image for larger version

Name:	P1010001.JPG
Views:	84
Size:	89.8 KB
ID:	160590

                            Now you have great access to the motors to install the caps and also the power connections to the motors as well! Like we have discussed on the Dive Tribe and in this forum many times, it's a good thing to get to know your WTC/ Sub drivers inside and out, so this little situation I have run into is offering up that opportunity to get to know these components!

                            Rob
                            "Firemen can stand the heat"

                            Comment


                            • #44
                              Originally posted by rwtdiver View Post
                              I have taken the two motors out from the parts tray!

                              Click image for larger version

Name:	P1010001.JPG
Views:	84
Size:	89.8 KB
ID:	160590

                              Now you have great access to the motors to install the caps and also the power connections to the motors as well! Like we have discussed on the Dive Tribe and in this forum many times, it's a good thing to get to know your WTC/ Sub drivers inside and out, so this little situation I have run into is offering up that opportunity to get to know these components!

                              Rob
                              "Firemen can stand the heat"
                              You are a 'glass half full' sort of guy, Rob. I like that. Know your turf! In no time flat you'll be the resident expert on that type WTC.

                              David
                              Resident Luddite

                              Comment


                              • #45
                                Thanks David,

                                Coming from you that makes me feel like someday I might just really start understanding this hobby! I came into it being a little on the cocky side (well maybe a lot) but it did not take long for you guys that really know this hobby well to level me and put me in my place! It is a tuff hobby to learn, but when you take the time to listen, study, and siphon as much knowledge from those that really understand this hobby, there is no reason why you can not do!

                                On that note, I did stop complaining and just made it happen!

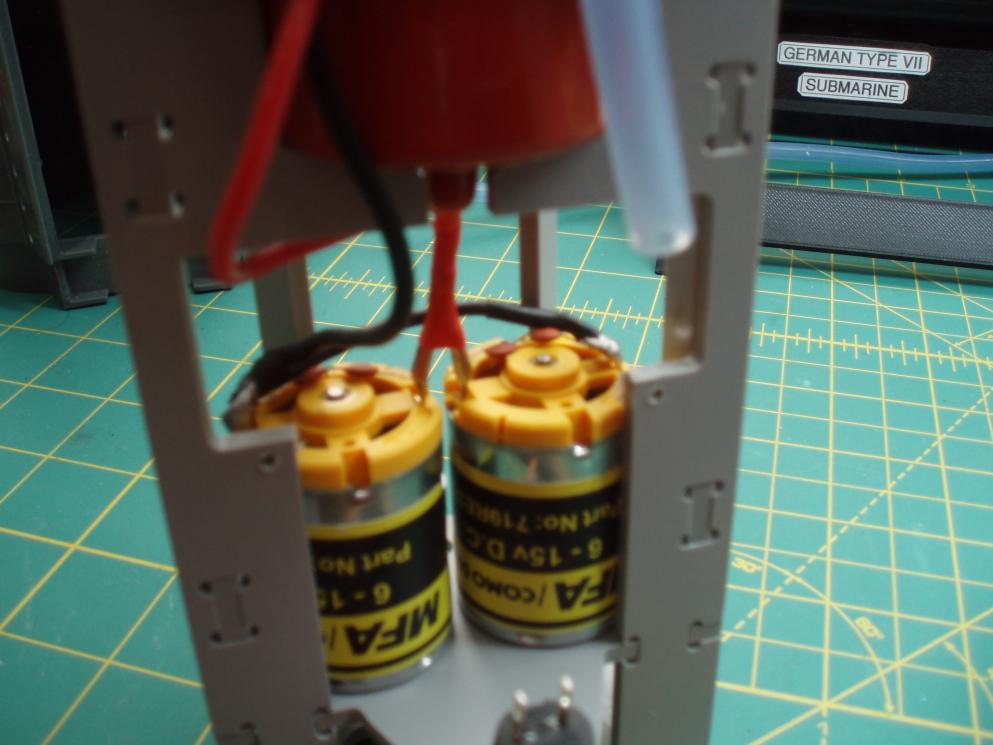

                                Click image for larger version

Name:	ARKMODEL CAPS 3.jpg
Views:	77
Size:	70.5 KB
ID:	160593

                                I managed to install the caps (spark suppression) and i also made the power connections to the motors while I was at it. The motors checked out, and counter rotation has been achieved.

                                Thanks for all the help with this process. Another lesson learned! Bob Martin has a good product here, but like everything with this hobby you need to adapt and adjust to when it's required.

                                Rob
                                "Firemen can stand the heat"

                                Comment
