Type XXXI U-2540 1:72 Scale Sub Build

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Originally posted by rwtdiver View Post

    Hi David!

    How did I know that you would be the one with the answers!!:-))

    Thank you very much for the great information. I sure do see the similarities in the photo of Foxtrot and the Type XXl sterns! Thank you for the photos David! Not sure what I am going to do at this point.

    Rob
    "Firemen can stand the heat"
    You can follow the German Type-21 imprint on almost all Soviet post-war designs on up to and including their NOVEMBER's. And a big part of our post-war designs was borrowed from the German boats as well.

    Clever people, those Germans... just don't ever let them get on top of you! They love to goose-step along streets not their own. Tulips Shall Grow (Madcap Models No. U1-5) - Bing video

    David
    Resident Luddite

    Comment


    • #17
      Originally posted by He Who Shall Not Be Named View Post

      You can follow the German Type-21 imprint on almost all Soviet post-war designs on up to and including their NOVEMBER's. And a big part of our post-war designs was borrowed from the German boats as well.

      Clever people, those Germans... just don't ever let them get on top of you! They love to goose-step along streets not their own. Tulips Shall Grow (Madcap Models No. U1-5) - Bing video

      David
      Thanks for the Bing video!

      Since I have been in the hobby I have certainly noticed how German design and engineering has influenced submarine technology as well as other endeavors they pursued!

      Rob
      "Firemen can stand the heat"

      Comment


      • #18
        Ultimately the clever little chap from County Clare had the right idea, though.
        Time to DIVE IN! https://www.facebook.com/groups/133360626703083/

        Comment


        • #19

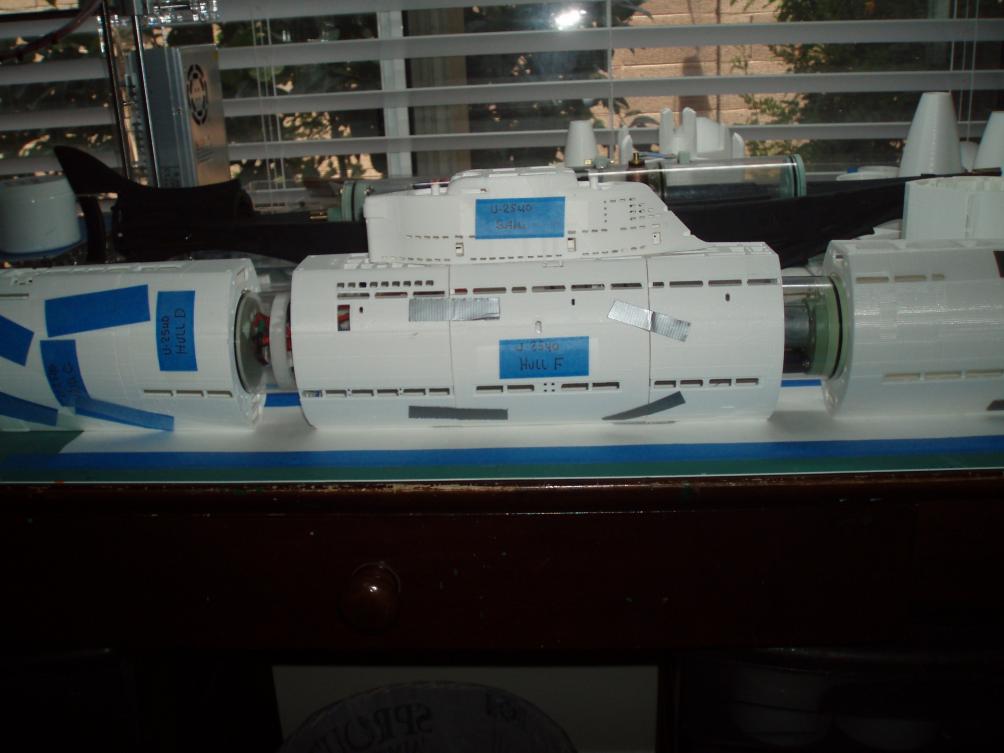

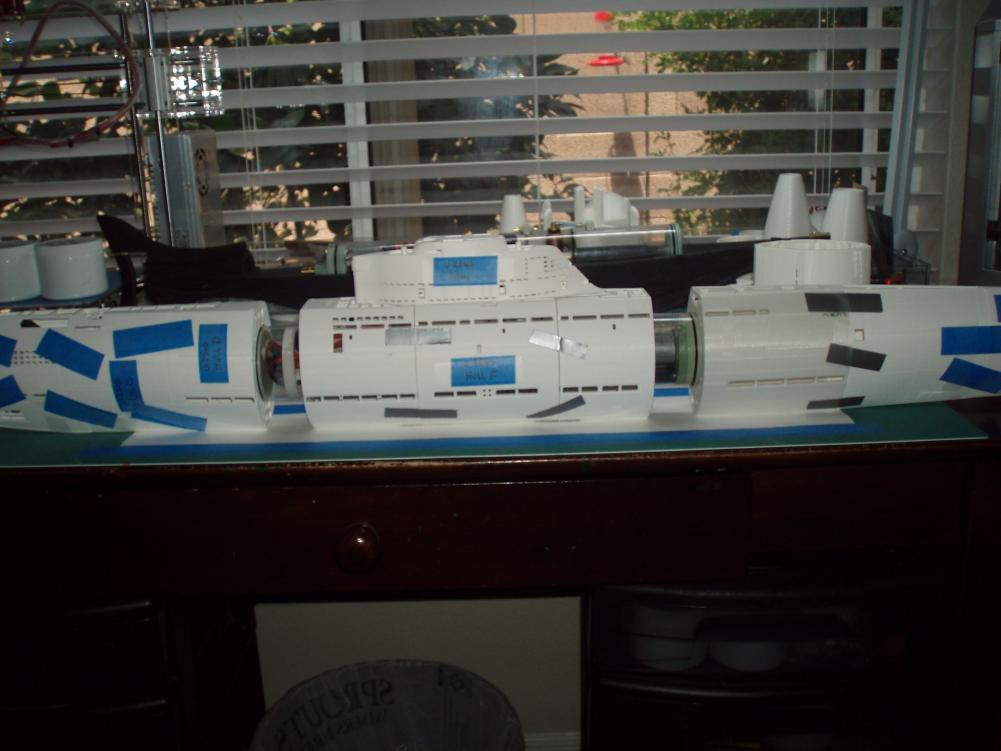

          I at least have a possible idea as to where I could make the joint separation to gain access to the WTC (SD)!

          Click image for larger version

Name:	P1010001.jpg
Views:	269
Size:	69.4 KB
ID:	150206Click image for larger version

Name:	P1010003.jpg
Views:	253
Size:	68.4 KB
ID:	150207

          Click image for larger version

Name:	P1010002.jpg
Views:	260
Size:	65.8 KB
ID:	150208

          I would be using the existing SD that I use on my HL Hunley! I could design a gear box similar to (David M.) design. Link up control surfaces with magnets, and use dog bones for the prop shafts!

          Rob
          "Firemen can stand the heat"

          Comment


          • #20
            Originally posted by Subculture View Post
            Ultimately the clever little chap from County Clare had the right idea, though.
            I should have known! (I had to look it up). John Holland. Sneaky, Andy... very sneaky.

            And, you're right!

            David
            Resident Luddite

            Comment


            • #21
              Originally posted by He Who Shall Not Be Named View Post

              I should have known! (I had to look it up). John Holland. Sneaky, Andy... very sneaky.

              And, you're right!

              David
              You guys have even got my wife (Masters Degree in Library Science) researching John Holland! She loves history! This guy has lots of submarine history!

              Click image for larger version

Name:	JH.jpg
Views:	246
Size:	11.1 KB
ID:	150215Click image for larger version

Name:	John Holland #2.jpg
Views:	229
Size:	30.4 KB
ID:	150216

              Very interesting gentleman for sure!

              Rob
              "Firemen can stand the heat"

              Comment


              • #22

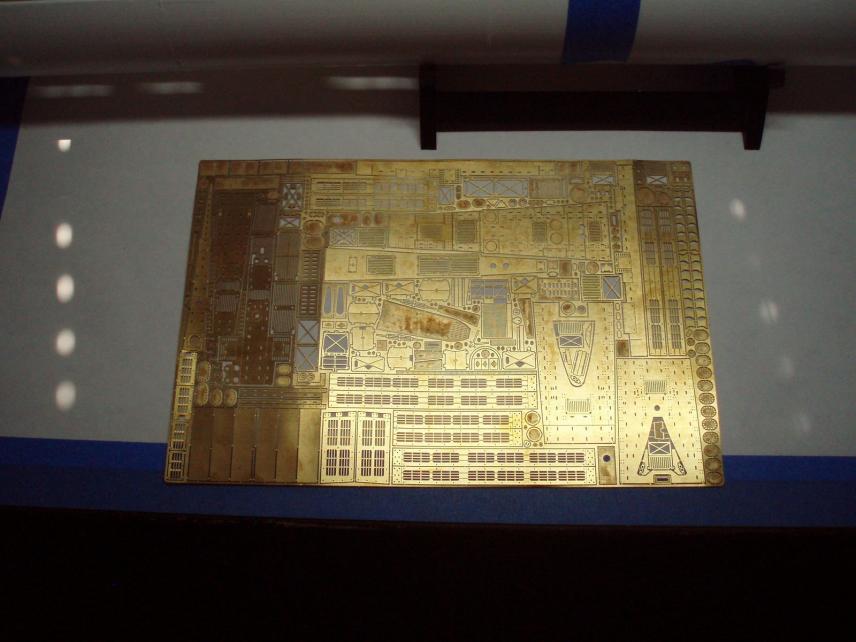

                I know this subject matter has been covered before! But I am going to be doing a lot brass work on the Type XXl. And I realize the brass will need some prep work before it gets applied to the model and the finishing work after!

                Click image for larger version

Name:	P1010099.jpg
Views:	235
Size:	58.5 KB
ID:	150856

                I know that it should be cleaned with laquer thinner, and then a bath in some sort of acid! I am thinking vinegar would do the job!? I have heard that some like to use a more aggressive acid! Any input would be appreciated! Thank you!

                Rob
                "Firemen can stand the heat"

                Comment


                • #23

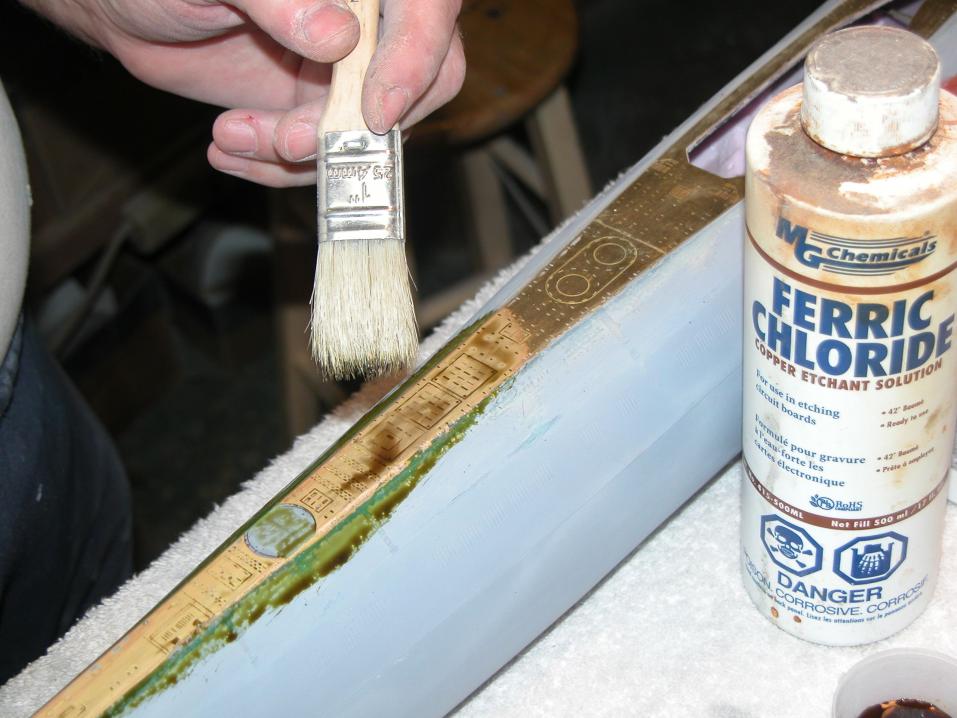

                  Ferric Chloride.

                  Click image for larger version

Name:	028.JPG
Views:	215
Size:	84.3 KB
ID:	150858Click image for larger version

Name:	PICT0015.JPG
Views:	207
Size:	87.7 KB
ID:	150859
                  Resident Luddite

                  Comment


                  • #24
                    Originally posted by He Who Shall Not Be Named View Post
                    Ferric Chloride.

                    Click image for larger version

Name:	028.JPG
Views:	215
Size:	84.3 KB
ID:	150858Click image for larger version

Name:	PICT0015.JPG
Views:	207
Size:	87.7 KB
ID:	150859
                    Thanks David,

                    I see you have the brass installed before the acid wash?! Is that the best way to do it? I thought I would just dip the entire sheet into a bath of the acid, and then clean it and cut the pieces out and install!?

                    Rob
                    "Firemen can stand the heat"

                    Comment


                    • #25
                      Originally posted by rwtdiver View Post

                      Thanks David,

                      I see you have the brass installed before the acid wash?! Is that the best way to do it? I thought I would just dip the entire sheet into a bath of the acid, and then clean it and cut the pieces out and install!?

                      Rob
                      "Firemen can stand the heat"

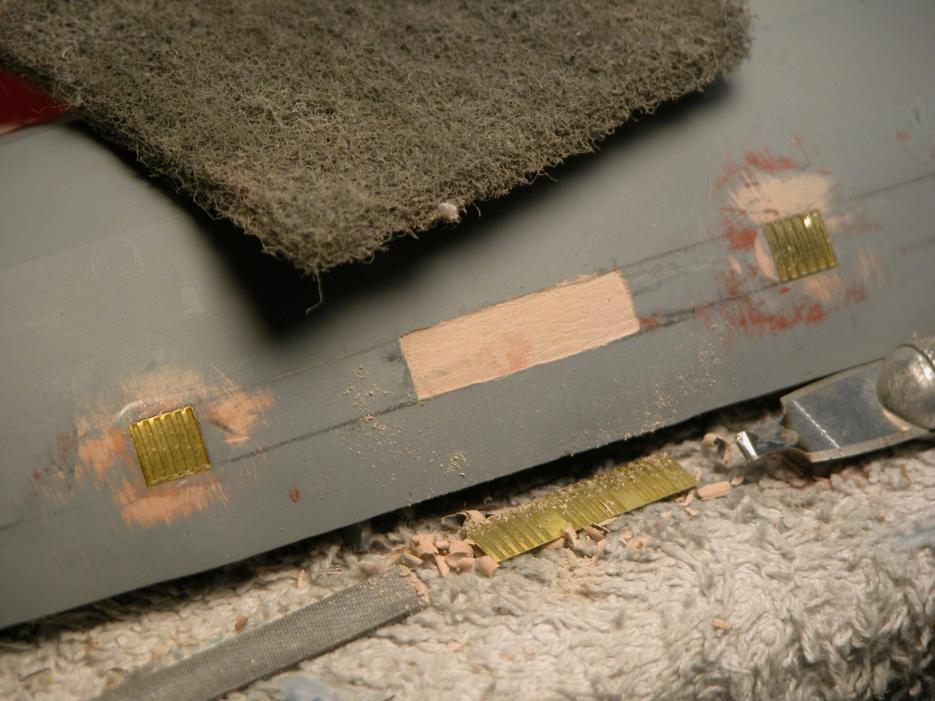

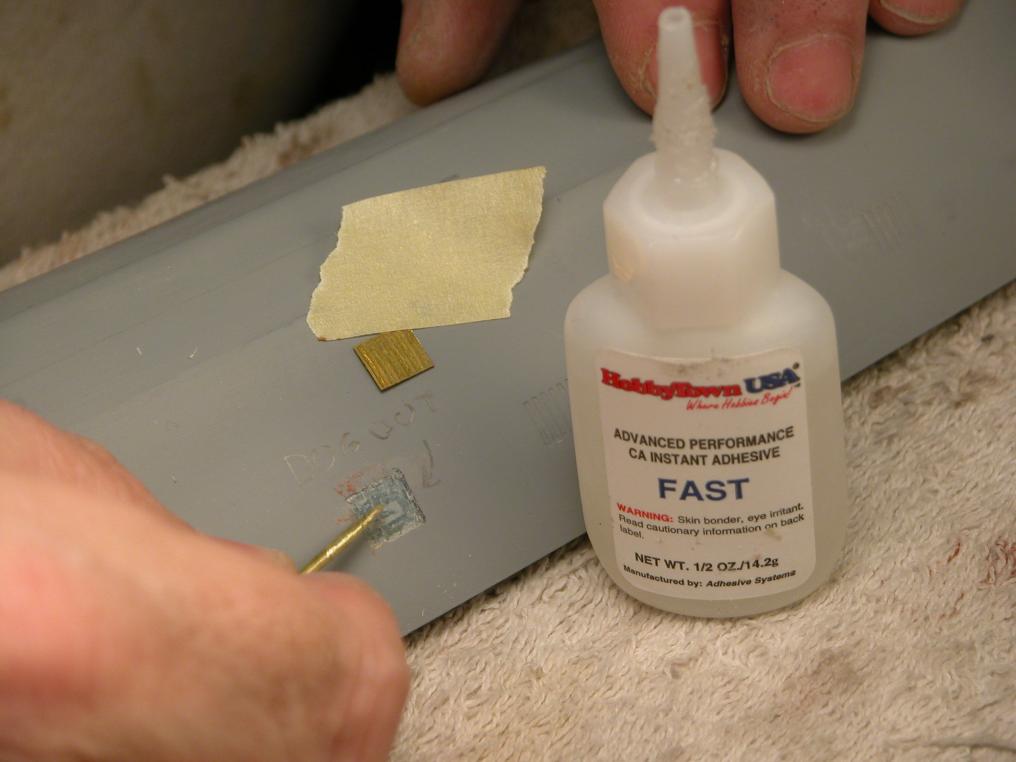

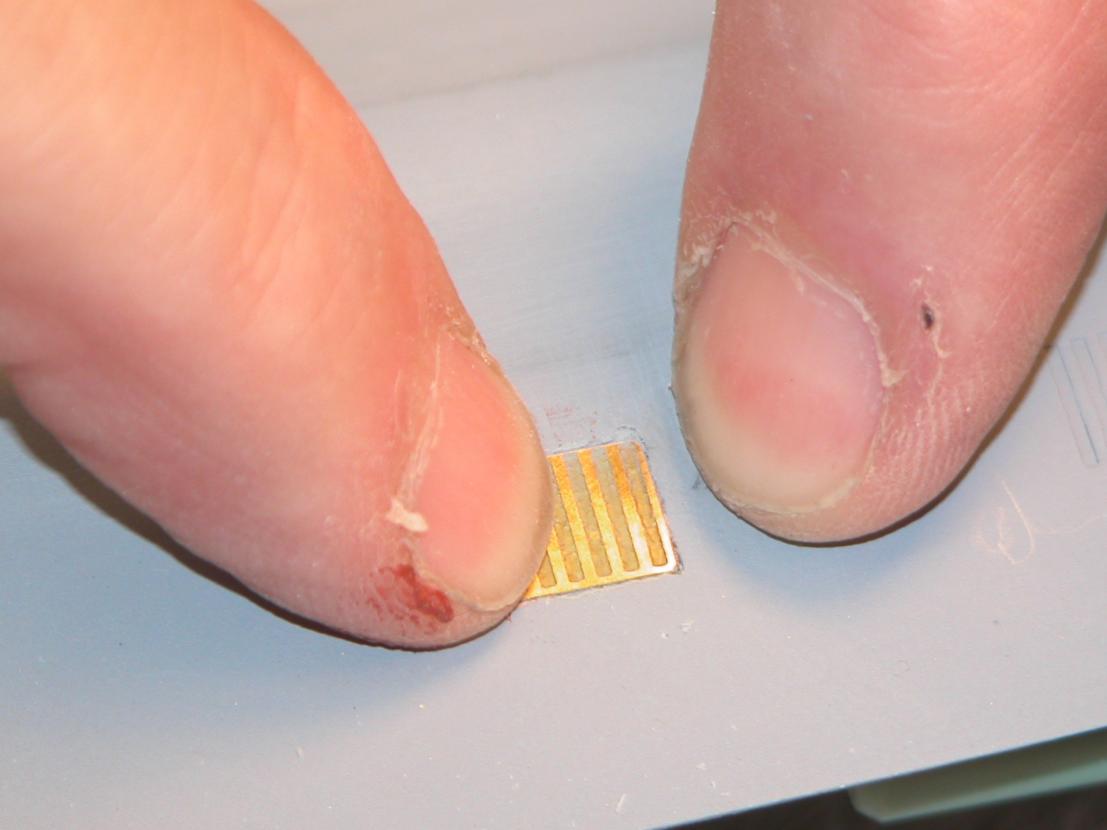

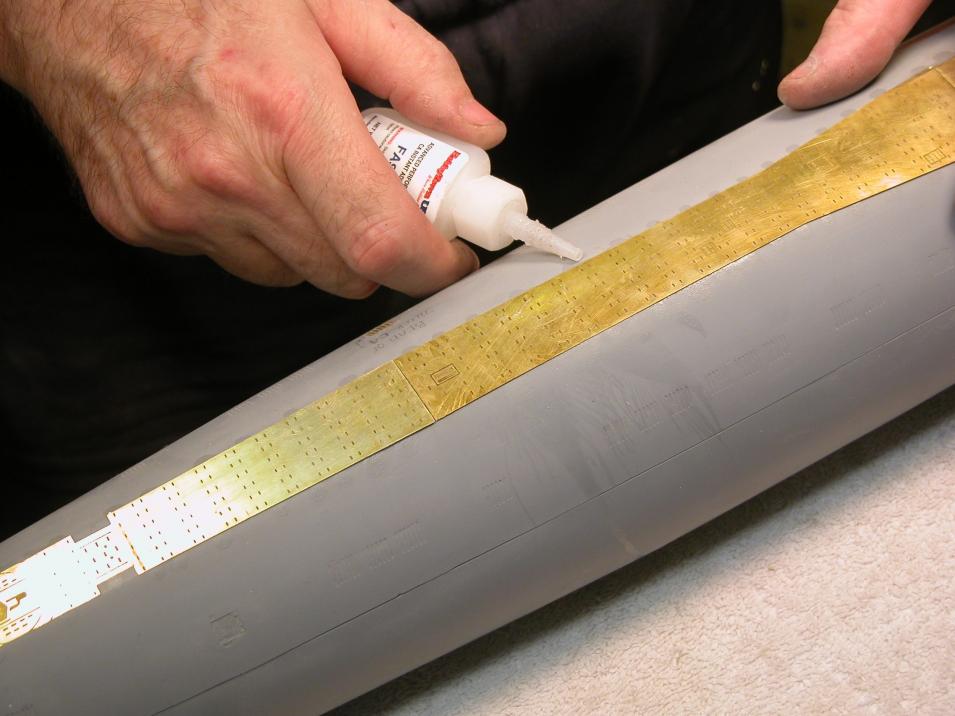

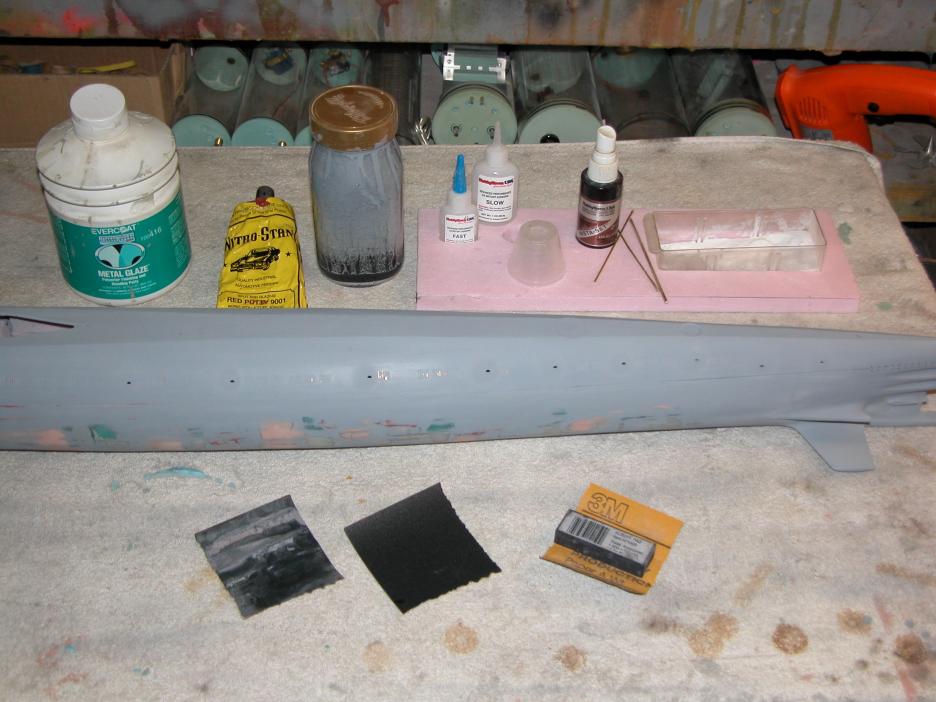

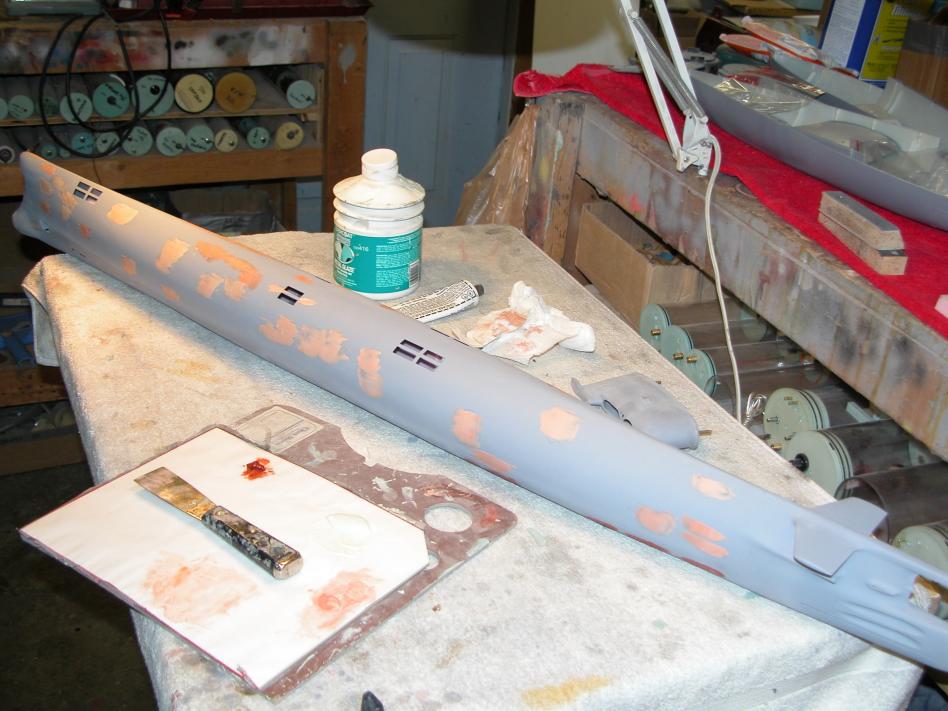

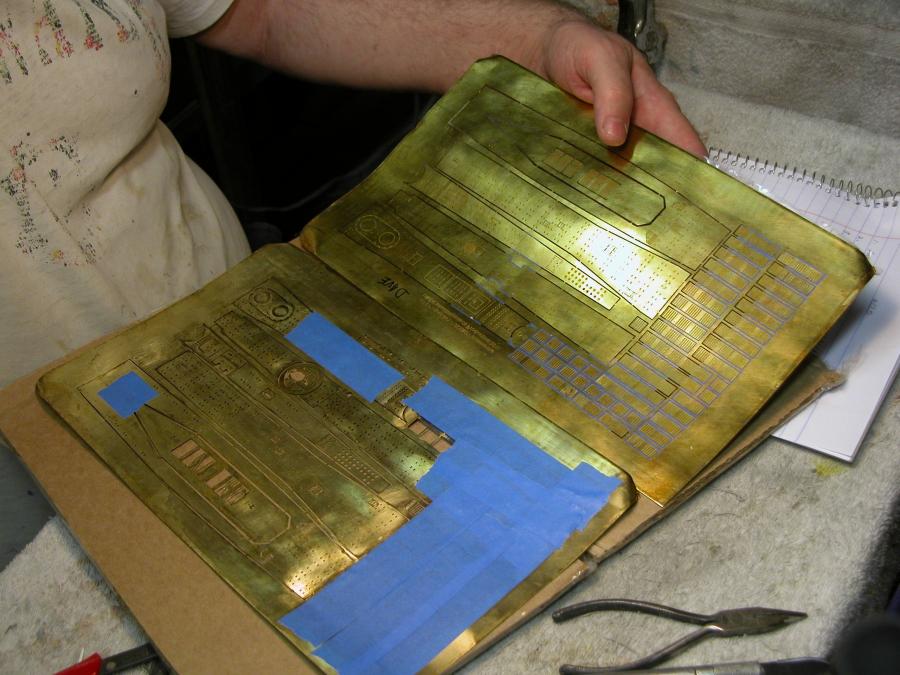

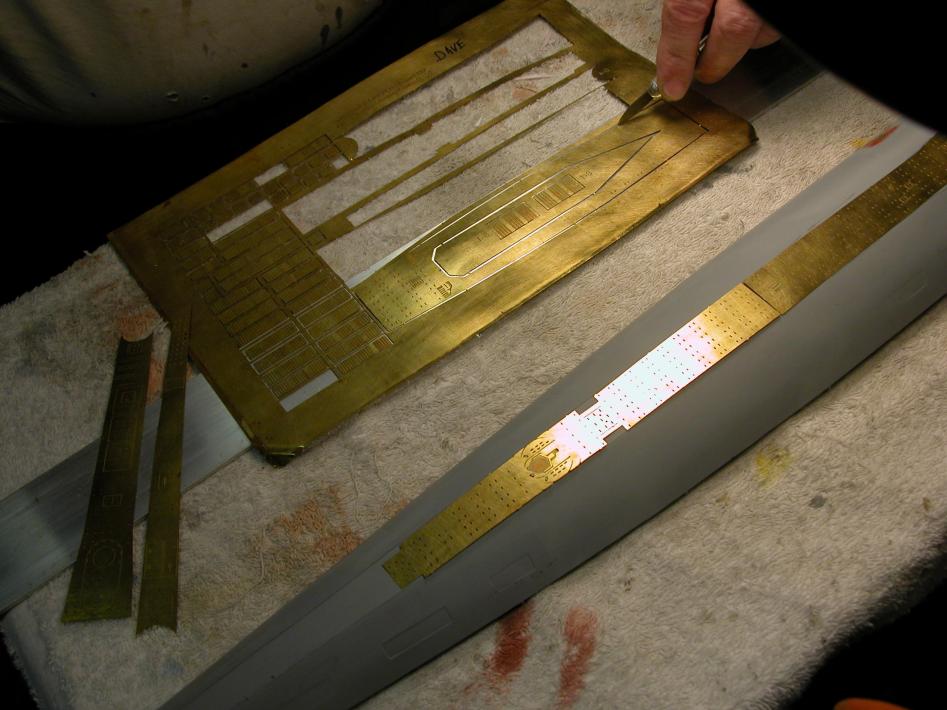

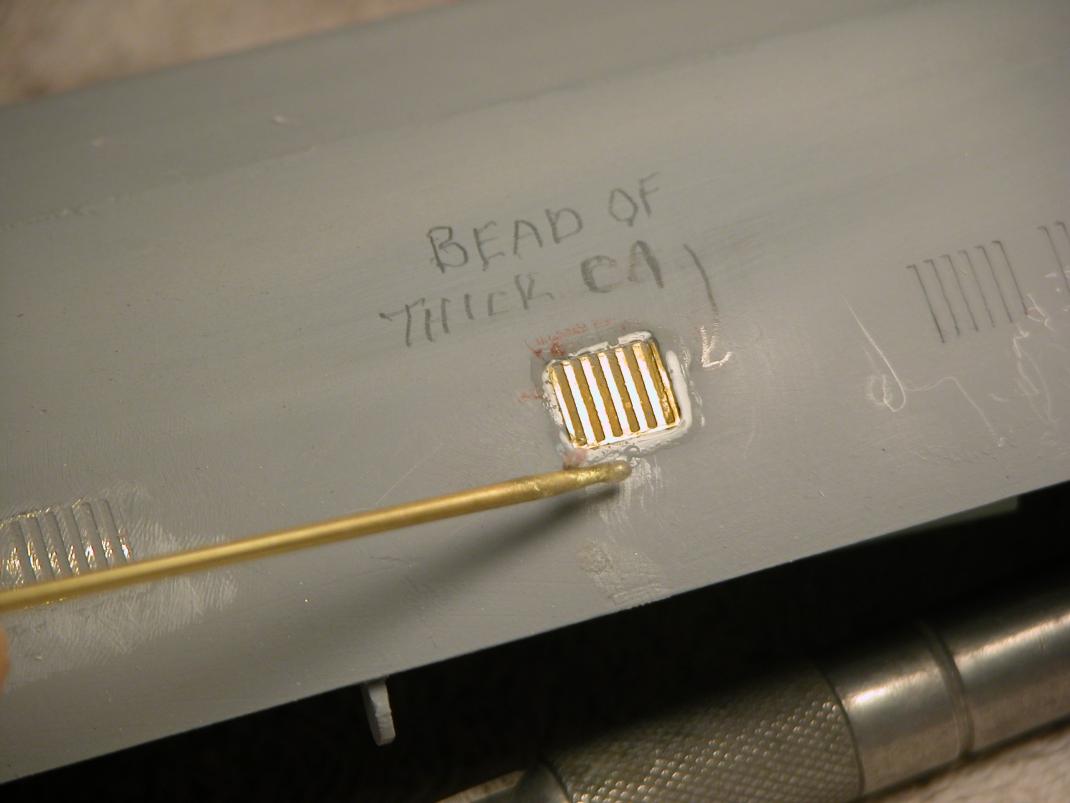

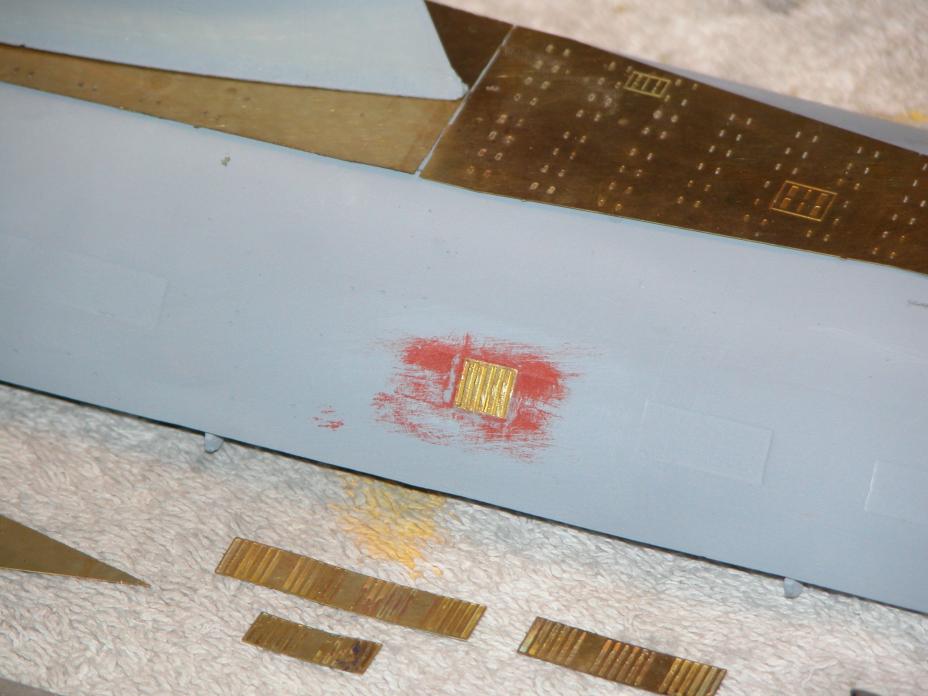

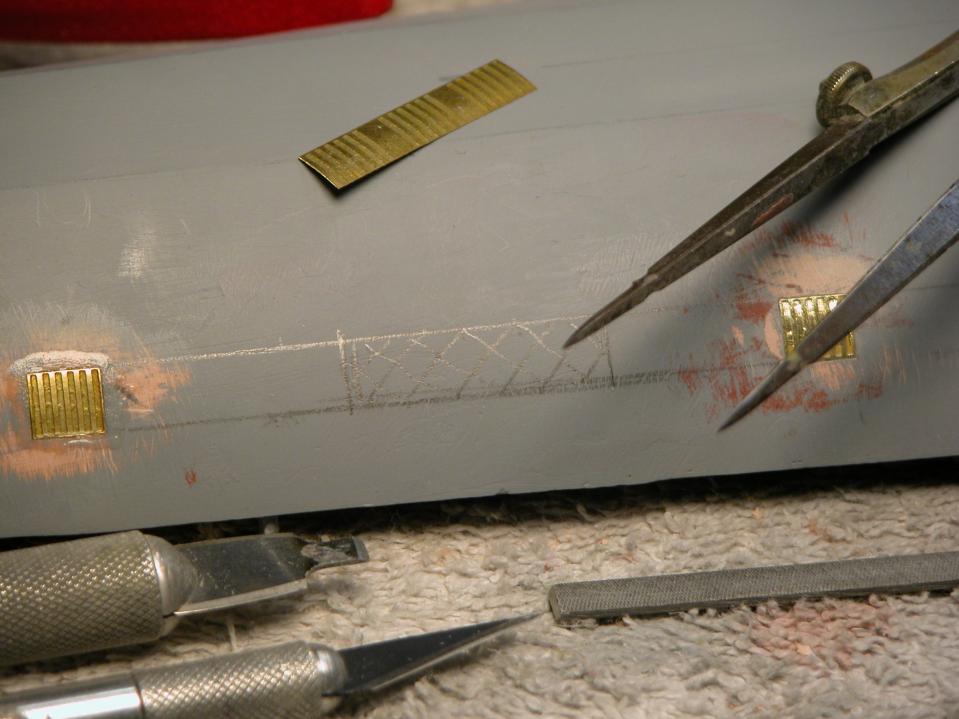

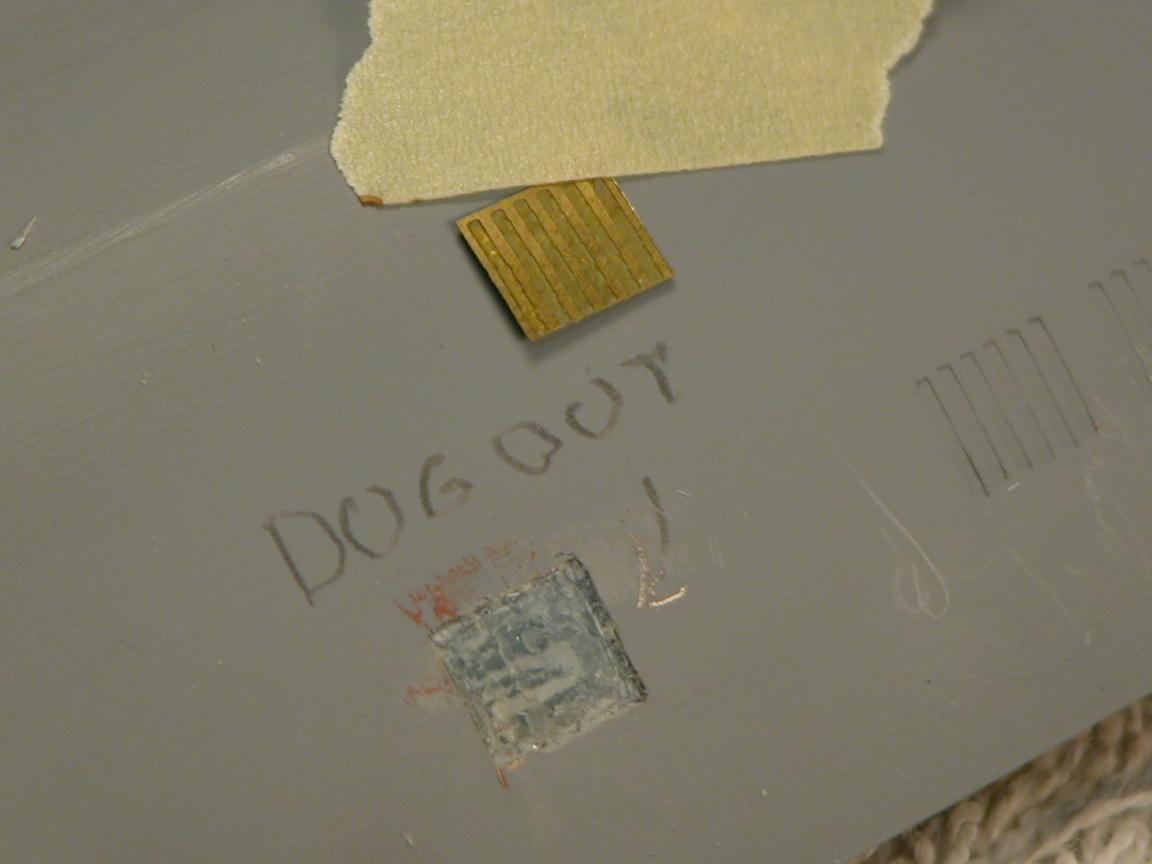

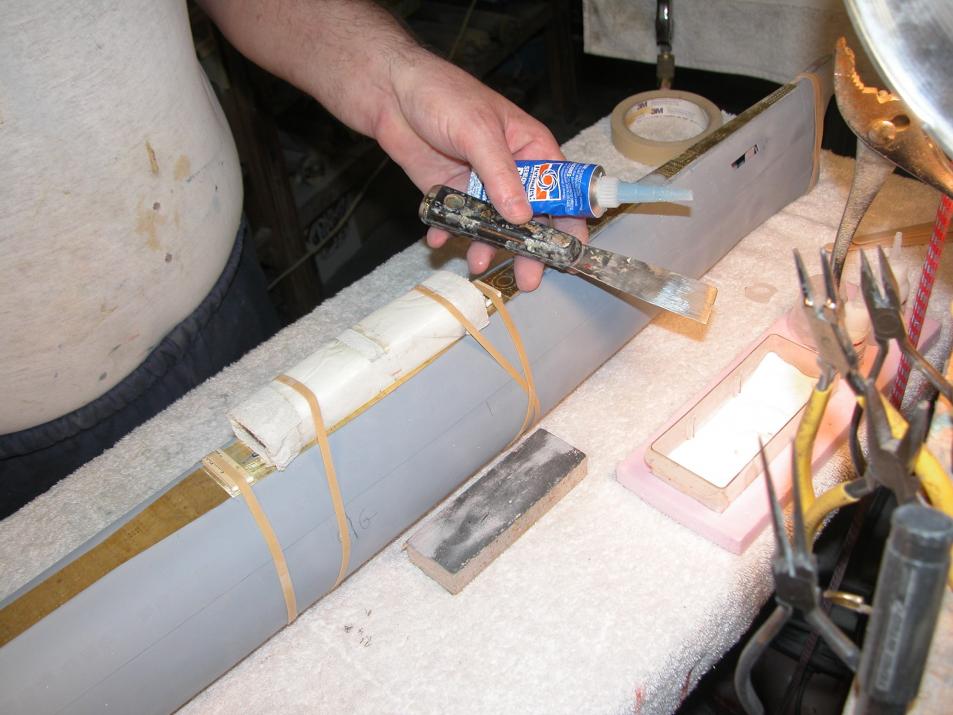

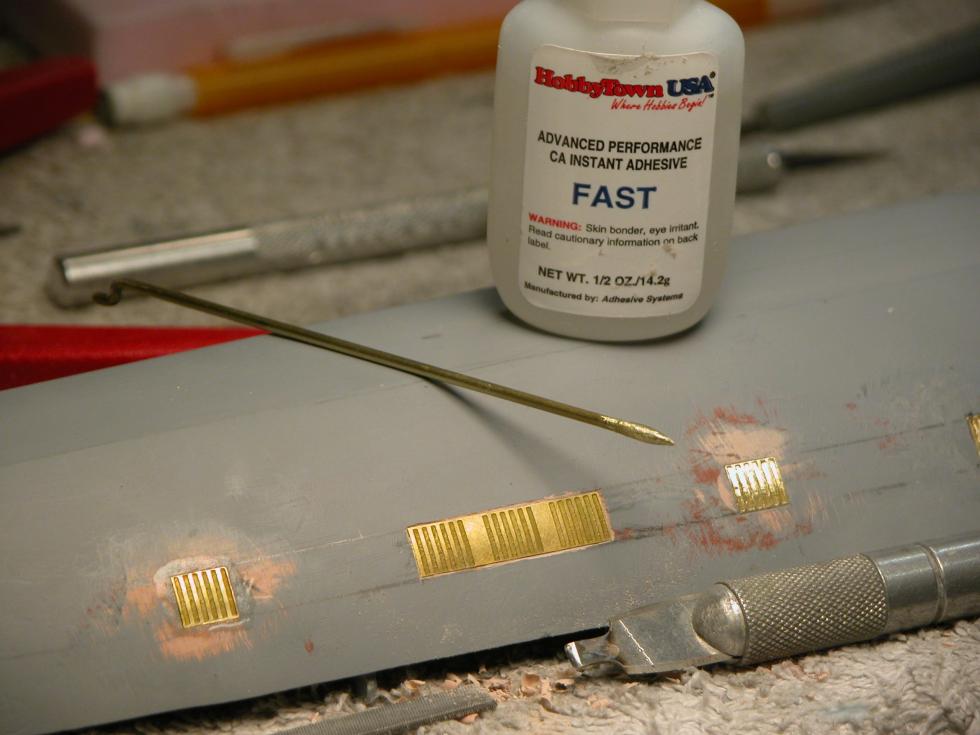

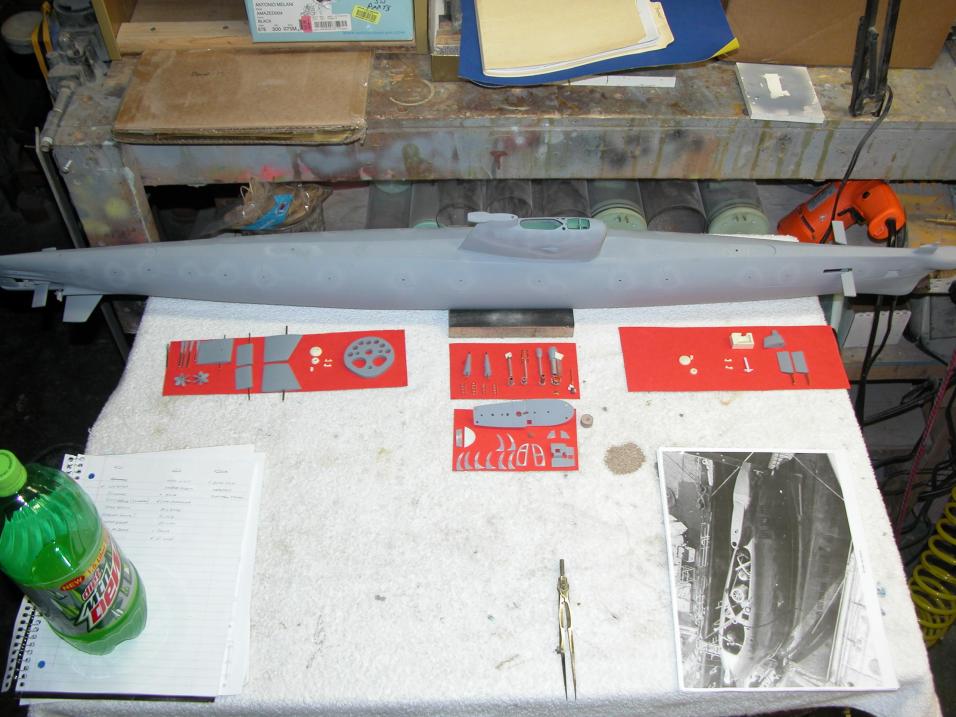

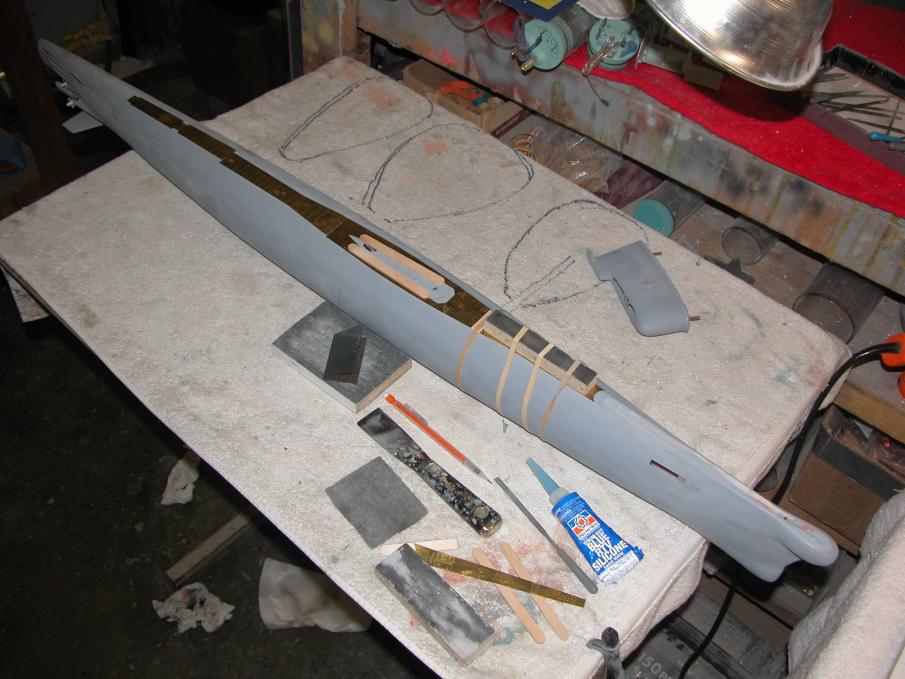

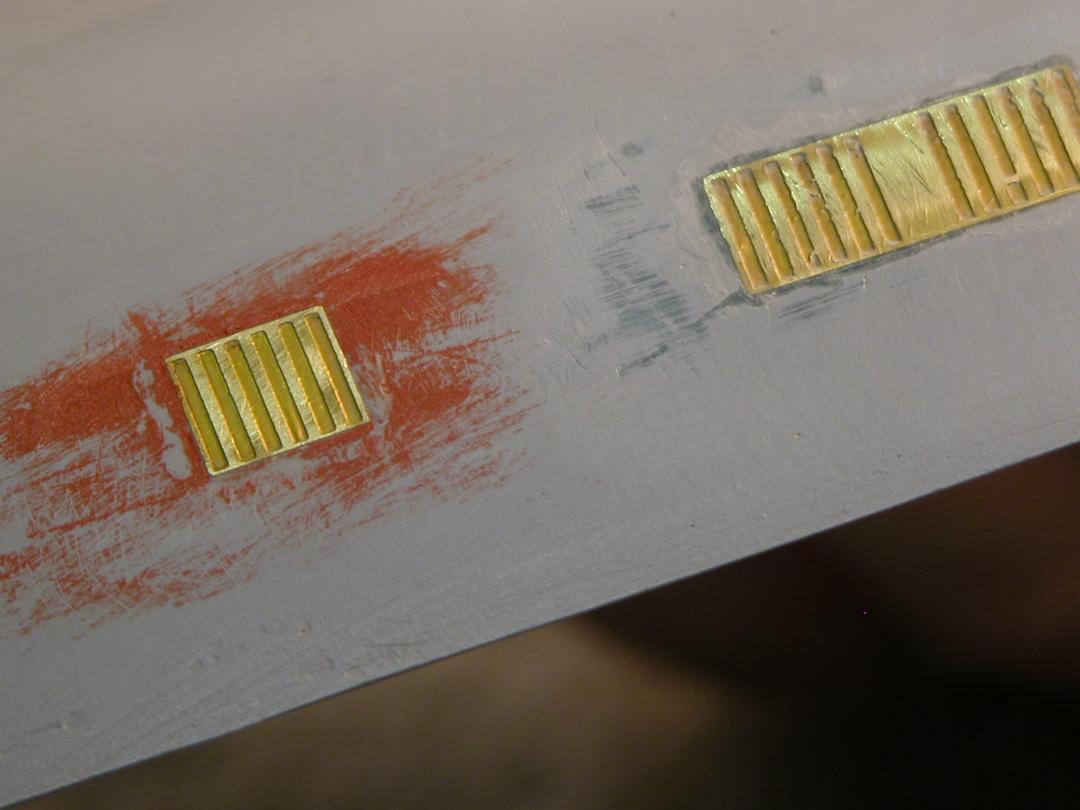

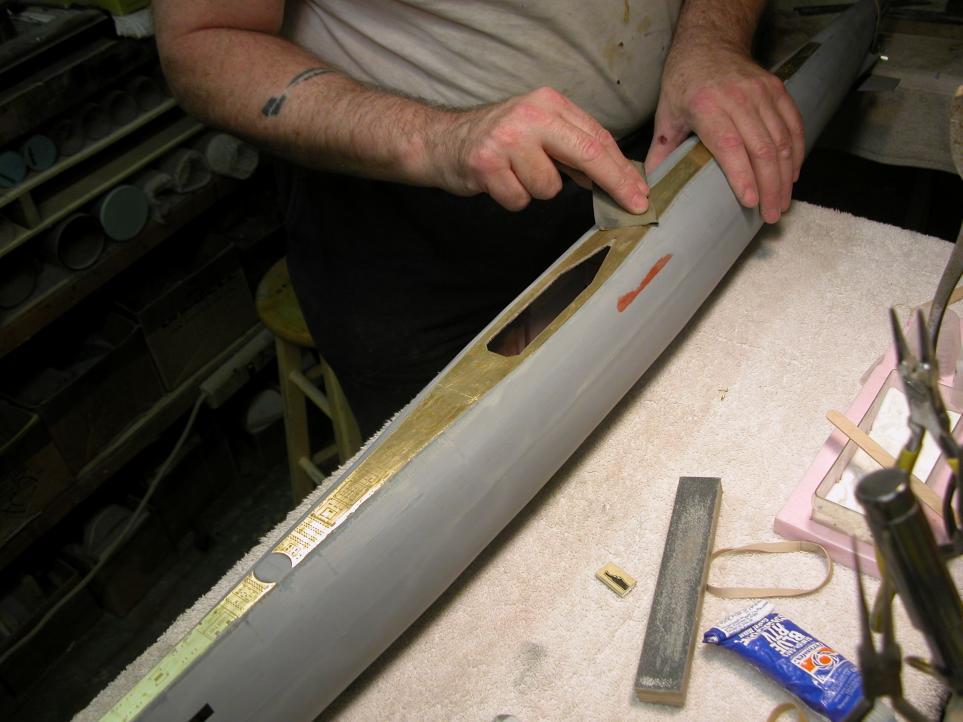

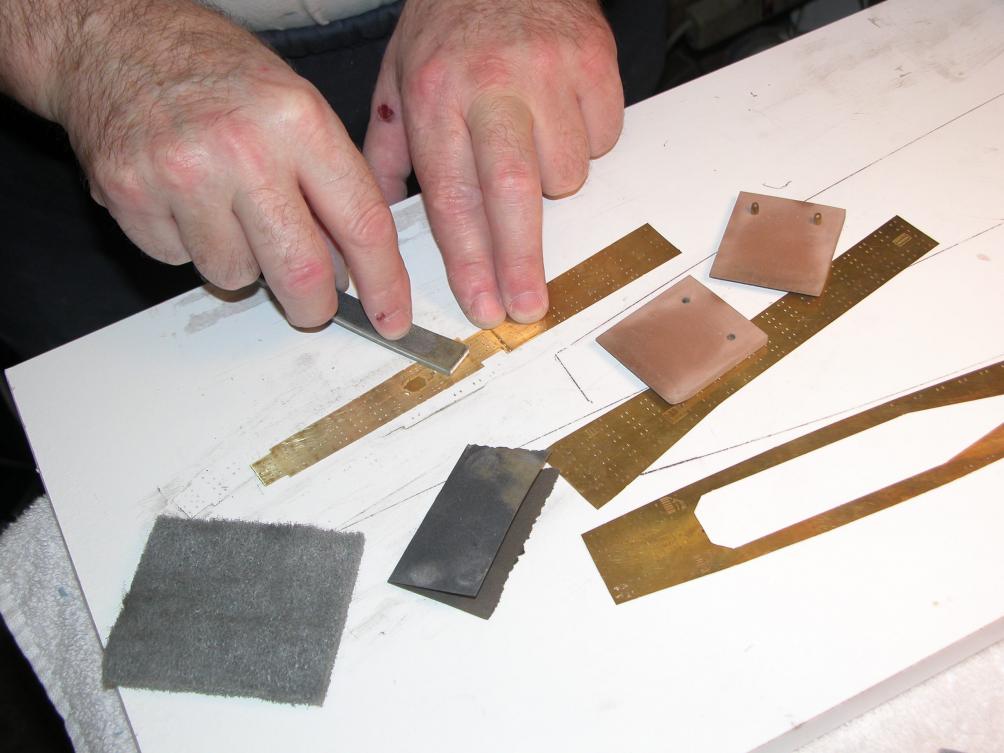

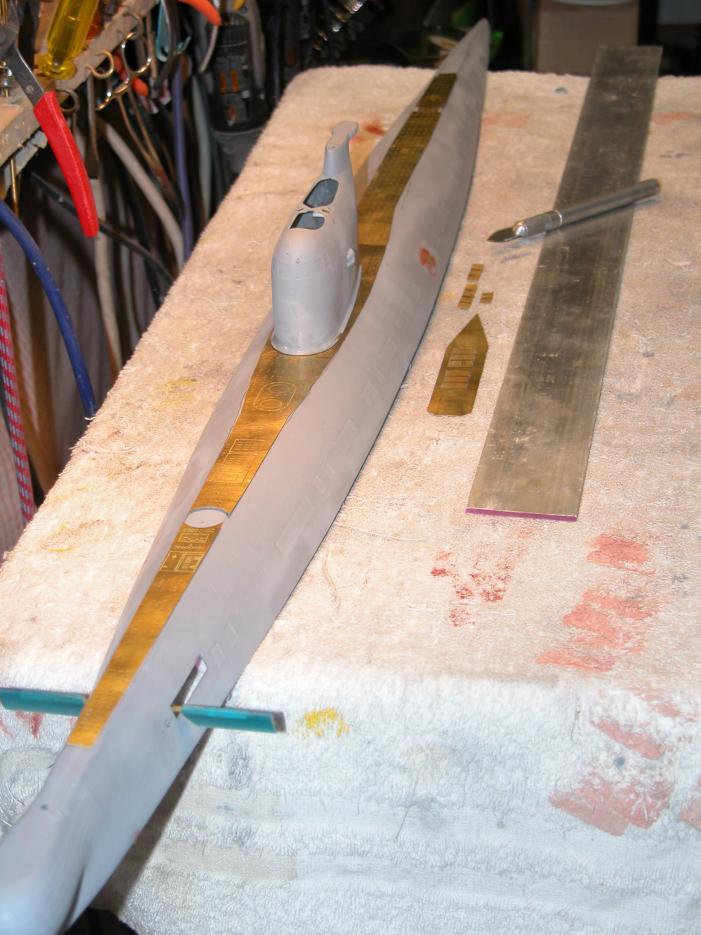

                      Using the Ferric Chloride acid to 'pickle' the brass surface is done to enhance the adhesion of primer later.

                      You're going to re-apply the acid (it's job to make the surface pitted to afford better mechanical tooth to the eventual primer coat) after you inlay the brass onto the models surface anyway, as you'll be abrading away excess glue and Bondo after fairing in the brass to the models surface, necessitating re-pickling with acid anyway.

                      Scrub off the photo-resist from the brass -- lacquer thinner and a green abrasive pad -- while it's still in sheet form; inlay the brass pieces onto the model; fair in with glue and Bondo; Abrade away excess glue and Bondo till the inlay work is flush with the models surface; pickle the brass; prim; paint; sing my praises!

                      Click image for larger version

Name:	001.JPG
Views:	212
Size:	87.1 KB
ID:	150863Click image for larger version

Name:	009.JPG
Views:	195
Size:	75.4 KB
ID:	150864Click image for larger version

Name:	011.JPG
Views:	202
Size:	83.8 KB
ID:	150865Click image for larger version

Name:	002.JPG
Views:	197
Size:	69.2 KB
ID:	150866Click image for larger version

Name:	011 (3).JPG
Views:	198
Size:	83.1 KB
ID:	150867Click image for larger version

Name:	007.JPG
Views:	187
Size:	89.1 KB
ID:	150868Click image for larger version

Name:	005.JPG
Views:	188
Size:	83.3 KB
ID:	150869Click image for larger version

Name:	008 (2).JPG
Views:	199
Size:	65.1 KB
ID:	150870Click image for larger version

Name:	015.JPG
Views:	199
Size:	51.1 KB
ID:	150871Click image for larger version

Name:	018 (2).JPG
Views:	199
Size:	59.3 KB
ID:	150872Click image for larger version

Name:	019 (2).JPG
Views:	205
Size:	52.5 KB
ID:	150873Click image for larger version

Name:	021.JPG
Views:	194
Size:	68.7 KB
ID:	150874Click image for larger version

Name:	023.JPG
Views:	189
Size:	86.2 KB
ID:	150875Click image for larger version

Name:	021 (2).JPG
Views:	209
Size:	63.1 KB
ID:	150876Click image for larger version

Name:	021 (2).JPG
Views:	190
Size:	63.1 KB
ID:	150887Click image for larger version

Name:	002.JPG
Views:	202
Size:	69.2 KB
ID:	150888Click image for larger version

Name:	011 (3).JPG
Views:	190
Size:	83.1 KB
ID:	150889Click image for larger version

Name:	007.JPG
Views:	194
Size:	89.1 KB
ID:	150890Click image for larger version

Name:	005.JPG
Views:	202
Size:	83.3 KB
ID:	150891Click image for larger version

Name:	008 (2).JPG
Views:	193
Size:	65.1 KB
ID:	150892Click image for larger version

Name:	015.JPG
Views:	208
Size:	51.1 KB
ID:	150893Click image for larger version

Name:	018 (2).JPG
Views:	203
Size:	59.3 KB
ID:	150894Click image for larger version

Name:	019 (2).JPG
Views:	203
Size:	52.5 KB
ID:	150895Click image for larger version

Name:	021.JPG
Views:	200
Size:	68.7 KB
ID:	150896Click image for larger version

Name:	023.JPG
Views:	190
Size:	86.2 KB
ID:	150897Click image for larger version

Name:	021 (2).JPG
Views:	197
Size:	63.1 KB
ID:	150898Click image for larger version

Name:	020 (2).JPG
Views:	203
Size:	51.1 KB
ID:	150877

                      Click image for larger version

Name:	026.JPG
Views:	195
Size:	78.7 KB
ID:	150878Click image for larger version

Name:	026.JPG
Views:	200
Size:	78.7 KB
ID:	150899Click image for larger version

Name:	033.JPG
Views:	204
Size:	68.0 KB
ID:	150879Click image for larger version

Name:	036 (2).JPG
Views:	202
Size:	63.6 KB
ID:	150880Click image for larger version

Name:	040.JPG
Views:	206
Size:	65.9 KB
ID:	150881Click image for larger version

Name:	036.JPG
Views:	202
Size:	40.7 KB
ID:	150882Click image for larger version

Name:	044 (2).JPG
Views:	207
Size:	51.4 KB
ID:	150883Click image for larger version

Name:	001.JPG
Views:	204
Size:	94.1 KB
ID:	150884Click image for larger version

Name:	DSCN0005.JPG
Views:	199
Size:	90.8 KB
ID:	150885Click image for larger version

Name:	DSCN0006.JPG
Views:	195
Size:	81.9 KB
ID:	150886Click image for larger version

Name:	021 (2).JPG
Views:	191
Size:	63.1 KB
ID:	150900Click image for larger version

Name:	002.JPG
Views:	190
Size:	69.2 KB
ID:	150901Click image for larger version

Name:	011 (3).JPG
Views:	193
Size:	83.1 KB
ID:	150902Click image for larger version

Name:	007.JPG
Views:	194
Size:	89.1 KB
ID:	150903Click image for larger version

Name:	005.JPG
Views:	189
Size:	83.3 KB
ID:	150904Click image for larger version

Name:	008 (2).JPG
Views:	203
Size:	65.1 KB
ID:	150905
                      David
                      Resident Luddite

                      Comment


                      • #26
                        David,

                        As usual, I am at a total loss for words as to your expertise, deployment of patience, and methodical work to achieve perfection in everything you do!!!

                        Thank you very much again for taking the time to share your fantastic work in description, as well as the wonderful photo guides to show how it's done! I will struggle with frustration, patience, and total wanting to walk away from this project just trying to achieve any portion of the kind work that you do!

                        Thank you again David! You are an inspiration for sure!

                        Rob
                        "Firemen can stand the heat"

                        Comment


                        • #27

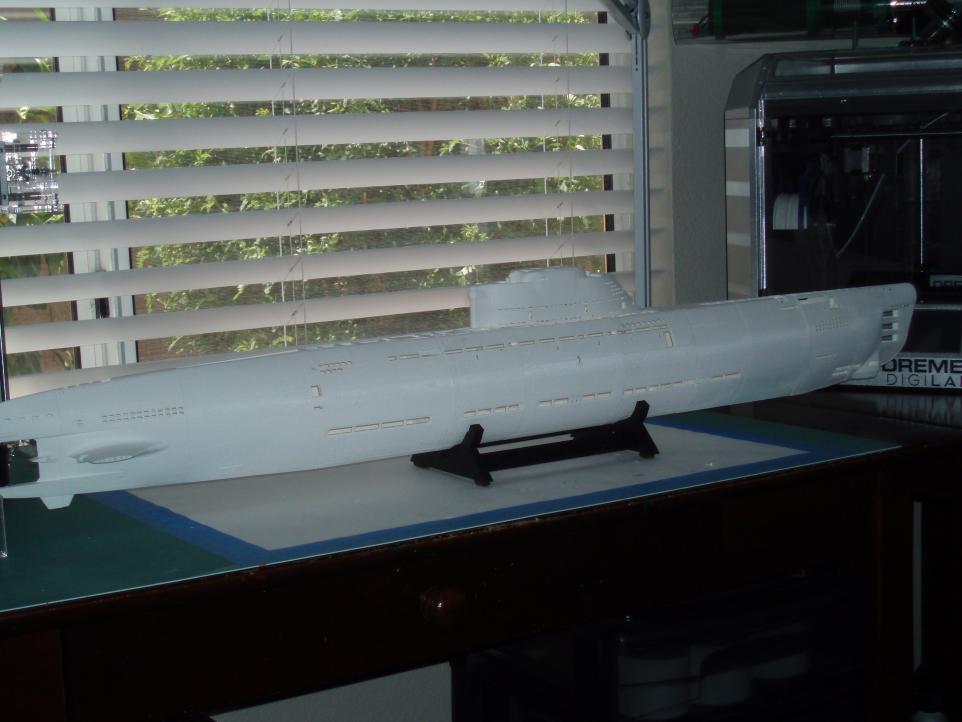

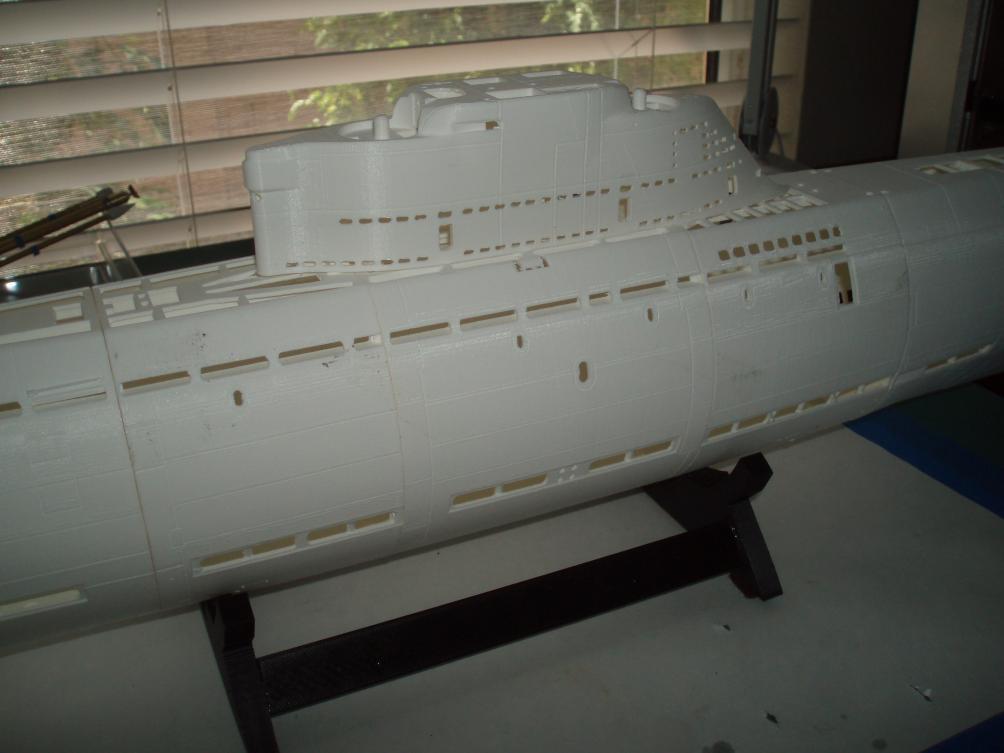

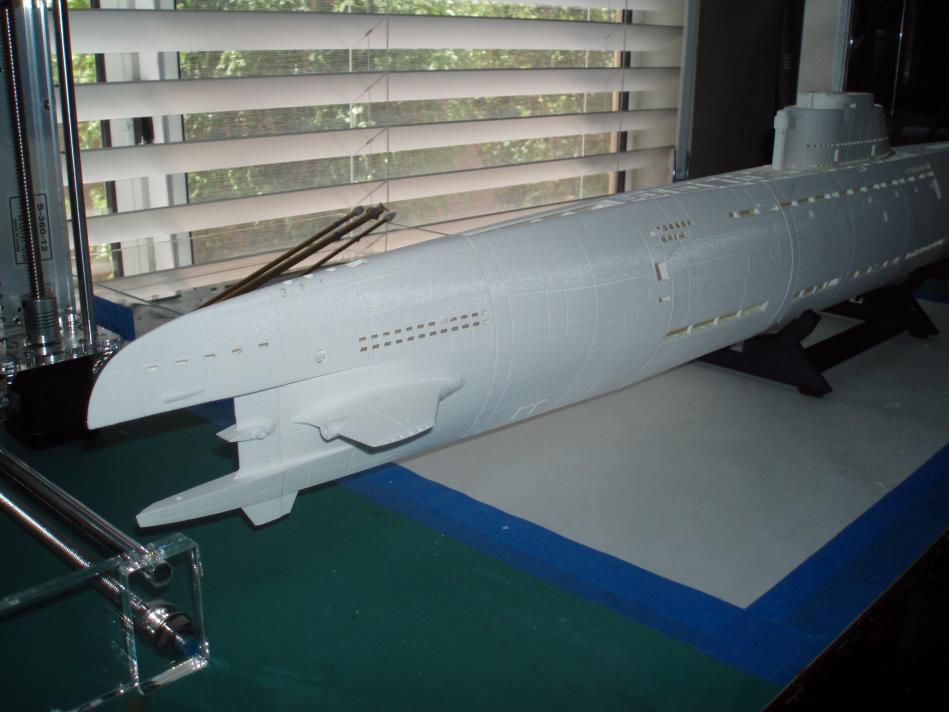

                          Some progress being made on my Type XXXl U-2540!

                          Click image for larger version

Name:	P1000014.jpg
Views:	173
Size:	63.7 KB
ID:	151292

                          Click image for larger version

Name:	P1000013.jpg
Views:	183
Size:	54.9 KB
ID:	151293Click image for larger version

Name:	P1000034.jpg
Views:	190
Size:	63.1 KB
ID:	151294

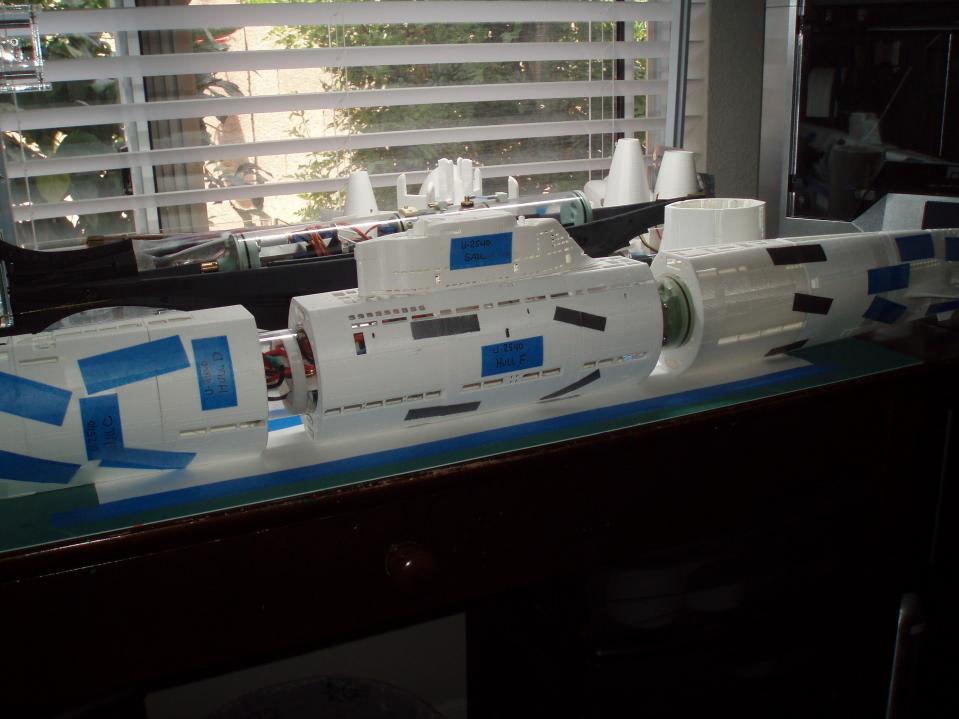

                          The hull is now put together! This boat will not be put to the water! I am going to build the U-2540 as a static display only! I have a lot of brass etching work to do on this mode, and it will be a real learning process for me for sure!

                          Rob

                          Comment


                          • #28
                            Sail's on backwards. Duh!
                            Resident Luddite

                            Comment


                            • #29
                              Originally posted by He Who Shall Not Be Named View Post
                              Sail's on backwards. Duh!

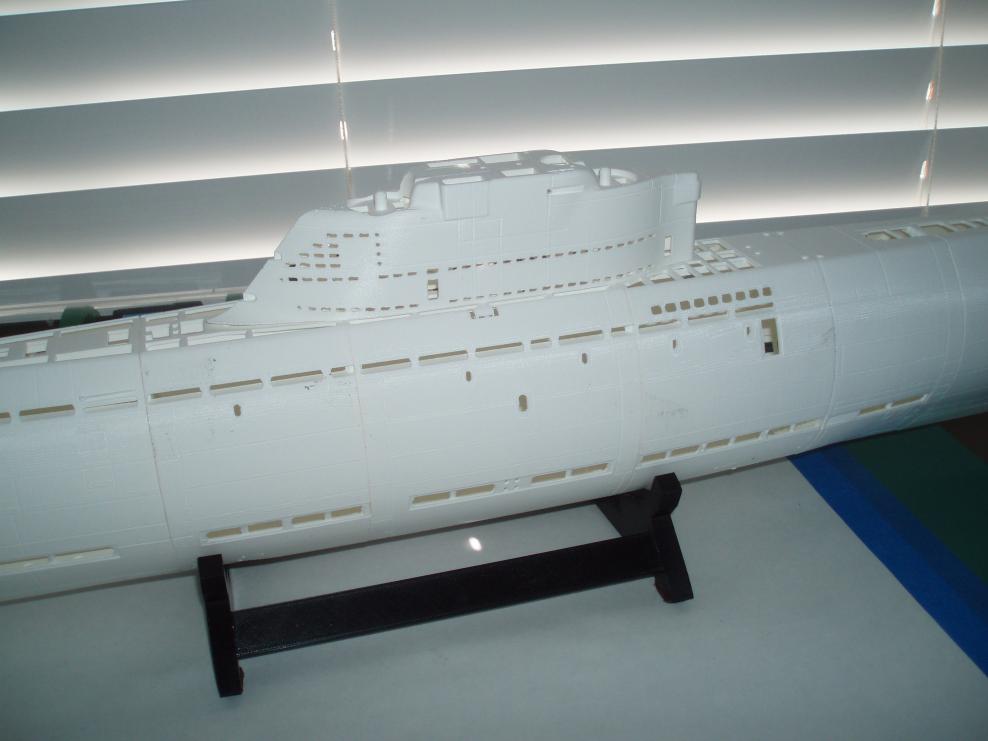

                              Just checking to see who is awake! I knew you would be on it!

                              Click image for larger version

Name:	P1000006.jpg
Views:	157
Size:	50.7 KB
ID:	151299

                              Rob

                              Comment


                              • #30
                                Check Sat!
                                Resident Luddite
