  • Surface runner submarine setup

    This topic is for those of us that are just getting started in the RC Submarine hobby and learning from the ground floor up! I enjoy building 3D printed submarines! I have purchased two great sub 3D files from Nautilus Drydocks. The Astute and the Redoutable using his STL files. I will have a some photos and a general explanation as to how I will be doing these two Submarines as Surface Runners!

    Just remember this is how I chose to get into this great hobby to start with. Bob Martin of Nautilus Drydocks has stated it well! This is not a hobby for the faint of heart, and should be started at the bottom (no pun intended) and learn before you jump in with both feet! Bare in mind I am new at Submarine building, but I do have 40 years building and flying RC aircraft of all types!

    Thank you for your time, and I hope you enjoy my blog!

    Rob T.

  • #2
    Welcome aboard Rob!
    We all started somewhere. Some had the smarts to start simple others tried to take on too much. More succeed by starting simple than those that jump in with something very difficult. Look forward to what you build or do. Glad that you are here.
    Best piece of advise I can offer, is when you do start to build, take photos start a thread and just ask questions. We all learn from each other.
    Again welcome.
    Peace,
    Tom
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment


    • #3
      … building 3D printed submarines.

      No. You sand 3D printed submarines.

      David
      "... well, that takes care of Jorgenson's theory!"

      Comment


      • #4
        Thanks Tom! Really appreciate the welcome!

        To start with I thought I would show the 3D printing process including the machines that I used to do my two builds!

        I have the ANYCUBIC Predator for my larger builds, and the Dremel 3040 for the smaller parts!

        Comment


        • #5
          Hi David! You are correct about the sanding process on 3D printed projects! If done correctly a little sanding and some good quality filler primer and the finish comes out very good. Using PLA to build the Submarine will require some filler/sealer not only for finish, but also to help seal the PLA from possible water penetration!

          Note: I am just getting used to using this site and incorporating photos! Not sure if I am doing it correctly or not!?

          Rob T.

          Comment


          • #6
            Your photos came across fine, but they are terribly small. Go for a bigger pixel count.

            David
            "... well, that takes care of Jorgenson's theory!"

            Comment


            • #7
              Thank you very much Dave! I am still learning how to do the photos.. I know now I need to stay with my Olympus camera TOTALY in order to change the size of the photos.
              Thanks again Dave, I really appreciate the input!

              Rob T.

              Comment


              • #8
                I am going to put up some photos of my two 3D printed Submarines! The Astute and the Redoutable! The photos at this point are random photos that show some of the building process to this point in time!
                From this date forward I will be showing my progress on the rest of the building of both boats.

                Click image for larger version

Name:	IMG_0029.jpg
Views:	428
Size:	62.3 KB
ID:	136687Click image for larger version

Name:	IMG_0030.jpeg
Views:	393
Size:	69.2 KB
ID:	136688Click image for larger version

Name:	IMG_0027.jpg
Views:	406
Size:	74.8 KB
ID:	136689

                Click image for larger version

Name:	P1040005.jpg
Views:	393
Size:	53.7 KB
ID:	136690Click image for larger version

Name:	P2120003.jpg
Views:	395
Size:	53.9 KB
ID:	136691

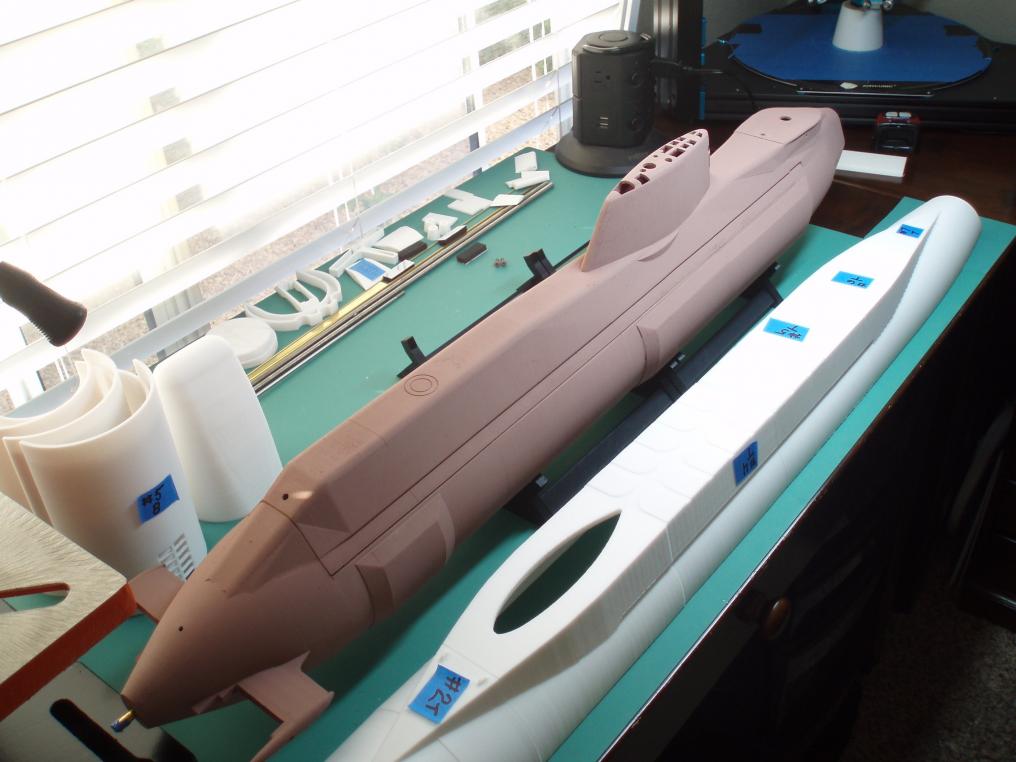

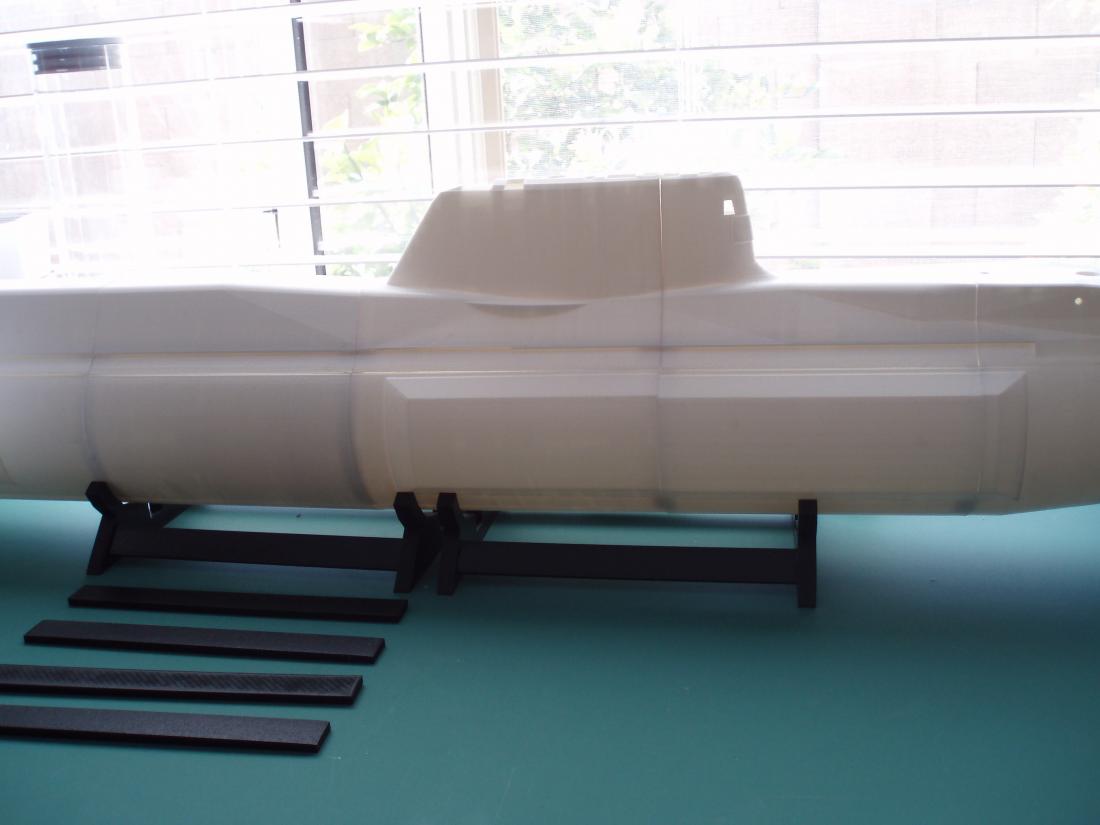

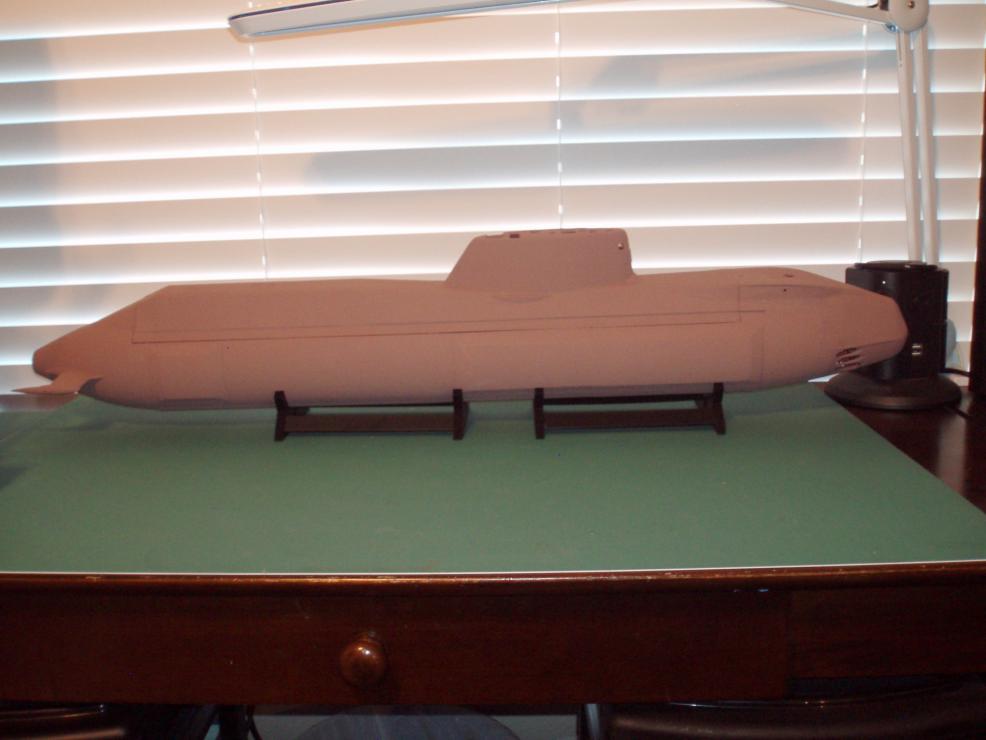

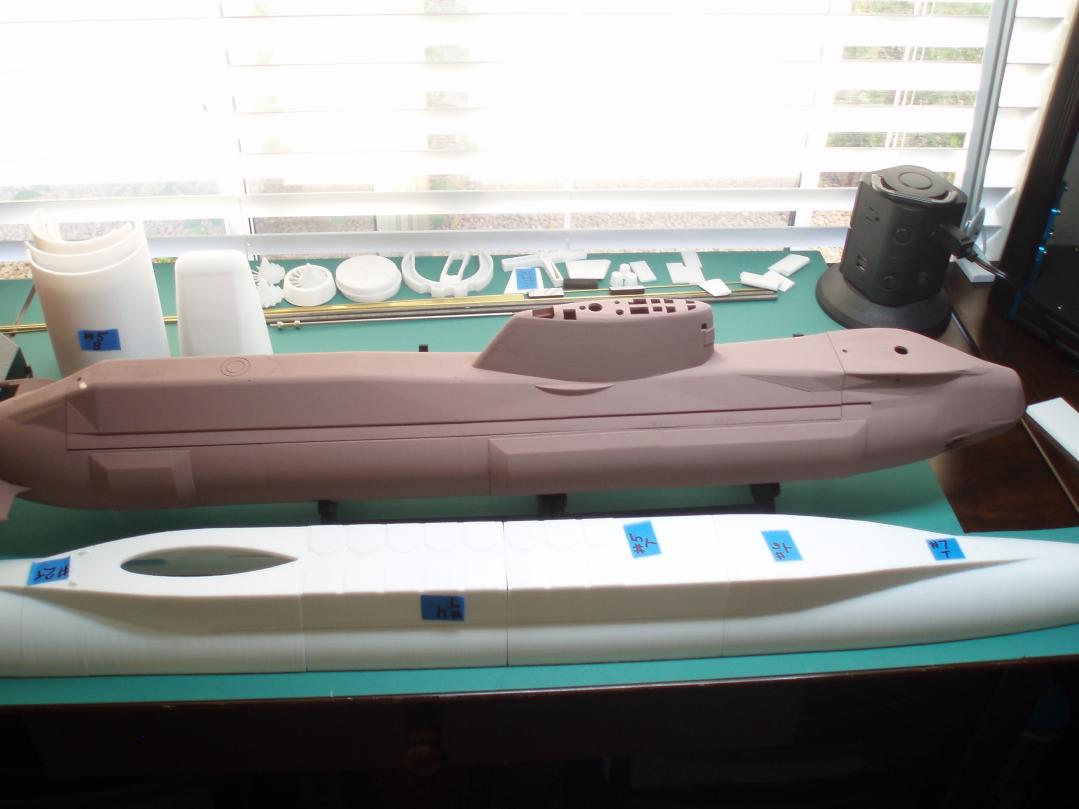

                The above photos show 3D printed sections, the final glue up, and the SEM primer coat! The Astute at this point is far from finished.

                Click image for larger version

Name:	P1040004.jpg
Views:	389
Size:	45.1 KB
ID:	136692Click image for larger version

Name:	P1040003.jpg
Views:	388
Size:	54.0 KB
ID:	136694

                Click image for larger version

Name:	P1100004.jpg
Views:	396
Size:	75.6 KB
ID:	136696Click image for larger version

Name:	P1100005.jpg
Views:	393
Size:	66.5 KB
ID:	136697

                Click image for larger version

Name:	P2120004.jpg
Views:	392
Size:	55.9 KB
ID:	136698Click image for larger version

Name:	P2120005.jpg
Views:	397
Size:	52.8 KB
ID:	136700

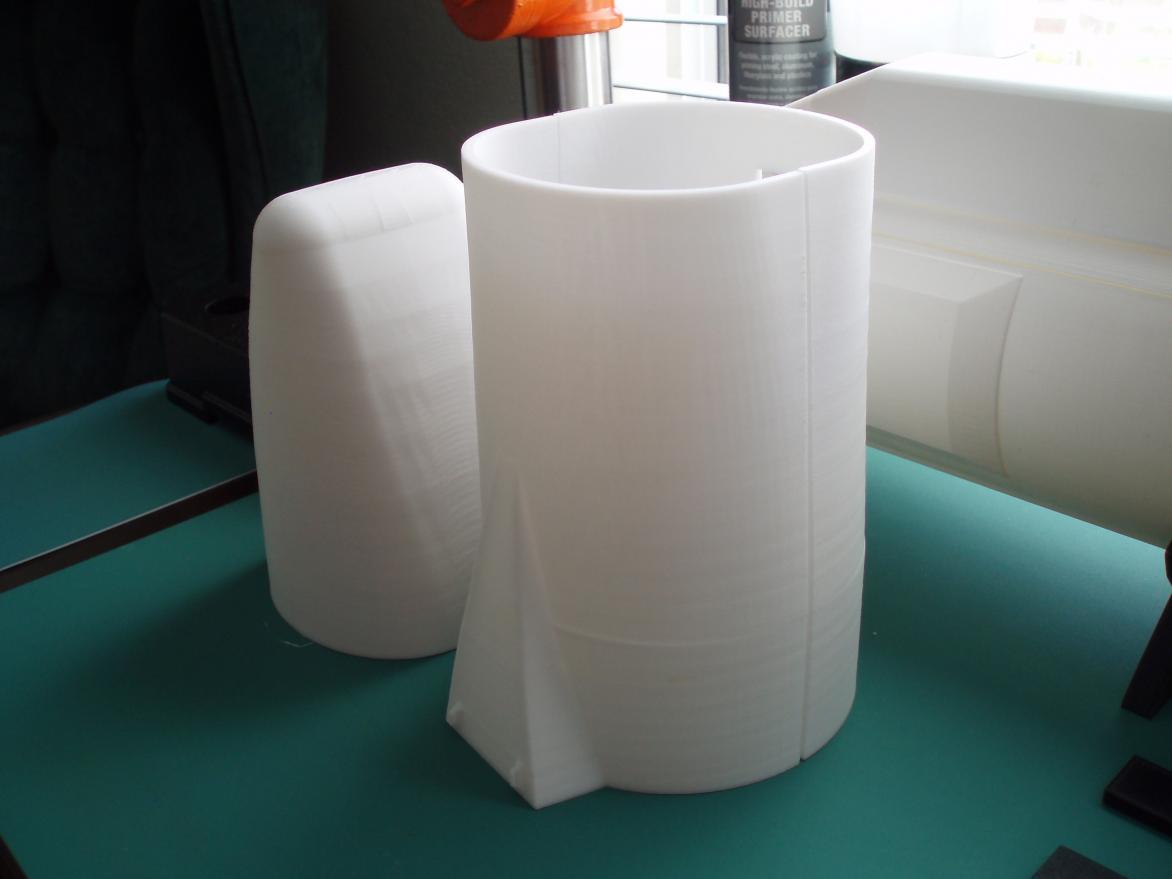

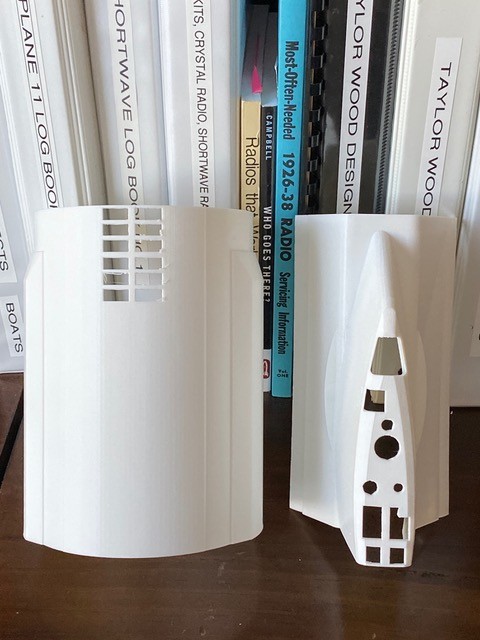

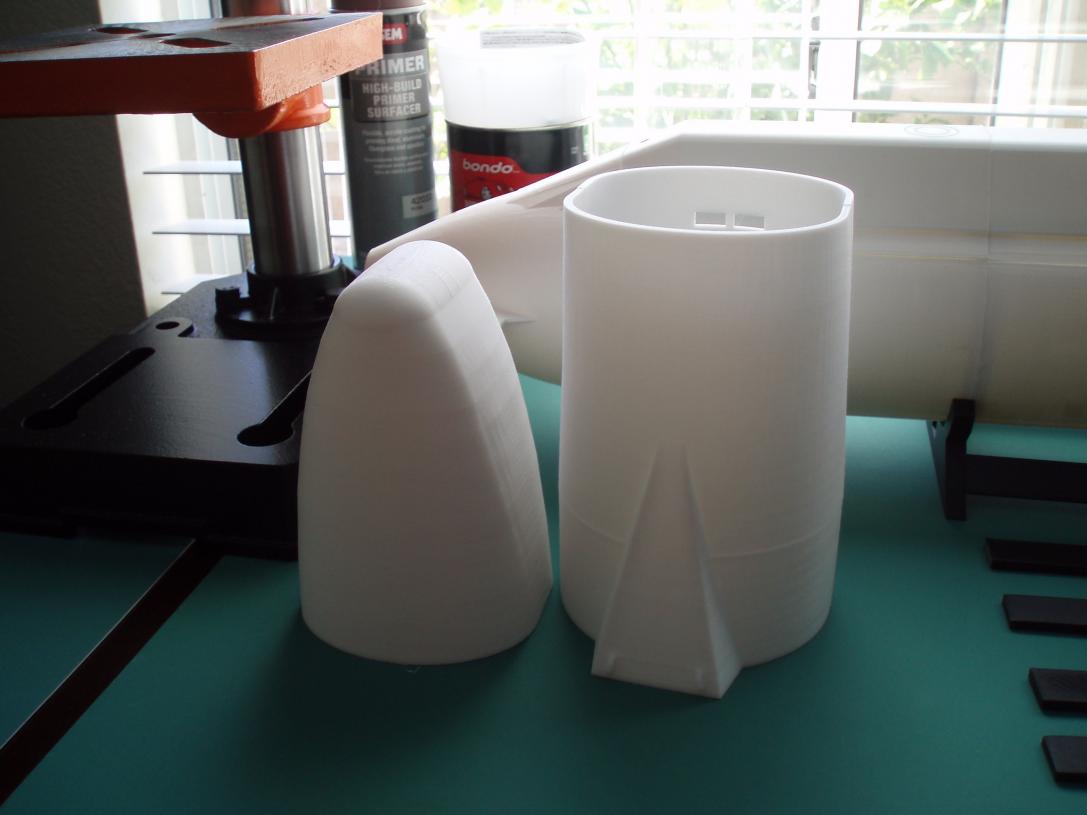

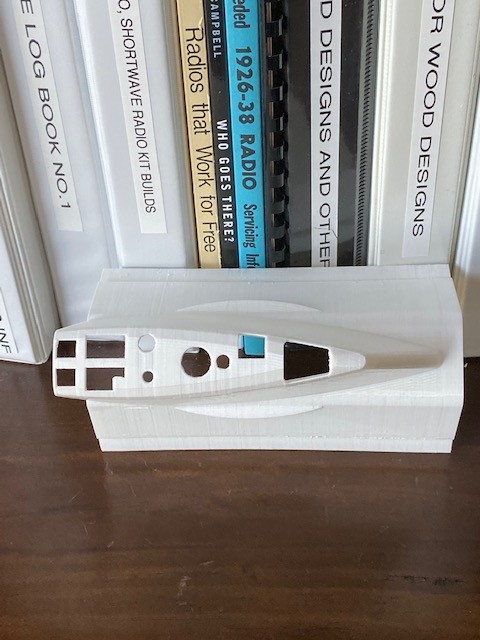

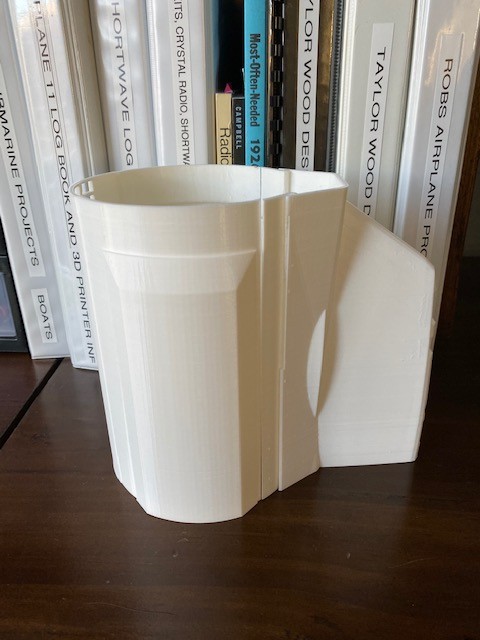

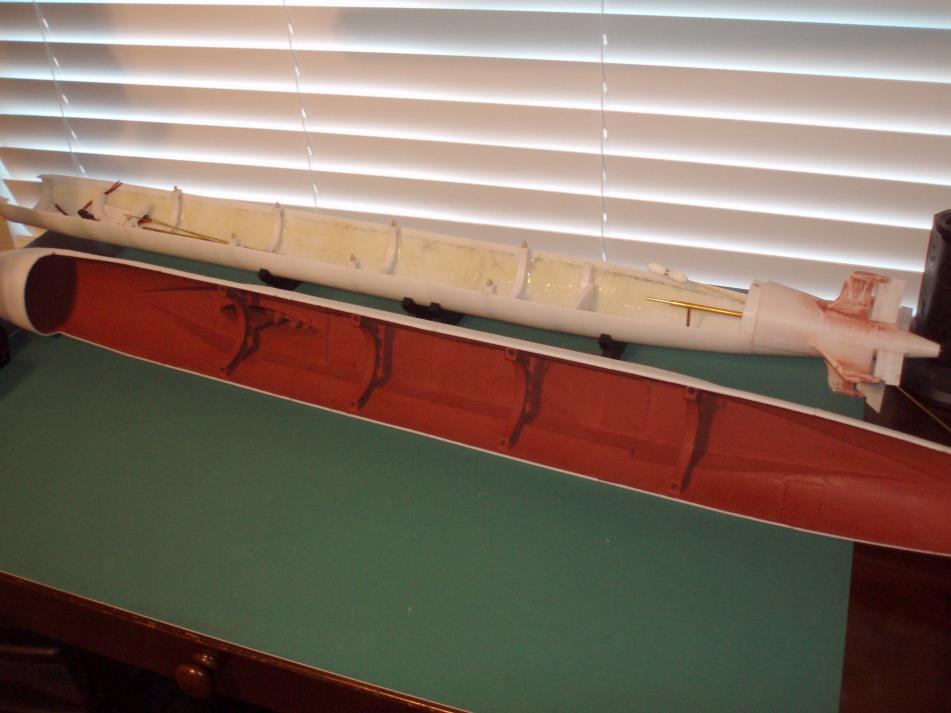

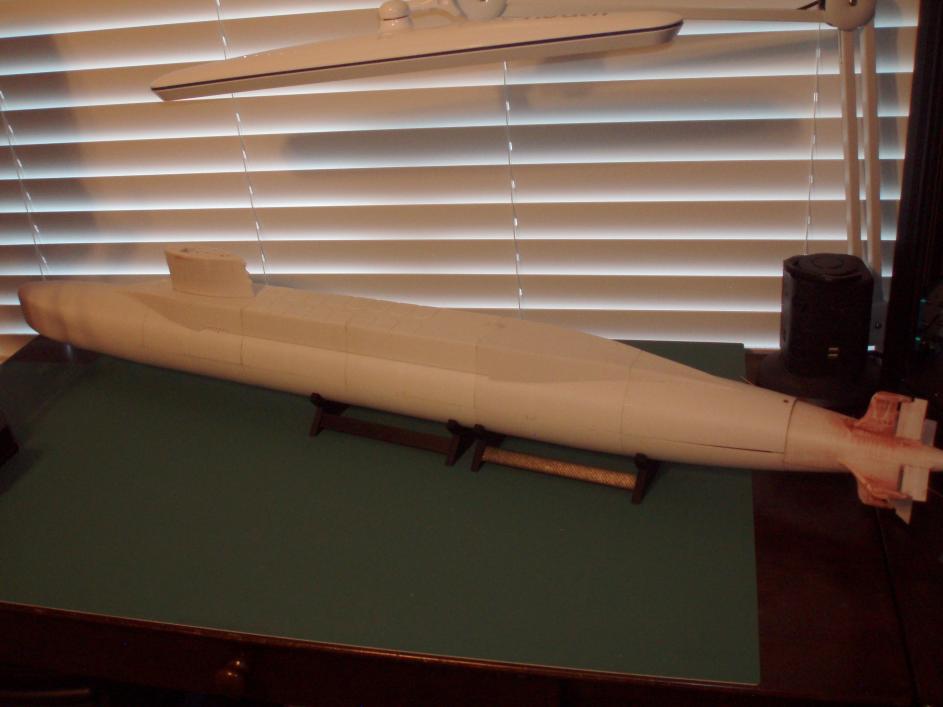

                The above photos are showing the 3D printed sections, the top of the hull glued up, the inner side of the top hull with the red oxide primer finish, and the last photo is the
                top and bottom of the Redoutable hull.

                As you can see both boats are not even close to being finished! From this point on I will be showing the progress in the rest of the build. I am designing a WTC that will be inner changeable with
                both boats. Keep in mind both these boats will be surface runners.

                I will be posting a lot more on these two builds!

                Thank you!

                Rob T.

                Attached Files

                Comment


                • #9
                  Rob, you're killing me!!!! All that work to JUST make them surface runners?? You are 90% there with a WTC, why not drop the other shoe and at least make them dynamic divers -- only thing you need do is add stern planes and an angle-keeper and add fixed ballast weight till the thing floats, 'decks awash'. Don't make me come over there!!!!…..

                  The pictures came out great, by the way. Keep 'em coming.

                  David
                  The Horrible
                  "... well, that takes care of Jorgenson's theory!"

                  Comment


                  • #10
                    Hi David,

                    Thanks for all your help and advice! Our pool is not very long, and the only reason I am building the Redoutable as a surface runner is because of it's length, the size of it's dive planes, and the length of our pool.
                    To be able to get up enough speed so that you could dynamic dive this boat I would most likely drive the bow into the side of the pool!

                    How ever the Astute on the other hand might be a very good candidate for dynamic diving, and I will pursue that for sure. Thank you again for all your help!

                    "Love This Hobby"

                    Rob T.

                    Comment


                    • #11
                      No problem: you are operating in a very controlled environment. Ballast the boat so only the tip of the sail projects into the air -- very little speed required to give the stern planes the authority to control depth. And when that upper rudder hits the drink you greatly increase the yaw authority. Also, as the sail (typically ahead of the c.g.) makes the boat unstable in yaw when underwater you realize a further increase in yaw rate. All of a sudden a model that would not make the turn in the pool while surfaced will do so submerged.

                      Hear me... and obey!

                      https://youtu.be/2O8gTIr4lys


                      David
                      The Horrible
                      "... well, that takes care of Jorgenson's theory!"

                      Comment


                      • #12
                        Hey you don't want to loose your chariots in the red sea do ya!

                        Comment


                        • #13
                          Originally posted by Scott T View Post
                          Hey you don't want to loose your chariots in the red sea do ya!
                          I always fast-forward through that part.

                          David
                          "... well, that takes care of Jorgenson's theory!"

                          Comment


                          • #14

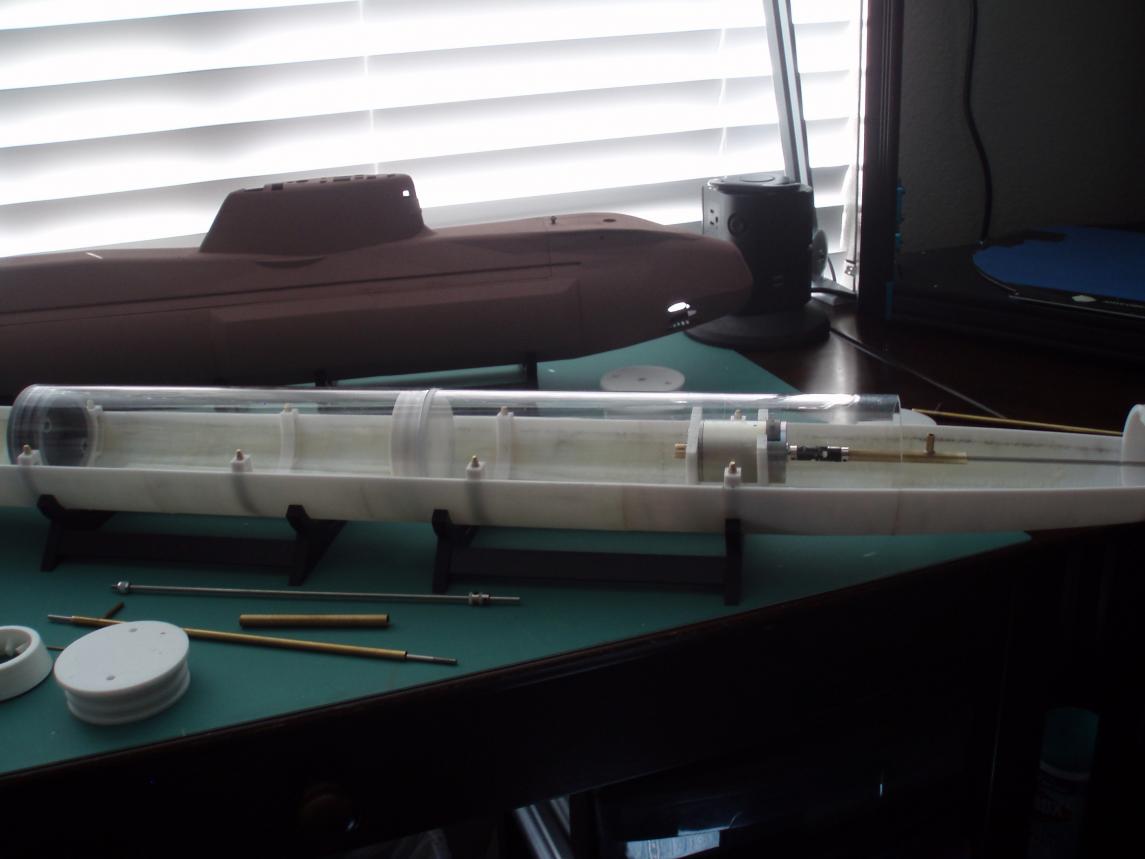

                            I am making progress on my 3D printed WTC components. It's in the design and set up at this point

                            . Click image for larger version

Name:	P2010005.jpg
Views:	354
Size:	54.8 KB
ID:	136755Click image for larger version

Name:	P2010006.jpg
Views:	331
Size:	60.5 KB
ID:	136756

                            Click image for larger version

Name:	P2140001.jpg
Views:	348
Size:	64.6 KB
ID:	136757Click image for larger version

Name:	P2140002.jpg
Views:	347
Size:	63.5 KB
ID:	136758

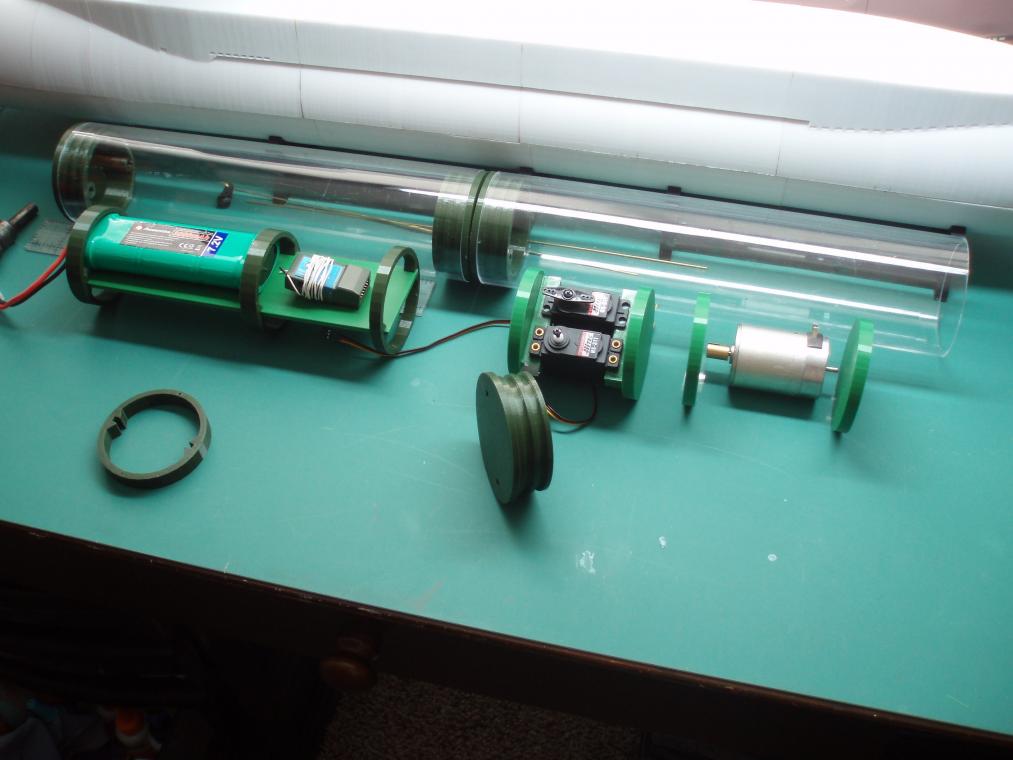

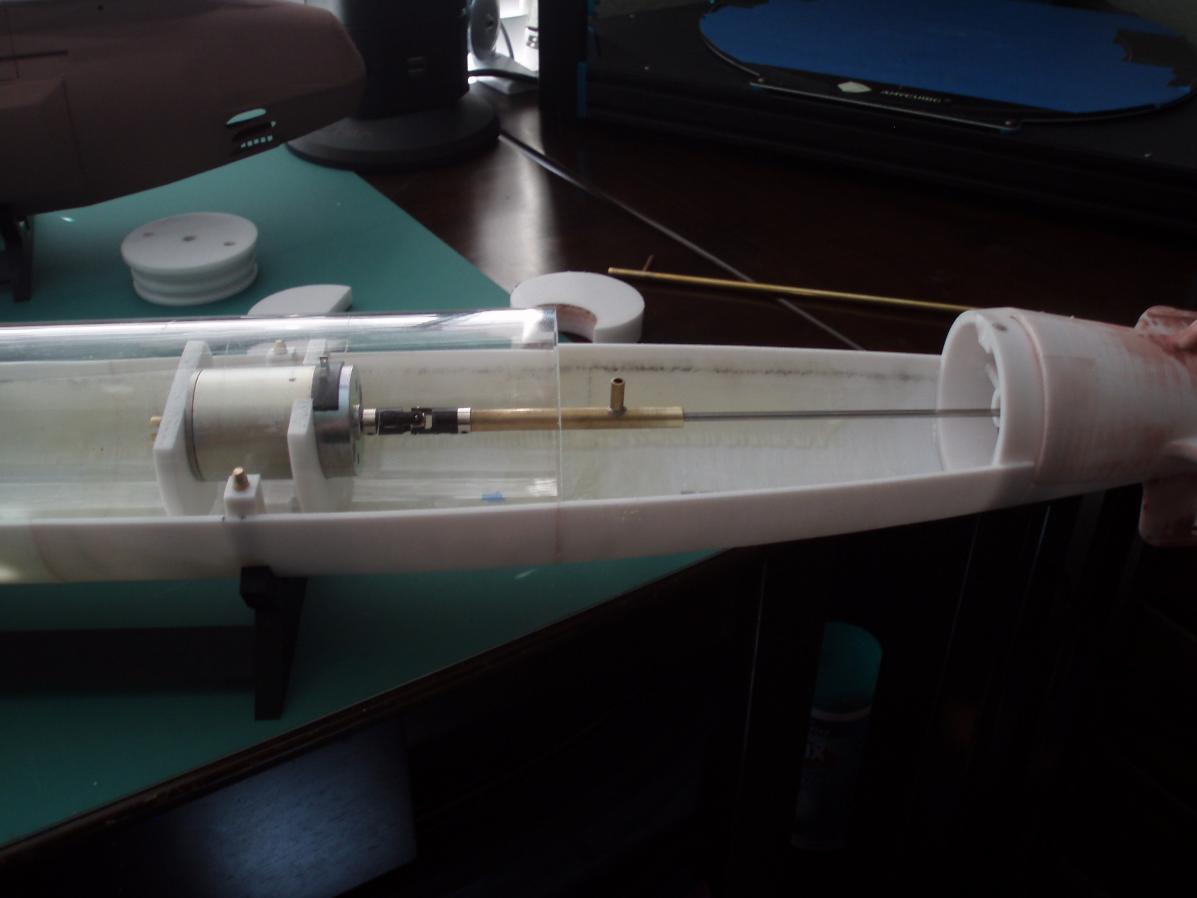

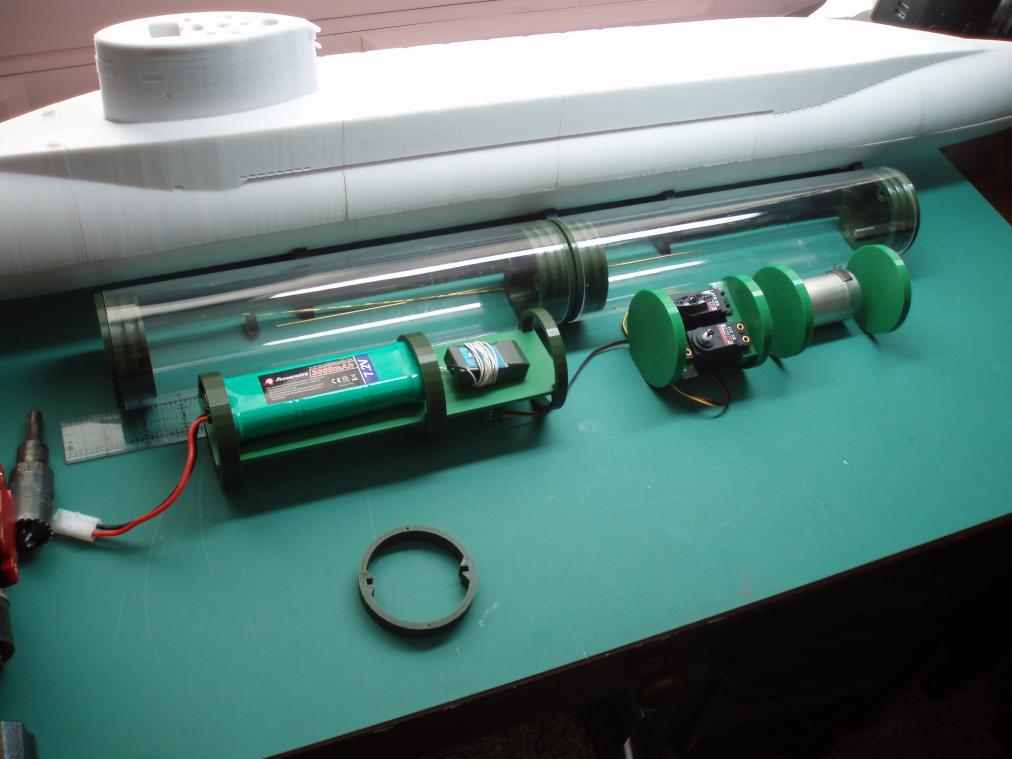

                            I have most of the components printed out that is required for mounting the propulsion system, and the electronics. The end caps are 3D printed to fit with seals to
                            the 3" plexiglass cylinders. Project moving along.

                            Rob T.






                            Comment


                            • #15
                              Looking professional and well thought out so far. I like it!

                              BOB

                              Comment
