  • 1/96 ScaleShips Oscar II

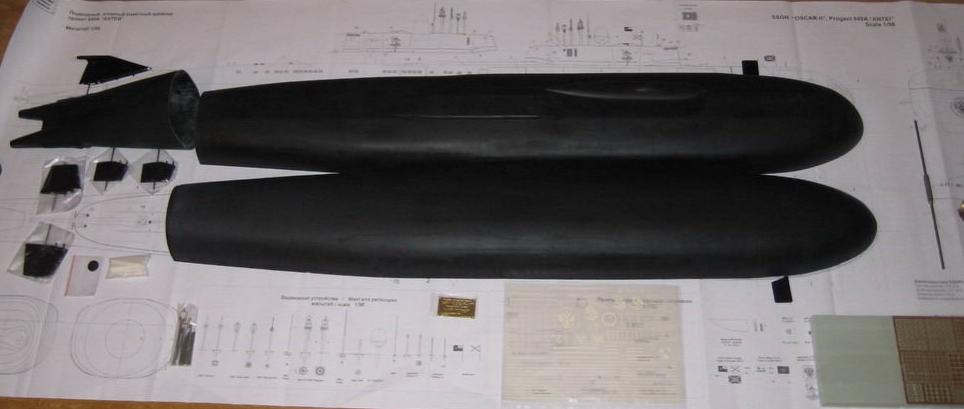

    Just got this the other day. Click image for larger version

Name:	oscar27.jpg
Views:	1
Size:	35.1 KB
ID:	103540 These guys have a justifiable reputation for producing outstanding kits and this one is no exception. It is magnificent (and large) and coms complete with a detailed set of brass etched components, detailed masts, dry transfers, an enormous set of plans and coloured painting guide.

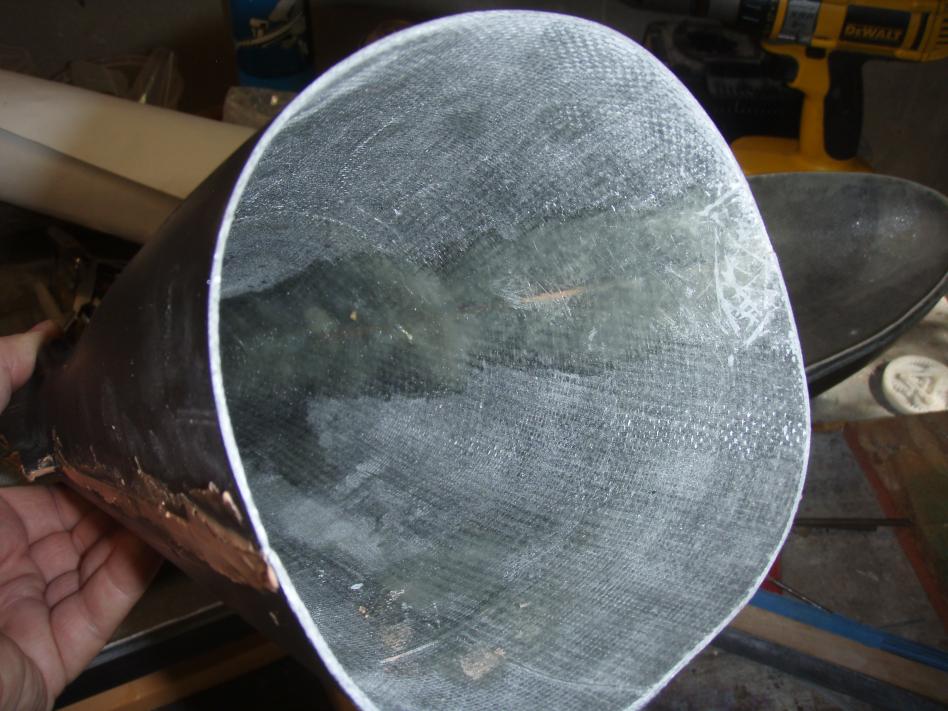

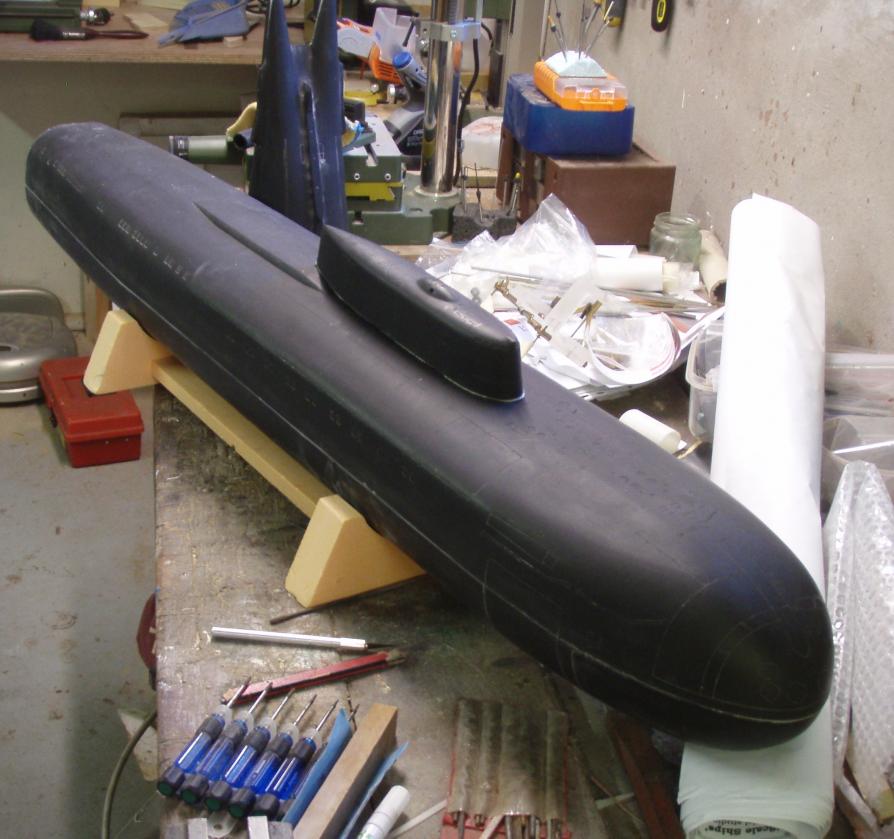

    So far I've sanded down the flanges and dry fitted the hull upper and lower forward halves as well as glassing the tail cone together. Thus:
    Click image for larger version

Name:	P4250218.jpg
Views:	2
Size:	94.3 KB
ID:	103541Click image for larger version

Name:	P4250230.jpg
Views:	2
Size:	85.3 KB
ID:	103542

  • #2
    Well, what a nice surprise a thread on an Oscar.....didn't see that coming.

    Can't wait for more work on this and eventually one of your paint jobs.

    Peter

    Comment


    • #3
      Pushy, pushy, pushy. Show us your Akula why don't ya!

      Comment


      • #4

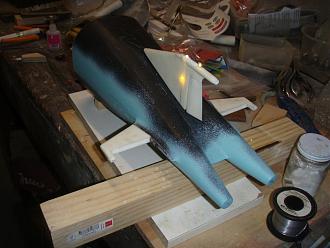

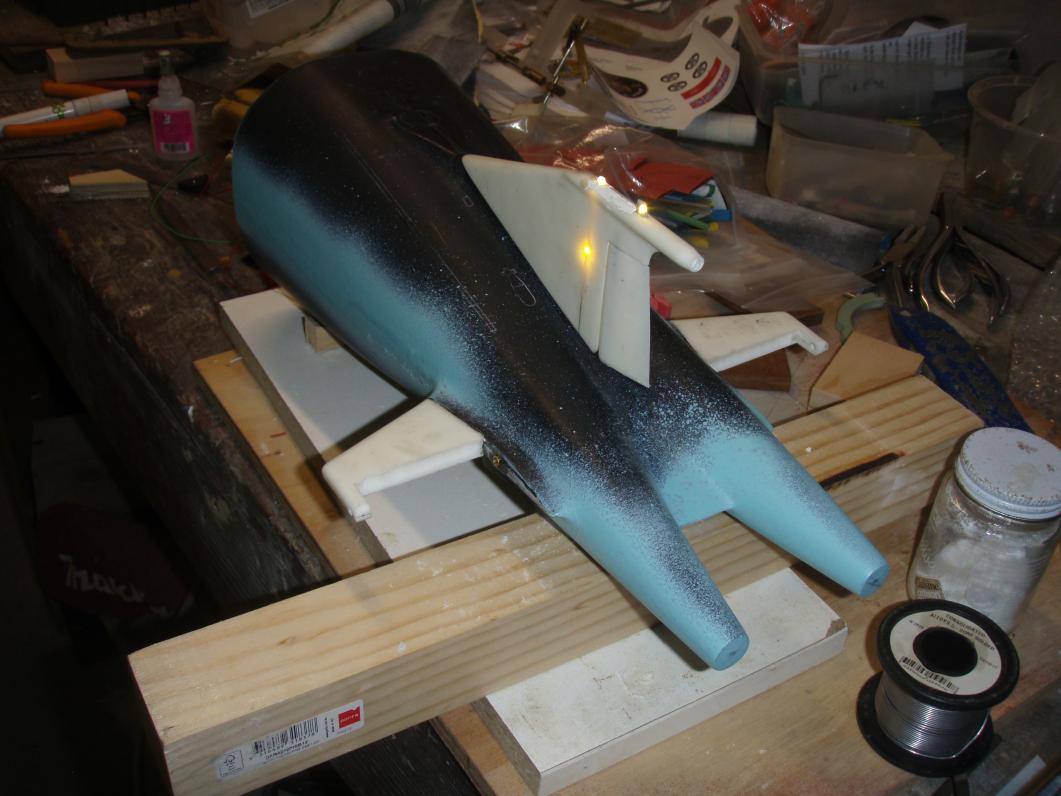

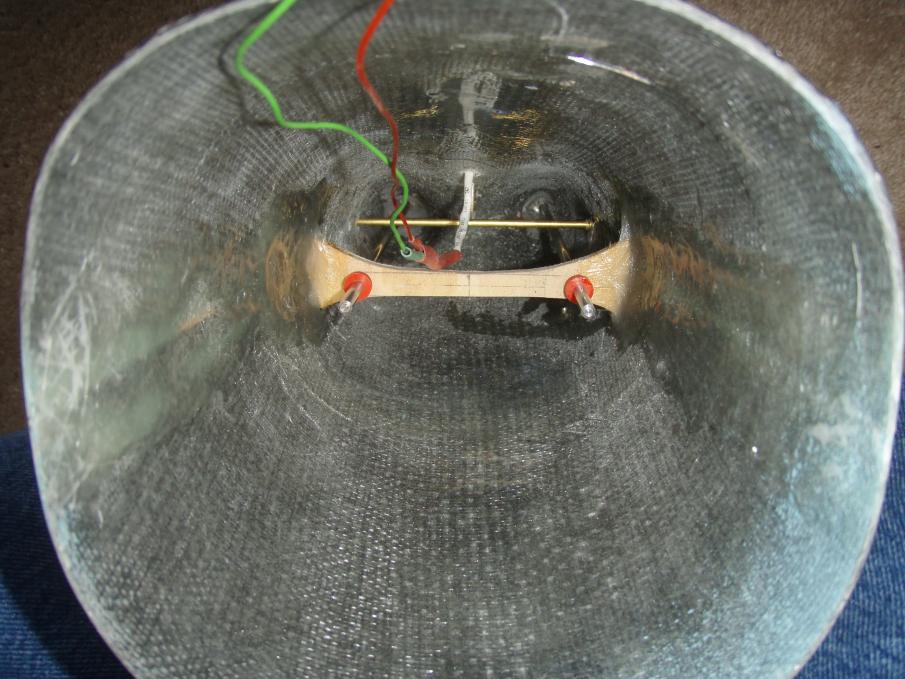

        Fitted the rear planes today. I've decided to complete the rear cone as much as possible before mating it to the main hull. The model is so large that doing it the other way around would have been extremely awkward, not to mention too large to fit on my bench.

        Click image for larger version

Name:	P4260213.jpg
Views:	1
Size:	86.4 KB
ID:	98291

        Comment


        • #5

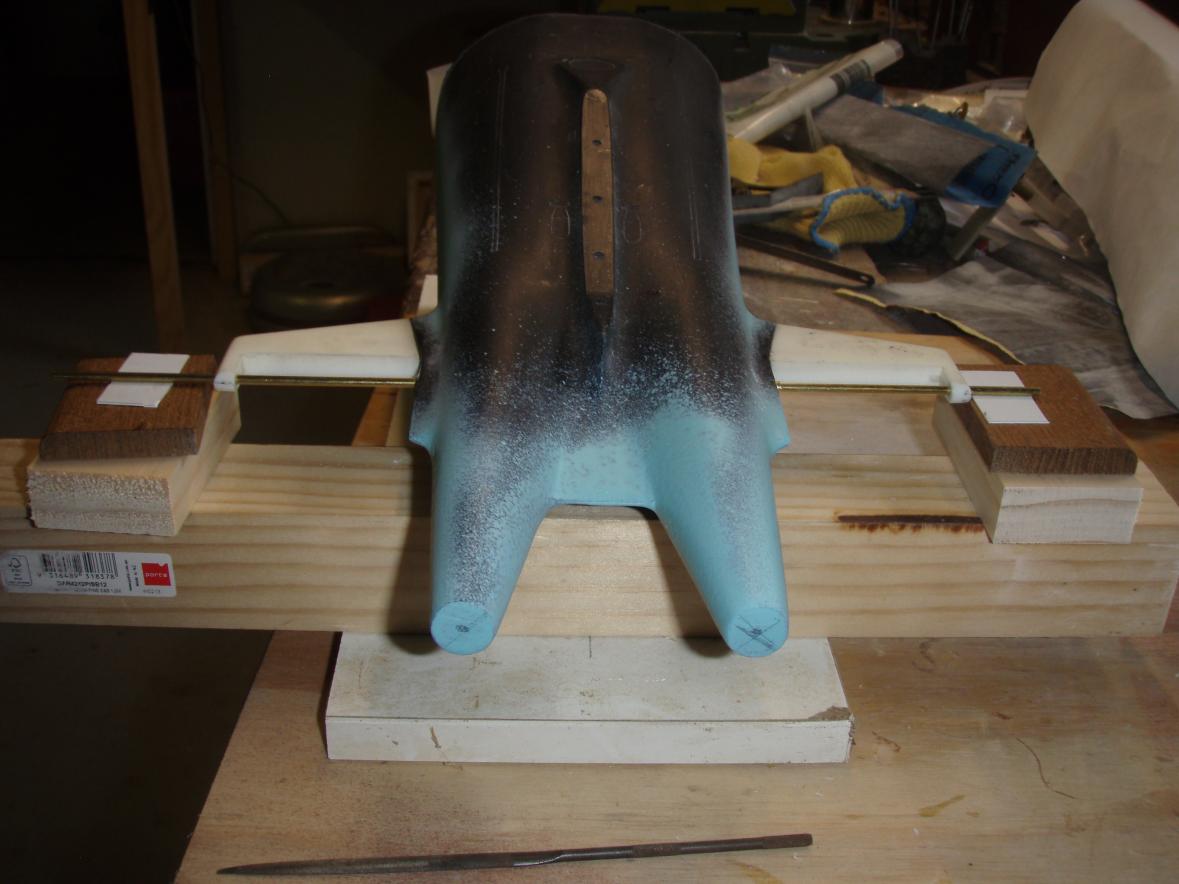

          Lights, camera, action!Click image for larger version

Name:	P4270213.jpg
Views:	1
Size:	88.9 KB
ID:	98303

          Comment


          • #6
            Very nice Scott, are these the same LEDs as on the Akula ? How many do you plan putting on ? I imagine from the size of the kit and looking at Mark's build log that you could go to town detailing this thing. Important question have you the room to put in working scopes ? Especially Cod Eye.

            Peter

            Comment


            • #7
              Same LEDs as the Akula but this one will have seven or eight of them. I've ordered a new SD which will sit low in the hull (according to Kevin's advice) and that should leave enough room to get at least some of the scopes working.

              Comment


              • #8

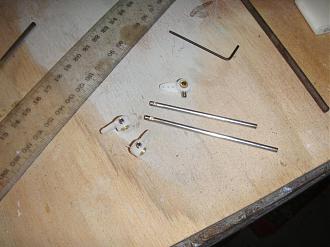

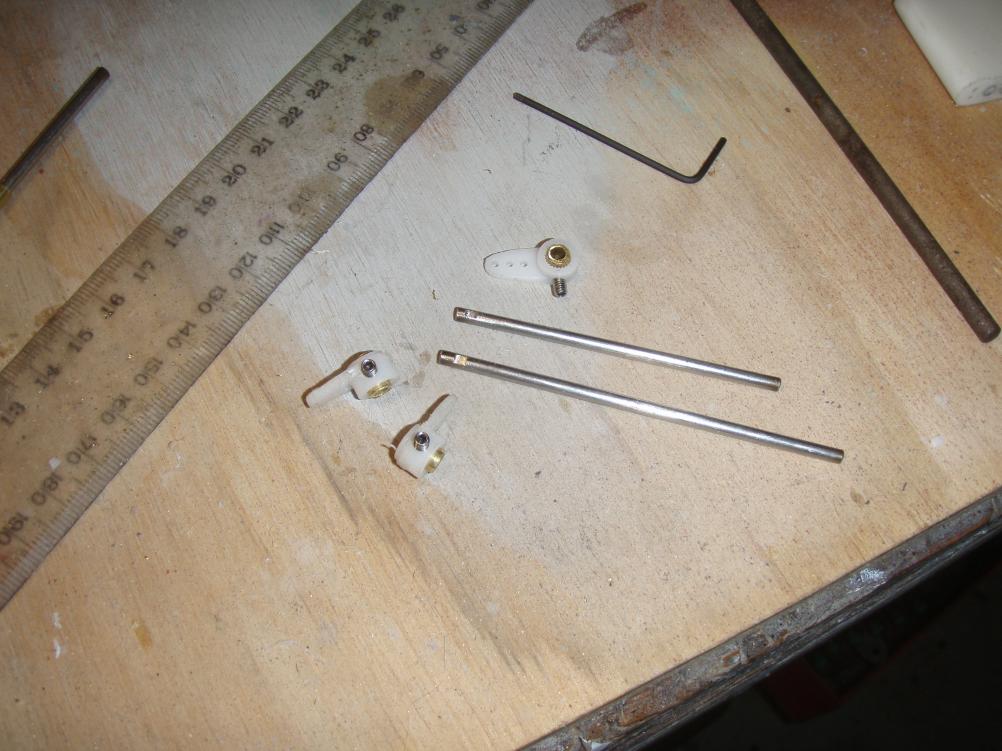

                Spent the afternoon figuring out the control mechanism for the rear planes and (three) rudders. I didn't have any ready made control horns so I modified these servo horns to fit the 3mm shafts. Seems to be quite secure and works OK. Onward!
                Click image for larger version

Name:	P5030214.jpg
Views:	1
Size:	96.6 KB
ID:	98398

                Comment


                • #9
                  Propellor shafts are in. These are Engel 4mm shafts with teflon bearings at the tail and nylon at the bulkhead.

                  Click image for larger version

Name:	P5050213.jpg
Views:	1
Size:	94.9 KB
ID:	98418

                  Comment


                  • #10

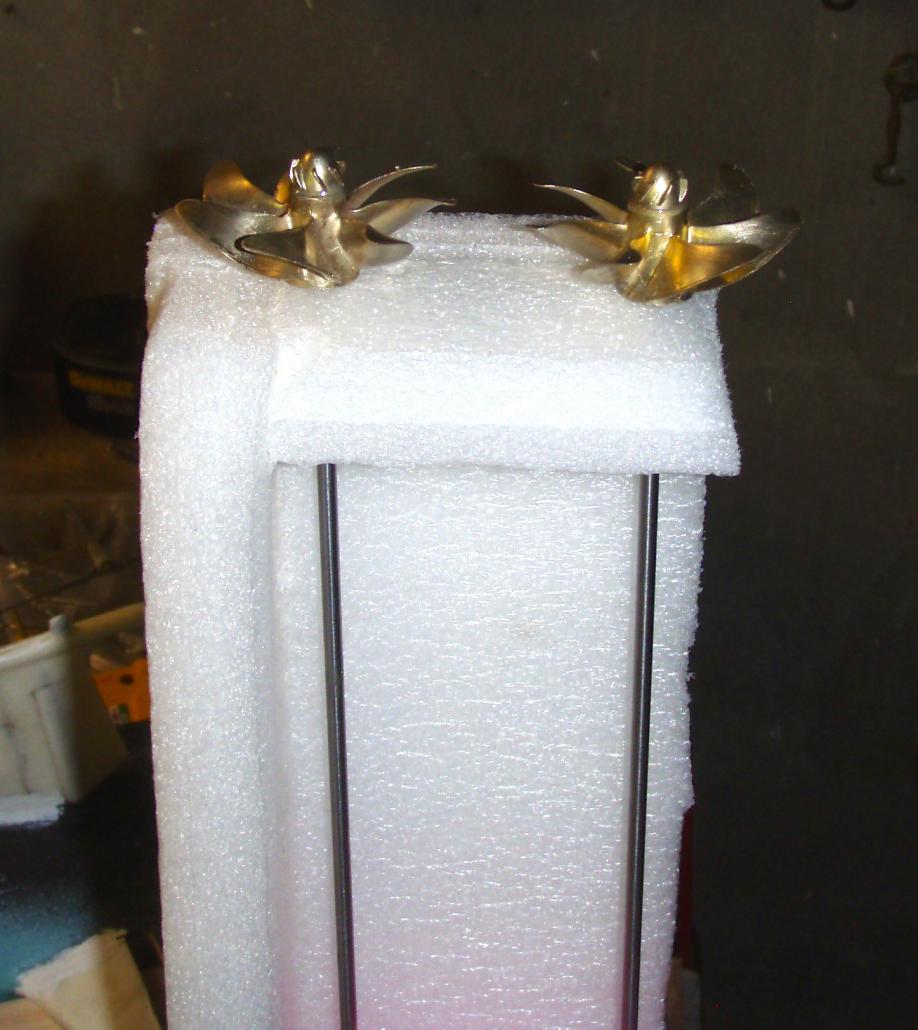

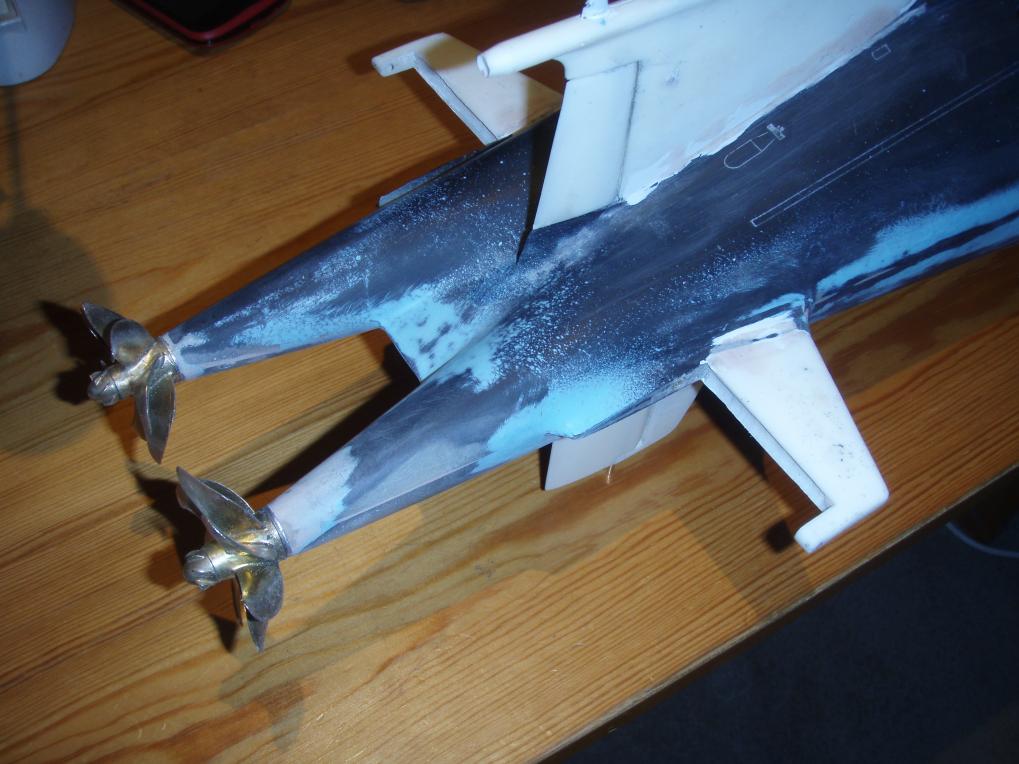

                    Fixed the props and end caps with epoxy resin (and a mechanical pin). These suckers are not getting lost!

                    Click image for larger version

Name:	P5050219.jpg
Views:	1
Size:	91.2 KB
ID:	98419

                    Comment


                    • #11

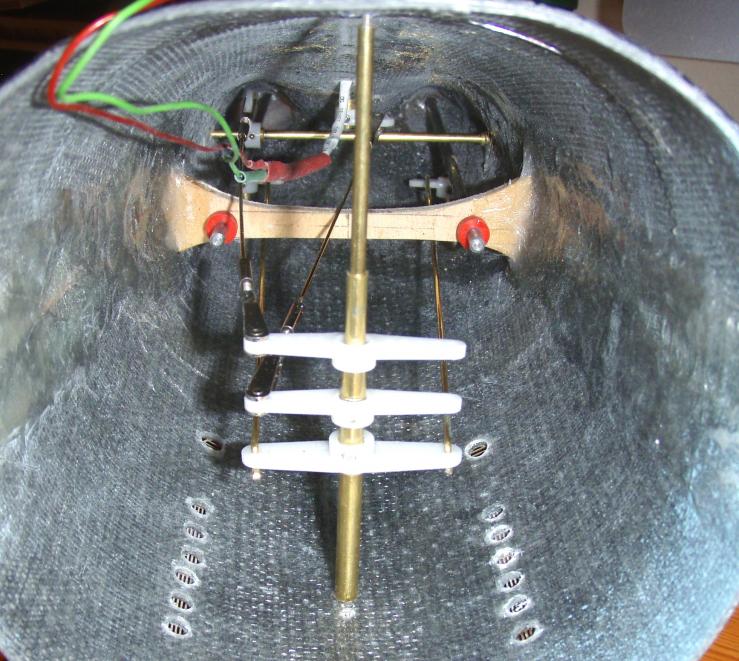

                      Today I fitted the rudder control mechanism, (sounds fancy considering its three bits of brass and a few tubes!) and the shafts. Waiting on some bits from Mr Caswell for finish up the tail end before I go onto the main hull. Click image for larger version

Name:	P5100214.jpg
Views:	1
Size:	96.8 KB
ID:	98493Click image for larger version

Name:	P5100214 2.jpg
Views:	1
Size:	91.9 KB
ID:	98494

                      Comment


                      • #12

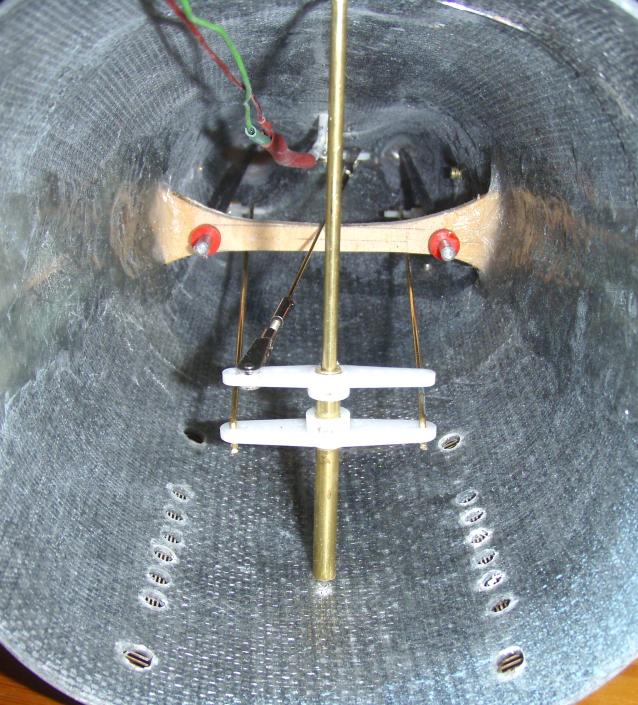

                        Added the rear planes control rod and bell crank. All done.Click image for larger version

Name:	P5100214.jpg
Views:	1
Size:	96.2 KB
ID:	98495

                        Comment


                        • #13
                          Good News!!! I have my camera cable back. The attached arsehole returned today with it. Hurrah.Click image for larger version

Name:	IMG_0860.jpg
Views:	1
Size:	91.1 KB
ID:	98496

                          Comment


                          • #14
                            Blimey Scott, that thing not wet yet.....I like the common vertical post for the rear planes/ rudder etc. A lot more room in the back of that than in the Akula.

                            Peter

                            Comment


                            • #15
                              Just learned another one......thatís well engineered......can't wait to see were you gonna put Miss Russia on it.

                              The post runs thru the hull or did you work with doweled pins to secure it?

                              Grtz,
                              Bart
                              Practical wisdom is only to be learned in the school of experience.
                              "Samuel Smiles"
