    Originally posted by Peter W
    Starting to seriously think about an SD for the Akula now. For those of you in the know I assume that the 3.5" SAS is the way to go with the single motor bulkhead kit?

    I also have very daft question to ask, but how does the vent valve work exactly?

    Peter
    It works great. Thanks.

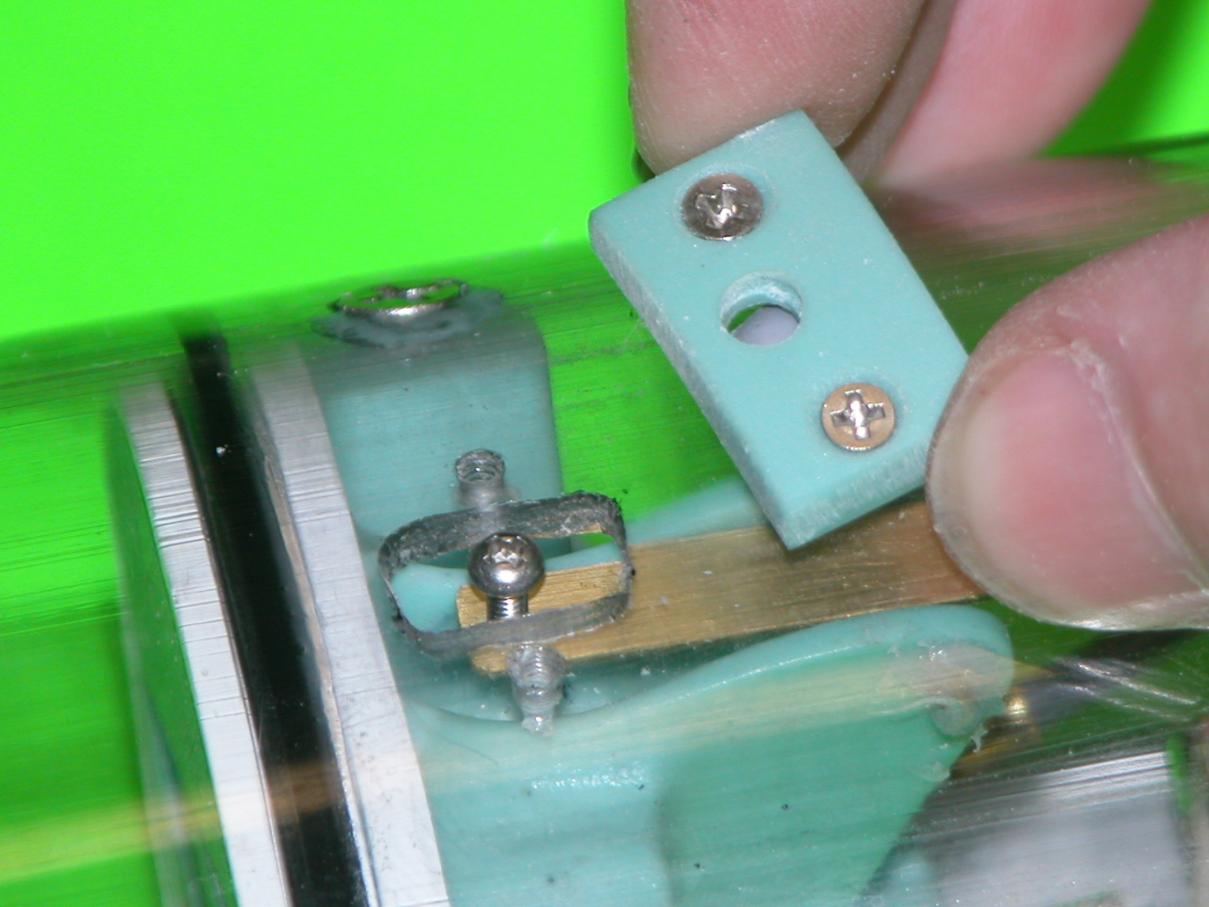

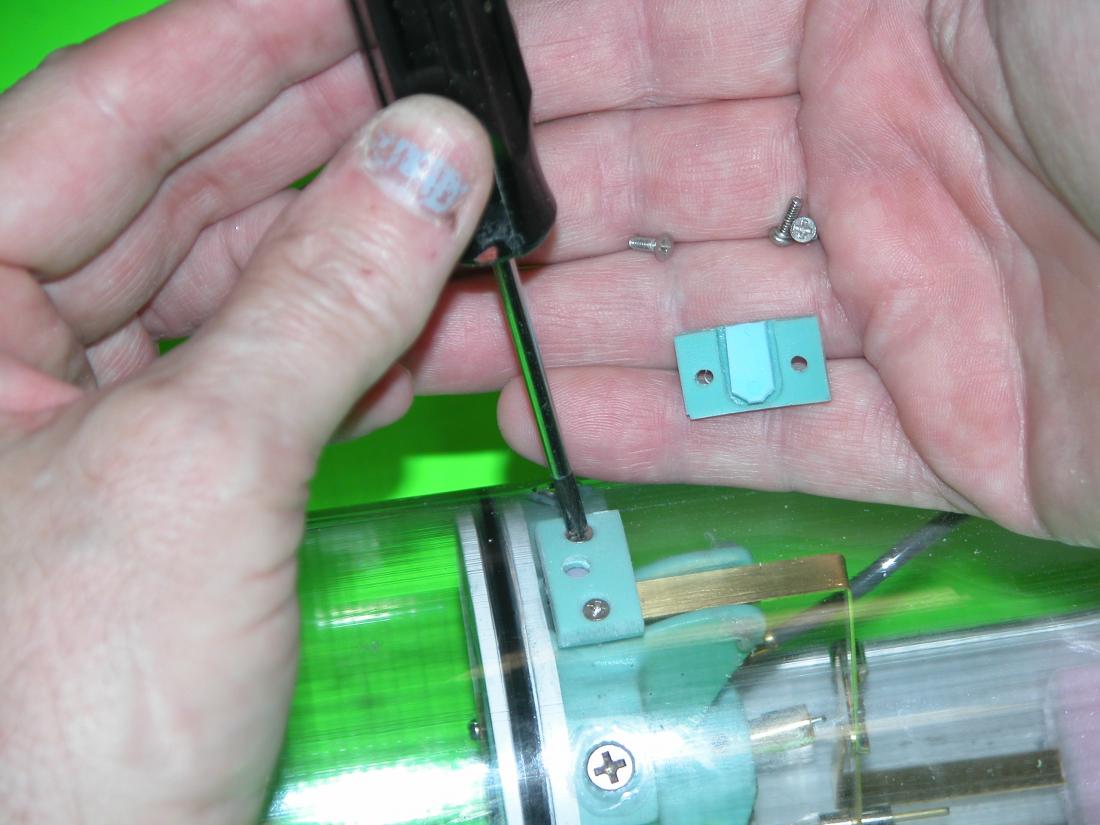

    It's a rubber element pushed onto the valve vent seat by the round-head of a 2-56 machine screw. That screw pushed up and down by a servo operated linkage-arm

    Click image for larger version

Name:	DSCN0021.jpg
Views:	1
Size:	88.8 KB
ID:	93208 Click image for larger version

Name:	DSCN0022.jpg
Views:	1
Size:	84.6 KB
ID:	93209
    Who is John Galt?

    Comment

    • Peter W
      Captain
      • May 2011
      • 509

      Mr M, thank you for the answers. So the Skipjack one and not the 30" long generic 3.5" SD. I assume that the bigger one is just too big?


      Peter

      Comment

      • He Who Shall Not Be Named
        Moderator
        • Aug 2008
        • 12350

        Originally posted by Peter W
        Mr M, thank you for the answers. So the Skipjack one and not the 30" long generic 3.5" SD. I assume that the bigger one is just too big?


        Peter
        Yeah, much longer a piece of Lexan than you need for it.

        And you're in luck. Someone over at the SC forum is trying to off-load just the SD you need: factory fresh, and at a steal. http://www.subcommittee.com/phpBB3/v...hp?f=8&t=12377

        Snatch it up, you'll save yourself a few hundred bucks.

        M
        Who is John Galt?

        Comment

        • HardRock
          Vice Admiral
          • Mar 2013
          • 1609

          Geeezzzz you're fast Peter. I just had a quick look at that SD for sale and there you are - all over it. Looks like a great buy. Good luck.

          Comment

          • Peter W
            Captain
            • May 2011
            • 509

            Just an enquiry over there, haven't been on there for so long that do you think I could remember my password? No. To be fair although cheaper I may end waiting a bit and getting it from source, think I am going to need the horizontal snorty valve thing anyway. It is all about readily available funds....... Or not as the case maybe.

            Have played around with an idea for scopes will try and remember what the upshot was and let you know.

            Peter

            P.S. If Mr. M says jump then you jump....... Quickly!

            Comment

            • He Who Shall Not Be Named
              Moderator
              • Aug 2008
              • 12350

              Originally posted by Peter W
              Just an enquiry over there, haven't been on there for so long that do you think I could remember my password? No. To be fair although cheaper I may end waiting a bit and getting it from source, think I am going to need the horizontal snorty valve thing anyway. It is all about readily available funds....... Or not as the case maybe.

              Have played around with an idea for scopes will try and remember what the upshot was and let you know.

              Peter

              P.S. If Mr. M says jump then you jump....... Quickly!
              Good point. That SD comes with the tall snorkel assembly. Not suitable for your AKULA.

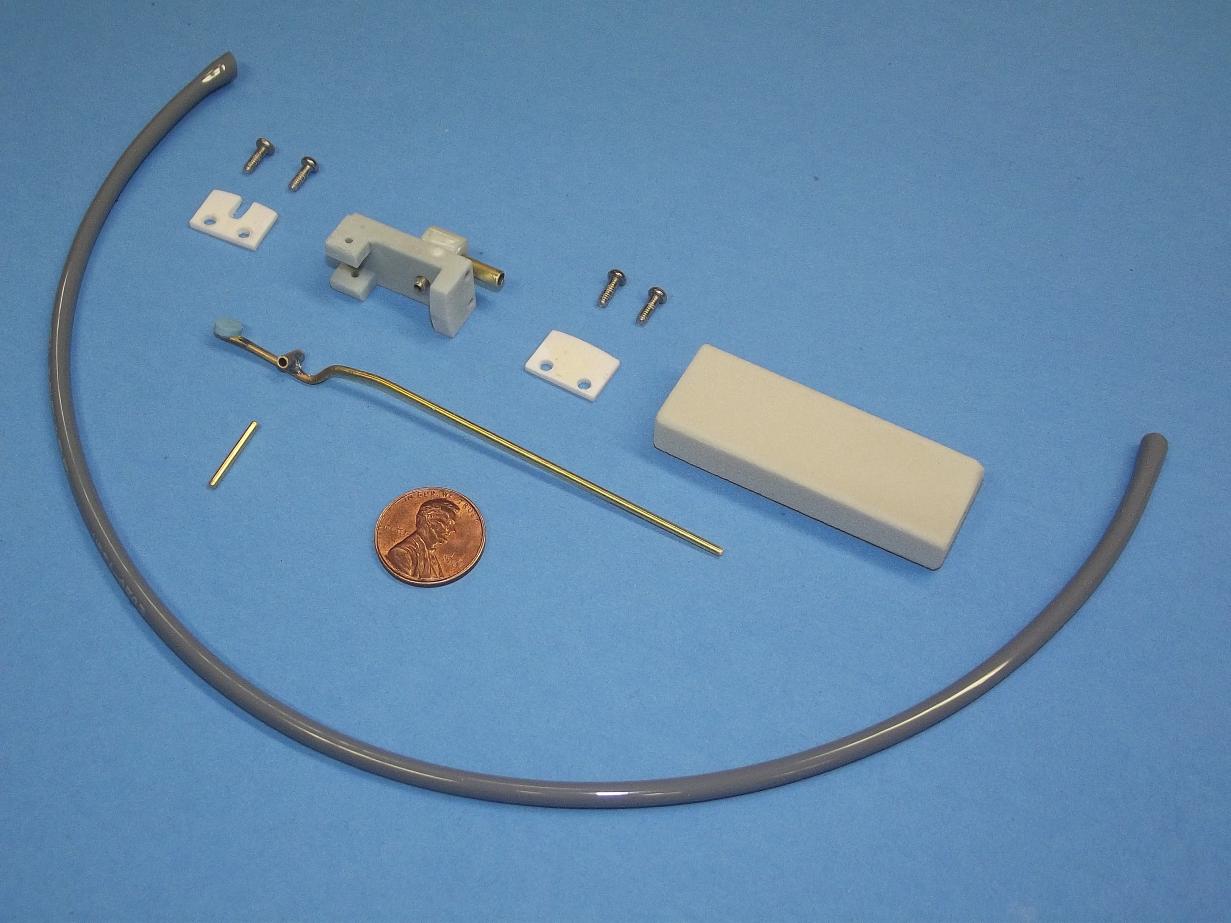

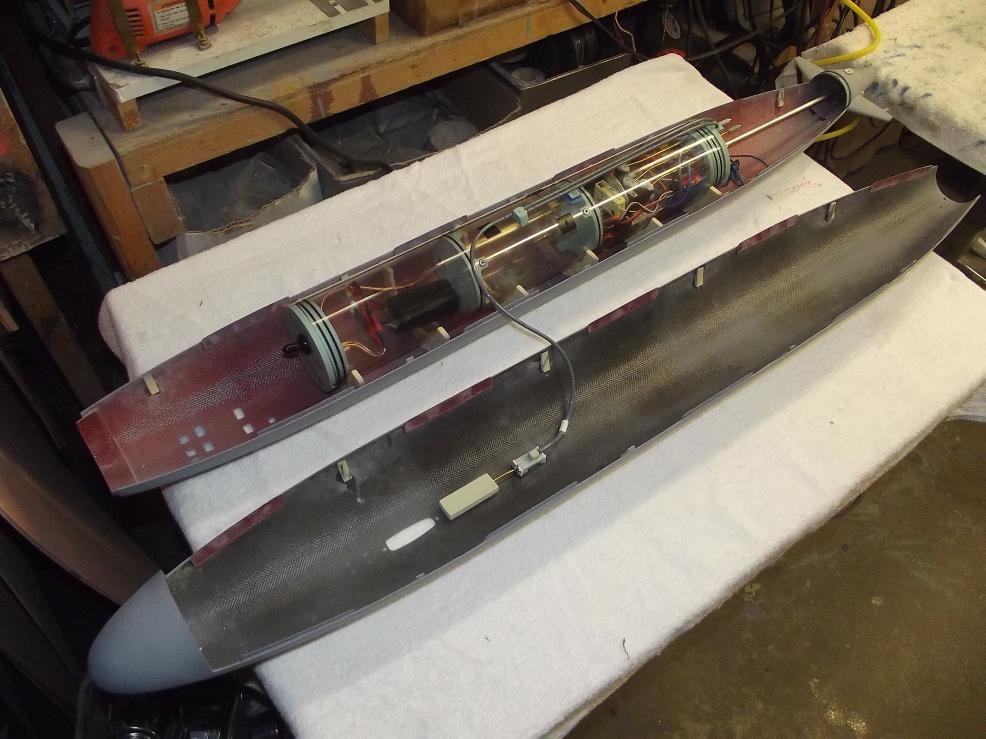

              I also produce a horizontal one, better suited to use in your 1/96 AKULA hull. As that submarine has such a short sail and a high freeboard (it stands tall in surfaced trim), there's no problem mounting the horizontal type snorkel assembly onto the hull, just aft of the sail.

              Click image for larger version

Name:	DSCF0202.jpg
Views:	2
Size:	96.2 KB
ID:	93210 Click image for larger version

Name:	DSCF0236.jpg
Views:	2
Size:	91.0 KB
ID:	93211 Click image for larger version

Name:	DSCF8955.jpg
Views:	2
Size:	110.8 KB
ID:	93212 Click image for larger version

Name:	DSCF8973.jpg
Views:	4
Size:	94.8 KB

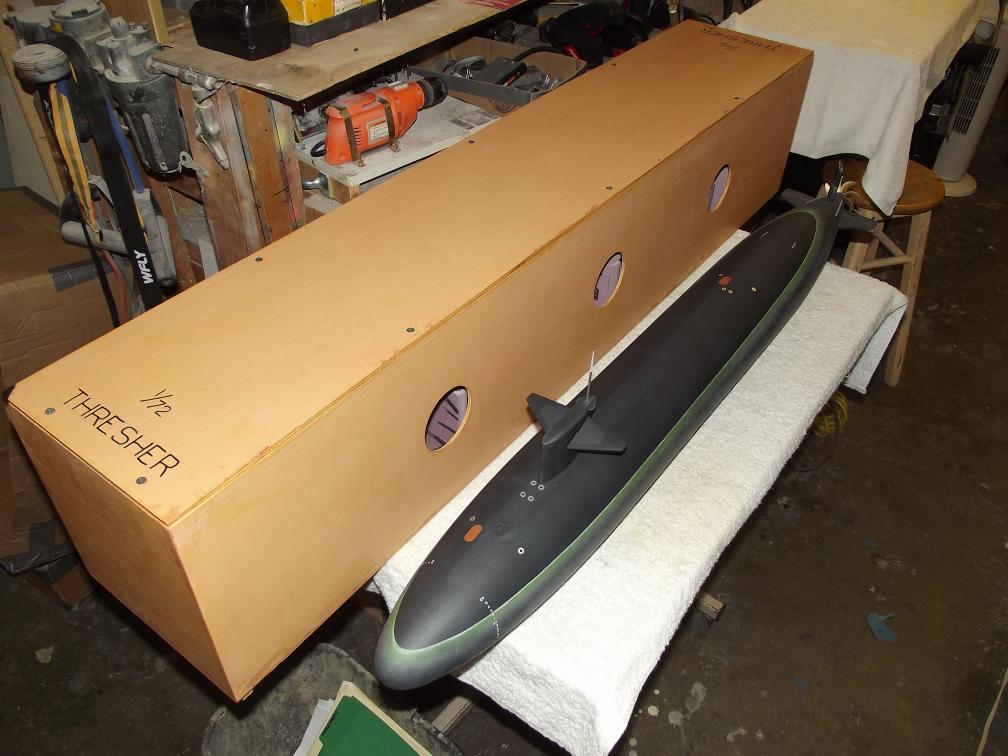

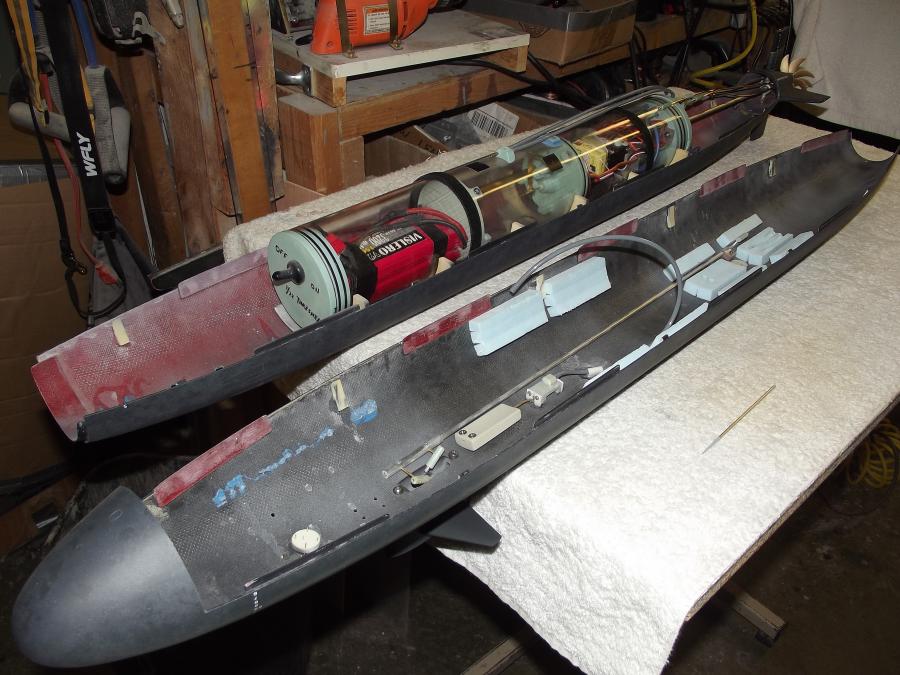

ID:	93213 I did this on the 1/72 THRESHER -- even with its relatively low freeboard, this installastion worked fine.

              M
              Attached Files
              Who is John Galt?

              Comment

              • Peter W
                Captain
                • May 2011
                • 509

                The original alignment problem between the upper and lower halves, although pretty much sorted with the heat gun, was still about 4mm (5/32"ish) out. So I took the radical, more aggressive route, 120 grit sandpaper to be exact, now the 2 parts are really close together .........get a room close ! Pics to follow.

                Peter

                Comment

                • Peter W
                  Captain
                  • May 2011
                  • 509

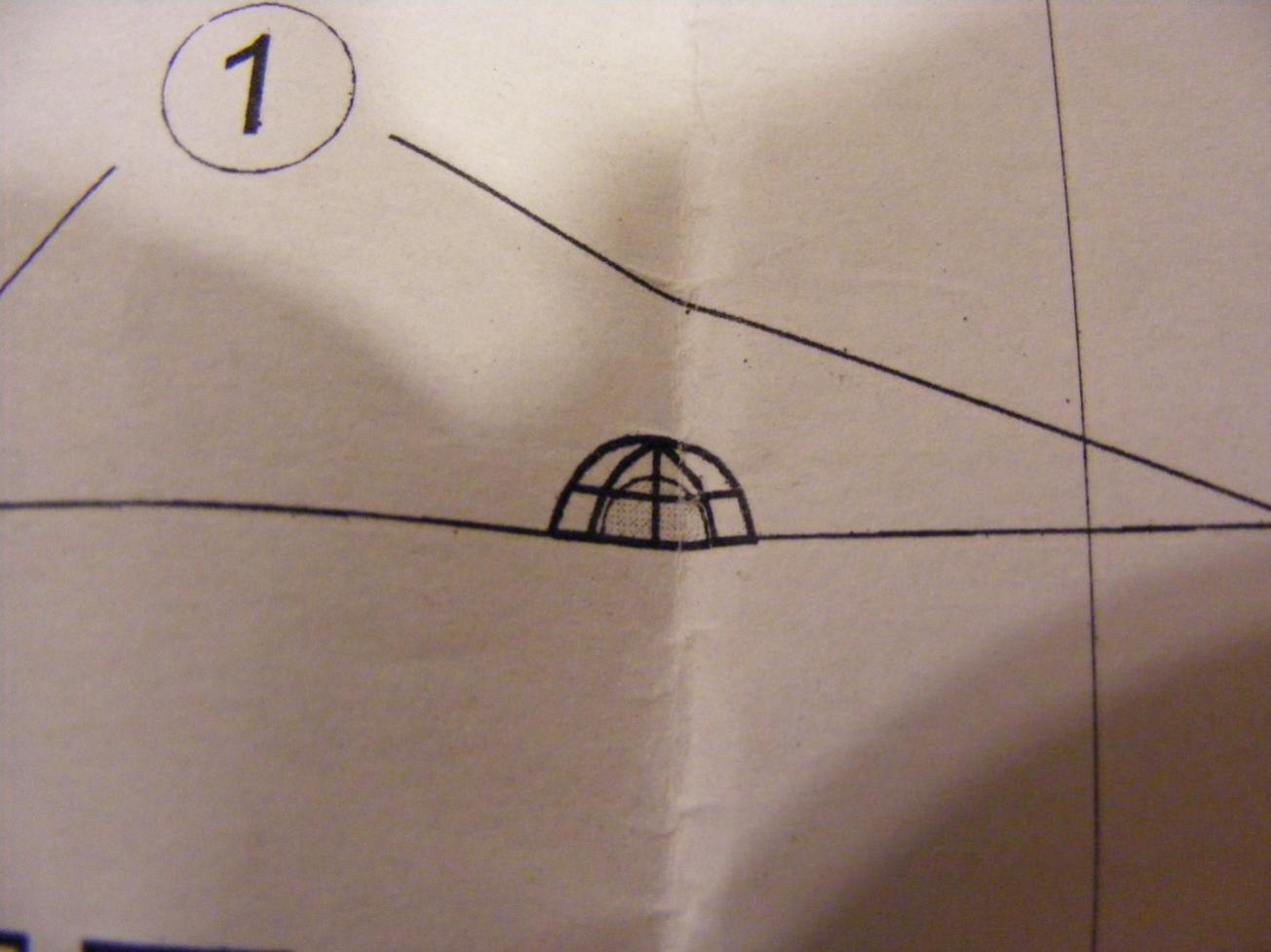

                  Mark on your Oscar build you asked a question about this,

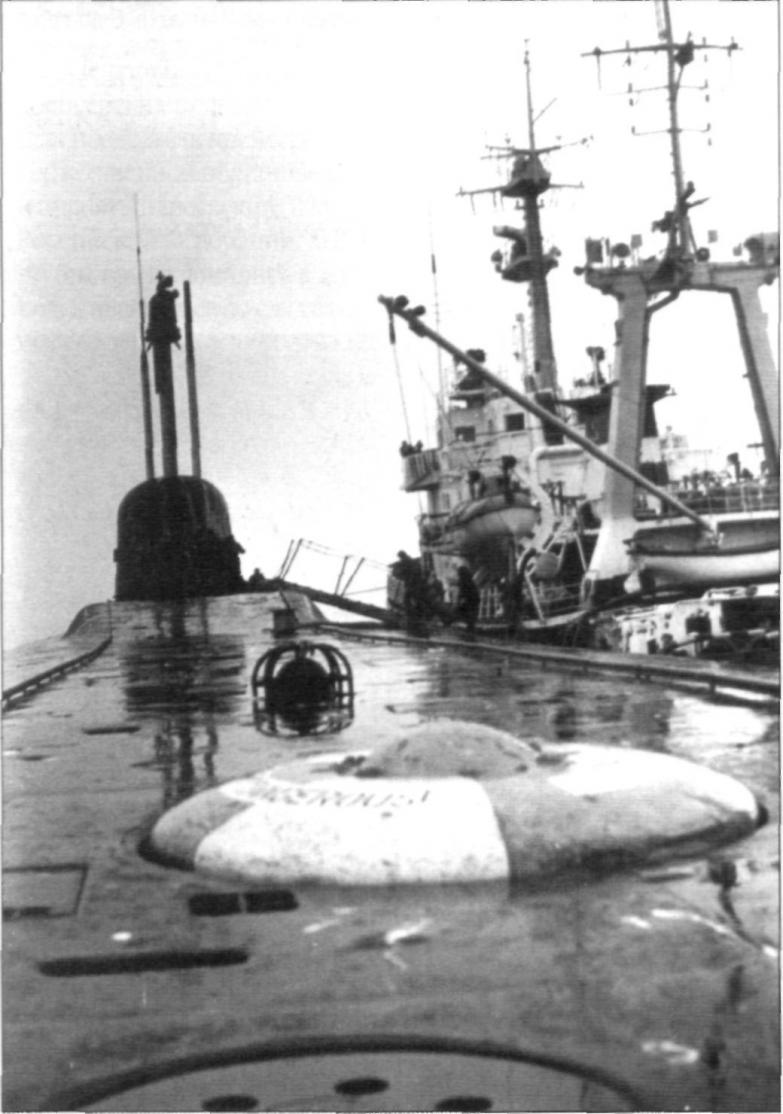

                  Click image for larger version

Name:	,  _4.jpg
Views:	3
Size:	86.3 KB
ID:	93300 Click image for larger version

Name:	Transfer 120.jpg
Views:	1
Size:	92.7 KB
ID:	93301

                  Did you ever find out what it was? there is a similar thing on the Akula.

                  Doing stuff just not a lot and not very note worthy.

                  Peter

                  Comment

                  • He Who Shall Not Be Named
                    Moderator
                    • Aug 2008
                    • 12350

                    Looks to be a sonic transducer -- something like the American UQC 'underwater telephone'.

                    M
                    Who is John Galt?

                    Comment

                    • Peter W
                      Captain
                      • May 2011
                      • 509

                      Thanks Dave, sonic transducer eh at 1/96 scale it's going to be a light.

                      Juan, how did you affix the rear planes to your Akula?

                      Peter

                      Comment

                      • Peter W
                        Captain
                        • May 2011
                        • 509

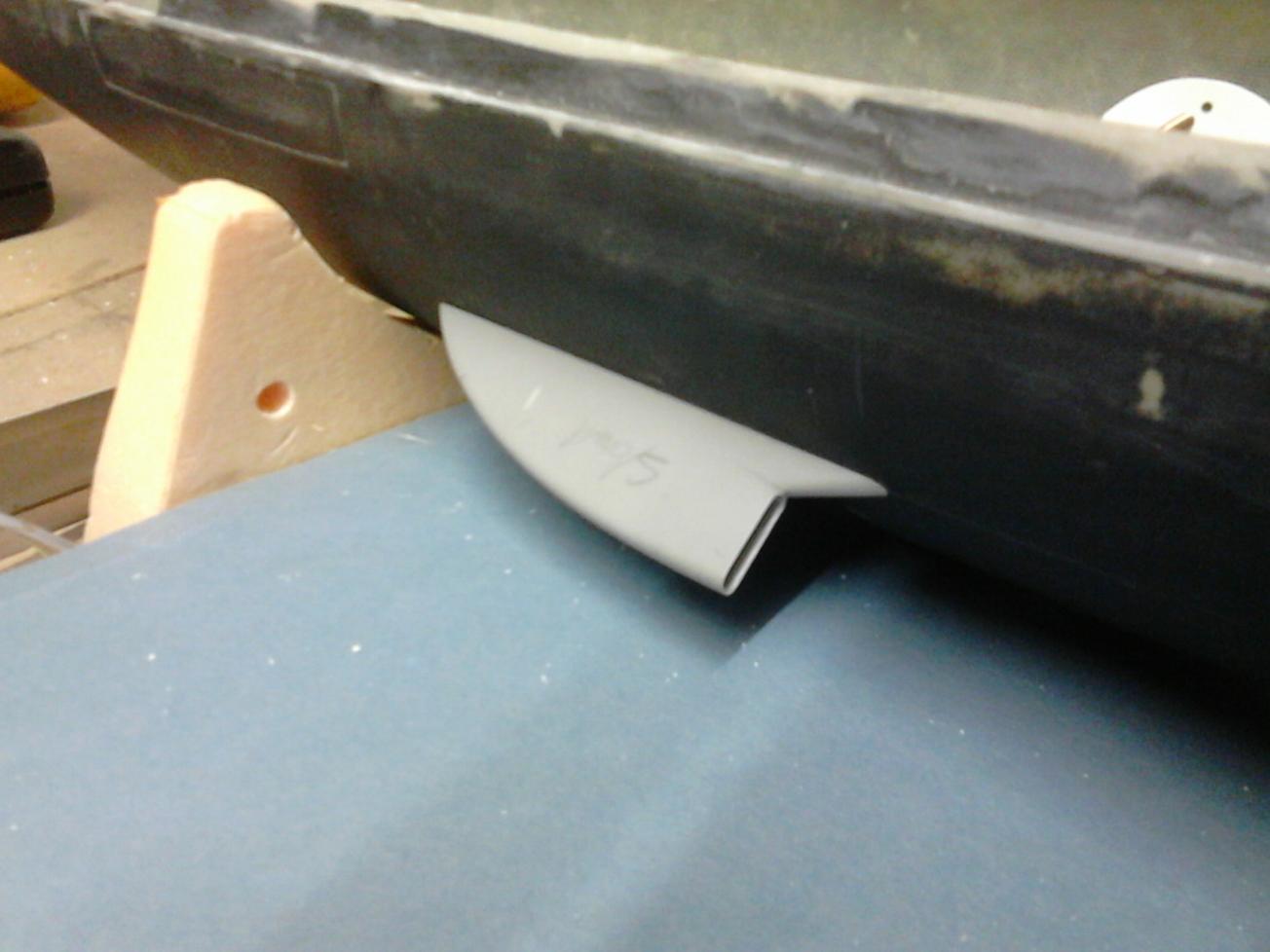

                        Ok we continue, have affixed the reactor scoops. Decided to screw them to the hull for strength using 1/2" x 6BA brass machine srews.


                        Click image for larger version

Name:	Akula b 9999999999992.jpg
Views:	1
Size:	84.3 KB
ID:	93330
                        Click image for larger version

Name:	Akula b 9999999999993.jpg
Views:	1
Size:	82.6 KB
ID:	93331

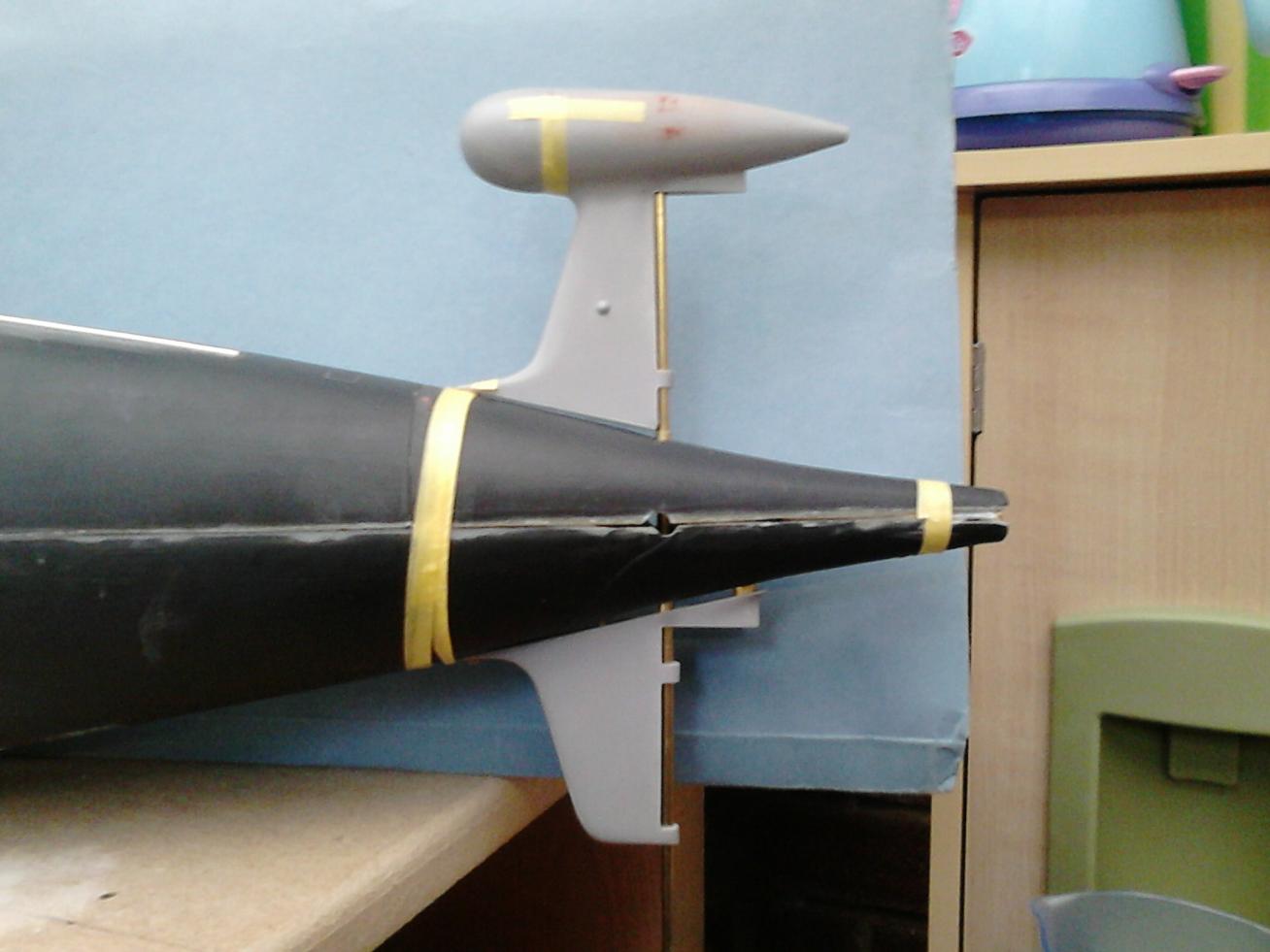

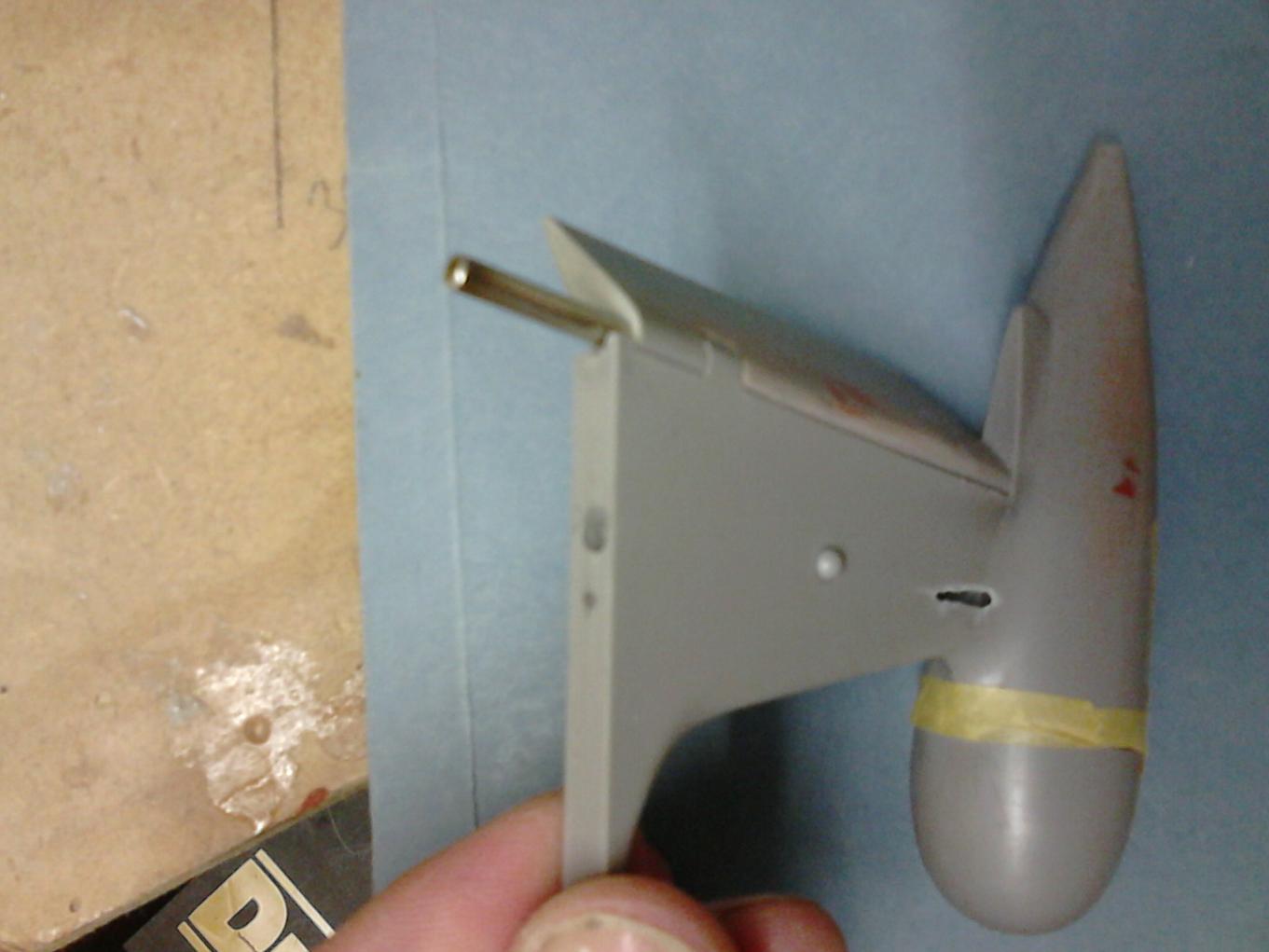

                        Have also spent a bit of more time on the upper rudder. 1st pic shows the front plate as fitted to the 1:1 boats replicated using a spare hub from a 1:35 tank. The 2nd shows a hole drilled from the bottom through to the pod to hopefully run some wires for a light on top of the pod. Please also note the damage caused by a slightly misdirected drill bit, will address that later.
                        Click image for larger version

Name:	Akula b 9999999999996.jpg
Views:	1
Size:	31.4 KB
ID:	93332
                        Click image for larger version

Name:	Akula b 9999999999995.jpg
Views:	1
Size:	83.0 KB
ID:	93333

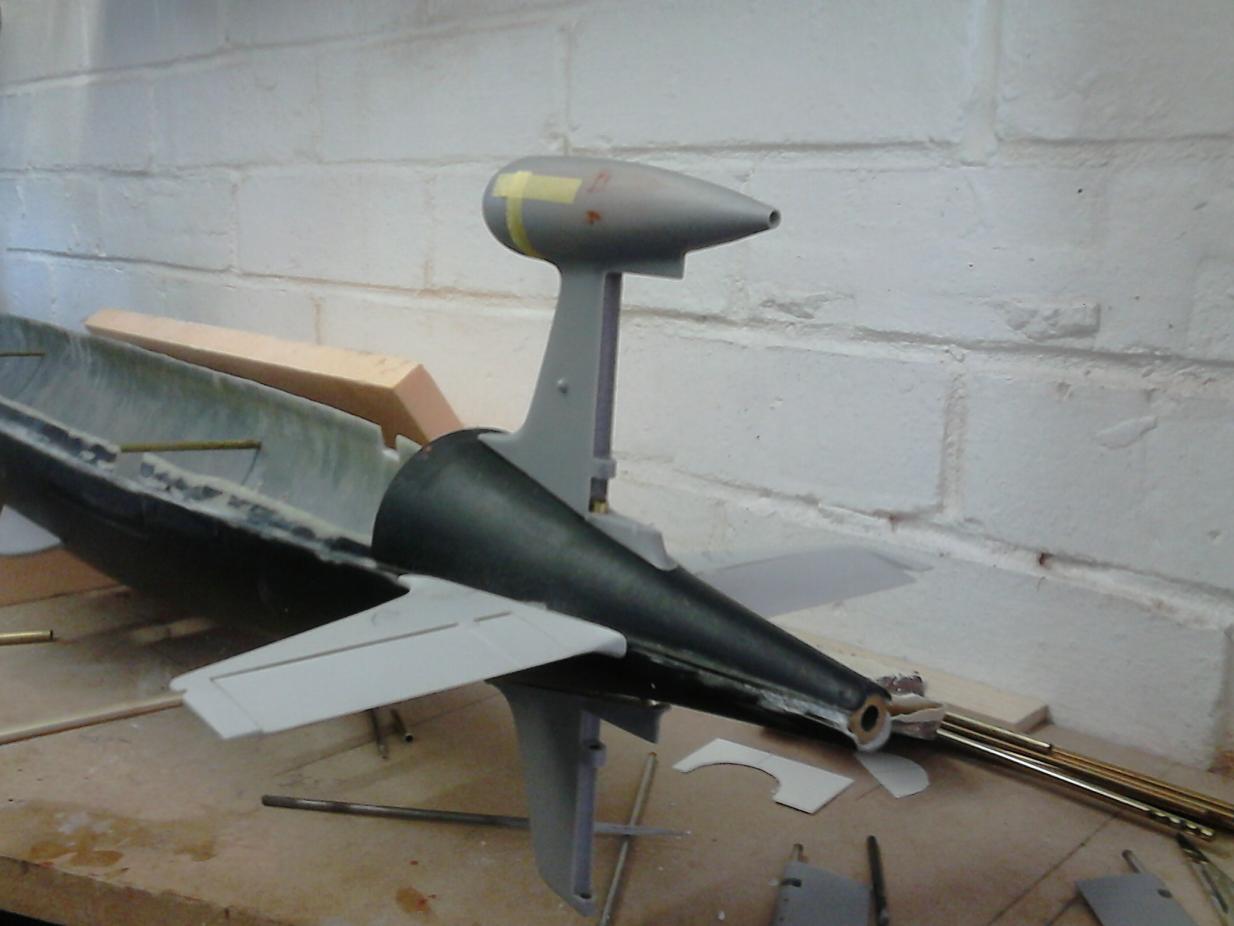

                        And finally I have started on fixing the rear control surfaces, first up the stern planes.

                        Click image for larger version

Name:	Akula b 9999999999994.jpg
Views:	1
Size:	83.0 KB
ID:	93334


                        Peter

                        Comment

                        • Peter W
                          Captain
                          • May 2011
                          • 509

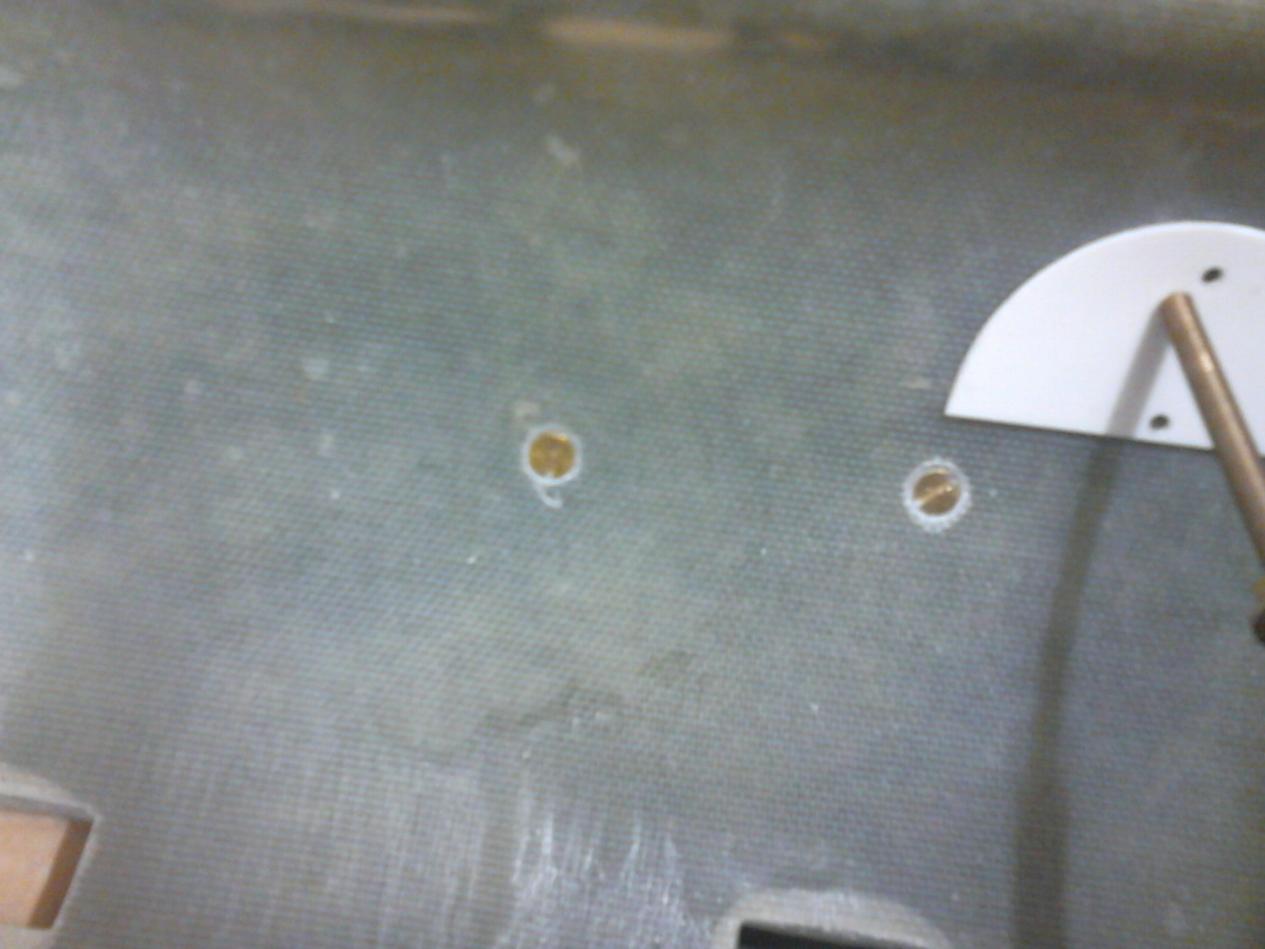

                          Decided that I needed to think a little on the fixing for the rear planes so turned my attention to the rudders. The lower hull that I have has been moulded a bit skew-whiff the laboriously filed holes in the bottom are not relative to the centre line as these were pre-indented I just went for it but now they are quite obviously off centre by about 6mm (1/4").The pre-marked position for the lower rudder was therefore also out but only by about 3mm (1/8") so I went about re-positioning it. After marking it off I re-drilled the 4mm ( 5/32"ish) and then taped the upper stern part in position, then using 4mm tube and 3mm rod I lined the upper and lower rudders in place after a bit of tweaking they were both marked for correct placement and then using 6BA x 1/2" bolts they were fixed in place. Because there is minor shape issues with the hull the lower rudder doesn't quite seat down tight onto the hull so 3 x 6BA washers were just right to space the sternmost part of the rudder away from the hull. In fact I lied, through the middle of these washers I used an 8BA x 3/8" bolt as the resin there is quite narrow. Anyway a picture ...

                          Click image for larger version

Name:	Akula b 9999999999997.jpg
Views:	1
Size:	85.1 KB
ID:	93335



                          Peter

                          Comment

                          • Peter W
                            Captain
                            • May 2011
                            • 509

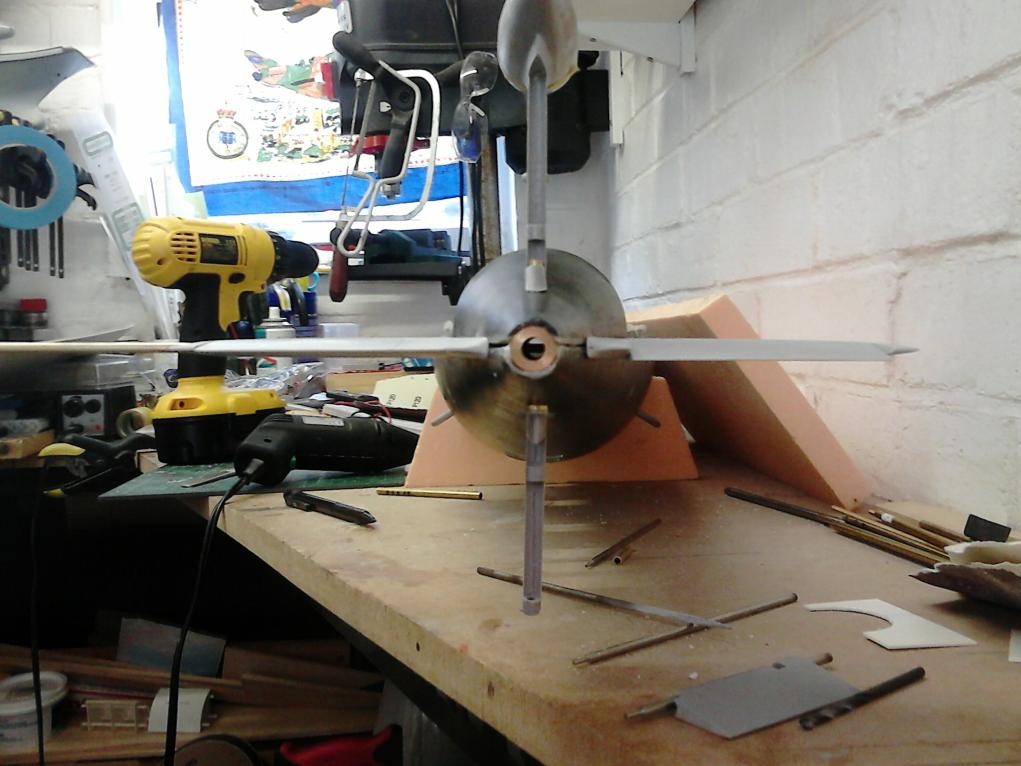

                            Stern planes today. I have got them to a point ready to be finally attached. Instead of bolting them on I decided to use 3mm (1/8") rod drilled into the plane to act as a anchor pin into the hull, the pin will then be attached using something sticky and strong.

                            Click image for larger version

Name:	Akula b 9999999999999.jpg
Views:	1
Size:	81.9 KB
ID:	93337
                            Click image for larger version

Name:	Akula b 99999999999991.jpg
Views:	1
Size:	87.9 KB
ID:	93338


                            Peter
                            Last edited by Peter W; 02-08-2015, 02:25 PM. Reason: I am an idiot

                            Comment

                            • HardRock
                              Vice Admiral
                              • Mar 2013
                              • 1609

                              Looking good Peter. For some strange reason my hull came together quite well at the rear. I ditched the 5mm shaft and bearing for a smaller one that gave me a bit more wiggle room for the linkages. How are you planning to fix the planes onto the shafts? All of mine were quite tight and made the whole thing pretty stiff until I ran a 3.2mm bit through the bearings which loosened things up nicely. I machined a flat on the end of each shaft and probably should have done another one mid-shaft so that the planes could be fixed with a grub screw. Concerns over final alignment pushed me away from that and in the end I just glued them. Interested in your thoughts.

                              Comment

                              • Peter W
                                Captain
                                • May 2011
                                • 509

                                Yep, after advice earlier in this thread I am going to glue them. Probably going to use the existing prop shaft bearing tube as a holder for a smaller one.

                                Peter
