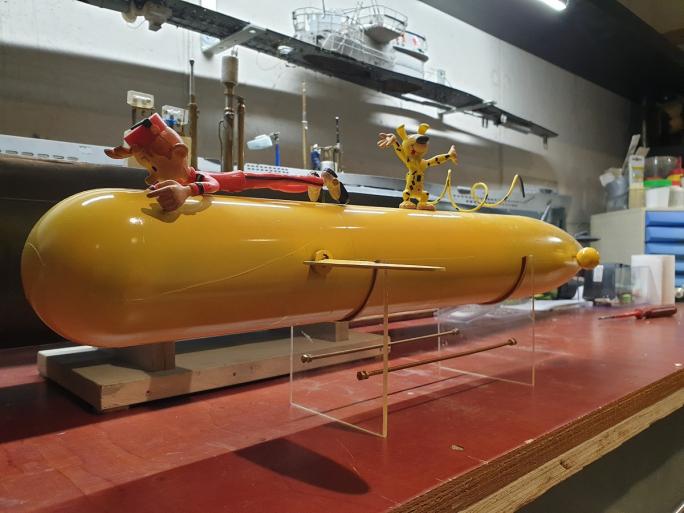

    Enjoyed some weeks off, and starting to get me the molds, pictures

    Click image for larger version

Name:	20240609_131720.jpg
Views:	269
Size:	43.1 KB
ID:	182776

    Click image for larger version

Name:	20240609_131730.jpg
Views:	250
Size:	46.8 KB
ID:	182777

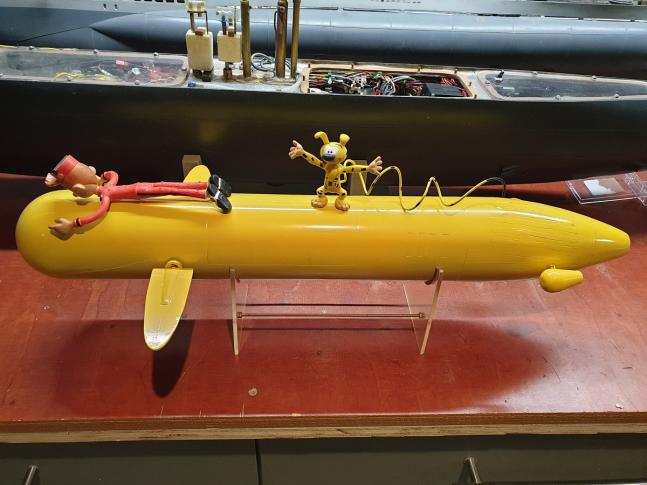

    Gave the plug some paint and let her cure for a few weeks.

    Click image for larger version

Name:	20240609_135353.jpg
Views:	252
Size:	50.2 KB
ID:	182778

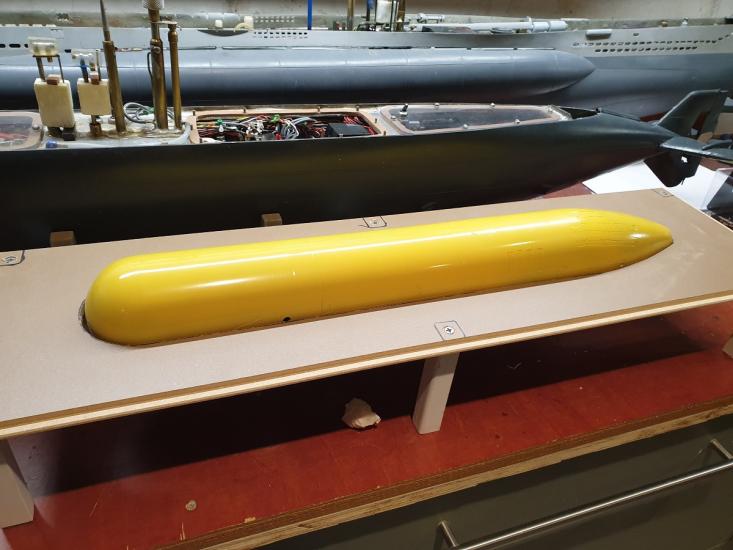

    She will be placed inside the moldtable i made before.

    Click image for larger version

Name:	20240609_135401.jpg
Views:	259
Size:	43.8 KB
ID:	182779

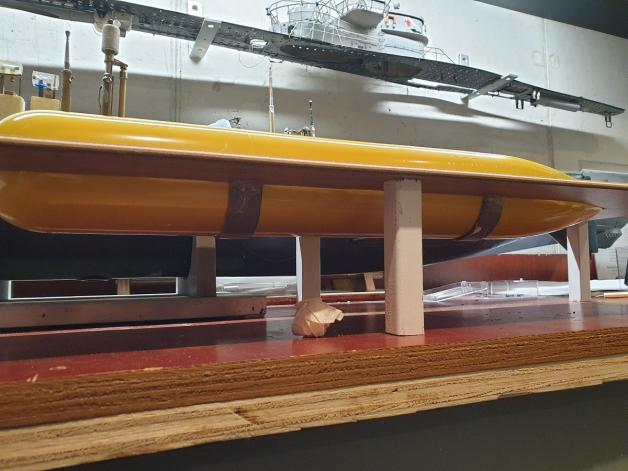

    Made some reinforcement rings to keep her at the right place, when using the clay you tend to push the plug down.

    Click image for larger version

Name:	20240609_150933.jpg
Views:	246
Size:	45.1 KB
ID:	182780

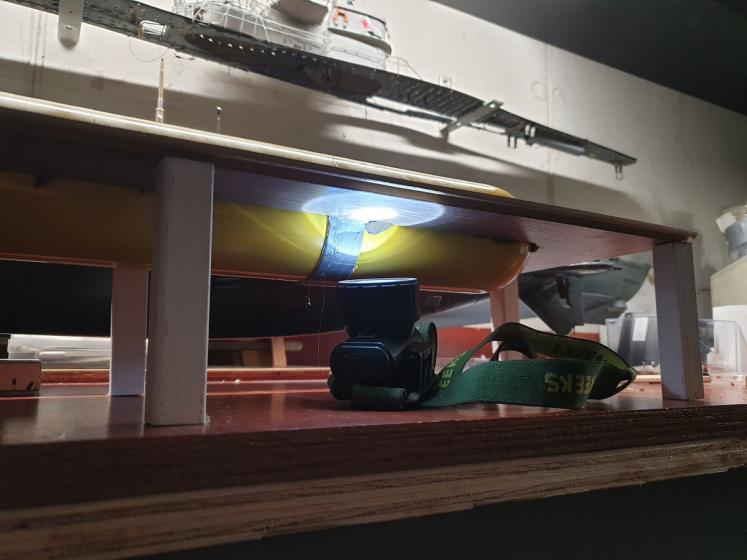

    Used a bright led to find the weak spots in the clay, this way you won't have lekkage during the making of the mold.

    Click image for larger version

Name:	20240609_144637.jpg
Views:	253
Size:	44.2 KB
ID:	182781

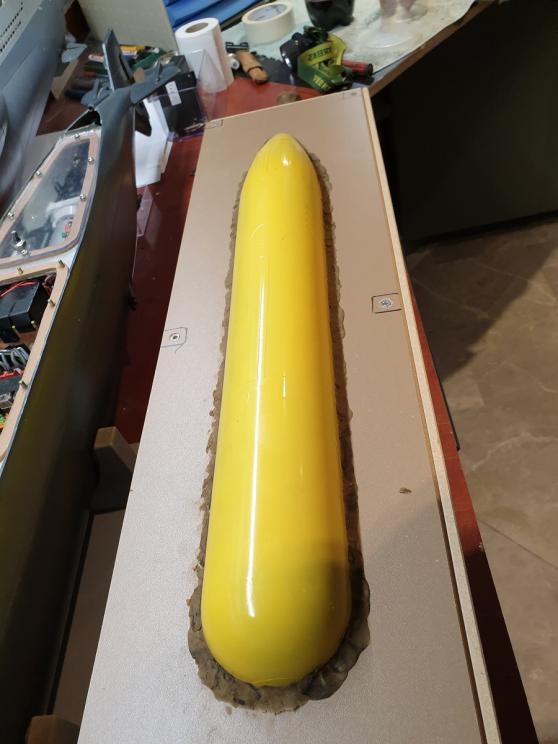

    First i place the clay in the rough giving this as the result, the seem is closed by the clay.

    Click image for larger version

Name:	20240609_145424.jpg
Views:	254
Size:	44.6 KB
ID:	182782

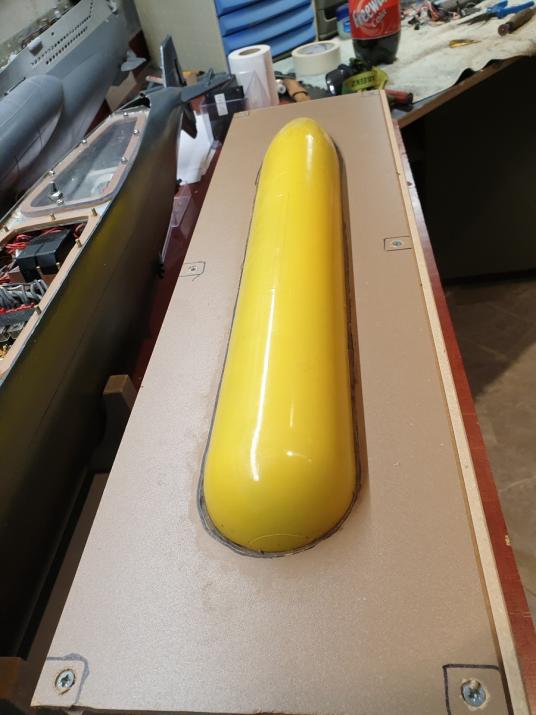

    Cleaned up the clay all around, next few days i've got me a window of some good weather, so making the mold will follow up soon,

    Manfred.

    I went underground

    Comment

    • Albacore 569
      Captain

      • Sep 2020
      • 634

      #17
      Hanna Barbara makes German Molch subs!

      Comment

      • MFR1964
        Detail Nut of the First Order

        • Sep 2010
        • 1525

        #18
        The Mold is taking shape, had a good week with good tempartures to get me some progress,

        Click image for larger version

Name:	20240609_154817.jpg
Views:	231
Size:	45.4 KB
ID:	182818

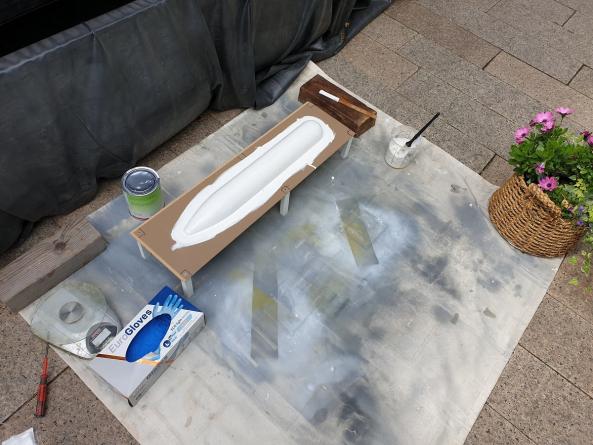

        First the gelcoat, you have to wait untill it turns sticky, this is the moment to get the first layer with epoxy on

        Click image for larger version

Name:	20240609_154823.jpg
Views:	224
Size:	46.0 KB
ID:	182819

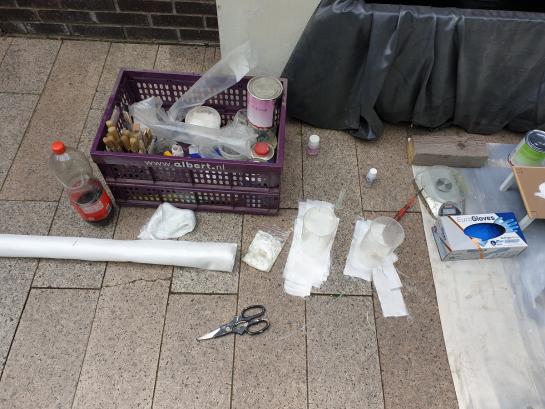

        I had allready cutted some pieces of cloth as preparation, this way you can work fast.

        Click image for larger version

Name:	20240609_163406.jpg
Views:	223
Size:	46.0 KB
ID:	182820

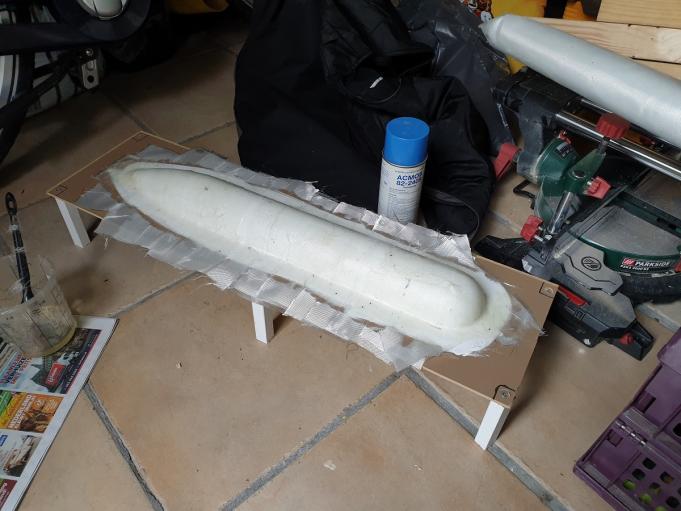

        Building up the layers, for this mold about 12, it has to be strong enough to handle some mechanical force.

        Click image for larger version

Name:	20240612_163436.jpg
Views:	227
Size:	45.7 KB
ID:	182821

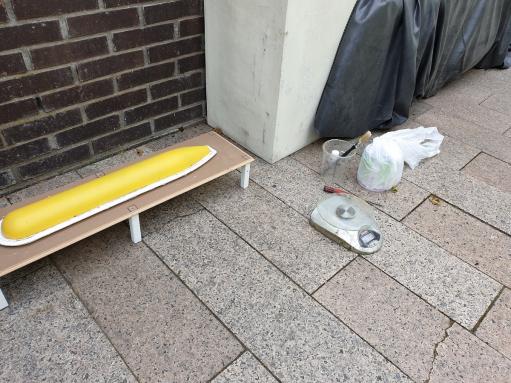

        Cutted the rim for the next phase of the other half.

        Click image for larger version

Name:	20240612_165210.jpg
Views:	224
Size:	45.2 KB
ID:	182822

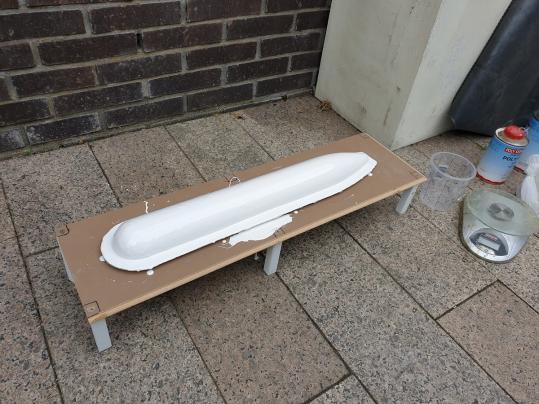

        The other side is pretty much the same story, don't forget PVA spray to ease the opening of the mold.

        Click image for larger version

Name:	20240612_182027.jpg
Views:	238
Size:	52.5 KB
ID:	182823

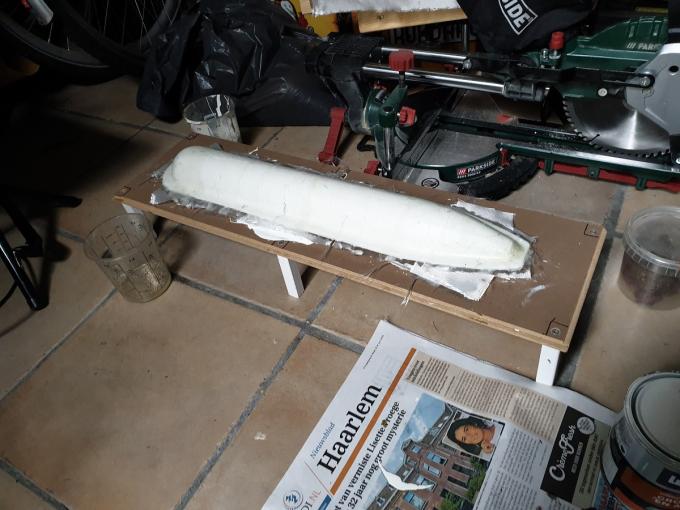

        When all layers are done i will let her cure for a few days, after that i will split the mold to see what the result is.


        Manfred.
        I went underground

        Comment

        • MFR1964
          Detail Nut of the First Order

          • Sep 2010
          • 1525

          #19

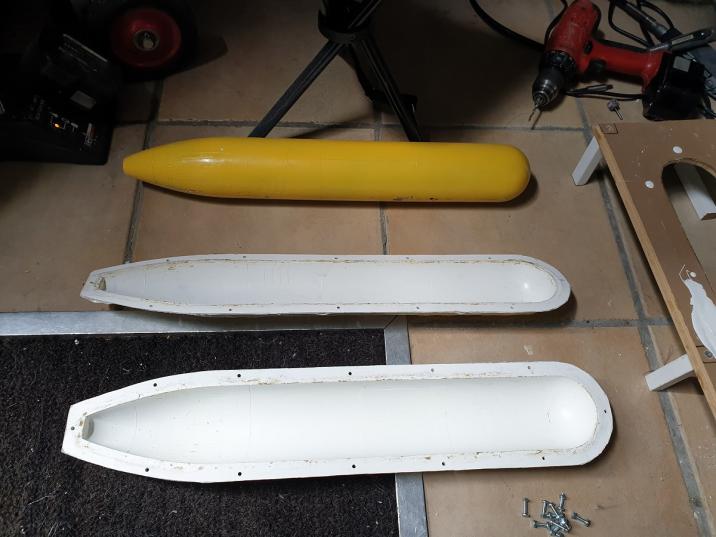

          Molds are splitted, this week i can start with making the actual hull, did some work on the techrack wich i want to use, Click image for larger version

Name:	20240615_103505.jpg
Views:	218
Size:	46.5 KB
ID:	182903

          Before i splitted the mold i drilled some holes in the flange, this way you have only one way to fit them together, when both hull halves are made i can use epoxy to bond them by turning the mold around.

          Click image for larger version

Name:	20240609_131943.jpg
Views:	197
Size:	50.2 KB
ID:	182904

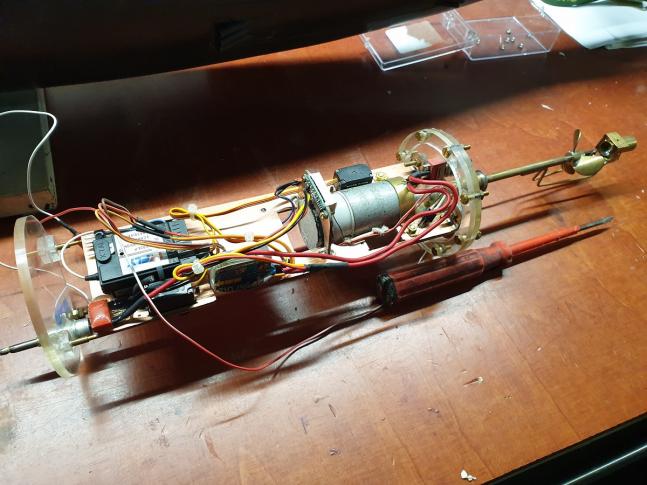

          Since laying up the mold is done in 1 hour a day i found me some time to build up the techrack i want to use, ordered some ESC's so i can finish it up, even found some room to add a levelkeeper, had a spare Wyfly receiver which fitted in.
          When all things are done i can do some benchtesting, not sure if that tube at the end will do it's job of steering, that will be a thing for later.

          For now i can start this week to lay up the hull, if all goes well i have a hull at the end of this week.

          Manfred.
          I went underground

          Comment

          • MFR1964
            Detail Nut of the First Order

            • Sep 2010
            • 1525

            #20
            Building up the hull, still a few layers hope to bring both hullparts together this weekend,

            Click image for larger version

Name:	20240616_141804.jpg
Views:	196
Size:	50.6 KB
ID:	182966

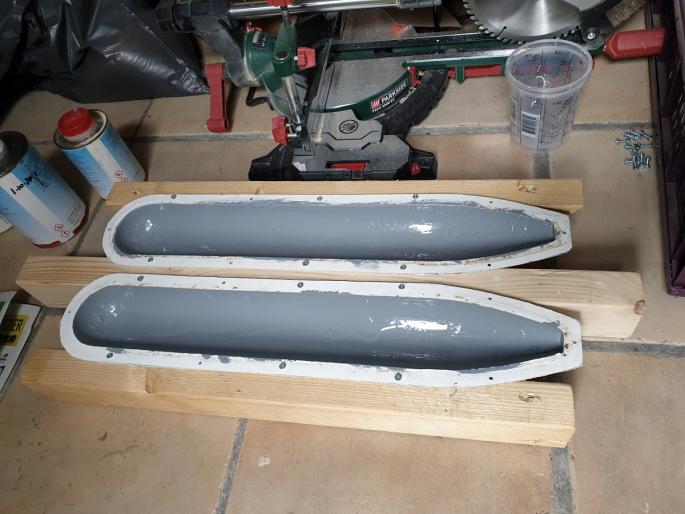

            First step, getting in the gelcoat to catch every detail, same story as with the mold, once sticky you can start with adding the layers of glasscloth.

            Click image for larger version

Name:	20240616_155249.jpg
Views:	175
Size:	47.2 KB
ID:	182967

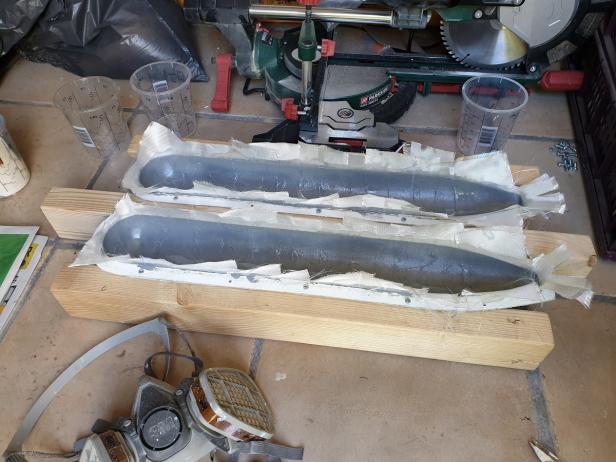

            First layers in, when the material is still green i cut it level to the flange of the mold, less sanding to get everything even with the flange, when all layers are done i can extract the hull parts and prep them for fusing them together, when doing this i allways add some more hardener with the expoy, close the mold up and start rotating along the seem untill it is enough, let her cure for a day and split the mold to get my hull out.

            Manfred.

            I went underground

            Comment

            • MFR1964
              Detail Nut of the First Order

              • Sep 2010
              • 1525

              #21
              I made some progress, hull is extracted from the mold and i started to cut it into pieces,

              Click image for larger version

Name:	20240622_142137.jpg
Views:	218
Size:	42.7 KB
ID:	183178
              This is how the hull came out of the mold after fusing both halves together, the positions of the dive-planes and thrusters where allready marked on the hull, drilling some holes was easy, this way i could made a dryfitt to see if all worked out.

              Click image for larger version

Name:	20240622_142306.jpg
Views:	206
Size:	51.6 KB
ID:	183179

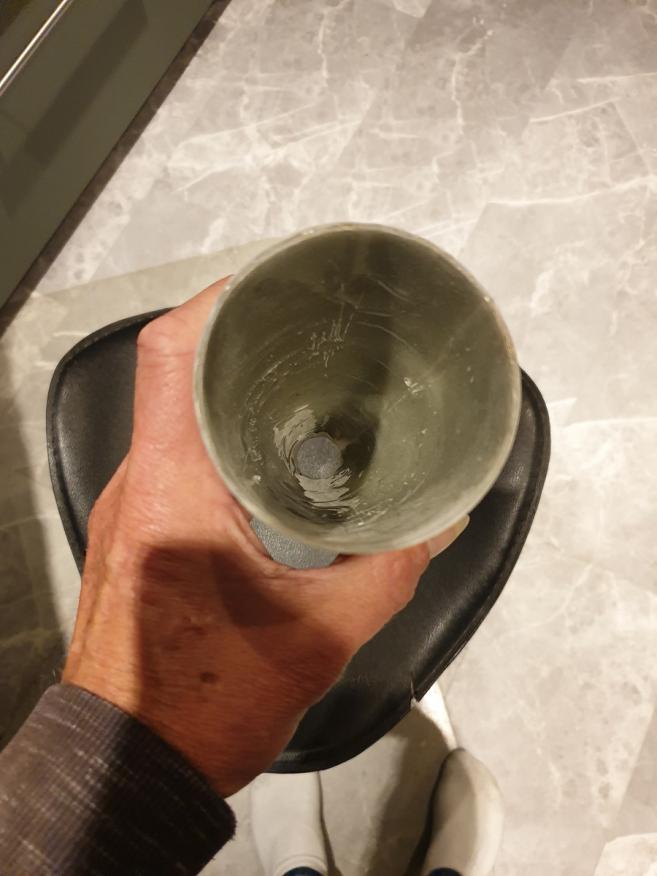

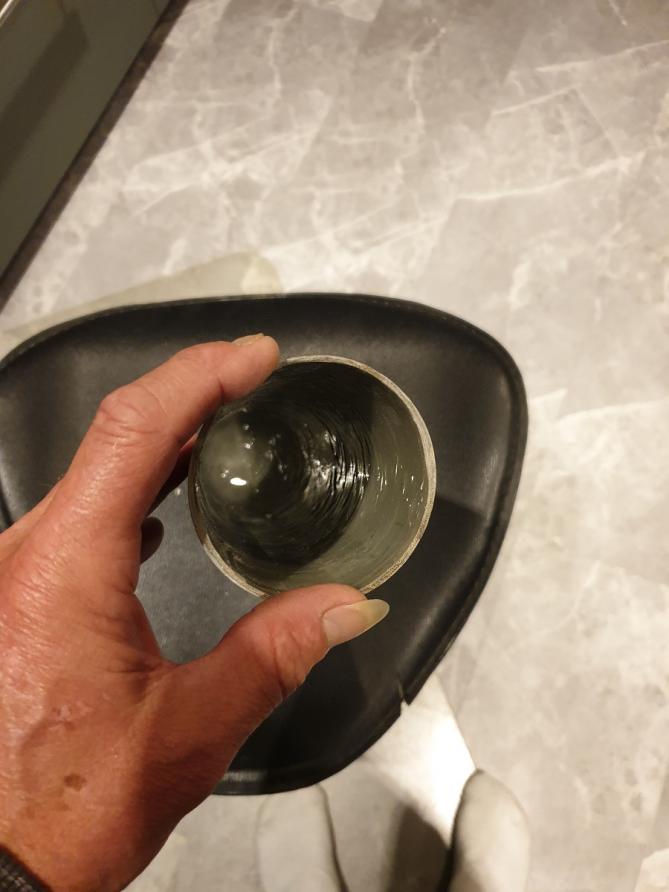

              After the first cut i've got me two parts, this is the front part, everything nicely fused together, the rest of the expoxy got into the nose as intended.

              Click image for larger version

Name:	20240622_142318.jpg
Views:	210
Size:	49.1 KB
ID:	183180
              Rearpart pretty much the same story.

              Click image for larger version

Name:	20240622_153813.jpg
Views:	204
Size:	52.3 KB
ID:	183181

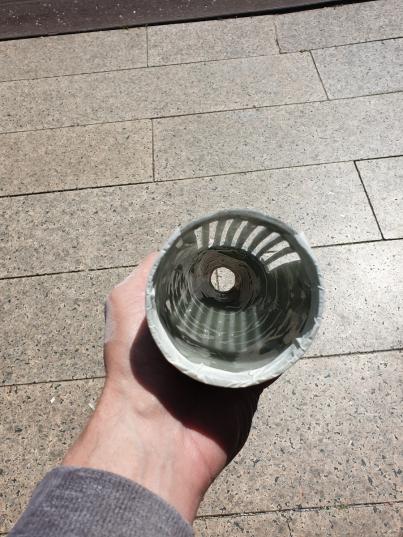

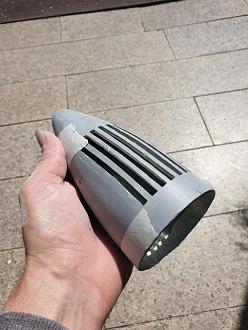

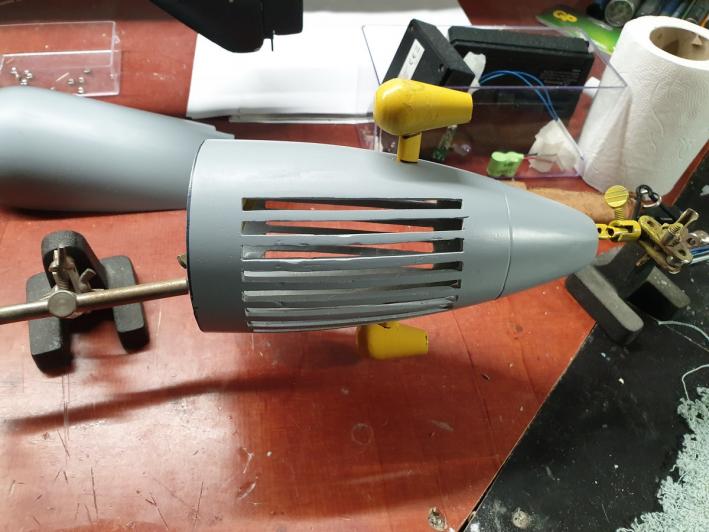

              First step to get me those slits in the rearpart, want to use them to suck up the water to expel it from the rear.

              Click image for larger version

Name:	20240622_153820.jpg
Views:	207
Size:	48.7 KB
ID:	183182

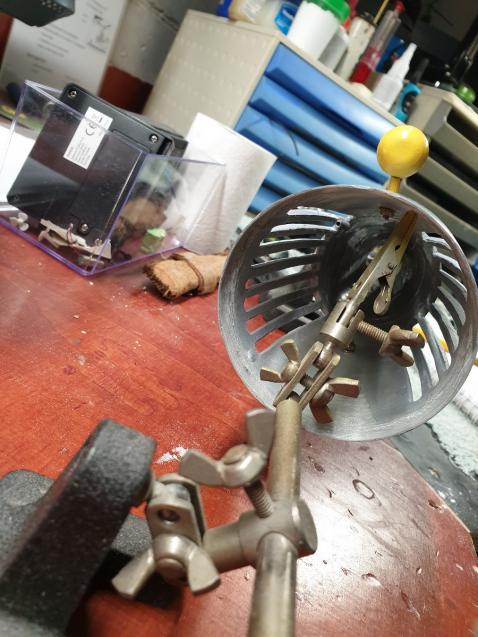

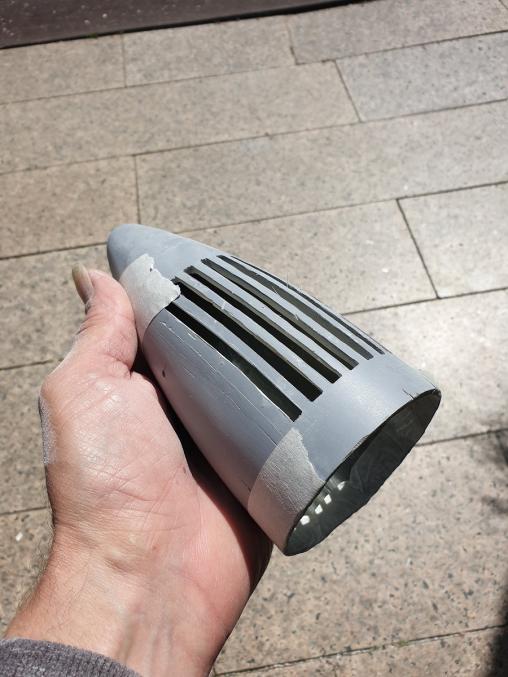

              First batch done, still had to repeat this with the other side.

              Click image for larger version

Name:	20240701_174225.jpg
Views:	213
Size:	40.6 KB
ID:	183183

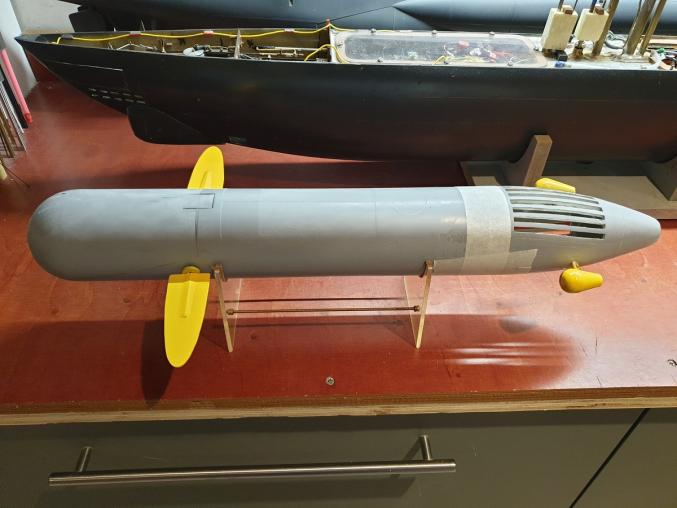

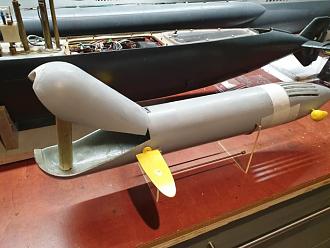

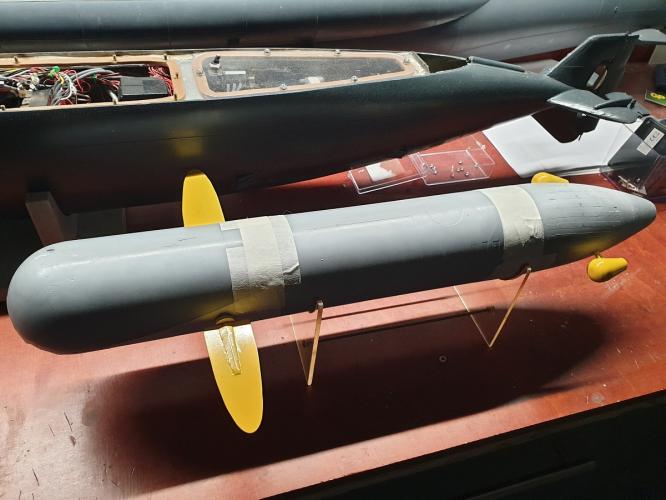

              Yet again used sticky tape to get the hull together for a test fit, made some scores for the frontcover before i cutted it free.


              Click image for larger version

Name:	20240701_174331.jpg
Views:	211
Size:	50.5 KB
ID:	183184
              Frontpart cutted free, in the end it will be used for creating the glass dome, allready ordered some clear Vivak sheets of differend thickness for the future.

              Now all this is done i can turn my attention to the technical parts, first want to finish the rack with all gizmo's, then start to build up the model.

              Manfred.
              I went underground

              Comment

              • MFR1964
                Detail Nut of the First Order

                • Sep 2010
                • 1525

                #22
                Did some work on the rack and i think solved a problem,

                Since driving forward is not a issue due to the intakes, you have a problem with reverse, water sucked up at the rear won't leave the rear-end, hence my solution,

                Click image for larger version

Name:	20240713_192105.jpg
Views:	214
Size:	46.8 KB
ID:	183339

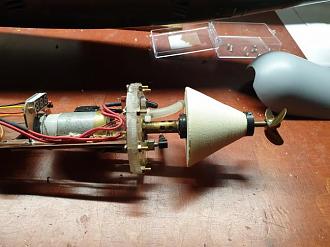

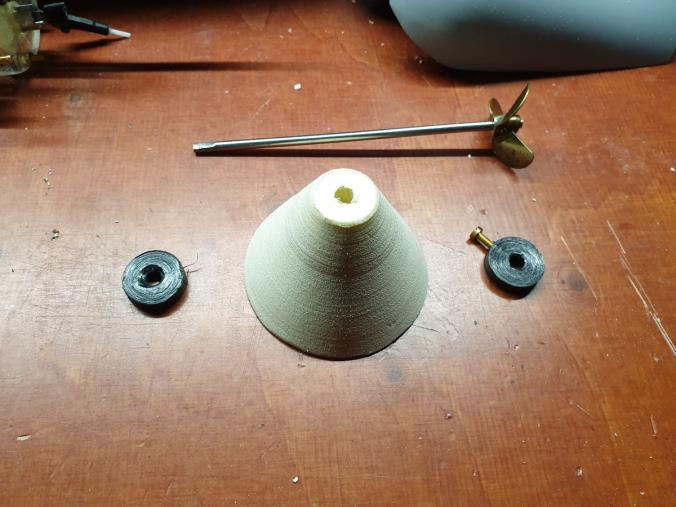

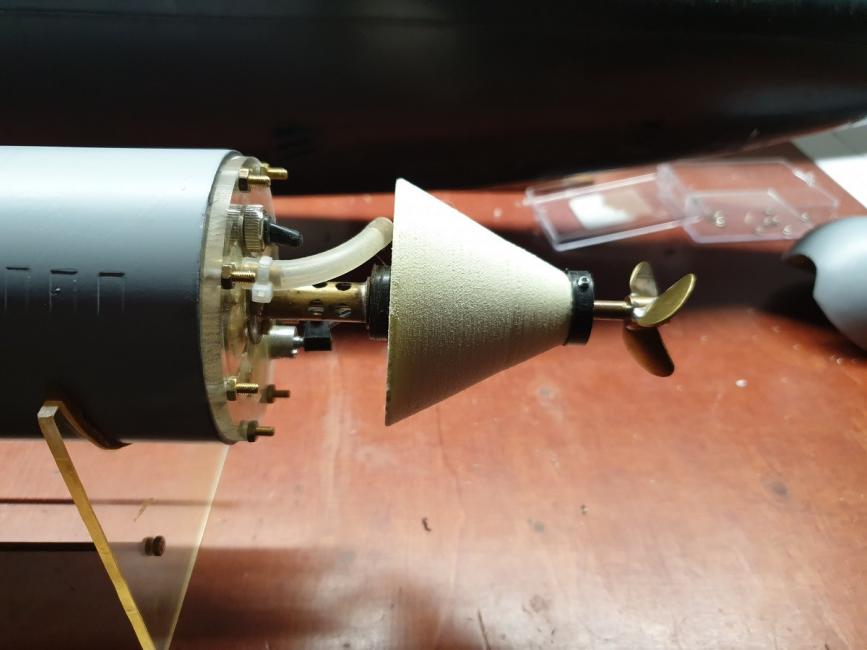

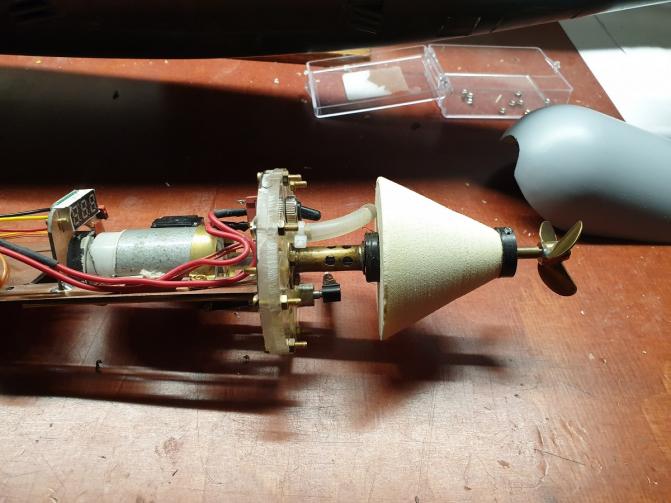

                Made a cone from styrodure with some collars to keep it at the desired position.

                Click image for larger version

Name:	20240713_192338.jpg
Views:	198
Size:	46.3 KB
ID:	183340

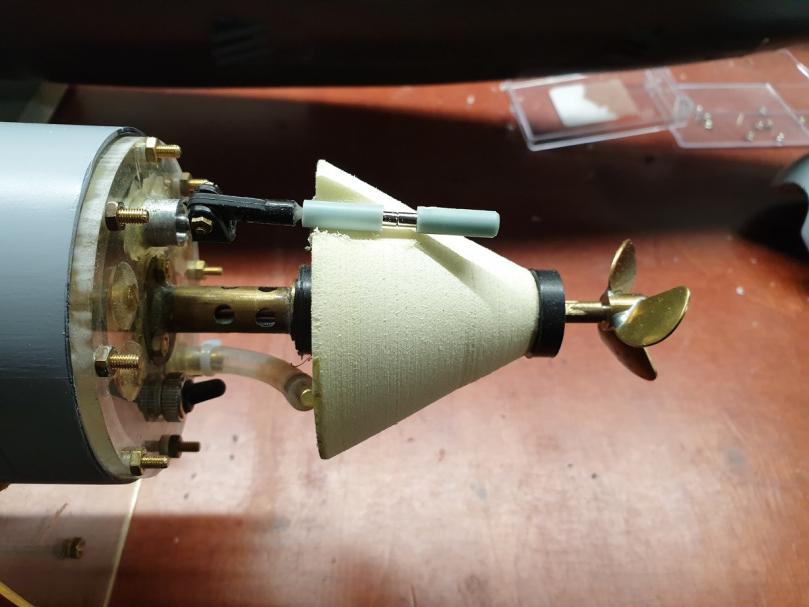

                You can place it on the shaft tube and secure it with the collars, giving you this as the result.

                Click image for larger version

Name:	20240713_192453.jpg
Views:	196
Size:	45.4 KB
ID:	183341

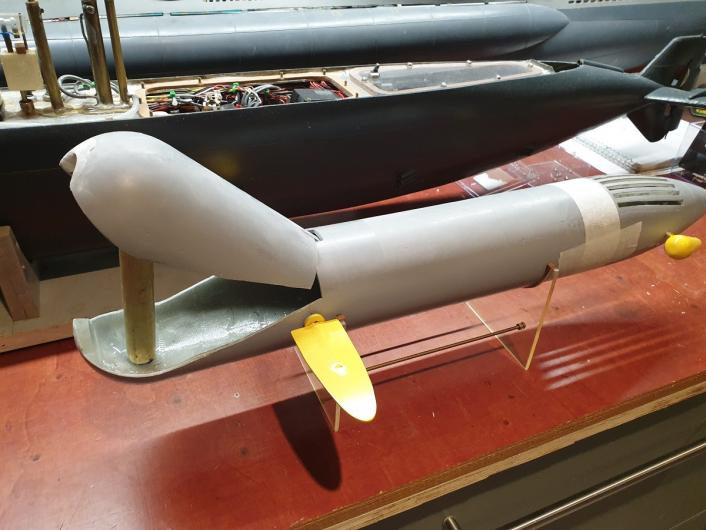

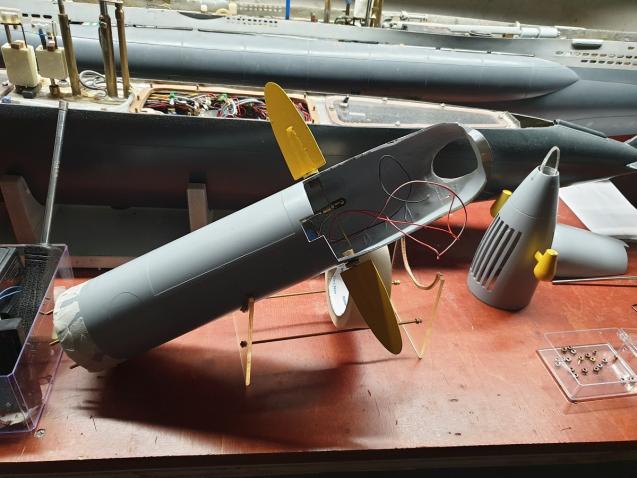

                Made a dryfitt on the hull to see if everything is placed without any obstructions.

                Click image for larger version

Name:	20240713_192510.jpg
Views:	191
Size:	44.7 KB
ID:	183342

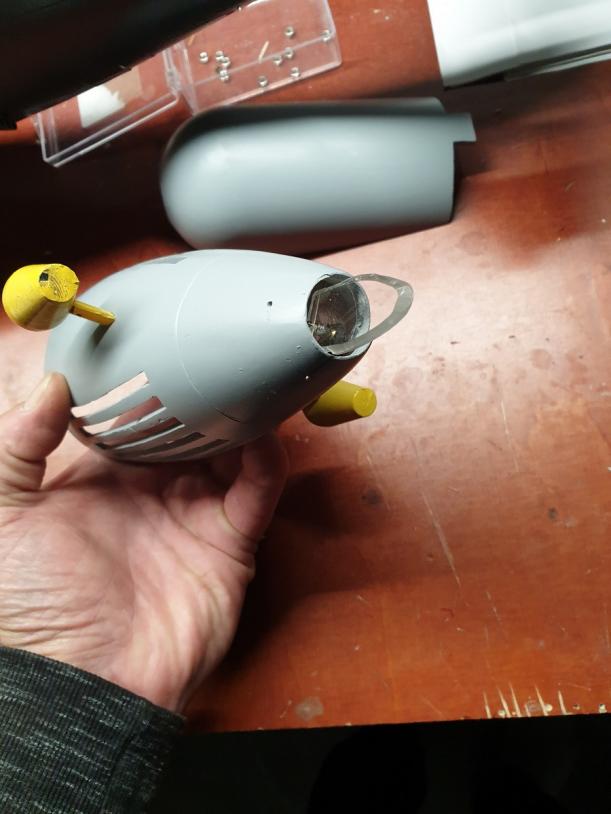

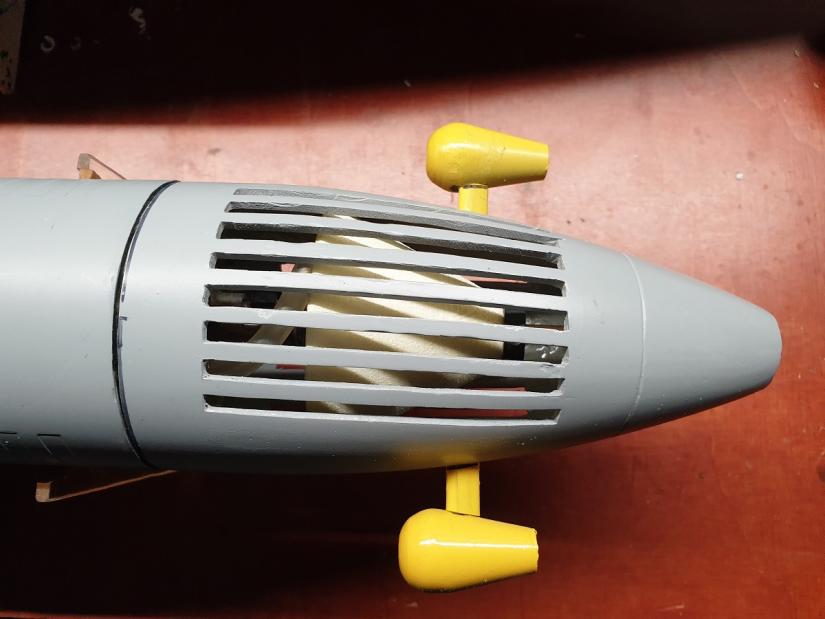

                Got the rear-end with the slits placed to see if it all fitts, the idea is, when using reverse you suck up the water from the rear and it will be guided by the cone out of the slits, hope to get enough thrust to get reverse, that will be a thing to see if it works when i can start testing in the tub.

                Click image for larger version

Name:	20240713_192527.jpg
Views:	192
Size:	42.6 KB
ID:	183343

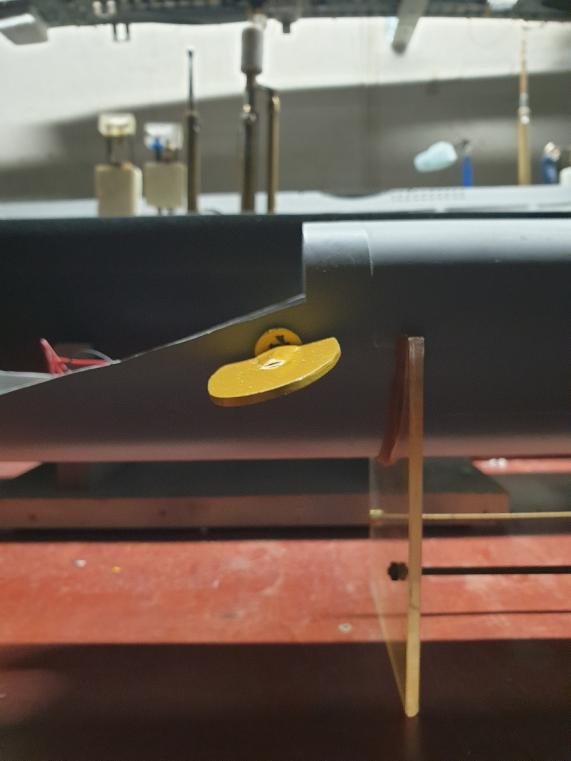

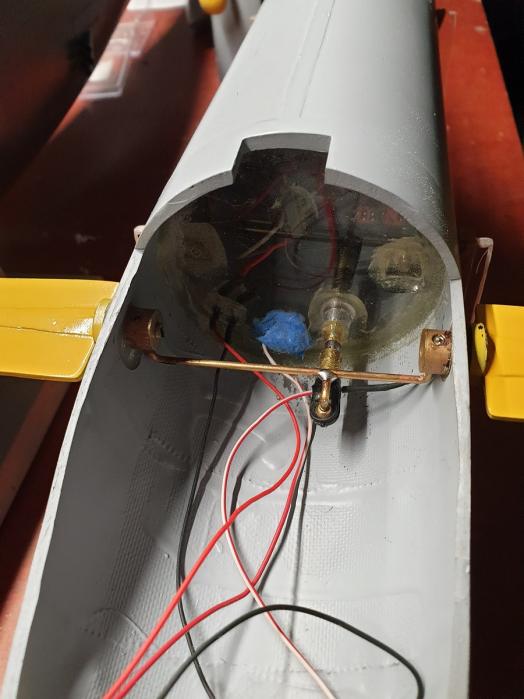

                I made all provisions on the rack to get me the steering of the front dive-planes, made a contraption which can be activaded by the rod which steers the dive-planes

                Click image for larger version

Name:	20240713_192559.jpg
Views:	193
Size:	31.8 KB
ID:	183344
                Full down

                Click image for larger version

Name:	20240713_192608.jpg
Views:	192
Size:	37.4 KB
ID:	183345

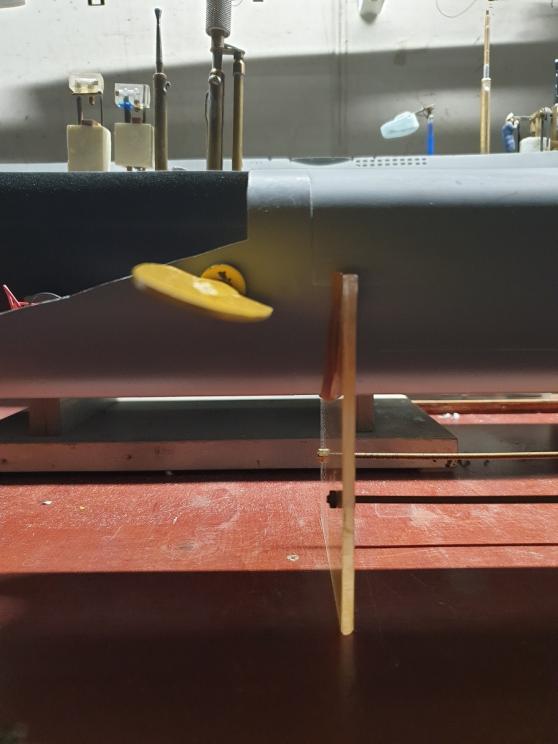

                Full up, there is not that much movement, i hope it will be enough to give me some depth control, what i do know from the past, too much reflection and the dive-planes will act as a break.

                Click image for larger version

Name:	20240713_192713.jpg
Views:	154
Size:	43.3 KB
ID:	183346

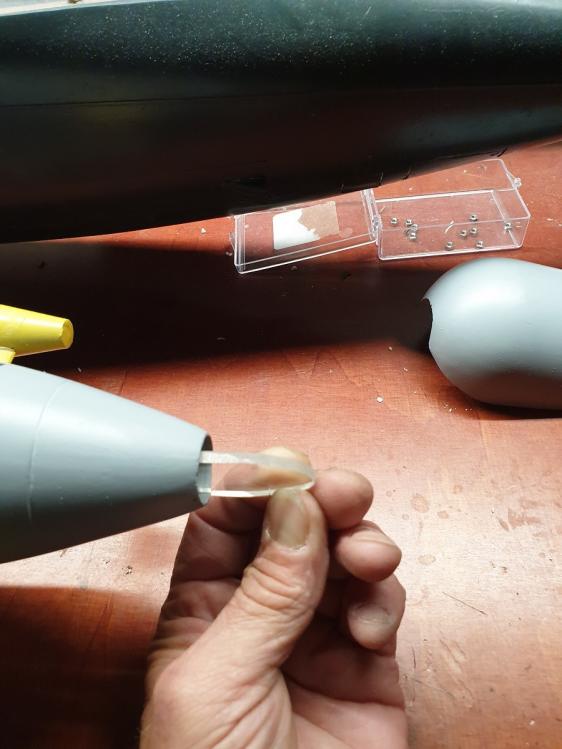

                This will be the rudder, made from lexan, when in the water you will hardly notice it, for now i'm busy to connect the rudder in a way it will not be visible from the outside, stay tuned

                Manfred.
                I went underground

                Comment

                • redboat219
                  Admiral

                  • Dec 2008
                  • 3391

                  #23
                  Rotating cone in a moving fluid - interesting fluid mechanics.
                  Make it simple, make strong, make it work!

                  Comment

                  • MFR1964
                    Detail Nut of the First Order

                    • Sep 2010
                    • 1525

                    #24
                    Romel,

                    The cone is static, fastened on the tube which is containing the propulsion shaft, i have no intension of making it difficult for myself, KISS is the magic word.

                    Manfred.

                    I went underground

                    Comment

                    • redboat219
                      Admiral

                      • Dec 2008
                      • 3391

                      #25
                      Originally posted by MFR1964
                      Romel,

                      The cone is static, fastened on the tube which is containing the propulsion shaft, i have no intension of making it difficult for myself, KISS is the magic word.

                      Manfred.

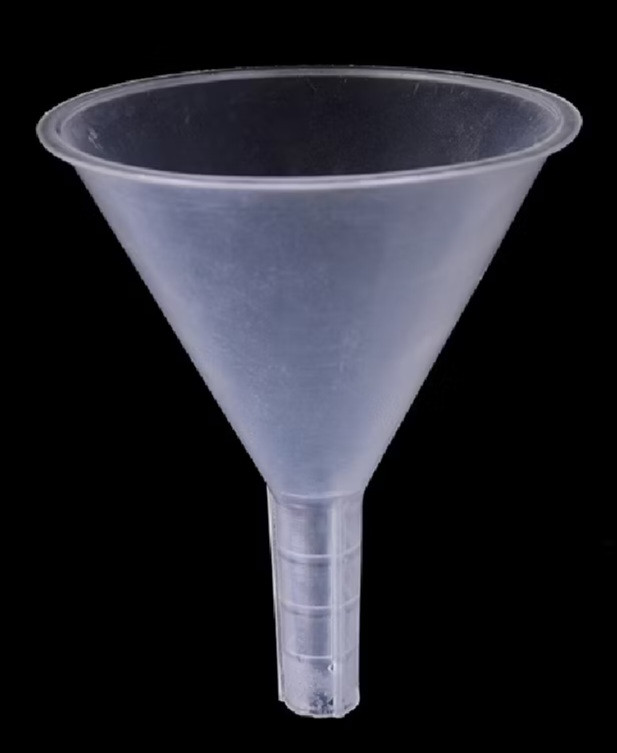

                      Oh okey. I get it. Initial impression was it was attached to driveshaft. Maybe use a funnel but the foam is bouyant. Click image for larger version

Name:	8eda9760399e7edd69695310a823ea9e.jpg
Views:	179
Size:	37.9 KB
ID:	183364
                      Last edited by redboat219; 10-20-2024, 03:41 AM.
                      Make it simple, make strong, make it work!

                      Comment

                      • MFR1964
                        Detail Nut of the First Order

                        • Sep 2010
                        • 1525

                        #26
                        Romel,
                        The funnel is a idea, but now i get two in one, guiding the water out and some needed bouyency, in the end i will protect it with a layer of epoxy because foam itself is too fragile

                        Manfred
                        I went underground

                        Comment

                        • MFR1964
                          Detail Nut of the First Order

                          • Sep 2010
                          • 1525

                          #27
                          Cone is modified, connection to the rudder is made and started glueing up the flanges of the rack,

                          Click image for larger version

Name:	20240713_193151.jpg
Views:	174
Size:	46.8 KB
ID:	183459
                          Firstly made some room for the connection to the rudder, grinded away some of the cone to make this possible.

                          Click image for larger version

Name:	20240713_195149.jpg
Views:	156
Size:	53.2 KB
ID:	183460
                          First i glued up the tube which will guide the control rod.

                          Click image for larger version

Name:	20240713_195209.jpg
Views:	158
Size:	54.0 KB
ID:	183461
                          Since i don't have that much arms i opted for using those handy devices i have, this way you can stabilise everything on it's place untill it is dried.

                          Click image for larger version

Name:	20240714_213033.jpg
Views:	157
Size:	51.0 KB
ID:	183462

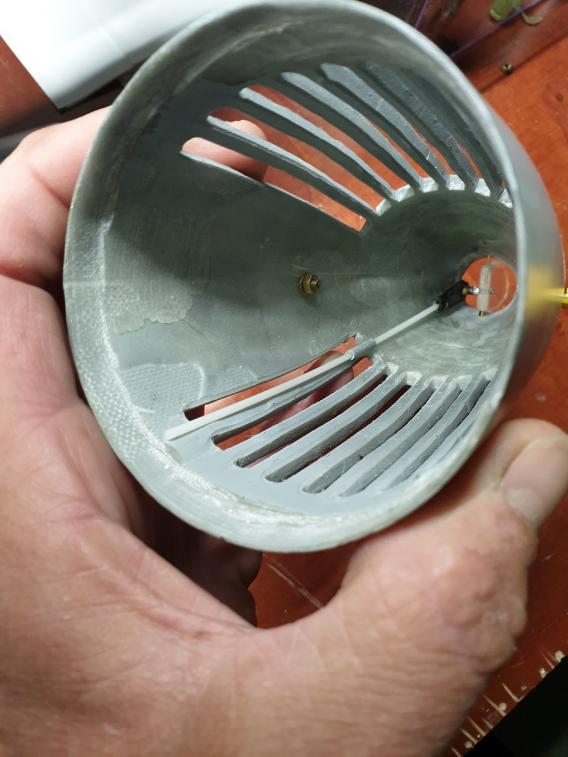

                          This is the result of the operation, a nylon rod which is guided through a small tube, it is done this way because i have to keep eveything free from the propellor.

                          Click image for larger version

Name:	20240714_213040.jpg
Views:	157
Size:	47.1 KB
ID:	183463
                          Connected the rod to the rudder, that small spec you see, is a hole which i use for thightening the grubscrew by means of a very small allen key

                          Click image for larger version

Name:	20240715_215838.jpg
Views:	156
Size:	49.5 KB
ID:	183464
                          I'm now in the proces of glueing all external parts of the rack, since i want to do that on both sides as well inside as outside, it will take some time, each addition of glue is followed by a 24 hr period to dry and harden.
                          This will give me the time to alter a Spirou figure into a diver and do some work on the bed which will hold the figure.

                          Manfred.
                          I went underground

                          Comment

                          • redboat219
                            Admiral

                            • Dec 2008
                            • 3391

                            #28
                            Manfred is this a dry hull or is there a separate wtc that slides into the hull?
                            Last edited by redboat219; 10-24-2024, 05:02 AM.
                            Make it simple, make strong, make it work!

                            Comment

                            • MFR1964
                              Detail Nut of the First Order

                              • Sep 2010
                              • 1525

                              #29
                              Romel,

                              It is a dryhull, the rack will slide in from the back and will be secured with some bolts to get it watertight.

                              Manfred.
                              I went underground

                              Comment

                              • redboat219
                                Admiral

                                • Dec 2008
                                • 3391

                                #30

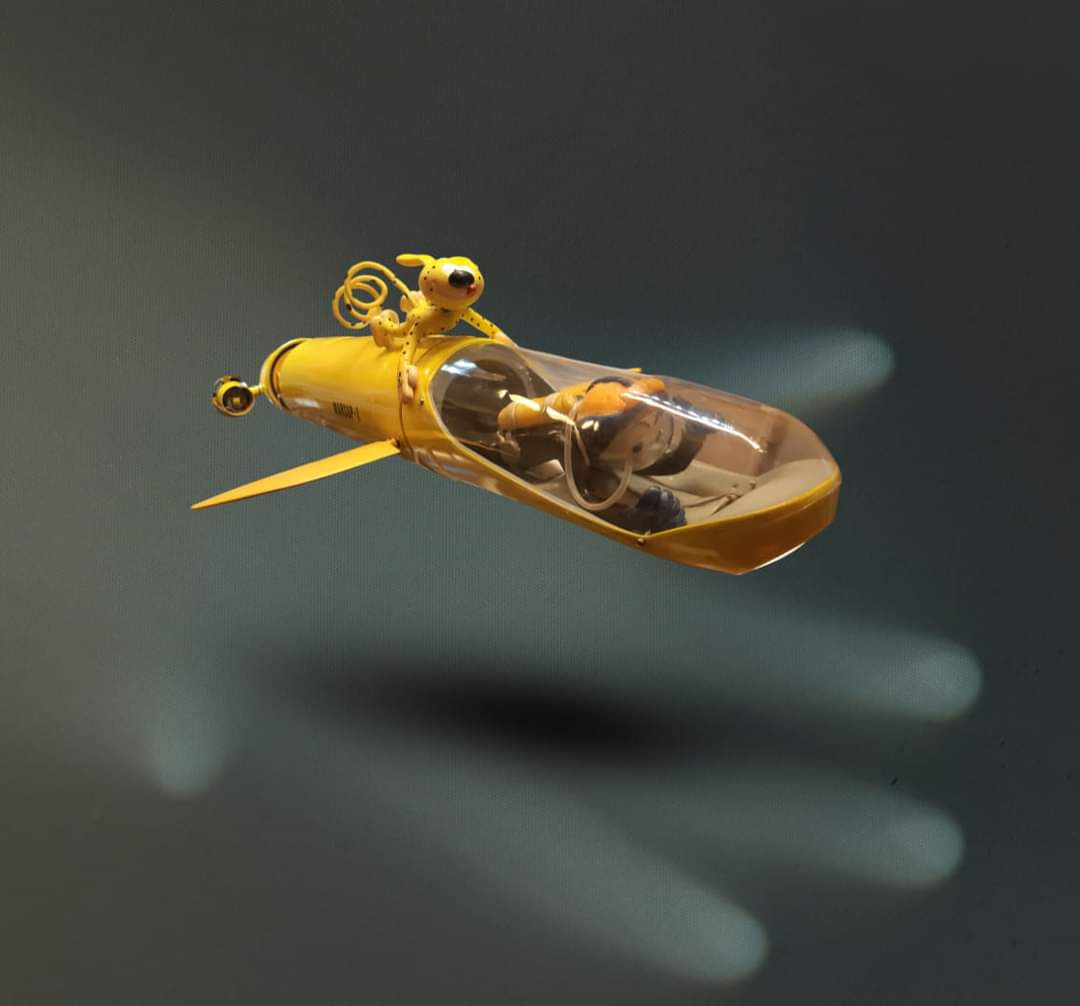

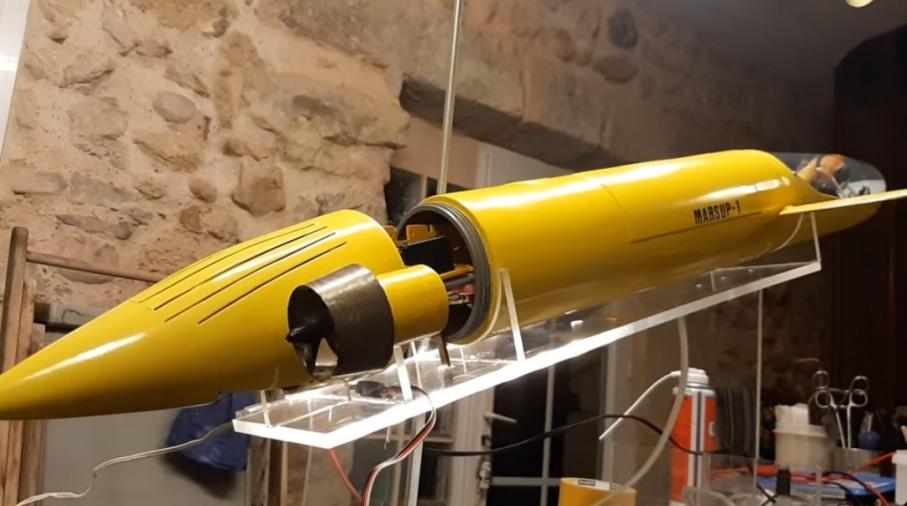

                                Just saw this on FB.

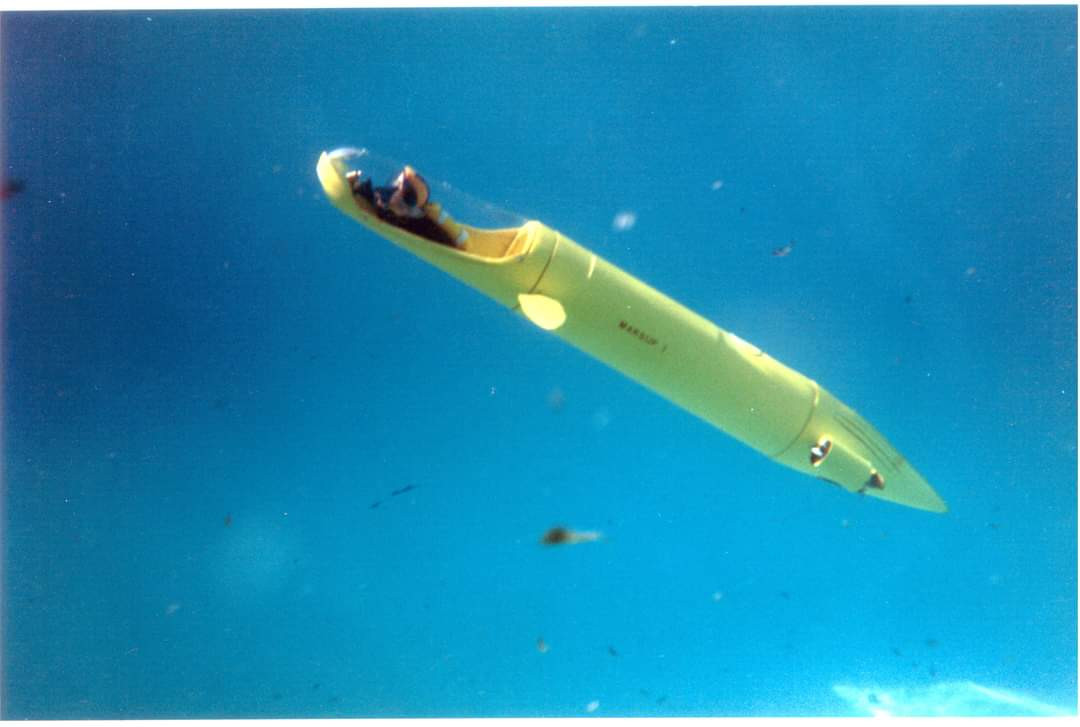

                                Made by Andre Drevet-Bertrand Click image for larger version

Name:	FB_IMG_1730079362048.jpg
Views:	157
Size:	77.5 KB
ID:	183717 Click image for larger version

Name:	FB_IMG_1730079341728.jpg
Views:	142
Size:	92.3 KB
ID:	183718

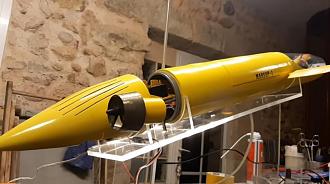

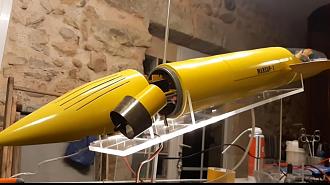

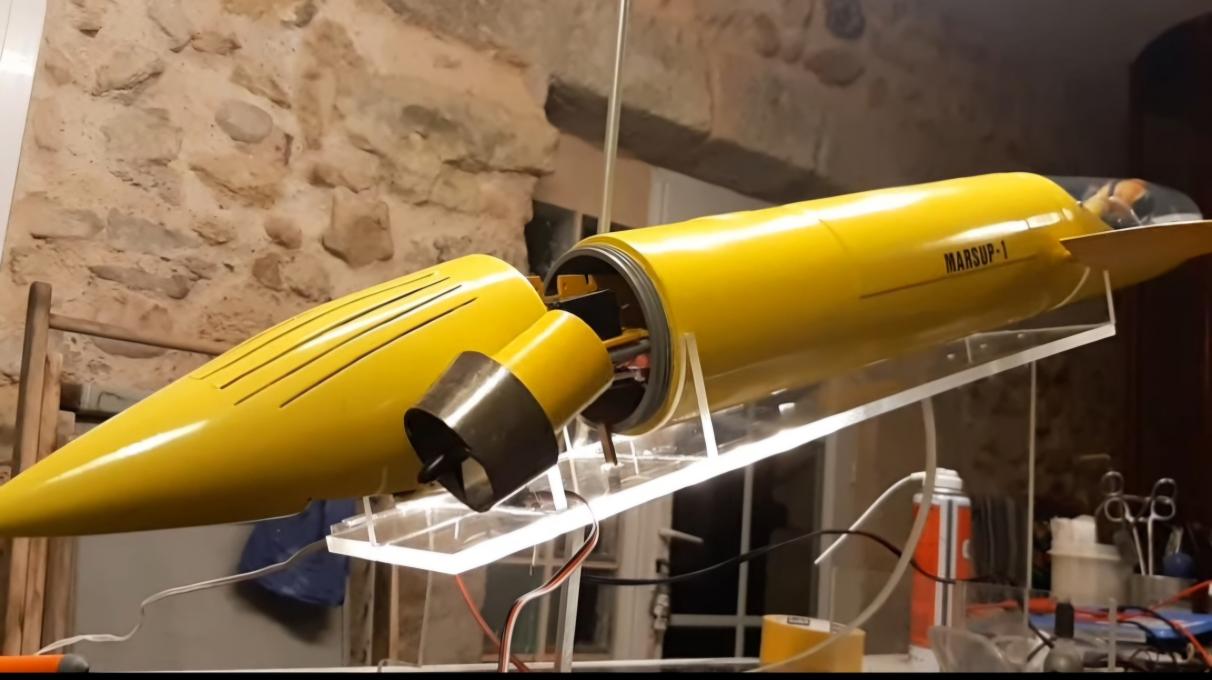

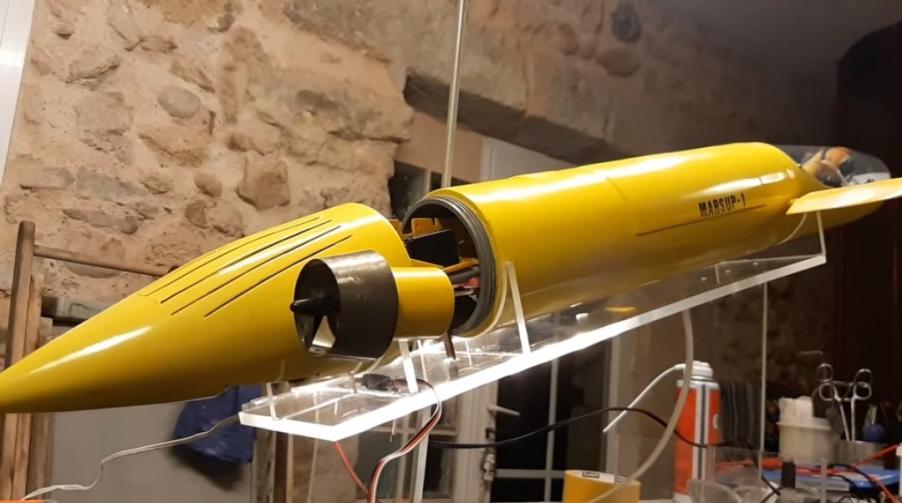

                                The thruster pods are articulated opposite the front dive planes. Click image for larger version

Name:	Screenshot_20241028_093814_Facebook.jpg
Views:	151
Size:	80.9 KB
ID:	183721 Click image for larger version

Name:	Screenshot_20241028_093754_Facebook.jpg
Views:	143
Size:	54.0 KB
ID:	183720 Click image for larger version

Name:	Screenshot_20241028_093628_Facebook.jpg
Views:	148
Size:	54.2 KB
ID:	183719
                                Make it simple, make strong, make it work!
