As if I don't have enough projects - 1/76th Ohio'ish sub

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    Just wait till he sees the oversize monstrosity I'm gonna put on the Charlie...
    "It does not take so many words to speak the truth" Chief Joseph

    Comment


    • #17
      Originally posted by a1965l View Post
      Just wait till he sees the oversize monstrosity I'm gonna put on the Charlie...
      You managed to get past the reverse rotation but you just have to go and poke him don't you? Can't let a sleeping dog lie? Well, OK then but you will have to bear the consequences of your actions alone. ;o)

      Comment


      • #18

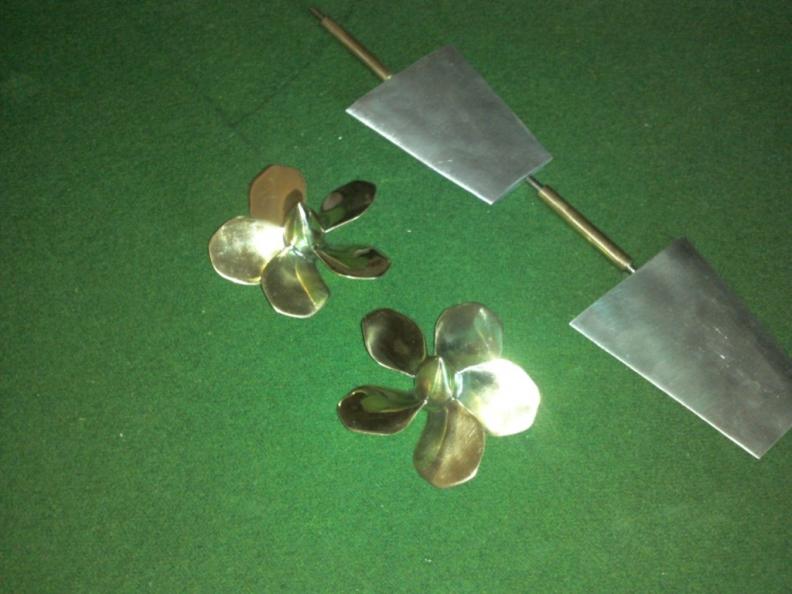

        I would suggest giving George Sitek a email at GT Sitek props in UK give him your specs (Prop dia, Boss shape, no of blades (7),shaft Thread size you want eg M5, etc) he does superb Brass work at a reasonable price. I got the props (and Aluminum rudders) for my USS California CGN36 made by him from a photo...

        Click image for larger version  Name:	cgn36props1.jpg Views:	0 Size:	54.1 KB ID:	142744

        Click image for larger version  Name:	cgn36dd.jpg Views:	0 Size:	86.2 KB ID:	142745
        Click image for larger version  Name:	PnR1.jpg Views:	0 Size:	64.3 KB ID:	142746
        Last edited by HvyCGN9; 08-09-2020, 10:41 AM.

        Comment


        • #19
          Originally posted by RCJetDude View Post

          You managed to get past the reverse rotation but you just have to go and poke him don't you? Can't let a sleeping dog lie? Well, OK then but you will have to bear the consequences of your actions alone. ;o)
          He lives for that kinda stuff. I'm a retired airdale.. his stuff bounces off me like cannonballs off the Constitution.
          "It does not take so many words to speak the truth" Chief Joseph

          Comment


          • #20
            At my friend Darrell's place in Georgia. Its a mold making kinda day...

            Click image for larger version

Name:	20200816_095726_copy_2016x1512.jpg
Views:	136
Size:	75.4 KB
ID:	142826

            Comment


            • #21
              The resin parts...they turned out good.

              Click image for larger version

Name:	20200818_004006_copy_2016x1512.jpg
Views:	119
Size:	31.4 KB
ID:	142865

              Comment


              • #22
                Originally posted by He Who Shall Not Be Named

                What a rare and wonderful situation it is when you have a peer who shares your skill sets and interests. Synergy on display. I have a similar situation with Kevin Rimrodt and Bob Martin. With the right number of cooks you can achieve a wonderful soup.

                You and Darrell are not only practicing, but also advancing the Craft. I applaud you both.

                (now switching back to A-hole mode... click!)

                David
                Lol! Thank you David.

                Comment


                • #23
                  Darrell reported yesterday that the molds are done. Next we will lay up some parts.

                  Click image for larger version

Name:	1680.jpeg
Views:	110
Size:	78.6 KB
ID:	142918

                  Comment


                  • #24

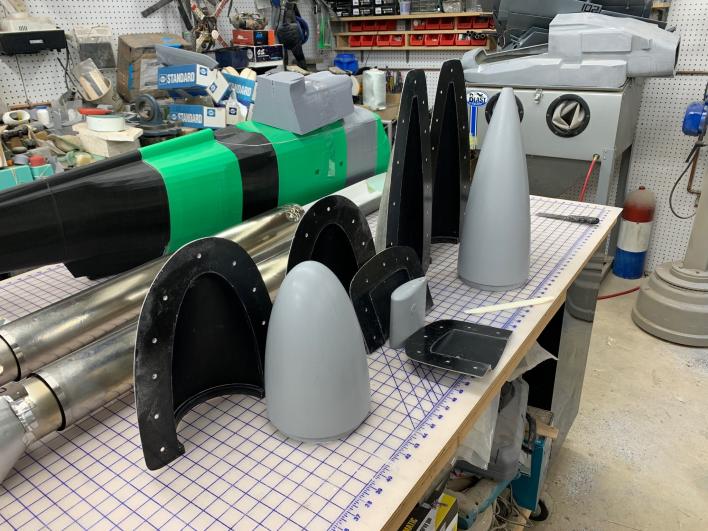

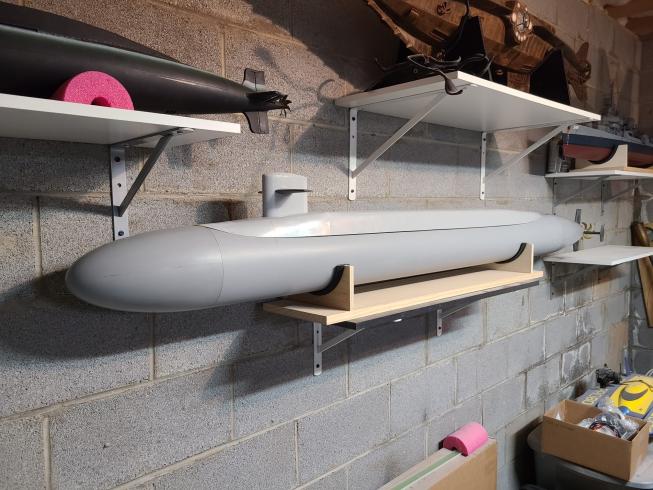

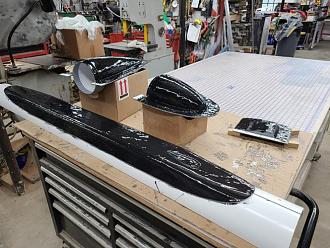

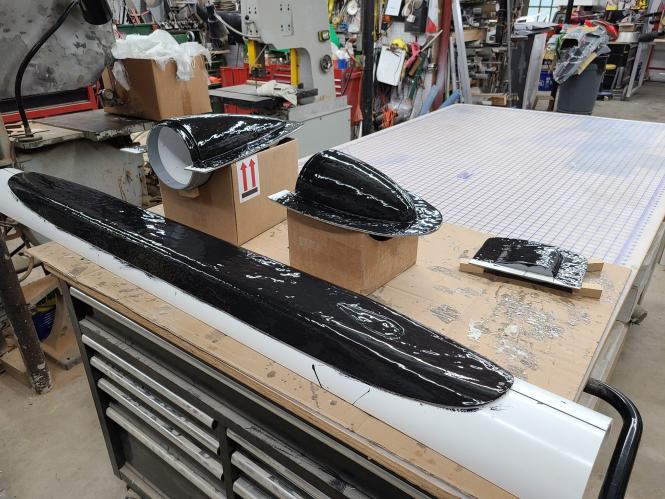

                    Back on this. The fiberglass parts are done. I had to make some slight changes to the missile deck to make it narrower and ride higher but it worked out well. I also got the stern surfaces and fairwater planes installed. Next up I need to design and 3D print some spacer rings for the hull. So far it is lookingpretty decent.

                    Click image for larger version

Name:	20201006_231429_copy_2016x1512.jpg
Views:	77
Size:	52.3 KB
ID:	144252
                    Click image for larger version

Name:	20201006_231412_copy_2016x1512.jpg
Views:	68
Size:	56.4 KB
ID:	144253
                    Click image for larger version

Name:	20201006_221355_copy_2016x1512.jpg
Views:	71
Size:	54.8 KB
ID:	144254

                    Comment


                    • #25
                      Steve,

                      That hull looks great! That's a BIG Sub! I think you will have another master piece in the making! Thanks for the photos and up dates!

                      Rob

                      "Firemen can stand the heat"

                      Comment


                      • #26
                        It is a master piece in the making. Looks great and will look just as great in the water!
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment


                        • #27
                          OK Dave, are you happier now. ;o)

                          From the Prop Shop in the UK. Very nice propeller.

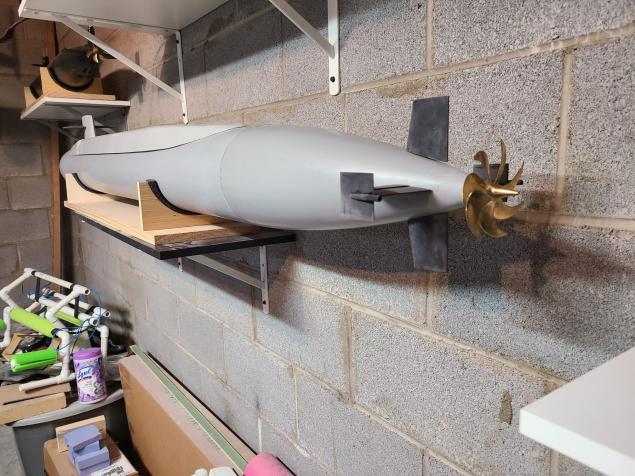

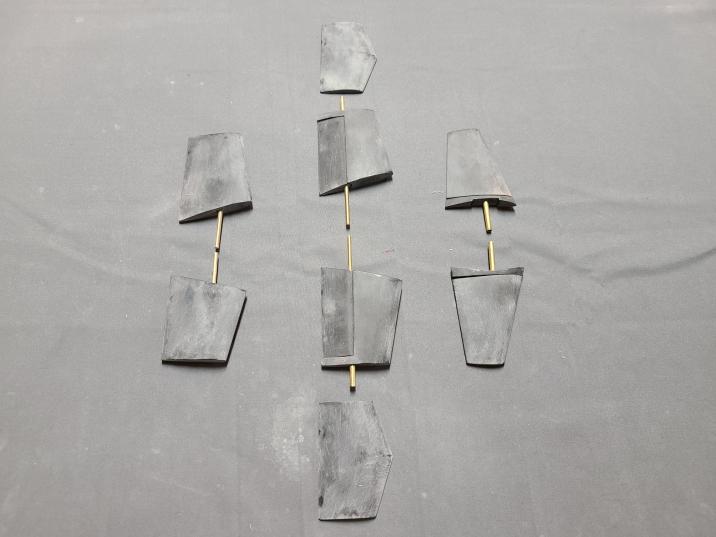

                          I have the stern control surfaces installed. I will work on the fairwater planes next while I wait for parts to fix my 3D printer.

                          Click image for larger version

Name:	20201011_105724_copy_2016x1512.jpg
Views:	59
Size:	62.1 KB
ID:	144323

                          Comment


                          • #28
                            Originally posted by RCJetDude View Post
                            OK Dave, are you happier now. ;o)

                            From the Prop Shop in the UK. Very nice propeller.

                            I have the stern control surfaces installed. I will work on the fairwater planes next while I wait for parts to fix my 3D printer.

                            Click image for larger version

Name:	20201011_105724_copy_2016x1512.jpg
Views:	59
Size:	62.1 KB
ID:	144323

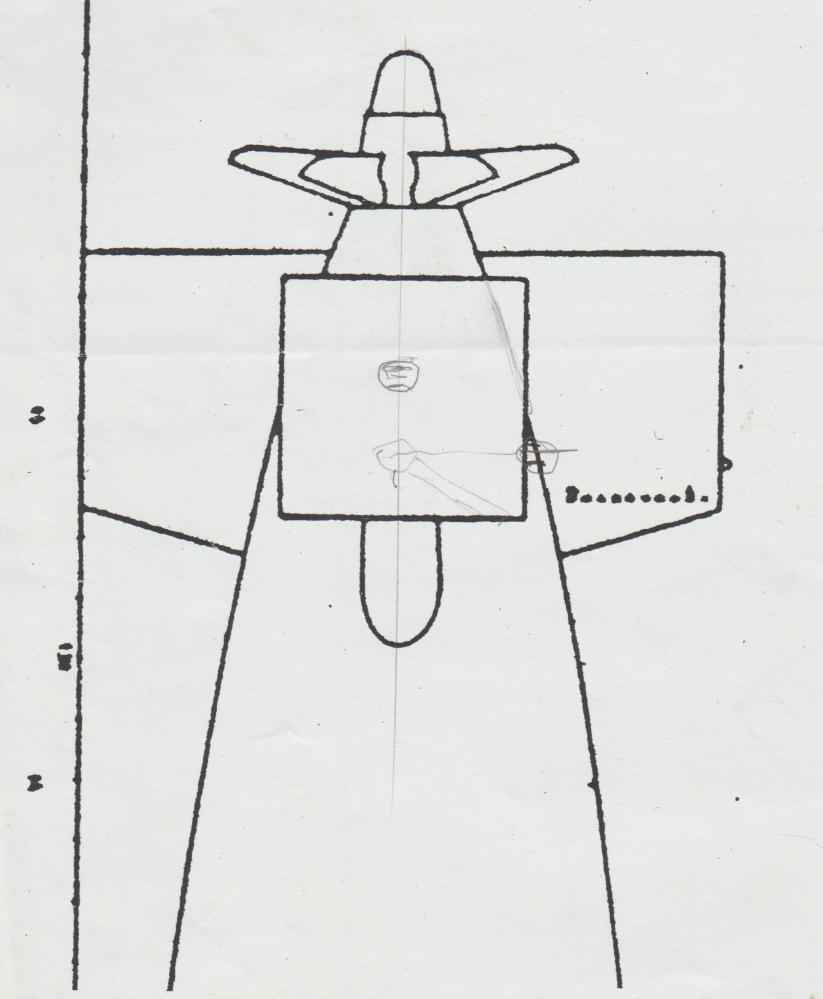

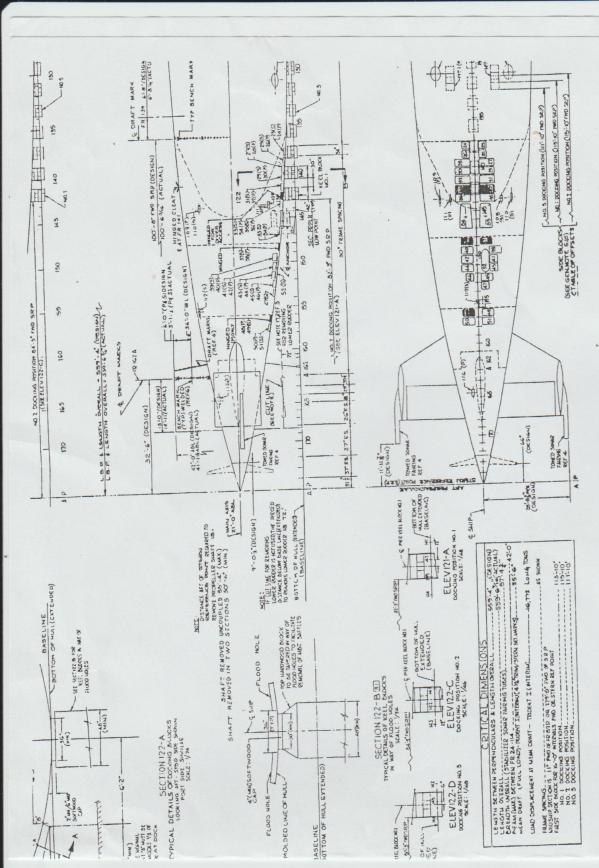

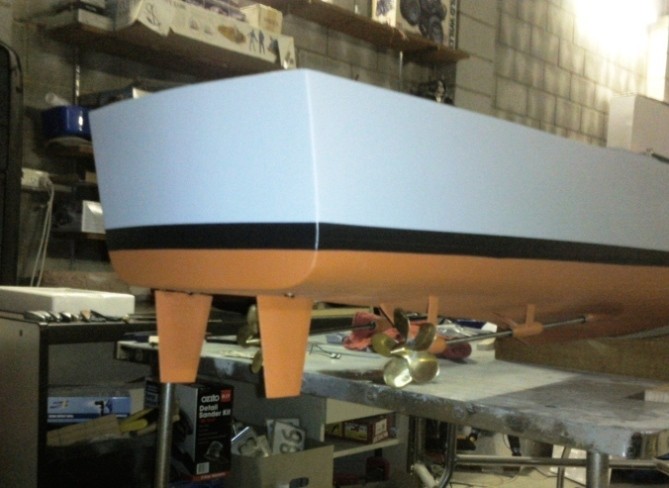

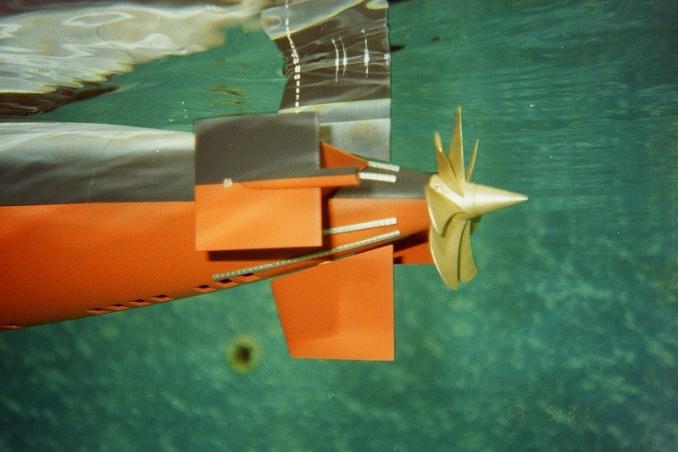

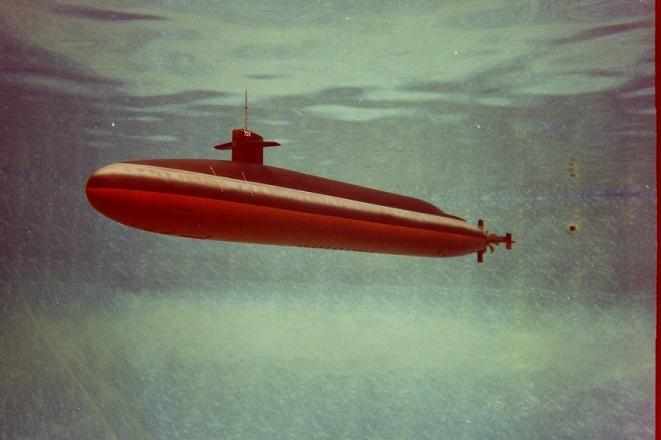

                            Wheel looks great. Now, fix the two vertical stabilizers that hang off the outboard ends of the horizontal stabilizers -- the leading edge is a true vertical, not swept.

                            Click image for larger version

Name:	OHIO 4 001.jpg
Views:	51
Size:	56.1 KB
ID:	144326Click image for larger version

Name:	OHIO 1 001.jpg
Views:	43
Size:	83.2 KB
ID:	144327Click image for larger version

Name:	OHIO 3 001.jpg
Views:	44
Size:	44.2 KB
ID:	144328Click image for larger version

Name:	PICT0018.JPG
Views:	43
Size:	34.8 KB
ID:	144329Click image for larger version

Name:	PICT0007.JPG
Views:	43
Size:	32.4 KB
ID:	144330

                            David
                            Rivet Counter extraordinaire
                            "... well, that takes care of Jorgenson's theory!"

                            Comment


                            • #29
                              Ohio'ish....

                              Comment


                              • #30

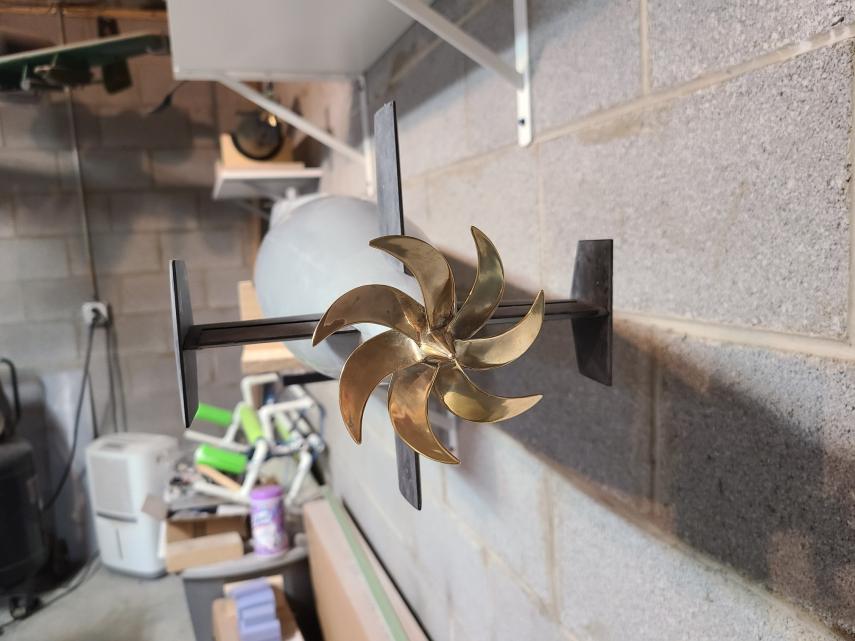

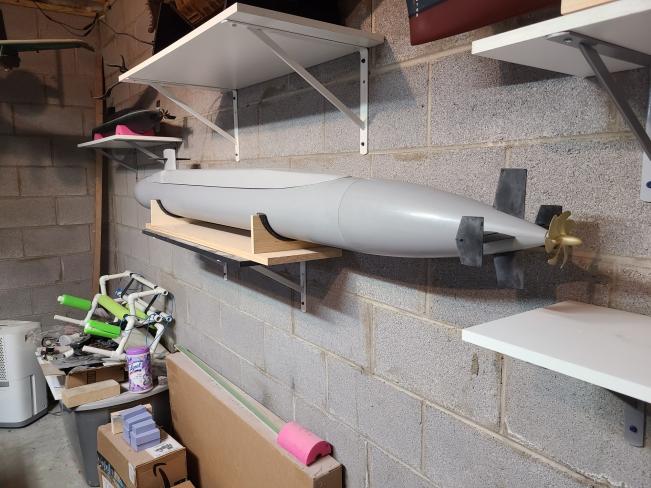

                                I find it amazing that I have never met David in person but he sure has an influence on me... No more swept verticals on the horizontal stern planes it is then.

                                Click image for larger version

Name:	20201017_003940_copy_2016x1512.jpg
Views:	35
Size:	61.6 KB
ID:	144476

                                Comment
