    A Type XXIII in Ireland

    This build log will detail the building of an R/C Kriegsmarine Bronco 1/35 scale Type XXIII with working lights and attack periscope.

    So after the almost two year build and research of U557, I'm starting a Bronco Type XXII, it won't be an exhaustive build log as there's a couple here already. I'm using Manfred's build as a guide (with his permission).

    My target for this model is to finish it this year, use mostly items in my spares box, and use a WTC that can be moved around different models.

    First impressions of this small kit are excellent, the detail and fit of the parts is excellent, but some small improvements can be made.

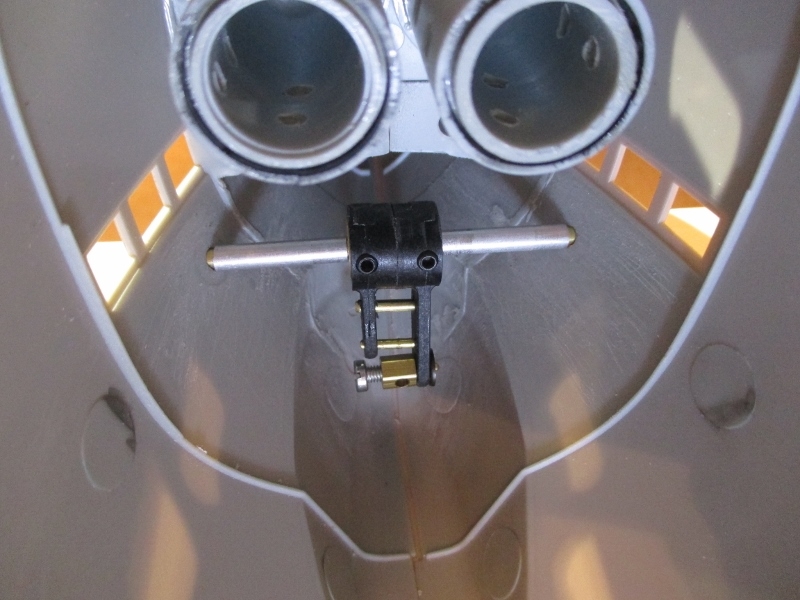

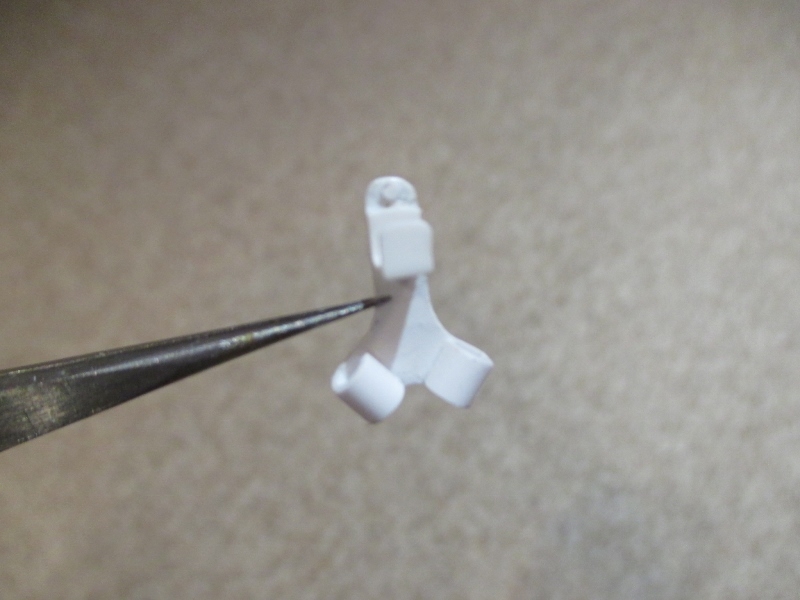

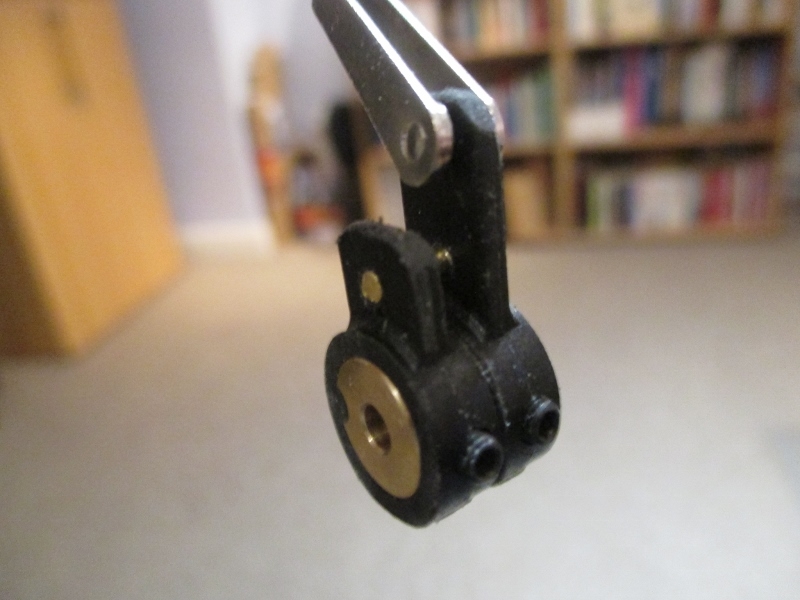

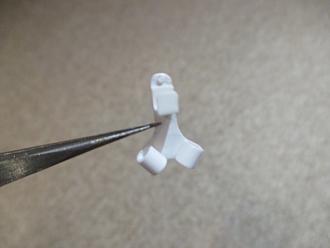

    Here is my attempt at the nasty crank and linkage to the rudder that sits in a very small space, and I've used 3mm tube on the dive planes,

    Click image for larger version

Name:	IMG_1923 (800x600).jpg
Views:	448
Size:	231.8 KB
ID:	131573Click image for larger version

Name:	IMG_1922 (800x600).jpg
Views:	456
Size:	249.6 KB
ID:	131574

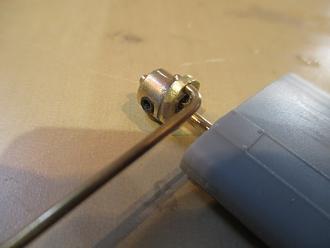

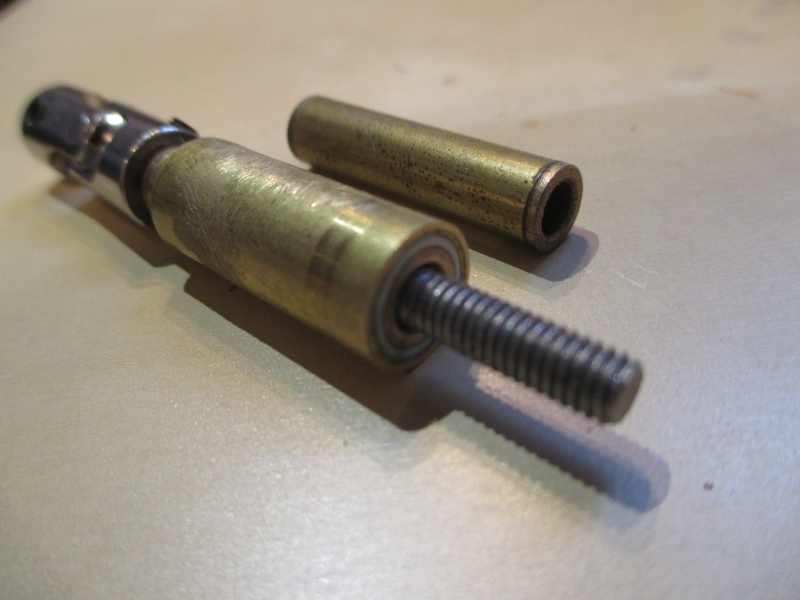

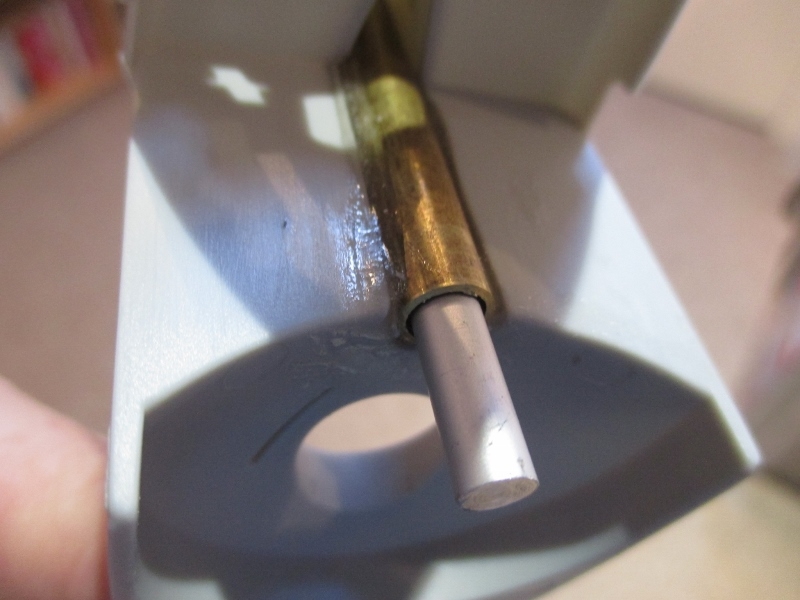

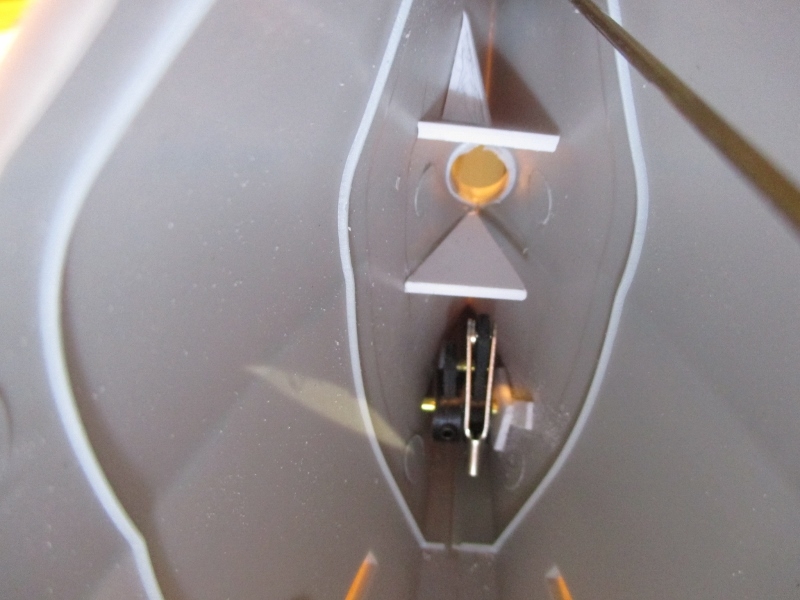

    I made my own bearing for the small through hull shaft from a short 4mm shaft I had left over from U557, it's sleeved with a plastic tube and 10mm brass outer tube to fit the hole in the subs aft section.

    Click image for larger version

Name:	IMG_1924 (800x600).jpg
Views:	455
Size:	248.3 KB
ID:	131575

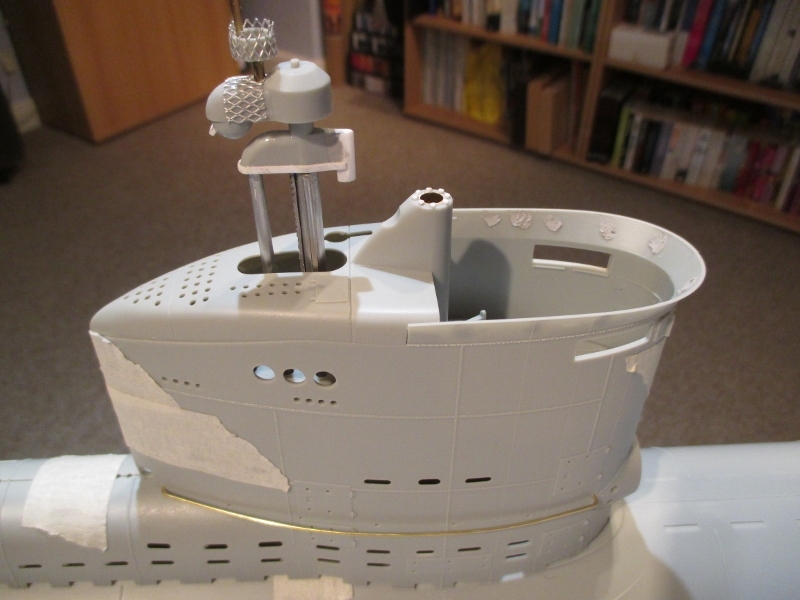

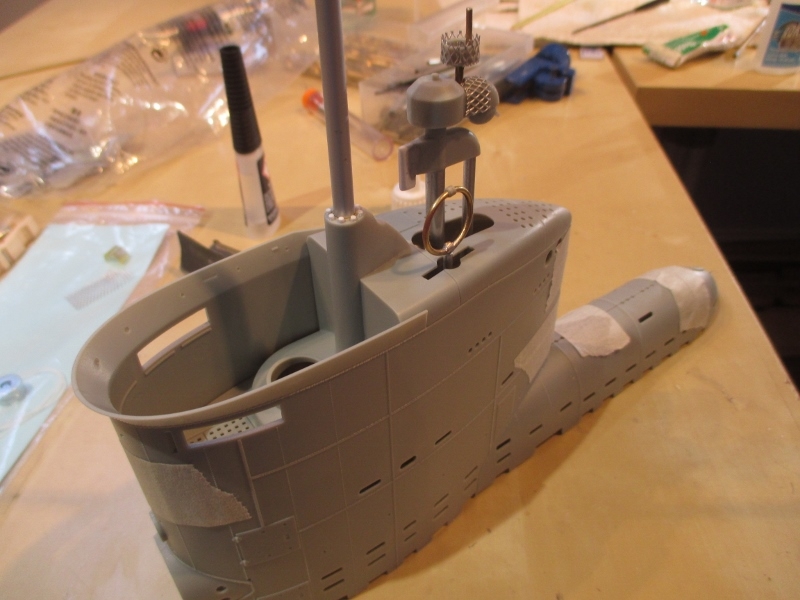

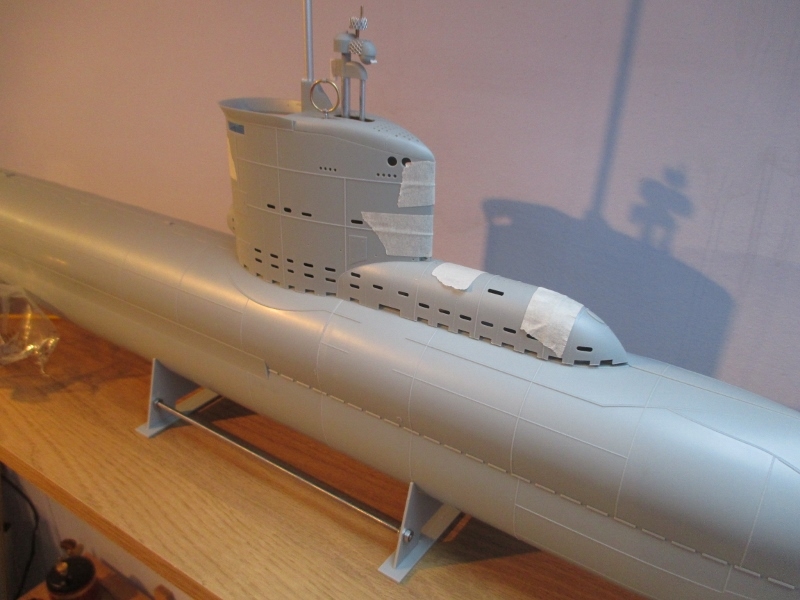

    A real bonus on this sub is the excellent tower, the scopes and radars can be upgraded.

    Click image for larger version

Name:	IMG_1919 (800x600).jpg
Views:	442
Size:	249.5 KB
ID:	131576Click image for larger version

Name:	IMG_1920 (800x600).jpg
Views:	422
Size:	249.3 KB
ID:	131577

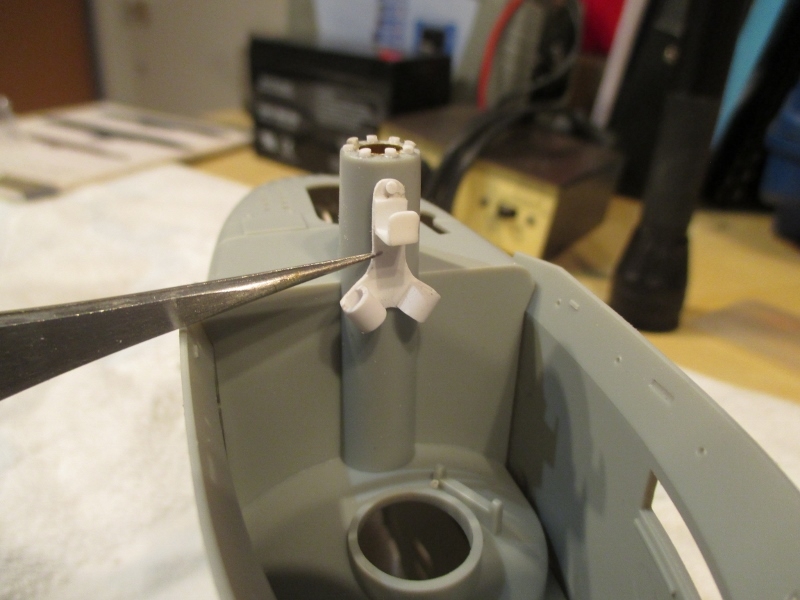

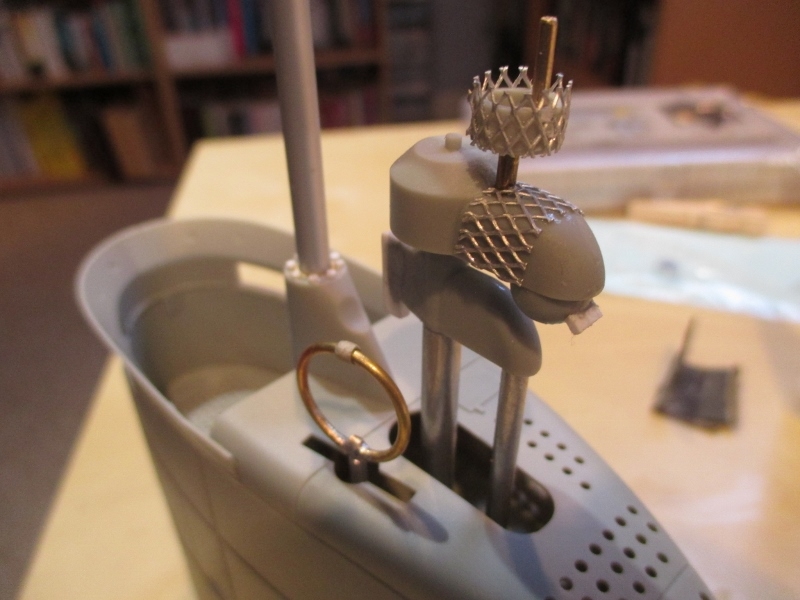

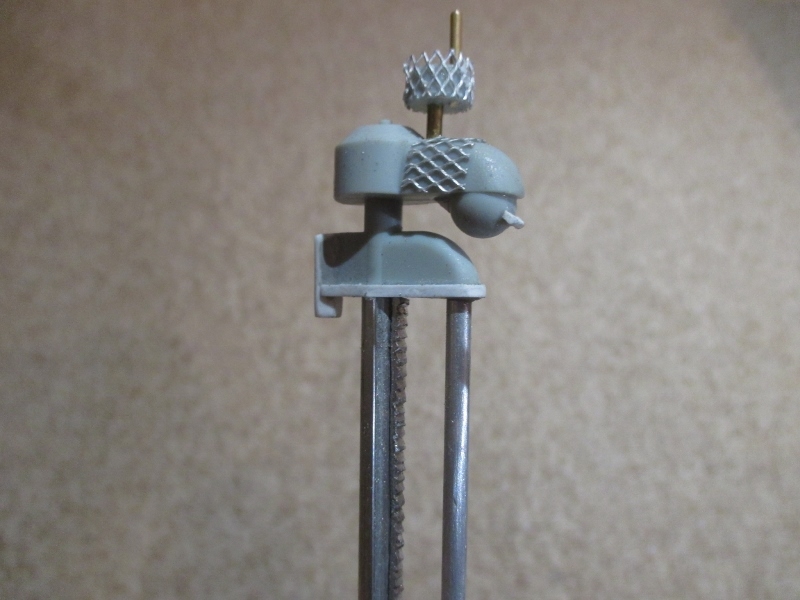

    A few extra details are added to the snorkel, including aluminium shafts, guide slides and the toothed bar from white metal

    Click image for larger version  Name:	IMG_1927 (800x600).jpg Views:	1 Size:	241.9 KB ID:	131562

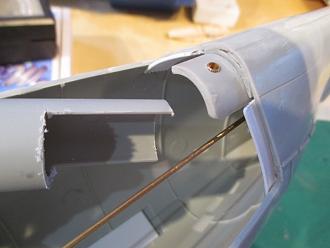

    I epoxied a brass bush in the location for the attack snorkel so it will slide freely up/down.

    Click image for larger version  Name:	IMG_1926 (800x600).jpg Views:	1 Size:	238.5 KB ID:	131563


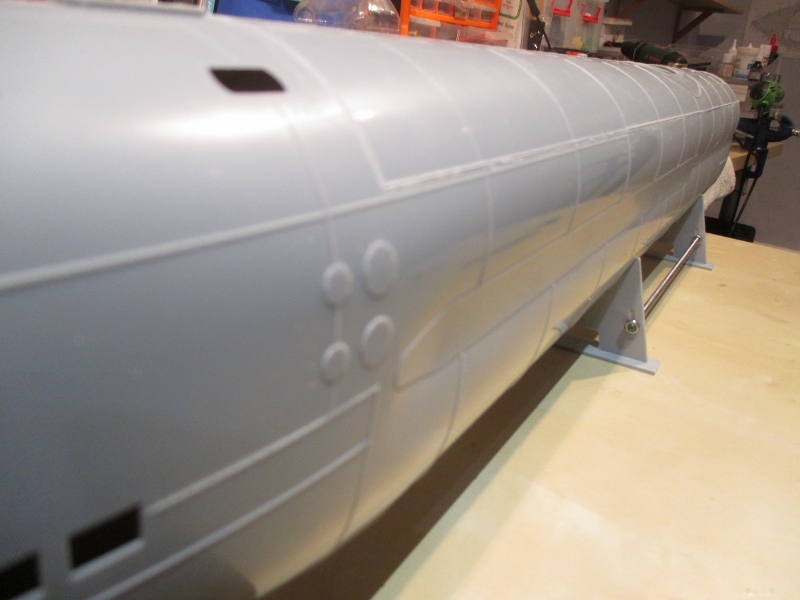

    Not sure how much I'll re-work the hull, it looks fine to me from photos. Click image for larger version  Name:	IMG_1921 (800x600).jpg Views:	2 Size:	256.8 KB ID:	131565




    The Boattrainman

    Last edited by The Boattrainman; 04-08-2019, 05:24 AM.
    ''We're after men, and I wish to God I was with them........!''
  • trout
    Admiral
    • Jul 2011
    • 3555

    #2
    The first four photos do not show up for me.
    The toothed bar, I did not put that on mine, but it is a good added detail. How did you make it?
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

    Comment

    • redboat219
      Admiral
      • Dec 2008
      • 2837

      #3
      Same here...

      Zip tie maybe?
      Make it simple, make strong, make it work!

      Comment

      • The Boattrainman
        Commander
        • Mar 2016
        • 443

        #4
        I fixed the photos, hopefully they are visible now.

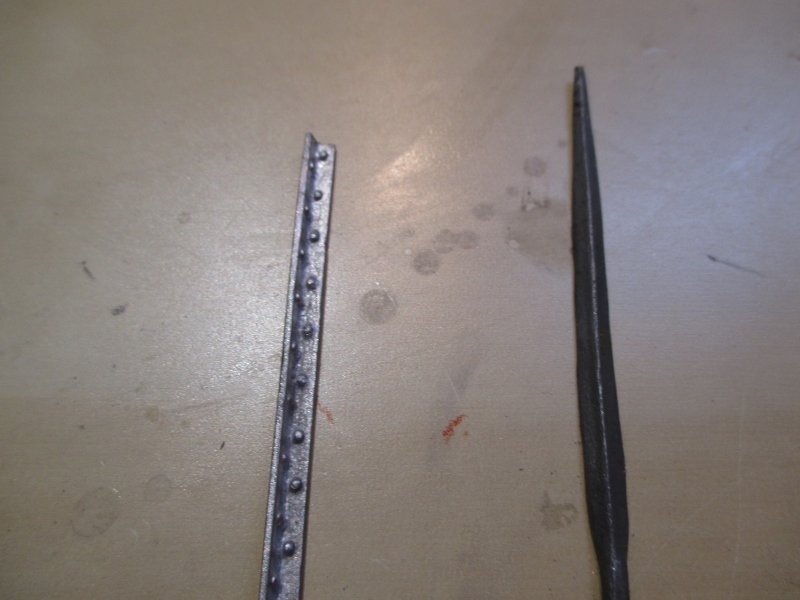

        To make the toothed bar I used a length of white metal from fittings I had over from another model. I cut this down the L joint and filed the rivets off, then using a rat file I added the teeth.

        Simple as the white metal is very soft.

        Click image for larger version

Name:	IMG_1928 (800x600).jpg
Views:	410
Size:	239.3 KB
ID:	131579

        Rob
        ''We're after men, and I wish to God I was with them........!''

        Comment

        • trout
          Admiral
          • Jul 2011
          • 3555

          #5
          Very nice and simple. I will take notes for my next Type XXIII!
          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

          Comment

          • The Boattrainman
            Commander
            • Mar 2016
            • 443

            #6
            I'll make the upgrades as small modules or items to drop into the tower when the halves are permanently united.

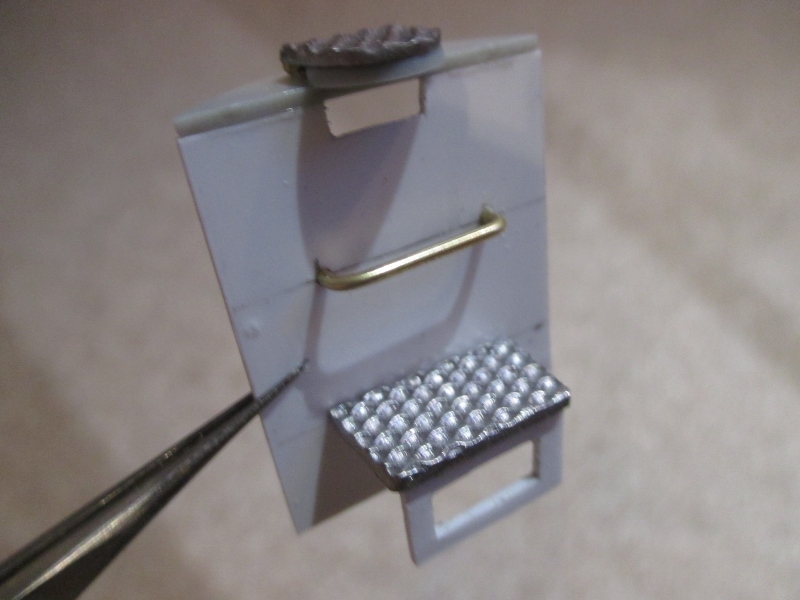

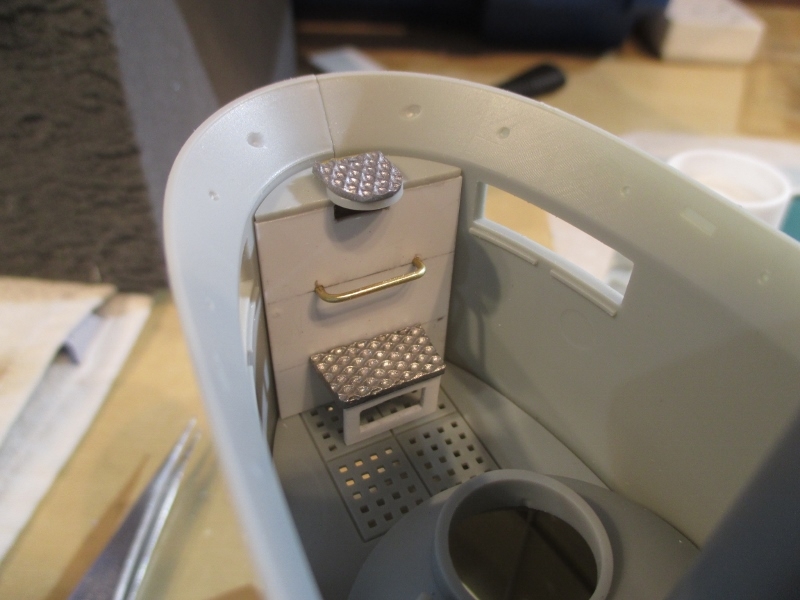

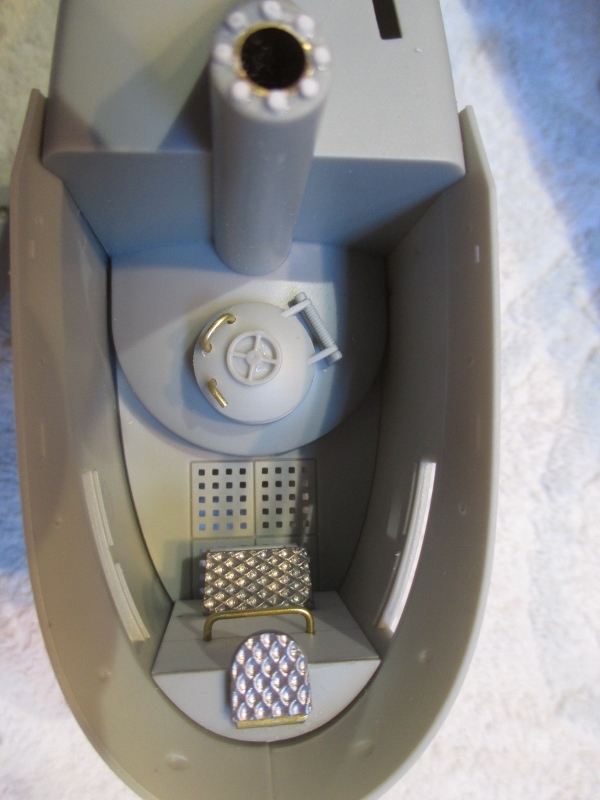

            Here's the front section with step, UZO cover and handrail (couple of bits of chequer plate/styrene/1mm brass rod) the hole is to allow water and air in/out.........

            Click image for larger version

Name:	IMG_1929 (800x600).jpg
Views:	421
Size:	234.0 KB
ID:	131616Click image for larger version

Name:	IMG_1930 (800x600).jpg
Views:	403
Size:	232.3 KB
ID:	131617


            .......and the lifebelt holder from styrene.

            Click image for larger version

Name:	IMG_1931 (800x600).jpg
Views:	416
Size:	220.6 KB
ID:	131618Click image for larger version

Name:	IMG_1932 (800x600).jpg
Views:	410
Size:	234.1 KB
ID:	131619


            The Boattrainman
            ''We're after men, and I wish to God I was with them........!''

            Comment

            • RCSubGuy
              Welcome to my underwater realm!
              • Aug 2009
              • 1799

              #7
              Beautiful! This is looking awesome so far.

              Comment

              • The Boattrainman
                Commander
                • Mar 2016
                • 443

                #8
                Thanks Bob!
                ''We're after men, and I wish to God I was with them........!''

                Comment

                • The Boattrainman
                  Commander
                  • Mar 2016
                  • 443

                  #9

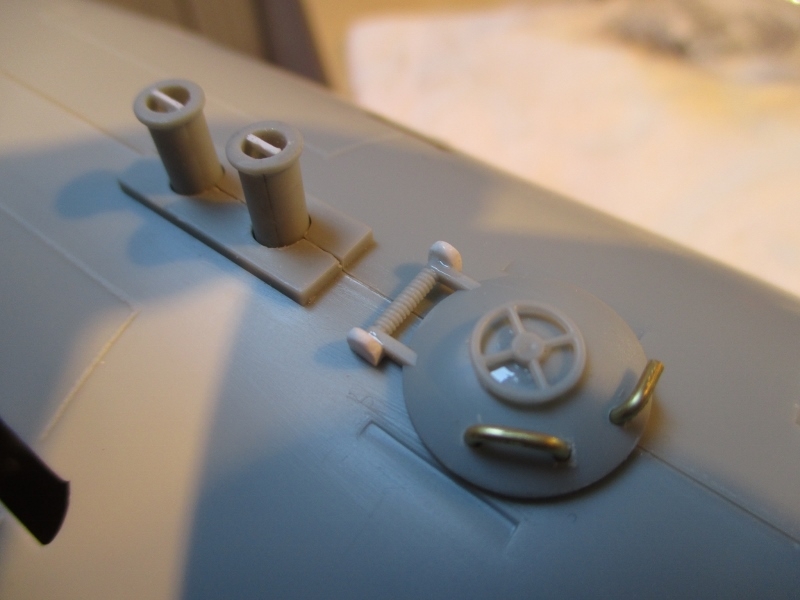

                  I've improved the bollards by drilling out the originals and adding the lifting bars, and the hatches get a makeover.

                  Click image for larger version  Name:	IMG_1933 (800x600).jpg Views:	1 Size:	201.6 KB ID:	131638Click image for larger version  Name:	IMG_1934 (600x800).jpg Views:	1 Size:	244.3 KB ID:	131639


                  The snorkel is probably the key feature on the sub so the improvements were crucial, I've done the basic shape of the handrails in 1mm brass rod, a bit flimsy, but the tower will be permanently attached to the upper hull so I'll manhandle that instead!


                  Click image for larger version

Name:	image_39437.jpg
Views:	305
Size:	259.9 KB
ID:	131640


                  The Boattrainman
                  Last edited by The Boattrainman; 04-10-2019, 04:10 PM.
                  ''We're after men, and I wish to God I was with them........!''

                  Comment

                  • The Boattrainman
                    Commander
                    • Mar 2016
                    • 443

                    #10

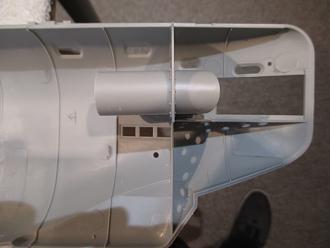

                    One slight problem with sealing the hull is that I need to add the torpedos and torpedo bay fully painted, as I want to model the sub with one torp door open.

                    To do this, I just need the front section of the torps and tubes, the rest of the hull is needed for my WTC.

                    Click image for larger version

Name:	IMG_1936 (800x600).jpg
Views:	411
Size:	246.0 KB
ID:	131676Click image for larger version

Name:	IMG_1937 (800x600).jpg
Views:	416
Size:	221.4 KB
ID:	131677

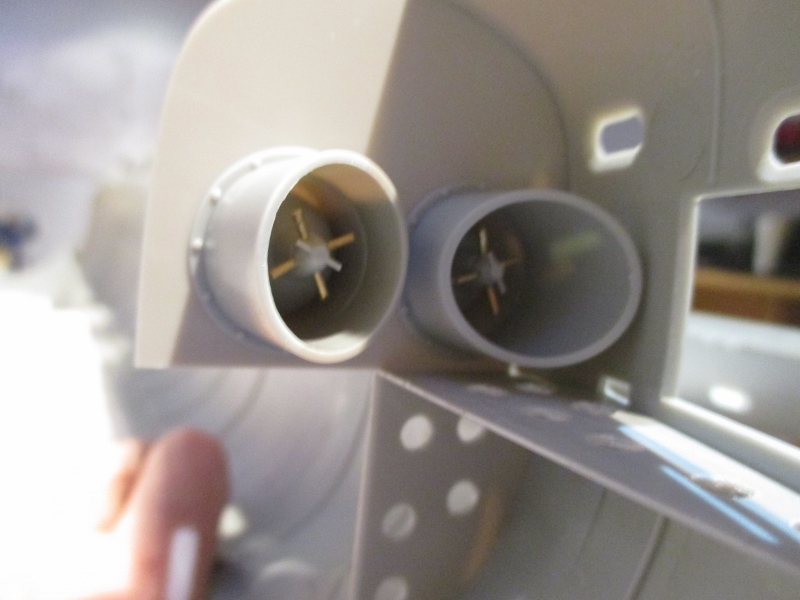

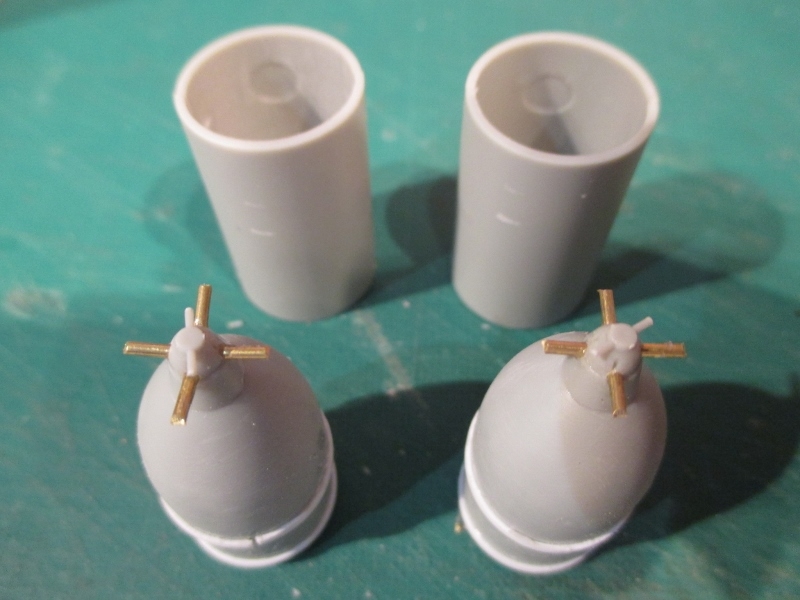

                    I replaced the timer props on the front with brass for rigidity and the styrene strips around the bodies are so they will 'centre' in the tubes.

                    Click image for larger version

Name:	IMG_1939 (800x600).jpg
Views:	411
Size:	231.8 KB
ID:	131678

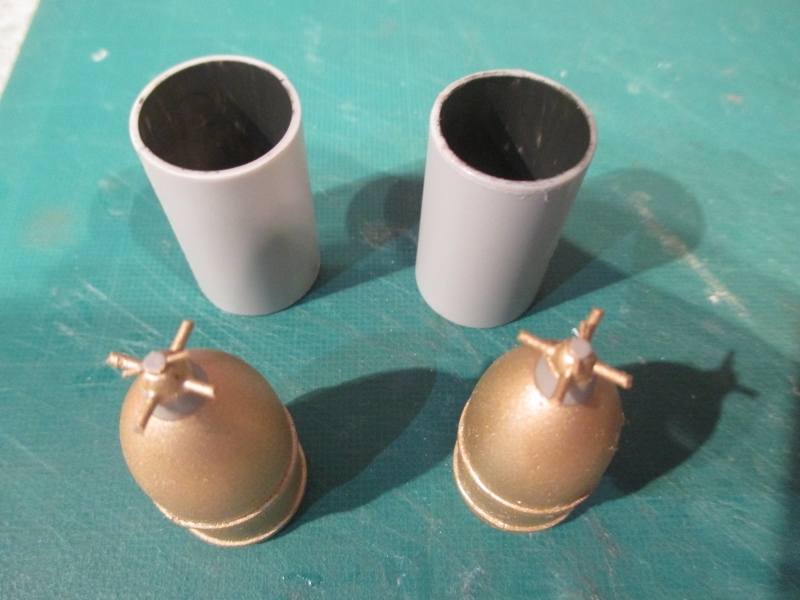

                    Painted from photos of the G7e torpedo in the National War Museum in London.



                    Click image for larger version

Name:	IMG_1940 (800x600).jpg
Views:	433
Size:	281.6 KB
ID:	131679
                    ''We're after men, and I wish to God I was with them........!''

                    Comment

                    • The Boattrainman
                      Commander
                      • Mar 2016
                      • 443

                      #11

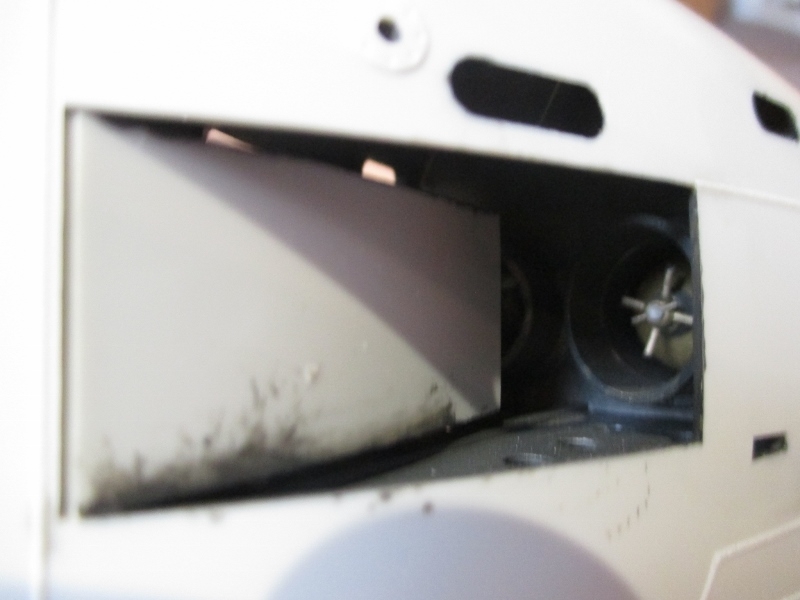

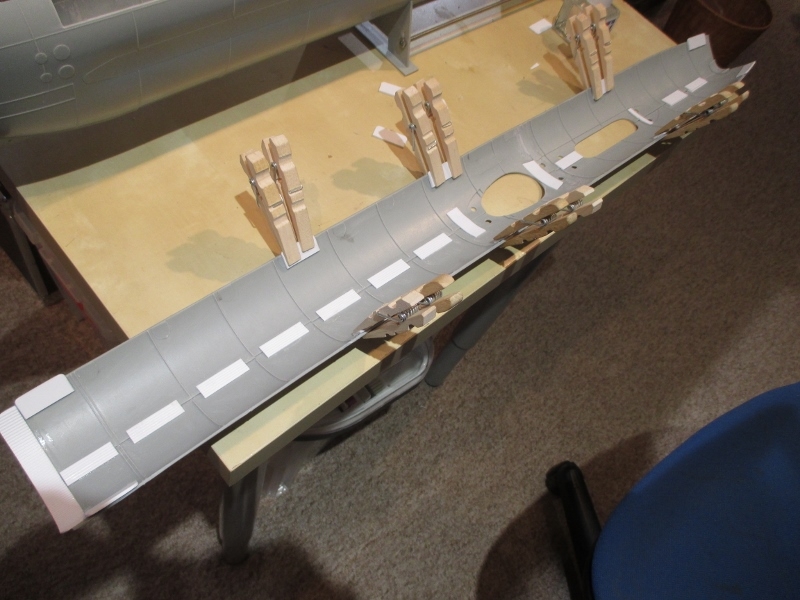

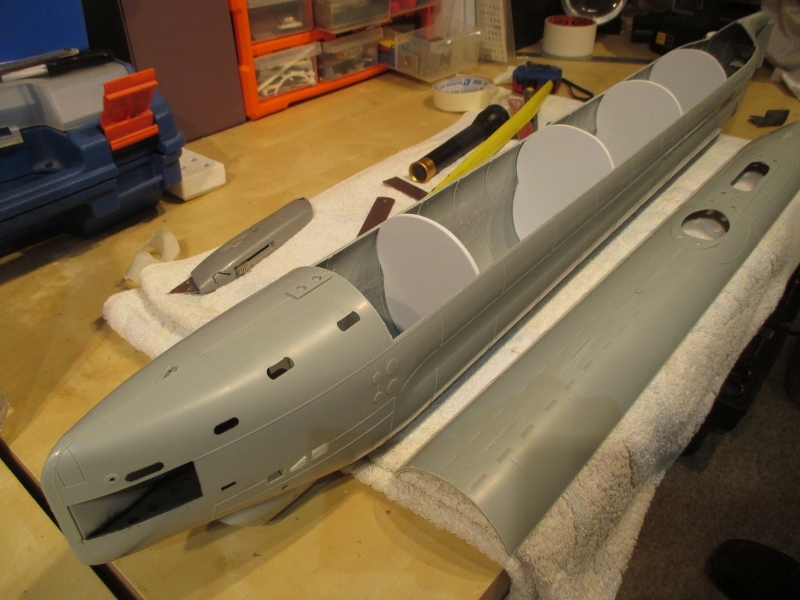

                      I decided to open the hull just cutting it with a craft knife, using the horizontal weld seams and masking tape as a guide. The four bulkheads I made earlier.

                      Click image for larger version  Name:	IMG_1946 (800x600).jpg Views:	1 Size:	299.0 KB ID:	131711


                      By using a knife and lots of patience instead of a rotary drill, there's less plastic removed so less filling after.........got it fairly straight.


                      Click image for larger version  Name:	IMG_1953 (800x600).jpg Views:	1 Size:	230.4 KB ID:	131712

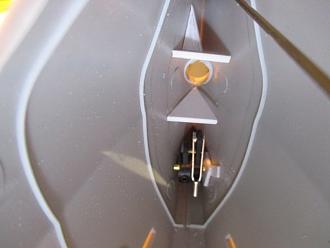

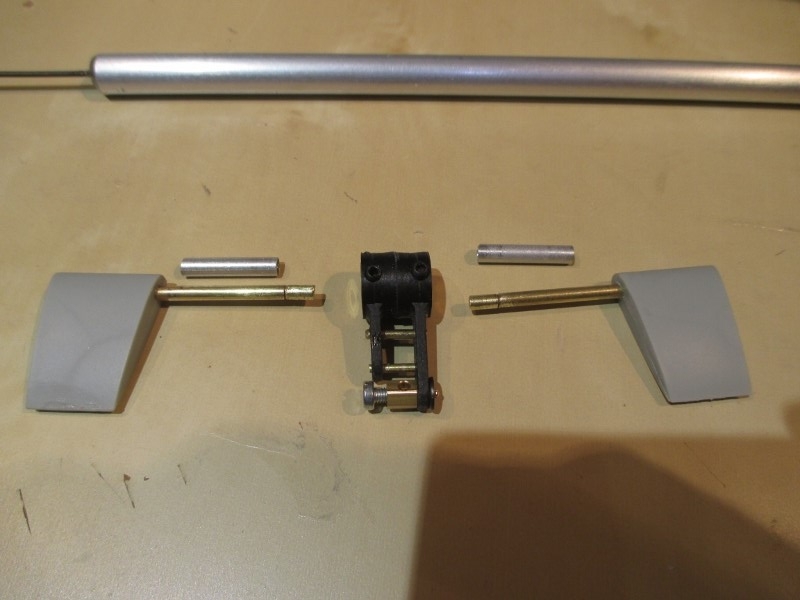

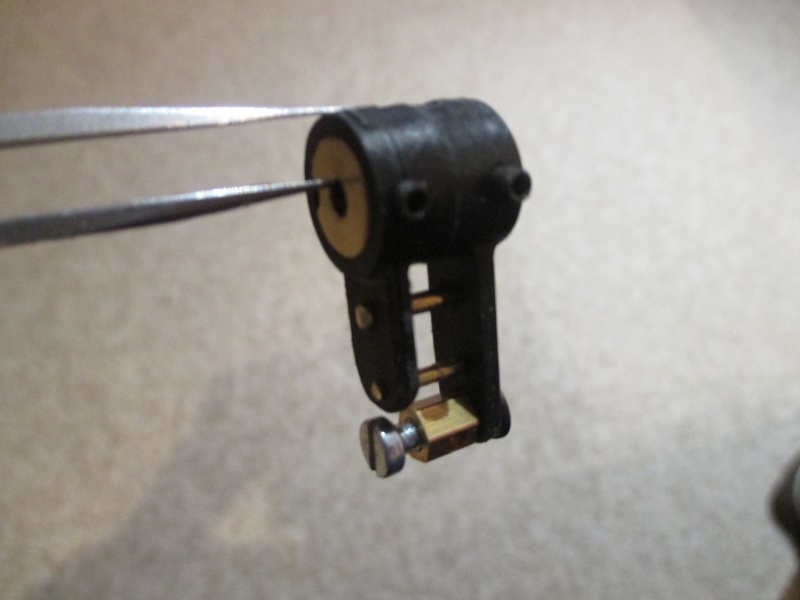

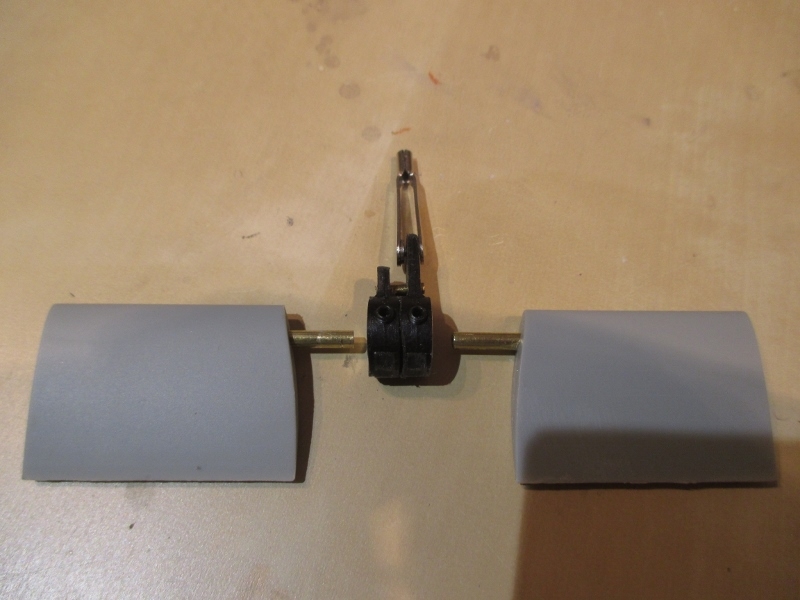

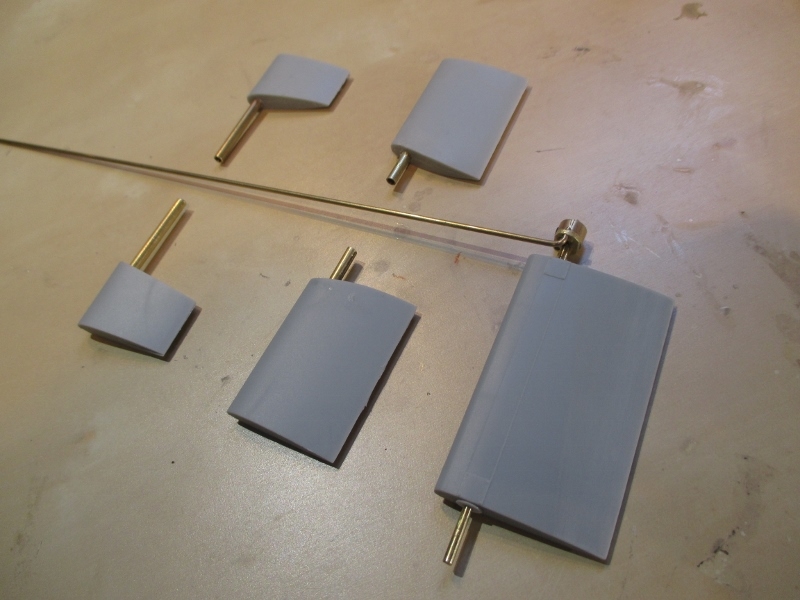

                      The cranks for the dive planes are standard 3mm items cut down and wedded together...............

                      Click image for larger version  Name:	IMG_1950 (800x600).jpg Views:	1 Size:	224.9 KB ID:	131713 Click image for larger version

Name:	image_39462.jpg
Views:	449
Size:	248.5 KB
ID:	131714


                      .......here they are in place...............

                      Click image for larger version  Name:	IMG_1947 (800x600).jpg Views:	1 Size:	283.2 KB ID:	131715Click image for larger version  Name:	IMG_1948 (800x600).jpg Views:	1 Size:	244.9 KB ID:	131716


                      ...................and broken down.

                      Click image for larger version  Name:	IMG_1949 (600x800).jpg Views:	1 Size:	163.3 KB ID:	131717Click image for larger version  Name:	IMG_1951 (800x600).jpg Views:	1 Size:	234.1 KB ID:	131718


                      The Boattrainman
                      Last edited by The Boattrainman; 04-14-2019, 05:37 PM.
                      ''We're after men, and I wish to God I was with them........!''

                      Comment

                      • The Boattrainman
                        Commander
                        • Mar 2016
                        • 443

                        #12

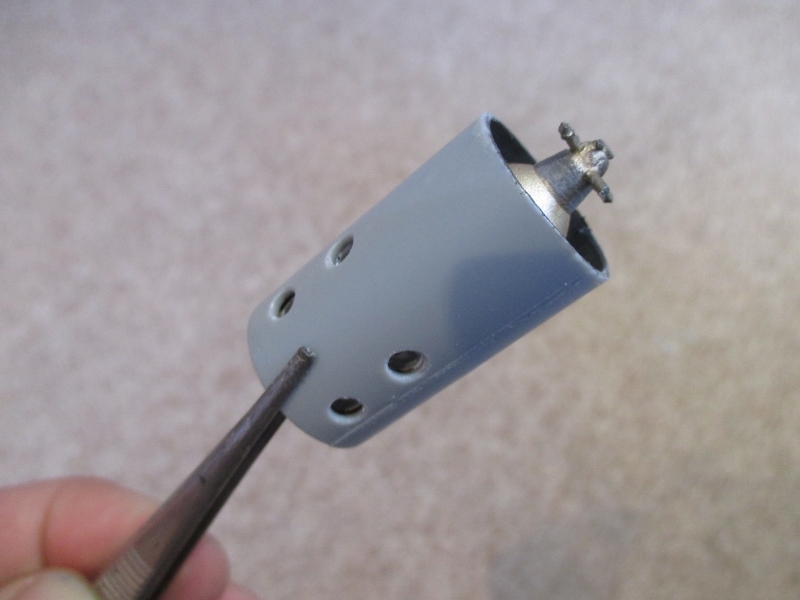

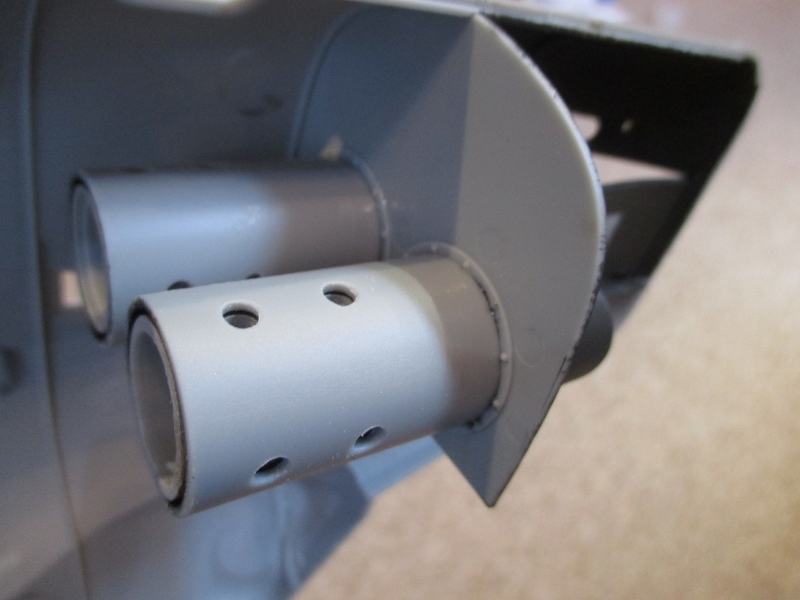

                        Here's the front of the torpedos and tubes finished, with holes to let air/water circulate.

                        Click image for larger version

Name:	IMG_1941 (800x600).jpg
Views:	405
Size:	223.2 KB
ID:	131720Click image for larger version

Name:	IMG_1943 (800x600).jpg
Views:	380
Size:	230.9 KB
ID:	131721


                        Here's what I want, just a hint there's something lethal behind the door.......


                        Click image for larger version

Name:	IMG_1944 (800x600).jpg
Views:	301
Size:	187.8 KB
ID:	131722


                        The Boattrainman
                        ''We're after men, and I wish to God I was with them........!''

                        Comment

                        • The Boattrainman
                          Commander
                          • Mar 2016
                          • 443

                          #13
                          Just a comment on the idea this is a 'beginners' project.

                          It's def not a complicated sub, just a bit fiddly as it's under a metre in length, however one of it's strengths is also a weakness and in my view will need experience to sort.

                          All the nice surface detail, some of it very fine, tends to get damaged during the build and will require a lot of remedial action to fix later. Def not for a Beginner as some of the seams and weld doublers are incredibly small.

                          Rob

                          ''We're after men, and I wish to God I was with them........!''

                          Comment

                          • The Boattrainman
                            Commander
                            • Mar 2016
                            • 443

                            #14

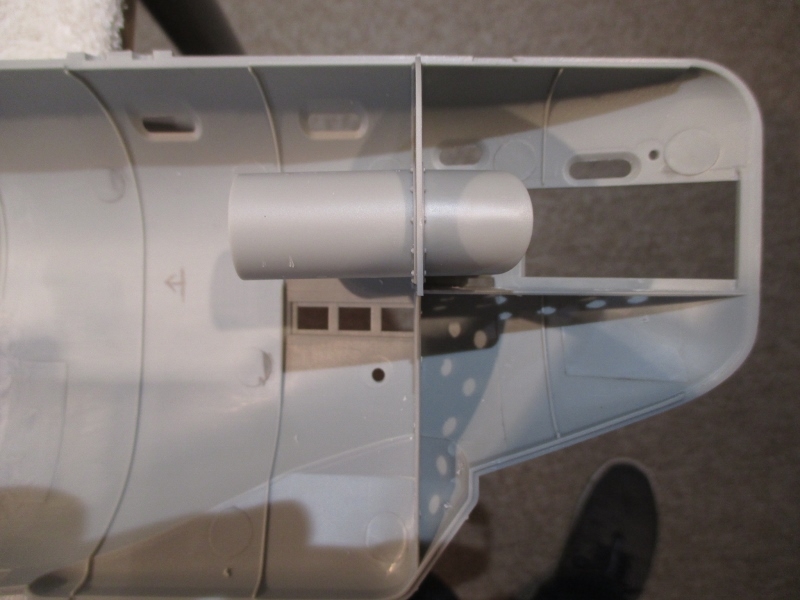

                            By coincidence the torp tube was the same diameter as the section of hull where I needed to set the connection bolt.

                            Click image for larger version  Name:	IMG_1954 (800x600).jpg Views:	1 Size:	250.8 KB ID:	131747

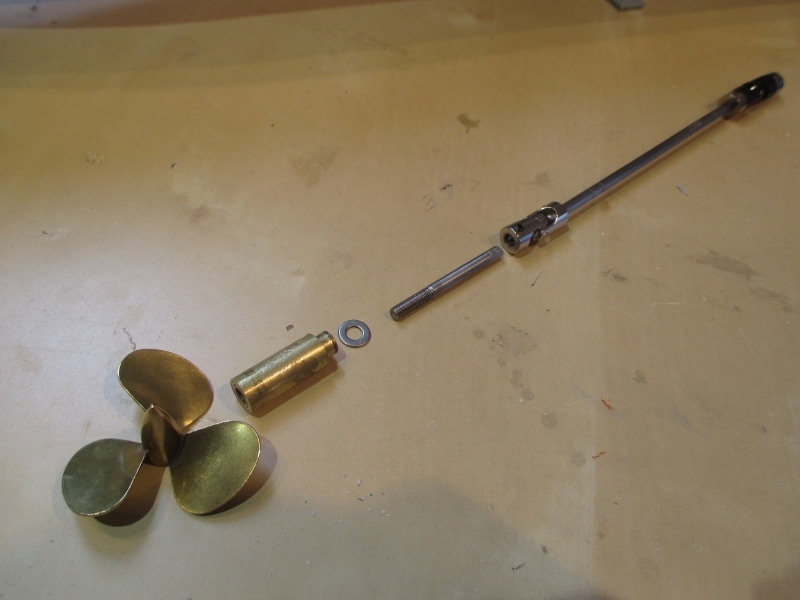

                            Here is the power train, 45mm prop, through hull tube, thrust washer, 4mm mini shaft and the larger 4mm prop shaft with couplers at each end.

                            Click image for larger version  Name:	IMG_1955 (800x600).jpg Views:	1 Size:	224.3 KB ID:	131743

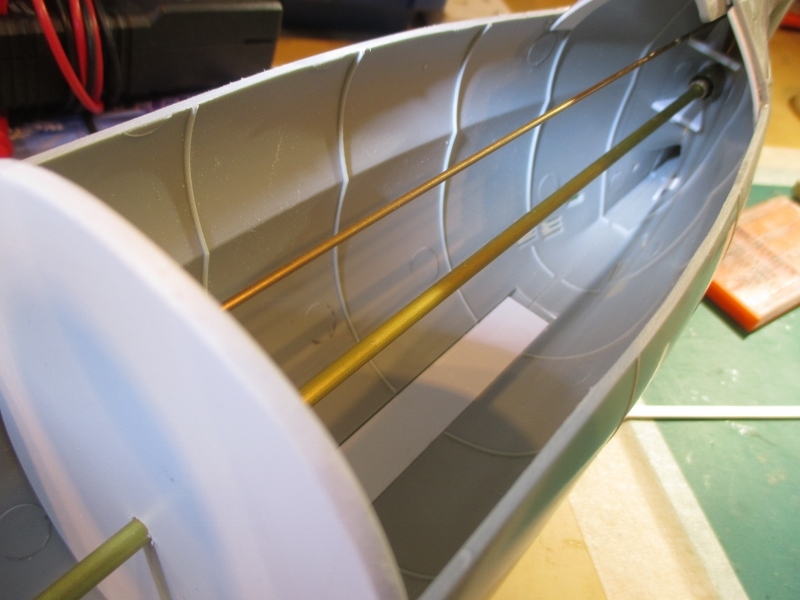

                            To set the through hull tube, I ran a 4mm brass rod through the centre of a bulkhead and glued the shaft in place.

                            Click image for larger version  Name:	IMG_1956 (800x600).jpg Views:	1 Size:	234.6 KB ID:	131744


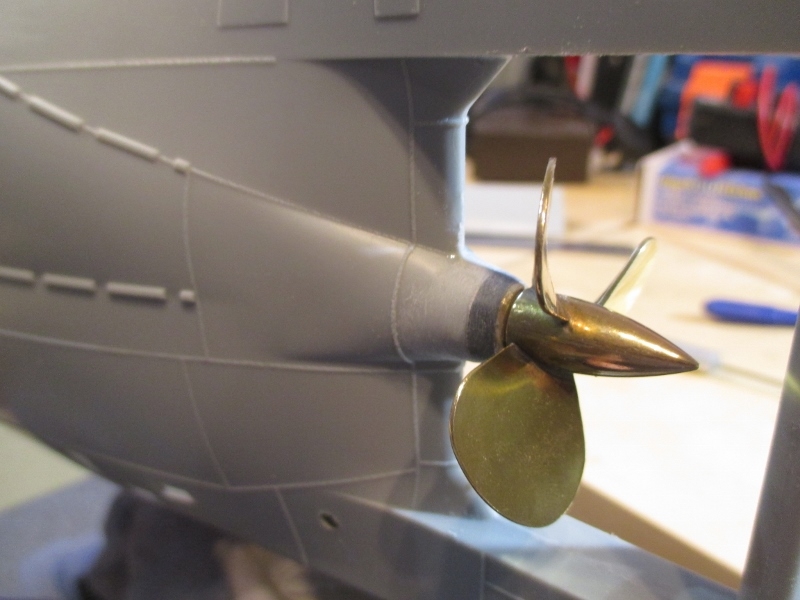

                            I extended the prop boss a bit to meet the diameter of the prop, not prototypical!

                            Click image for larger version  Name:	IMG_1957 (800x600).jpg Views:	1 Size:	242.1 KB ID:	131745


                            Then I added alignment strips and strenghtners from 1.5mm styrene to the upper hull, it's very flimsy until this is done.


                            Click image for larger version

Name:	image_39483.jpg
Views:	364
Size:	285.0 KB
ID:	131746


                            The Boattrainman
                            Last edited by The Boattrainman; 04-14-2019, 05:38 PM.
                            ''We're after men, and I wish to God I was with them........!''

                            Comment

                            • trout
                              Admiral
                              • Jul 2011
                              • 3555

                              #15
                              Rob,
                              I think the Bronco is a great kit. For a beginner or a detail crazy nut such as yourself :-) it can beamed into a working sub. Plenty of hull room. I am just enjoying the details you are putting in!
                              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                              Comment
