    A Skipjack in Ireland


    This thread details the building of a 1/72 Revell 'Skipjack' with working lights and a homemade Water Tight Cylinder (WTC)



    Greetings from Dublin in Ireland (that small island off the west of Europe beside the UK!!!)

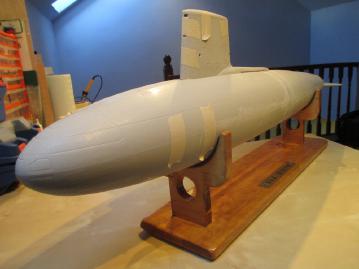

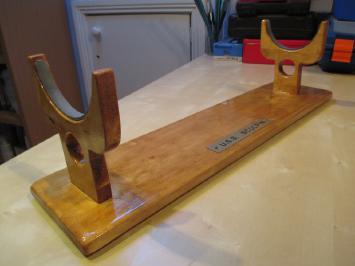

    Have started on a 1/72 Revell Skipjack, which will hopefully be USS Sculpin as I like the paint scheme, just got a work stand built and made the cuts as per the Cabal reports by Mr. Merriman.


    Click image for larger version  Name:	USS SCULPIN (800x600).jpg Views:	2 Size:	37.3 KB ID:	113435Click image for larger version  Name:	IMG_0373 (800x600).jpg Views:	2 Size:	36.9 KB ID:	113436

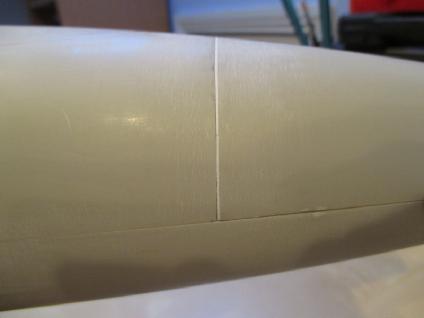

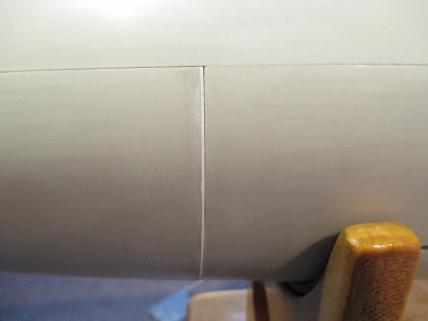

    As per the photos I've added slim fillets of 0.5mm Plasticard at each join seam of the Z cuts, plus I'm spending most time on the seams where the kit halves are joined.


    Click image for larger version  Name:	IMG_0371 (800x600).jpg Views:	3 Size:	31.4 KB ID:	113437Click image for larger version  Name:	IMG_0372 (800x600).jpg Views:	2 Size:	31.5 KB ID:	113438

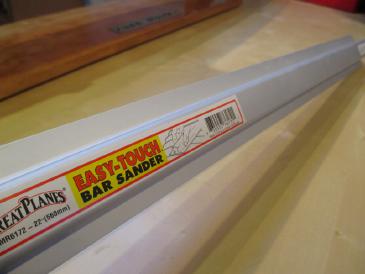

    I came across a really useful tool for the seams (in the USA on holidays last year as it happens) it's basically a 2 foot long metal straight edge that you stick some sandpaper on to (in this case 120 grit) with two-sided tape.


    Click image for larger version  Name:	IMG_0375 (800x600).jpg Views:	1 Size:	37.7 KB ID:	113439Click image for larger version  Name:	IMG_0376 (800x600).jpg Views:	1 Size:	33.4 KB ID:	113440


    Anyway, will post progress as I go, won't be covering what's already done on other threads, but hopefully have a few ideas where it can be improved.

    The Boattrainman
    Last edited by The Boattrainman; 01-22-2017, 07:37 AM.
    ''We're after men, and I wish to God I was with them........!''
  • The Boattrainman
    Commander
    • Mar 2016
    • 443

    #2

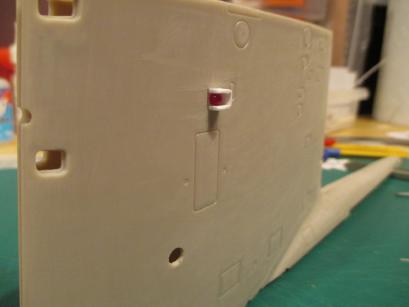

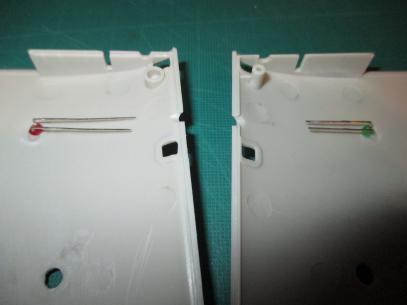

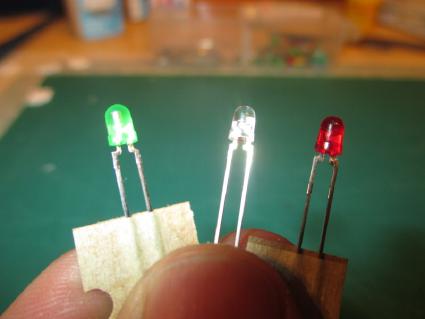

    I'm going with working lights (I know they are only used on surface running) but I want 'em!!! I'll go with the sail lights and tail light using small 3mm LEDs with a resistor.

    Click image for larger version

Name:	IMG_0379 (800x600).jpg
Views:	320
Size:	37.3 KB
ID:	113441 Click image for larger version

Name:	IMG_0384 (800x600).jpg
Views:	304
Size:	36.3 KB
ID:	113442

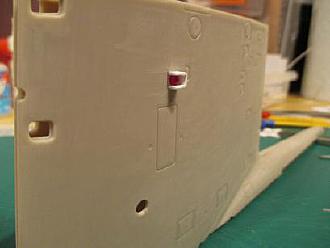

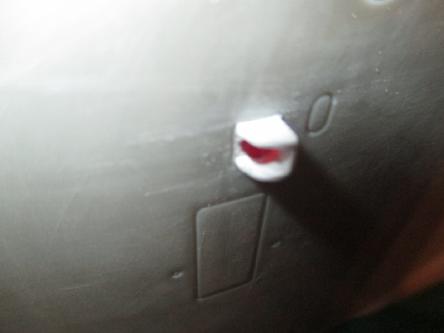

    The sail lights appear to swivel out of small openings over the crew doors, so using 1mm Plasticard and a circle cutting tool, I made four quarter circle fittings that form the upper and lower part of the light fittings with a 0.5mm piece of Plasticard the size of the little openings as a backing.

    Click image for larger version

Name:	IMG_0388 (800x600).jpg
Views:	307
Size:	34.0 KB
ID:	113443


    The wires will be totally encased in epoxy on the inside once I've attached the wiring.


    Click image for larger version

Name:	IMG_0386 (800x600).jpg
Views:	294
Size:	33.2 KB
ID:	113444 Click image for larger version

Name:	IMG_0389 (800x600).jpg
Views:	309
Size:	32.0 KB
ID:	113445


    It was impossible to wire them from the bottom, as my photo show the real thing as a cylinder shape, I've filed LEDs before into such a shape, but they are so small this time and the light fitting tiny they had to go this way!

    Last edited by The Boattrainman; 04-03-2016, 12:20 PM.
    ''We're after men, and I wish to God I was with them........!''

    Comment

    • trout
      Admiral
      • Jul 2011
      • 3555

      #3
      Your photos are not showing up. I definitely want to see what you are doing!
      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

      Comment

      • The Boattrainman
        Commander
        • Mar 2016
        • 443

        #4
        Strange this, when I log back in they are there, yet not when I view without log-in!

        If no one has a remedy, I'll e-mail them to you.

        The Boattrainman

        ''We're after men, and I wish to God I was with them........!''

        Comment

        • The Boattrainman
          Commander
          • Mar 2016
          • 443

          #5
          I've reloaded all the photos, but I'm getting a 'you do not have permission to upload or remove photos' message.

          Anyone got any idea why?

          The Boattrainman





          ''We're after men, and I wish to God I was with them........!''

          Comment

          • The Boattrainman
            Commander
            • Mar 2016
            • 443

            #6
            I'm going with some grating on the openings.

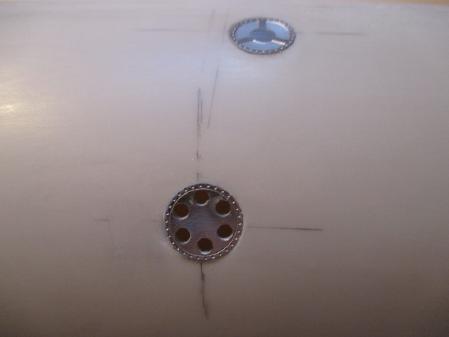

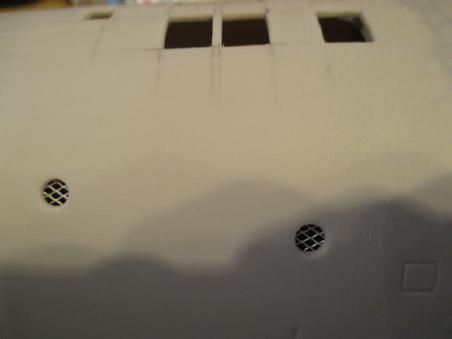

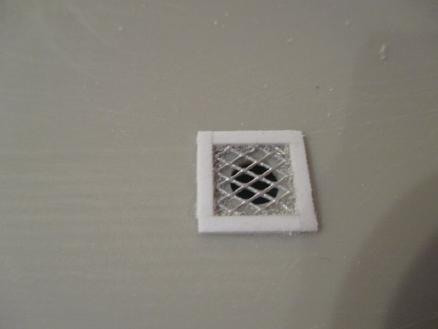

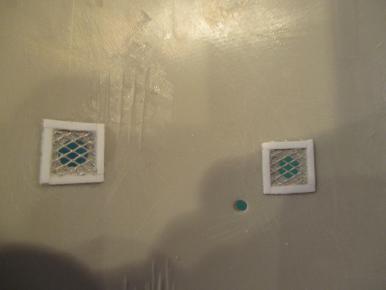

            For the round holes, I had some mesh grating in the spares box, so along with some 10mm strips of 1.5mm Plasticard, I've made a small square into which a piece of grating is pushed (a tight fit) with plenty of CA glue.

            Click image for larger version

Name:	IMG_0393 (800x600).jpg
Views:	311
Size:	34.4 KB
ID:	113447


            Why bother, I doubt if this is a scale mesh for this vessel (given it was supplied for 1/35 scale model!). I think the larger holes don't look right just blank, I think there would be some sort of debris restriction to prevent crap getting access, plus my local boating water is less than clean, so I'm hoping they will perform the same job for me. I have 1/72 mesh, it's too fine to let water in and out.

            Click image for larger version

Name:	IMG_0391 (800x600).jpg
Views:	319
Size:	29.9 KB
ID:	113446 Click image for larger version

Name:	IMG_0394 (800x600).jpg
Views:	276
Size:	30.9 KB
ID:	113448


            I've ordered a PE sheet of square grating for the square holes, will be doing those also.

            Click image for larger version

Name:	image_31631.jpg
Views:	312
Size:	30.0 KB
ID:	113434

            There is a guy in the UK (see link below), but he only sells the gratings as part of his complete upgrade kit which I'm not using. So scratch building it is!

            R & R Model Engineering welcomes you to our website. Please feel free to take a look around at our products, all of which have been custom designed and built to make your entry into the fascinating world of operating a model submarine as easy as possible. From a basic dynamic dive module to a full blown static dive system, operating torpedoes, up to a fully built, ready to go boat, R & R can supply you with exactly what you need. We can provide you with a kit to build, if you wish to construct your own boat; all the parts you will need to complete the kit with the minimum of fuss; and, most importantly, free and impartial advice.


            TheBoattrainman


            Last edited by The Boattrainman; 04-03-2016, 12:23 PM.
            ''We're after men, and I wish to God I was with them........!''

            Comment

            • trout
              Admiral
              • Jul 2011
              • 3555

              #7
              Originally posted by The Boattrainman
              I'm going with some grating on the openings.

              Why bother, I doubt if this is a scale mesh for this vessel (given it was supplied for 1/35 scale model!). I think the larger holes don't look right just blank, I think there would be some sort of debris restriction to prevent crap getting access, plus my local boating water is less than clean, so I'm hoping they will perform the same job for me. I have 1/72 mesh, it's too fine to let water in and out.
              You can put screens over the holes, but I would not recommend it. There are a couple of reasons that I can come up with. You are restricting water getting into the hull, meaning it will slow down dive times. The second reason was brought up by you, the larger subs used them to stop debris. So will your scale ones do too, but there are more particulates in a pond that you may find them getting clogged faster. Then cleaning them will be the other fun issue.
              Anyways, open a Photobucket account and put your photos there, at least we will be able to see them.

              A couple of thoughts as to why photos may not be posting. I know that if I am typing and constructing my thoughts, it can take awhile, the server will flush those pictures out. Other things that come to mind are size too big? is it a jpeg format?

              I really hope we figure it out. I want to see what you are doing. I am sure a visual learner.

              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

              Comment

              • The Boattrainman
                Commander
                • Mar 2016
                • 443

                #8
                Thanks for responding.

                I'll look at the whole photo upload problem over the weekend if I get a chance, agree a picture is far better than a load of text.

                I re-sized them down to fit, but sure it's not my forte!

                The Boattrainman

                ''We're after men, and I wish to God I was with them........!''

                Comment

                • The Boattrainman
                  Commander
                  • Mar 2016
                  • 443

                  #9
                  I think the photo problem is resolved thanks to Mike.

                  While waiting for the Caswell fittings kit and other parts, I'm working on the sail specifically the scopes of which I only want the attack units in the up position.

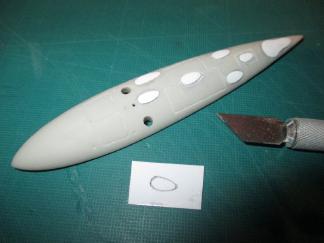

                  I've filled in the holes of all the large scopes with filler and then to get a profile for them cut out tear dropped shaped pieces of 0.5mm Plasticard using the kit scopes as a guide, and glued them over their holes.


                  Click image for larger version

Name:	IMG_0401 (800x600).jpg
Views:	308
Size:	31.9 KB
ID:	113454 Click image for larger version

Name:	IMG_0395 (800x600).jpg
Views:	268
Size:	33.9 KB
ID:	113452

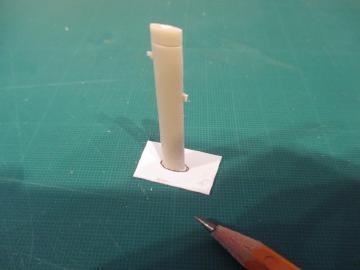

                  By using a very sharp scriber, I will re-instate the line around each scope, and then sand the Plasticard shapes till they are nearly gone, giving the impression of a scope top in the down position.

                  Click image for larger version

Name:	IMG_0398 (800x600).jpg
Views:	307
Size:	31.5 KB
ID:	113453

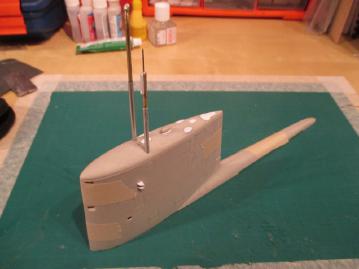

                  The two scopes I want up are made from brass and aluminium tubing with one of them with the plastic fitting from the Revell kit attached with epoxy.

                  I'm toying with having them raise by attaching a small foam square to the bottom of them inside the sail, hence the slightly larger holes for another short piece of tubing for the scopes to move up and down in, however I can't proceed until I get the Caswell fittings and work out how much space I have to work in.

                  The Boattrainman

                  ''We're after men, and I wish to God I was with them........!''

                  Comment

                  • The Boattrainman
                    Commander
                    • Mar 2016
                    • 443

                    #10
                    Sail with lights, scopes, and dummy scopes in the down position.

                    Click image for larger version

Name:	IMG_0402 (800x600).jpg
Views:	271
Size:	37.0 KB
ID:	113457

                    I'm on the hunt for a small piece of curved clear plastic to go over the LEDs in the light housings.

                    The Boattrainman

                    ''We're after men, and I wish to God I was with them........!''

                    Comment

                    • He Who Shall Not Be Named
                      Moderator
                      • Aug 2008
                      • 12456

                      #11
                      Originally posted by The Boattrainman
                      I think the photo problem is resolved thanks to Mike.

                      While waiting for the Caswell fittings kit and other parts, I'm working on the sail specifically the scopes of which I only want the attack units in the up position.

                      I've filled in the holes of all the large scopes with filler and then to get a profile for them cut out tear dropped shaped pieces of 0.5mm Plasticard using the kit scopes as a guide, and glued them over their holes.


                      [ATTACH=CONFIG]n113454[/ATTACH] [ATTACH=CONFIG]n113452[/ATTACH]

                      By using a very sharp scriber, I will re-instate the line around each scope, and then sand the Plasticard shapes till they are nearly gone, giving the impression of a scope top in the down position.

                      [ATTACH=CONFIG]n113453[/ATTACH]

                      The two scopes I want up are made from brass and aluminium tubing with one of them with the plastic fitting from the Revell kit attached with epoxy.

                      I'm toying with having them raise by attaching a small foam square to the bottom of them inside the sail, hence the slightly larger holes for another short piece of tubing for the scopes to move up and down in, however I can't proceed until I get the Caswell fittings and work out how much space I have to work in.

                      The Boattrainman

                      Excellent work, sir. Photos are just the right size too.

                      You'll need some room in the sail for the snorkel assembly, so don't get carried away with the mast float idea. Are you going to make the sail planes practical? I recommend you do so on such a big model. Keep at it!

                      M
                      Who is John Galt?

                      Comment

                      • The Boattrainman
                        Commander
                        • Mar 2016
                        • 443

                        #12
                        Roger that!

                        The sail planes will work using the Caswell fittings, I'm not moving forward until I assess the space needed for the snorkel system, there's very little room to manouveur in that sail, decent length but very little width.

                        I've bent the wires for the LED lights away (i.e, forward) from the area where the snorkel will be in case of space shortage.

                        Anyway, on hold till the parts arrive.






                        ''We're after men, and I wish to God I was with them........!''

                        Comment

                        • He Who Shall Not Be Named
                          Moderator
                          • Aug 2008
                          • 12456

                          #13
                          very good..................
                          Who is John Galt?

                          Comment

                          • The Boattrainman
                            Commander
                            • Mar 2016
                            • 443

                            #14

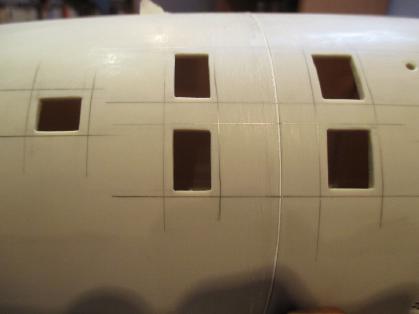

                            So now to the gratings on the ballast tank inlets.

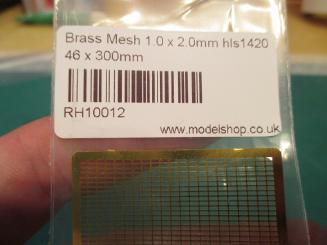

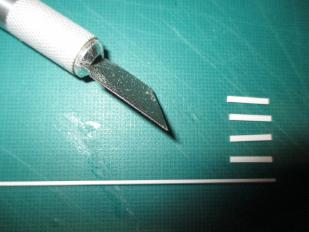

                            The weapons of choice for this are 0.75mm Plasticard strips, 1mm x 2mm Brass mesh, plastic cement glue and a viciously sharp craft knife.


                            Click image for larger version

Name:	IMG_0403 (800x600).jpg
Views:	288
Size:	37.3 KB
ID:	113474 Click image for larger version

Name:	IMG_0404 (800x600).jpg
Views:	312
Size:	36.9 KB
ID:	113475

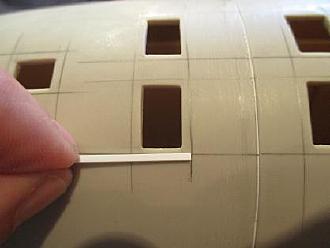

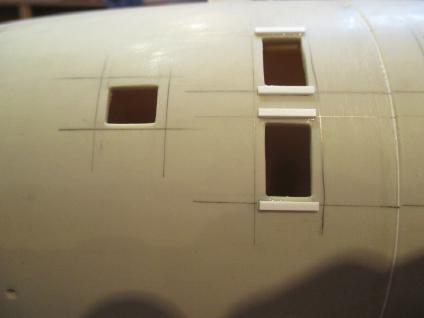

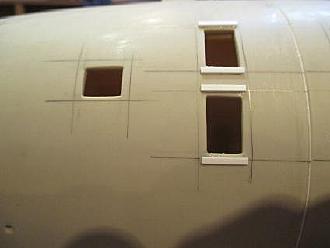

                            The first job to do is to line the area around the holes with straight lines laid down with a soft pencil, then use these as cutting guides for the Plasticard strip.

                            Click image for larger version

Name:	IMG_0405 (800x600).jpg
Views:	327
Size:	33.5 KB
ID:	113476 Click image for larger version

Name:	IMG_0409 (800x600).jpg
Views:	265
Size:	34.1 KB
ID:	113480

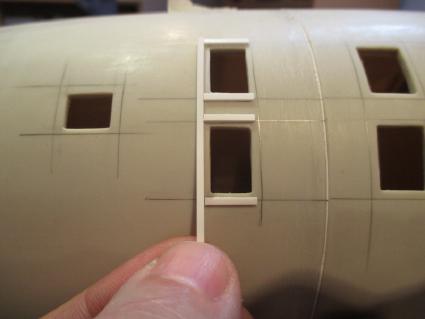

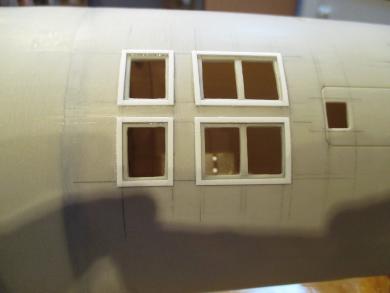

                            Each hole requires four strips, but I did the longitudinal ones on each pair of holes first (those running bow to stern).


                            Click image for larger version

Name:	IMG_0412 (800x600).jpg
Views:	284
Size:	35.3 KB
ID:	113481 Click image for larger version

Name:	IMG_0413 (800x600).jpg
Views:	271
Size:	32.5 KB
ID:	113482

                            I then did the transverse pieces using a Plasticard strip that I curved by squeezing between thumbs and fore finger, I treated the double hole at the stern as one for the moment.

                            Click image for larger version

Name:	IMG_0414 (800x600).jpg
Views:	300
Size:	34.6 KB
ID:	113485 Click image for larger version

Name:	IMG_0408 (800x600).jpg
Views:	298
Size:	34.3 KB
ID:	113486

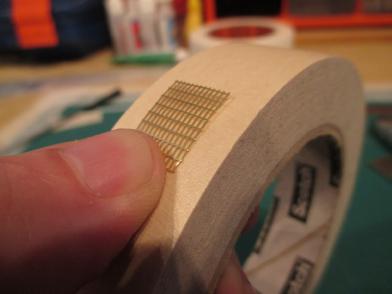

                            I covered the brass mesh with a wide strip of masking tape, so I can mark out the cuts.

                            Click image for larger version

Name:	IMG_0406 (800x600).jpg
Views:	267
Size:	34.6 KB
ID:	113477

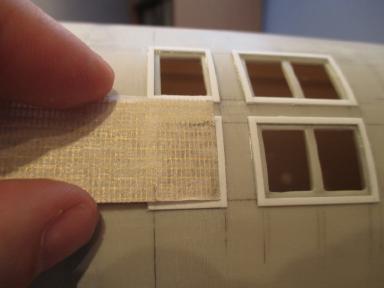

                            Small pieces of mesh are offered up to the holes for marking and cutting.




                            And on to the next post....................
                            Last edited by The Boattrainman; 04-04-2016, 04:51 PM.
                            ''We're after men, and I wish to God I was with them........!''

                            Comment

                            • The Boattrainman
                              Commander
                              • Mar 2016
                              • 443

                              #15
                              Once cut to shape the masking tape is peeled off and the mesh is curved by pressing it to a curved surface (as it happened the roll of masking tape did this job also).


                              Click image for larger version

Name:	IMG_0417 (800x600).jpg
Views:	290
Size:	35.4 KB
ID:	113509 Click image for larger version

Name:	IMG_0418 (800x600).jpg
Views:	285
Size:	36.5 KB
ID:	113510

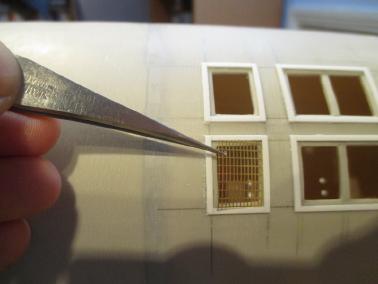

                              Once curved they are dropped into the holes with some thick Syperglue preloaded around the hole perimeter with a cocktail stick tip (don't put glue on the mesh, it'll try to fill the micro-holes).


                              Click image for larger version

Name:	IMG_0415 (800x600).jpg
Views:	284
Size:	36.1 KB
ID:	113495

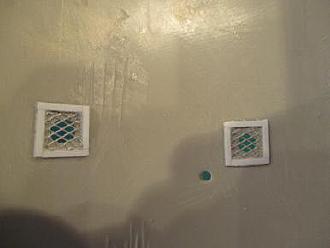

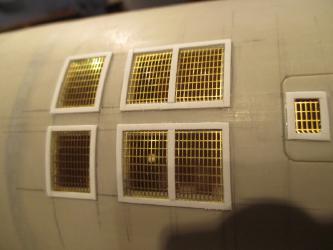

                              The double holes were treated to one large piece of mesh, and then a strip of Plasticard was added across.

                              Click image for larger version

Name:	image_31700.jpg
Views:	253
Size:	36.2 KB
ID:	113494

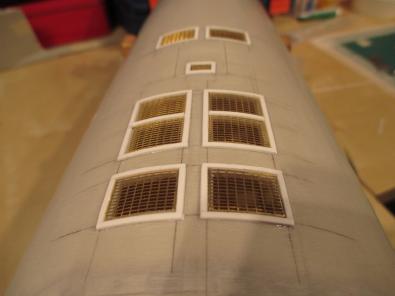

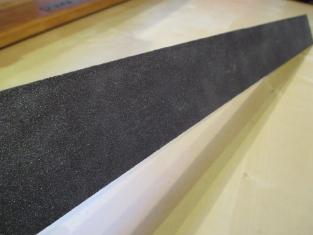

                              Finally when the Plasticard had cured, I sanded the surrounds hard with 120 and then 400 grit sandpaper to get the gratings as flush to the hull as possible.

                              Click image for larger version

Name:	IMG_0419 (800x600).jpg
Views:	274
Size:	35.8 KB
ID:	113492 Click image for larger version

Name:	IMG_0420 (800x600).jpg
Views:	270
Size:	34.9 KB
ID:	113493

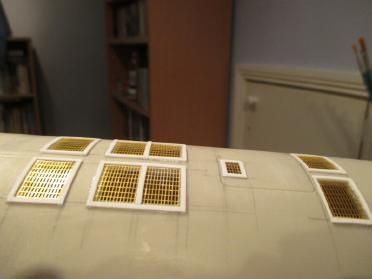

                              Finally, I added the kit supplied PE covers, and carefully (very carefully!) drilled out the six drain holes.

                              Click image for larger version

Name:	image_31723.jpg
Views:	244
Size:	30.1 KB
ID:	113508

                              I'm off to test the flow rate of water in/out of these gratings, just want to be sure Trout's point doesn't factor into the flood/drain rate too much.

                              The Boattrainman
                              Last edited by The Boattrainman; 04-05-2016, 12:11 PM.
                              ''We're after men, and I wish to God I was with them........!''

                              Comment
