  • Gato Torpedo Door - Revell

    Here is an idea for activating the doors on the Revell Gato model.
    Click image for larger version

Name:	resize 01.JPG
Views:	1
Size:	26.6 KB
ID:	101963

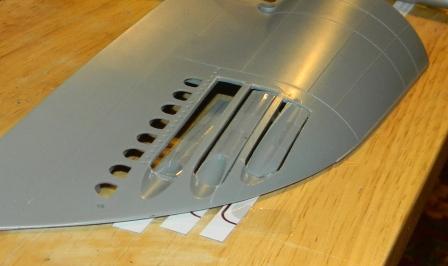

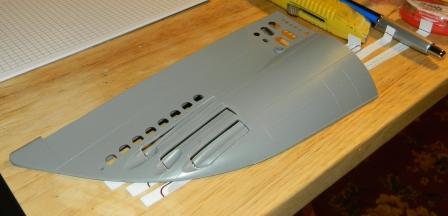

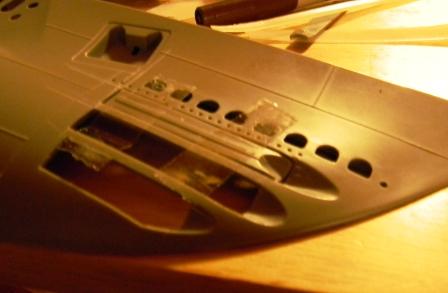

    Doors in closed position. Needs a little tweaking.

    Click image for larger version

Name:	resize 03.JPG
Views:	1
Size:	27.0 KB
ID:	101964
    Upper tube door open.
    Click image for larger version

Name:	resize 06.JPG
Views:	1
Size:	27.1 KB
ID:	101965

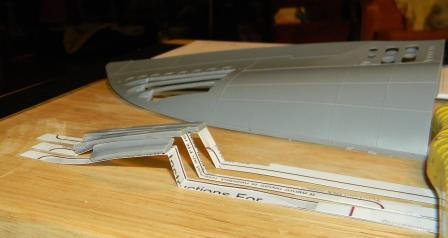

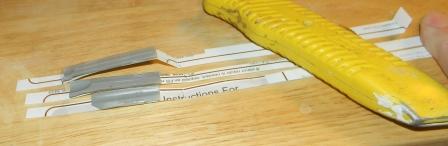

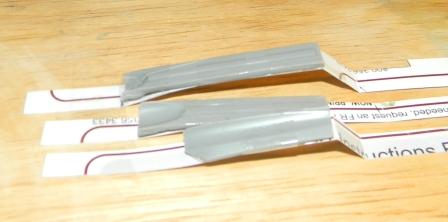

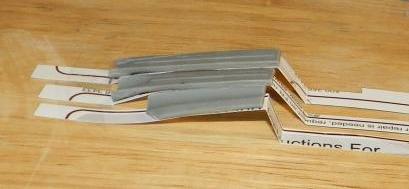

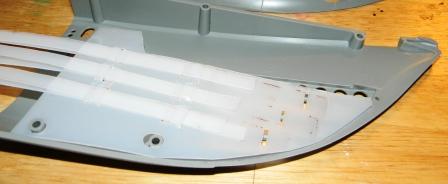

    Doors mounted to paper arms.
    These will be made from plastic with some type of hinge at folds
    Click image for larger version

Name:	resize 02.JPG
Views:	1
Size:	24.8 KB
ID:	101966

    Click image for larger version

Name:	resize 04.JPG
Views:	1
Size:	26.1 KB
ID:	101967

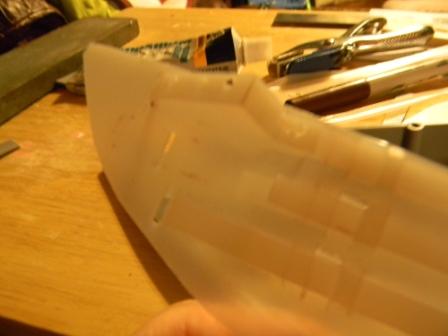

    Center door opened by pulling arm to rear.
    This arm mechanism pulls down the centerline.
    Scott T

    Click image for larger version

Name:	resize 05.JPG
Views:	1
Size:	23.5 KB
ID:	101968
    Last edited by Scott T; 08-30-2012, 01:06 PM.

  • #2
    I like it! Very simple and easy to implement!

    Comment


    • #3
      Some progress.

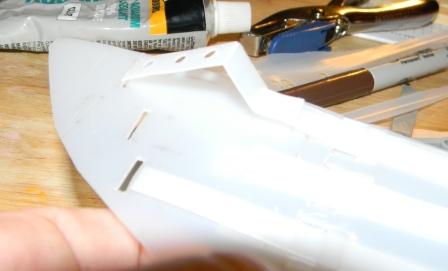

      Made a back plate to guide the arms.


      Click image for larger version

Name:	small DSCN1463.jpg
Views:	1
Size:	23.5 KB
ID:	72914

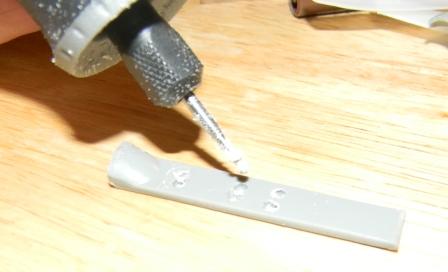

      Made ramp to attach to door with holes to accept silicone glue.
      Click image for larger version

Name:	small DSCN1469.jpg
Views:	1
Size:	25.2 KB
ID:	72916
      Put holes in back surface of door to
      glue into.
      Click image for larger version

Name:	small DSCN1464.jpg
Views:	1
Size:	25.7 KB
ID:	72917
      Taped door into position to align for glueing.
      Click image for larger version

Name:	small DSCN1467.jpg
Views:	1
Size:	27.2 KB
ID:	72918
      Door glued to pivot ramp.
      Click image for larger version

Name:	small DSCN1472.jpg
Views:	1
Size:	24.8 KB
ID:	72919
      Found out ramp position did not work correctly.
      So I modified the ramp as seen in last picture then reinstalled.
      Door shown in closed then open position.
      Click image for larger version

Name:	small DSCN1470.jpg
Views:	1
Size:	23.5 KB
ID:	72920
      Click image for larger version

Name:	small DSCN1471.jpg
Views:	1
Size:	18.1 KB
ID:	72921
      Click image for larger version

Name:	small DSCN1472.jpg
Views:	1
Size:	24.8 KB
ID:	72919
      Click image for larger version

Name:	small DSCN1473.jpg
Views:	1
Size:	17.7 KB
ID:	72922
      Attached Files
      Last edited by Scott T; 09-03-2012, 08:16 PM.

      Comment


      • #4


        This illustration was found at Accurate model parts.http://amp.rokket.biz/am_1_72_gato_s...orshtspn-b-072
        So the plan is to activate the door in this motion which also will allow the addition of
        the torpedo tube door. If this does not pan out then I can use the idea already posted.
        This site also has accurized spoon and square doors.

        Scott T
        Last edited by Scott T; 09-03-2012, 08:17 PM.

        Comment


        • #5
          Hmm! Rather than use a stiff board to pull the door in and out ---
          Why not a weak spring to keep it out, and a string to pull it in. There would need to be a vertical rod for the string to go round. This would be placed in the center of the boat vertically. Both port and starboard strings could go round this pole/rod and straight to the servo.
          Click image for larger version

Name:	Door.png
Views:	1
Size:	18.3 KB
ID:	72923
          Stop messing about - just get a Sub-driver!

          Comment


          • #6
            Or you could extend the length of the door forward, and then use a ram to shut it. Have the door pivot on a rod at the extension. The ram rod would go straight to the breach, so as it slid, the door opened.
            Click image for larger version

Name:	door2.png
Views:	1
Size:	12.6 KB
ID:	72924
            Last edited by Kazzer; 09-03-2012, 08:40 PM.
            Stop messing about - just get a Sub-driver!

            Comment


            • #7
              I like these ideas. Maybe a combination of the ideas the hinge secured at the back and
              a string over the rod to pull it forward. So Kazzer what did you use to draw your illustrations?

              Scott T

              Comment


              • #8
                Originally posted by Scott T View Post
                So Kazzer what did you use to draw your illustrations?

                Scott T
                Mac Book Pro using 'PAGES' Mac's answer to MS Word
                Stop messing about - just get a Sub-driver!

                Comment


                • #9
                  Click image for larger version

Name:	10210659646224240.jpg
Views:	38
Size:	73.6 KB
ID:	163258
                  Click image for larger version

Name:	7b68a662269c4c7d2609c04c951dd4a.jpg
Views:	32
Size:	61.4 KB
ID:	163259
                  Click image for larger version

Name:	51e01b91c46b21f611796587325d447.jpg
Views:	33
Size:	61.3 KB
ID:	163260
                  Click image for larger version

Name:	3b1c7e7ece1932cee3b5be0e72991b8.png
Views:	32
Size:	35.2 KB
ID:	163261Click image for larger version

Name:	捕获.JPG
Views:	31
Size:	63.9 KB
ID:	163262
                  Click image for larger version

Name:	捕获1.JPG
Views:	31
Size:	67.5 KB
ID:	163263

                  Comment
