    HMS Meteorite Project Help Please

    Click image for larger version

Name:	yY24ecQ.png
Views:	0
Size:	0
ID:	162771yY24ecQ.pngyY24ecQ.pngClick image for larger version  Name:	PbDiroX.jpg Views:	0 Size:	10.3 KB ID:	144094Click image for larger version  Name:	OWU8cBA.jpg Views:	0 Size:	54.9 KB ID:	144095Click image for larger version  Name:	5E4tZTU.jpg?1.jpg Views:	0 Size:	78.0 KB ID:	144096Click image for larger version  Name:	tvHgc1b.jpg Views:	0 Size:	70.8 KB ID:	144097Click image for larger version  Name:	C7bp7ig.jpg Views:	0 Size:	63.5 KB ID:	144098Click image for larger version  Name:	2kn8fIK.jpg Views:	0 Size:	65.4 KB ID:	144099Click image for larger version  Name:	btjP0vV.jpg Views:	0 Size:	59.0 KB ID:	144093My first post. Not sure how this first post will look. Hope you can help me with sub ad posting here.... I am slowly building a 1/30 scale HMS Meteorite ( Ex U-1407 - Type 17B) . I wanted to try a model subject that was different from the usual. I have had the stern planes made up in 3d printing. Also a new streamlined conning tower cap to conform to the British rebuild of her at Barrow in Furness in 1947.

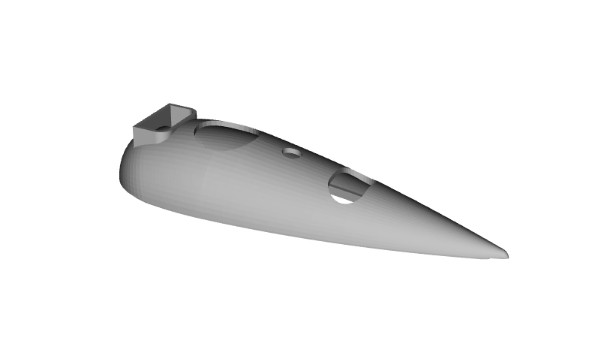

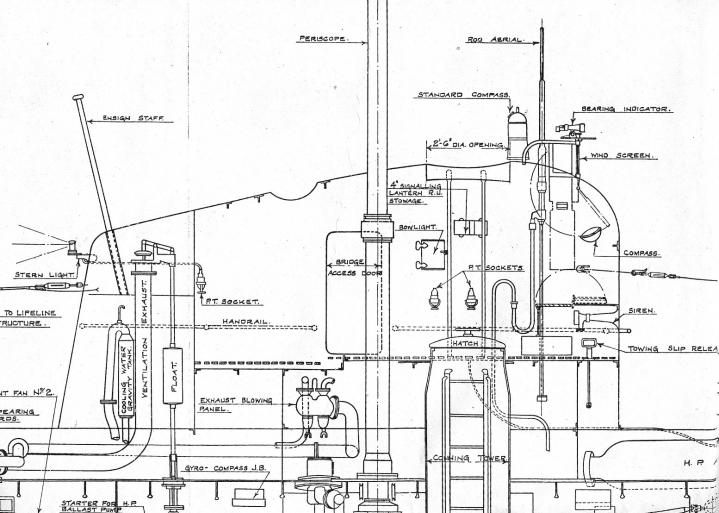

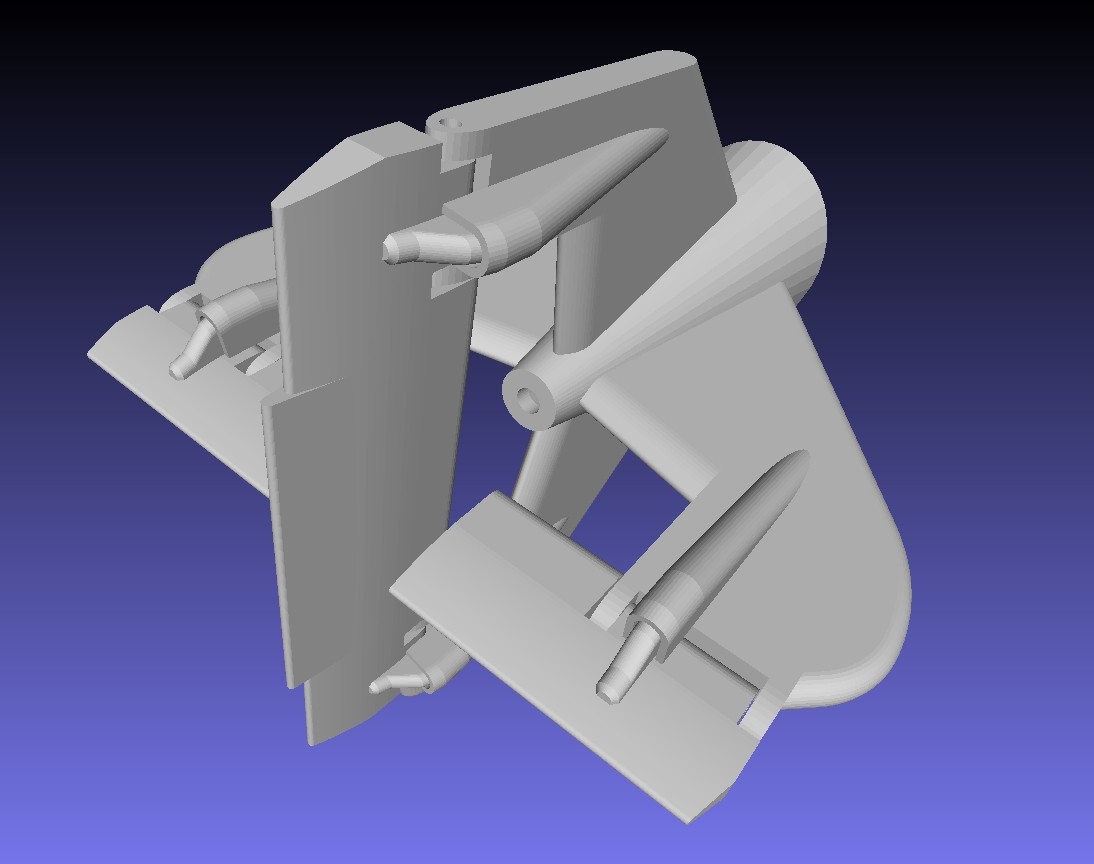

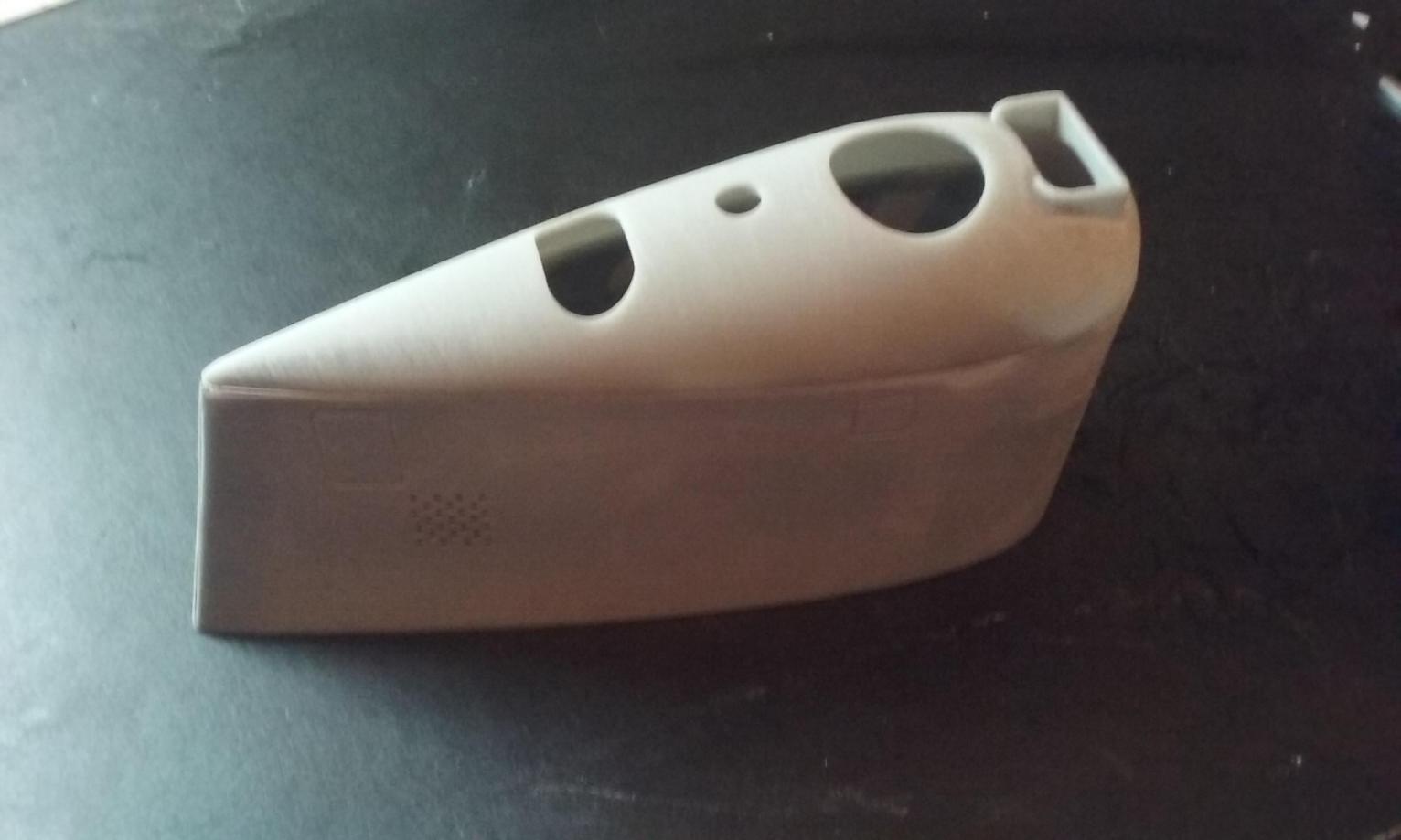

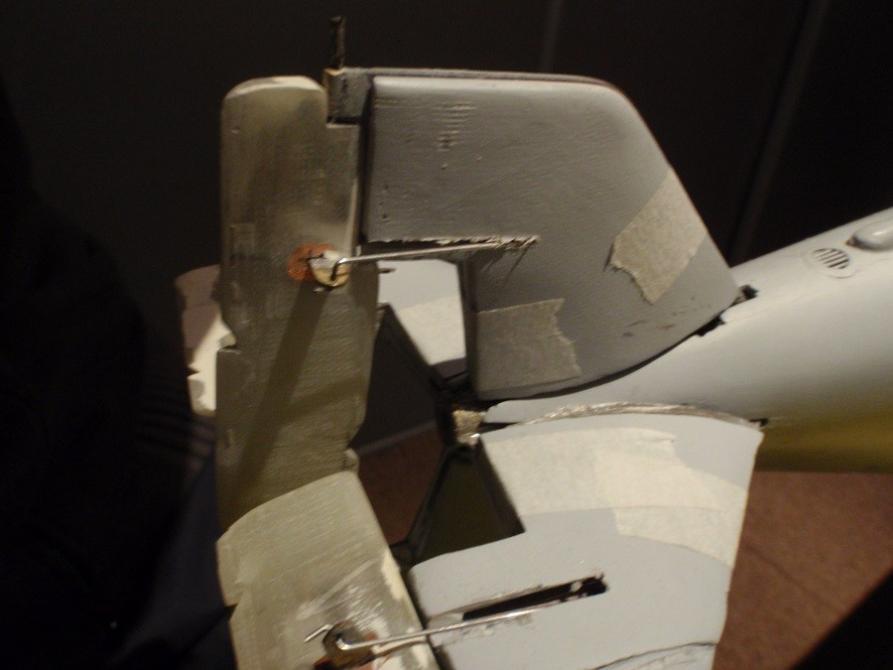

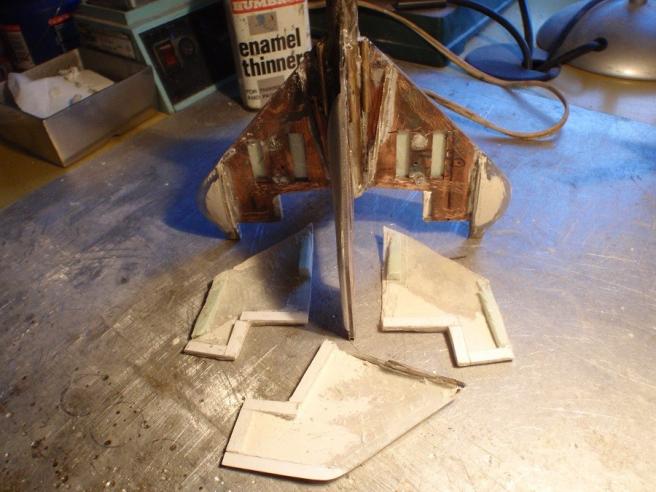

    I have a problem, & plea inexperience, but I know the best in the sub model business are here so here goes. I had the stern planes 3d printed with channels in the stern planes for flexible cables to move the control surfaces. I am experimenting with stainless steel leaders as control cables. They seem like they may work...but worried about 'slop' & also as important = a way to mechanically connect the control surfaces to the cables that is simple and reliable (mission critical). Any thoughts please? Getting back into the RC Submarine model hobby. Steven
    Last edited by Albacore 569; 07-08-2022, 11:21 PM.
  • He Who Shall Not Be Named
    Moderator

    • Aug 2008
    • 12808

    #2
    Use magnets. No back-lash, no 'slop', no mechanical fasteners to play with each time you have to access the WTC.

    Click image for larger version

Name:	DSCN0003.JPG
Views:	722
Size:	70.4 KB
ID:	144120Click image for larger version

Name:	DSCN0029.JPG
Views:	712
Size:	69.8 KB
ID:	144121Click image for larger version

Name:	DSCN0113.JPG
Views:	691
Size:	51.3 KB
ID:	144122Click image for larger version

Name:	DSCN0082.JPG
Views:	701
Size:	64.2 KB
ID:	144123Click image for larger version

Name:	020.JPG
Views:	702
Size:	61.5 KB
ID:	144124Click image for larger version

Name:	014 (2).JPG
Views:	703
Size:	60.8 KB
ID:	144125Click image for larger version

Name:	018.JPG
Views:	703
Size:	63.4 KB
ID:	144126Click image for larger version

Name:	028.JPG
Views:	683
Size:	56.9 KB
ID:	144127Click image for larger version

Name:	029 (2).JPG
Views:	679
Size:	50.3 KB
ID:	144128Click image for larger version

Name:	DSCF3457.JPG
Views:	688
Size:	41.2 KB
ID:	144129Click image for larger version

Name:	DSCF3725.JPG
Views:	690
Size:	45.0 KB
ID:	144130Click image for larger version

Name:	DSCF3727.JPG
Views:	688
Size:	61.9 KB
ID:	144131Click image for larger version

Name:	DSCN0198.JPG
Views:	691
Size:	81.7 KB
ID:	144132
    Who is John Galt?

    Comment

    • gantu
      Commander

      • Apr 2009
      • 367

      #3


      Regards Gantu

      Comment

      • roedj
        Captain
        • Sep 2008
        • 563

        #4

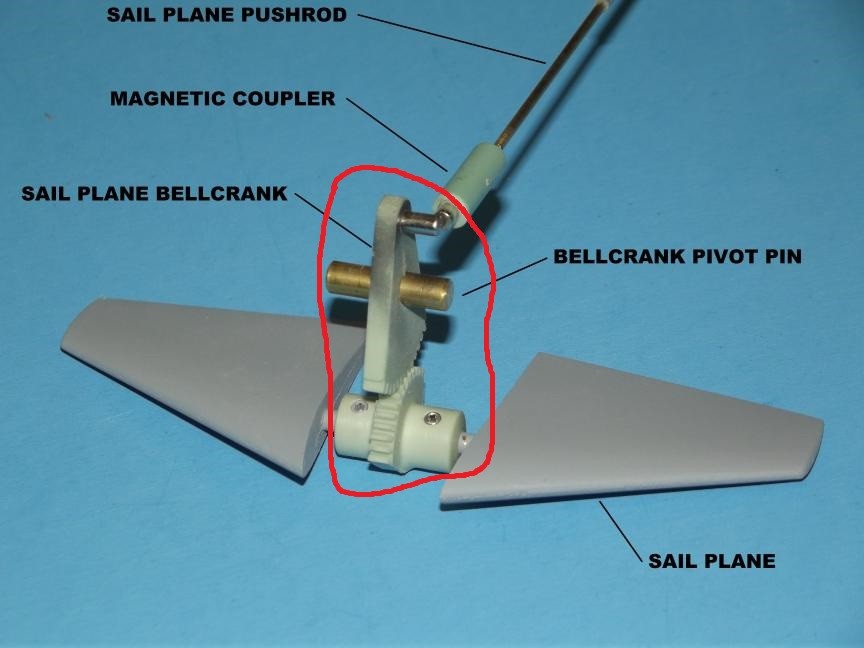

        The circled parts in this pic may solve a problem I'm having with a build. Are they commercially available?

        Captain Curious Click image for larger version

Name:	sub dive plane gears.jpg
Views:	777
Size:	61.5 KB
ID:	144219
        Born in Detroit - where the weak are killed and eaten.

        Comment

        • RCSubGuy
          Welcome to my underwater realm!

          • Aug 2009
          • 1862

          #5
          Those form part of the Skipjack fittings kit, available here: https://www.rc-submarine.com/product...ack-1-72-scale

          Comment

          • MFR1964
            Detail Nut of the First Order

            • Sep 2010
            • 1350

            #6
            Nice, another type XVIIb, i'm also building one in the same scale,started a few years ago and restarted her recently, as for the cables i tried that, a bit stiff to my taste, ended up with sliding rods, no play and a smooth action.
            The guys are right, magnet couplers is the way if you use a WTC or MSD, mine is a dryhull, so i went with mechanical couplers.

            Manfred.
            I went underground

            Comment

            • Albacore 569
              Commander

              • Sep 2020
              • 428

              #7
              All excellent advice. MFR1964? How did you translate the mechanical couplers through the stern planes please?

              I am restarting mine too. Trying a dry hull, because its how the hull was designed ot be. I have a German piston tank for her, but only acquainted with WTC's. I wanted to try and make the piston work because its a challenge and way one learns things, how others do it. The WTC's are probably simpler? I'm sure in Europe, where these piston tanks are more common, piston tanks are obviously favored instead. The hull is certainly robust, has to be since it has to take the pressures as the piston works. Means seals are critical too for controls and propeller shaft. Open to all ideas.

              Wow, see been promoted to Lieut JG already....cool.


              Steven
              Last edited by Albacore 569; 10-26-2020, 12:43 AM.

              Comment

              • trout
                Admiral

                • Jul 2011
                • 3613

                #8
                Originally posted by Albacore 569
                e the pressures as the piston works. Means seals are critical too for controls and propeller shaft. Open to all ideas.

                Wow, see been promoted to Lieut JG already....cool.


                Steven
                LOL, moving on up!

                I do not know that pistons are simpler, I do like them though. With a dry hull, you will be adding a lot of weight to overcome the additional buoyancy the dry hull offers.
                I like what you have done so far. Looking at the picture, you do not have a lot of material to lift out of the water, so a smaller volume can be used.
                Peace,
                Tom
                If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                Comment

                • MFR1964
                  Detail Nut of the First Order

                  • Sep 2010
                  • 1350

                  #9
                  Steven,

                  Sorry for the late reaction, first had to finish up some building activities for the wife,

                  Click image for larger version

Name:	image_45123.jpg
Views:	674
Size:	50.8 KB
ID:	145016

                  Click image for larger version

Name:	P4070005.JPG
Views:	623
Size:	46.8 KB
ID:	145018

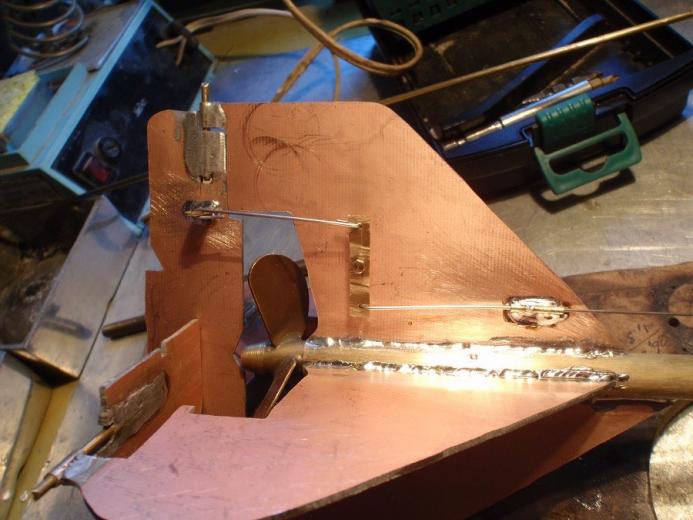

                  First i tried this, it turned out to be too bulky to hide under the outer skin.

                  Click image for larger version

Name:	P7250108.JPG
Views:	629
Size:	52.6 KB
ID:	145019

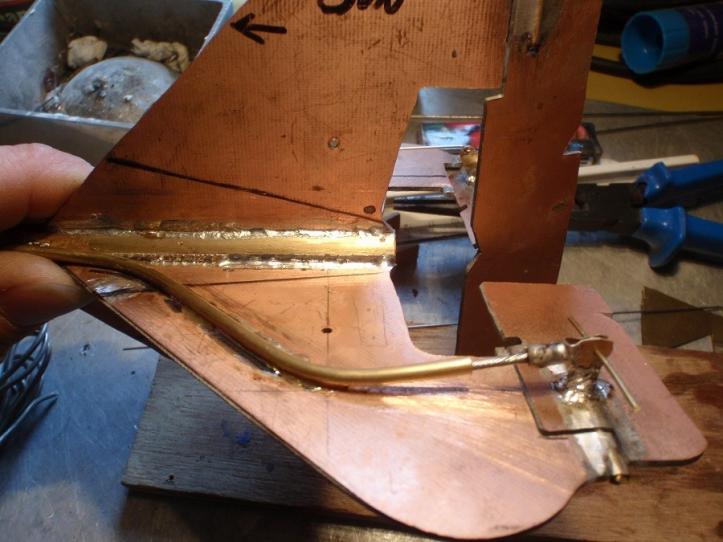

                  Tried to use a cable, this ran not smooth, it took a lot of force to move.

                  Click image for larger version

Name:	P7250109.JPG
Views:	640
Size:	49.8 KB
ID:	145020

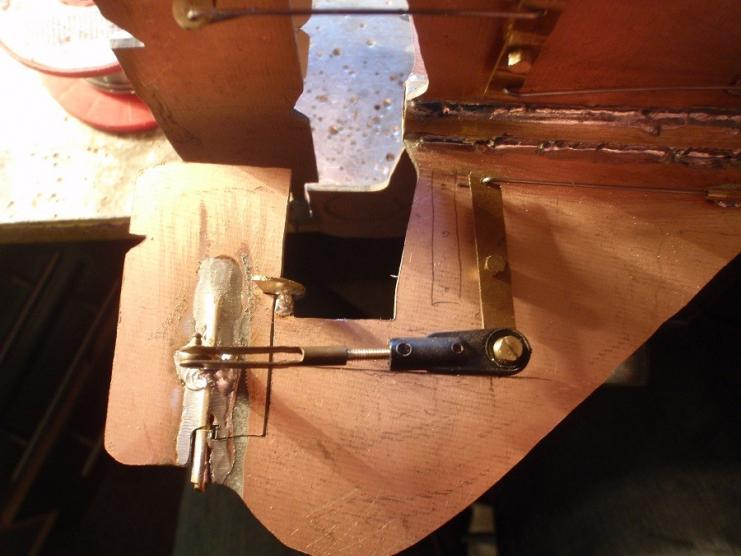

                  I ended up with this, sliding action, and small enough to hide under the outer skin.

                  Click image for larger version

Name:	PB010150.JPG
Views:	652
Size:	48.0 KB
ID:	145021

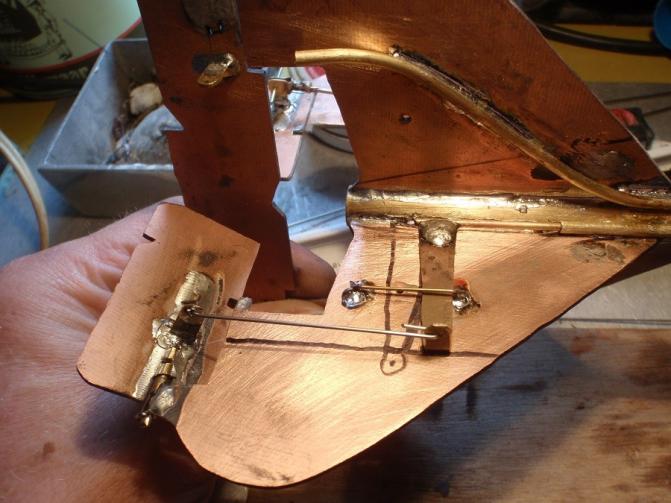

                  Like yours, my tail is hollow, after placing the steering mechanism i clued down the outer skins.

                  Click image for larger version

Name:	PB030153.JPG
Views:	615
Size:	40.8 KB
ID:	145022

                  I ended up with this, still have to make the covers to hide the steering rods of both the rudder and divingplanes.

                  Manfred.

                  Last edited by MFR1964; 11-08-2020, 03:12 PM. Reason: rusty fingers
                  I went underground

                  Comment

                  • Albacore 569
                    Commander

                    • Sep 2020
                    • 428

                    #10
                    Click image for larger version  Name:	UUTPZwy.jpg Views:	0 Size:	49.5 KB ID:	162769Click image for larger version  Name:	LTAPBvq.jpg Views:	0 Size:	78.6 KB ID:	162767Click image for larger version  Name:	T69x15M.jpg Views:	0 Size:	71.6 KB ID:	162768Click image for larger version  Name:	nvyR1IQ.jpg Views:	0 Size:	45.7 KB ID:	162766
                    Last edited by Albacore 569; 07-08-2022, 11:10 PM.

                    Comment

                    • Albacore 569
                      Commander

                      • Sep 2020
                      • 428

                      #11

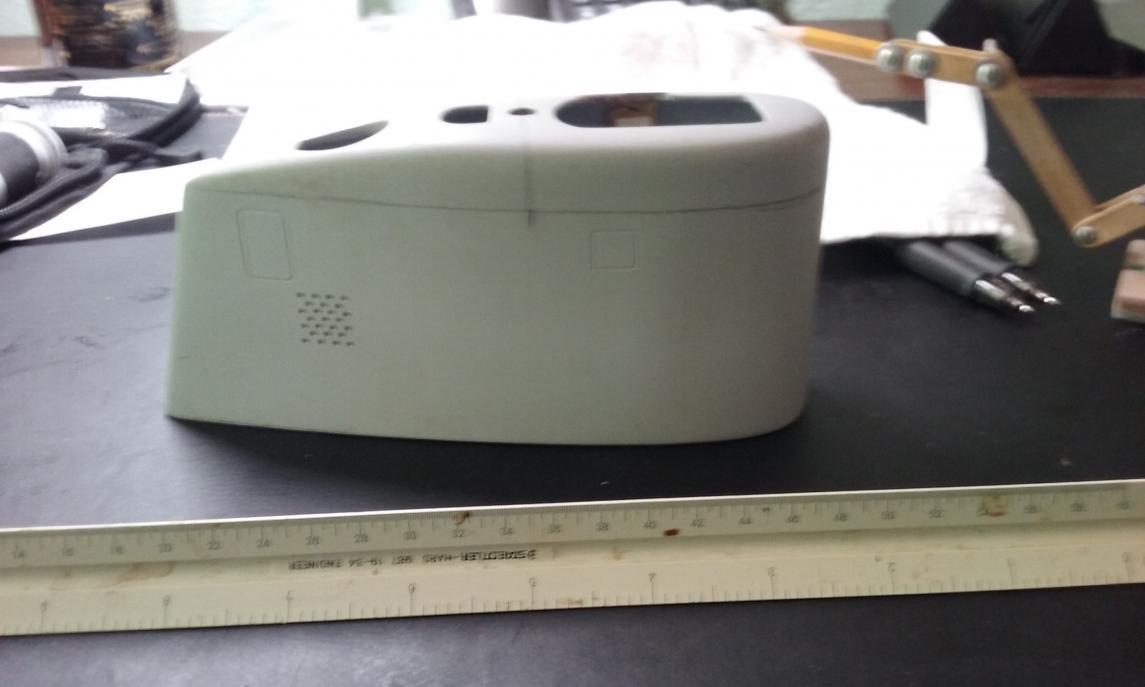

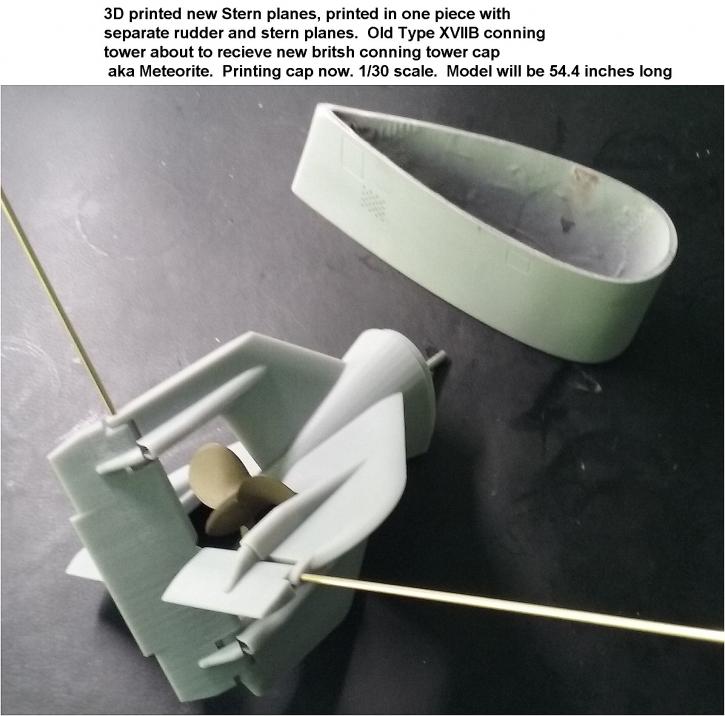

                      Once I am confidant of the stainless steel cables for stern planes, will mate stern to aft hull. Trying heavy steel flexible fishing cables that run through the narrow channel 3 d printed into the control surfaces. What works best? Like to connect to magnets to the WTC control rods. Converting this single hull into a free flooding boat with 3.5 inch WTC. Old Dave Manley scale propellor is perfect for this 1/30 scale future HMS Meteorite.

                      Steve
                      Last edited by Albacore 569; 07-08-2022, 11:16 PM.

                      Comment

                      • Subculture
                        Admiral

                        • Feb 2009
                        • 2223

                        #12
                        Using push-pull linkages? Pretty much any gauge of stainless wire would be more than up to the job, but you will need to ensure they remain taught.

                        Comment

                        • Albacore 569
                          Commander

                          • Sep 2020
                          • 428

                          #13
                          Originally posted by Subculture
                          Using push-pull linkages? Pretty much any gauge of stainless wire would be more than up to the job, but you will need to ensure they remain taught.

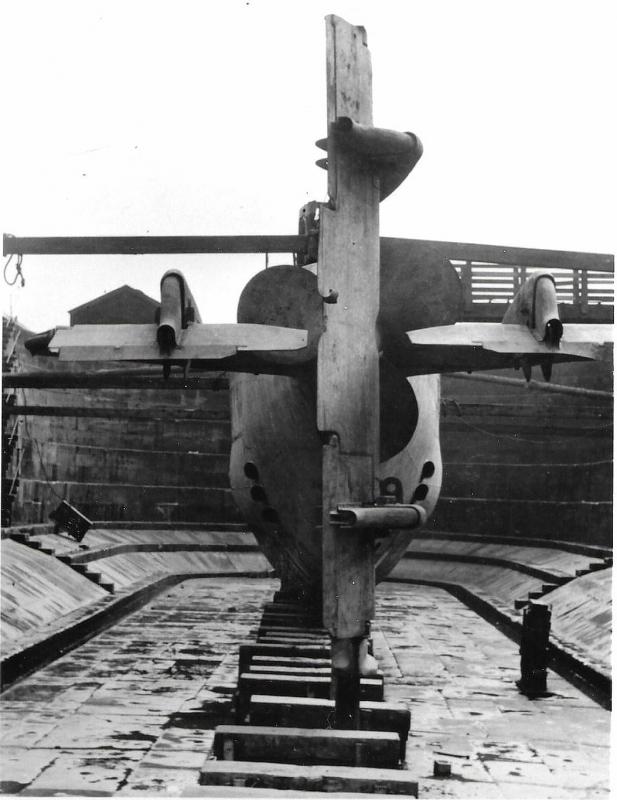

                          I agree completely, thats what I am pondering....thinking of curved brass tubing into the free flood area around propellor shaft that aligns with magnetic couplers? Welcome all suggestions that follow KISS (keep in simple) principle of course. No bow planes to worry about, they will be rigged out manually before going out on pond. The Real Type XVIIB's rotated their fixed plane 90 degrees from centerline to perpendicular to the hull for added pitch stability underwater. It was essentially a fixed canard. Thank you for the reply Subculture. My salutes to you Bob, & the great David!

                          Comment

                          • gantu
                            Commander

                            • Apr 2009
                            • 367

                            #14
                            Look here some nice tips

                            Regards Gantu

                            Comment

                            • Albacore 569
                              Commander

                              • Sep 2020
                              • 428

                              #15
                              Danke Gantu
