  • Typhoon Bow

    Click image for larger version  Name:	image_32990.jpg Views:	1 Size:	225.6 KB ID:	116845

    I was looking the picture Davidh posted of the Borei and Typhoon and was wondering if the bow is different on this typhoon?
    It looks different on the bow side tubes like it is indented.
    Click image for larger version

Name:	tubes.JPG
Views:	50
Size:	11.5 KB
ID:	116847
    Attached Files
    Last edited by Scott T; 10-14-2016, 04:41 PM.

  • #2
    It is not sure what you mean Scott.

    I give it a shot anyway
    This is the TK-208 Dmitri Donskoi
    She was the lead submarine in the Typhoon class , first built, she was modified to Project 941U and later to Project 941UM to serve as a test-bed for the Bulava SLBM used on the Borei SSBNs.

    She is the only one that has 12 decoy launchers like those on the later Akula class subs. They are arranged in a semi-circle around the torpedo tube muzzle doors.
    She is the only submarine of her class that havethree towed sonar arrays, two in the tail below the waterline and one atop the rudder.

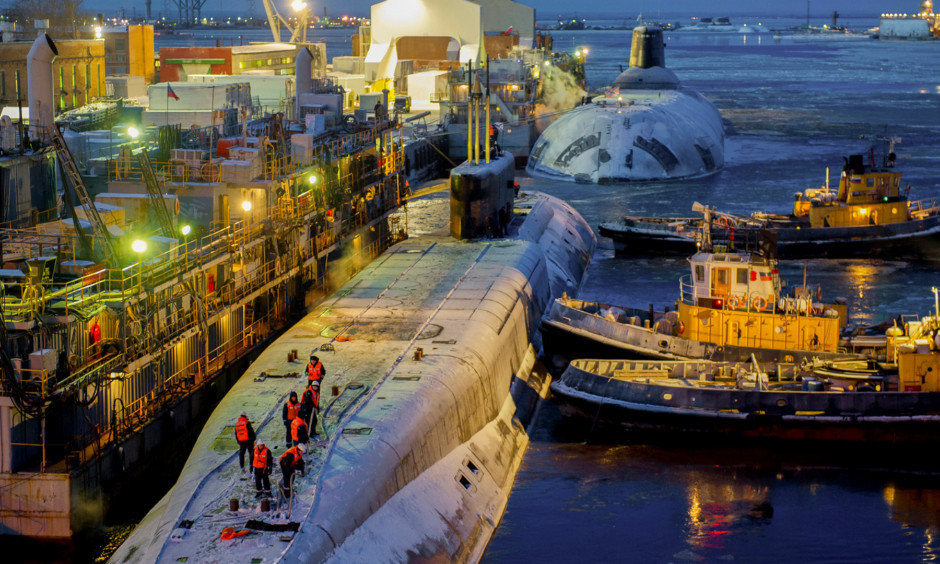

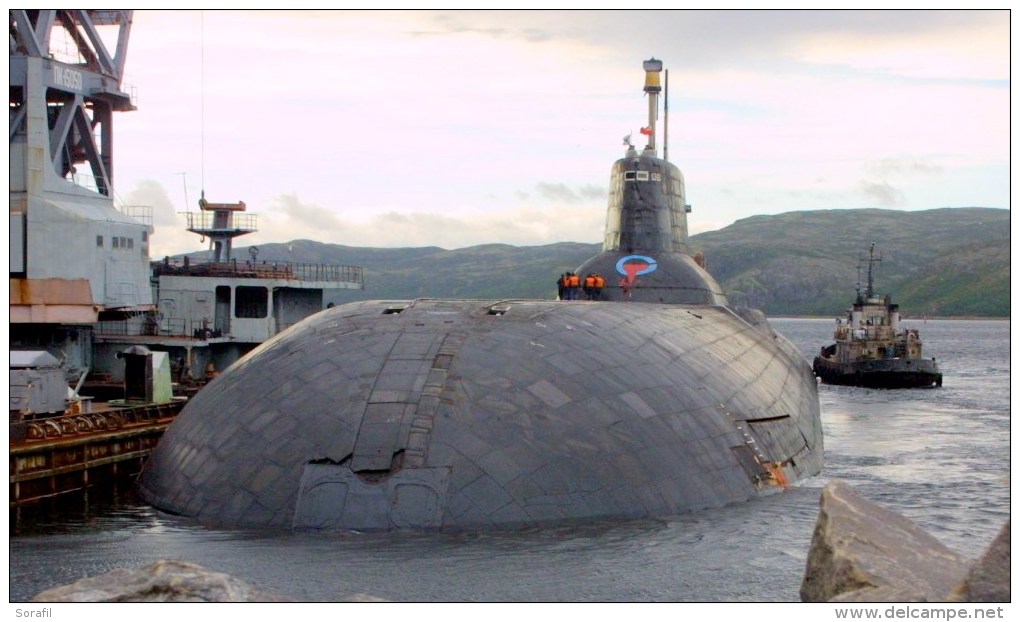

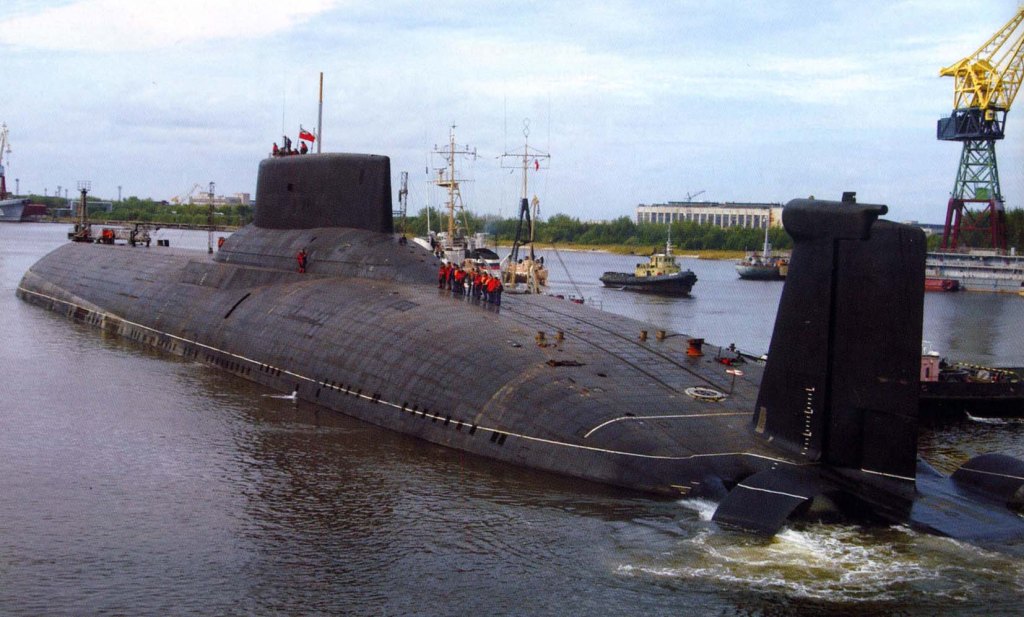

    In the below pictues you can see her bow without the snow and by daylight (no dents) and the top rudder towed array.


    Last edited by bwi 971; 10-14-2016, 07:43 PM.
    Practical wisdom is only to be learned in the school of experience.
    "Samuel Smiles"


    • #3
      Darn pictures....... what is wrong now.....anything changed?

      Click image for larger version  Name:	Scott 02002.jpg Views:	1 Size:	133.9 KB ID:	116860

      Click image for larger version  Name:	scott001.jpg Views:	1 Size:	132.8 KB ID:	116861

      I whant to trow something....why they don't show up big? Will try with an external picture manager now

      External picture manager works......will edit my first post now to rectify this mess.

      Ok did some tests.......FULLSIZE does not work for me I need to use LARGE.....I try to comprehend but I fail....spent 30 minutes to try to post some pictures who will show up.

      Last edited by bwi 971; 10-14-2016, 07:42 PM.
      Practical wisdom is only to be learned in the school of experience.
      "Samuel Smiles"


      • #4

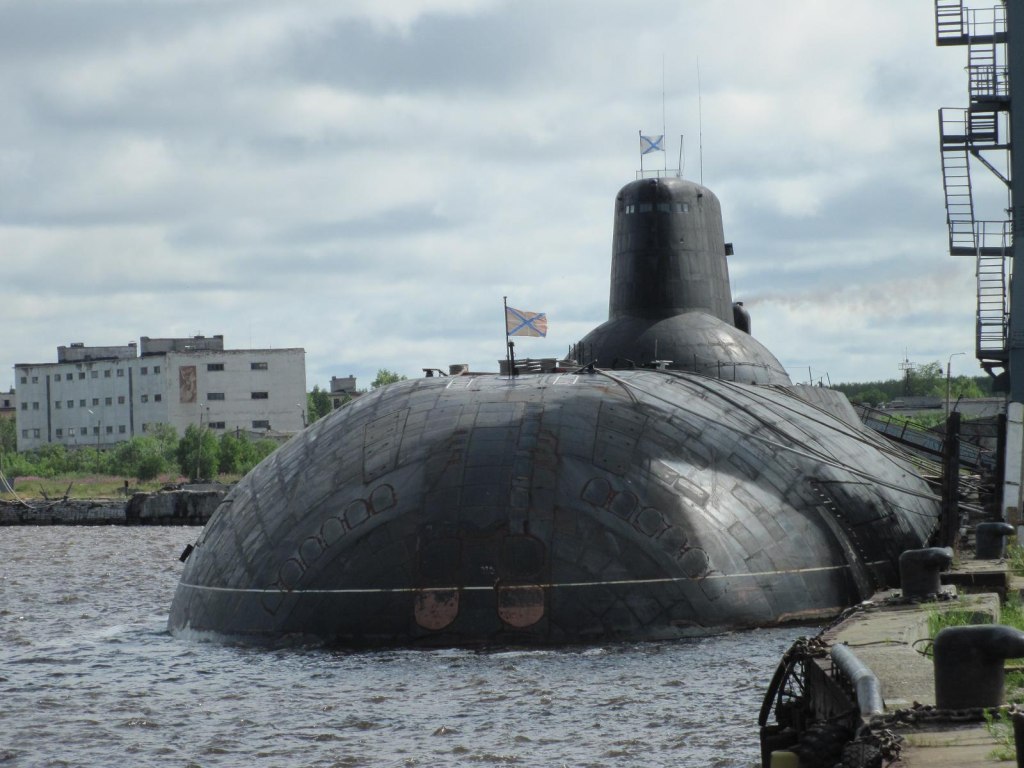

        Heres one without the doors:
        Click image for larger version

Name:	729_016.jpg
Views:	40
Size:	119.8 KB
ID:	116868


        • #5
          Thanks. I think in the snow covered picture the darker areas below the retracted bow planes made my mind see a curve that is not there.
          Thanks for the picture presentation.


          • #6
