    Typhoon Vent / Flood Hole Location Needed

    Hello

    I am in the process of doing a Small Static R.C Typhoon model. I would like to know if anyone could show me the locations of the Vent / Flood holes. The sub is only a 1/350 BUT I am trying to keep it as scale like as I can.

    Any plans OR picture drawings etc. would be greatly appreciated.

    Thanks

    George
  • RCSubGuy
    Welcome to my underwater realm!
    • Aug 2009
    • 1768

    #2

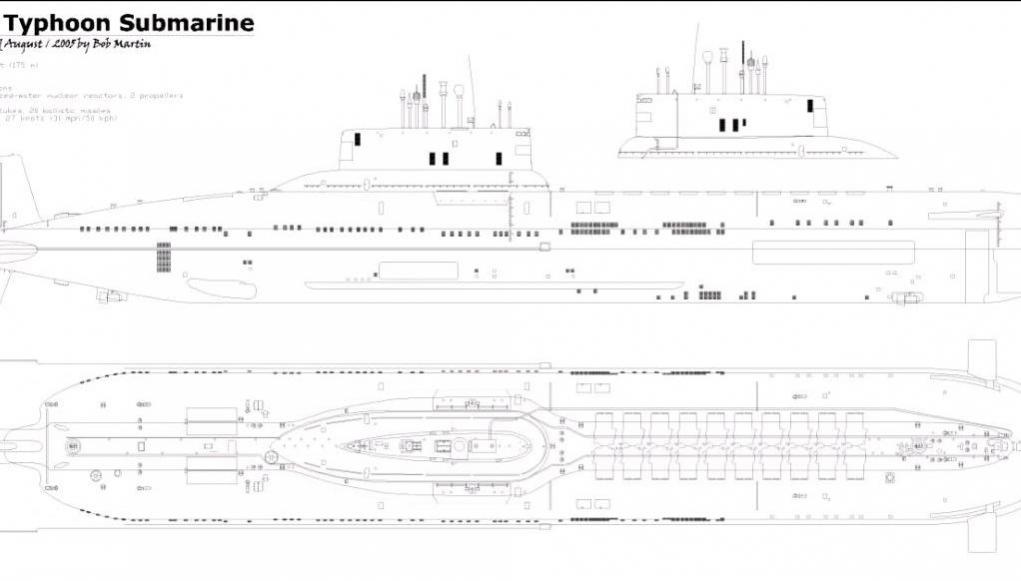

    This might help. No guarantee of accuracy, but they should get you close!

    Bob
    RC Submarines and how I built them, remote controlled and fully functional subs.
    Attached Files

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #3
      Click image for larger version

Name:	Typhoon plans.jpg
Views:	1
Size:	50.2 KB

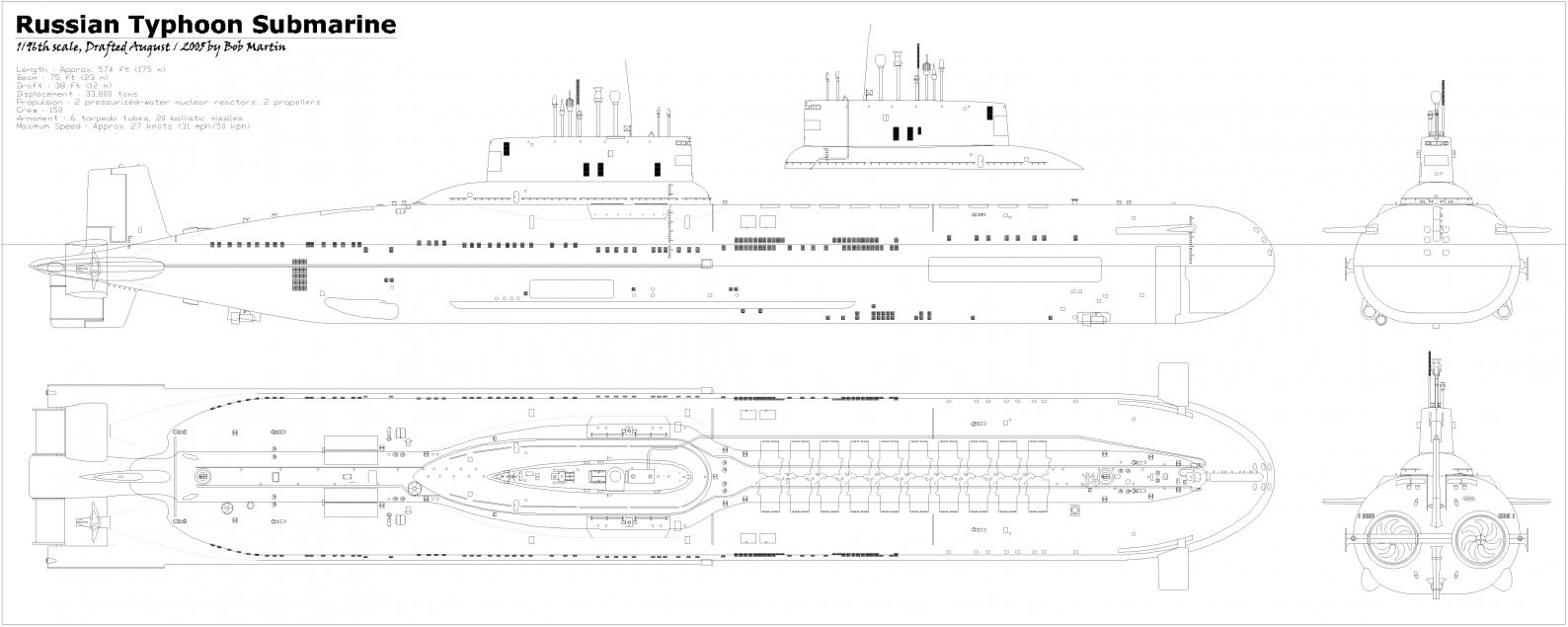

ID:	73813 I blew it up a bit
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • RCSubGuy
        Welcome to my underwater realm!
        • Aug 2009
        • 1768

        #4
        If you click on the thumbnail in my post, you'll get the whole thing in high(er) res.

        Comment

        • george
          Captain
          • Dec 2010
          • 727

          #5
          Thanks All for the pictures.

          Honestly, having a bit of trouble seing the locations of the Vent / blow holes, most likely because I am NOT familiar with this kind of sub and it`s plans. So I ask for any help to either send me sectional pieces enlarged so I can see the flood holes. I can then print out each section and BEST guess their location to my 1/350 Dragon Typhoon.
