    Towed Camera

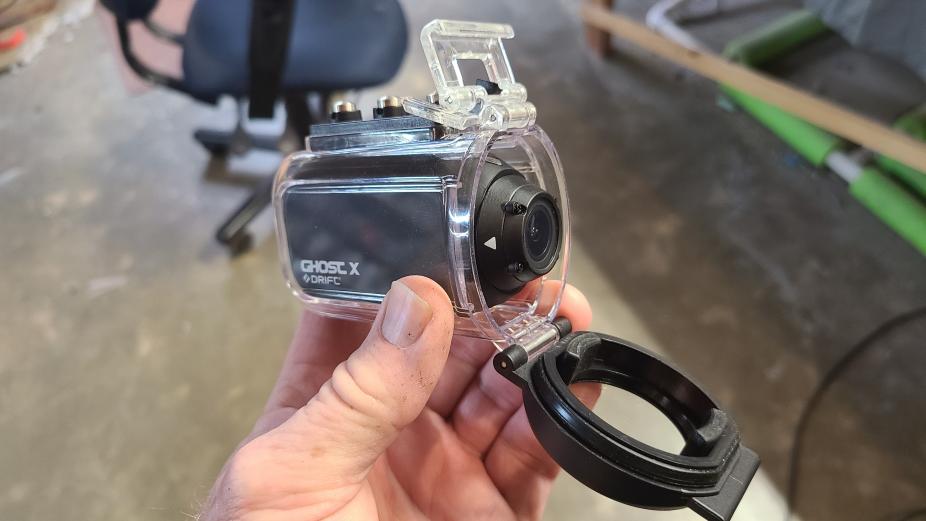

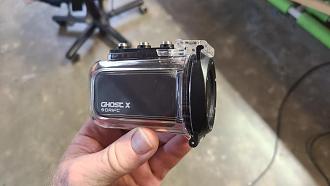

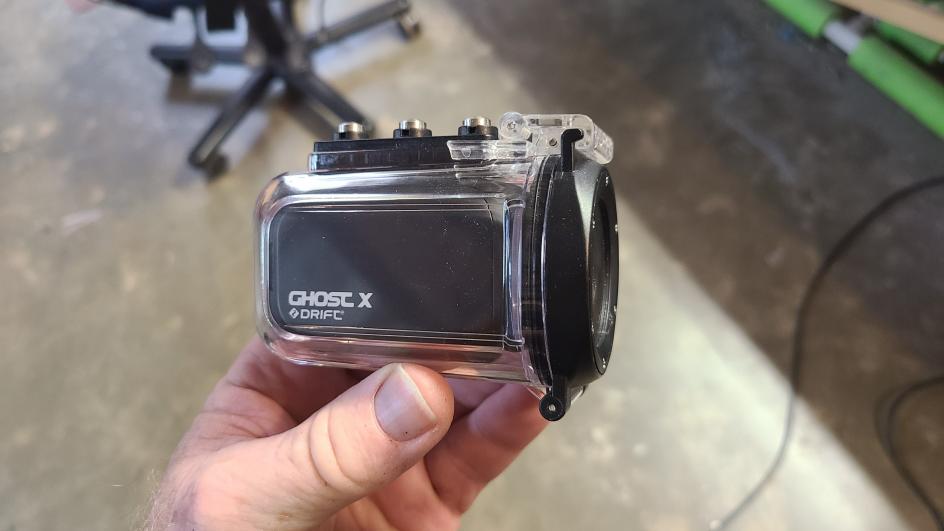

    I was very impressed with the towed camera rig that David M. had at Subfest so I did a little searching and decided to try a Drift Ghost X camera in a waterproof case.

    Click image for larger version  Name:	20211026_124134.jpg Views:	13 Size:	47.9 KB ID:	155005
    Click image for larger version  Name:	20211026_124112.jpg Views:	11 Size:	43.2 KB ID:	155006

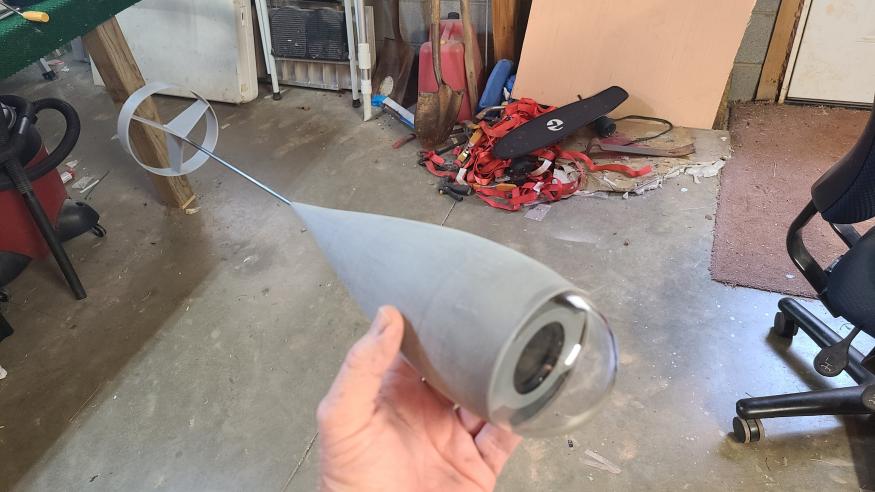

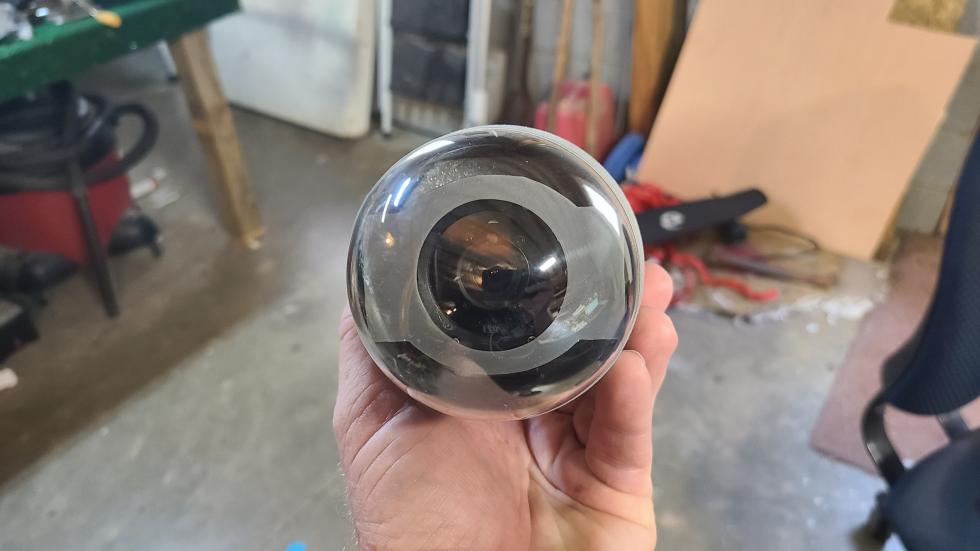

    It is bigger of course than what David has and I am not worried about putting it in a waterproof tow vehicle for obvious reasons so I designed and printed this to try out.

    Click image for larger version  Name:	20211026_110859.jpg Views:	12 Size:	60.3 KB ID:	155007
    Click image for larger version  Name:	20211026_110841.jpg Views:	11 Size:	46.0 KB ID:	155008
    It should be no problem for my bigger boats to pull so I am eager to try it out soon.
    Last edited by SubDude; 10-26-2021, 11:12 PM.
  • He Who Shall Not Be Named
    Moderator
    • Aug 2008
    • 12256

    #2
    Beautiful, Steve!

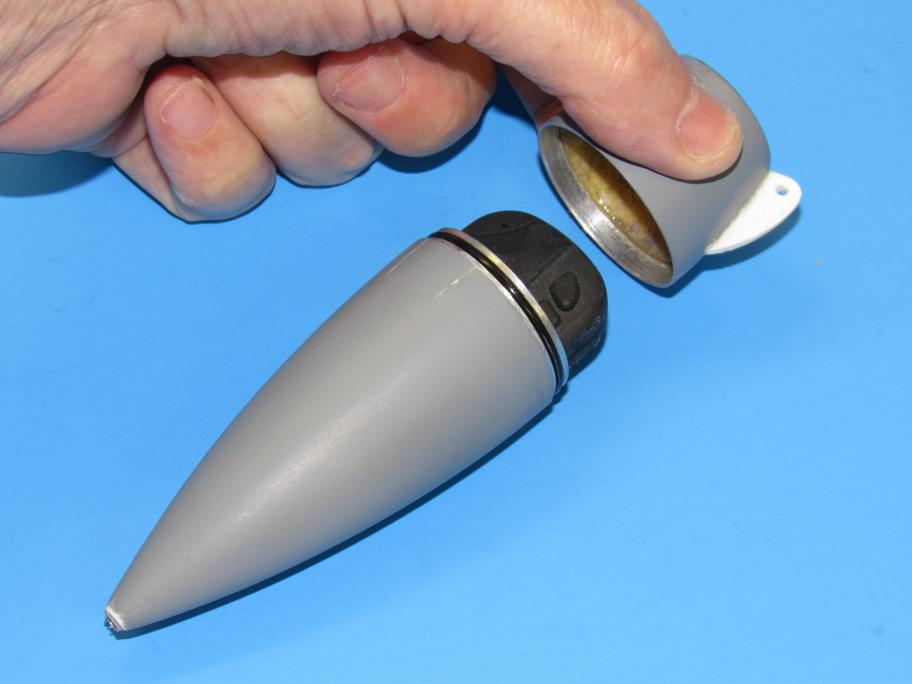

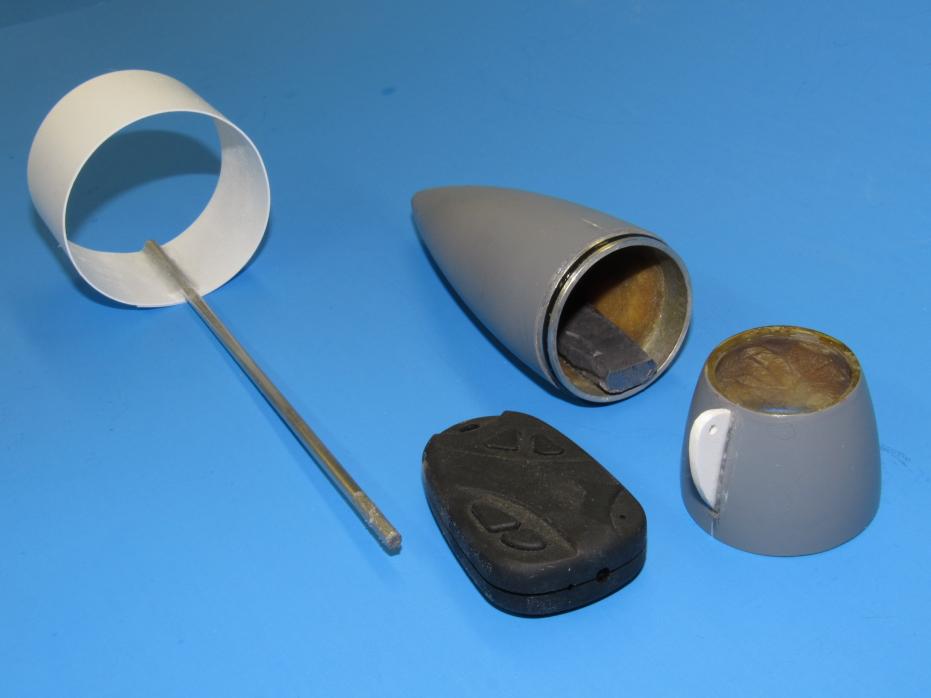

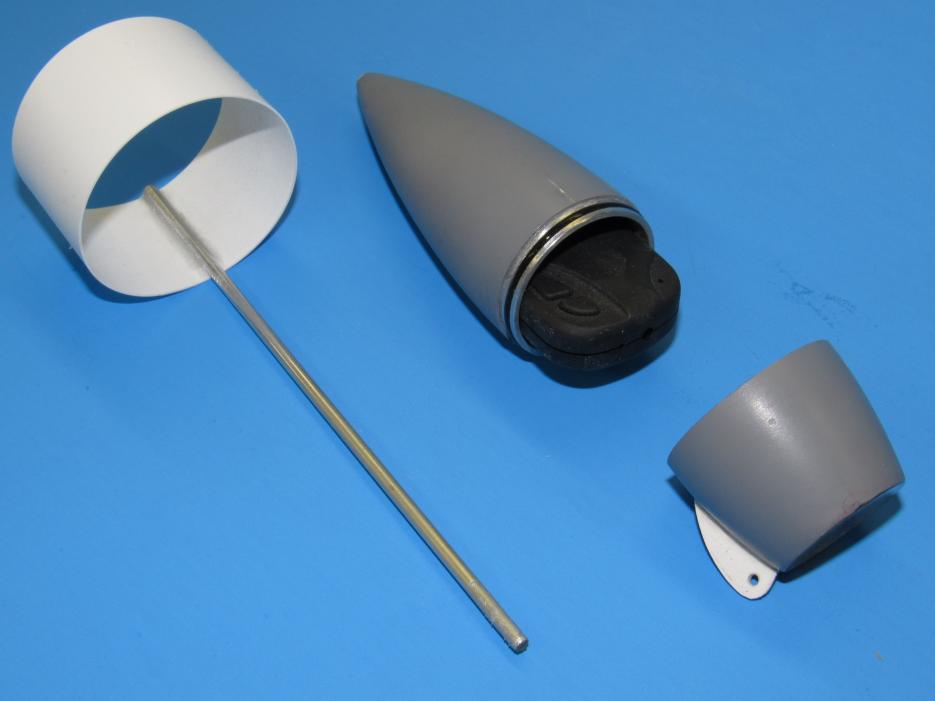

    the tow point is on the bottom, just forward of the lens, but out of the field-of-view. Ballast it to be just a smidgen positively buoyant. The low tow point will make the body pitch up as you speed up the towing vehicle so cant the stabilizer down a bit to counter that. That's why mine has an aluminum boom -- easy to bend for such adjustments.

    Click image for larger version

Name:	IMG_0248.JPG
Views:	148
Size:	40.3 KB
ID:	155015Click image for larger version

Name:	IMG_0247.JPG
Views:	141
Size:	33.4 KB
ID:	155016Click image for larger version

Name:	IMG_0246.JPG
Views:	145
Size:	35.8 KB
ID:	155017Click image for larger version

Name:	IMG_0244.JPG
Views:	145
Size:	37.6 KB
ID:	155018Click image for larger version

Name:	IMG_0252.JPG
Views:	142
Size:	40.5 KB
ID:	155019

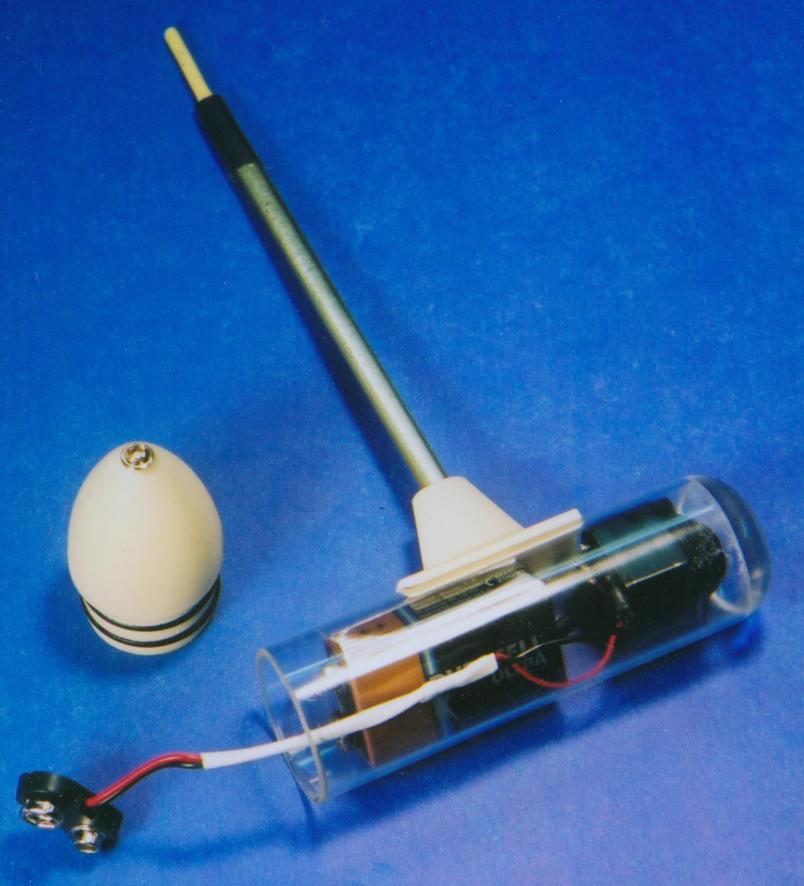

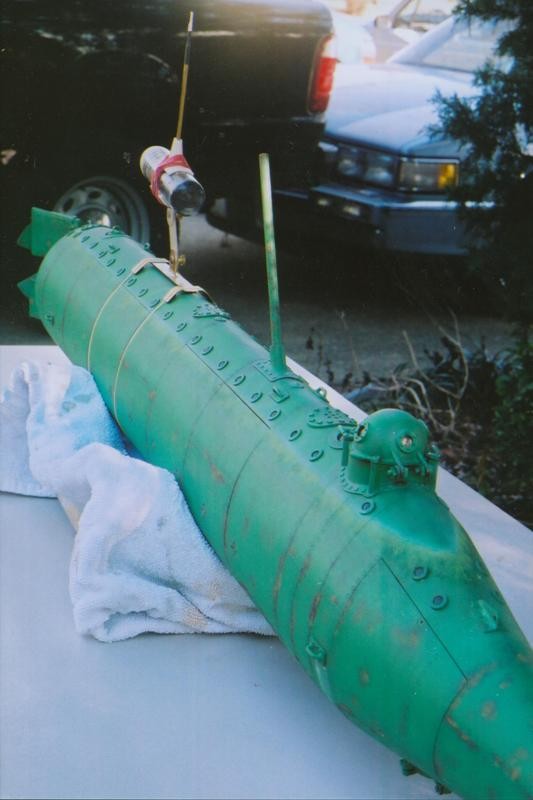

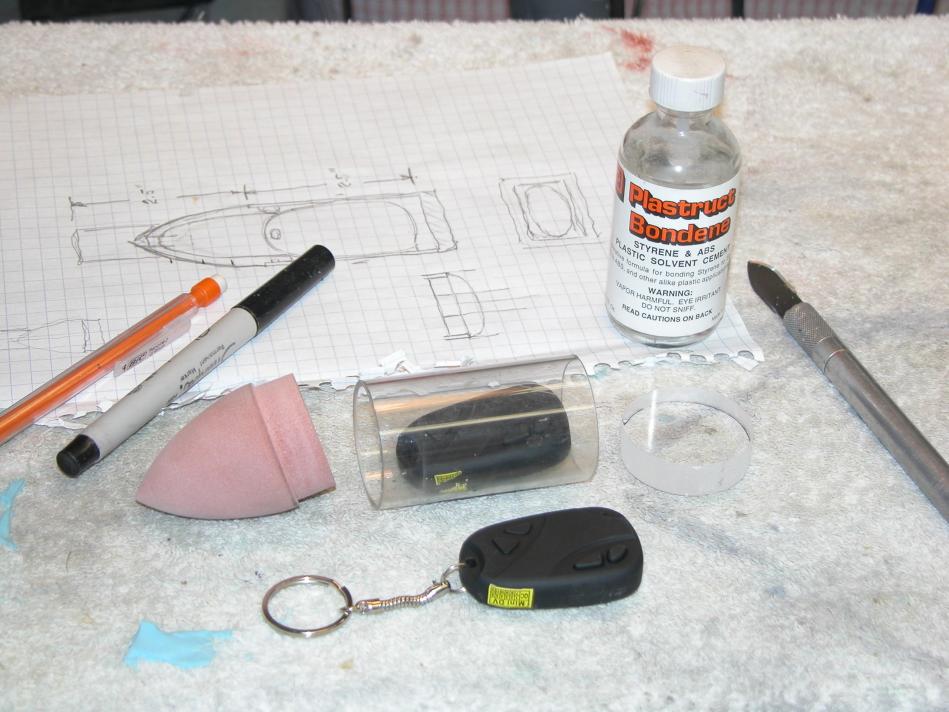

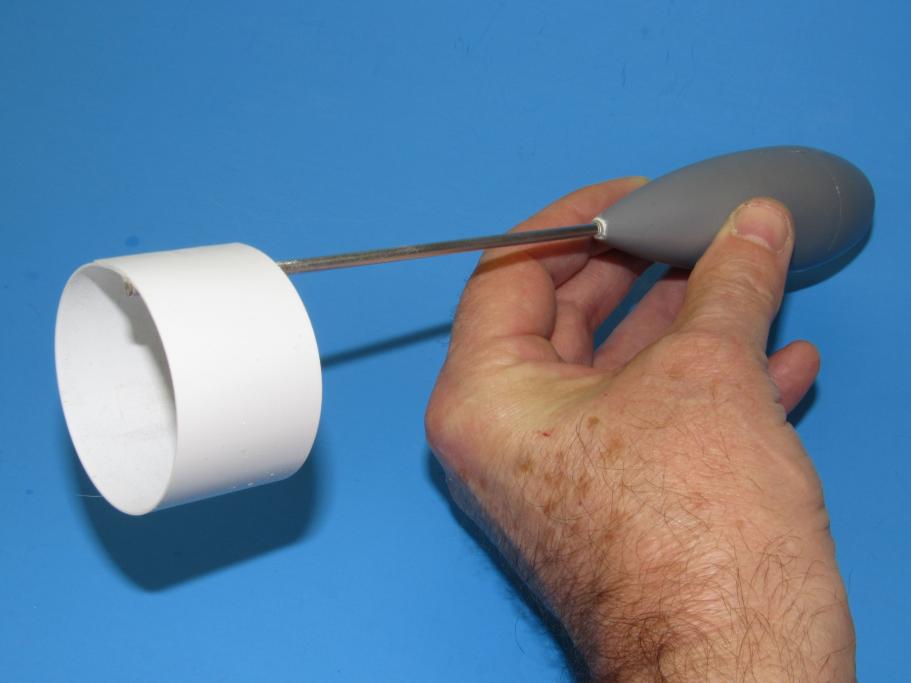

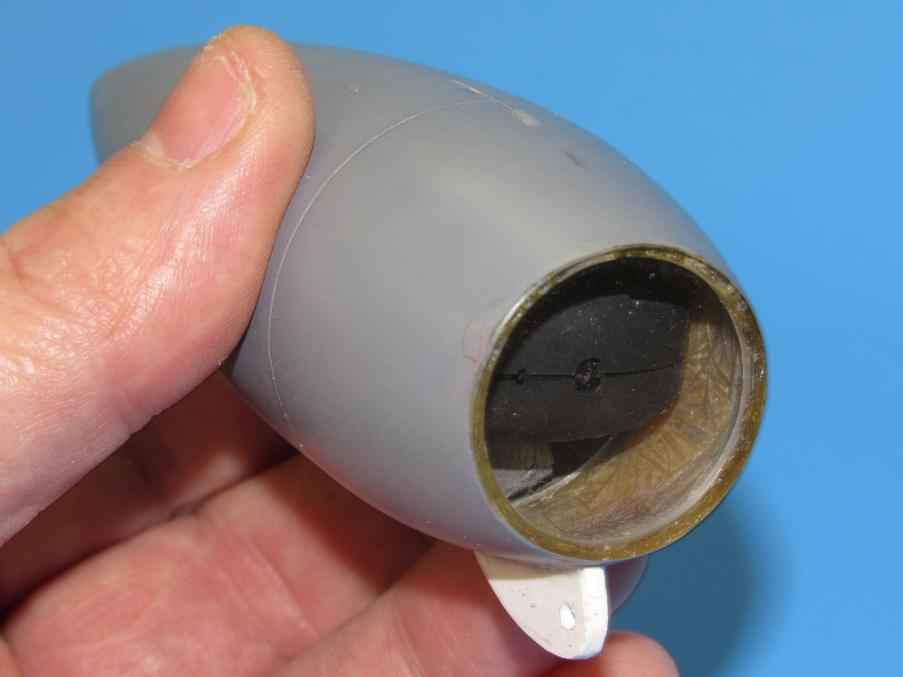

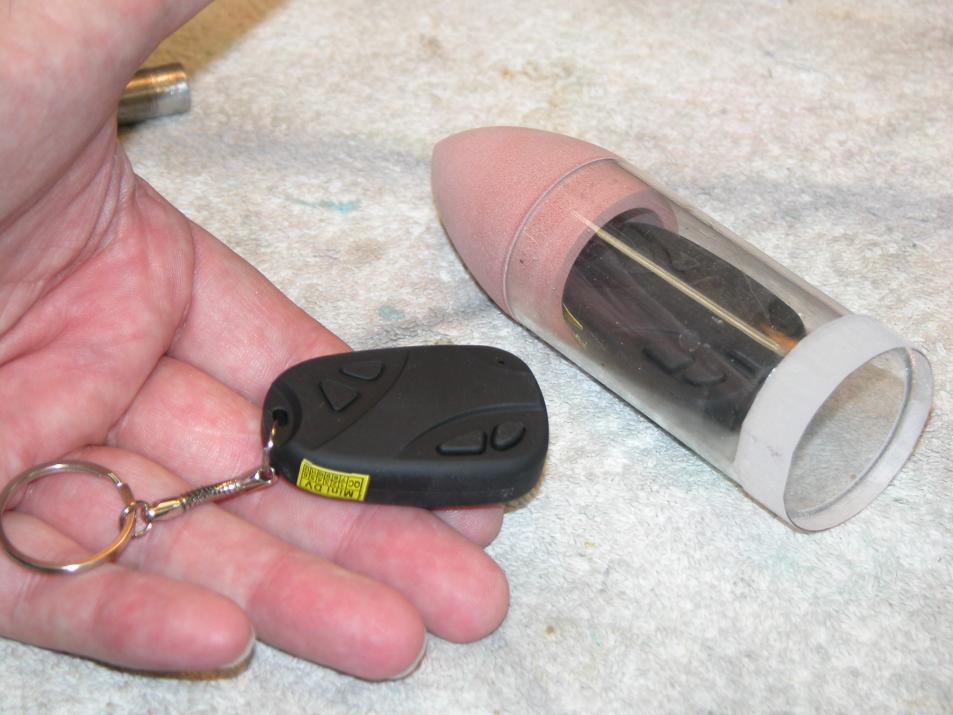

    Here's a variation on the theme:

    Click image for larger version

Name:	DSCN0181 (2).JPG
Views:	161
Size:	89.9 KB
ID:	155010Click image for larger version

Name:	DSCN0184.JPG
Views:	149
Size:	75.6 KB
ID:	155011Click image for larger version

Name:	Wireless009.jpg
Views:	150
Size:	62.0 KB
ID:	155012Click image for larger version

Name:	Wireless007.jpg
Views:	148
Size:	69.2 KB
ID:	155013Click image for larger version

Name:	Wireless005.jpg
Views:	146
Size:	93.8 KB
ID:	155014

    Well done, sir. ​​​​​​​



    David
    Who is John Galt?

    Comment

    • SubDude
      Captain
      • Dec 2019
      • 803

      #3
      Good to know on the aluminum spar. Right now it is carbon fiber but can easily be changed. I have not yet mounted the tow point to it so good to see where you have yours. Thank you.

      Comment

      • Subculture
        Admiral
        • Feb 2009
        • 2119

        #4
        As you have some vanes inside the circular ring, perhaps you could make the lower ones pitchable with some copper wire hinges.

        Comment

        • He Who Shall Not Be Named
          Moderator
          • Aug 2008
          • 12256

          #5
          Originally posted by Subculture
          As you have some vanes inside the circular ring, perhaps you could make the lower ones pitchable with some copper wire hinges.
          Listen to this man -- he's the guy who manufactured and so kindly provided me with the tow-body I talk about so often. A magnificent little example of Craftsmanship.

          David
          Who is John Galt?

          Comment

          • SubDude
            Captain
            • Dec 2019
            • 803

            #6
            Originally posted by Subculture
            As you have some vanes inside the circular ring, perhaps you could make the lower ones pitchable with some copper wire hinges.
            I have thought of that. Wouldn't be difficult to do. Definitely worth considering. Thank you.

            Comment
