Mounting TV camera in Sub ?

[toppack]

What ???
As stated previously, There's No way to hide a WTC inside that small tower and the problem area Now is the cable connection, which can't be inside a WTC, to allow removal of deck assembly.
I think of it as a Challenge, Not a Real problem. :)
I build Scale models, Not models with large top-heavy camera-pods sitting on top of them. :D LOL :D

[toppack]

I found a New version of the camera we have been using. Or rather it has a new version of the receiver with it.
I'm not sure how it works tho, since it doesn't seem to have a tuning knob like the others. It has a row of LEDs instead.
I hope that means it has auto tuning, since the too sensitive tuning-knot is the worst part of the older system.
It has the normal cables and power-supplies with it.
I have the new, completely sealed, camera version like that one, in the Gato, and it's great.
I bought one on eBay and should get it in a week or so, so I'll let everyone know how it checks out.

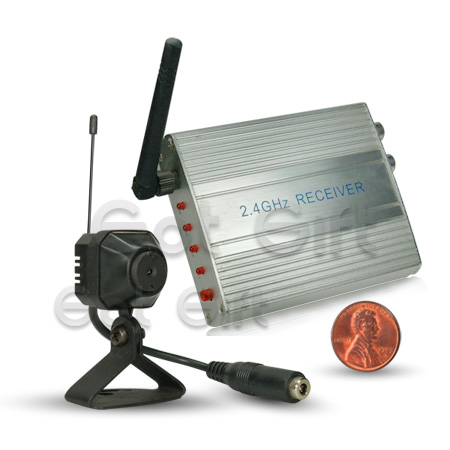

Click Pic:

[Kazzer]

I have one of those and it will handle four cameras, hence the LEDs to show you which camera you are on. This is usually used as a baby monitor, so you put cameras in different places. Overkill for our application and difficult to get more cameras set on the different stations.

[toppack]

Now You Tell Me!
Dang, No Auto Tuning!
Oh well, I mainly wanted another camera for the T-class anyway. I'll save that receiver for some other project.

[Kazzer]

Mount one camera in the bow, one in the stern and one underneath pointing forward. Then you have all round vision with just a flick of the receiver button. Pretty slick I would imagine and with that big T Class it should be no problem.

[toppack]

All Right!
Go Stereo Vision! :D LOL :D

[toppack]

I got the camera and receiver (with 4 camera capibility) and the receiver Does have Auto-Tuning. :)
You just push a botton and it locks into signal from camera. I've only tried it with the 1 camera, so far, but it works great. No fine tuning needed.
That camera, altho it looks the same, will Not work with the tuning-knob type receiver, tho. :(
I'll be trying other cameras on the 4 channel receiver next. If they work, I'll be cnanging over to the 4-channel receiver to be used, with all my models, with those cameras.

And More LEDs are Always Cool! :D LOL :D

[He Who Shall Not Be Named]

I got the camera and receiver (with 4 camera capibility) and the receiver Does have Auto-Tuning. :)
You just push a botton and it locks into signal from camera. I've only tried it with the 1 camera, so far, but it works great. No fine tuning needed.
That camera, altho it looks the same, will Not work with the tuning-knob type receiver, tho. :(
I'll be trying other cameras on the 4 channel receiver next. If they work, I'll be cnanging over to the 4-channel receiver to be used, with all my models, with those cameras.

And More LEDs are Always Cool! :D LOL :D

Careful, not all these system are on the same band: some on 2.4gHz, some on 2.2gHz.

David,

[toppack]

I think all I have are 2.4, but I'll check that.
If they are different bands I can just attach both type receivers to my TV.
It will look even More Impressive that way. :D
Thanks,

[toppack]

Yep, they are on different frequency bands. :(
The only way to tell the difference in cameras is in Antenna length. The length on the 2.4gHz unit is about 2.4" long, (strange coincidense but makes it easy to remember) and the others are about an inch longer.
Oh well, something else to Complicate my life. ;)

[Kazzer]

Careful, not all these system are on the same band: some on 2.4gHz, some on 2.2gHz.

David,

I think that was a typo David? Did you mean 1.2gHz not 2.2gHZ??

[toppack]

I think that was a typo David? Did you mean 1.2gHz not 2.2gHZ??

Those I have are 1.2gHz. Most of the cameras I have did not have that info with them but found one old data sheet that said 1.2.
So now I have one at 2.4 and four at 1.2. :( Bummer!
I've been thinking all along that they were all 2.4 gHz, simple because I never saw a data sheet on them.

[He Who Shall Not Be Named]

I think that was a typo David? Did you mean 1.2gHz not 2.2gHZ??

I stand corrected. Sorry.

David,

[toppack]

I got the Camera/Xmitter mounted in the T-class tower, below forward gun turret, peeking out a small hole. It's working great. :)
Since I didn't have a receiver channel left, I powered it thru a toggle switch mounted thru SD end-cap, next to on/off switch, in forward WTC. Both switches will be activated by pull/push wires, thru to exterior of hull.
It has a good view out over bow.
I made the antenna exactly 4 times longer than the one it came with and works much better at that length (more range without dropouts).
The antenna wire goes up thru the forward periscope tube. Aft periscope tube is snort-pump inlet, which is installed also.

[He Who Shall Not Be Named]

Let's have some pictures of the installation.

David,
