    The instructions for installing this portion are very short, so I was not sure what needed to be sealed. When in doubt......

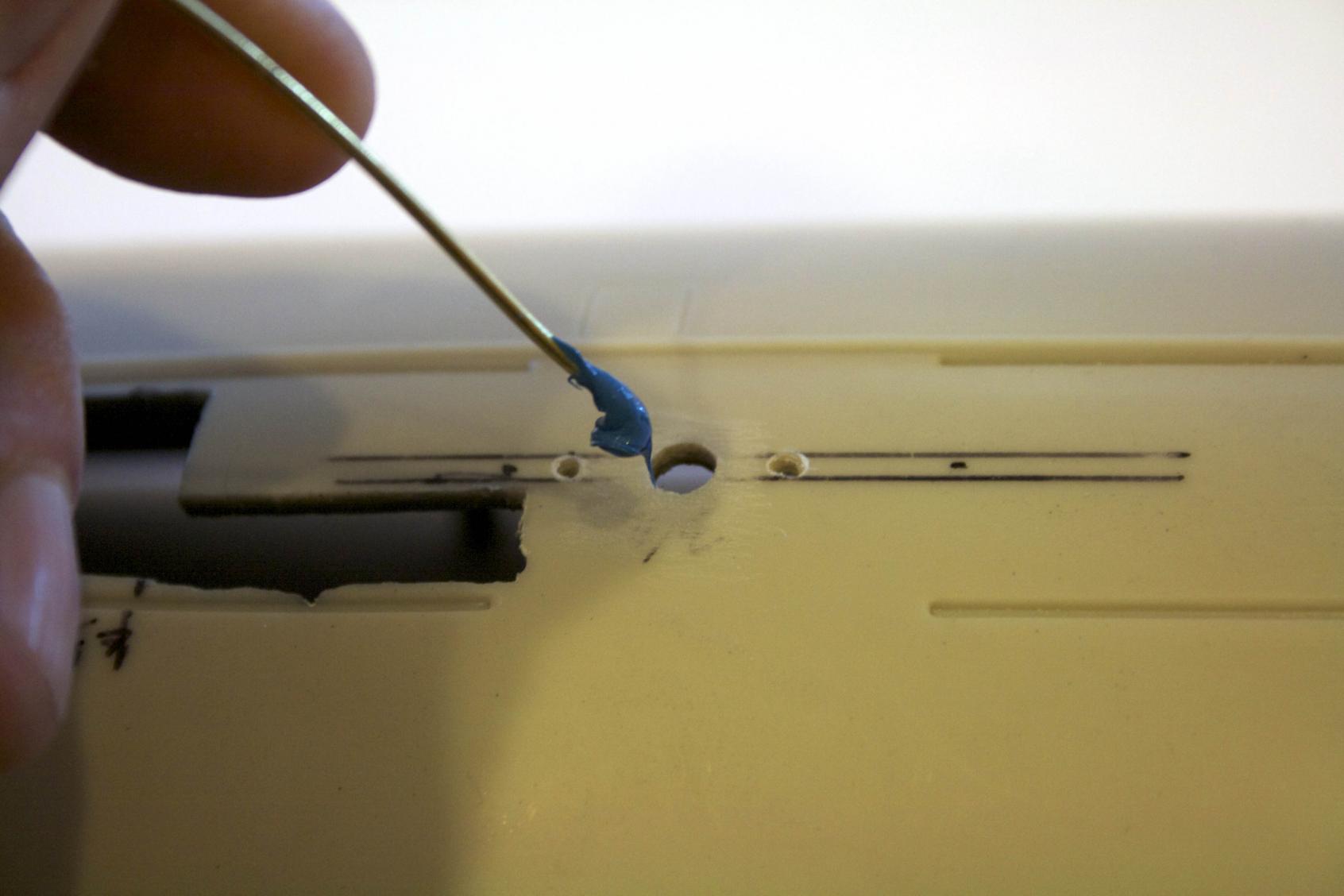

    I placed a ring of RTV silicon where the mast of the SAS valve would go through.
    Click image for larger version

Name:	Skipjack_build_110.jpg
Views:	1
Size:	98.4 KB
ID:	82717Click image for larger version

Name:	Skipjack_build_111.jpg
Views:	1
Size:	104.6 KB
ID:	82718

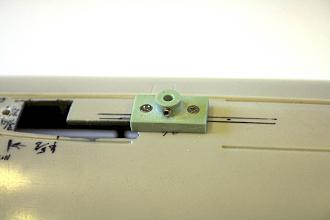

    Installed the SAS induction tube foundation.
    Click image for larger version

Name:	Skipjack_build_112.jpg
Views:	1
Size:	100.8 KB
ID:	82719

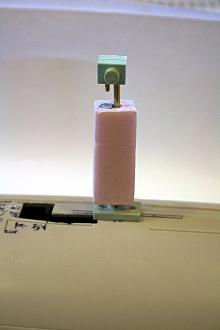

    Set up the rest of the system.
    Click image for larger version

Name:	Skipjack_build_113.jpg
Views:	1
Size:	111.8 KB
ID:	82720
    Making sure that just enough of the induction tube sticking through the hull for the 90 degree elbow to fully engage, yet remain in contact with the hull. I will seal around the elbow also with RTV.
    Click image for larger version

Name:	Skipjack_build_114.jpg
Views:	1
Size:	103.0 KB
ID:	82721

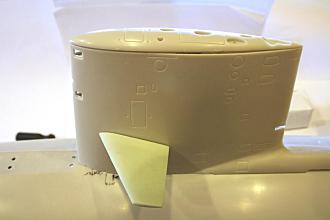

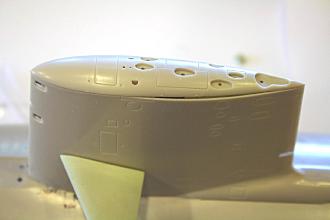

    Assembled the sail over the SAS assembly. The head valve has two cylindrical posts coming out the sides facing port and starboard. These posts caused the sail to deform. So much so that the top piece would not fit,
    Click image for larger version

Name:	Skipjack_build_115.jpg
Views:	1
Size:	90.7 KB
ID:	82722Click image for larger version

Name:	Skipjack_build_116.jpg
Views:	1
Size:	92.7 KB
ID:	82723

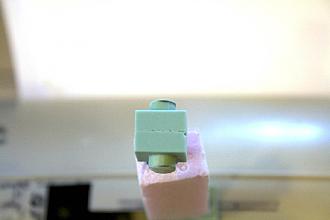

    Using a mechanical pencil and extending a length of lead, drew the contour needing to be sanded down on the posts. It took a couple of tries.
    Click image for larger version

Name:	Skipjack_build_117.jpg
Views:	1
Size:	109.9 KB
ID:	82724
    The fit was good.
    Click image for larger version

Name:	Skipjack_build_118.jpg
Views:	1
Size:	92.6 KB
ID:	82725
    The top piece now fits.
    Click image for larger version

Name:	Skipjack_build_119.jpg
Views:	1
Size:	96.7 KB
ID:	82726
    On the top how did you guys open it up to let the air out? I do not plan to have the whole array up.
    Last edited by trout; 08-12-2013, 02:22 AM. Reason: Don't start a sentence with And

    Leave a comment:


  • Capt_Christo
    replied
    No Matter how many time we tried, the bushed supplied would not stick to the inside of the sail, so we made new ones out of styrene.
    Click image for larger version

Name:	IMG_0761.jpg
Views:	1
Size:	83.6 KB
ID:	82716

    Leave a comment:


  • trout
    replied
    I am out of town at the moment, but I ran out of time to post, so let me do that now.
    Put all the parts together and tested fit and travel of controls. Check!
    Click image for larger version

Name:	Skipjack_build_105.jpg
Views:	1
Size:	107.3 KB
ID:	82691
    The forward bushing kept popping out, so I put avery small dab of RTV silicon to give it a bit of a hold.
    Click image for larger version

Name:	Skipjack_build_106.jpg
Views:	1
Size:	87.0 KB
ID:	82692

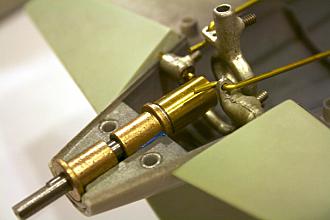

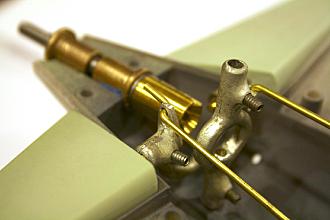

    There is something really pretty about brass and white metal - i almost looks steampunk. It is a beautiful design.
    Click image for larger version

Name:	Skipjack_build_107.jpg
Views:	1
Size:	89.6 KB
ID:	82693

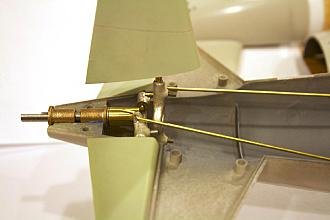

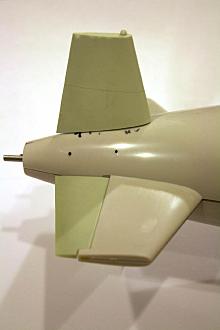

    Top rudder placed in for no other reason than it looks cool. It is a shame this gets hidden.
    Click image for larger version

Name:	Skipjack_build_108.jpg
Views:	1
Size:	84.0 KB
ID:	82694

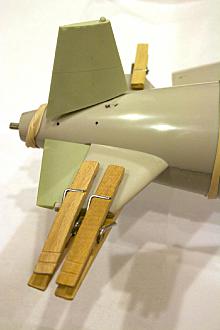

    Cohesive applied as in other parts of this build. Let it sit for 12 hours.
    Click image for larger version

Name:	Skipjack_build_109.jpg
Views:	1
Size:	95.5 KB
ID:	82695
    Checked it over this morning and the dive planes are real stiff. Will have to work on that when I get back.

    Leave a comment:


  • trout
    replied
    Thanks guys for the kind words.
    Scott, call me warped, but if I read it fast, it will come out as Klingon.
    Mark, no stealing needed. If you need me to pound out the brass for you let me know, it took a very short time.
    i like it enough for this to be used with other controls, when I have time to play.

    Leave a comment:


  • alad61
    replied
    Nice mod Tom. I might steal the idea...

    Leave a comment:


  • Scott T
    replied
    Looking good Tom. Neat mod on the klikon. If you say it fast enough the hypen is silent.
    You are really churning on this build. Keep it up.

    Scott T

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    That is SLICK!

    M

    Leave a comment:


  • trout
    replied

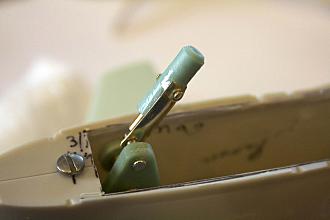

    Last nights posting was long so I cut it short. The last thing to add was a modification to the Klick-On.

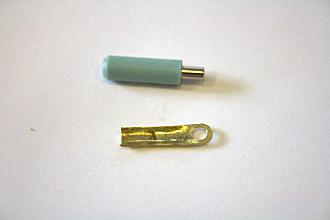

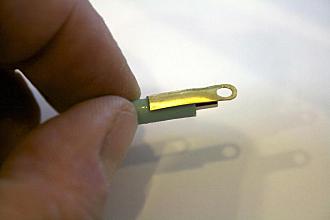

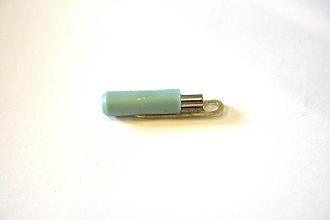

    Cut a strip of brass and curved it to fit against the connector. Drilled a hole to go over the mating magnet on the sail.
    Click image for larger version

Name:	Skipjack_build_100.jpg
Views:	1
Size:	110.8 KB
ID:	82652

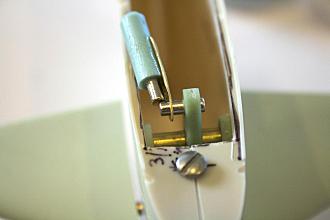

    Placed the brass piece on the sail dive plane control magnet and the magnet CA'd it in place.
    Click image for larger version

Name:	Skipjack_build_101.jpg
Views:	1
Size:	108.4 KB
ID:	82653Click image for larger version

Name:	Skipjack_build_102.jpg
Views:	1
Size:	115.9 KB
ID:	82654
    Tested for fit again. It worked great and comes off easy when needed.
    Click image for larger version

Name:	Skipjack_build_103.jpg
Views:	1
Size:	98.6 KB
ID:	82655
    Then put a pin through the back end of the srip to keep it together better.
    Click image for larger version

Name:	Skipjack_build_104.jpg
Views:	1
Size:	97.9 KB
ID:	82656

    Leave a comment:


  • trout
    replied

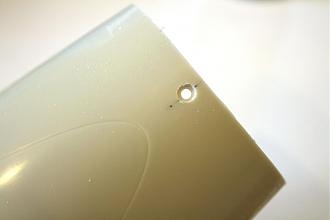

    Hole counter sunk.
    Click image for larger version

Name:	Skipjack_build_078a.jpg
Views:	1
Size:	113.6 KB
ID:	82637

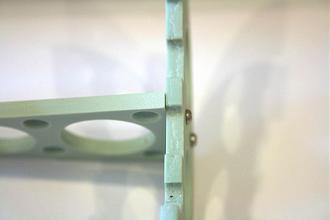

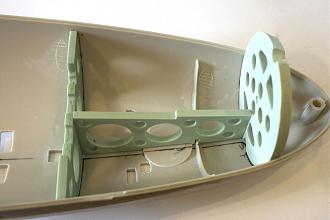

    Installing the torpedo foundation/Bow support. Did a test fit.
    Click image for larger version

Name:	Skipjack_build_079.jpg
Views:	1
Size:	97.4 KB
ID:	82638
    It was off center.
    Click image for larger version

Name:	Skipjack_build_080.jpg
Views:	1
Size:	119.5 KB
ID:	82639

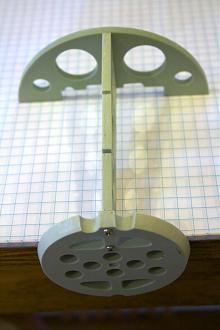

    Squared it up using grid paper.
    Click image for larger version

Name:	Skipjack_build_081.jpg
Views:	1
Size:	88.9 KB
ID:	82640
    Outlined the foundation on the bow piece. Using the outline as a guide, sanded the area and ca'd the piece in.
    Click image for larger version

Name:	Skipjack_build_082.jpg
Views:	1
Size:	97.9 KB
ID:	82641
    David had put a line (I hi-lighted with black Sharpe) that is used to align the foundation.
    Click image for larger version

Name:	Skipjack_build_083.jpg
Views:	1
Size:	102.6 KB
ID:	82642
    CA'd it all in.
    Click image for larger version

Name:	Skipjack_build_084.jpg
Views:	1
Size:	90.4 KB
ID:	82643

    Did a bit of finishing and clean up.

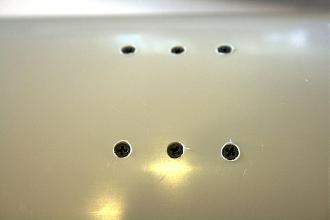

    Finished counter sinking the shock absorber screws.
    Click image for larger version

Name:	Skipjack_build_085.jpg
Views:	1
Size:	123.3 KB
ID:	82622
    Cut out the flange overlaps.
    Click image for larger version

Name:	Skipjack_build_086.jpg
Views:	1
Size:	105.5 KB
ID:	82623
    Used sprue to fill in the seams. I had trouble getting it to fill in some areas. In some areas it just looked ugly.
    Click image for larger version

Name:	Skipjack_build_087.jpg
Views:	1
Size:	90.8 KB
ID:	82624

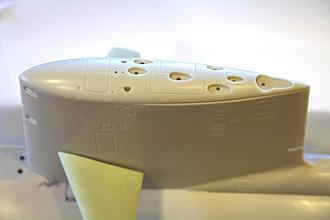

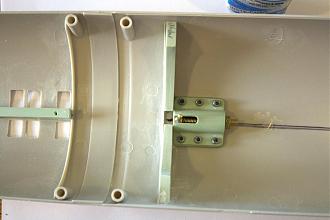

    Assembled the bow with the foundation put in. Them I remembered I was going to prime the interior. Ooops.
    Click image for larger version

Name:	Skipjack_build_088.jpg
Views:	1
Size:	83.3 KB
ID:	82625

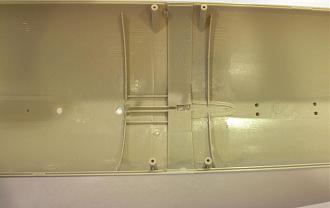

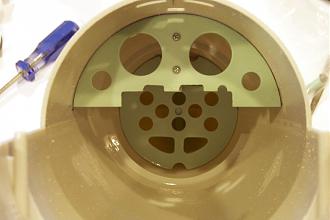

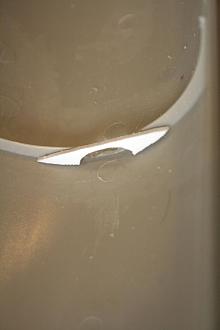

    Still concerned about air flows and preventing trapped air, made passage ways for air to leave.
    Click image for larger version

Name:	Skipjack_build_089.jpg
Views:	1
Size:	101.0 KB
ID:	82626

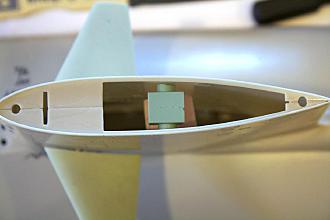

    Wanted to reinforce the opening by making a small bridge that allowed the air to pass and strengthen the area cut out.
    Click image for larger version

Name:	Skipjack_build_089a.jpg
Views:	1
Size:	104.4 KB
ID:	82627
    Installed the support.
    Click image for larger version

Name:	Skipjack_build_089b.jpg
Views:	1
Size:	117.1 KB
ID:	82628
    Harder to see here, paths cut in to allow air out. Beveled the holes that vent air out.
    Click image for larger version

Name:	Skipjack_build_090.jpg
Views:	1
Size:	104.8 KB
ID:	82629
    Reinforced the bow seams.
    Click image for larger version

Name:	Skipjack_build_092.jpg
Views:	1
Size:	129.6 KB
ID:	82630

    CA'd the aft foundations.
    Click image for larger version

Name:	Skipjack_build_095.jpg
Views:	1
Size:	99.1 KB
ID:	82632
    Same for the forward foundations and the shock absorber.
    Click image for larger version

Name:	Skipjack_build_096.jpg
Views:	1
Size:	95.6 KB
ID:	82633

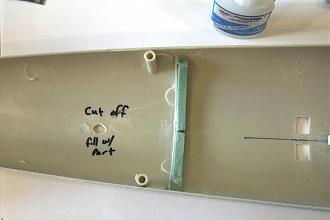

    The aft piece, I carved a notch in the frame for air to escape. I do not know if any of this is necessary. I guess the final word will be how it handles. So hang on, we will find out together.
    Click image for larger version

Name:	Skipjack_build_097.jpg
Views:	1
Size:	92.6 KB
ID:	82634
    I glued the sail together using a cohesive being careful to leave the bottom free from glue to allow it to open. Thought I did good until I realized I forgot to put in the screw foundations in. I am here to tell you they can be installed after the fact (it is better to remember first). Not all went well, the rear foundation did not go all the way aft, so my hole was off a bit. I ground the opening to allow a screw to thread. When installing the foundations you only glue one side of it so the bottom can be slit open for maintenance and repair.
    Click image for larger version

Name:	Skipjack_build_098.jpg
Views:	1
Size:	103.0 KB
ID:	82635Click image for larger version

Name:	Skipjack_build_099.jpg
Views:	1
Size:	105.5 KB
ID:	82636
    Attached Files
    Last edited by trout; 08-05-2013, 12:05 AM.

    Leave a comment:


  • trout
    replied
    Alec,
    Yes I will counter sink the screw. Today's post will be some of the small things being done like that. The soap idea, in this build, is from David's cabal report.
    T

    Leave a comment:


  • alad61
    replied
    Tom are you going to countersink the fastening screw? I like the soap idea too.

    Leave a comment:


  • trout
    replied
    Everything has dried.
    Putting in the means to fasten the hulls together was pretty simple.
    This section was left out of these instructions, but it can be found in the 7th part of the Skipjack Cabal (can be found here http://www.rcgroups.com/forums/showa...mentid=5287179 ) mark 1/4" forward of the aft radial cut.
    Click image for larger version

Name:	Skipjack_build_074.jpg
Views:	1
Size:	90.8 KB
ID:	82616

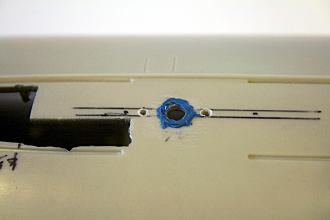

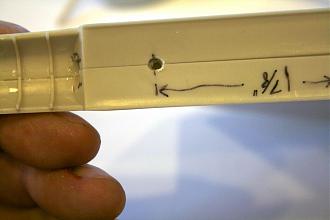

    Drill a 7/64" inch hole all the way through.
    Click image for larger version

Name:	Skipjack_build_075.jpg
Views:	1
Size:	101.0 KB
ID:	82617

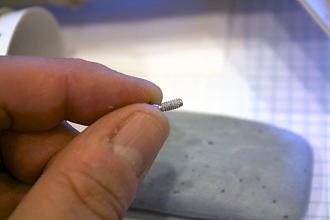

    Run the threads of the 4-40 screw, included with the screw foundation, through some soap. It will be a barrier from the CA seizing the screw into the foundation. Ah, the smell of Irish Spring.....
    Click image for larger version

Name:	Skipjack_build_076.jpg
Views:	1
Size:	101.6 KB
ID:	82618

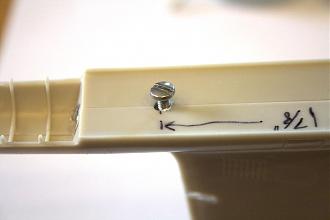

    Thread the screw through the flange and into the screw foundation. Apply CA around the foundation and set aside to dry.
    Click image for larger version

Name:	Skipjack_build_077.jpg
Views:	1
Size:	97.8 KB
ID:	82619
    Test assembly. Yeah it worked!
    Click image for larger version

Name:	Skipjack_build_078.jpg
Views:	1
Size:	102.2 KB
ID:	82620
    Last edited by trout; 08-04-2013, 03:24 AM.

    Leave a comment:


  • trout
    replied

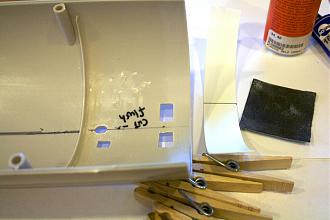

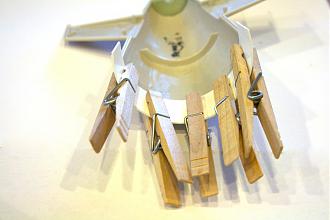

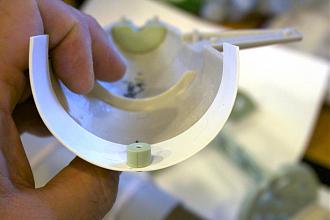

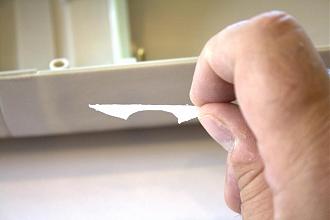

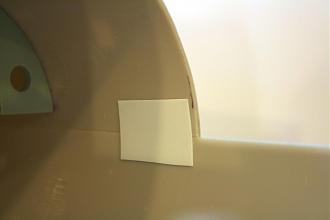

    There is not much to add to the instructions. I curved the plastic strips over a small metal tube and marked on the pieces for how much will extend out from the edge. The upper aft portion (the small section cut off) will get 1/2 hanging over (since the strip is 1" it is 1/2" extended out past the edge). The lower bow section (the larger piece or main body) gets a 3/8" extended past the hulls edge.
    Click image for larger version

Name:	Skipjack_build_70.jpg
Views:	1
Size:	97.8 KB
ID:	82594
    Sanded the areas to put cohesive glue on.
    Click image for larger version

Name:	Skipjack_build_71.jpg
Views:	1
Size:	93.9 KB
ID:	82595

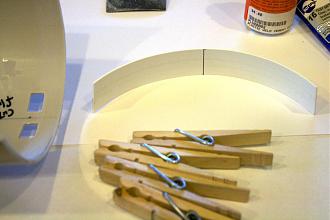

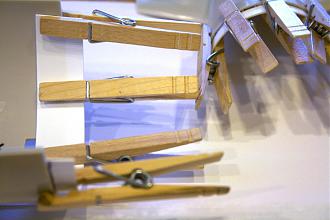

    Used clothes pins to hold it together.
    Click image for larger version

Name:	Skipjack_build_72.jpg
Views:	1
Size:	89.8 KB
ID:	82596
    Now it will be another day before i work on it.
    Click image for larger version

Name:	Skipjack_build_73.jpg
Views:	1
Size:	92.1 KB
ID:	82597

    Leave a comment:


  • trout
    replied

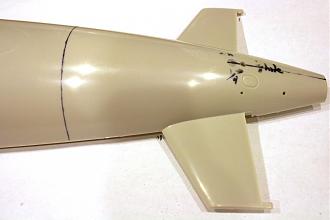

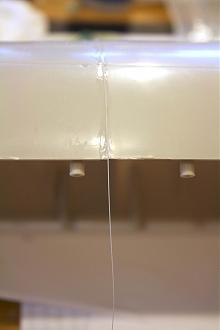

    The slight warping still exists. Once I get the tail pieces together it might help because if I squeeze the tail down behind were the radial will be, it closes up..

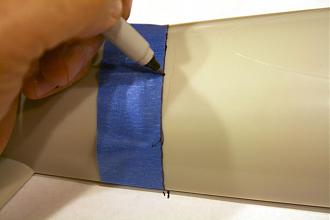

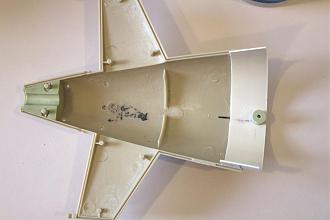

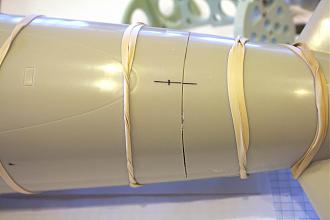

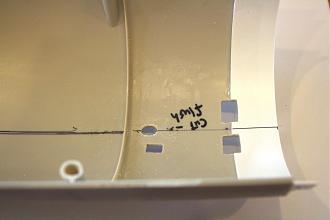

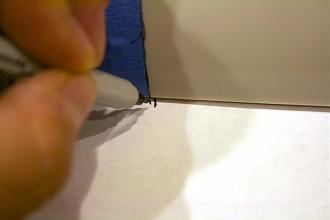

    Earlier I transfered the radial markings for cutting the bow and aft sections from inside to the exterior side of the hull. Per the instructions, used a light to help do that. Then used tape to connect the dots. I marked were the radial line made contact with the paper on each side, measured the distance from my radial line to the aft most end of the sub to make sure the distances were even on both sides. Did the same for the bow radial line to make sure it was also even on each side.
    Click image for larger version

Name:	Skipjack_build_64.jpg
Views:	1
Size:	106.5 KB
ID:	82576
    Darkened the line and removed the tape.
    Click image for larger version

Name:	Skipjack_build_65.jpg
Views:	1
Size:	94.0 KB
ID:	82577

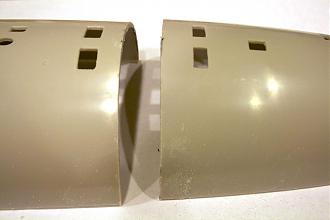

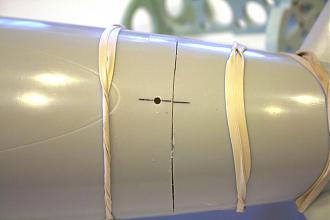

    Cut along the line and we have separation.
    Click image for larger version

Name:	Skipjack_build_66.jpg
Views:	1
Size:	105.3 KB
ID:	82578Click image for larger version

Name:	Skipjack_build_67.jpg
Views:	1
Size:	99.4 KB
ID:	82579
    Same was done for the aft end.
    Click image for larger version

Name:	Skipjack_build_68.jpg
Views:	1
Size:	94.8 KB
ID:	82580Click image for larger version

Name:	Skipjack_build_69.jpg
Views:	1
Size:	93.0 KB
ID:	82581
    I still need to fill in the quarter pieces seam from the prior nights gluing and clean up cuts made into the hull. One step closer!
    Last edited by trout; 08-01-2013, 02:40 AM.

    Leave a comment:


  • trout
    replied
    David, that is cool! Was there a paint scheme like that? Awesome photo too! It has to be a thrill every time you see a Moebius or Revell model running in the wild knowing you had a hand in it coming to a reality. Does the article say what dive system the assembler used?

    Leave a comment:
