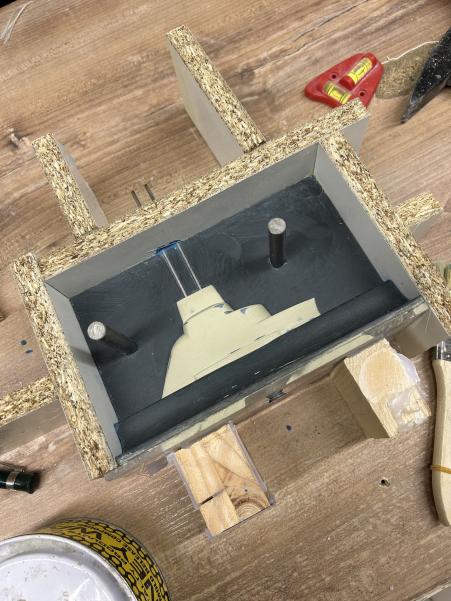

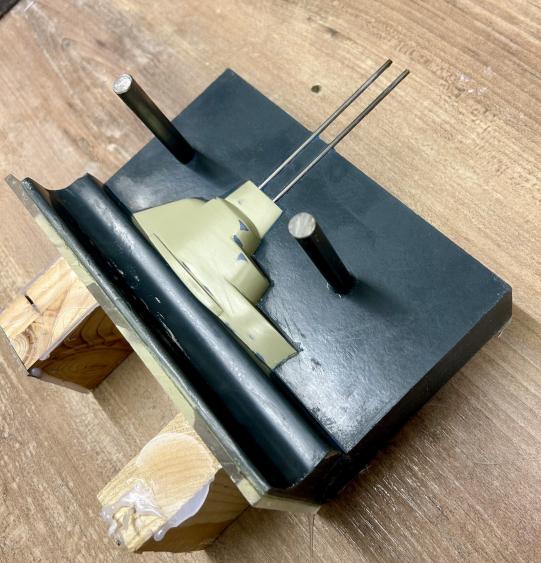

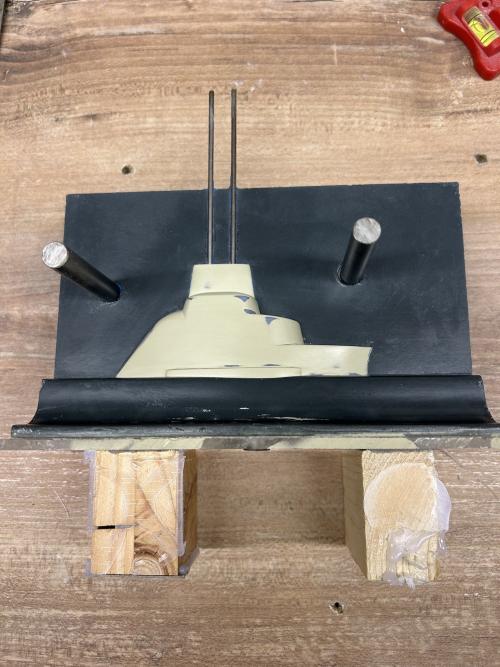

    On Sunday I laminated the first halve of the conning tower mold and filled the box with a mixture of resin and quartz sand. Literally it makes for a rock solid mold. Today I removed the box and the parting plane. Worked out quite smoothly. Then I set up the box for the second halve of the mold. Quick job with such a small mold.

    Click image for larger version

Name:	U1-128.jpg
Views:	189
Size:	52.7 KB
ID:	182734

    Click image for larger version

Name:	U1-129.jpg
Views:	184
Size:	55.7 KB
ID:	182735

    Click image for larger version

Name:	U1-130.jpg
Views:	192
Size:	55.2 KB
ID:	182736

    Comment

    • DrSchmidt
      Rear Admiral

      • Apr 2014
      • 1177

      #77

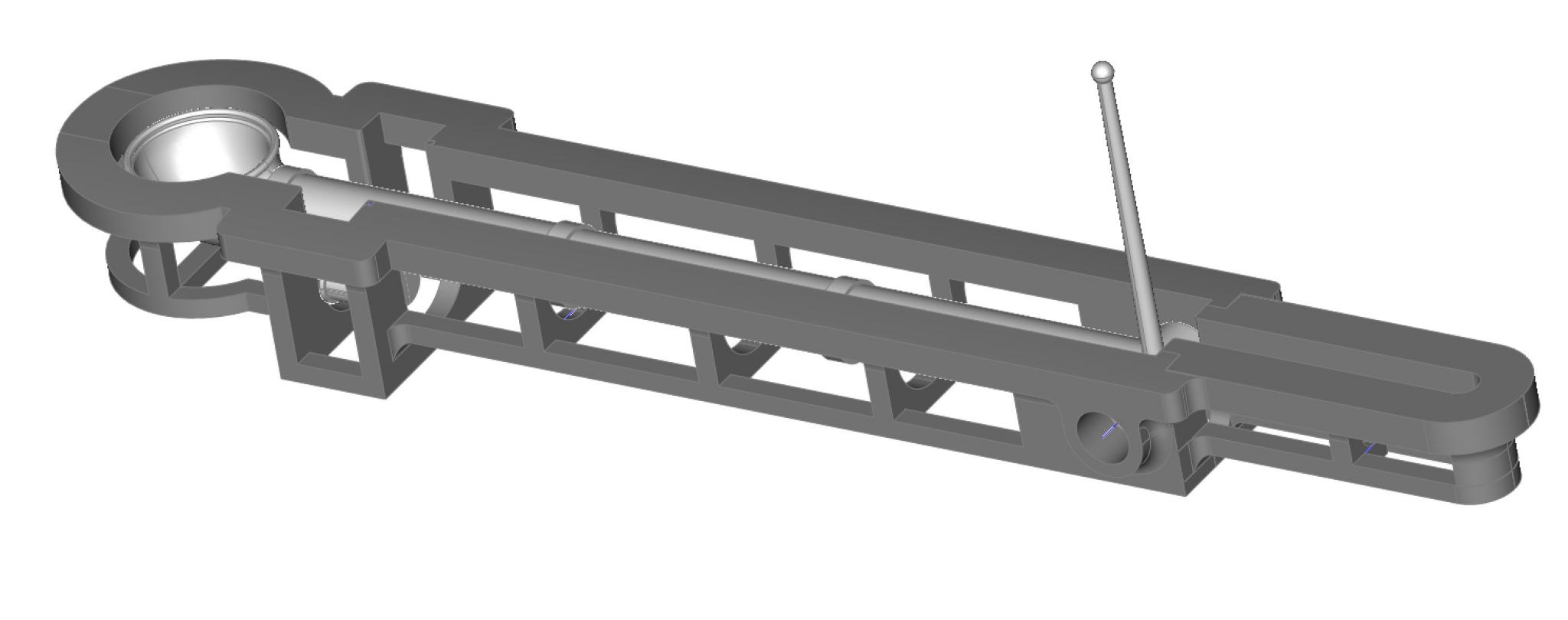

      While making molds, I have to take care of the additional parts that will be needed. On example are the sub deck structures that house the air intake masts. In my first U1 these were 3D-printed and I'm going for 3D-printed parts again, but with a big difference. The first ones were thick-walled monsters that displaced allot of water and that's above surface. So they contributed to the problem of having large enough ballast tanks. The new ones will be cage like structures with much less volume and only rigid walls, where they are needed, e.g. where the bearings for the mast axis will be set in.

      Click image for larger version

Name:	U1-131.jpg
Views:	178
Size:	68.8 KB
ID:	182803

      Click image for larger version

Name:	U1-132.jpg
Views:	180
Size:	66.8 KB
ID:	182804

      Comment

      • DrSchmidt
        Rear Admiral

        • Apr 2014
        • 1177

        #78

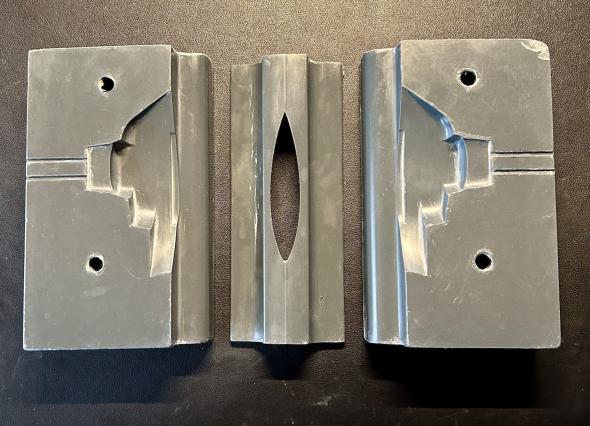

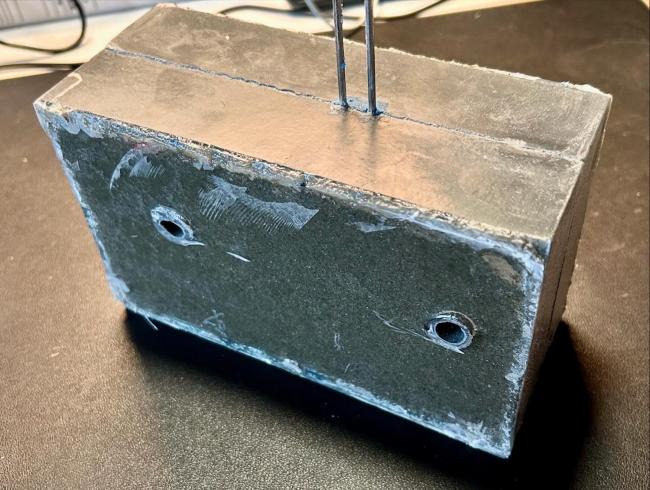

        I finished the molds for the conning tower and opened them. Went reasonably well, but again, I had little section of surface primer stuck in the mold, that had to be removed with brute force, resulting with partially rough surfaces. Not really happy about it, but I guess the mold will be able to produce good parts. We'll see. On the bright side: The PE sheets have arrived.

        Click image for larger version

Name:	U1-133.jpg
Views:	167
Size:	61.2 KB
ID:	182831

        Click image for larger version

Name:	U1-134.jpg
Views:	170
Size:	43.7 KB
ID:	182832

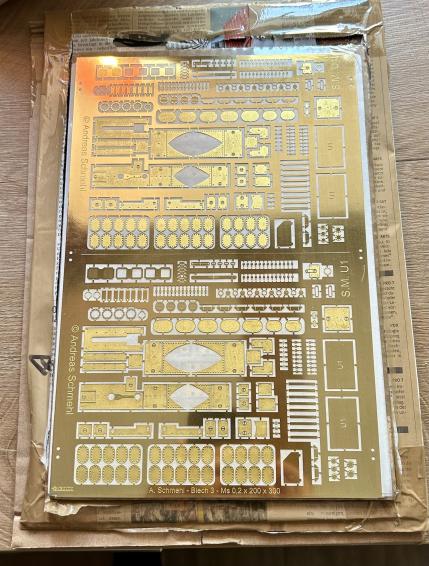

        Click image for larger version

Name:	U1-135.jpg
Views:	175
Size:	61.3 KB
ID:	182833


        Comment

        • DrSchmidt
          Rear Admiral

          • Apr 2014
          • 1177

          #79

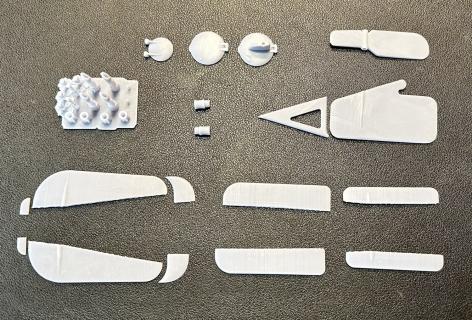

          laminated the second conning tower today. First try wasn't perfect with voids here and there. So it's a second one, this time with thinner, more flexible glass and some more thickened resin in the corners. Worked well, we'll see the result in 36 hours...meanwhile: I printed control planes, hatches, and some accessories....

          Click image for larger version  Name:	U1-136.jpg Views:	12 Size:	45.6 KB ID:	182962
          Last edited by DrSchmidt; 10-04-2024, 02:14 PM.

          Comment

          • He Who Shall Not Be Named
            Moderator

            • Aug 2008
            • 12949

            #80
            That always evident German slavish pursuit of perfection to the most basic of items.
            Who is John Galt?

            Comment

            • DrSchmidt
              Rear Admiral

              • Apr 2014
              • 1177

              #81

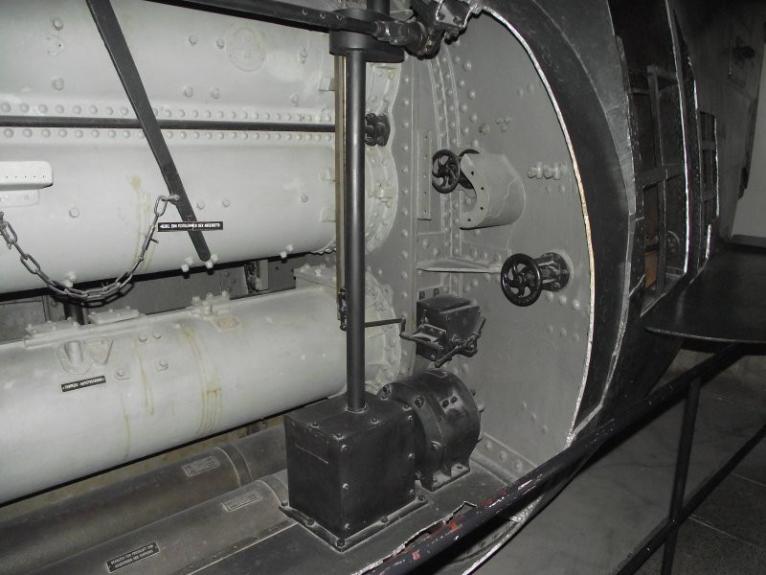

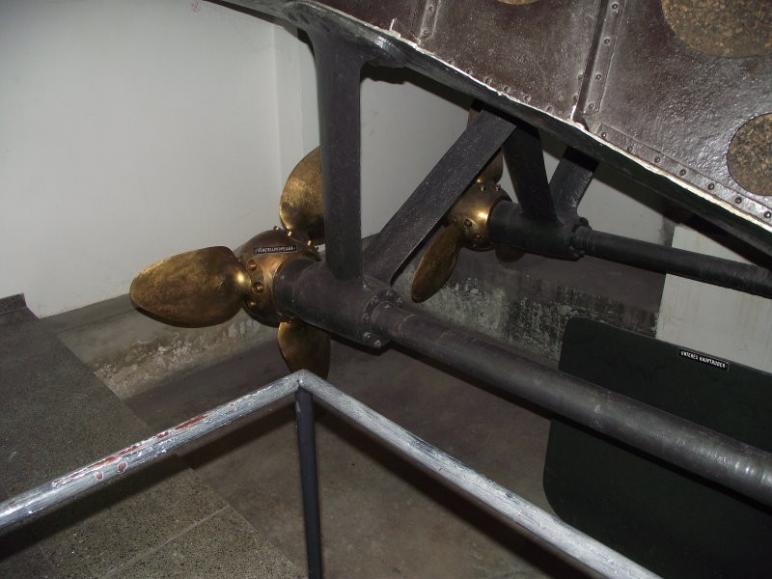

              Actually I hought a while abut the control planes. The original ones were very thin, and to properly reporduce those in that scale....3D-printing is the ideal approach.



              Click image for larger version

Name:	2010_367.jpg
Views:	125
Size:	51.8 KB
ID:	182999

              Click image for larger version

Name:	2010_370.jpg
Views:	130
Size:	49.0 KB
ID:	183000

              Comment

              • DrSchmidt
                Rear Admiral

                • Apr 2014
                • 1177

                #82

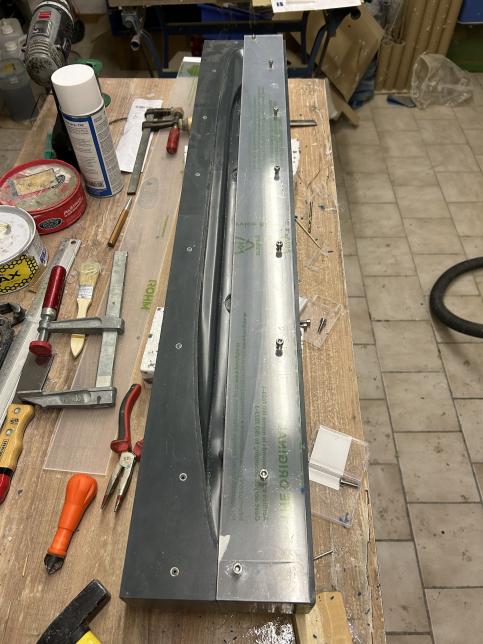

                Working on the acrylic covers to get a nice edge to the hull parts. So far so good....

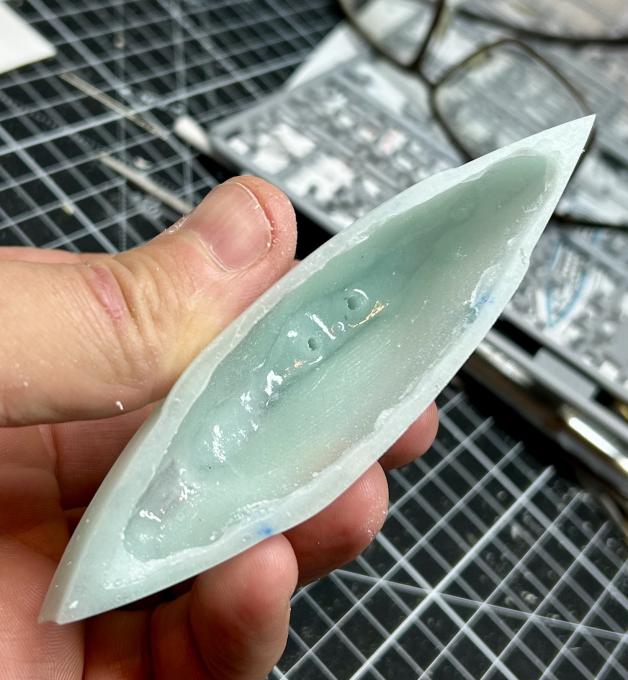

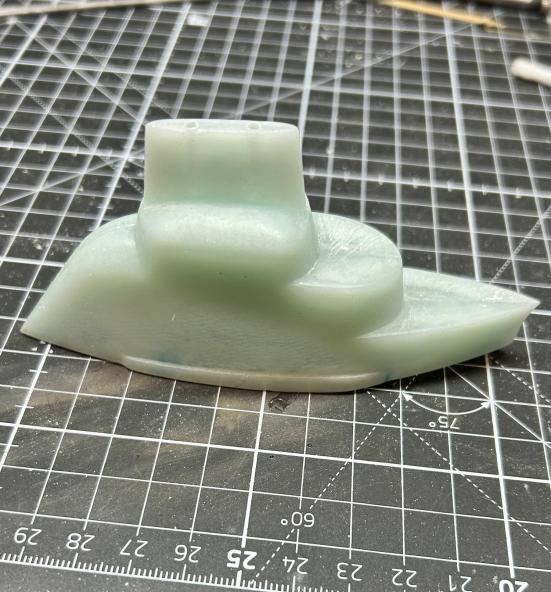

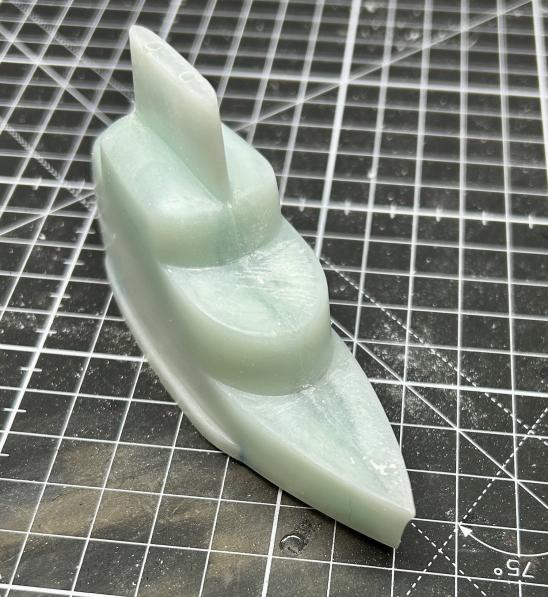

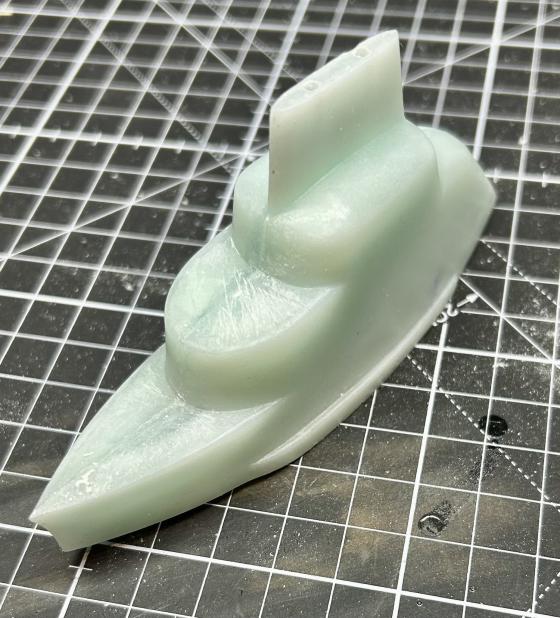

                Meanwhile: I pulled the second part out of the coning tower mold. Worked well. Still a bit on the heavy and thick side of things, but besides that, quite O.K.. I'll make a few more. One will go onto the RC version, one on disply model, and one for someone else....

                Click image for larger version

Name:	U1-137.jpg
Views:	114
Size:	57.5 KB
ID:	183021

                Click image for larger version

Name:	U1-138.jpg
Views:	116
Size:	62.0 KB
ID:	183022

                Click image for larger version

Name:	U1-139.jpg
Views:	115
Size:	63.9 KB
ID:	183023

                Click image for larger version

Name:	U1-140.jpg
Views:	112
Size:	65.3 KB
ID:	183024

                Click image for larger version

Name:	U1-141.jpg
Views:	114
Size:	62.3 KB
ID:	183025

                Comment

                • DrSchmidt
                  Rear Admiral

                  • Apr 2014
                  • 1177

                  #83

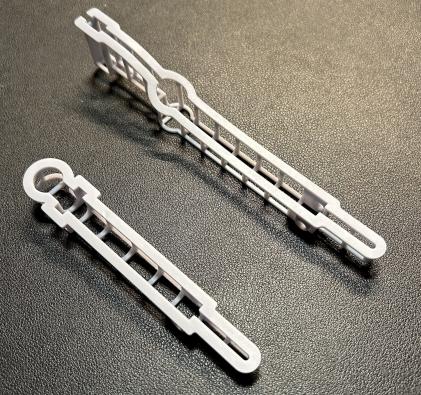

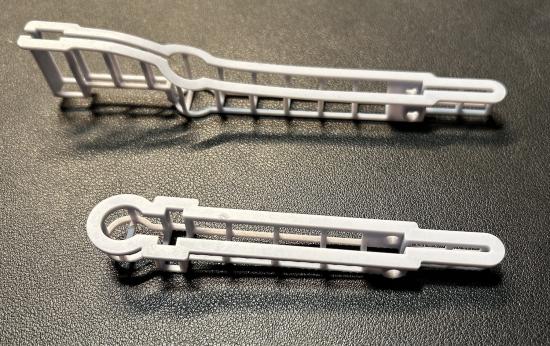

                  While I prepped the mold for the second conning tower, I printed the housings for the air intake masks. Turned out quite good.....optimized for little water displacement.

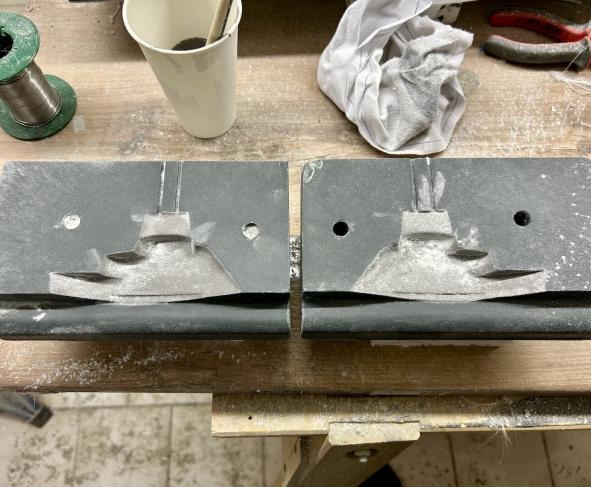

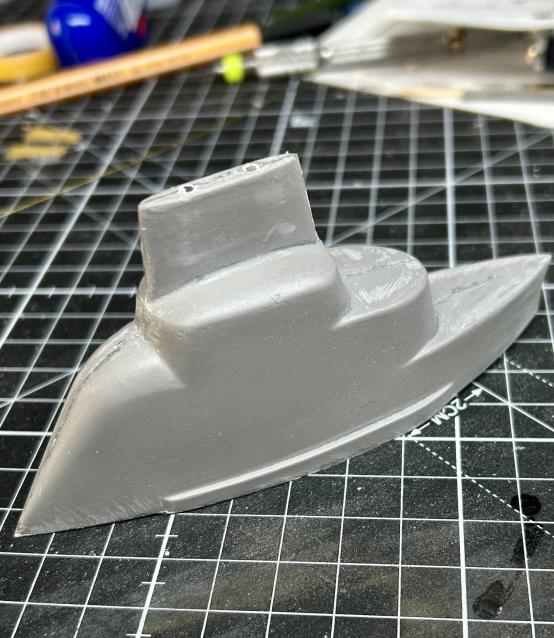

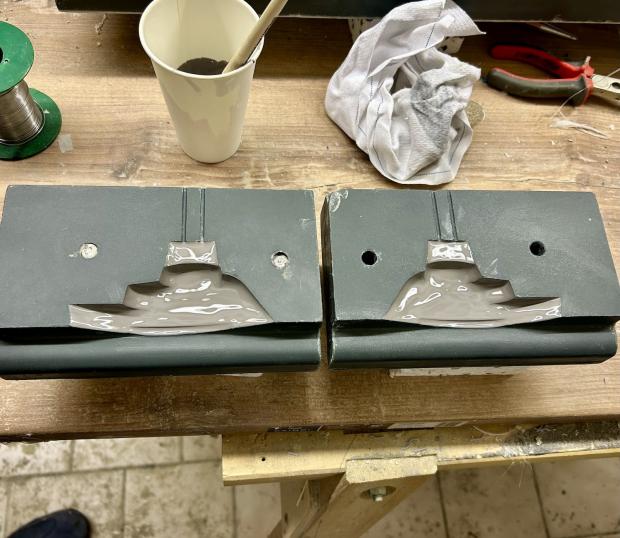

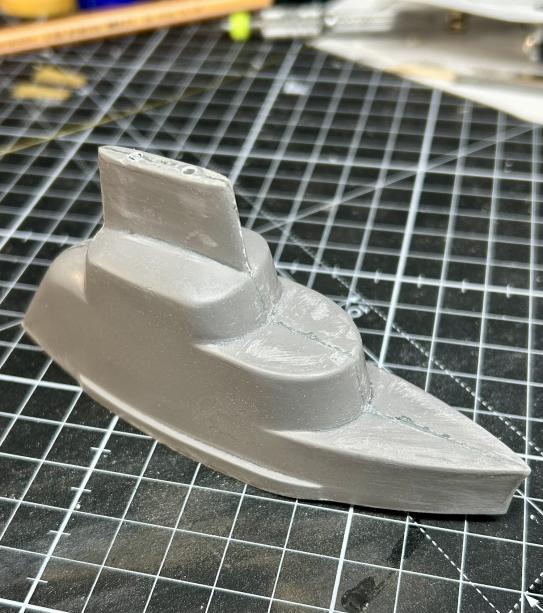

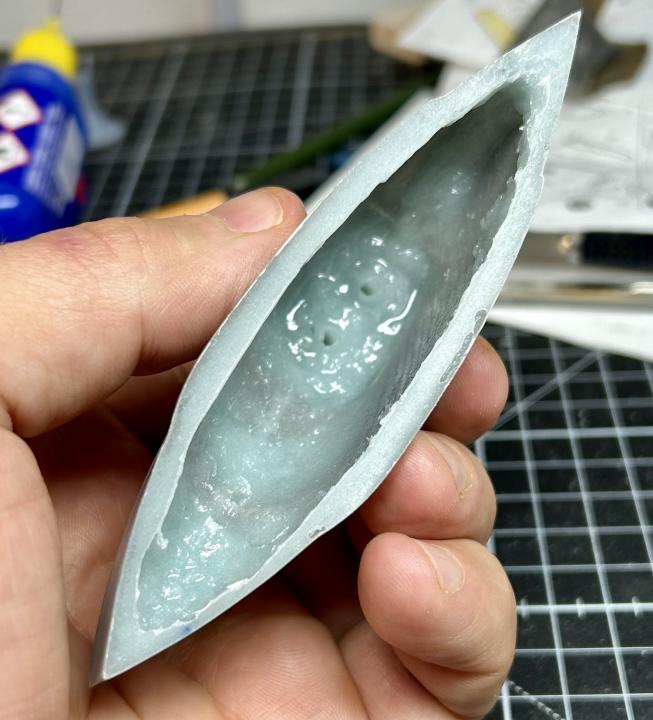

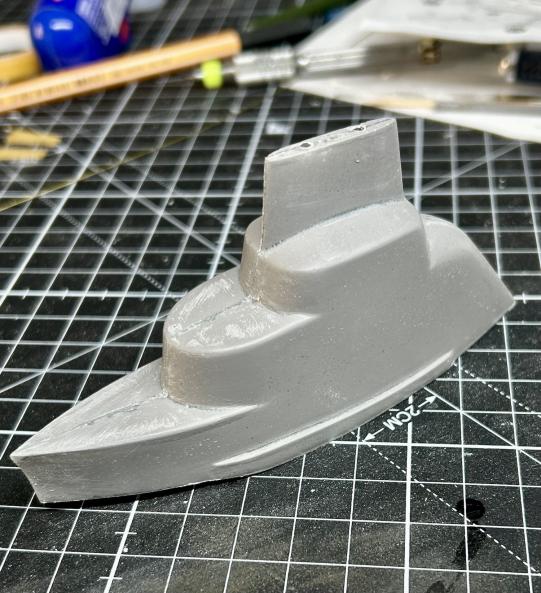

                  Then I made the second conning tower. Got me new surface resin and a better color for the resin. So this went better than for the first one. After brushing in the surface resin, I poweder the resin with cotton flakes to provide a good coupling surface for the GRP. And the second tower is quite good. The first one was O.K., the second one is good. Less bulky, a bit lighter, no voids. So the next ones will be made to match this one.



                  Click image for larger version

Name:	U1-142.jpg
Views:	100
Size:	55.0 KB
ID:	183190

                  Click image for larger version

Name:	U1-143.jpg
Views:	96
Size:	55.4 KB
ID:	183191

                  Click image for larger version

Name:	U1-144.jpg
Views:	95
Size:	53.8 KB
ID:	183192

                  Click image for larger version

Name:	U1-145.jpg
Views:	94
Size:	50.9 KB
ID:	183193

                  Click image for larger version

Name:	U1-146.jpg
Views:	98
Size:	63.2 KB
ID:	183189

                  Click image for larger version

Name:	U1-147.jpg
Views:	94
Size:	63.5 KB
ID:	183194

                  Click image for larger version

Name:	U1-149.jpg
Views:	97
Size:	65.2 KB
ID:	183195



                  Click image for larger version

Name:	U1-150.jpg
Views:	94
Size:	57.5 KB
ID:	183196






                  ​​

                  Comment

                  • DrSchmidt
                    Rear Admiral

                    • Apr 2014
                    • 1177

                    #84

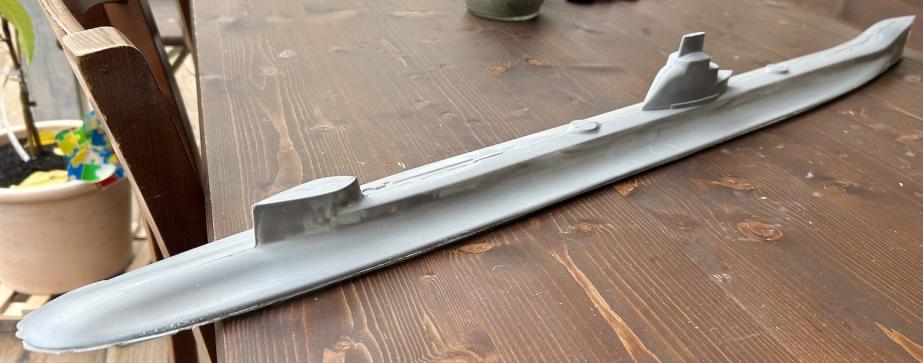

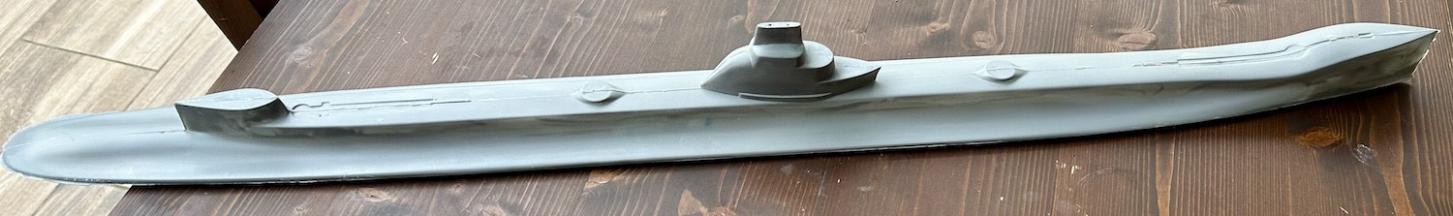

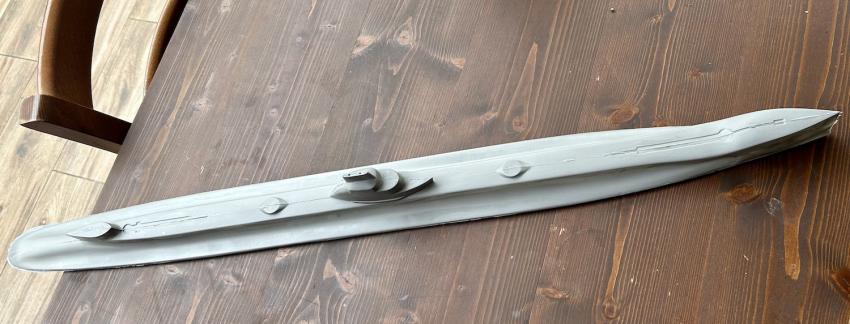

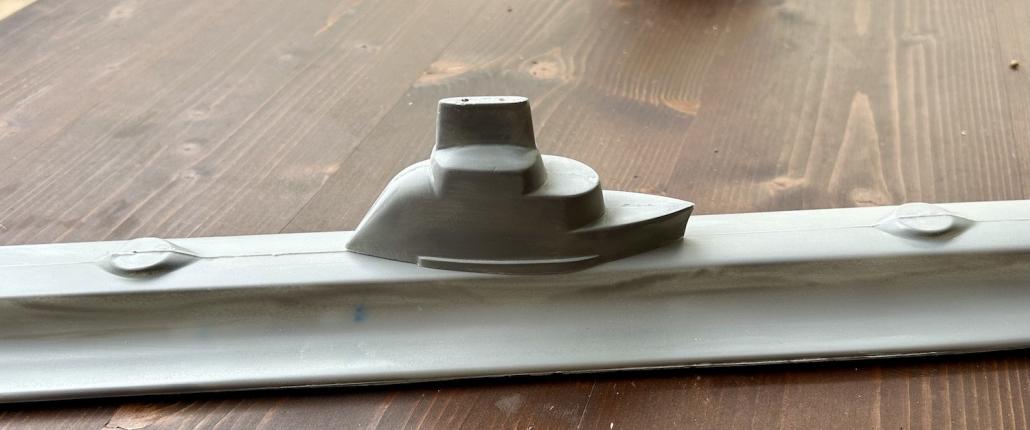

                    I have laminated the first deck section of the U1. Went quite well, despite the tight radius here and there. I used 3 layers of 80g/m^2 glass, the middle layer diagonally to give the deck some more resistance against twisting. Looks good and the conning tower fits perfectly. Going through the effort of making the three piece mold for the conning tower was quite worth it.

                    Click image for larger version

Name:	U1-151.jpg
Views:	79
Size:	46.2 KB
ID:	183374

                    Click image for larger version

Name:	U1-152.jpg
Views:	80
Size:	49.9 KB
ID:	183375

                    Click image for larger version

Name:	U1-153.jpg
Views:	80
Size:	46.1 KB
ID:	183376

                    Click image for larger version

Name:	U1-154.jpg
Views:	80
Size:	48.2 KB
ID:	183377

                    Comment

                    • redboat219
                      Admiral

                      • Dec 2008
                      • 3168

                      #85
                      Will this be a one-off or will you be making more?
                      Make it simple, make strong, make it work!

                      Comment

                      • DrSchmidt
                        Rear Admiral

                        • Apr 2014
                        • 1177

                        #86
                        I've made molds and a few sheets of PE....so probably more than one. But I'm not a good producer for others. The little time I have for my hobby is mostly reserved for myself. Producing a kit is probably 20 hours of work.

                        Comment

                        • DrSchmidt
                          Rear Admiral

                          • Apr 2014
                          • 1177

                          #87

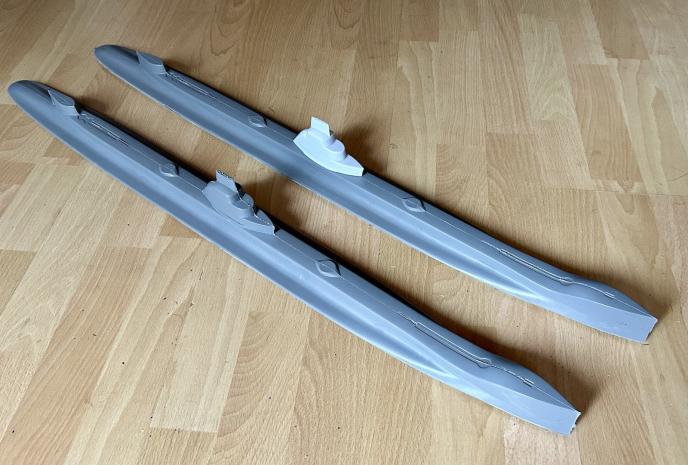

                          Working on the fleet....

                          Click image for larger version

Name:	U1-155.jpg
Views:	64
Size:	50.9 KB
ID:	183905

                          Comment

                          • DrSchmidt
                            Rear Admiral

                            • Apr 2014
                            • 1177

                            #88

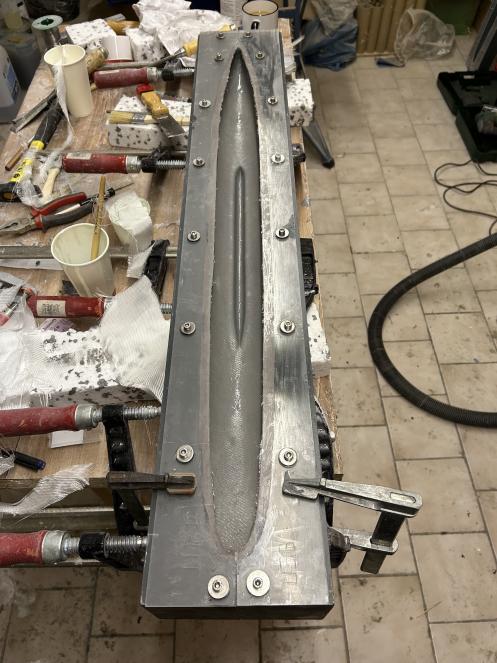

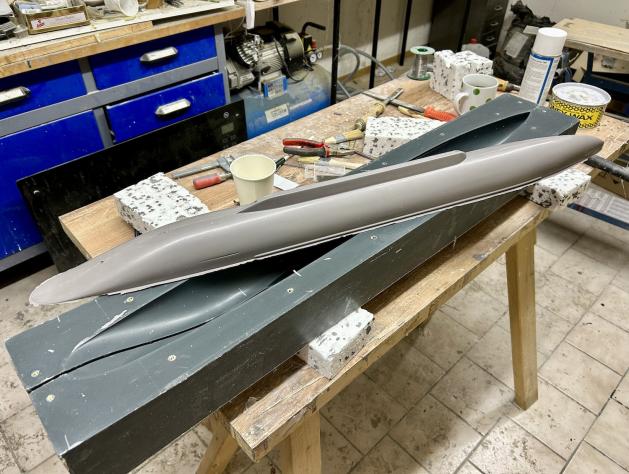

                            Got the molds for the lower hull going and Friday I laminated the second piece. Took it out today and turned ot quite good...one more to go.

                            Click image for larger version

Name:	U1-156.jpg
Views:	30
Size:	62.3 KB
ID:	184453

                            Click image for larger version

Name:	U1-157.jpg
Views:	31
Size:	61.9 KB
ID:	184454

                            Comment
