    Seehund Scale 1:35

    I've started to work on the Seehund, the hull was made by my mentor, he also made the provisions for steering the rudder and diveplanes and placed a E motor complete with the shaft to propel it.

    Click image for larger version

Name:	20220124_203652.jpg
Views:	704
Size:	48.7 KB
ID:	168362

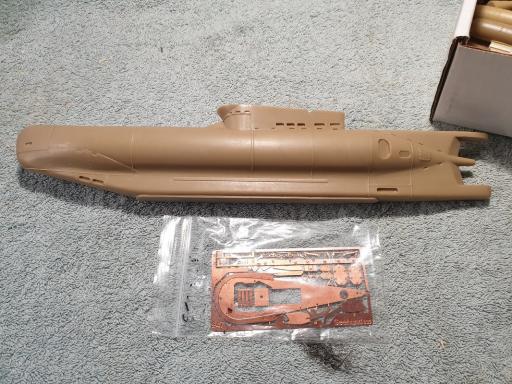

    I presume he started with making a mold of the Verlinden Seehund, the dimensions of his hull are exactly the same, in the past i bought the same kit, i can use the PE parts and other parts to make me a working Seehund.

    Click image for larger version

Name:	20220124_203736.jpg
Views:	614
Size:	55.8 KB
ID:	168363

    This is the hull he has made, same dimensions as the Verlinden kit.

    Click image for larger version

Name:	20220124_203834.jpg
Views:	608
Size:	47.2 KB
ID:	168364

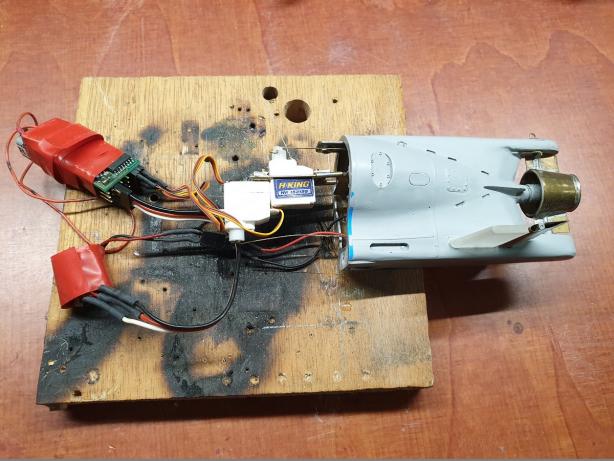

    Rearpart with the E motor and rods used to steer both the rudder and the diveplanes.

    Click image for larger version

Name:	20220124_203855.jpg
Views:	615
Size:	51.3 KB
ID:	168365

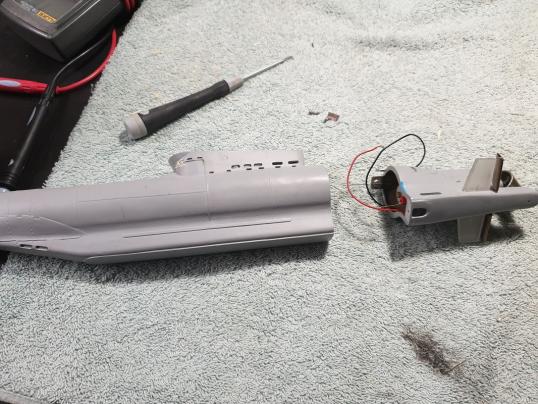

    It can be split by removing two hidden M2 screws.

    Click image for larger version

Name:	20230107_155106.jpg
Views:	611
Size:	48.0 KB
ID:	168366

    This where I am now, placed two micro servo's, hooked up the receiver and took a print from a normal servo as a ESC, still have to do some testing.


    Manfred.

    I went underground
  • redboat219
    Admiral

    • Dec 2008
    • 3032

    #2
    Manfred, several queries about your creation.

    -What motor are you using?
    -How do you actuate the rear diveplane and rudder with that tiny space?
    -How do you seal your shafts and control rods?
    Make it simple, make strong, make it work!

    Comment

    • MFR1964
      Detail Nut of the First Order
      • Sep 2010
      • 1346

      #3
      Romel,

      The E motor is a 6V motor from a old servo, don't know the brand
      Same way as with the big boats, only using rods 0,6 mm thick to steer everything
      Little O rings used at the propellorshaft and diveplanes, the tip of a seringe with a vaselinechamber used for the rudder, it has to be watertight as possible, no high waterpressure involved since it will be a dynamic and surface runner.

      Manfred.
      I went underground

      Comment

      • redboat219
        Admiral

        • Dec 2008
        • 3032

        #4
        I thought you were running the E-motor wet.
        Make it simple, make strong, make it work!

        Comment

        • MFR1964
          Detail Nut of the First Order
          • Sep 2010
          • 1346

          #5
          It will be a dryhull, just like the Bibers, you need all the room you can get with this tiny boats.


          Manfred.
          I went underground

          Comment

          • MFR1964
            Detail Nut of the First Order
            • Sep 2010
            • 1346

            #6
            This week i played around with the releasemechanism to shoot torpedo's, pictures

            Click image for larger version

Name:	20230107_155117.jpg
Views:	470
Size:	48.8 KB
ID:	168600

            This is the torpedo i want to use, they are shorter are my normal torps, normally i use them to fire from the reartube of my type VII.

            Click image for larger version

Name:	20230107_155226.jpg
Views:	445
Size:	49.1 KB
ID:	168601

            I made some movable clamps which will hold the torps in place, this is the secured position.

            Click image for larger version

Name:	20230108_143930.jpg
Views:	456
Size:	46.3 KB
ID:	168602

            From the front it looks like this.

            Click image for larger version

Name:	20230107_155313.jpg
Views:	452
Size:	54.6 KB
ID:	168603

            This is the unlock position, releasing the pin which keep the holders at their place.

            Click image for larger version

Name:	20230108_144012.jpg
Views:	439
Size:	44.9 KB
ID:	168604

            A look from the front with both holders released.

            Click image for larger version

Name:	20230107_155137.jpg
Views:	449
Size:	48.9 KB
ID:	168605

            It is not scale, but seen from this angle it doesn't look too wrong to me, now i have to link up the release mechanism to a servo, back to the tweezers.

            Manfred.



            I went underground

            Comment

            • MFR1964
              Detail Nut of the First Order
              • Sep 2010
              • 1346

              #7
              This was interesting, destroyed two servo's and had to order both some new ECS's and servo's,

              Click image for larger version

Name:	20230107_155349.jpg
Views:	425
Size:	53.7 KB
ID:	169307

              A microservo placed at the keel, just enough room to play.

              Click image for larger version

Name:	20230110_214753.jpg
Views:	415
Size:	47.4 KB
ID:	169308

              I ended up with building a plate which can hold the servo, used a 0,6 mm rod to connect the servo to the releasemechanism.

              Click image for larger version

Name:	20230109_165305.jpg
Views:	405
Size:	44.3 KB
ID:	169309

              After several times fitting i could determen the lenght and shape of the rod, believe me, big boats are better.

              Click image for larger version

Name:	20230115_104939.jpg
Views:	393
Size:	55.5 KB
ID:	169310

              And finally placed into his final position, the trick was, using as much tweezers you can get and a headlight to give you some light during the operation.

              Click image for larger version

Name:	20230109_163857.jpg
Views:	397
Size:	49.0 KB
ID:	169311

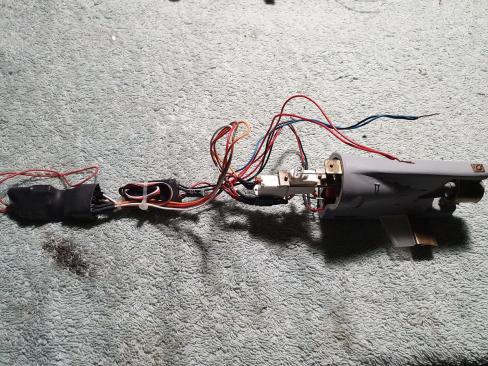

              Wiring up the new ESC, the old one gave me flutter on the servo's, this a big no no, because it will launch the torpedo's pre-mature.

              Click image for larger version

Name:	20230114_174205.jpg
Views:	402
Size:	50.1 KB
ID:	169312

              Since i have a slight disorder for hatches, i made me this, complete with the glass dome of the Verlinden kit.

              Click image for larger version

Name:	20230114_174216.jpg
Views:	402
Size:	51.5 KB
ID:	169313

              And yes, it can be opened. this is done with a special reason.

              Click image for larger version

Name:	20230115_104603.jpg
Views:	406
Size:	49.1 KB
ID:	169314

              I added a inner tube with a connector at the bottom.

              Click image for larger version

Name:	20230115_104631.jpg
Views:	402
Size:	61.2 KB
ID:	169315

              Modified a figure with a connector at the bottom, the idea is, once you put this guy into the hatch it will activate the boat by closing the circuit, the inner tube is also used to vent the boat when she has to get used to the temparture of the water.
              To be continued.

              Manfred.







              I went underground

              Comment

              • He Who Shall Not Be Named
                Moderator

                • Aug 2008
                • 12765

                #8
                Madness!!!!

                You intimidate us all!
                Who is John Galt?

                Comment

                • MFR1964
                  Detail Nut of the First Order
                  • Sep 2010
                  • 1346

                  #9
                  Madness indeed, the first one who tells me building small boats is easy can run for his life.
                  On the other hand me love Rube Goldberg, i like to build things with a challence, so a seehund capable of shooting torps is a plus, the scale that is another story.

                  Manfred.
                  I went underground

                  Comment

                  • MFR1964
                    Detail Nut of the First Order
                    • Sep 2010
                    • 1346

                    #10
                    I decided this week to play with the torpedo's, to be more precise, finding out where the magnets have to be placed,

                    Click image for larger version

Name:	20230211_130047.jpg
Views:	372
Size:	56.2 KB
ID:	169560

                    Ended up with keeping the body of the torp at his place with tape, measured up what the exact position of the body will be.

                    Click image for larger version

Name:	20230211_130104.jpg
Views:	353
Size:	53.3 KB
ID:	169561

                    By using a multimeter i could see when the magnet would activate the torp,

                    Click image for larger version

Name:	20230211_130140.jpg
Views:	348
Size:	53.7 KB
ID:	169562

                    Once the torp is launched it will run away under it's own power.

                    Click image for larger version

Name:	20230109_165416.jpg
Views:	357
Size:	51.3 KB
ID:	169563

                    To keep the magnets at their place i first used CA and ended up with 2K epoxyglue.

                    Click image for larger version

Name:	20230209_204734.jpg
Views:	344
Size:	49.6 KB
ID:	169564

                    You can see the magnets at their place on both sides of the servo, believe me it was not done quick, the room inside is terrible and you need three hands to get things done.

                    Click image for larger version

Name:	20230115_104722.jpg
Views:	351
Size:	49.0 KB
ID:	169565

                    Also found out i made a mistake with the hatch, the hinge had to be at the front, took the soldering iron and corrected it. the result can be seen in the first picture of this post.

                    Together with the kit come some resing parts which make up the scope and antenna, this will be duplicated into copper, just to be sure it will not be knocked off, so back to the cave for some more work.

                    Manfred.



                    I went underground

                    Comment

                    • MFR1964
                      Detail Nut of the First Order
                      • Sep 2010
                      • 1346

                      #11
                      Due to medical issue's the Seehund was on hold, i've been operated and back on the road to recovery, i can show you guys the results before everything went wrong,

                      Click image for larger version

Name:	20230115_104811.jpg
Views:	386
Size:	55.7 KB
ID:	170961

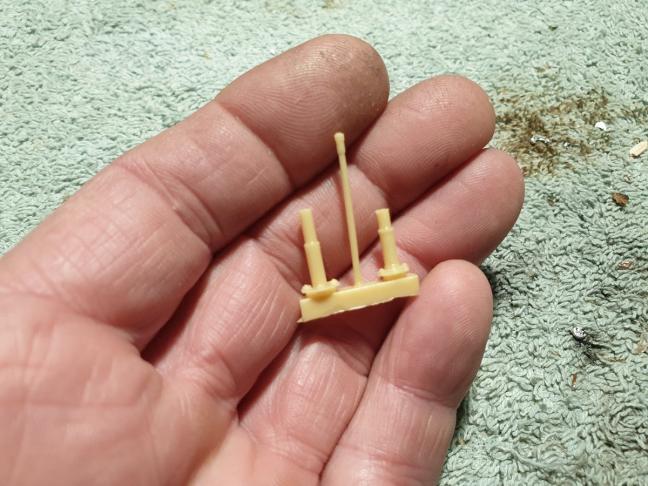

                      As you buy the model they have included some resin parts which represent the scopes, the are too fragile to place on the boat.

                      Click image for larger version

Name:	20230115_110859.jpg
Views:	364
Size:	48.9 KB
ID:	170962

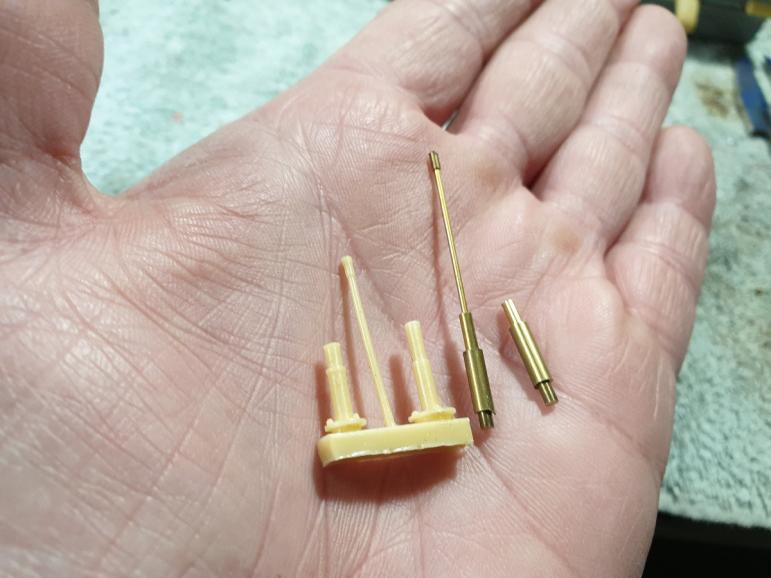

                      Made me some copper parts as replacement.

                      Click image for larger version

Name:	20230209_204002.jpg
Views:	361
Size:	56.0 KB
ID:	170963

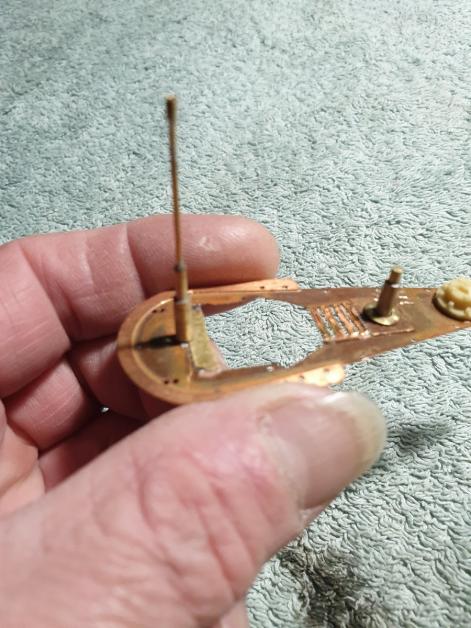

                      The copper parts soldered on the PE deck.

                      Click image for larger version

Name:	20230209_204117.jpg
Views:	366
Size:	42.5 KB
ID:	170964

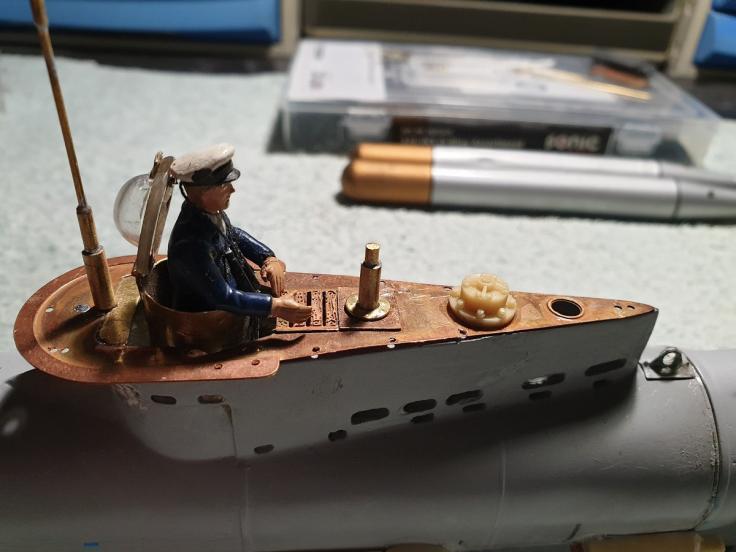

                      A dryfitt on the Seehund to see if eveything matches before i can glue the deck down.

                      Click image for larger version

Name:	20230209_204846.jpg
Views:	368
Size:	52.9 KB
ID:	170965

                      And this will be the general layout which will be placed inside the Seehund, from left to right, receiver, ESC, 2 servo's for both the rudder and rear dive planes, the 3 thrd servo is inside the hull for launching the torpedo's.

                      Click image for larger version

Name:	20221228_091225.jpg
Views:	360
Size:	49.5 KB
ID:	170966

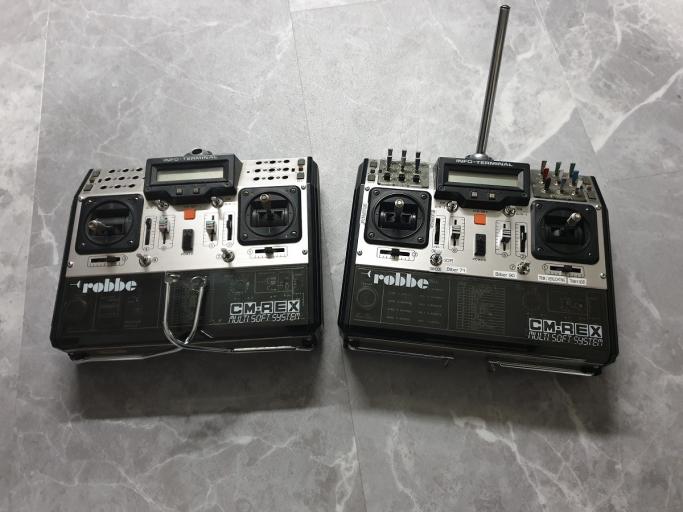

                      Rebuilded the old transmittor to a spare one, the old one sometimes defaulted itself from nothing, you don't that want to happen when driving your boat.



                      For now i have to make some provisions to add some lead inside and come up with a secure way to place the batterypack inside, also reprogramming the newly rebuilded transmittor for my boats and testing all functions of both the transmittor and boats.


                      Manfred.











                      I went underground

                      Comment

                      • SSBN659
                        Commander
                        • Feb 2009
                        • 417

                        #12
                        Sorry to hear about your operation but wish you a speedy recovery. I'm always amazed at what you come up with in the models you do.

                        Best,

                        Will Rogers
                        SSBN659

                        Comment

                        • MFR1964
                          Detail Nut of the First Order
                          • Sep 2010
                          • 1346

                          #13
                          Thanks Will, it will take some time, as for the models, i allways want to know what is possible or not, i've got me a serious Rube Goldberg syndrome, if it won't work i've got me some nice static models.

                          Manfred.
                          I went underground

                          Comment

                          • MFR1964
                            Detail Nut of the First Order
                            • Sep 2010
                            • 1346

                            #14
                            I has been some time since my last post, they diagnosted cancer with SWMBO, she's operated and recovering, giving me time to put on the lights in the Cave,

                            First i will post the progress which i made last summer,

                            Click image for larger version

Name:	20230209_210200.jpg
Views:	200
Size:	55.5 KB
ID:	178077

                            First i added some flat lead to give me some weight inside the hull

                            Click image for larger version

Name:	20230209_214650.jpg
Views:	176
Size:	46.6 KB
ID:	178078

                            Made the charging points in the keel, marked them with the right polarity, inside the plus connection there is a diode present, so there will not be a short between the connections when put inside the water.

                            Click image for larger version

Name:	20230211_130306.jpg
Views:	179
Size:	57.7 KB
ID:	178079

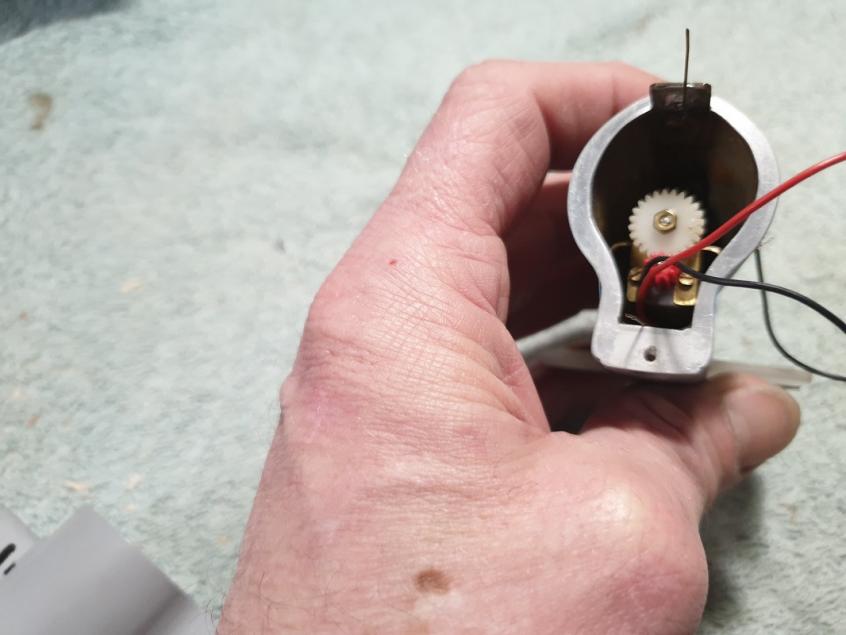

                            Finding a way to place some of the batteries ,first made a mockup with some ducktape, those two are present at the rear, the others will be placed inside the front of the hull

                            Click image for larger version

Name:	20230211_130327.jpg
Views:	173
Size:	49.1 KB
ID:	178080

                            It was a near fitt, had to remove some material from the left flange to make it happen.

                            Click image for larger version

Name:	20230211_170659.jpg
Views:	181
Size:	57.9 KB
ID:	178081

                            Ended up with those copper holders, secured them with superglue and backingsoda.

                            Click image for larger version

Name:	20230519_144402.jpg
Views:	175
Size:	53.4 KB
ID:	178082

                            Time to get all the stuff inside, believe me, i rather build bigger boats, you need three arms to get is right.

                            Click image for larger version

Name:	20230519_152807.jpg
Views:	179
Size:	52.1 KB
ID:	178083

                            Had everything inside and the servo of the torpedo release burned out during testing, so i had to take apart the boat to replace this.

                            Click image for larger version

Name:	20230519_152841.jpg
Views:	177
Size:	57.5 KB
ID:	178084

                            Replaced the servo by this one, had to fiddle this one inside, a pain in the ass.

                            Click image for larger version

Name:	20240203_172042.jpg
Views:	177
Size:	55.7 KB
ID:	178085

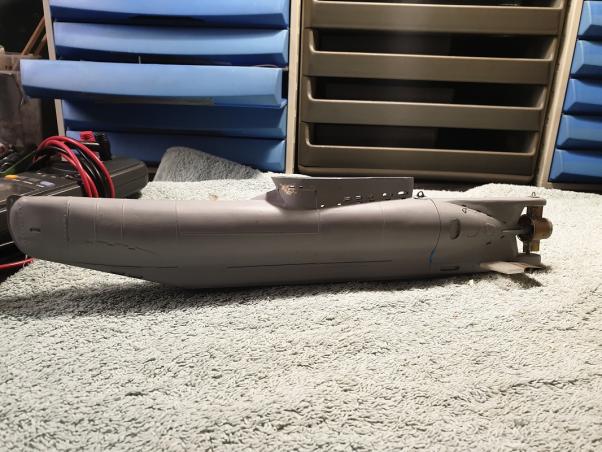

                            This is where i stand now, slapped on some paint and she is sealed with the use of RTV, ready to do some watertight testing this weekend.

                            Procedure of testing will be simple, weigh the boat when dry, weigh the boat when wet, leave it for some time in the water and weigh it again, when no leaks the weight will be stable, when not, i have to search where the leak is coming from.

                            Manfred.
                            Last edited by MFR1964; 02-08-2024, 01:05 PM. Reason: restoring pictures
                            I went underground

                            Comment

                            • goshawk823
                              Lieutenant Commander
                              • Oct 2010
                              • 231

                              #15
                              Best wishes for a speedy recovery for your wife.
