        Bart,
        What kind of stuff do you use for making the mold, doesn't look like regular silicone.

        Manfred.
        I went underground

        Comment

        • bwi 971
          Captain
          • Jan 2015
          • 896

          Originally posted by MFR1964
          Bart,
          What kind of stuff do you use for making the mold, doesn't look like regular silicone.

          Manfred.

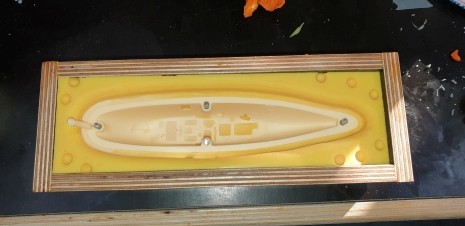

          2 part RTV silicone; 50/50 equal parts. I got mine from "Voschemie", V-SURE SILICONE, different colors = different curing times, think yellow is medium, blue is fast.

          grtz,
          Bart





          Practical wisdom is only to be learned in the school of experience.
          "Samuel Smiles"

          Comment

          • bwi 971
            Captain
            • Jan 2015
            • 896

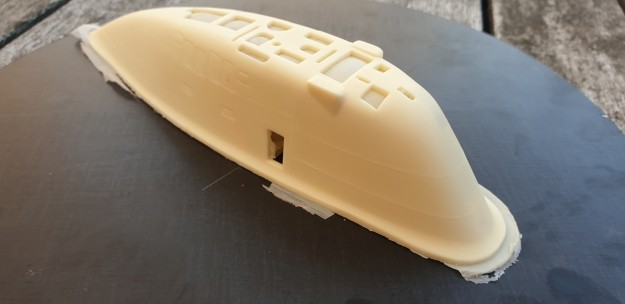

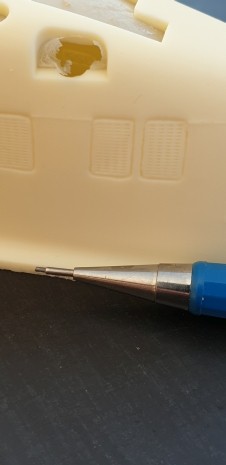

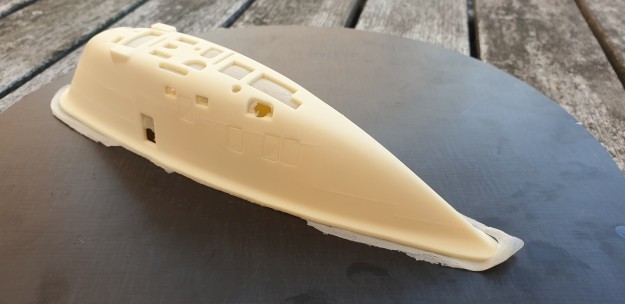

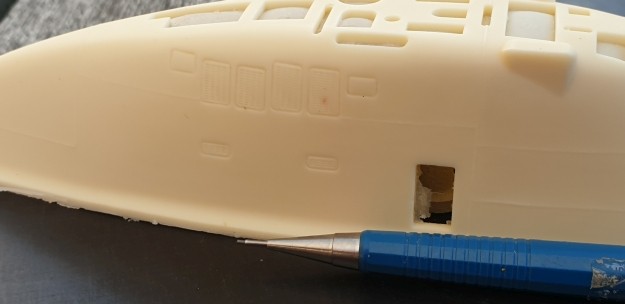

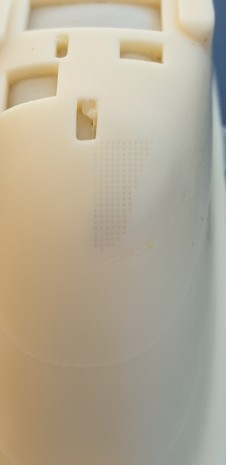

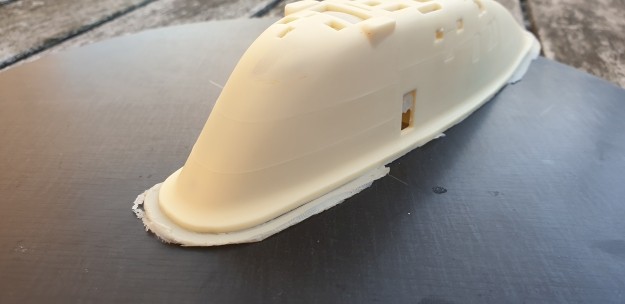

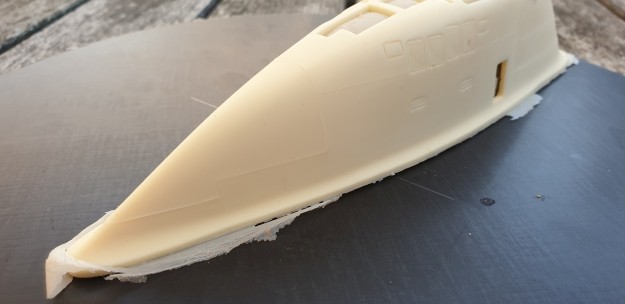

            Sail casting, right out of the tool.
            All the tiny details are present.....the weldingseams are spot on.
            Very pleased with the result.

            Grtz,
            Bart

            Click image for larger version

Name:	20200806_195123.jpg
Views:	217
Size:	25.7 KB
ID:	142616

            Click image for larger version

Name:	20200806_195731.jpg
Views:	198
Size:	23.8 KB
ID:	142623

            Click image for larger version

Name:	20200806_195602.jpg
Views:	193
Size:	28.4 KB
ID:	142622

            Click image for larger version

Name:	20200806_195557.jpg
Views:	196
Size:	33.7 KB
ID:	142621

            Click image for larger version

Name:	20200806_195549.jpg
Views:	207
Size:	28.8 KB
ID:	142619

            Click image for larger version

Name:	20200806_195543.jpg
Views:	193
Size:	29.1 KB
ID:	142618

            Click image for larger version

Name:	20200806_195657.jpg
Views:	201
Size:	14.2 KB
ID:	142620

            Click image for larger version

Name:	20200806_195708.jpg
Views:	195
Size:	9.9 KB
ID:	142617


            Practical wisdom is only to be learned in the school of experience.
            "Samuel Smiles"

            Comment

            • HardRock
              Vice Admiral
              • Mar 2013
              • 1609

              That is amazingly good. Prime and go - no sanding required!

              Comment

              • HardRock
                Vice Admiral
                • Mar 2013
                • 1609

                Suggestion for hull finish?

                Click image for larger version

Name:	nuke_224.jpg
Views:	238
Size:	73.0 KB
ID:	142633

                Comment

                • bwi 971
                  Captain
                  • Jan 2015
                  • 896

                  Originally posted by HardRock
                  That is amazingly good. Prime and go - no sanding required!
                  Thks Scott

                  Originally posted by HardRock
                  Suggestion for hull finish?

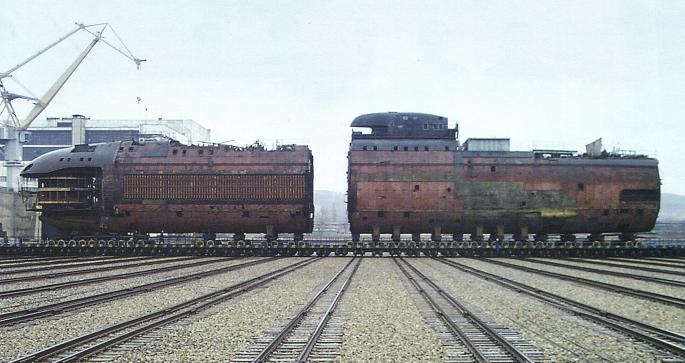

                  Oh I see you want a "custom made special edition".....here you go, this is coming your way.

                  Grtz,
                  Bart


                  Click image for larger version

Name:	04-3764569-utilizatsiya-apl.jpg
Views:	278
Size:	48.9 KB
ID:	142652
                  Practical wisdom is only to be learned in the school of experience.
                  "Samuel Smiles"

                  Comment

                  • bwi 971
                    Captain
                    • Jan 2015
                    • 896

                    Well seems that shapeways could not print the props due to their cleaning process (apparently they blast the model with air and glass beads to achieve a powder-free model).
                    Those things always trigger me, and I become pretty determined to make it happen anyway.

                    First stem I wanted to print them as a whole, not in parts, I made a bunch of test prints to determine the minimum supports needed and the determine the most favorable orientation of the propeller.

                    After I found the sweet spot I printed the propeller in scale 1/96 and 1/72.
                    Next I will be making the tooling for them.


                    Grtz,
                    Bart

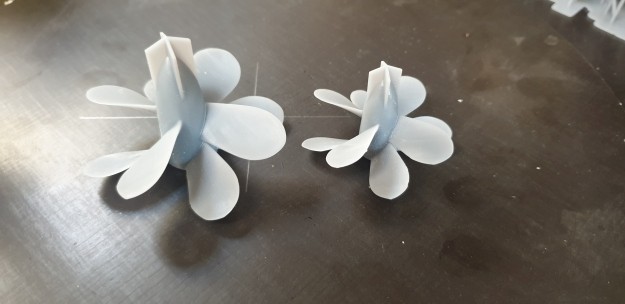

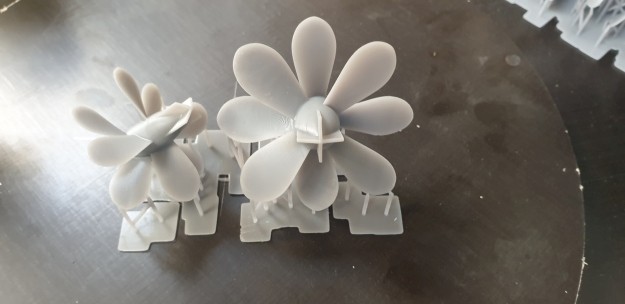

                    Testprints

                    Click image for larger version

Name:	20200807_131012.jpg
Views:	256
Size:	25.5 KB
ID:	142657

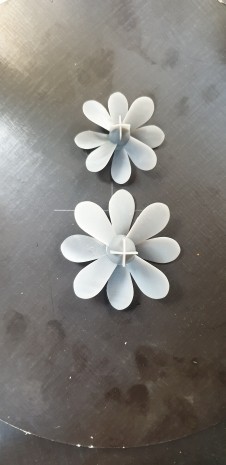

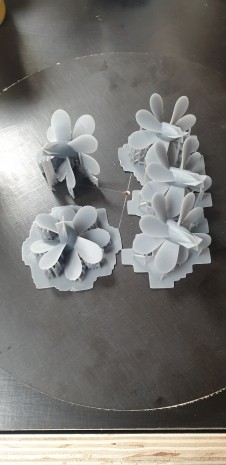

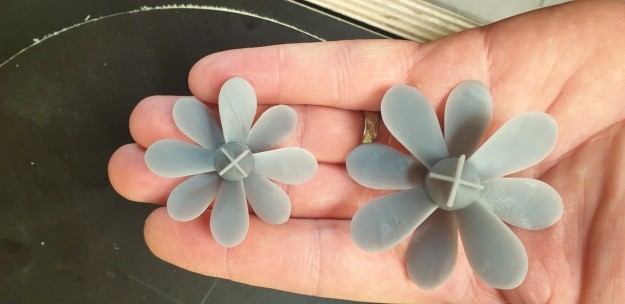

                    Final print 1/96 and 1/72 scale

                    Click image for larger version

Name:	20200807_191306.jpg
Views:	246
Size:	39.0 KB
ID:	142661

                    Click image for larger version

Name:	20200807_191346.jpg
Views:	229
Size:	32.3 KB
ID:	142660

                    Click image for larger version

Name:	20200807_191236.jpg
Views:	236
Size:	21.9 KB
ID:	142659

                    Click image for larger version

Name:	20200807_183305.jpg
Views:	235
Size:	31.3 KB
ID:	142658




                    Practical wisdom is only to be learned in the school of experience.
                    "Samuel Smiles"

                    Comment

                    • trout
                      Admiral
                      • Jul 2011
                      • 3545

                      Bart,
                      What slicer are you using?
                      Peace,
                      Tom
                      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                      Comment

                      • HardRock
                        Vice Admiral
                        • Mar 2013
                        • 1609

                        How unlike you to go and get something done that others tell you can't be done!

                        We are the Pilgrims, master; we shall go
                        Always a little further; it may be
                        Beyond that last blue mountain barred with snow
                        Across that angry or that glimmering sea


                        Comment

                        • bwi 971
                          Captain
                          • Jan 2015
                          • 896

                          Originally posted by trout
                          Bart,
                          What slicer are you using?
                          Peace,
                          Tom
                          nothing fancy Tom, the one of anycubic. Its all in the prep meaning, supporting and positioning of the piece.

                          Grtz,
                          Bart
                          Practical wisdom is only to be learned in the school of experience.
                          "Samuel Smiles"

                          Comment

                          • bwi 971
                            Captain
                            • Jan 2015
                            • 896

                            Originally posted by HardRock
                            How unlike you to go and get something done that others tell you can't be done!

                            We are the Pilgrims, master; we shall go
                            Always a little further; it may be
                            Beyond that last blue mountain barred with snow
                            Across that angry or that glimmering sea

                            I loved this quote so much that I looked it up Scott. Learned something new again "Herman Elroy Flecker"
                            Thks mate,

                            Grtz,
                            Bart
                            Practical wisdom is only to be learned in the school of experience.
                            "Samuel Smiles"

                            Comment

                            • bwi 971
                              Captain
                              • Jan 2015
                              • 896

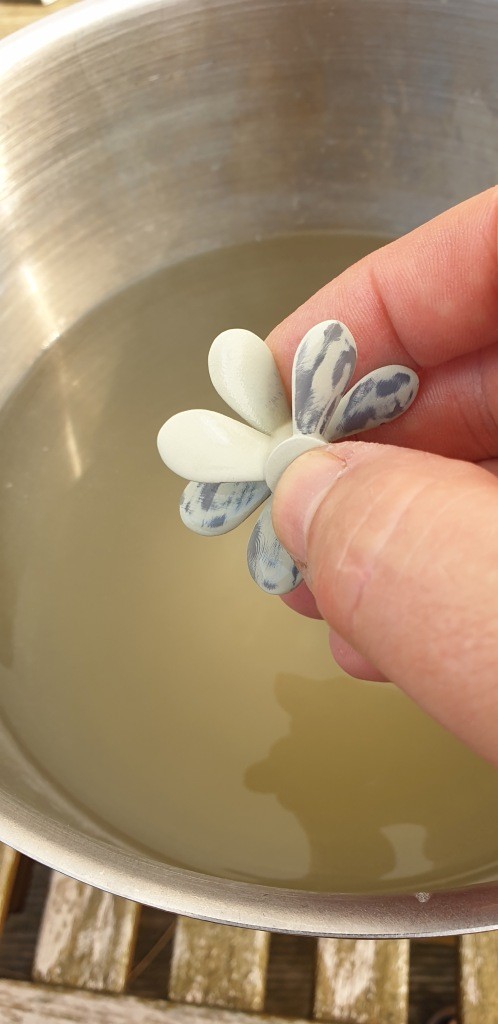

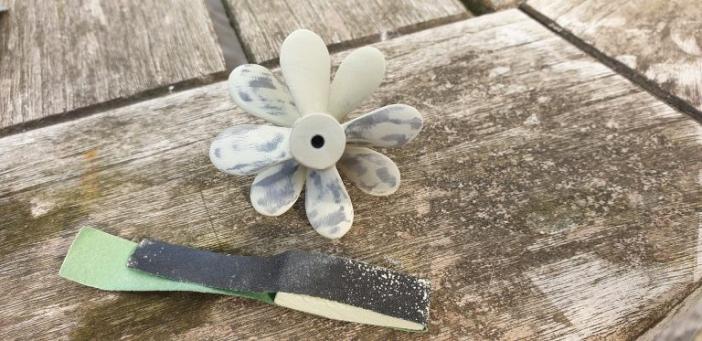

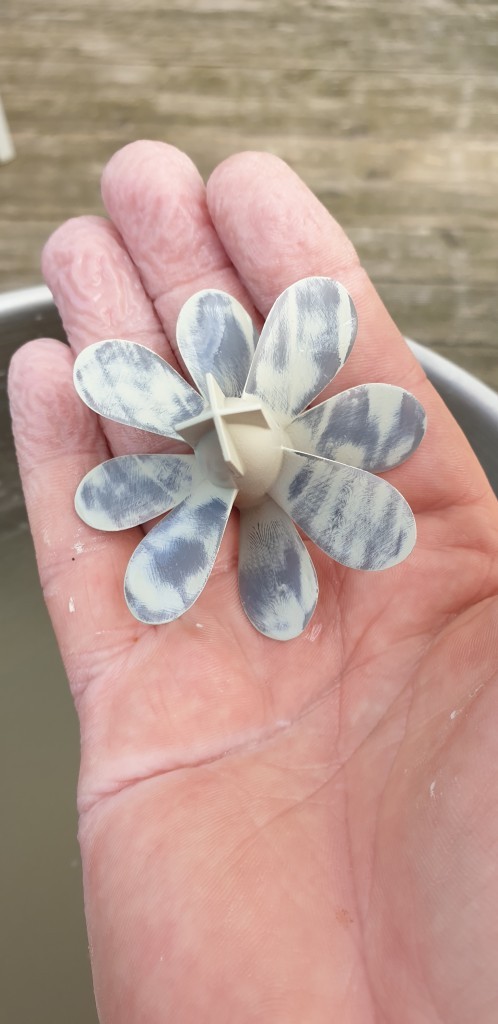

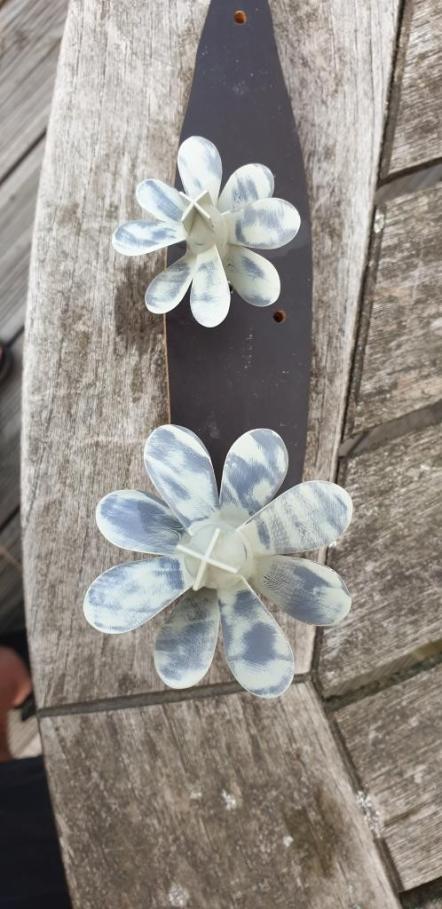

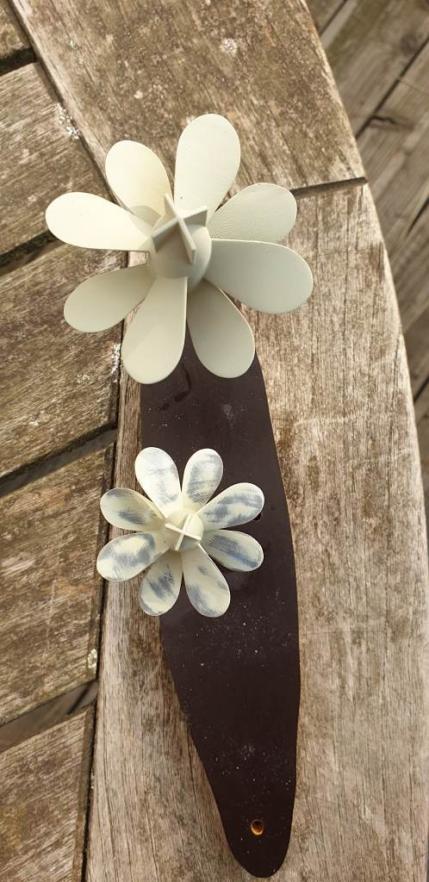

                              Even when printed with a layer height of 0,05 mm, you always will experience artifacts in your prints, applied filler and wet sanded the propellers, the small artifacts are clearly visually and filled with the applied paint.

                              Grtz,
                              Bart

                              Click image for larger version

Name:	20200808_175709.jpg
Views:	242
Size:	54.3 KB
ID:	142690

                              Click image for larger version

Name:	20200808_175736.jpg
Views:	239
Size:	75.9 KB
ID:	142691

                              Click image for larger version

Name:	20200808_180249.jpg
Views:	218
Size:	68.0 KB
ID:	142694

                              Click image for larger version

Name:	20200808_181926.jpg
Views:	225
Size:	83.3 KB
ID:	142692

                              Click image for larger version

Name:	20200808_183517.jpg
Views:	224
Size:	66.1 KB
ID:	142693

                              Practical wisdom is only to be learned in the school of experience.
                              "Samuel Smiles"

                              Comment

                              • HardRock
                                Vice Admiral
                                • Mar 2013
                                • 1609

                                Suggested colour scheme?

                                Click image for larger version

Name:	EestvvwWoAYKTOF.png
Views:	260
Size:	30.4 KB
ID:	142712
