    When Putting a Flat on a Motor Shaft

    When I File, Grind or Cut a flat on a motor shaft I use some blue tape with the sticky side out and the motor shaft poked thru. This way when cutting, the filings don't get sucked into the workings by the magnets - then when your done the tape is folded over the shaft and all the filings are wiped off with the tape-

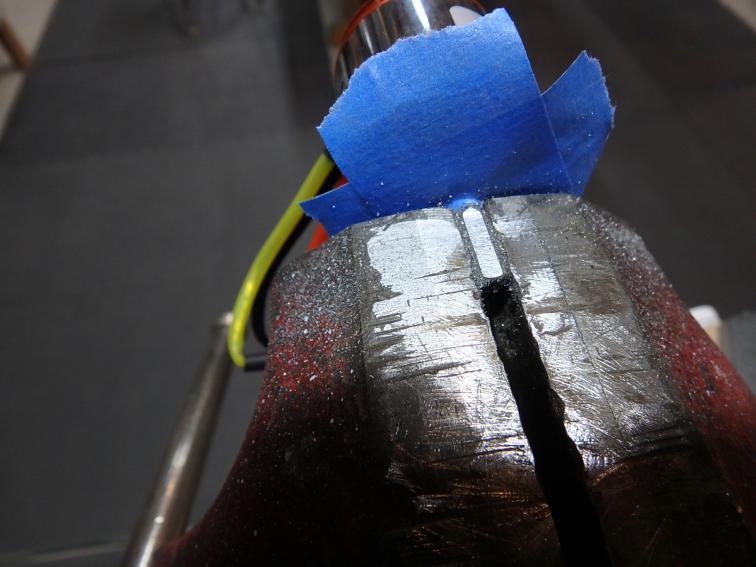

    Click image for larger version  Name:	P6020033.jpg Views:	77 Size:	54.8 KB ID:	180538

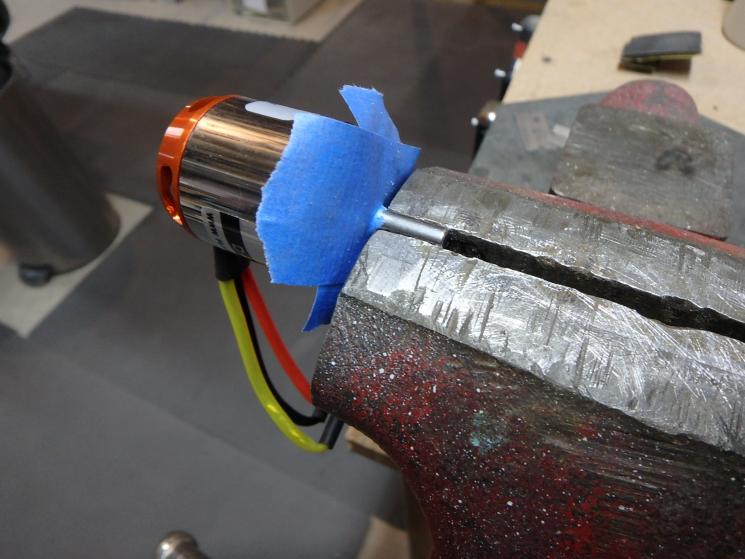

    Click image for larger version  Name:	P6020034.jpg Views:	60 Size:	49.7 KB ID:	180539

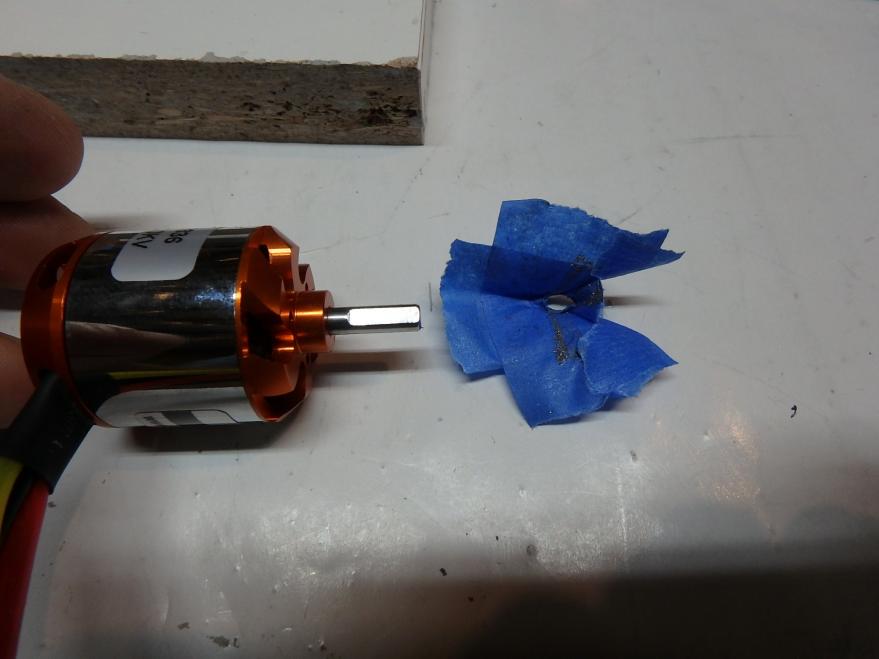

    Click image for larger version  Name:	P6020035.jpg Views:	62 Size:	46.1 KB ID:	180540

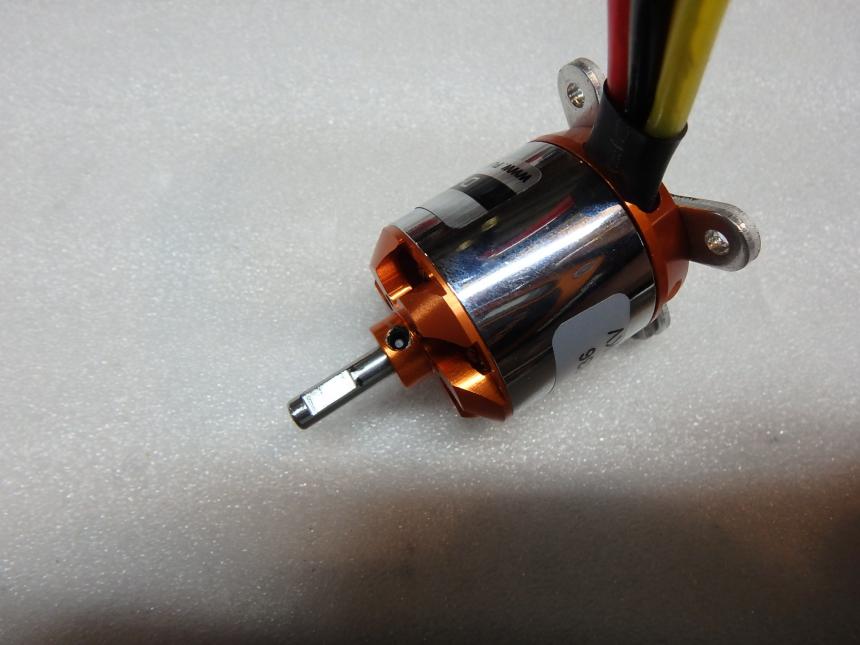

    Click image for larger version  Name:	P6020036.jpg Views:	61 Size:	41.3 KB ID:	180541
    Last edited by Bob Gato; 06-08-2024, 07:55 AM.
  • He Who Shall Not Be Named
    Moderator

    • Aug 2008
    • 12949

    #2
    A similar 'chip-guard' employed to keep nasties out of the motor case:



    Who is John Galt?

    Comment

    • redboat219
      Admiral

      • Dec 2008
      • 3168

      #3
      A brief procedure to disassemble brushless motor for bearings and shaft replacement.
      Make it simple, make strong, make it work!

      Comment

      • ffr2608
        Commander

        • Oct 2009
        • 307

        #4
        i put the motor in a ziploc and poke the shaft out a corner. Airtight.... I do hate dremeling those flats on the motors.

        Comment

        • Bob Gato
          Captain

          • Feb 2019
          • 864

          #5
          The plastic bag trick is also pretty slick-
          I too hate Dremeling the flats-I find that a file is easier to produce a flatter flat-the shafts are not hardened and there is less chance of going too deep-Just my OCD!


          Oh, on this subject...I forgot to mention that I line the flat up with the setscrew for the motor bell or anything else needed to reference where the flat is to facilitate finding its position when assembling.

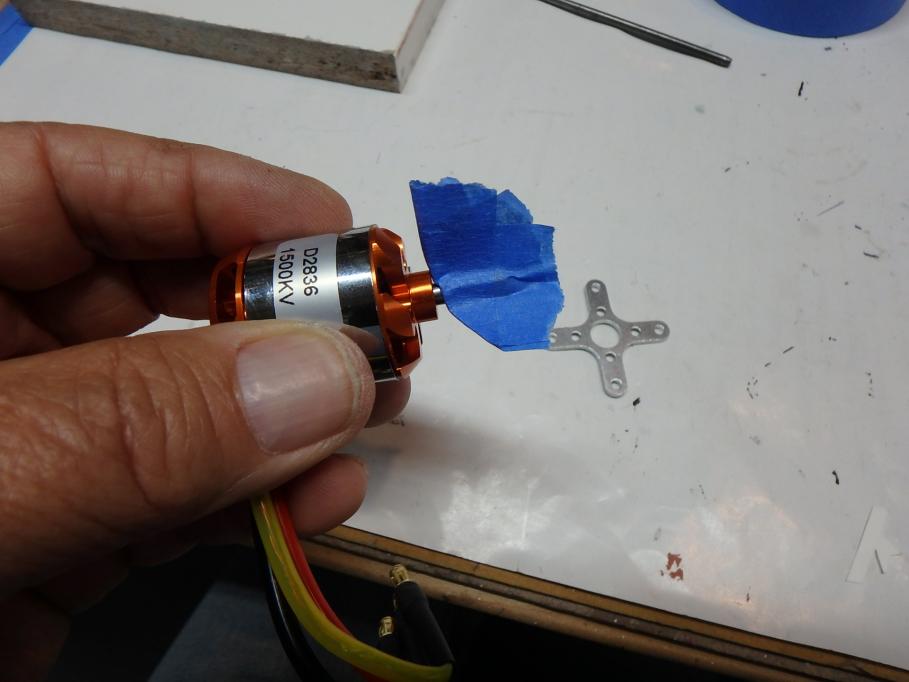

          Click image for larger version  Name:	P6070037.jpg Views:	0 Size:	55.2 KB ID:	180577
