Setting the 1/72 Type VII Rudder Post Gear

[redboat219]

David,
In the fittings kit for the 1/72 Revell Type VII you fabricated a pair of semi-circular gear segment that intermesh for turning both rudders simultaneously. Can you post the proper way to set both gears?

Thanks.

[He Who Shall Not Be Named]

David,
In the fittings kit for the 1/72 Revell Type VII you fabricated a pair of semi-circular gear segment that intermesh for turning both rudders simultaneously. Can you post the proper way to set both gears?

Thanks.

[redboat219]

Is there a particular angle to those black lines on the gears marked S and P?

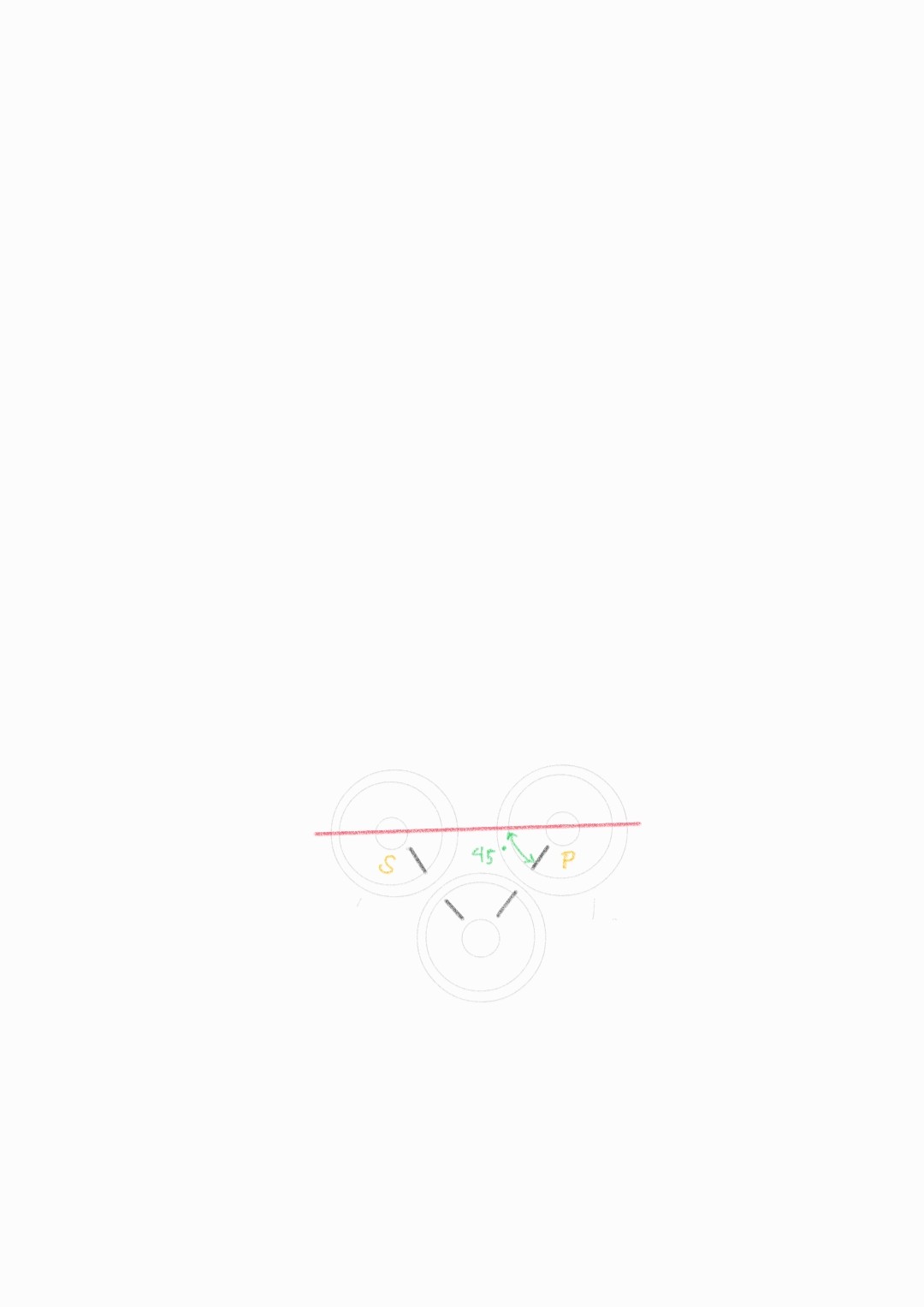

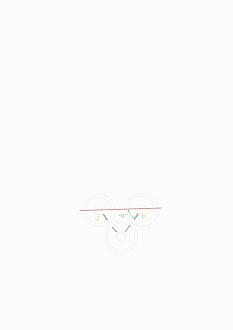

From the photos they look like they're set at 45° from a line running between the 2 rudder post.

[gantu]

http://www.offshoreattack.de/uboot%20-%20Kopie.htm

https://www.wettringer-modellbauforum.de/forum/index.php?page=Thread&threadID=51304

[gantu]

https://www.modelboats.co.uk/news/article/dynamic-diving/520#

[gantu]

https://www.smc-husum.de/bauberichte/baubericht-u-995/

https://www.rcshipyard.com/uboot-viic/

[He Who Shall Not Be Named]

Is there a particular angle to those black lines on the gears marked S and P?
From the photos they look like they're set at 45° from a line running between the 2 rudder post.

Show me something you have actually built and I'll play with you, Romel. Till then enough with the endless steam of (sometimes worth-while) questions to me. If and when you encounter a real model-building/kit-assembly problem you are ACTUALLY dealing with I'll be there for you. Till then, take your seat at the back of the class and let the actual doer's out there drink from my endless fount of knowledge.

David

[redboat219]

Whoa, Aunt Flo. I'm just asking so I can take notes for future references for the kit and fittings I got.

Better to ask it now or would you prefer I do it later...
