  • bwi 971
    Captain

    • Jan 2015
    • 940
    #1

    Yasen

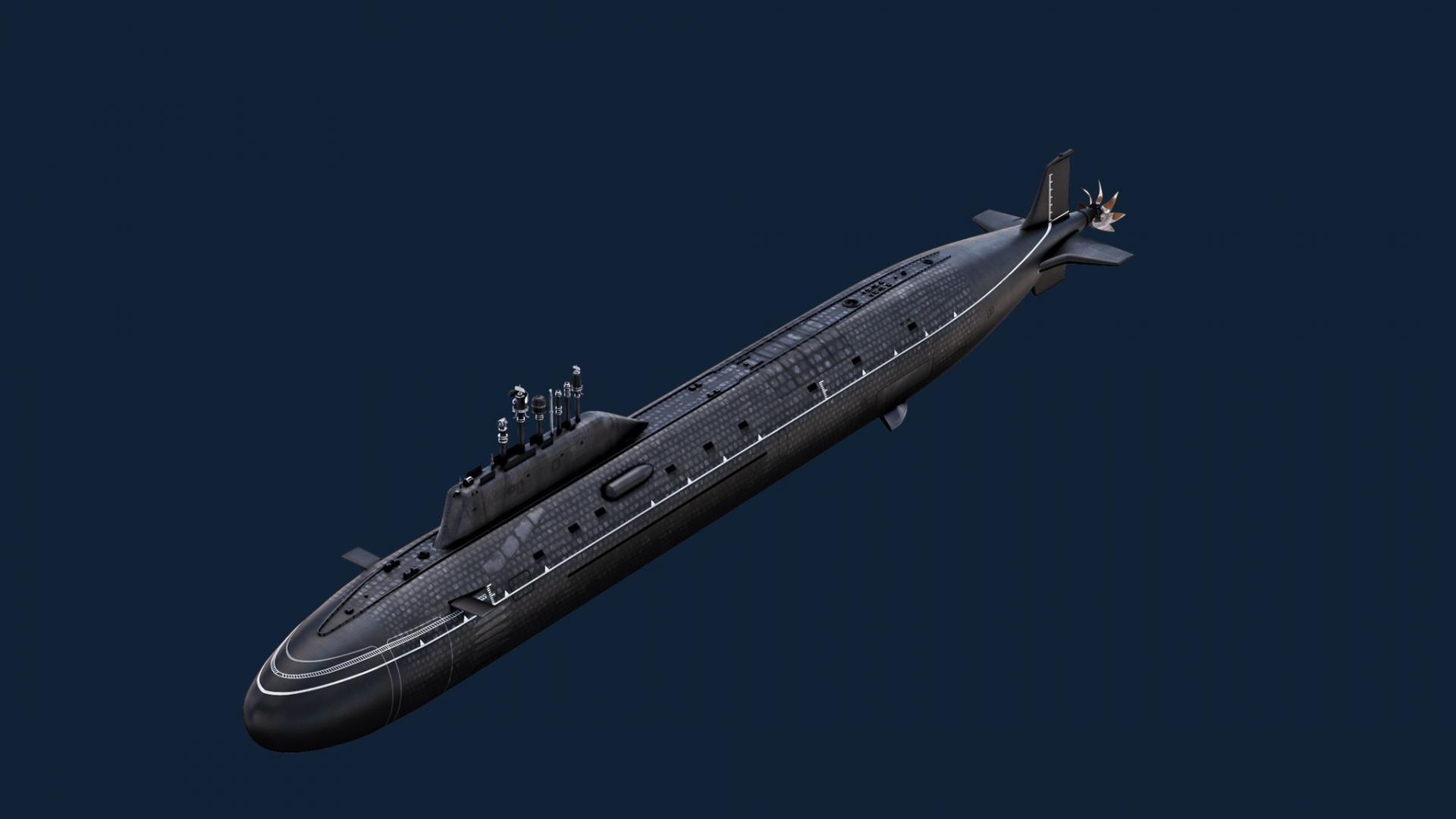

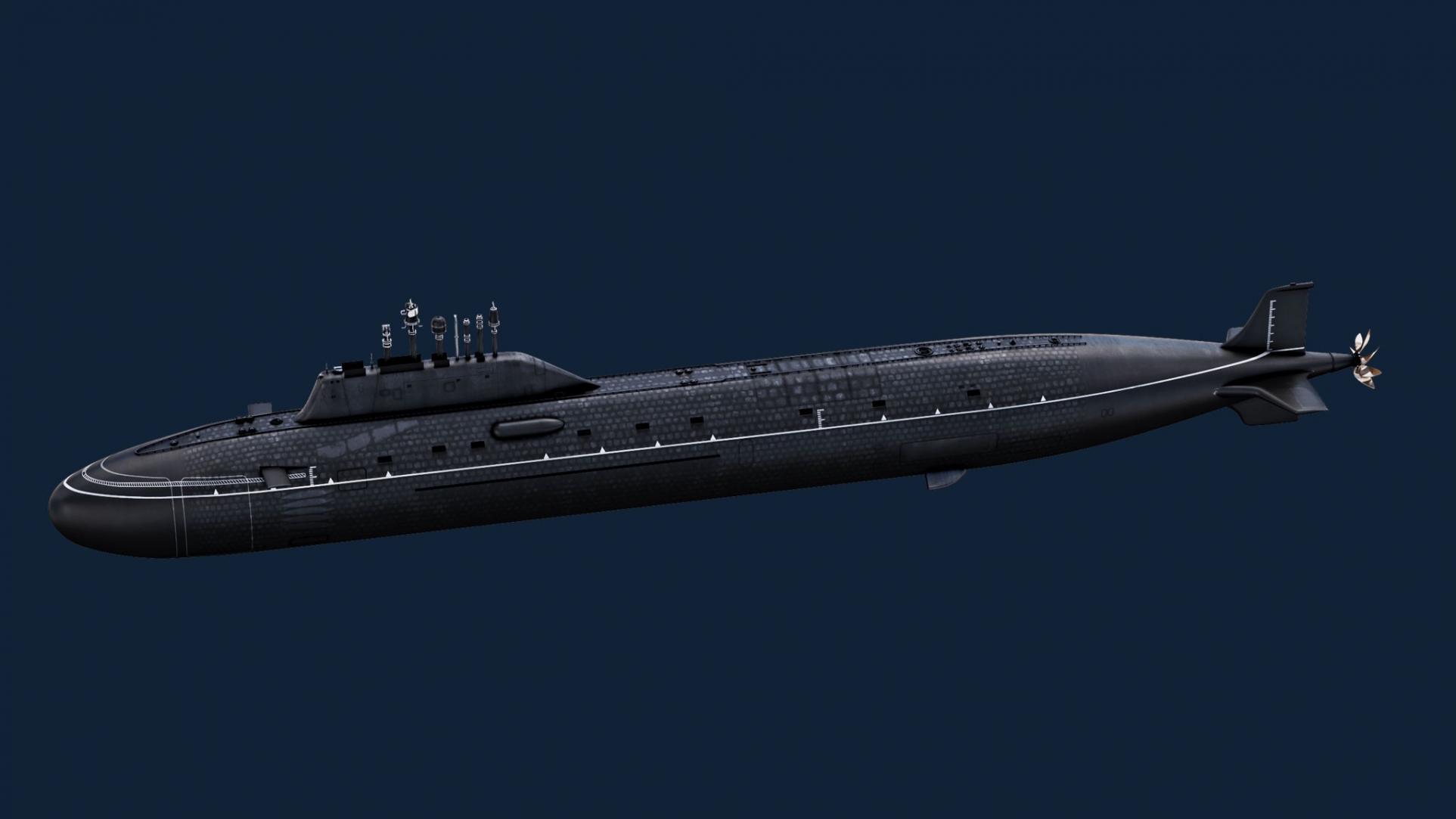

    Yasen class

    Click image for larger version Name: Yasen 002.jpg Views: 897 Size: 199.0 KB ID: 122526
    Practical wisdom is only to be learned in the school of experience.
    "Samuel Smiles"
    Tags: None
    • HardRock
      Vice Admiral
      • Mar 2013
      • 1609
      #2
      Click image for larger version Name: 21.jpg Views: 1012 Size: 359.0 KB ID: 129133
      This is a message with at least 10 characters!

        Comment

        • He Who Shall Not Be Named
          Moderator

          • Aug 2008
          • 13393
          #3
          Looks like the Soviets … er, I mean Russian's … have finally embraced the spherical array. Ten tubes!!!! Sucks to be a Torpedoman on that boat!

          David
          Who is John Galt?
            👍 1

            Comment

            • DMTNT
              Commander
              • Jun 2018
              • 297
              #4
              Originally posted by He Who Shall Not Be Named
              Looks like the Soviets … er, I mean Russian's … have finally embraced the spherical array. Ten tubes!!!! Sucks to be a Torpedoman on that boat!

              David
              If their tanks are any indication, I imagine they've automated the loading process as much as possible. Just make sure to keep your shirt sleeves out of the mechanism!!
              Dead men tell no tales...

                Comment

                • rwtdiver
                  Vice Admiral

                  • Feb 2019
                  • 1935
                  #5
                  Found a couple more photos YESEN 885 K-560 "Severodvinsk"

                  Browsing through Task news & Moscow News, I came across these two photos!

                  Click image for larger version Name: img03.jpg Views: 979 Size: 70.3 KB ID: 144023Click image for larger version Name: img23.jpg Views: 985 Size: 70.6 KB ID: 144024

                  Interesting seeing what Russia is doing!!

                  Rob

                  "Firemen can stand the heat"

                    Comment

                    • Albacore 569
                      Captain

                      • Sep 2020
                      • 611
                      #6
                      The first Yasen class SSGN boat Severodvinsk is only one with a conventional propellor, the remaining 5 of class built so far of the 12 total planned use a pump jet.
                      The remaining new build are expected for the pacific fleet. They are designed to protect the new Borei SSBNs.

                      Click image for larger version Name: yasen-masts.jpg Views: 85 Size: 61.1 KB ID: 188303


                      Last edited by Albacore 569; 06-03-2025, 10:38 AM.
