    Hello all in my HMS Vengeance thread I alluded to a sub my mate, Roger Suitters, was building well I now have his permission to show you what he is doing,

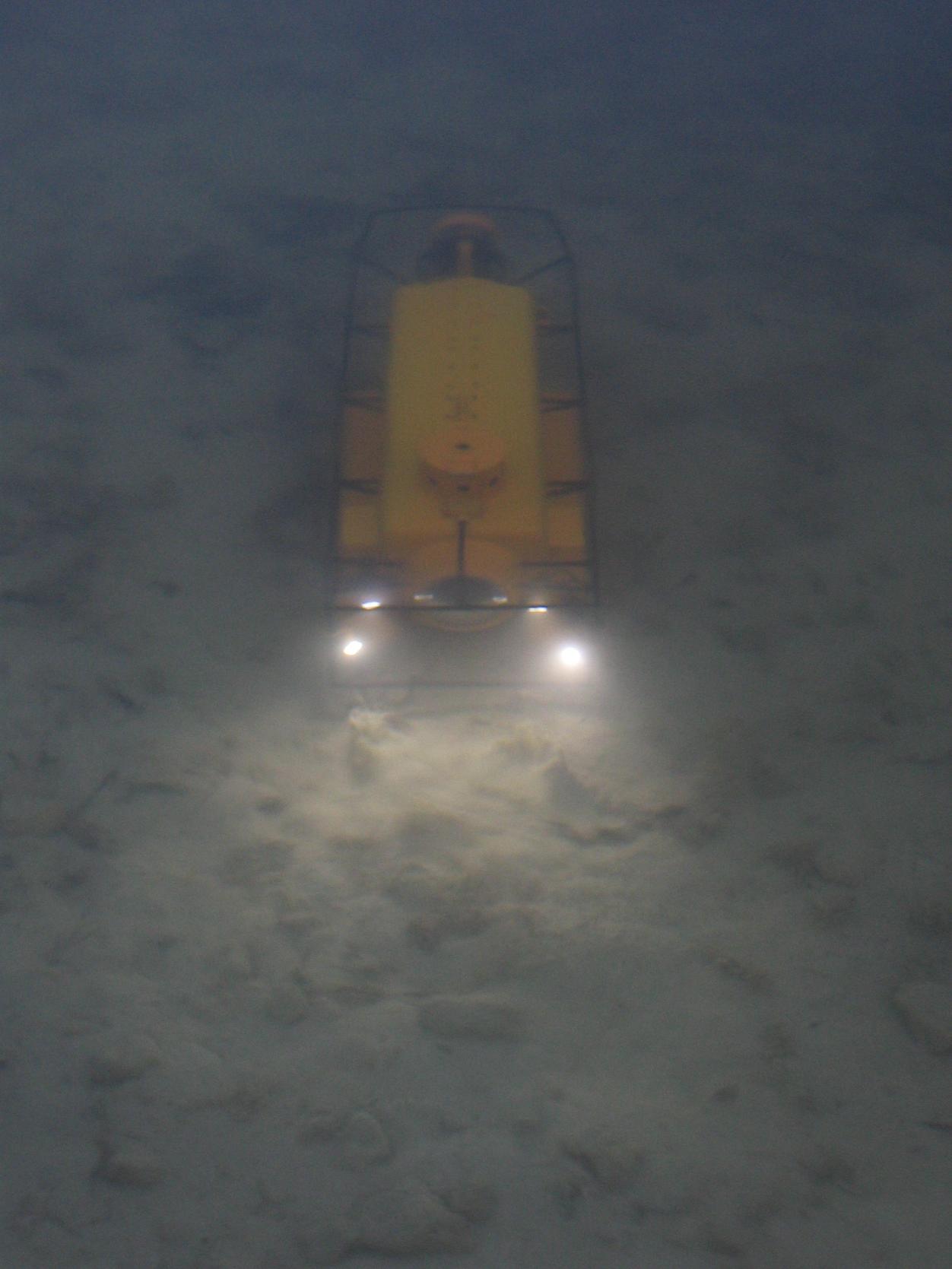

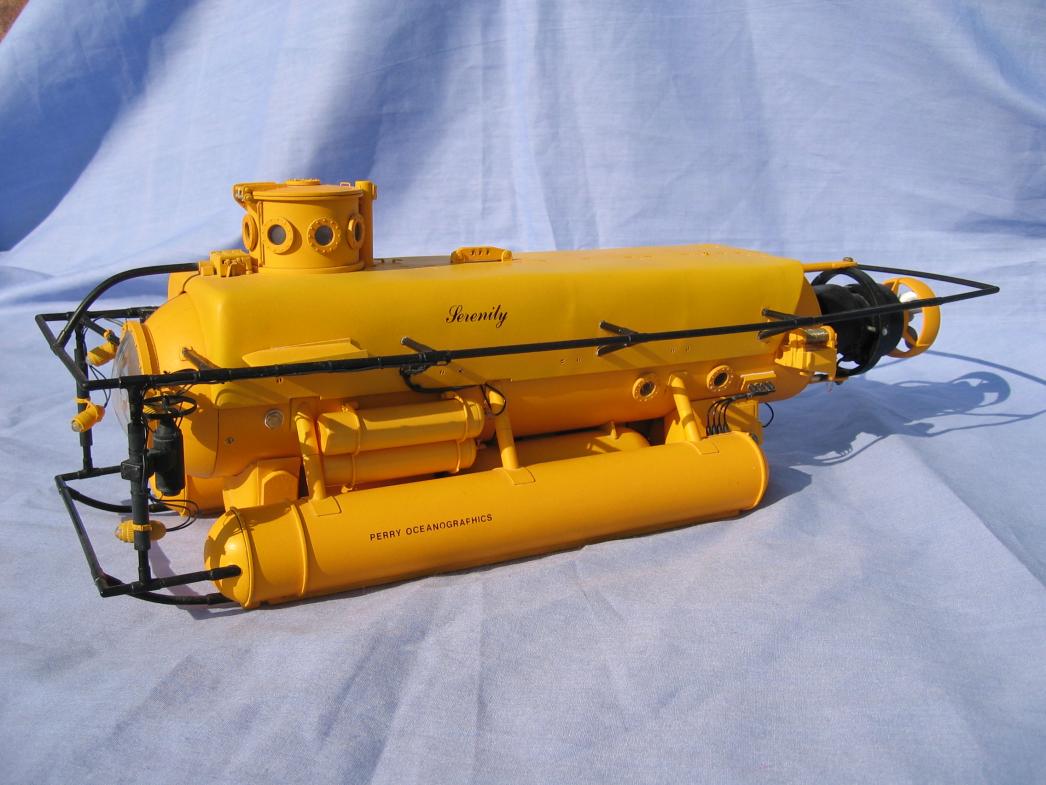

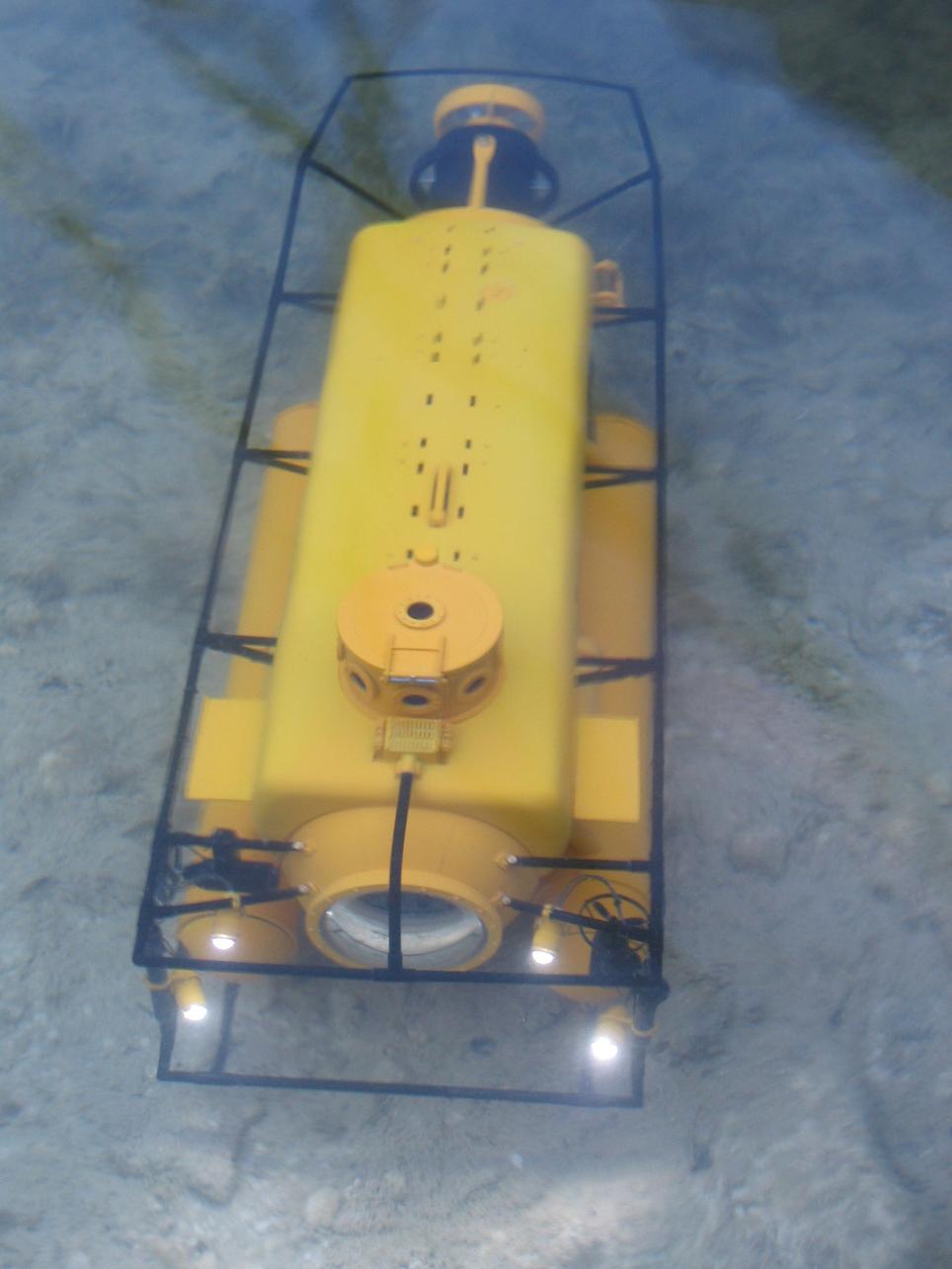

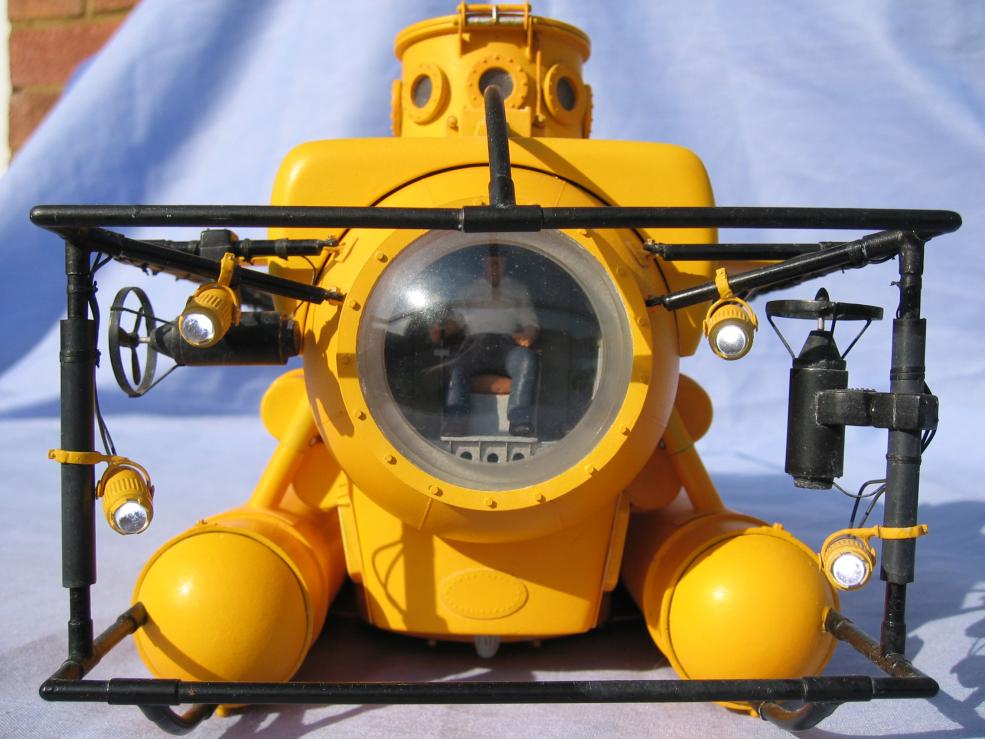

    Some of you may remember his Perry submersible that he wrote build reviews in the Up Scope section of the MMI magazine and he did a write up on it in the SCR (many years ago). Below are some pics of that sub completed and running since about 2004.

    Click image for larger version

Name:	side view.jpg
Views:	1
Size:	93.1 KB
ID:	102115
    Click image for larger version

Name:	front lights 2.jpg
Views:	1
Size:	88.9 KB
ID:	102116
    Click image for larger version

Name:	near bottom.jpg
Views:	1
Size:	82.0 KB
ID:	102117
    Click image for larger version

Name:	on bottom light.jpg
Views:	1
Size:	125.4 KB
ID:	102118

    This one works beautifully well with a modified toothpaste tube as a vertical piston.

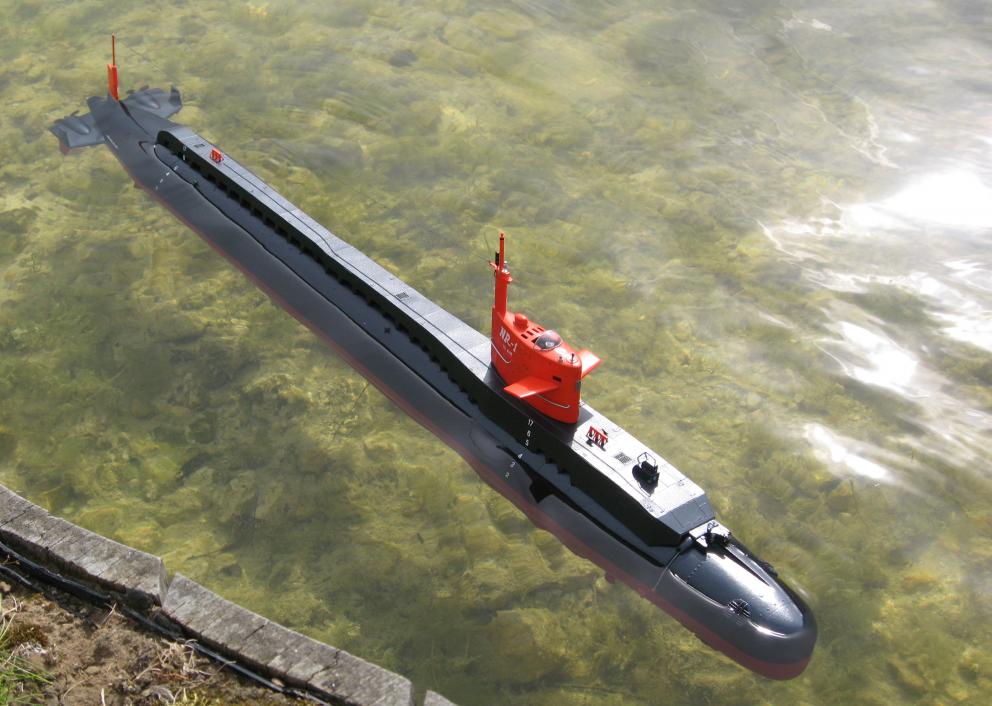

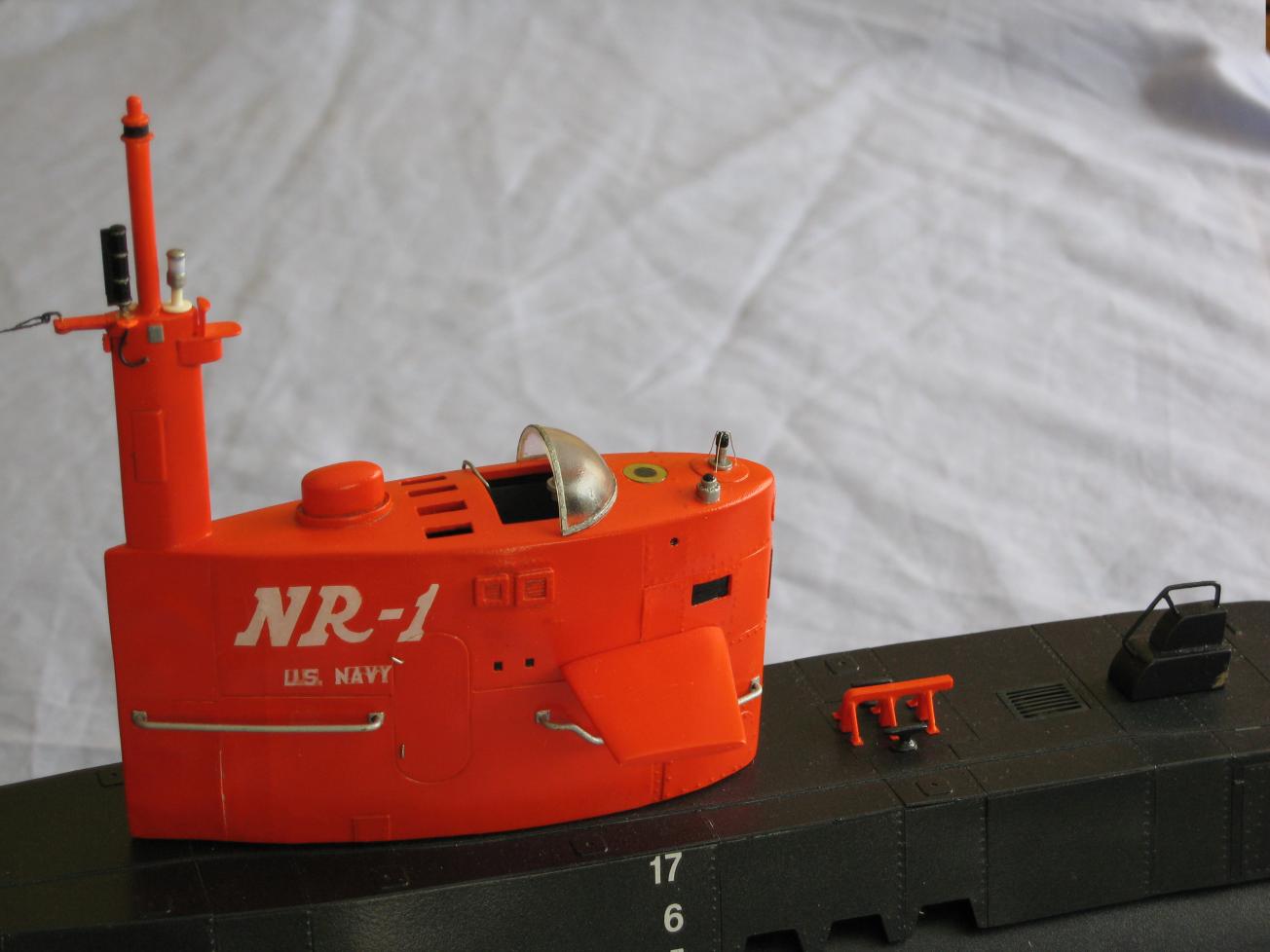

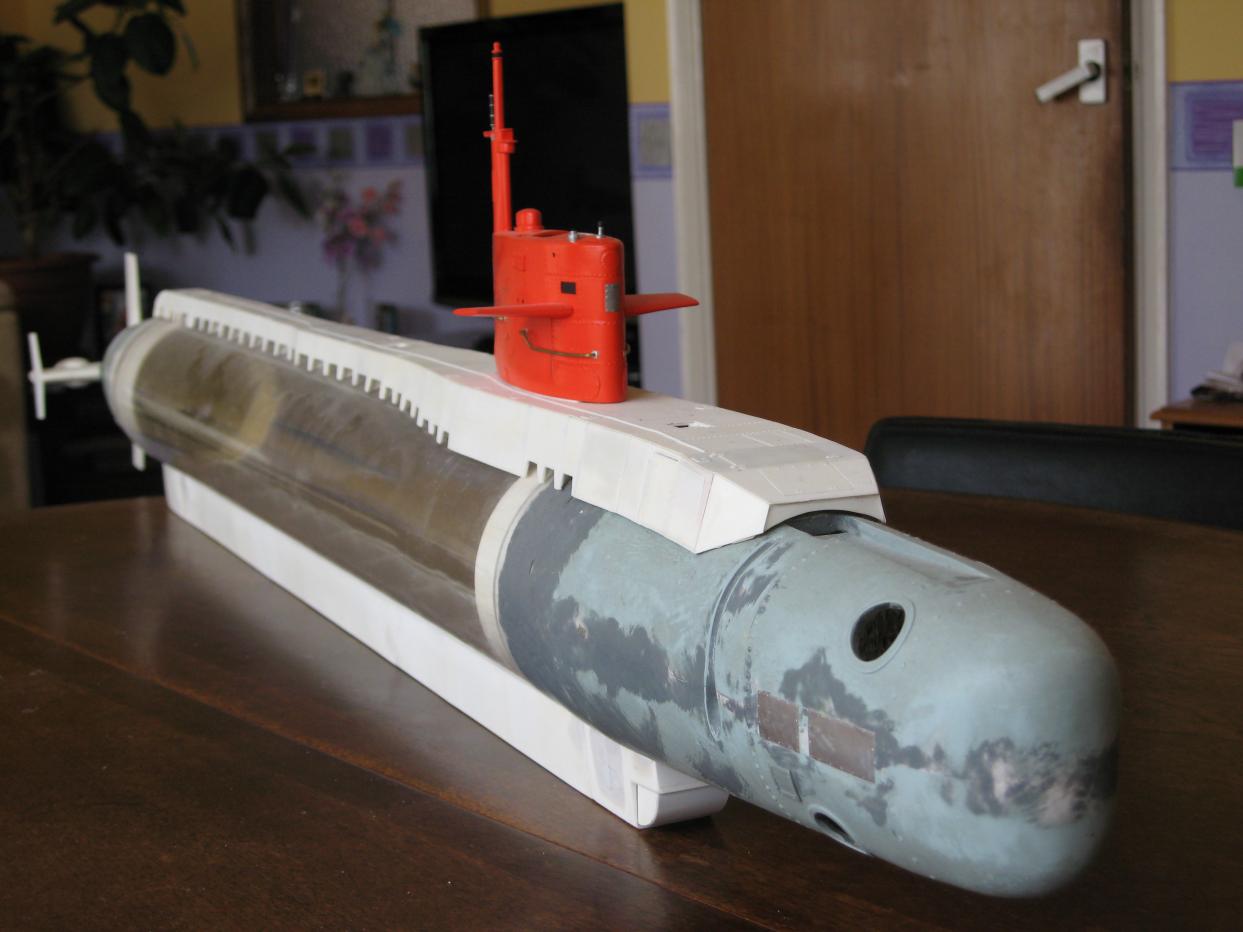

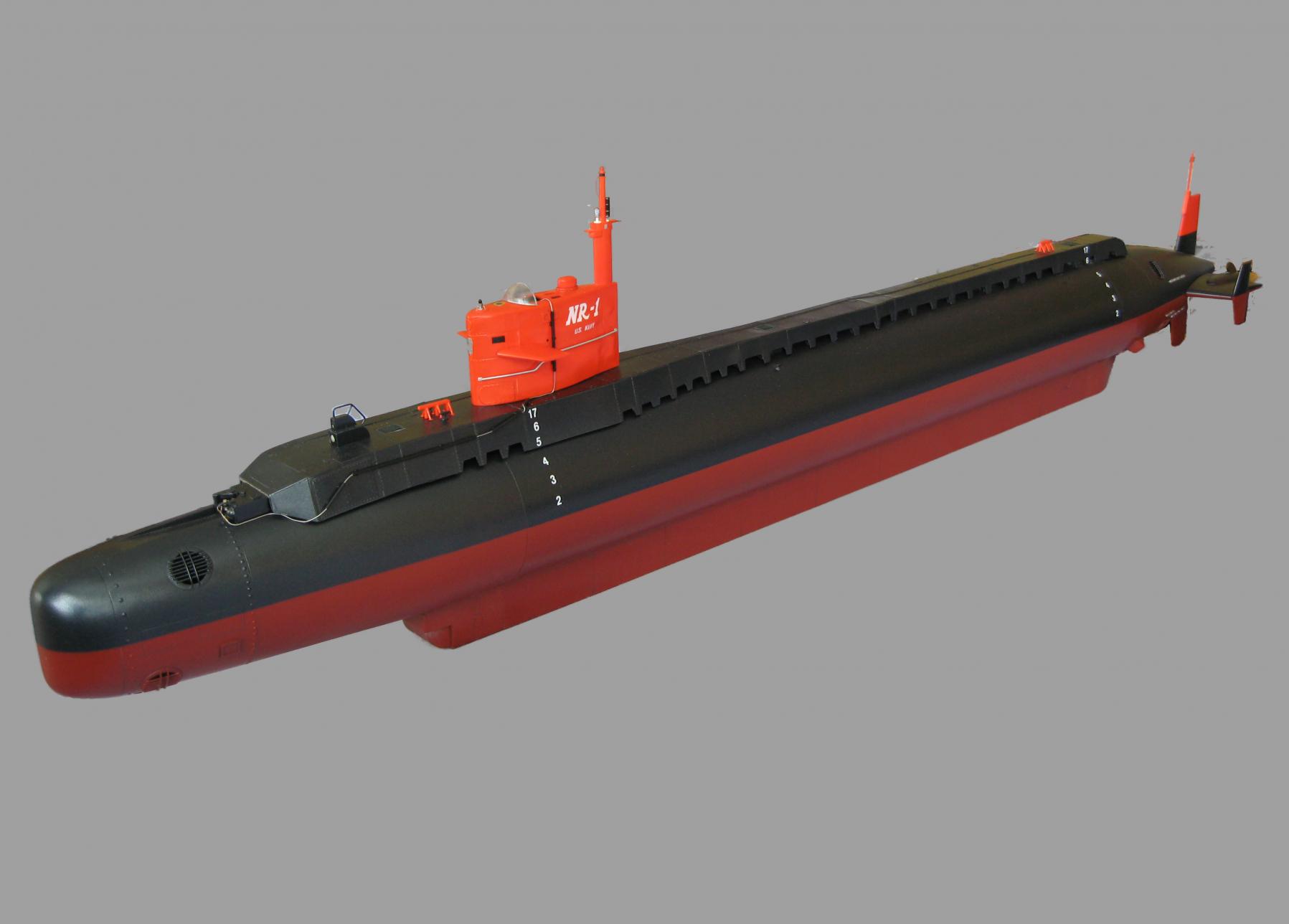

    Anyway this is the NR-1 he has scratchbuilt


    Click image for larger version

Name:	NR1 model 047.jpg
Views:	1
Size:	80.1 KB
ID:	102119
    Click image for larger version

Name:	NR1 model 049.jpg
Views:	1
Size:	80.7 KB
ID:	102120
    Click image for larger version

Name:	The centre section.jpg
Views:	1
Size:	77.4 KB
ID:	102122
    Click image for larger version

Name:	NR1 side view.jpg
Views:	1
Size:	74.1 KB
ID:	102121
    Click image for larger version

Name:	NR1 floats.jpg
Views:	1
Size:	93.5 KB
ID:	102123

    Click image for larger version

Name:	The sail area.jpg
Views:	1
Size:	81.3 KB
ID:	102124

    Peter

  • #2
    Excellent work! Can you give us some info on the sizes and operating systems. Looks as though he belongs as a regular contributor to this forum.
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment


    • #3

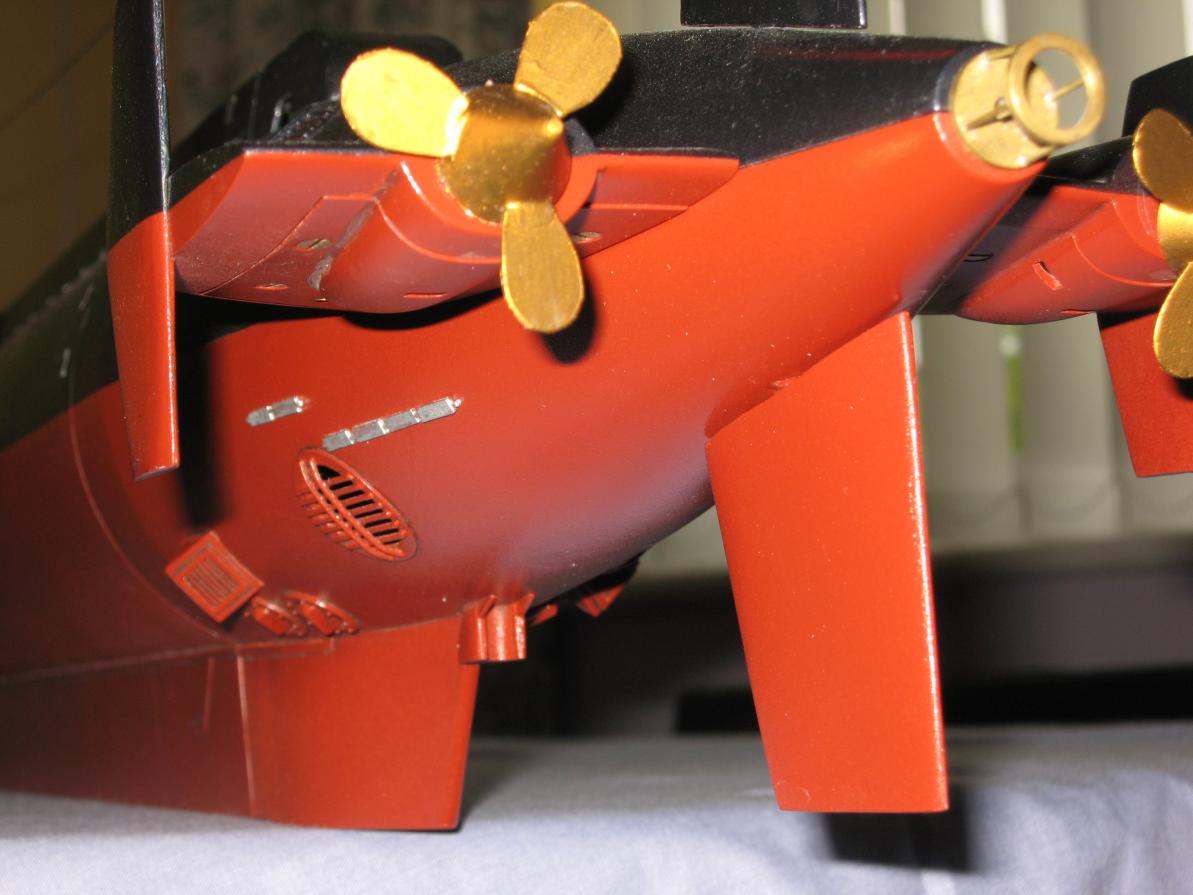

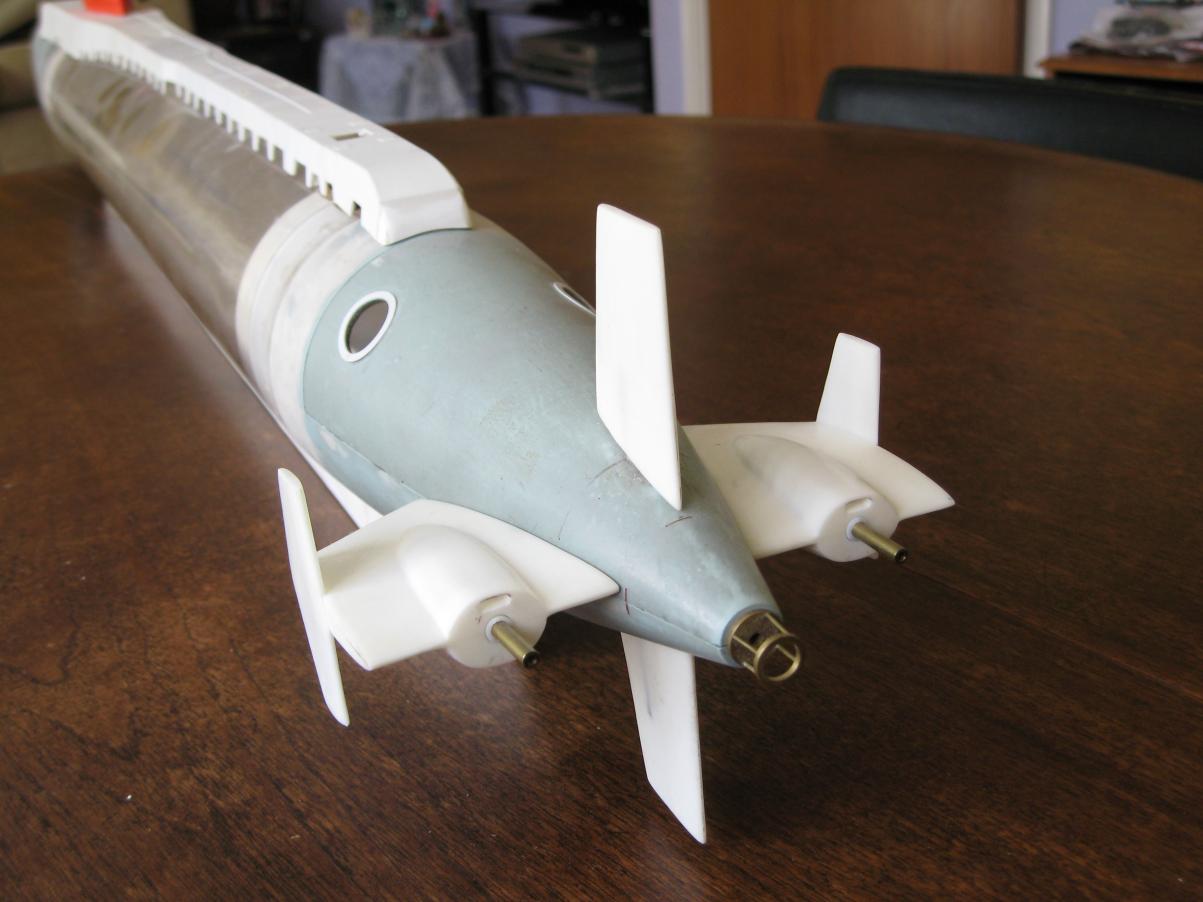

      Hello Mark, the Nr-1 is yet to be fitted out with RC etc. but the plans are to have the 4 diagonal thrusters working, in fact he has just worked up a prototype for these but is in the middle of moving house. The Rear planes on the actual sub have motor pods in the moving planes and he has chosen to replicate these with 90 degree gearboxes to allow working props and planes.

      Click image for larger version

Name:	NR1 model 048.jpg
Views:	1
Size:	84.6 KB
ID:	75442
      Click image for larger version

Name:	The stern.jpg
Views:	1
Size:	83.5 KB
ID:	75443

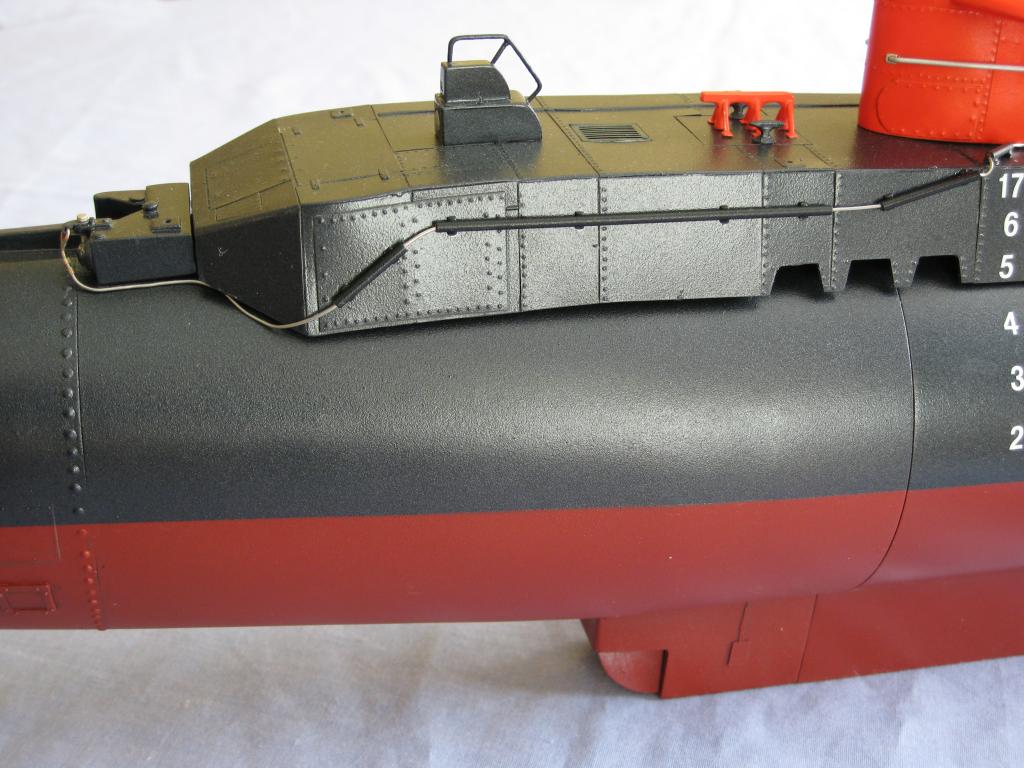

      Also knowing him the lights will be fully working, that seems to fall in with another thread elsewhere here. He also has an excellent sense of attention to detail.

      Click image for larger version

Name:	Emergency tow line.jpg
Views:	1
Size:	98.0 KB
ID:	75444

      But he is an absolute expert with Plasticard

      Peter

      Comment


      • #4

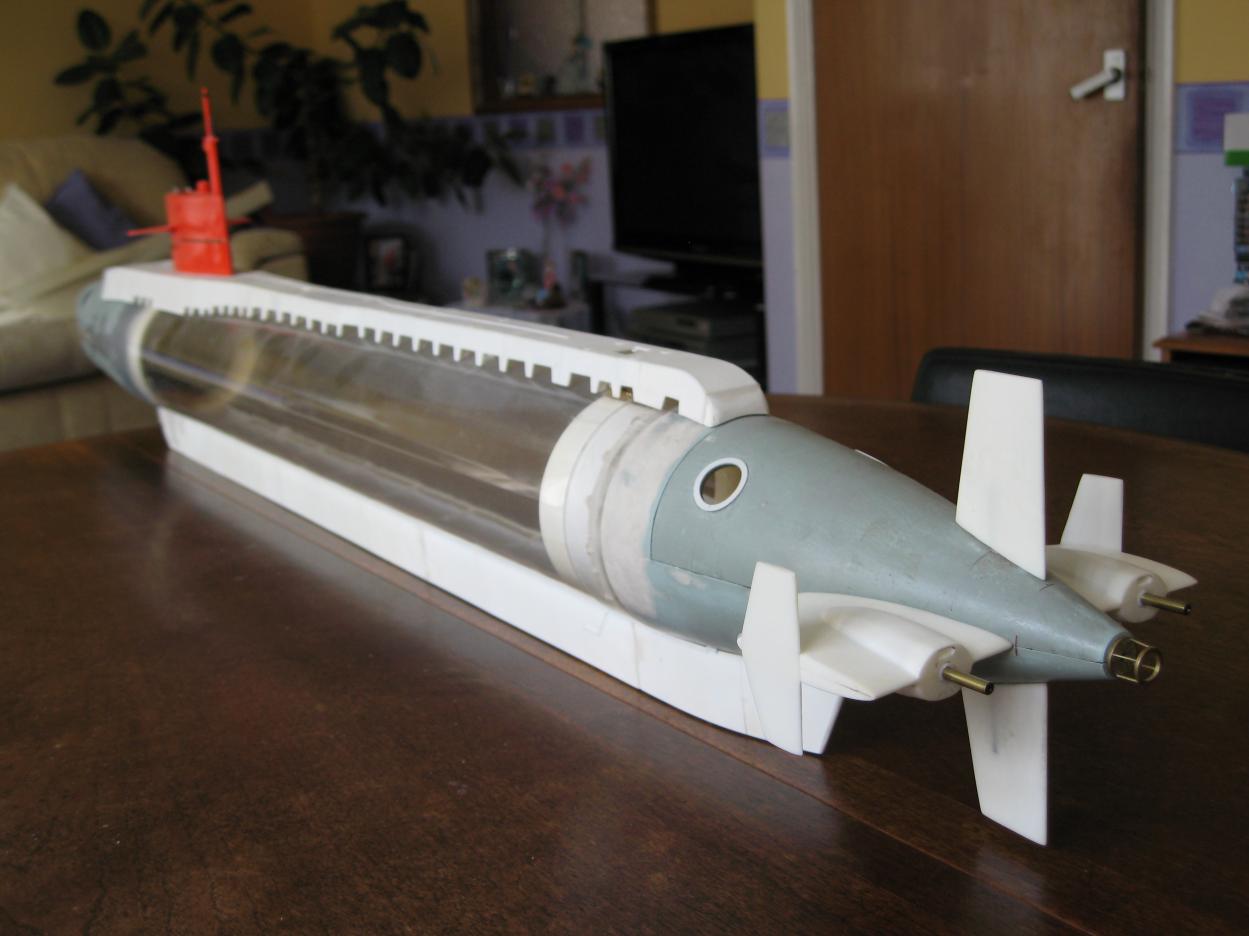

        Oh yes the size, sorry. It was built so that the cylindrical part of the hull could be commercially available 4" acyrilic tube and it is about 4 ftish long.

        Peter.

        Comment


        • #5
          Looks to be Museum quality.
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment


          • #6
            Stunning, Pete. Wow!
            "... well, that takes care of Jorgenson's theory!"

            Comment


            • #7
              Both of those subs are beautiful. Peter can we encourage him to join us here?
              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

              Comment


              • #8
                Working on it Tom.

                Peter
