  • DrSchmidt
    Rear Admiral
    • Apr 2014
    • 1001

    #16

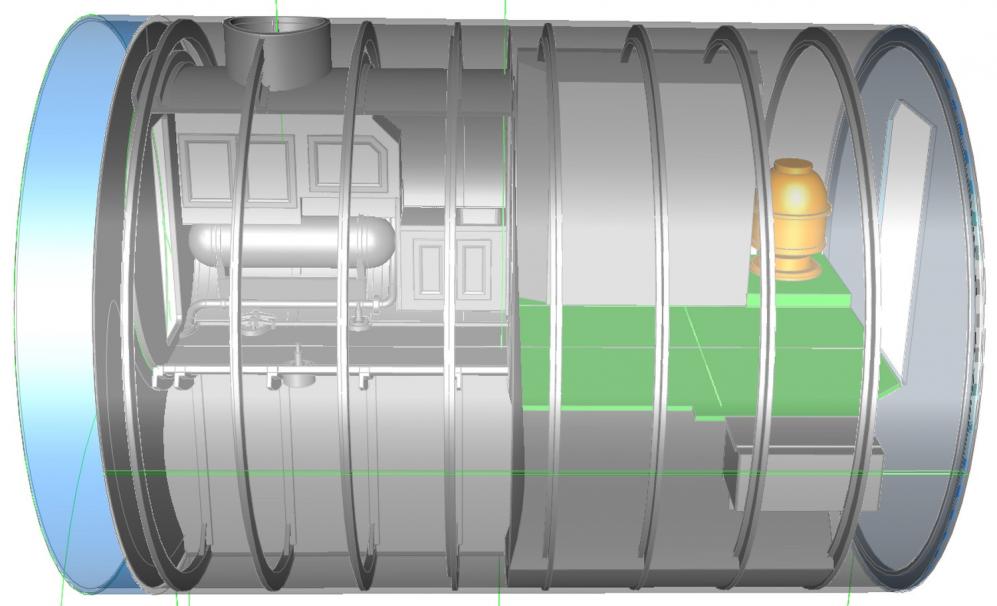

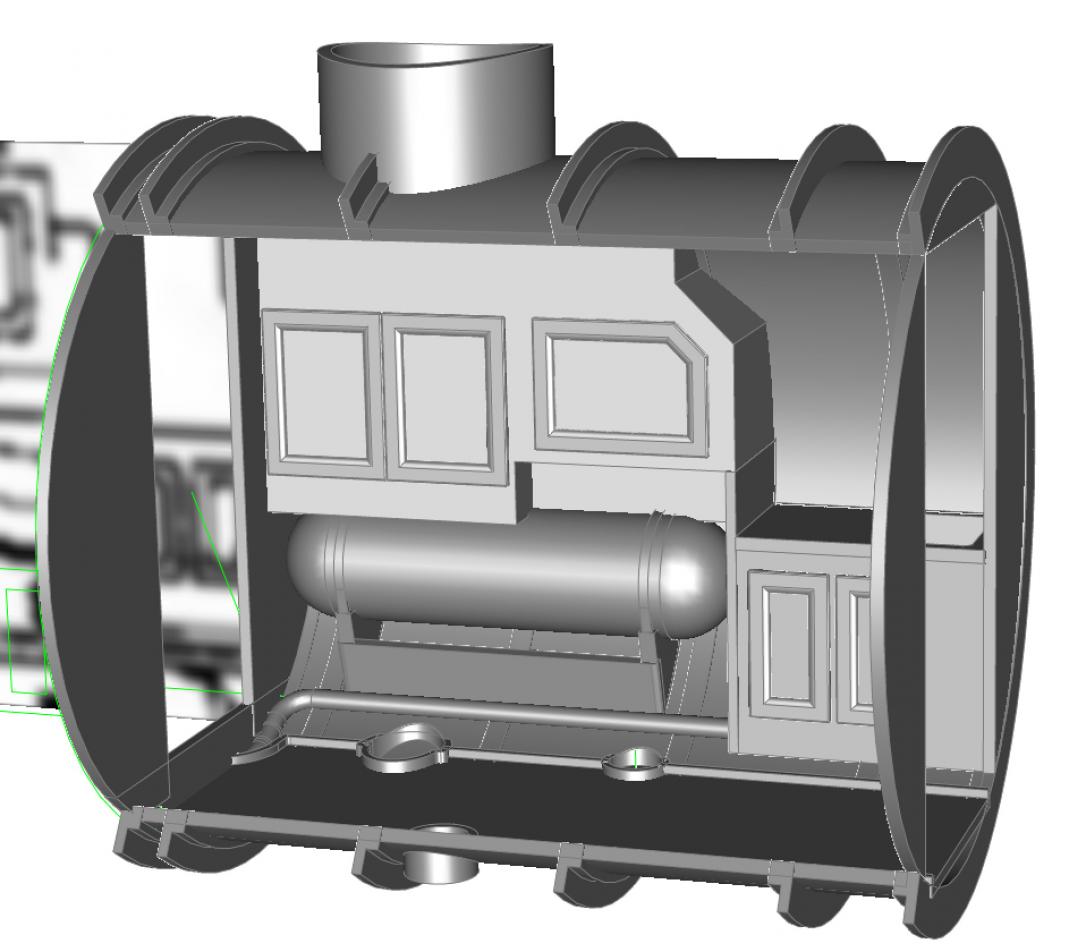

    Worked a bit on the galley....details on the cuppoards, the sink, manholes, and feedthroughs for the ballast tank inlet valves.

    Click image for larger version

Name:	Vesikko-010.jpg
Views:	327
Size:	78.2 KB
ID:	174597

    Comment

    • DrSchmidt
      Rear Admiral
      • Apr 2014
      • 1001

      #17

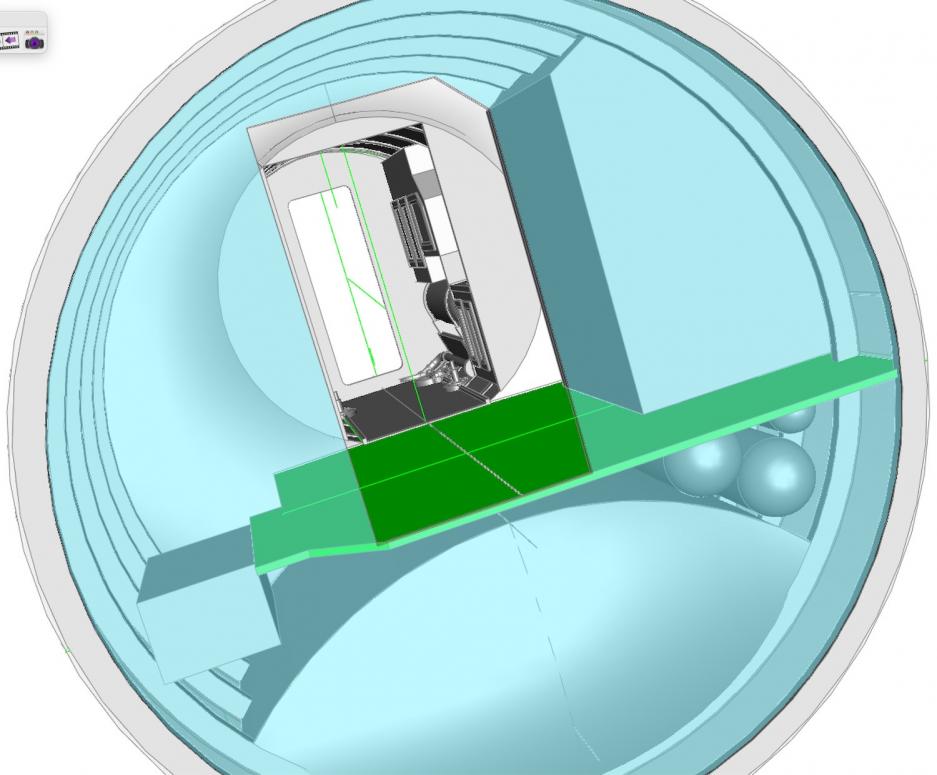

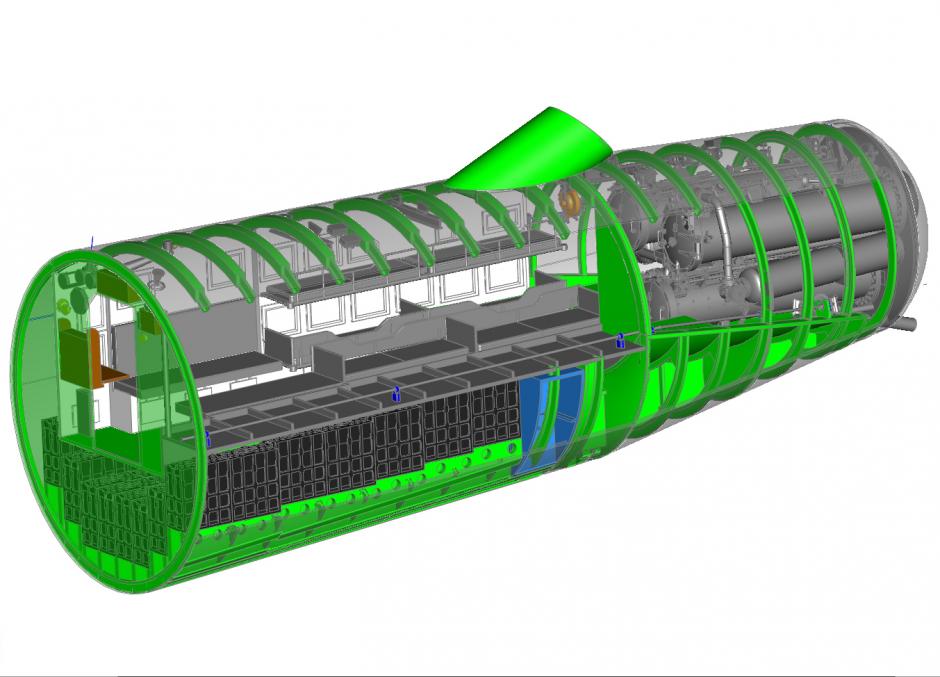

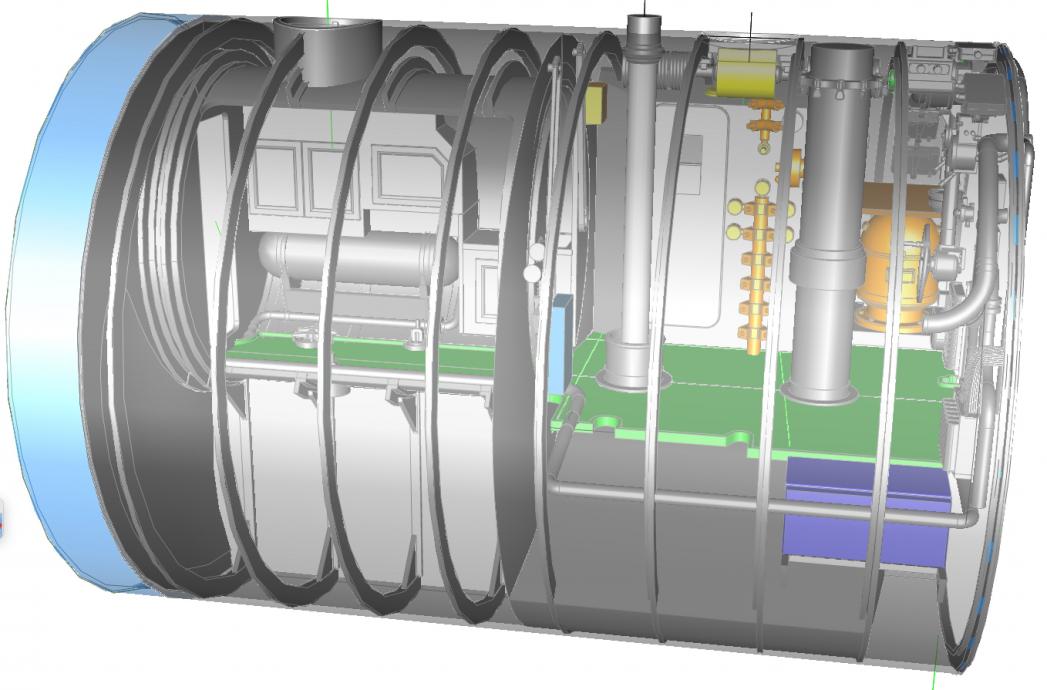

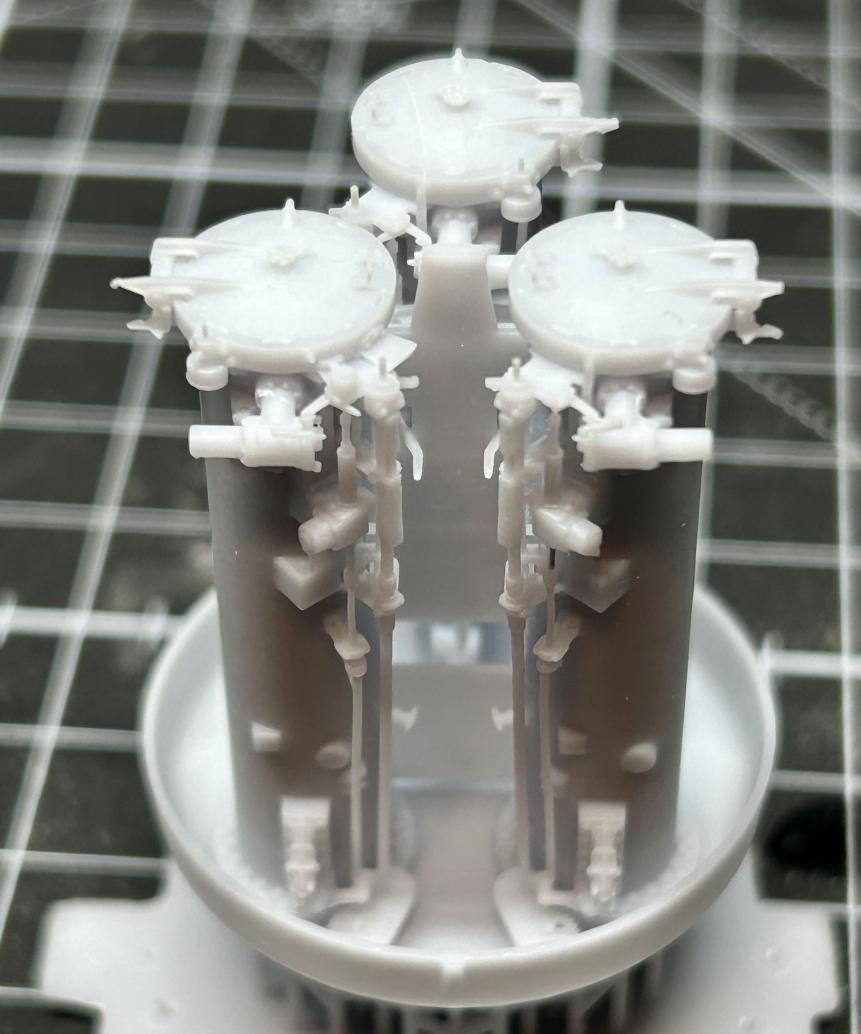

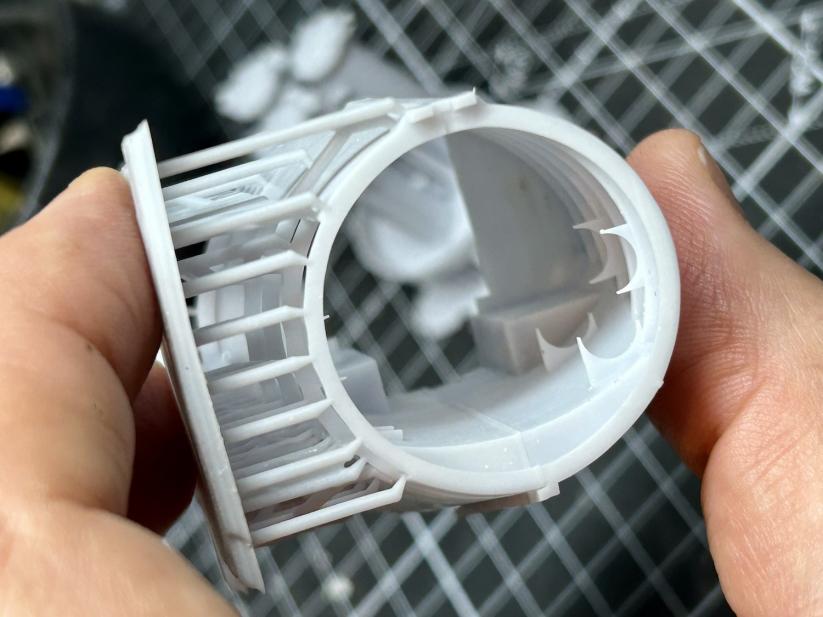

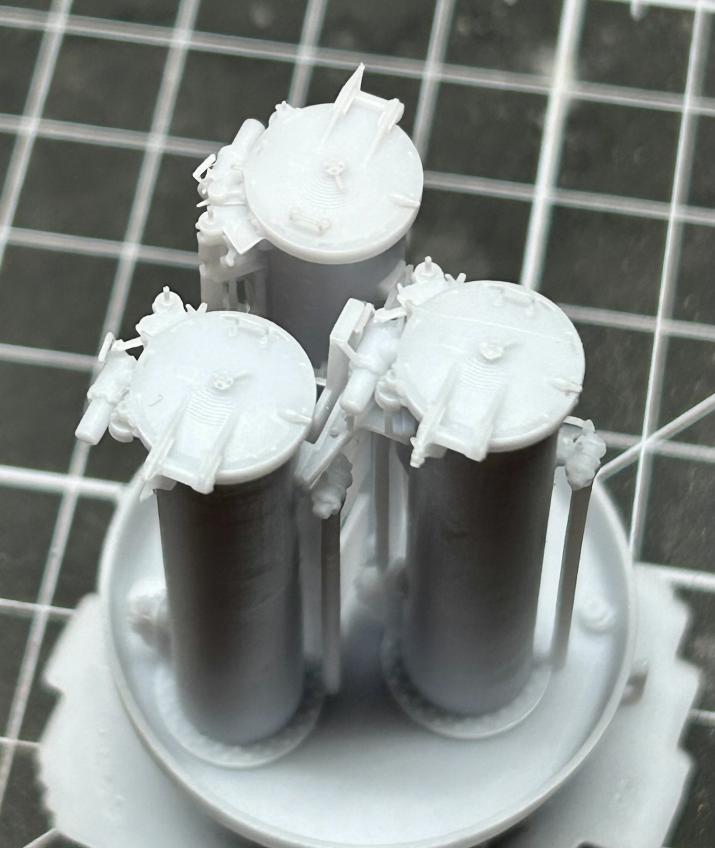

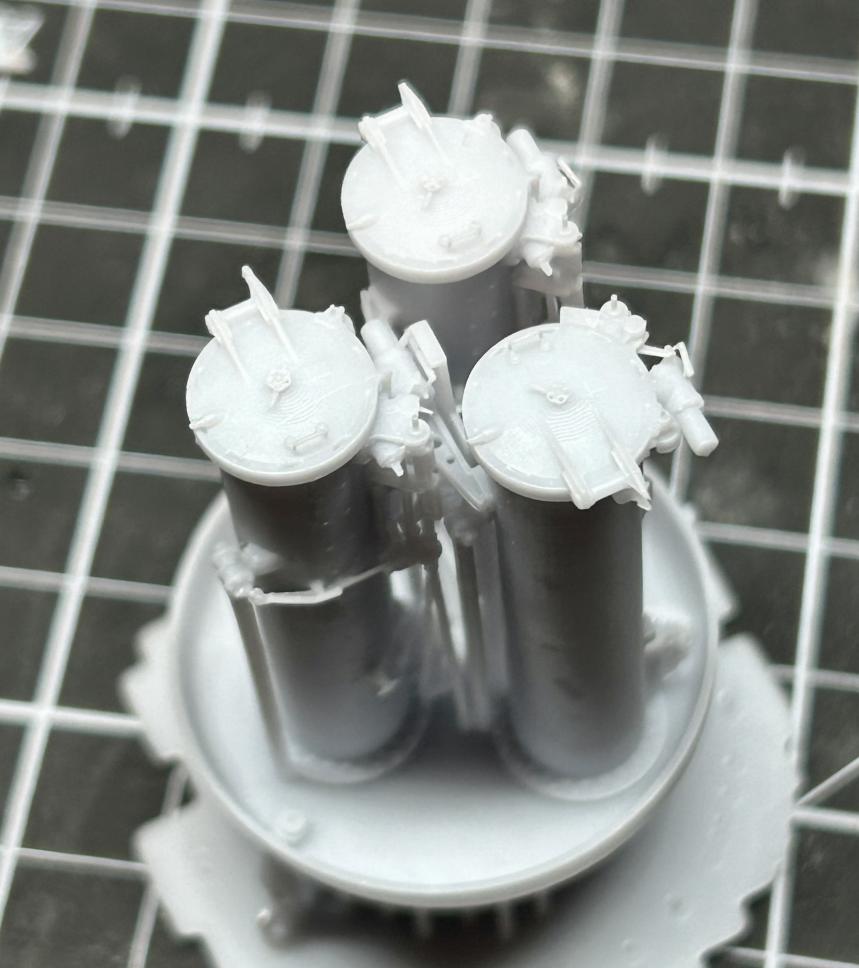

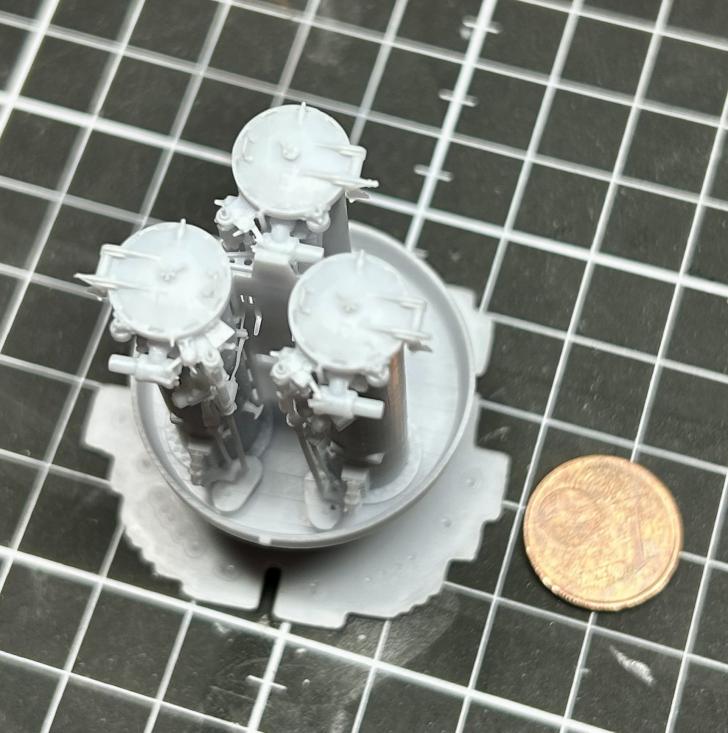

      Found some time to work on the Type II CAD model. Here's a view from the torpedo room through the control room (with radio room on the right) and through the galley to the door of the machine room.

      Click image for larger version  Name:	Vesikko-011.jpg Views:	0 Size:	63.9 KB ID:	175292


      Attached Files
      Last edited by DrSchmidt; 10-26-2023, 08:29 AM.

      Comment

      • DrSchmidt
        Rear Admiral
        • Apr 2014
        • 1001

        #18

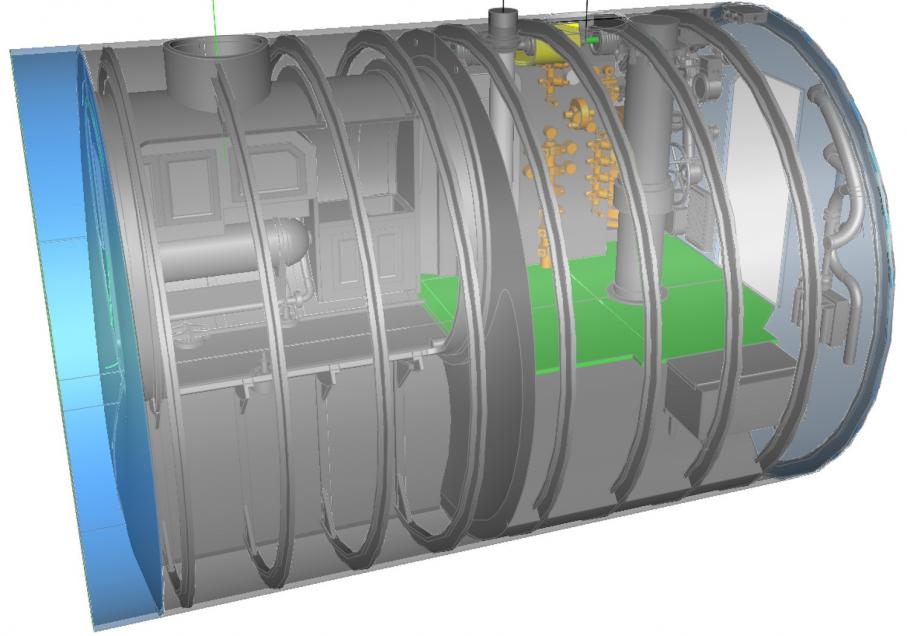

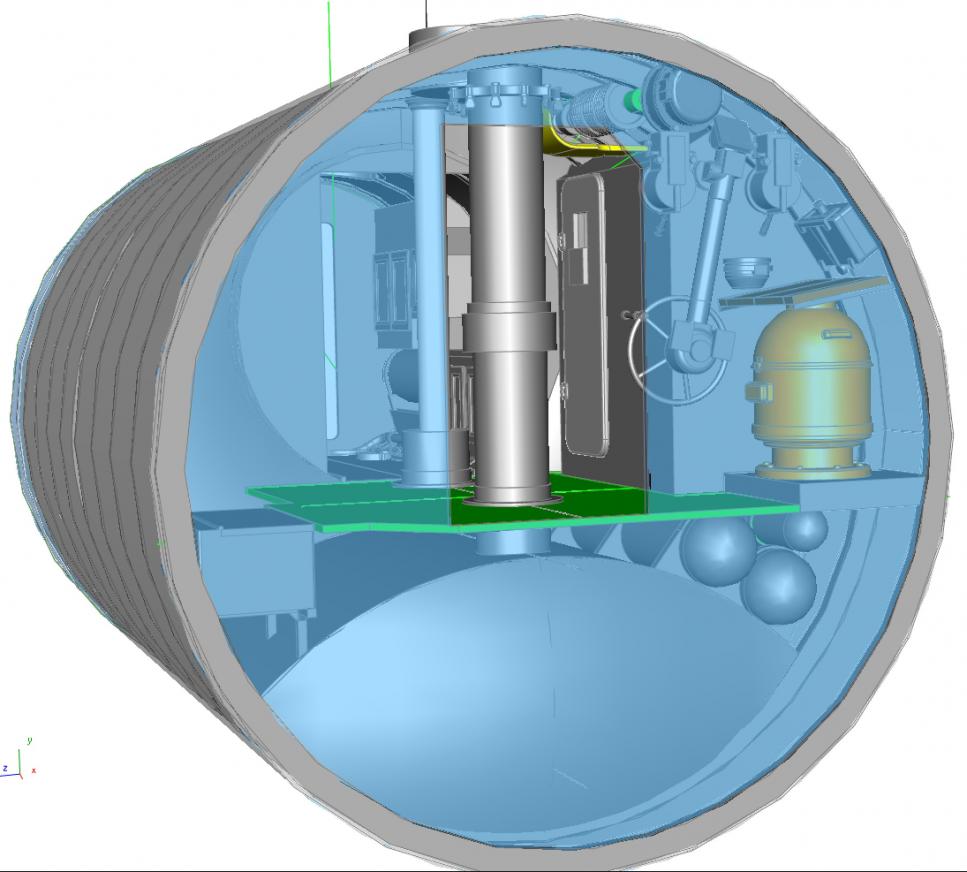

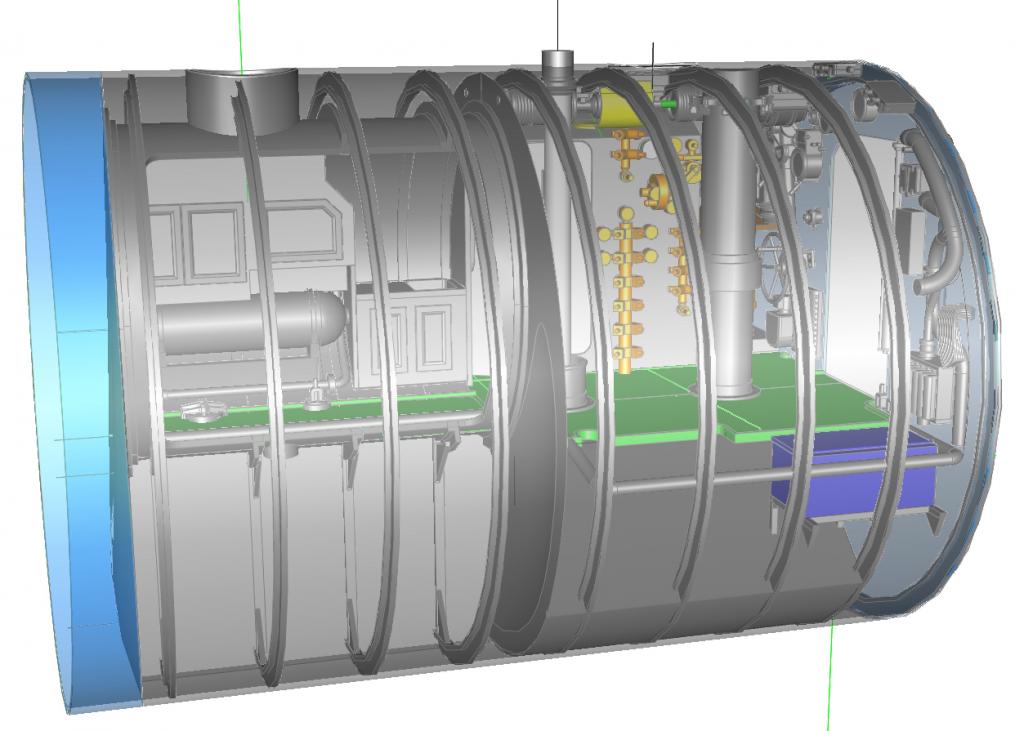

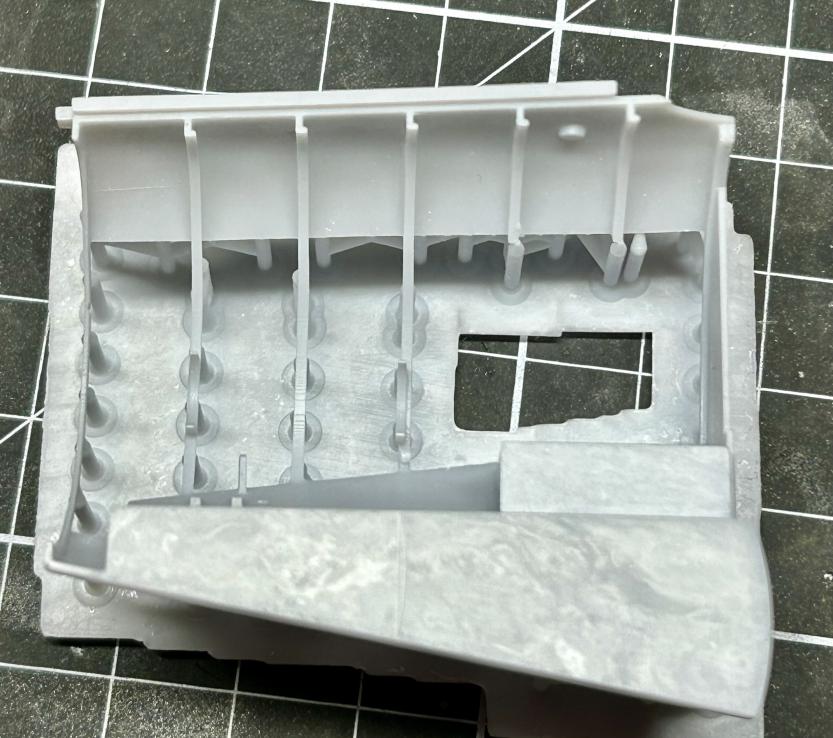

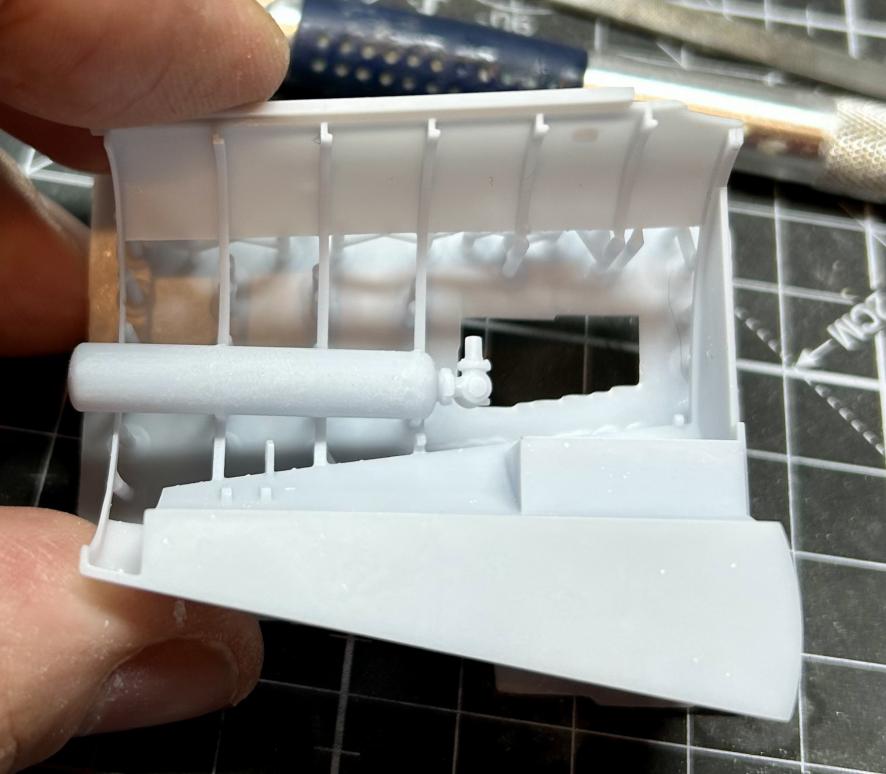

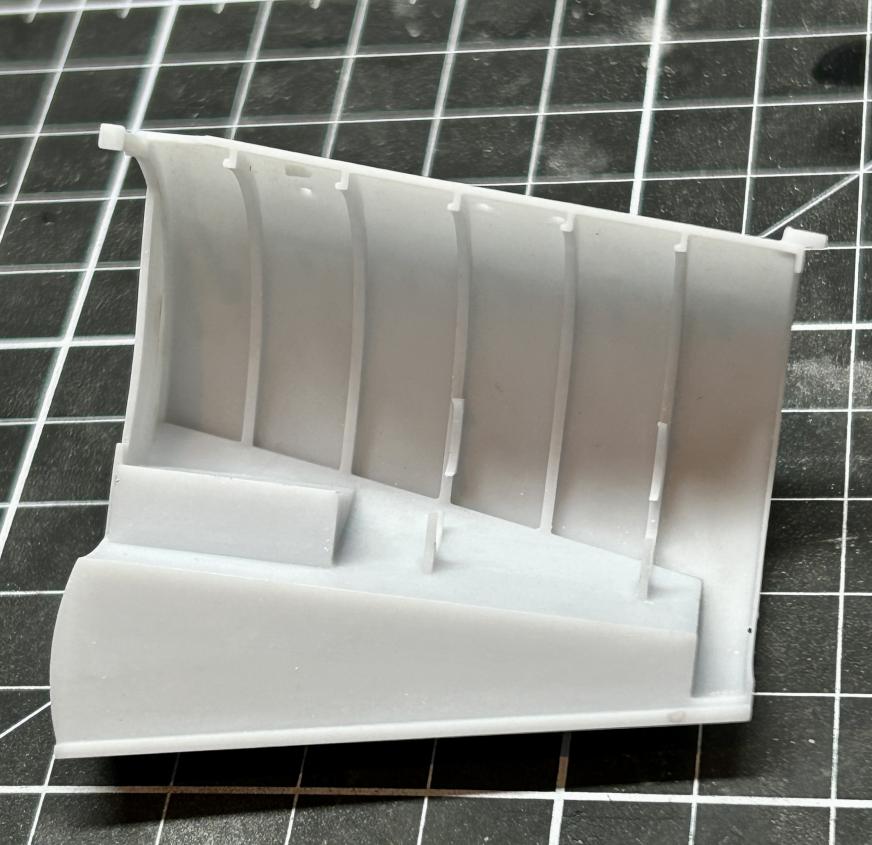

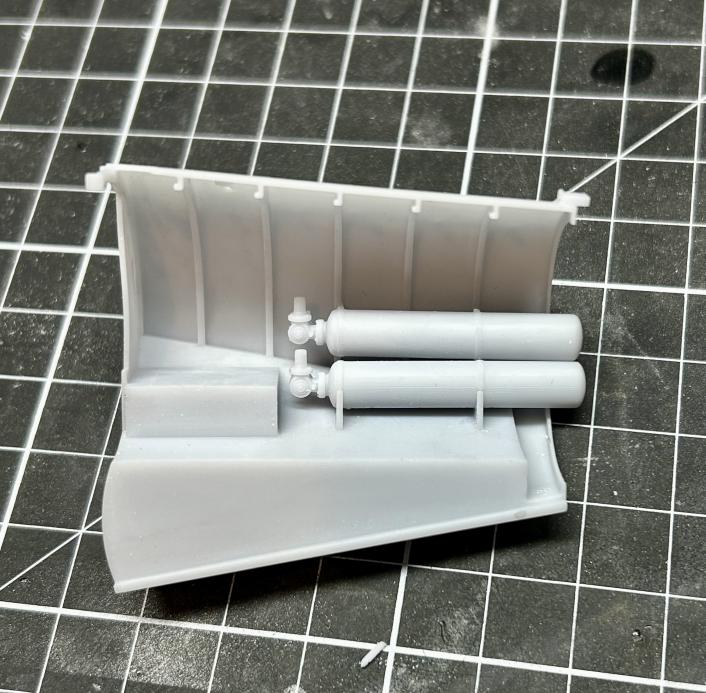

        Worked some more on the control room of the Vesikko (Type II). Got the gyro compass, the machine telegraphs, the steering wheel for the rudder , the compass repeater and the periscope winch setup into place. I also put the periscope wells and the pressure bottles under the floor done....

        Click image for larger version

Name:	Vesikko-013.jpg
Views:	237
Size:	72.5 KB
ID:	177194

        Comment

        • DrSchmidt
          Rear Admiral
          • Apr 2014
          • 1001

          #19

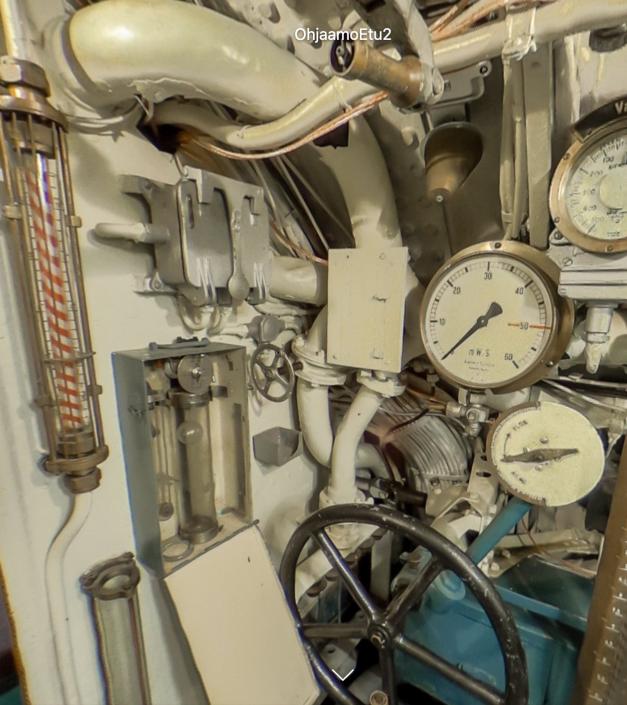

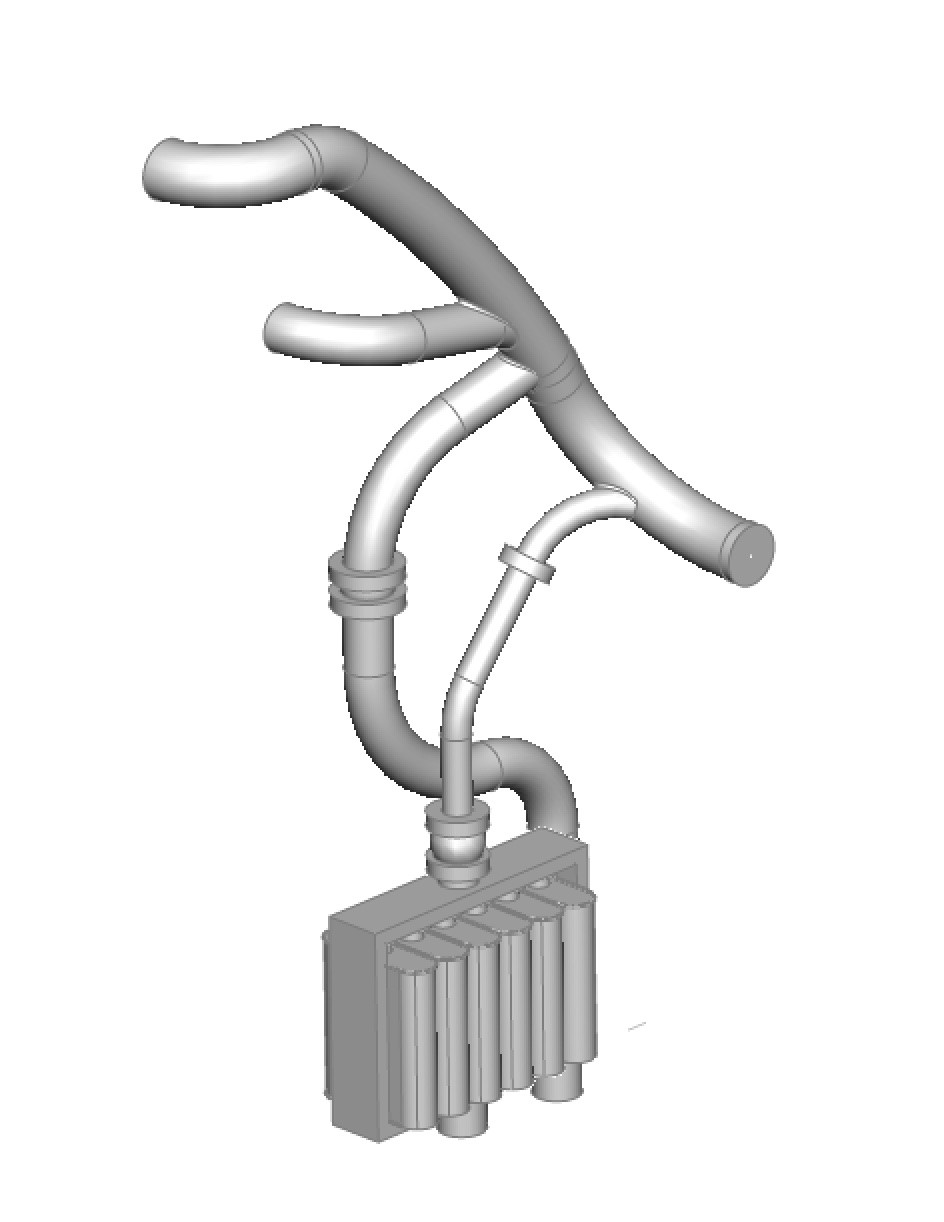

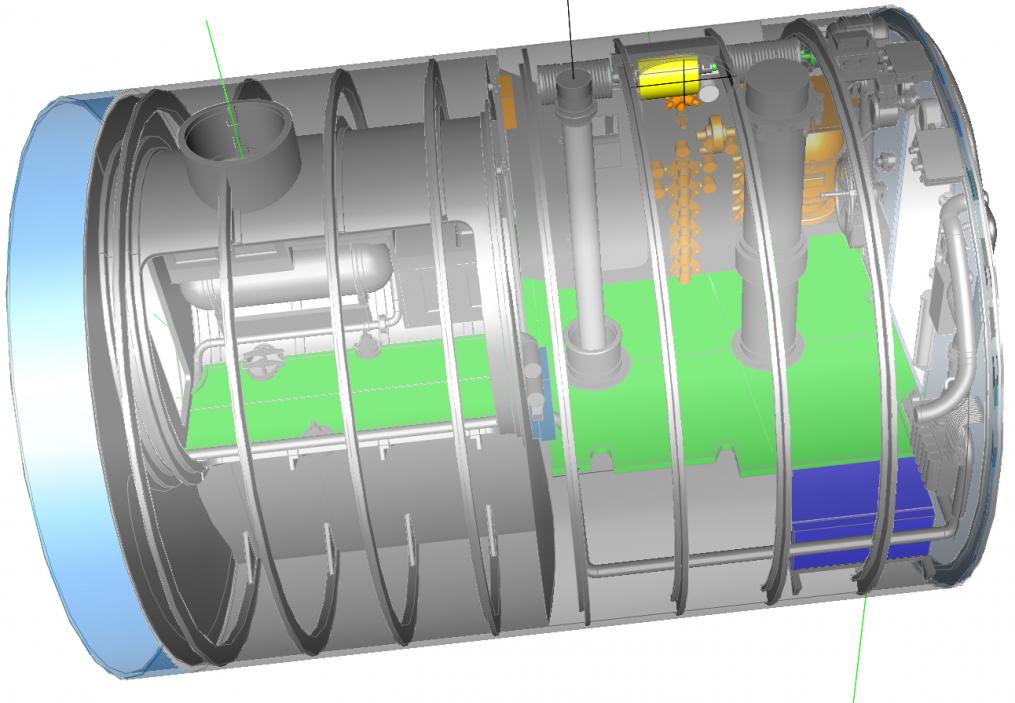

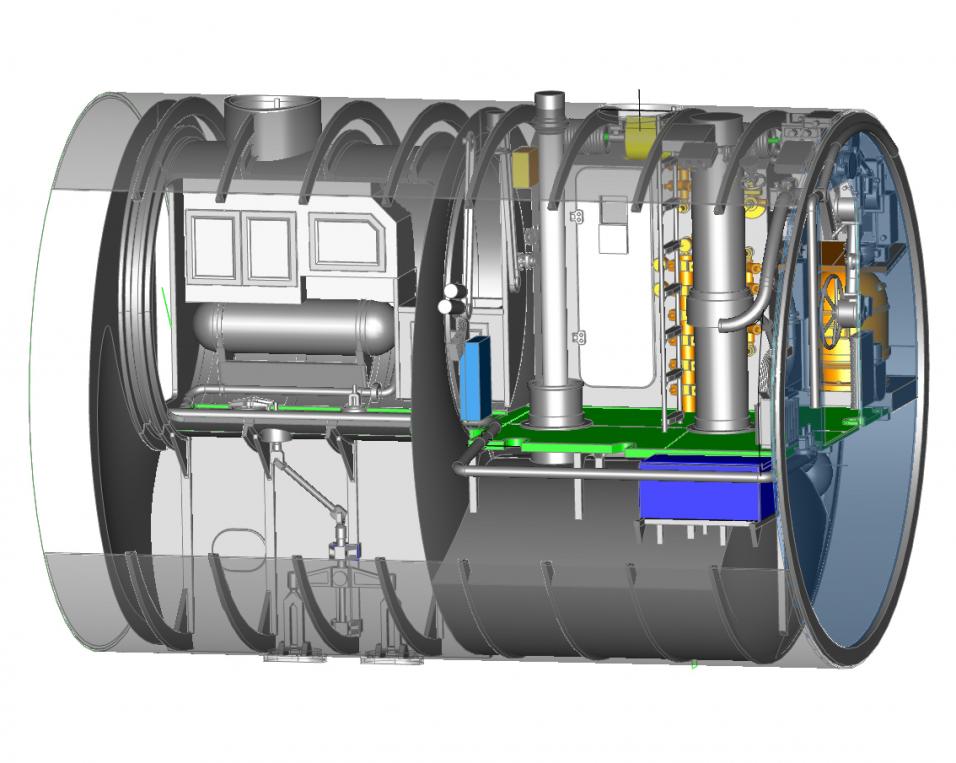

          Found some time to work on the inner details of the control room of the Type II prototype Vesikko. The ventilation air manifold took some time. Folks back then really were artists in bending intricate peaces of tubing art...the box at the bottom are the alkaline cartridges for CO2 removal.

          Click image for larger version

Name:	Vesikko-014.jpg
Views:	208
Size:	68.0 KB
ID:	178567

          Click image for larger version

Name:	Vesikko-015.jpg
Views:	211
Size:	78.0 KB
ID:	178568 Click image for larger version

Name:	Vesikko-016.jpg
Views:	213
Size:	56.4 KB
ID:	178569

          Comment

          • DrSchmidt
            Rear Admiral
            • Apr 2014
            • 1001

            #20

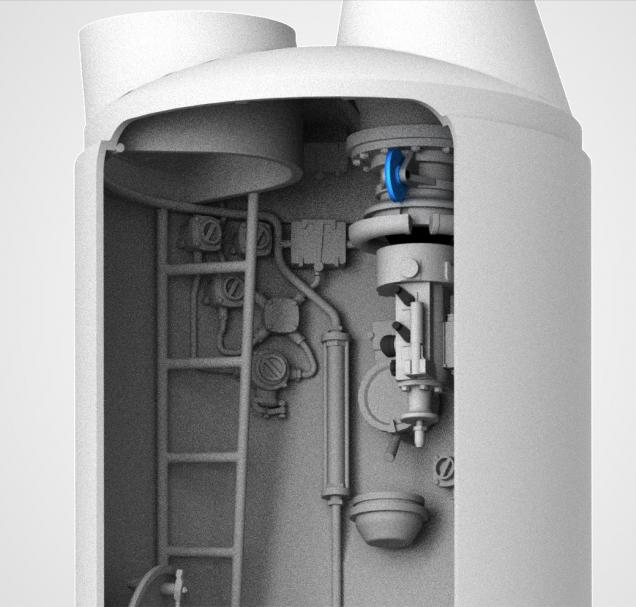

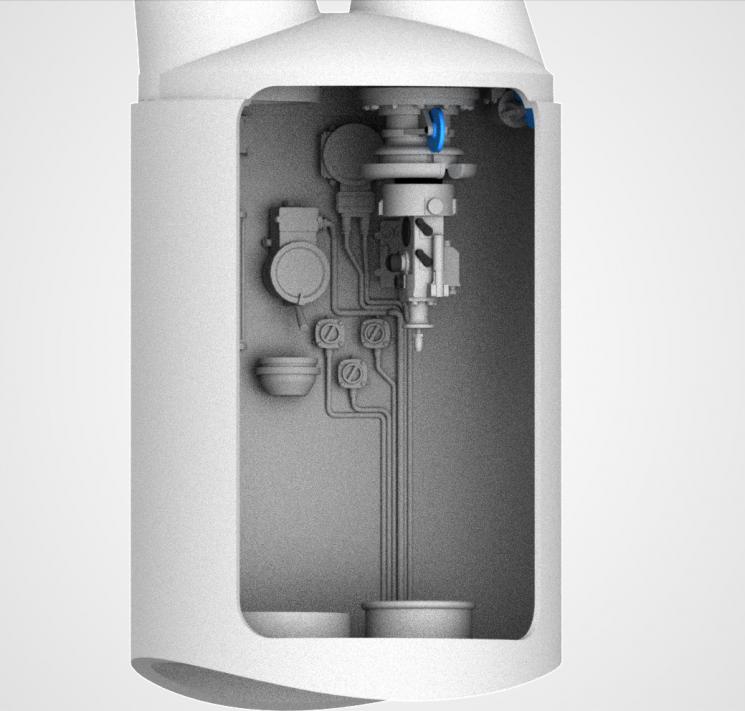

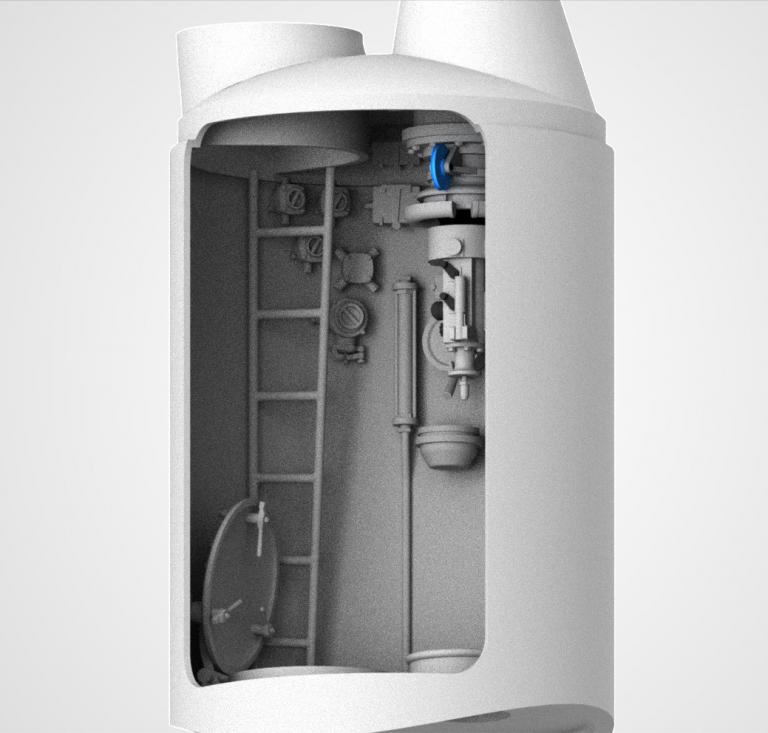

            More detail work on the control room.....starts to lokk like something:

            Click image for larger version

Name:	Vesikko-017.jpg
Views:	172
Size:	74.9 KB
ID:	178734

            Click image for larger version

Name:	Vesikko-018.jpg
Views:	173
Size:	74.7 KB
ID:	178735

            Click image for larger version

Name:	Vesikko-019.jpg
Views:	175
Size:	81.4 KB
ID:	178736

            Comment

            • DrSchmidt
              Rear Admiral
              • Apr 2014
              • 1001

              #21
              I worked allot on the control room, so much, that I needed to take a break from it. So I decided to give the Diesel engine a try...and here's why I love the internet. Designing the Diesel just from photos is very, very hard and will always be inaccurate. So I went on the hunt for drawings. And guess what, the International Maritime Museum in Hamburg has the Construction Manual in their archives, an archive that was digitized and is freely available though the German Digital Library

              -> https://www.deutsche-digitale-biblio...st&hitNumber=1

              Had problems downloading the whole file, contacted them and they sent my the 406 pages book as pdf, I love it!

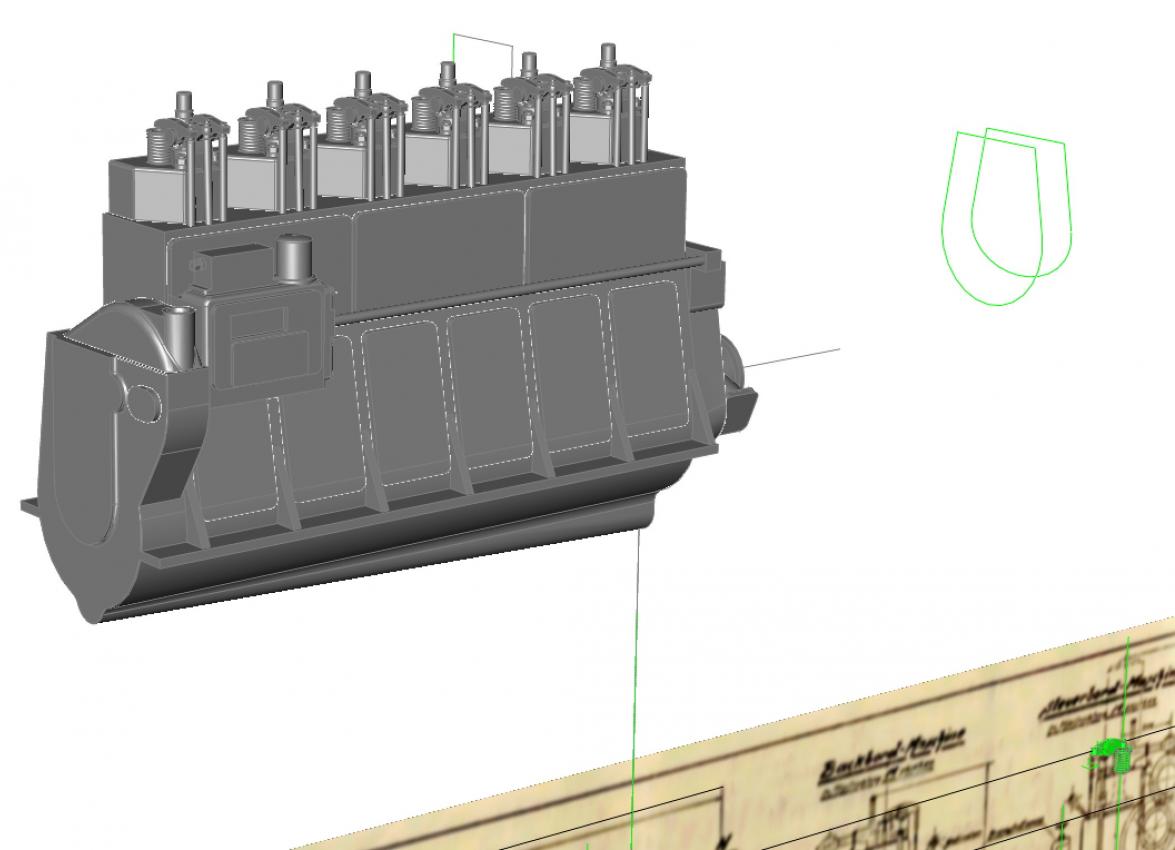

              So here we go..as the Diesel will be tiny in 1/72 scale, I have to make compromises with diameters and wall thicknesses here and there, but it starts to look like the original:

              Click image for larger version

Name:	Vesikko-020.jpg
Views:	158
Size:	66.4 KB
ID:	178990

              Comment

              • DrSchmidt
                Rear Admiral
                • Apr 2014
                • 1001

                #22
                More work on the drivetrain....

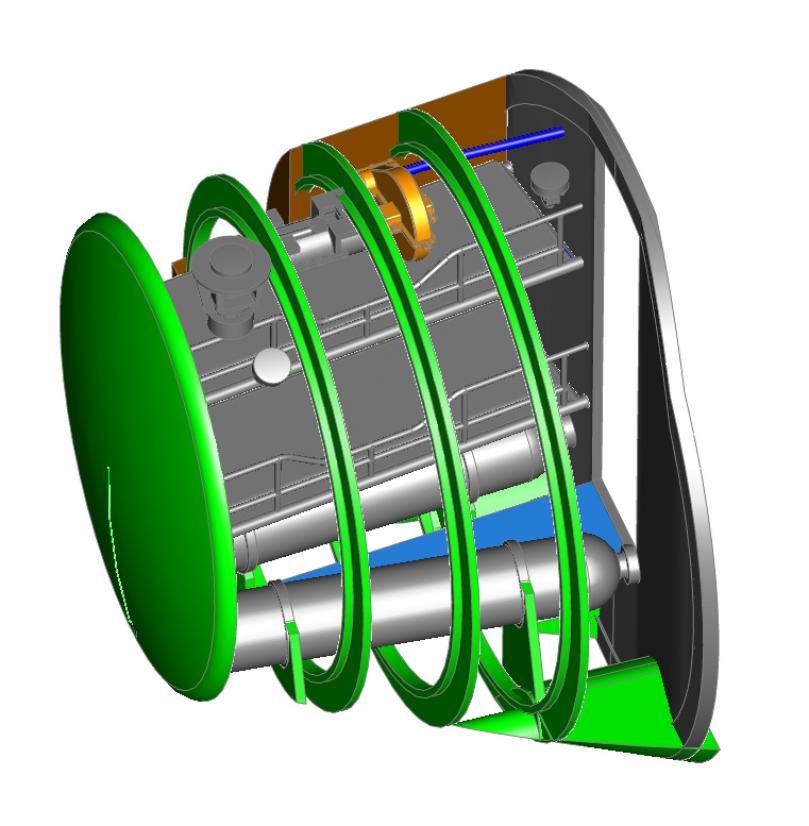

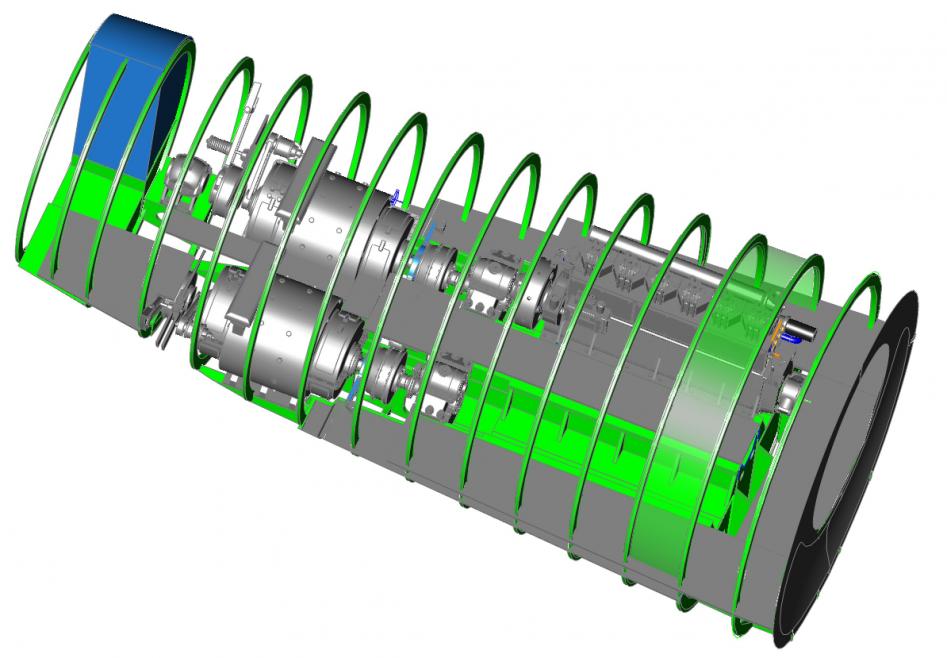

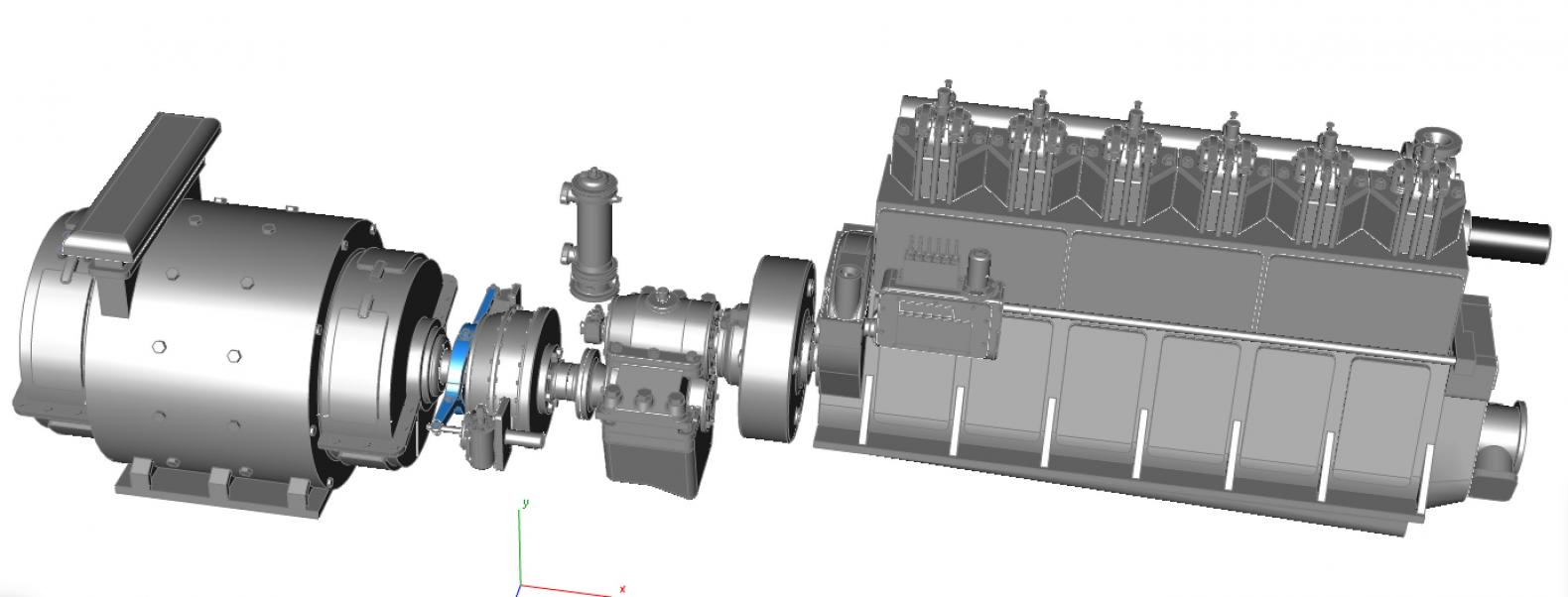

                Diesel engine, elastic coupling, transmission, clutch and then the electric motor. The cilyndrical uright thing in thze back is the oil cooler for the transmission.

                Click image for larger version  Name:	Vesikko-021.jpg Views:	0 Size:	73.5 KB ID:	179114

                Comment

                • DrSchmidt
                  Rear Admiral
                  • Apr 2014
                  • 1001

                  #23

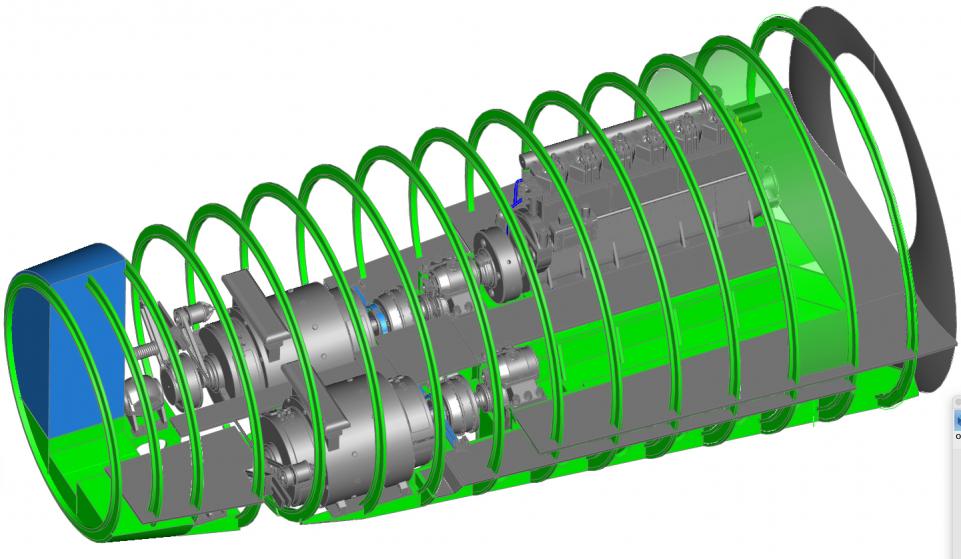

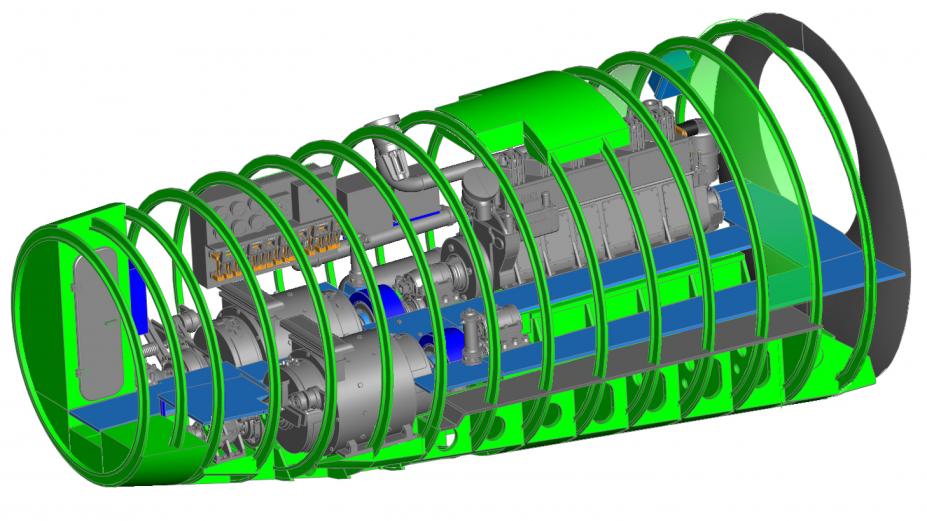

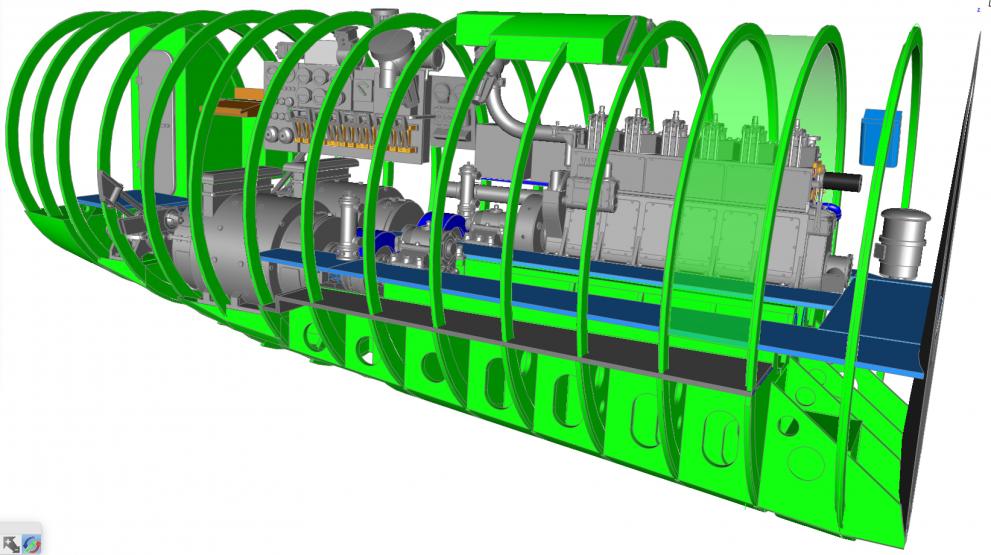

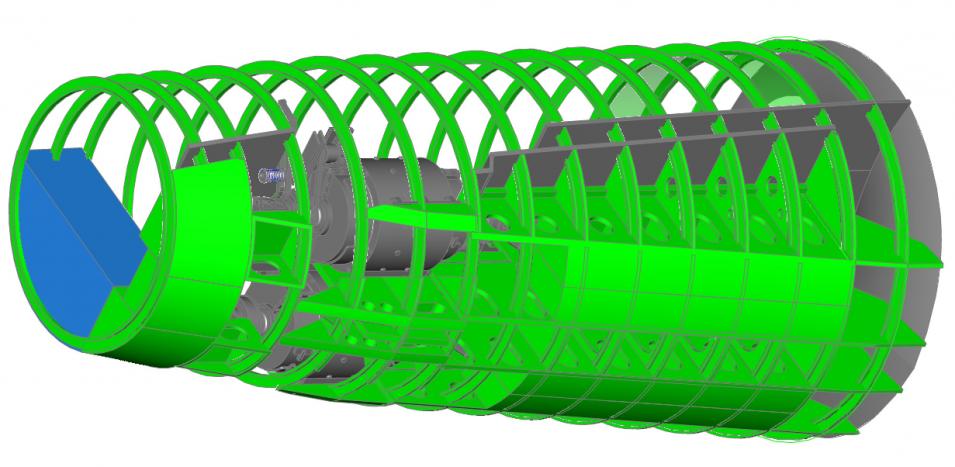

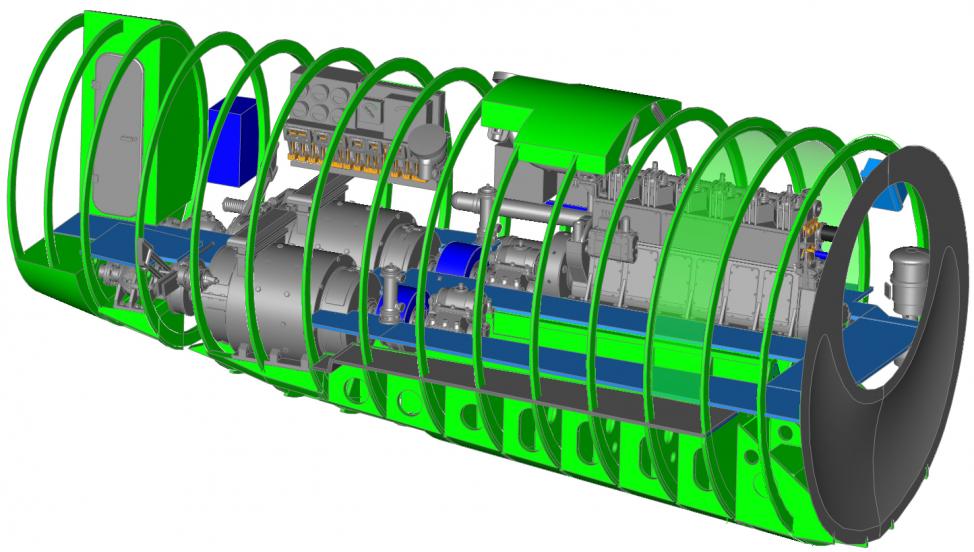

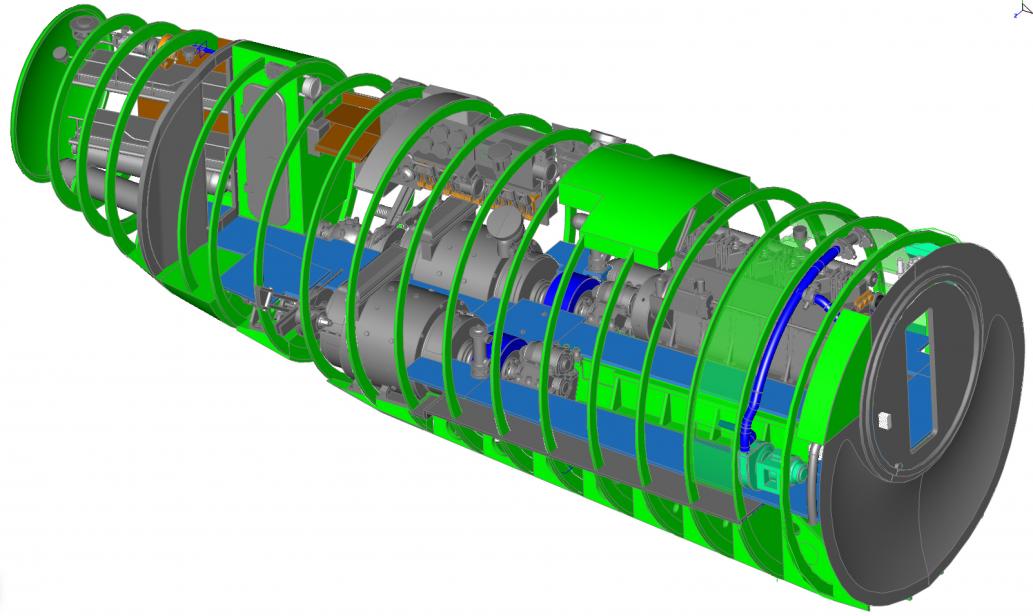

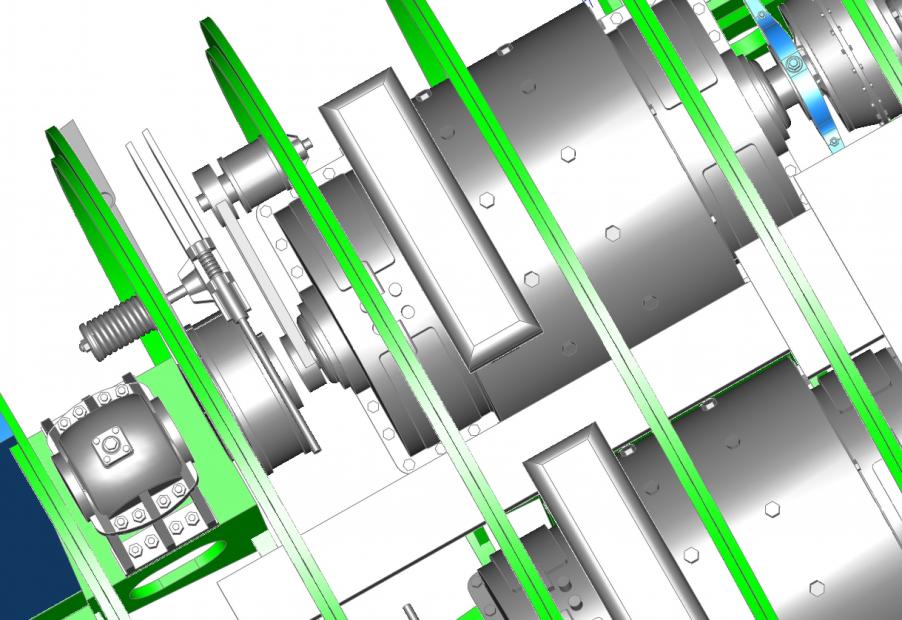

                  I did allot of work on the diesel and then started to model the engine room, starting with the engin foundations. The engine bases were a welded steel structure that also served as main fuel oil tank. I also added the foundations for the two thrust bearings and right in next to them (bow side) the electric motor clutch and the rpm-meter. The blue structure in the port aft side houses the toilet.

                  Click image for larger version

Name:	Vesikko-022.jpg
Views:	90
Size:	71.5 KB
ID:	179666

                  Click image for larger version

Name:	Vesikko-023.jpg
Views:	90
Size:	72.1 KB
ID:	179667 Click image for larger version

Name:	Vesikko-024.jpg
Views:	90
Size:	59.5 KB
ID:	179668 Click image for larger version

Name:	Vesikko-025.jpg
Views:	89
Size:	86.5 KB
ID:	179669

                  Comment

                  • DrSchmidt
                    Rear Admiral
                    • Apr 2014
                    • 1001

                    #24

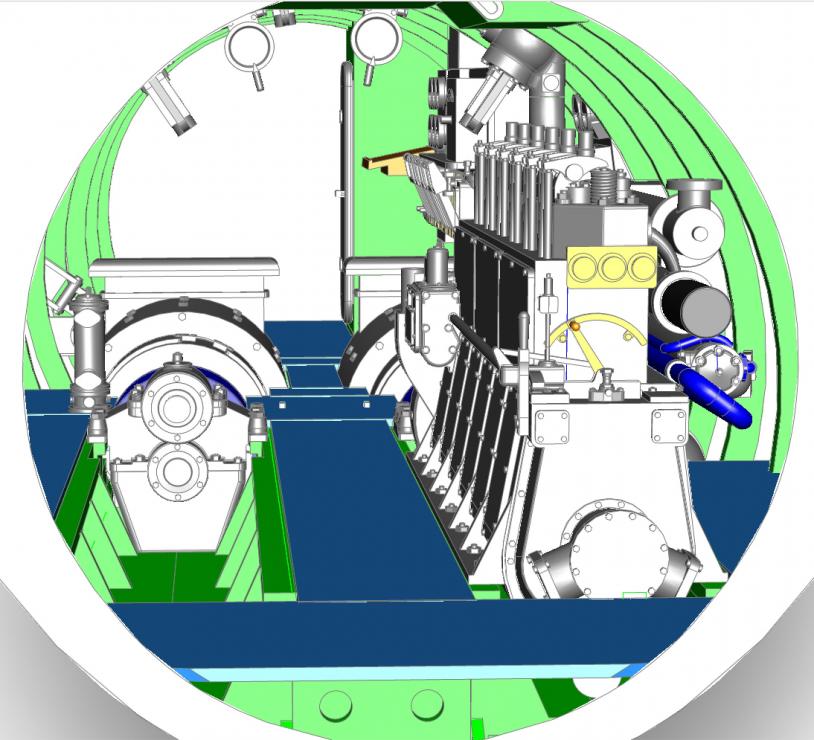

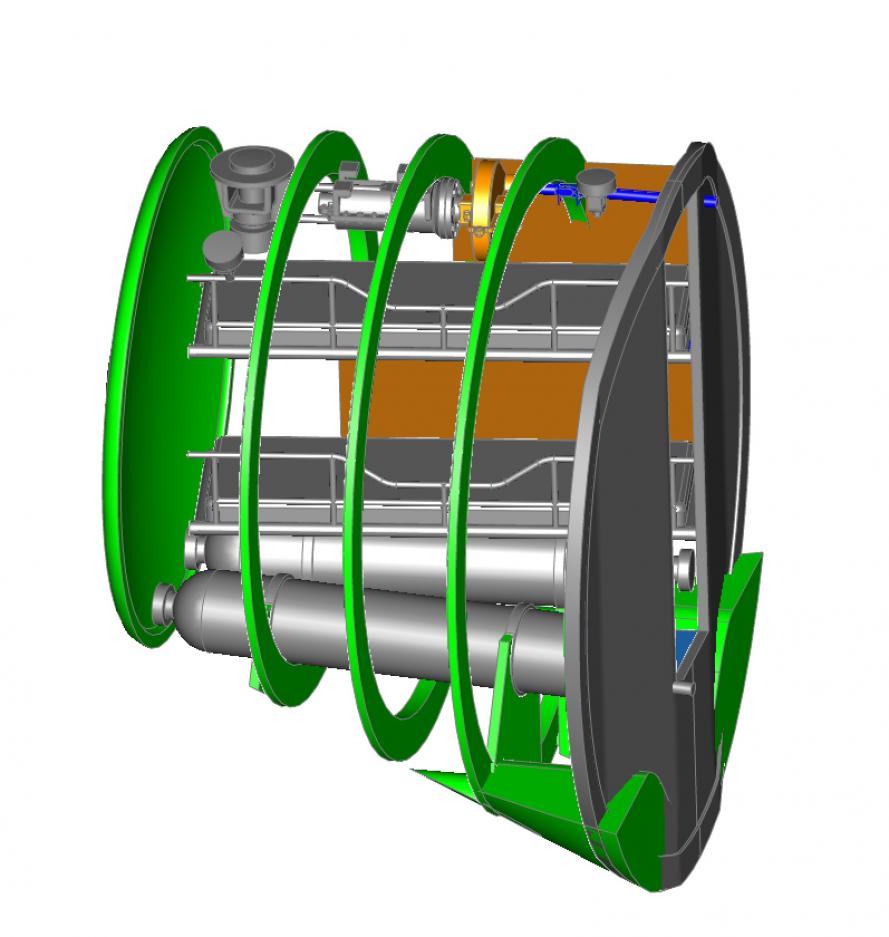

                    More detail work on the machine room....cooling water pump, electric panel, fuel tank, exhaust valve.....much more lttle stuff.

                    Click image for larger version

Name:	Vesikko-026.jpg
Views:	53
Size:	74.4 KB
ID:	180421

                    Click image for larger version

Name:	Vesikko-027.jpg
Views:	57
Size:	78.0 KB
ID:	180422

                    Comment

                    • DrSchmidt
                      Rear Admiral
                      • Apr 2014
                      • 1001

                      #25

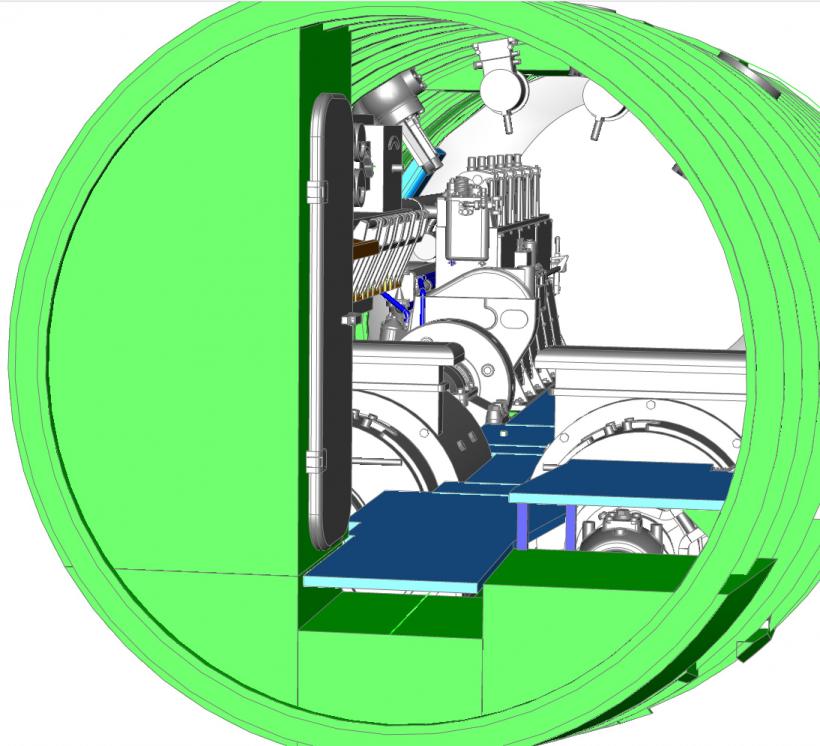

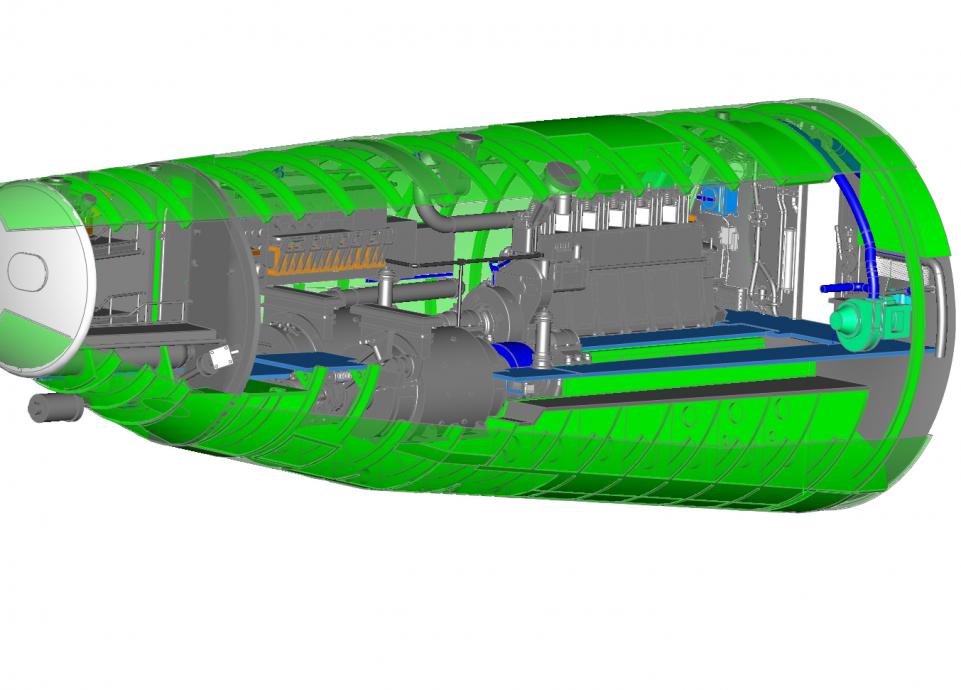

                      More details on the Vessiko engine room...

                      Click image for larger version

Name:	Vesikko-029.jpg
Views:	25
Size:	79.4 KB
ID:	180635

                      Click image for larger version

Name:	Vesikko-028.jpg
Views:	26
Size:	90.4 KB
ID:	180637

                      Click image for larger version

Name:	Vesikko-030.jpg
Views:	25
Size:	85.5 KB
ID:	180636



                      Comment
