Looking for US 627 Class Snorkel mast Picture/Drawing's

[QuarterMaster]

Other than remembering seeing the little indicator stick through the scope at PD, verifying the head valve actually being open, my memory is too rusty for the rest of the details. After all it's been almost 40 years!!
Any closup photos or detail drawings appreciated!

"Sub"Ed

[He Who Shall Not Be Named]

I might have shots of the WEBSTERS head-valve. It's a 616 class boat, but I think they were pretty much the same design.

David

[QuarterMaster]

I might have shots of the WEBSTERS head-valve. It's a 616 class boat, but I think they were pretty much the same design.

David

Appreciate it Dave. If I remember what I was told back then, most differences were internal anyway. I think we were made from the get go for the A3's specifically .

[SSBN659]

Try these.

[trout]

Those pictures are not showing up.

[SSBN659]

They show up on my Mac but not my iPod so I try again.

[SSBN659]

By the way, this is SSBN 633 Casimir Pulaski.

[QuarterMaster]

Thank you but specifically need SNORKEL mast, not IFF/UHF etc.....

[QuarterMaster]

Thank you but specifically need SNORKEL mast, not IFF/UHF etc.....

Actually, 633 does come to my aid.......

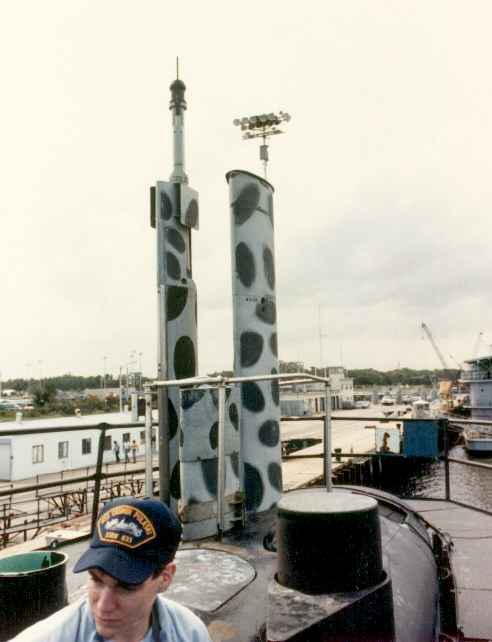

633 photo 1 circa 1989

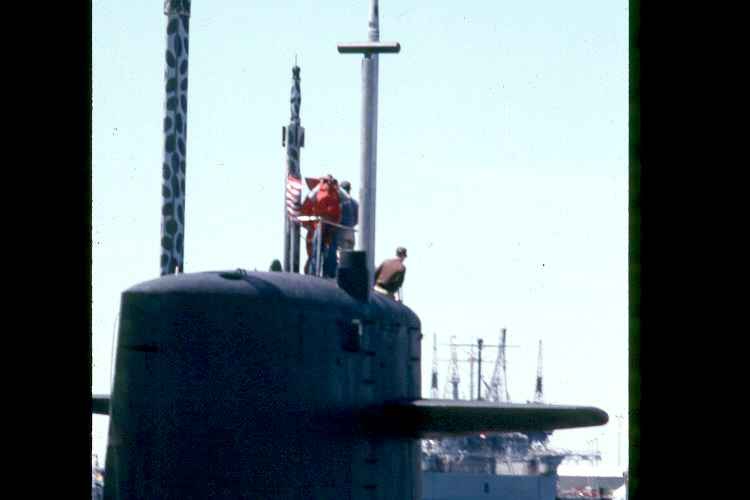

633 photo 2 circa 1989

Courtesy of NavSource Online: Submarine Photo Archive

Nothing to do with it, but what the heck as I have a love affair with the 41 for Freedom. Her lines, the cut of her sail, her control surfaces, in in my eye makes for a truly "American" Boat!
But then again I am biased, proudly so.

GO Von Steuben 632 !!

"Sub" Ed
QM2(SS) 631G
