  • Kilo flood grate pattern

    Anyone have a template for the Trumpeter Kilo flood grates on the bottom of the sub?

  • #2
    In all my searchings and collection of pictures i have yet to see any picts of these. I would be interested to know too.

    Comment


    • #3
      Is this still an open item? David Merriman came up with a pattern he would probably call more practical than authentic. That would be of practical use. But the basic question remains... Does anybody have info on the flooding/venting openings on any of the Kilo variants?

      Comment


      • #4
        If you are still talking about details on the bottom of the sub, I dont have anything. Except Ive got a picture of a Oscar grill on the bottom rear I believe, perhaps itll be similar? If you are talking about above waterline holes, perhaps one or two of my pictures will help. Ill search for that Oscar picture and post it here later.
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment


        • #5

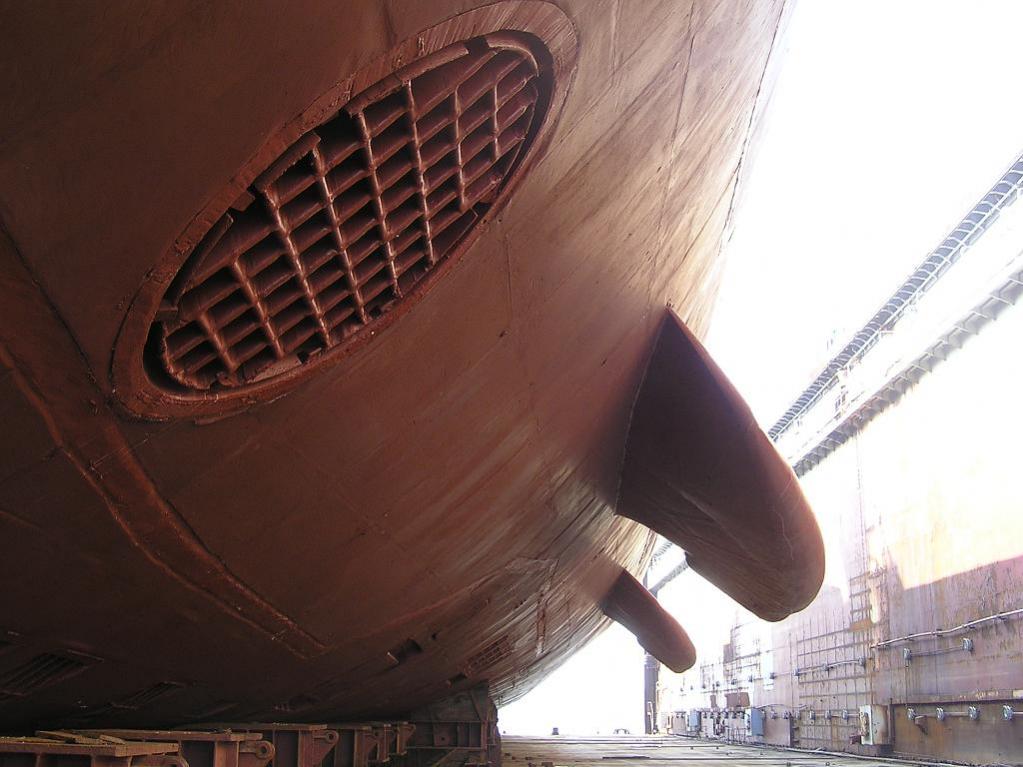

          Click image for larger version

Name:	Kursk_14.jpg
Views:	3
Size:	85.7 KB
ID:	61968
          Probably not much help but here it is.
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment


          • #6
            Originally posted by Outrider View Post
            Is this still an open item? David Merriman came up with a pattern he would probably call more practical than authentic. That would be of practical use. But the basic question remains... Does anybody have info on the flooding/venting openings on any of the Kilo variants?
            It's pretty much scale -- I have a profile drawing that just captures the flood-drain holes. So, longitudinally I have their length and location on the KILO pretty close. But, as to their distance from keel (CL), that was impossible to pick-off with any precession -- best guess there.

            This is, Captain Anal .... over and out.

            David,
            "... well, that takes care of Jorgenson's theory!"

            Comment


            • #7
              Originally posted by greenman407 View Post
              [ATTACH=CONFIG]7211[/ATTACH]
              Probably not much help but here it is.

              The square holes under the keel block foundations are flood-drain holes (with gratings). And I would think are representative of Soviet/Russian practice.

              David,
              "... well, that takes care of Jorgenson's theory!"

              Comment


              • #8
                Dave, In the picture I posted of the underside of an Oscar , what are the double lines heavily cut into the hull? You can see a set right next to the big round grate. They are all over my Oscar. As im repairing and touching them up, Im asking myself......what are these things?
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment


                • #9
                  Originally posted by Merriman View Post
                  It's pretty much scale -- I have a profile drawing that just captures the flood-drain holes. So, longitudinally I have their length and location on the KILO pretty close. But, as to their distance from keel (CL), that was impossible to pick-off with any precession -- best guess there.

                  This is, Captain Anal .... over and out.

                  David,
                  Wait a second... these aren't in the Cabal reports... How are your customers supposed to sort this out? There are some good photos of you on the drill press, but no actual pattern... I've got to watch over a 14 year old with a Dremel tool here. Keeping the secrets to yourself again, huh? I see how it is...

                  Profile drawing? Is there a source you can point us to?
                  Last edited by Outrider; 04-13-2011, 07:39 AM.

                  Comment


                  • #10
                    Originally posted by greenman407 View Post
                    Dave, In the picture I posted of the underside of an Oscar , what are the double lines heavily cut into the hull? You can see a set right next to the big round grate. They are all over my Oscar. As im repairing and touching them up, Im asking myself......what are these things?
                    At first I wanted to suggest that they were big-ass fillet welds -- but that does not make sense since the outer hull plating is likely 1/2" or so. Expansion breaks? Don't know.

                    David,
                    "... well, that takes care of Jorgenson's theory!"

                    Comment


                    • #11
                      Originally posted by greenman407 View Post
                      Dave, In the picture I posted of the underside of an Oscar , what are the double lines heavily cut into the hull? You can see a set right next to the big round grate. They are all over my Oscar. As im repairing and touching them up, Im asking myself......what are these things?
                      I've always suspected that these are some form of sensor, but exactly what they're sensing I have no idea. I've noticed the same structures on Akula and DELTA IV to name a few...
                      Kevin McLeod - Oscar II driver
                      KMc Designs

                      Comment


                      • #12
                        As to the Oscar...

                        How's about a channel for a degaussing cable? These beasts are huge chunks of metal...
