    Bringing my first boat to life again

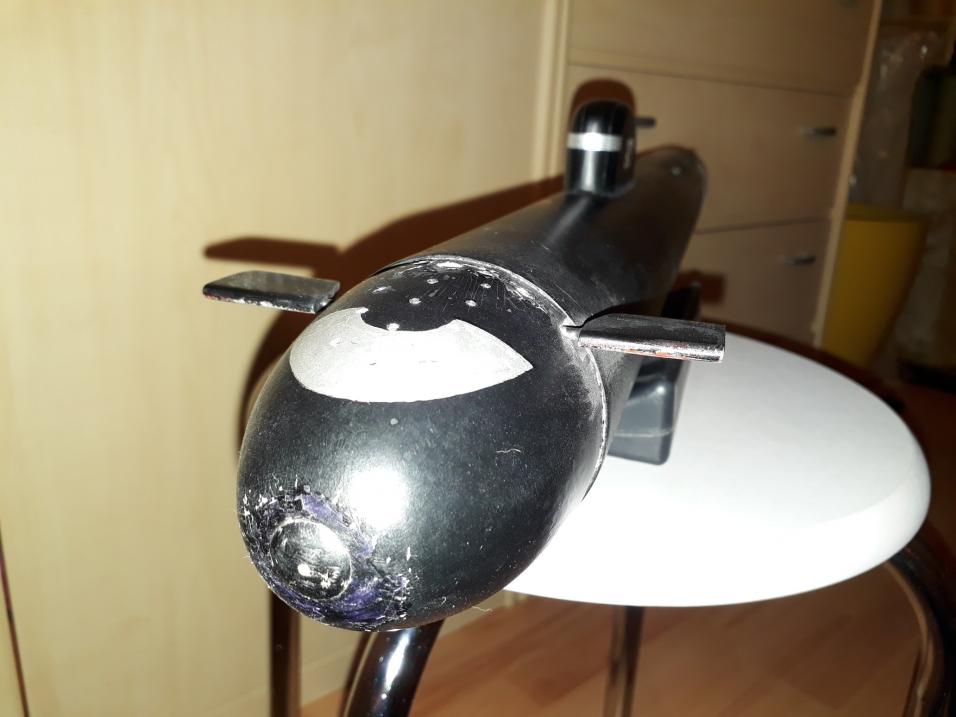

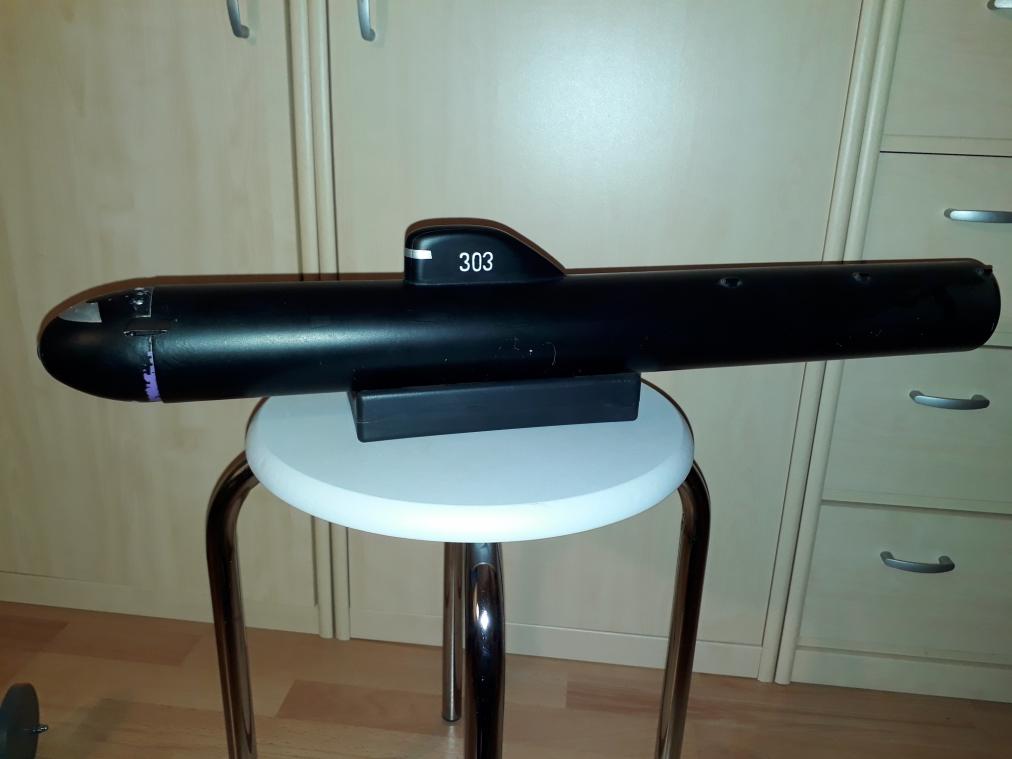

    Greetings! This is a short log of the restauration of my first working static diver, based on the Soviet K-3 / Project 627. A long term project, basically a try-out for building techniques and new ideas that by the way upgrade that over 20 year old model.

    I built that model without ever having heard from subdrivers, proper grp piece production, David Merriman, Norbert Brüggen etc. What i had were some modelling magazines, books about Naval Vessels, a great book on the soviet submarines after 1945-my bible back then, though most of the sketches in it later proved to be wrong, and 0 rc model building experience, safe my prior attemps to turn revell models into radio-controlled. I had some static model experience.

    This boat consists originally of pvc, aluminum( at least 3mm thickness!) , abs and STEEL. I started building it from scratch in 1999/2000, i.e. what you see is an evolution of previous models that share the same badic hull shape. I first made a 2-channel dynamic diver with a dry-hull and free-flooding bow and stern and a large deck held on a perpendicular rubber seal by somewhat 20 bolts. That first hull was a 70mm diam. pp sewer pipe. I later learned that any glue i had would not hold long on that material, however my plywood-bulkheads, thoroughly sealed with plastic glue and spray-filler, still exist in the surplus box no matter how wet they've gotten.. bow and stern were made from a large plastic easter egg, its top made the stern, the bottom made the bow. Sail from wood. It worked, but i than wanted dive control and a pressure hull. So i made a pressure hull from 65mm square aluminum tubing and aluminum bulkheads that would be inserted into the sub, using a 4-channel radio for dive control. I then found out pp is bad for building and would now use a 76mm pvc pipe. Plus i had one spare channel, so "lets try static". I bought a 12v gear pump that ran on a 9.6 nicd pack, controlled by a small esc thst was attached to an aluminum heatsink thst i made, implemented into the water circuit. Needed more space- no aluminum wtc. Saw a picture of the Robbe Seawolf and its inerts. "Make it so" . Where would the balast water go?The first balast tank was a piece of bicycle hose, however it didnt hold the balast water well, but pushed it back out throgh the pump. I than made a static tank with one sealed end, water inlet/outlet and over-pressure valve. Its other end received the bycicle hose, that would be sucked into the tank when draining, but extrude out of the tank when filled. This system worked-and still works- very well and leaves some safety, i.e. is self-draining over time in case the boat looses signal.

    having all that, i built this boat, no.3. A solid aluminum tray formed the base for the electronic components, bulkheads were made from abs, the stern from massive rectangular aluminum tubing covered with plastic sheets and pvc tubing. The planes and rudder are Alu, too. The foremost bulkhead of the tray contains the thread for the m8 locking screw as well as multiple coupling-screws positioned around the center thats heads lock into corresponding holes in the aluminum bulkhead, bolted down onto the glued abs bulkhead at the bow. SUPER SAFE against twisting. Oh boy...

    The wooden sail did not survive for long and was used as template for a more realistic november conning, filed out of a block of weld-glued plexiglass sheets. The bow was made from the pointier top of the mentioned easter-egg-originally the stern of boat no.1!

    This model gave me the creeps then, for the super expansive 4 ch radio would just not work! The cheaper 2ch did so well before. What was it?

    I ran 2 batteries.7,2v racing pack for the motor, esc red cable "in". 9,6v on pump, esc too, red cable"in". Find the error? Youre wrong.

    Switching bec to pump esc only, same effect, boat did anything in the water but what i made on the remote...

    Was it i used a can of aluminum effect spray as base coat?

    Was it i placed the antenna on the inside?

    Solution for both, external antenna. Seal the tip, make seal for the antenna to go through.

    NO EFFECT.

    Found out theres a Mr.Norbert Brüggen who could help, emailed him.
    He suggested a separate receiver battery. Squeezed in a 4-cell pack, but not the easy way. No, i made an enirely new "battery deck" and now had 3 separate circuits.

    Still the boat would not run properly. Must be i chose a Soviet 1st generation nuke or i took the wrong way.

    My fault: Acoms radio said "40mhz AM".
    wait, they have a boat on the packaging cover!

    That radio was simply useless. It never worked properly.

    Magically, installing the enormous 8ch receiver of my brandnew Futaba F-14 solved all these problems and K-3 ran happily ever after.

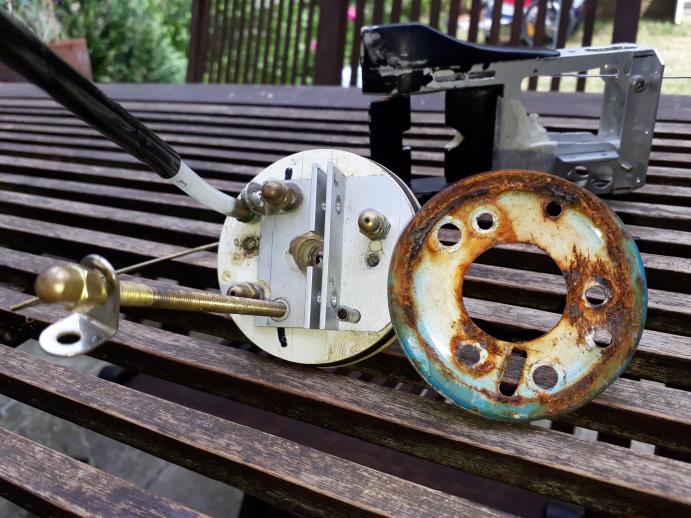

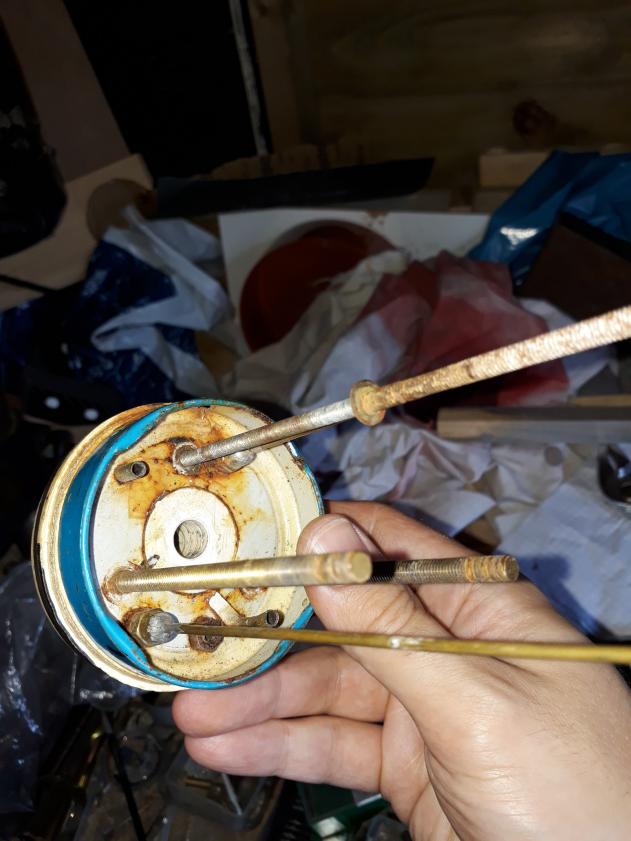

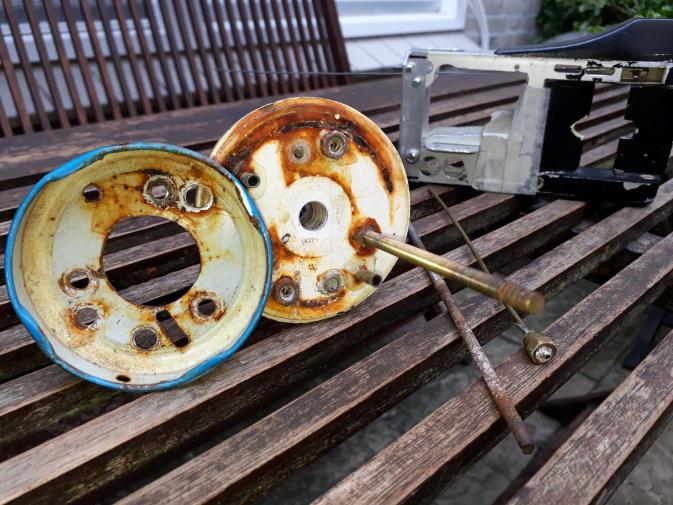

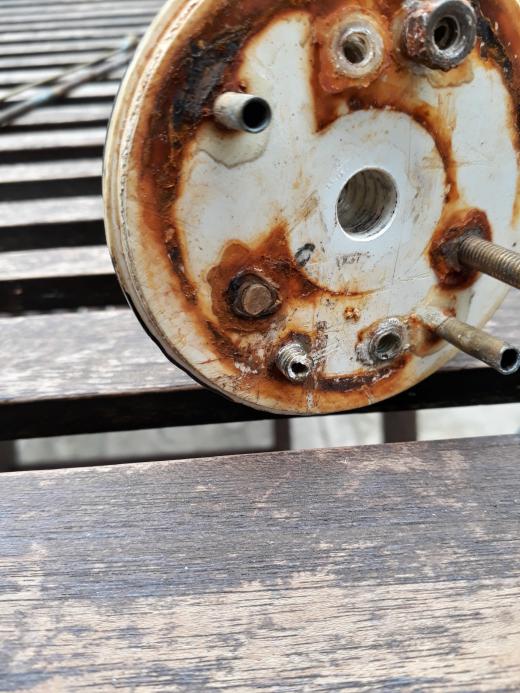

    In 2018, i decided just to quickly replace the rusting non-stainless screws on the stern etc. Found more corrosionon the brass parts. Epoxy glue dissolved too. And by the way, a november happens two have twin shafts, dummie! Lets go tinker a quick refit, upgrade...

    5 years later...2 kids, moving into our own house and my beloved garden SOMEHOW shifted my priorities... marginal PROGRESS:

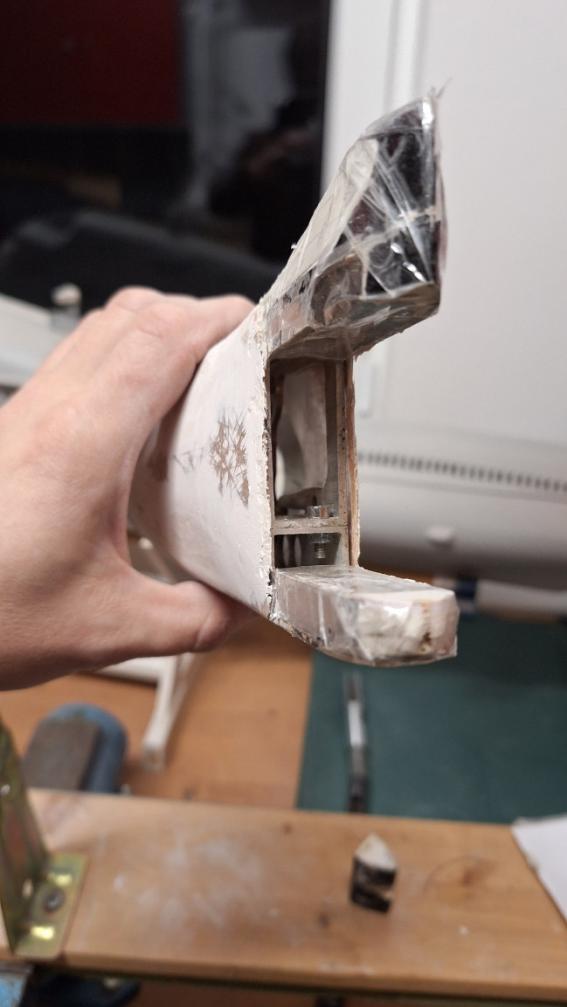

    Bow and sail were copied with grp, the stern will receive a grp casing, too. But hey, I removed all the rotten parts, afterall :-)))

    Click image for larger version  Name:	IMG-20210926-WA0000.jpg Views:	0 Size:	72.0 KB ID:	172951Click image for larger version  Name:	IMG-20210926-WA0004.jpg Views:	0 Size:	75.3 KB ID:	172952Click image for larger version  Name:	IMG-20210926-WA0003.jpg Views:	0 Size:	72.6 KB ID:	172953Click image for larger version  Name:	IMG-20210926-WA0002.jpg Views:	0 Size:	72.3 KB ID:	172954Click image for larger version  Name:	IMG-20210926-WA0001.jpg Views:	0 Size:	76.1 KB ID:	172955Click image for larger version  Name:	IMG-20220728-WA0005.jpg Views:	0 Size:	69.8 KB ID:	172961Click image for larger version  Name:	IMG-20220728-WA0004.jpg Views:	0 Size:	70.1 KB ID:	172962Click image for larger version  Name:	IMG-20220728-WA0000.jpg Views:	0 Size:	71.4 KB ID:	172963Click image for larger version  Name:	IMG-20220728-WA0003.jpg Views:	0 Size:	70.5 KB ID:	172964Click image for larger version  Name:	IMG-20220728-WA0002.jpg Views:	0 Size:	70.3 KB ID:	172965Click image for larger version  Name:	IMG-20220721-WA0007.jpg Views:	0 Size:	75.1 KB ID:	172957Click image for larger version  Name:	IMG-20220721-WA0011.jpg Views:	0 Size:	73.3 KB ID:	172958Click image for larger version  Name:	IMG-20220722-WA0001.jpg Views:	0 Size:	66.7 KB ID:	172956Click image for larger version  Name:	IMG-20220724-WA0002.jpg Views:	0 Size:	69.8 KB ID:	172960Click image for larger version  Name:	IMG-20220724-WA0004.jpg Views:	0 Size:	69.4 KB ID:	172959Click image for larger version  Name:	IMG-20230430-WA0008.jpg Views:	0 Size:	76.0 KB ID:	172966Click image for larger version  Name:	IMG-20230430-WA0009.jpg Views:	0 Size:	81.8 KB ID:	172967

    Jörg

    Ps last picture showing first attempt to close the sides of the stern with grp. Dropped that and went with abs-sheet templates sqeezed into the inside to directly build up the grp-layers. See the next pictures.
    Last edited by JHapprich; 02-01-2025, 09:27 AM.
  • Subculture
    Admiral

    • Feb 2009
    • 2245

    #2
    Does that ballast system just vent air into the collapsible bladder?

    Comment

    • JHapprich
      Captain

      • Oct 2017
      • 804

      #3
      The bidirectional gear pump pumps water in and out again.the bladder deflates and is sucked against the inside of the balast tank. The second connection is the overpressure valve.it proved unnecessary and remains closed as there never is enough inner pressure buildup.

      Comment

      • JHapprich
        Captain

        • Oct 2017
        • 804

        #4
        It is a closed system for real static diving no snort

        Comment

        • JHapprich
          Captain

          • Oct 2017
          • 804

          #5
          Works resumed!

          Click image for larger version

Name:	20250114_214231_copy_649x1153.jpg
Views:	71
Size:	47.9 KB
ID:	185728 Click image for larger version

Name:	20250124_232152_copy_649x1153.jpg
Views:	76
Size:	44.3 KB
ID:	185724 Click image for larger version

Name:	20250131_223542_copy_649x1153.jpg
Views:	70
Size:	48.9 KB
ID:	185725 Click image for larger version

Name:	20250131_223536_copy_649x1153.jpg
Views:	71
Size:	47.7 KB
ID:	185727 Click image for larger version

Name:	20250131_223529_copy_649x1153.jpg
Views:	72
Size:	49.6 KB
ID:	185730 Click image for larger version

Name:	20250131_225643_copy_649x1153.jpg
Views:	72
Size:	45.2 KB
ID:	185734 Click image for larger version

Name:	20250131_230634_copy_649x1153.jpg
Views:	70
Size:	47.7 KB
ID:	185736 Click image for larger version

Name:	20250131_231107_copy_649x1153.jpg
Views:	72
Size:	45.9 KB
ID:	185726 Click image for larger version

Name:	20250131_231645_copy_649x1153.jpg
Views:	71
Size:	44.5 KB
ID:	185735 Click image for larger version

Name:	20250131_230658_copy_2048x1153.jpg
Views:	70
Size:	54.6 KB
ID:	185729 Click image for larger version

Name:	20250131_231719_copy_649x1153.jpg
Views:	71
Size:	41.2 KB
ID:	185732 Click image for larger version

Name:	20250131_232152_copy_2048x1153.jpg
Views:	70
Size:	58.3 KB
ID:	185733
          Attached Files

          Comment

          • redboat219
            Admiral

            • Dec 2008
            • 3169

            #6
            When you launch the boat do you start with the bladder section fully retracted into the tube or outside so that the rigid section has air in it?
            Make it simple, make strong, make it work!

            Comment

            • He Who Shall Not Be Named
              Moderator

              • Aug 2008
              • 12955

              #7
              Now... THIS is model building! Already a feast for the eyes. This will be my go too page as long as it's kept up.
              Who is John Galt?

              Comment

              • JHapprich
                Captain

                • Oct 2017
                • 804

                #8
                Romel, the bladder is entirely retracted into the tube. Tube itself acts as the rigid portion of the balast tank to provide the necessary volume to dive plus partially the bladder/hose without leaking back through the pump as would a bladder-only tank.

                David, no complaints glueing poly-resin to pvc?!?
                Am impressed... kidding, enjoy the rebuild!

                Comment

                • redboat219
                  Admiral

                  • Dec 2008
                  • 3169

                  #9
                  No pinch valve?
                  Make it simple, make strong, make it work!

                  Comment

                  • He Who Shall Not Be Named
                    Moderator

                    • Aug 2008
                    • 12955

                    #10
                    Well, if the North Korean's can turn an old, rusty ROMEO into a ballistic missile shooter (what a floating junk-yard resulted from that awful piece of surgery!), then it stands to reason that early in the game the Rusike's would have led the way by converting a bunch of WHISKEY's into LONG BIN cruise missel shooters.
                    Who is John Galt?

                    Comment

                    • JHapprich
                      Captain

                      • Oct 2017
                      • 804

                      #11
                      Originally posted by redboat219
                      No pinch valve?
                      No need for it.

                      It works more like a gear-pump fed piston tank, i.e. one end of the tubular portion can be extended via pumping water, therefore increasing the inner volume. The tube is of about the same diameter of the unloaded hose.with inflating the bladder , hull's inner air pressure rises slightly, so over time, a small amount of water leaks through the pump with pump off, as the bladder is being compressed by the inner hull pressure, causing surfacing. Pumping in too much water will only inflate the bladder more, pump off will quickly remove the surplus water balast as the bladder regains its static shape from that elastic deformation. In theory, over-pumping should engage the inverted tire valve /safety valve to release the over-pressure what practically did not happen since the inner pressure never passed the point of valve opening and i never intentionally inflated the bladder that much, nor do i believe now the pump would handle that.

                      David, you refer to the long bin in the background, not the semi scale November?

                      To keep it simple, i'll retain the single-screw design. Model was built to that specs, dont want to make a new tech tray. Genuine false.
                      Last edited by JHapprich; 02-01-2025, 04:28 PM.

                      Comment

                      • rwtdiver
                        Vice Admiral

                        • Feb 2019
                        • 1889

                        #12
                        Jorg,

                        Your Soviet K-3 is really starting to move along. You and David M. share a lot in common with the type of materials and tooling that you both use. I really enjoy seeing this old school method of building a submarine that you, David, and others on this forum are using.

                        Keep up the great work, and keep posting it up!

                        Rob
                        "Firemen can stand the heat."

                        Comment

                        • JHapprich
                          Captain

                          • Oct 2017
                          • 804

                          #13
                          Thank you, Rob!

                          New PU-cast stabalizers.Diveplanes and rudder will follow. I have got several casting forms for basic shaped parts now that can be adjusted to the necessary size.

                          Click image for larger version

Name:	20250209_111335_copy_1148x2040.jpg
Views:	14
Size:	55.8 KB
ID:	185871
                          Click image for larger version  Name:	20250207_165013_copy_1148x2040.jpg Views:	0 Size:	55.2 KB ID:	185868 Click image for larger version  Name:	20250207_165705_copy_1148x2040.jpg Views:	0 Size:	52.2 KB ID:	185869 Click image for larger version  Name:	20250207_171125_copy_1148x2040.jpg Views:	0 Size:	57.1 KB ID:	185870
                          Last edited by JHapprich; 02-09-2025, 06:15 AM.

                          Comment

                          • JHapprich
                            Captain

                            • Oct 2017
                            • 804

                            #14
                            Rigging up! Click image for larger version

Name:	20250209_181931_copy_2040x1148.jpg
Views:	13
Size:	61.3 KB
ID:	185883 Click image for larger version
