    Japanese I-400 submarine

    Yea I have slow down on my I-400 build since I got my I-19. But I do plan on getting it done. I printed most of the hull, just need the stern and 1 lower hull part and then the Conning tower. But I just got the deck all the back to way to were the stern with the rest of the deck connects done.

    Click image for larger version

Name:	IMG_2783b.jpg
Views:	364
Size:	56.9 KB
ID:	161240
    Click image for larger version

Name:	IMG_2943a.jpg
Views:	332
Size:	51.8 KB
ID:	161241
  • SubDude
    Captain
    • Dec 2019
    • 803

    #2
    Looking good David!

    Comment

    • Sinksalot
      Commander
      • Mar 2020
      • 332

      #3
      Originally posted by RCJetDude
      Looking good David!
      Thanks Steve, its getting there. once all parts are done , then the gluing starts

      Comment

      • mloo123
        Lieutenant
        • Apr 2022
        • 52

        #4
        Nice subject model. Looking forward the progress!

        Comment

        • rwtdiver
          Vice Admiral
          • Feb 2019
          • 1769

          #5
          Hi David,

          Your I-400 is really going to be a nice boat!

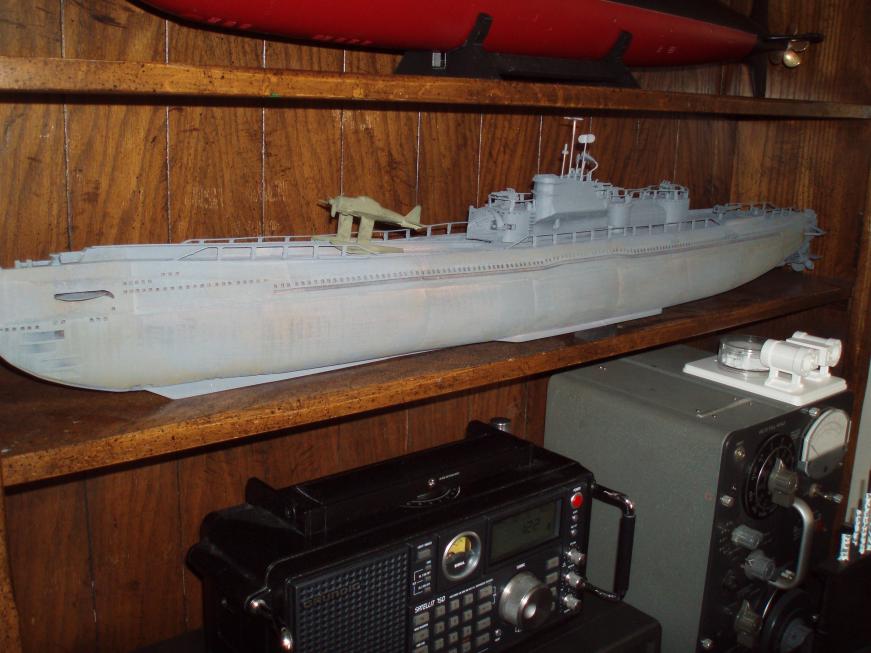

          Click image for larger version

Name:	I-400 1.jpg
Views:	315
Size:	71.3 KB
ID:	161453Click image for larger version

Name:	I-400 2.jpg
Views:	298
Size:	71.3 KB
ID:	161454

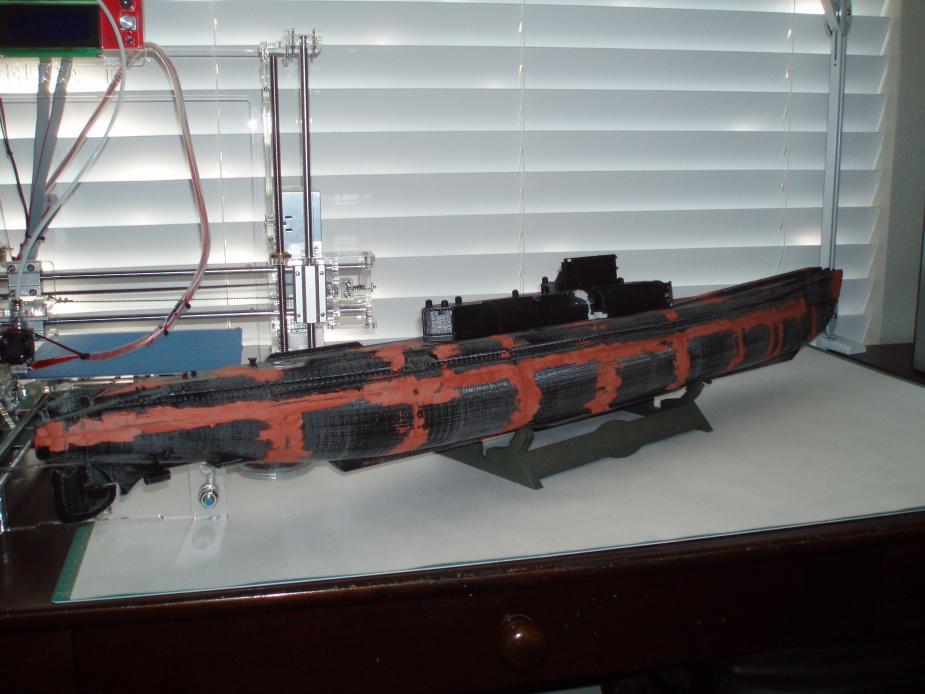

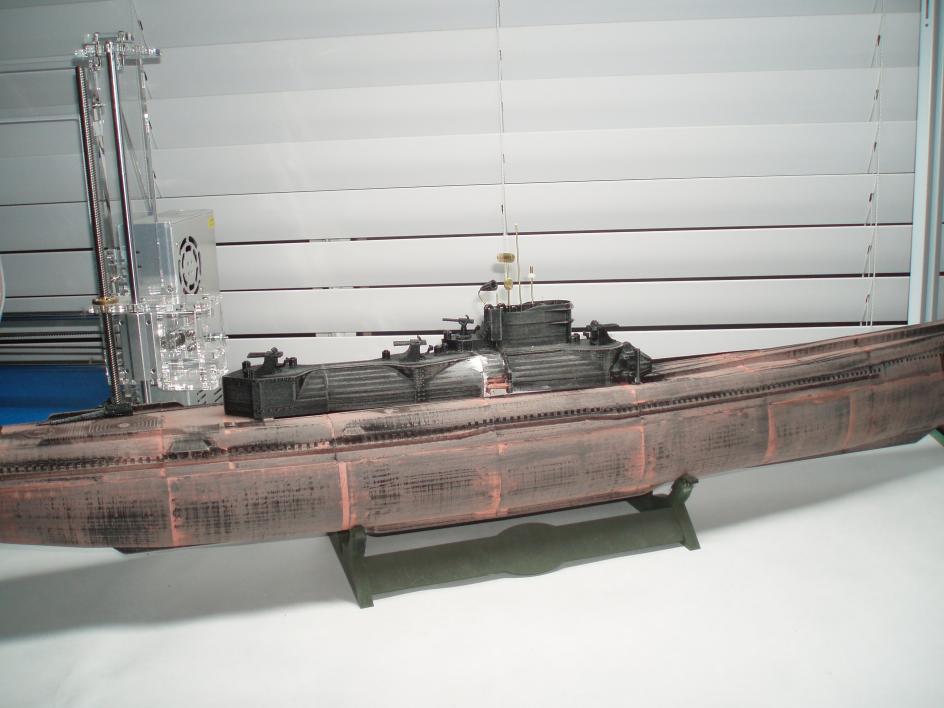

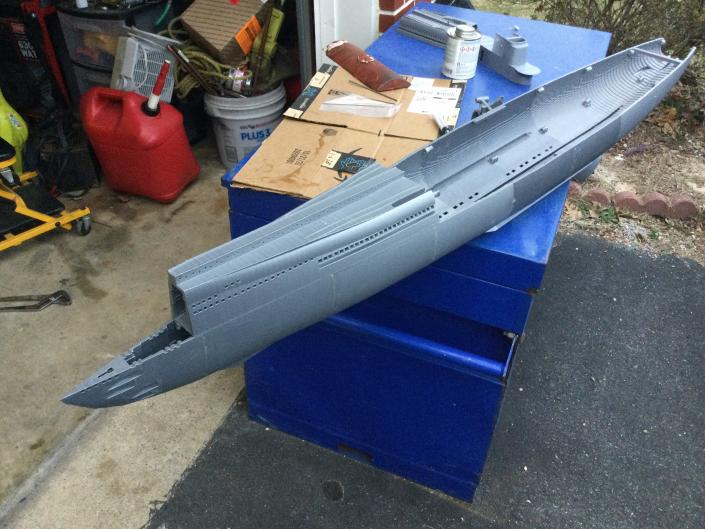

          I just got my approximate 1:96 scale I-400 put together and, in the primer stage! I got my 3D print files for this boat off of Thingiverse, and modified the files to a certain degree. I have done a little pre-color scheme testing, just not sure which way to go yet.

          Click image for larger version

Name:	i=401 sub finish work.jpg
Views:	296
Size:	66.3 KB
ID:	161455Click image for larger version

Name:	i-401 Sail.jpg
Views:	296
Size:	64.2 KB
ID:	161456

          I have found color photos of the original boat, and the rustic look seems like a good take.
          I am really looking forward to seeing your progress on your boat. In looking at your photos, yours seems to be larger than 1:96 scale!? None-the less, keep up the great work, and keep them photos coming!

          Rob
          "Firemen can stand the heat"

          Comment

          • Sinksalot
            Commander
            • Mar 2020
            • 332

            #6
            Originally posted by rwtdiver
            Hi David,

            Your I-400 is really going to be a nice boat!

            Click image for larger version

Name:	I-400 1.jpg
Views:	315
Size:	71.3 KB
ID:	161453Click image for larger version

Name:	I-400 2.jpg
Views:	298
Size:	71.3 KB
ID:	161454

            I just got my approximate 1:96 scale I-400 put together and, in the primer stage! I got my 3D print files for this boat off of Thingiverse, and modified the files to a certain degree. I have done a little pre-color scheme testing, just not sure which way to go yet.

            Click image for larger version

Name:	i=401 sub finish work.jpg
Views:	296
Size:	66.3 KB
ID:	161455Click image for larger version

Name:	i-401 Sail.jpg
Views:	296
Size:	64.2 KB
ID:	161456

            I have found color photos of the original boat, and the rustic look seems like a good take.
            I am really looking forward to seeing your progress on your boat. In looking at your photos, yours seems to be larger than 1:96 scale!? None-the less, keep up the great work, and keep them photos coming!

            Rob
            "Firemen can stand the heat"

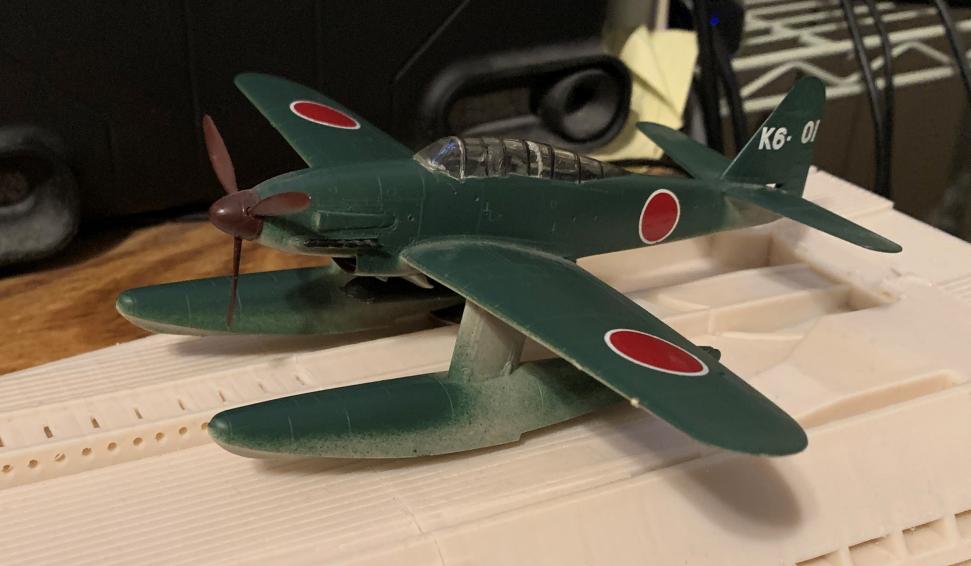

            Yea the sub is 1/72 scale. You did a nice print yourself Rob. I am also redoing the model you printed. I will try to make the hull smoother and add all the flood vents at the size show in the picture. I already have the plane for it at the correct size.

            Dave Click image for larger version

Name:	IMG_2948.JPG
Views:	269
Size:	52.3 KB
ID:	161462
            Click image for larger version

Name:	Japanese_I401_submarine_2.jpg
Views:	240
Size:	75.3 KB
ID:	161463

            Comment

            • rwtdiver
              Vice Admiral
              • Feb 2019
              • 1769

              #7
              Originally posted by Sinksalot

              Yea the sub is 1/72 scale. You did a nice print yourself Rob. I am also redoing the model you printed. I will try to make the hull smoother and add all the flood vents at the size show in the picture. I already have the plane for it at the correct size.

              Dave Click image for larger version

Name:	IMG_2948.JPG
Views:	269
Size:	52.3 KB
ID:	161462
              Click image for larger version

Name:	Japanese_I401_submarine_2.jpg
Views:	240
Size:	75.3 KB
ID:	161463
              I think I have the kit that you are showing for the airplane. I ordered it, but it was just to big for my boat. I went back on Thingiverse and found one similar, but not the exact plane. You are really going to have a nice boat when completed!

              Are you going to go RC with your boat, or just a static model?

              Rob
              "Firemen can stand the heat"

              Comment

              • Sinksalot
                Commander
                • Mar 2020
                • 332

                #8

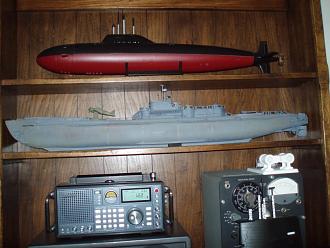

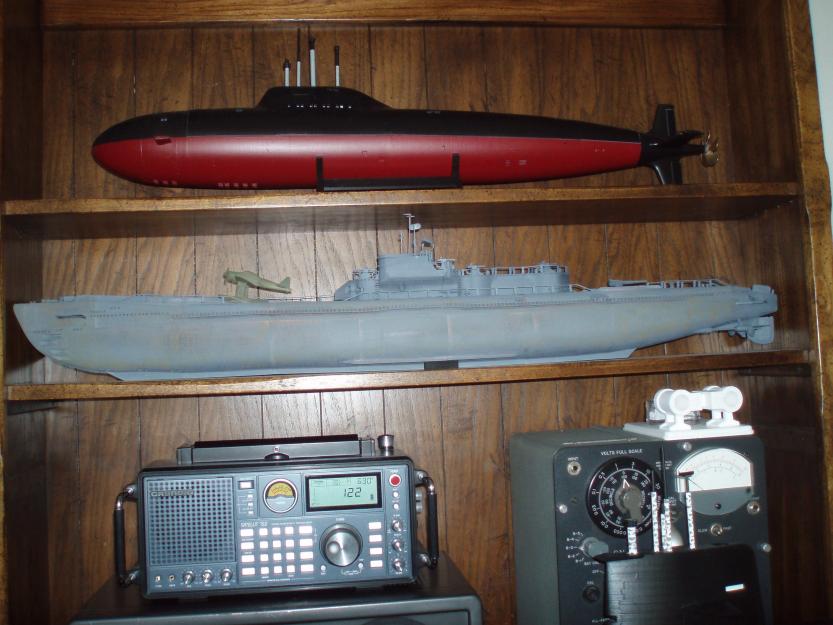

                The first print sub of this version will be a prototype. If its good enough I will make its a RC sub. . I am sure I will learn from my mistakes in its design so I can update my design . See I printed the one you printed with a few changes in its design and It came ok. But then I decided to try to make a version for myself. What a pain in the ass it was to do.. Here is a picture of the one from thingiverse I printed with mods to the design back in 2019.


                Click image for larger version

Name:	IMG_0776.JPG
Views:	222
Size:	65.6 KB
ID:	161469



                Attached Files

                Comment

                • rwtdiver
                  Vice Admiral
                  • Feb 2019
                  • 1769

                  #9
                  Originally posted by Sinksalot
                  The first print sub of this version will be a prototype. If its good enough I will make its a RC sub. . I am sure I will learn from my mistakes in its design so I can update my design . See I printed the one you printed with a few changes in its design and It came ok. But then I decided to try to make a version for myself. What a pain in the ass it was to do.. Here is a picture of the one from thingiverse I printed with mods to the design back in 2019.


                  Click image for larger version

Name:	IMG_0776.JPG
Views:	222
Size:	65.6 KB
ID:	161469


                  Dave,

                  That hull really looks great! I certainly see the differences in our two hulls. I wish I had the skills that you have to be able to go in and make changes to the print files. Your hull looks as if it could support a WTC!
                  You are doing a nice job on your build! I am looking forward to seeing your final design and build!

                  Rob
                  "Firemen can stand the heat"

                  Comment

                  • Sinksalot
                    Commander
                    • Mar 2020
                    • 332

                    #10

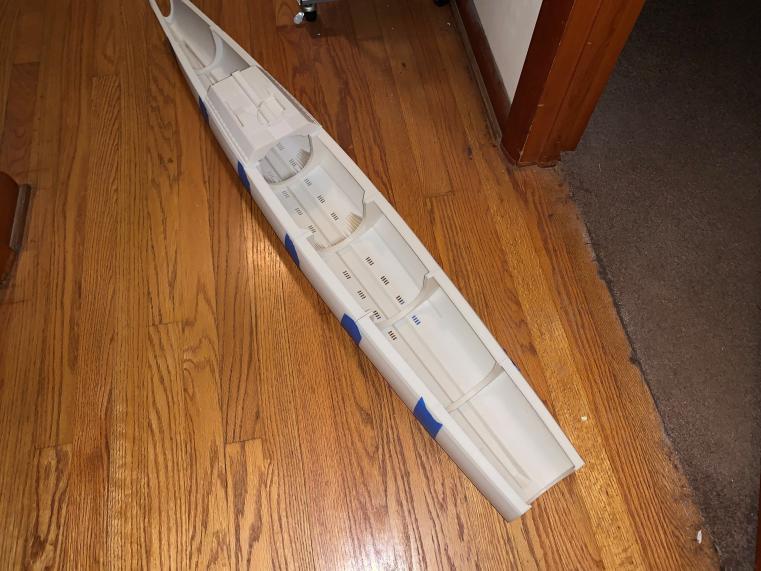

                    This is the inside of my current I-400. It can hold a 100mm wide cylinder if needed

                    Click image for larger version  Name:	IMG_2755.JPG Views:	0 Size:	70.0 KB ID:	161473

                    Comment

                    • Sinksalot
                      Commander
                      • Mar 2020
                      • 332

                      #11

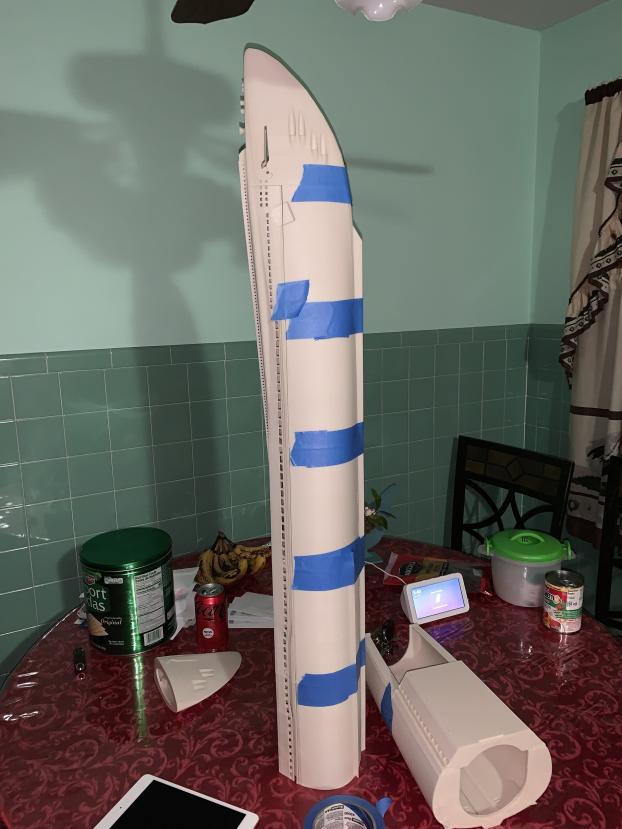

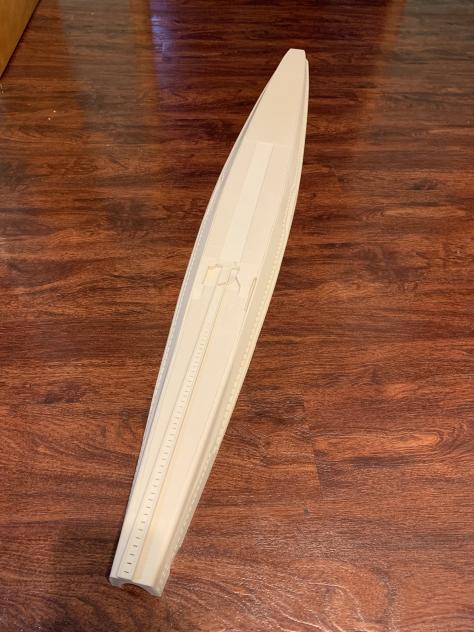

                      Here is the hull laid out with the bow and stern. I just finished the stern. Now for the conning tower. But first i need to retune and upgrade my hotend on my printer as the prints are not as good as they were at the start.



                      Click image for larger version

Name:	IMG_2954a.jpg
Views:	200
Size:	71.5 KB
ID:	161532

                      Comment

                      • SubDude
                        Captain
                        • Dec 2019
                        • 803

                        #12
                        Looking good David. I just replaced all of the rollers on my CR5+ and it improved the print quality.

                        Comment

                        • Sinksalot
                          Commander
                          • Mar 2020
                          • 332

                          #13
                          Originally posted by RCJetDude
                          Looking good David. I just replaced all of the rollers on my CR5+ and it improved the print quality.
                          Jezz I totally forgot I bought new rollersa few months ago. I just got to find them now. there somewhere in the house. Thanks for reminding me Steve.

                          As for the overall quality of the printed hull, I may reprint some parts, maybe. But I sure some filler and sanding should be able to smooth out the printing errors. The odd thing most of the printing errors happen in the lower hull parts. but the top of the sub came out good.

                          Comment

                          • mloo123
                            Lieutenant
                            • Apr 2022
                            • 52

                            #14
                            May I know how many percent infill you guys usually print your boats? Sorry for asking such silly questions

                            Comment

                            • rwtdiver
                              Vice Admiral
                              • Feb 2019
                              • 1769

                              #15
                              Originally posted by mloo123
                              May I know how many percent infill you guys usually print your boats? Sorry for asking such silly questions
                              Hi mioo123,

                              Click image for larger version

Name:	Alfa Top Section 2.jpg
Views:	173
Size:	71.1 KB
ID:	161559

                              I always use PLA at 100% infill for all my builds!

                              Rob
                              "Firemen can stand the heat"

                              Comment
