  • British H-class (Holland Type 602):

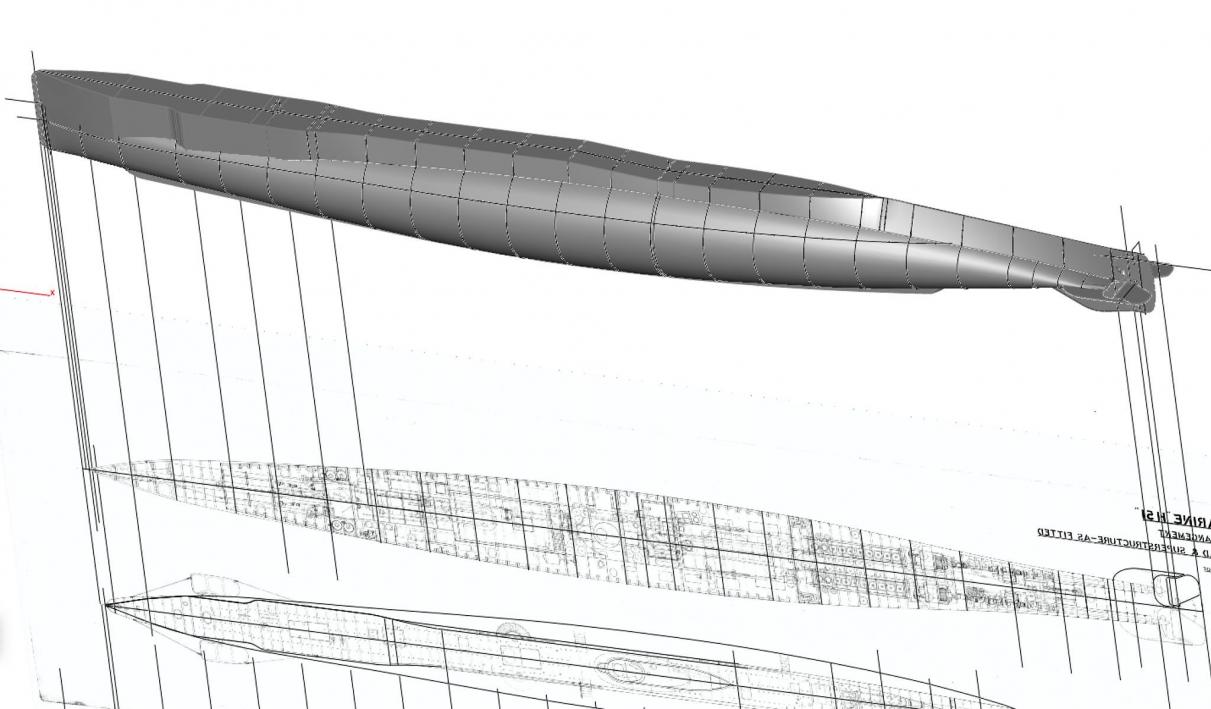

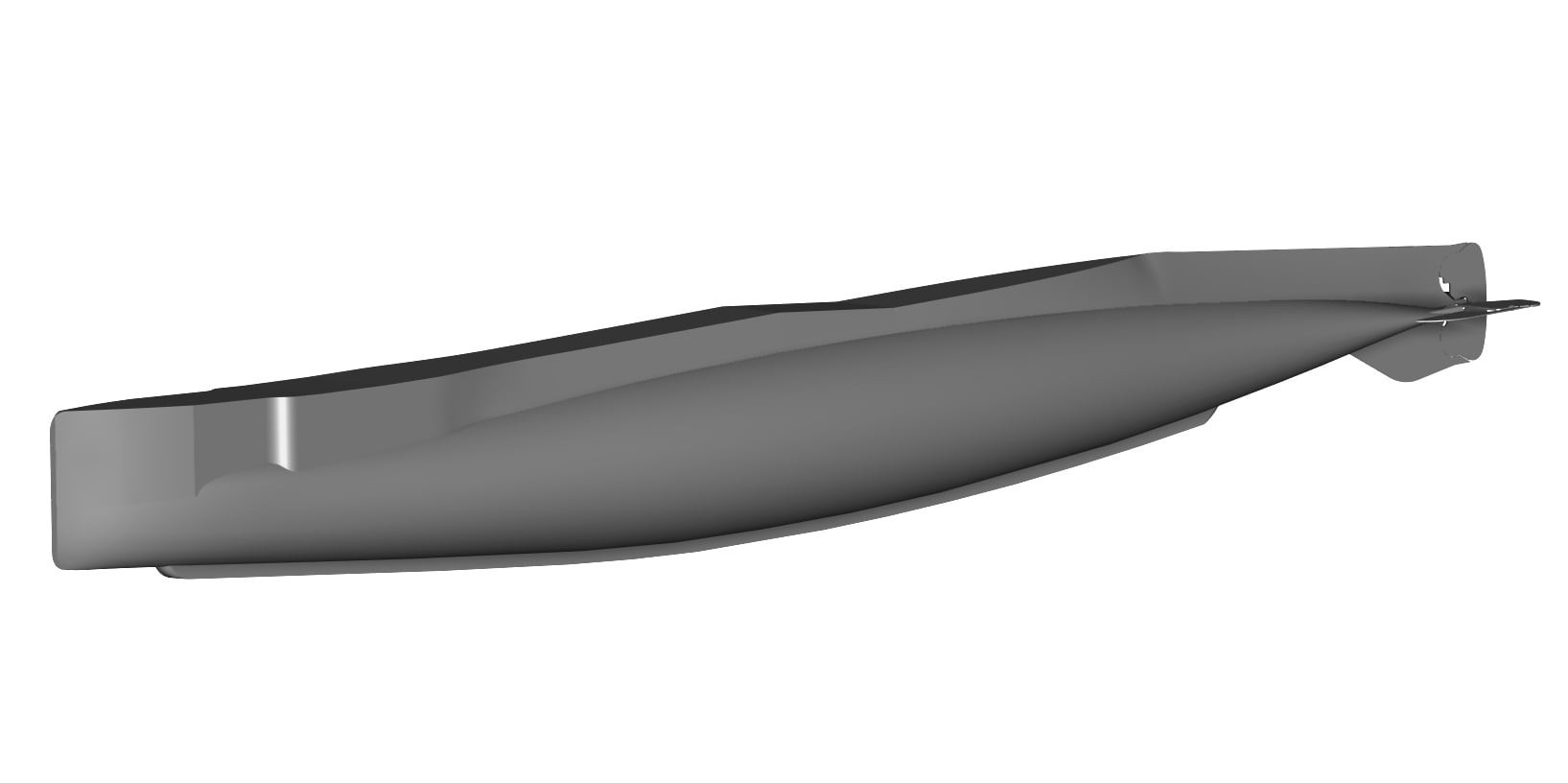

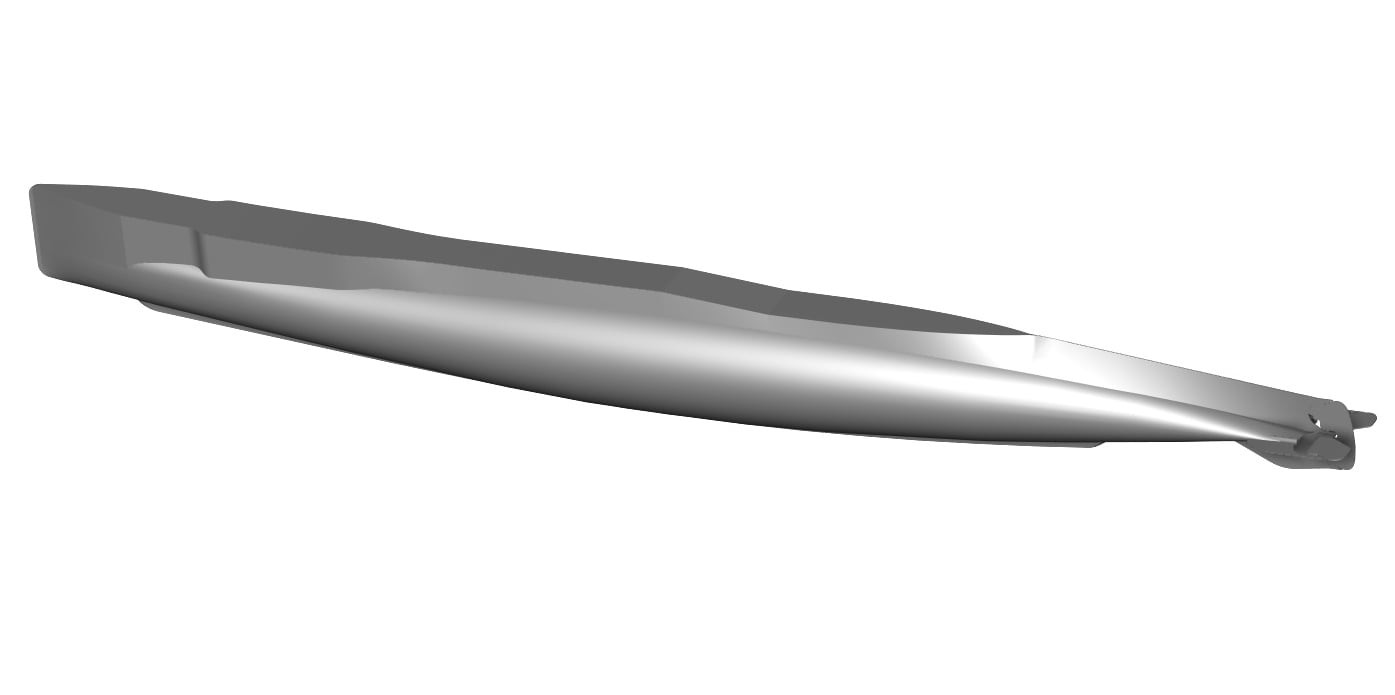

    A while ago I was very interest in Holland-type boats. So I went on a hunt for good plans (e.g. US S-class) but it was hard to obtain something useful until I wrote a mail to the Roayal Maritime Museum in London. There I could obtain really high quality scans of a group 3 h-class submarine (HMS H-51). I forgot about them for a few years but now with Corona, lock down and boredom, I rediscovered them and started making CAD models. This is where I'm at:

    Click image for larger version

Name:	174771151_4148645671853715_3951563902528233814_n.jpg
Views:	138
Size:	44.8 KB
ID:	149120

    Any experiences with Holland type boats? Moulds seem to be tricky because of the unusual stern design, and the high freeboard also seems tough to handle.
    Attached Files

  • #2
    Looking forward to following your progress with the H-class CAD model.

    I guess you may already be aware of some of the background information on the H-Class in the BR3034 HM submarines 1901-1930 online at the following link;

    http://rnsubs.co.uk/dits-bits/br-304...hapter-10.html

    Also Norman Friedman's book British submarines in Two World Wars has a few photo's and background information.

    Comment


    • #3
      Yes, I stumbled across this page. There are a few pictures around but they comparatively rare with respect to the 52 boats that were built.

      Comment


      • #4

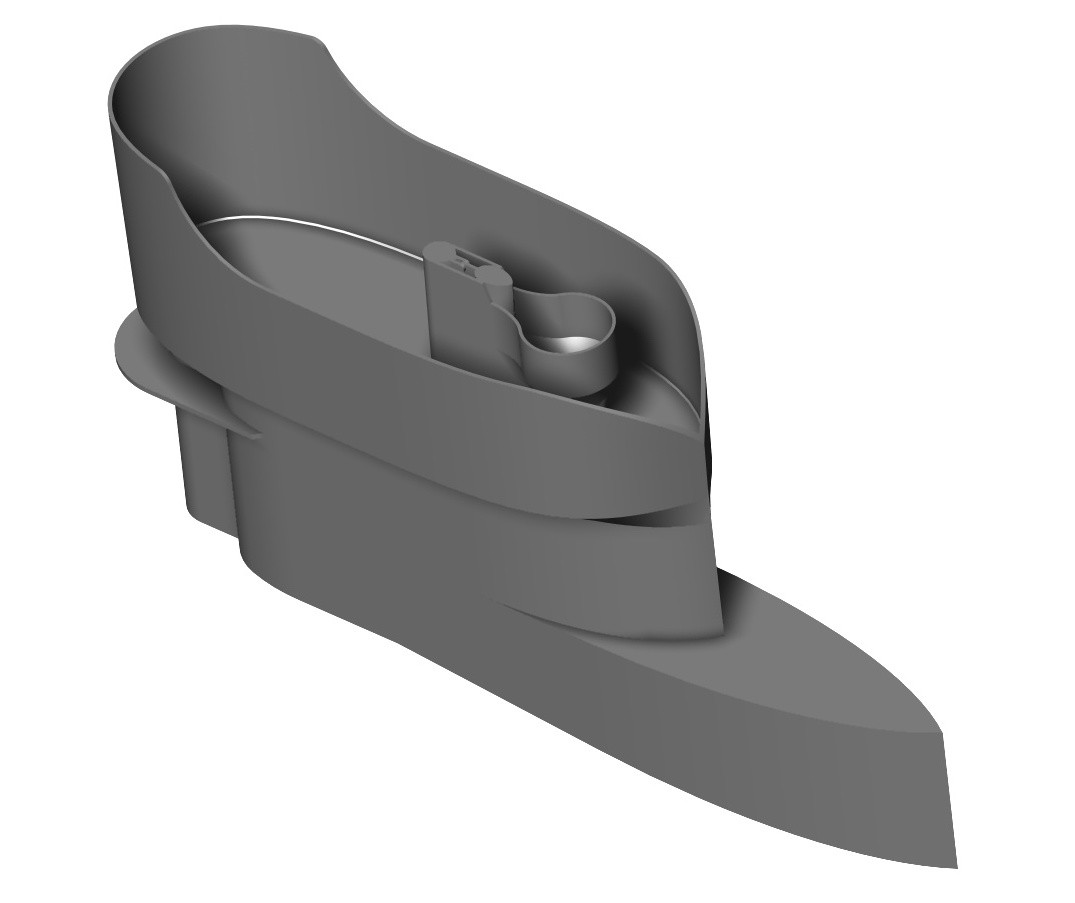

        Firts sketches of the conning tower....

        Click image for larger version

Name:	Untitled H-51-5.jpg
Views:	114
Size:	44.0 KB
ID:	149175

        Comment


        • #5

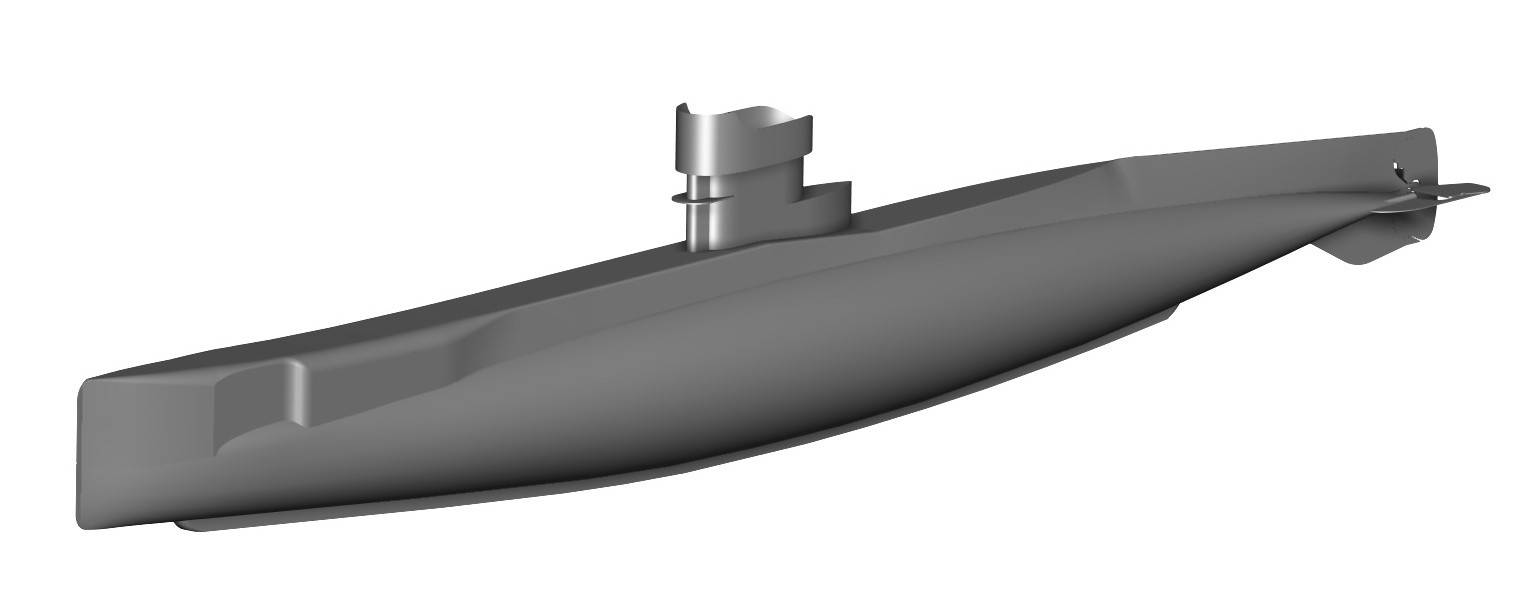

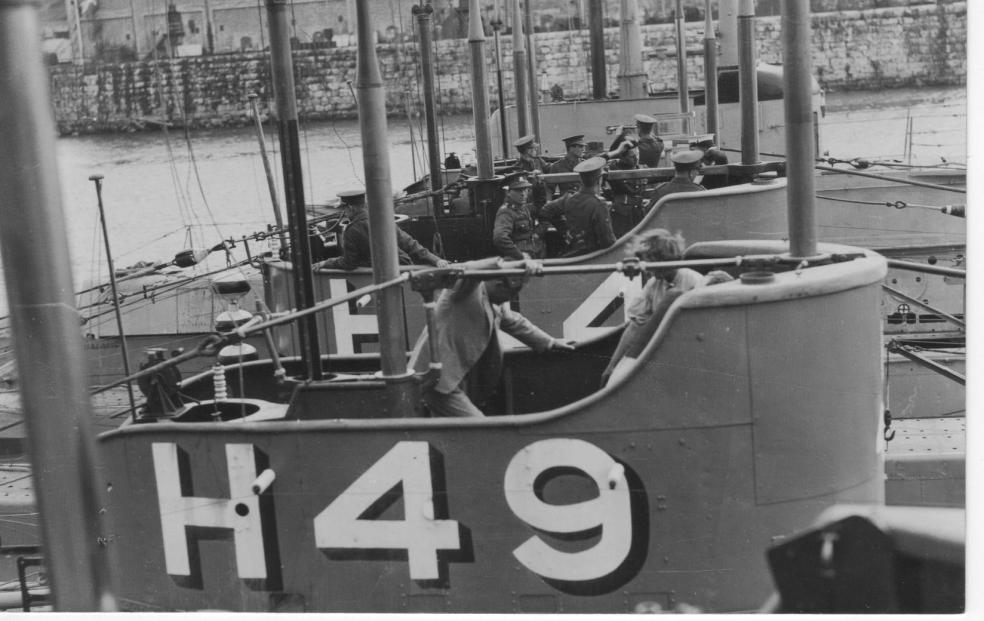

          Detail work on the conning tower of my RN H-class sub....hard with so few pics out there.....

          Click image for larger version

Name:	Turm-h51-2.jpg
Views:	80
Size:	43.2 KB
ID:	149274

          Click image for larger version

Name:	91091.attach.jpg
Views:	80
Size:	81.2 KB
ID:	149275
          Attached Files

          Comment


          • #6
            Skipping between Click image for larger version

Name:	image_47182.jpg
Views:	40
Size:	65.3 KB

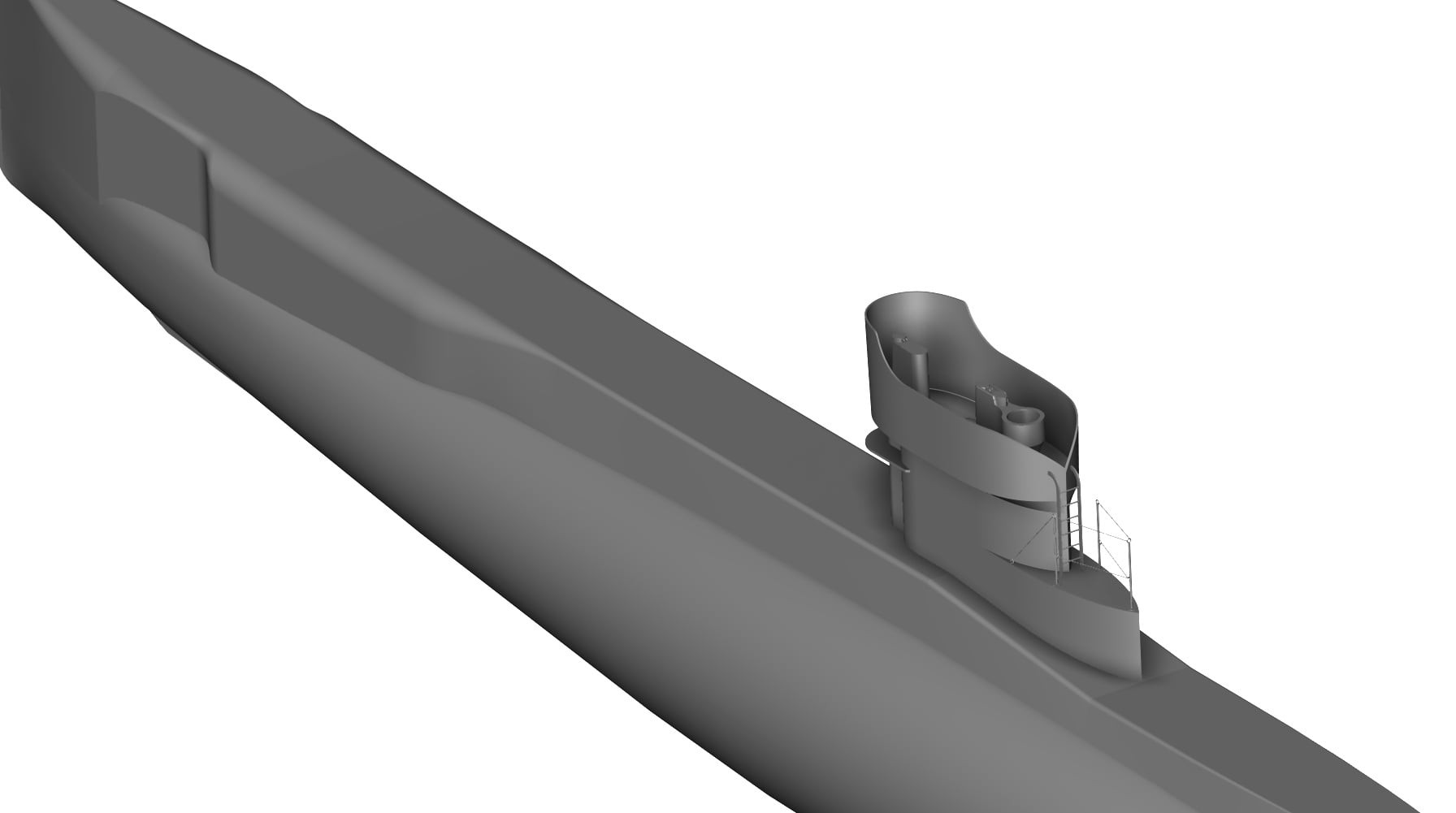

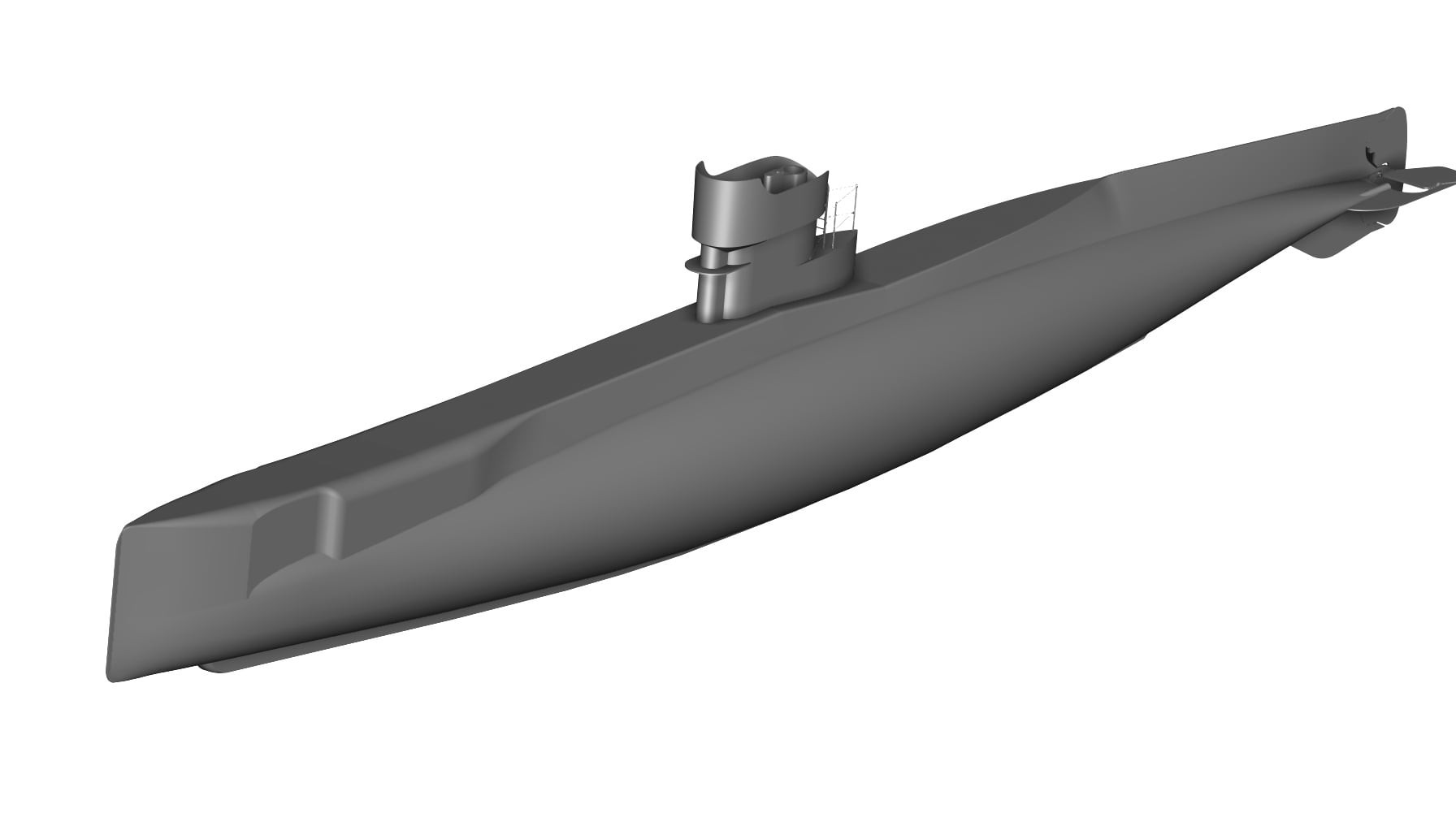

ID:	149612 getting the XXIII CAD model done, building a Millennium Falcon diorama and the H-class. So a bit of progress on latter - details on the conning tower.

            Click image for larger version  Name:	180269281_4186658431385772_9016651828919297735_n.jpg Views:	0 Size:	60.1 KB ID:	149613
            Attached Files
            Last edited by DrSchmidt; 05-06-2021, 10:05 AM.

            Comment


            • #7

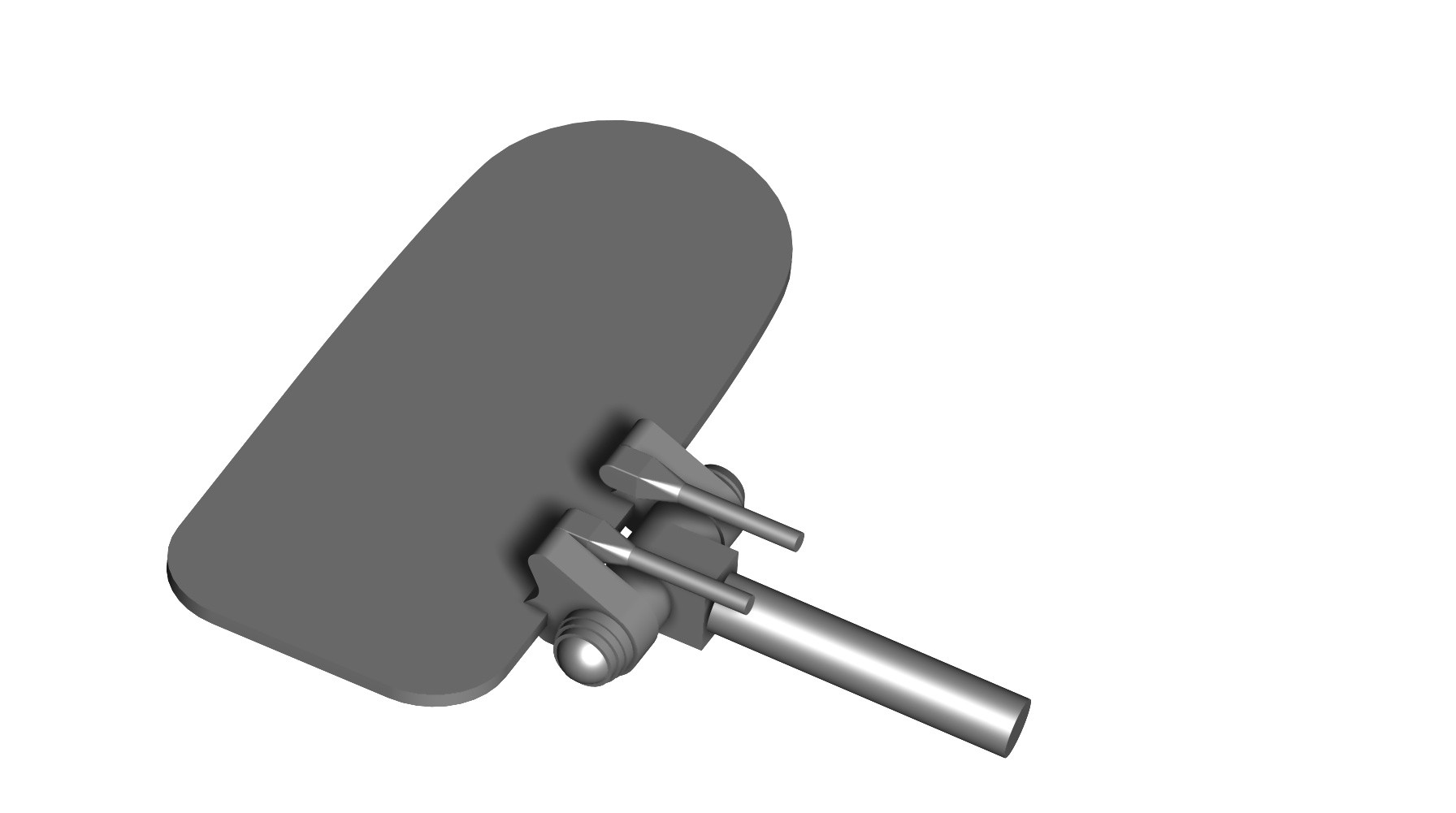

              British H-Class: Bow plane folding mechanism as I understand it from the drawings. Clever....

              Click image for larger version

Name:	Bow-plane.jpg
Views:	22
Size:	60.1 KB
ID:	149616

              Comment
