    First test print of thunder Tiger Neptune aka Seawokf rudder

    This is the First test print of thunder Tiger Neptune aka Seawolf rudder. So you can use the larger seawolf prop

    Click image for larger version

Name:	448680393_8266185450066311_368214277612976406_n.jpg
Views:	160
Size:	53.5 KB
ID:	180857
  • Subculture
    Admiral
    • Feb 2009
    • 2168

    #2
    You could print a new steerable nozzle with a smaller rudder fixed to that. That would really make it turn well.

    Comment

    • Sinksalot
      Commander
      • Mar 2020
      • 339

      #3
      Here a update on the file. I added the linkage arm to the rudder. I am basically copying the Thunder tiger Seawolf rudder and ring.and translate it into 3d model with the correct measurements. Then print it in ASA

      Click image for larger version  Name:	448795609_8270352936316229_809940584827938569_n.jpg Views:	0 Size:	45.5 KB ID:	180891
      Last edited by Sinksalot; 06-20-2024, 12:18 PM.

      Comment

      • redboat219
        Admiral
        • Dec 2008
        • 2881

        #4
        How about a Kort nozzle like on Russia's Priz Rescue Submersible?
        Click image for larger version

Name:	images (34).jpg
Views:	114
Size:	74.9 KB
ID:	180894 Click image for larger version

Name:	images (33).jpg
Views:	98
Size:	76.2 KB
ID:	180895 Click image for larger version

Name:	images (30).jpg
Views:	99
Size:	55.5 KB
ID:	180896 Click image for larger version

Name:	images (32).jpg
Views:	104
Size:	40.1 KB
ID:	180893
        Make it simple, make strong, make it work!

        Comment

        • Sinksalot
          Commander
          • Mar 2020
          • 339

          #5
          The main reason I am designing the parts is. I love my Thunder Tiger Neptune. However I don't like the small rudder and the tiny 37mm prop. When I first made this upgrade to my neptune, people asked where did I get the parts. I told them and they all bought all the seawolf rudders and ring parts and 62mm props. So getting a new larger prop is no problem, but the main rudder and ring parts are just gone everywhere, So I decided to just design the Seawolf parts I needed myself.

          Comment

          • Sinksalot
            Commander
            • Mar 2020
            • 339

            #6

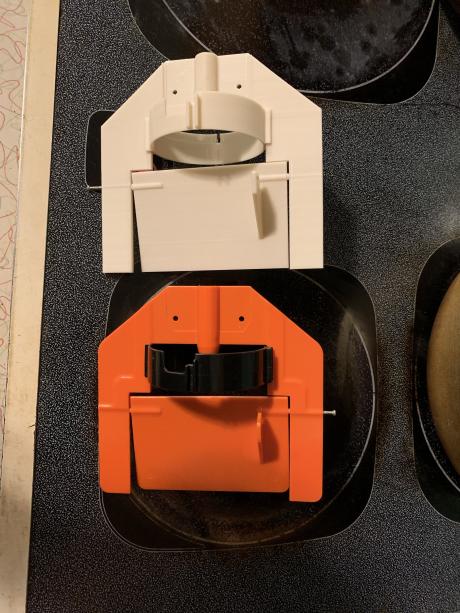

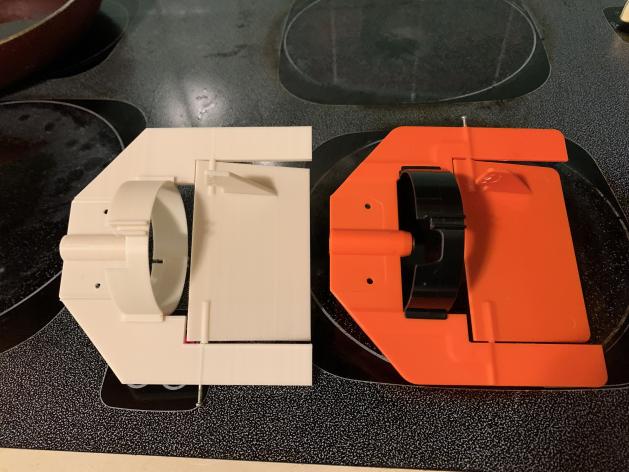

            Ok Close to getting done, just need to round off some corners if I want to. The two screws and the shaft bushing just swap over from the reg small Neptune rudder. Oh yea, need to sand and then paint. In the picture, I am comparing the original part which can not be bought any more, with the ASA 3D printed part.
