    Aquacraft twin outboard

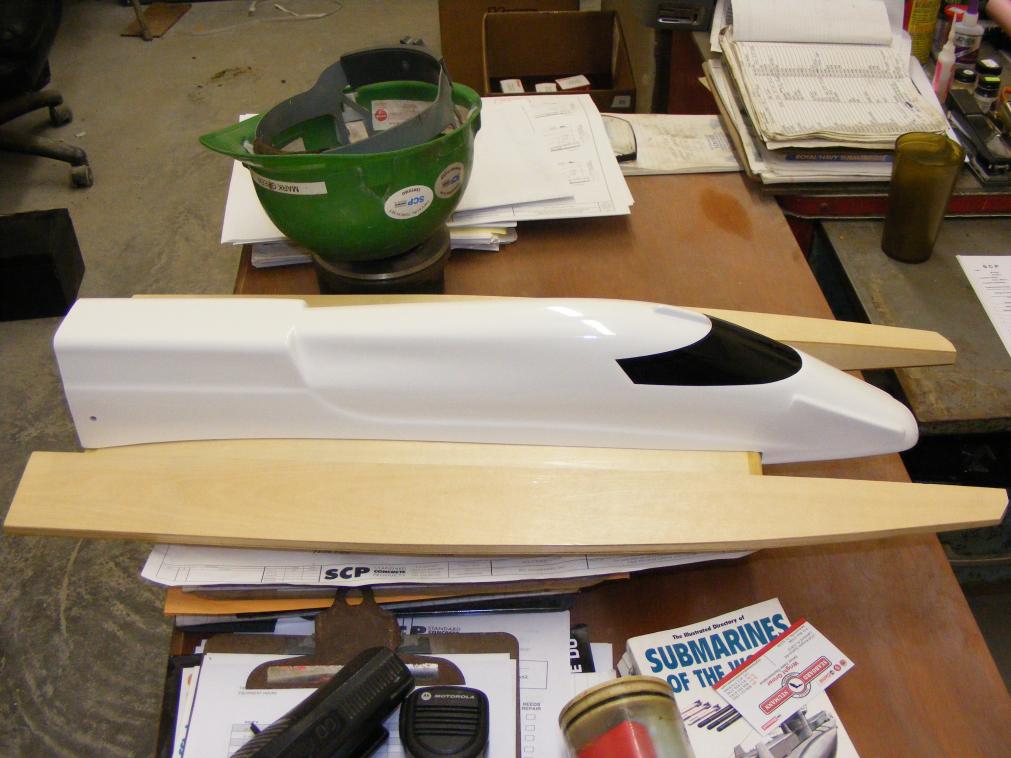

    I saw this perfect little wooden outboard at the hobby store a while back and thought that it would be just the ticket for a quick on the water project. I already have just about everything that I will need to get it on the water. The good thing is that the hull comes pre-finished with a natural wood hull that you can paint if you like. I think that Ill leave it as is for now.Click image for larger version

Name:	Transfer 220.jpg
Views:	2
Size:	88.4 KB
ID:	101449Click image for larger version

Name:	Transfer 221.jpg
Views:	1
Size:	91.2 KB
ID:	101450Click image for larger version

Name:	Transfer 222.jpg
Views:	1
Size:	85.7 KB
ID:	101451Click image for larger version

Name:	Transfer 223.jpg
Views:	1
Size:	88.8 KB
ID:	101452Click image for larger version

Name:	Transfer 224.jpg
Views:	1
Size:	87.2 KB
ID:	101453Click image for larger version

Name:	Transfer 225.jpg
Views:	1
Size:	89.3 KB
ID:	101454Click image for larger version

Name:	Transfer 226.jpg
Views:	1
Size:	91.5 KB
ID:	101455
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!
  • greenman407
    Admiral
    • Feb 2009
    • 7530

    #2

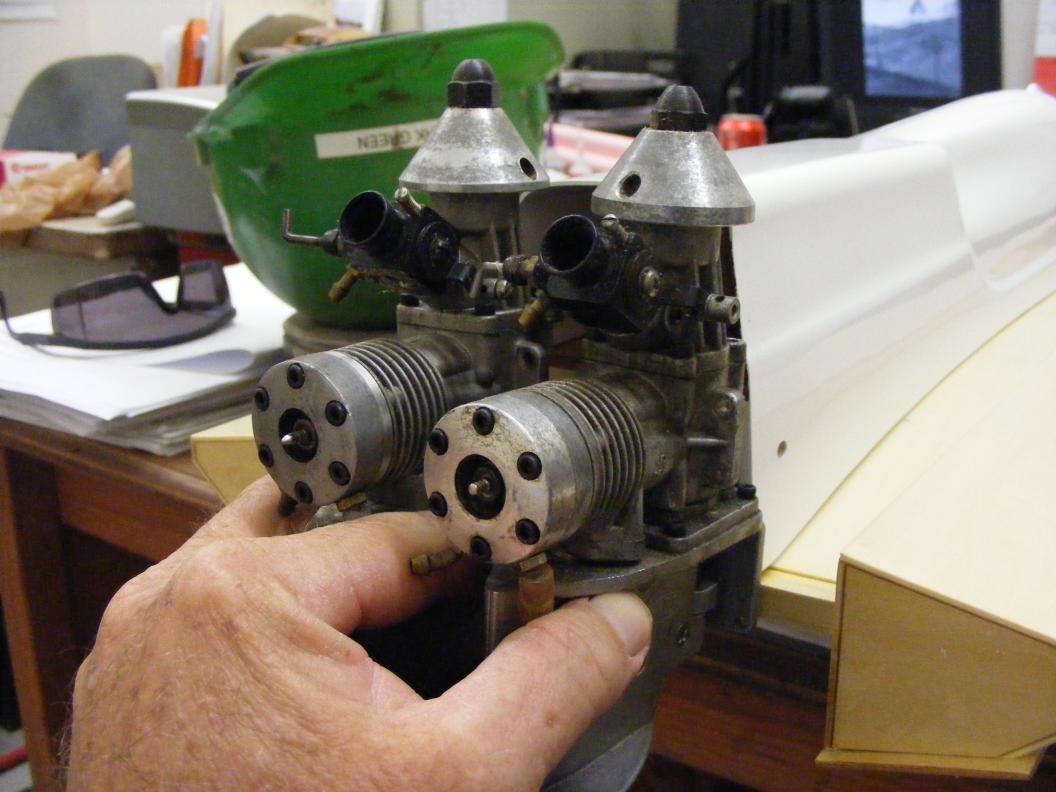

    The price was quite reasonable at $120.00 Ill need to strengthen the transom and install a alluminum transom cover plate to carry the two motors and there adjustable mounts. These K&B 3.5s I picked up off of ebay a couple of years back will provide the motivation. To keep this boat from prop walking so much Ill introduce a negative angle to the prop thrust line to keep more of the props in the water.
    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #3
      Oh, and by the way, this boat is not made for twins. But, you know me, Im always trying to push it.
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • greenman407
        Admiral
        • Feb 2009
        • 7530

        #4
        Lets get moving. Whadaya say?Click image for larger version

Name:	Transfer 445.jpg
Views:	1
Size:	93.0 KB

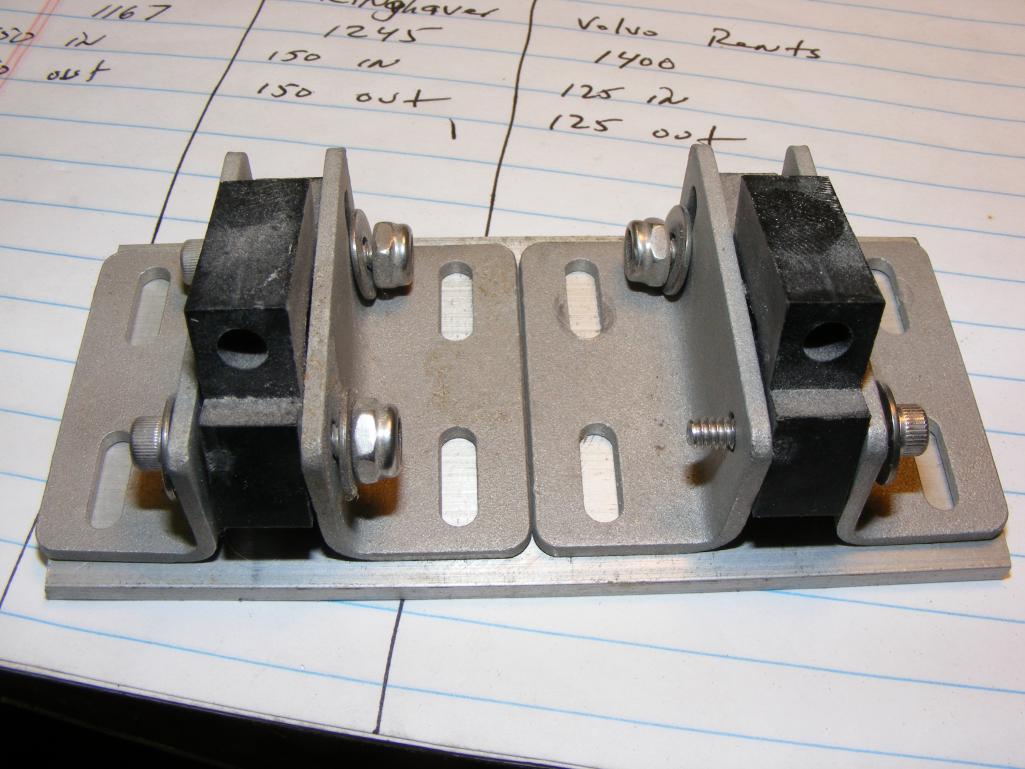

ID:	66631 To start with I cut two 1/8" x 1" alluminum flat bars 4 and 1/4" long. They will serve as the mounting plates. On top of them you can see the two adjustable outboard mounts. I will test mount the engines and hold them onto the transom to properly mark the req. mounting holes to get the engines at the right height so that the props will be where I want them in relation to the bottom of the hull. The mounts allow for some adjustment but you need to be in the ballpark first otherwise you wont have enough adjustment and in the right direction.
        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

        Comment

        • greenman407
          Admiral
          • Feb 2009
          • 7530

          #5

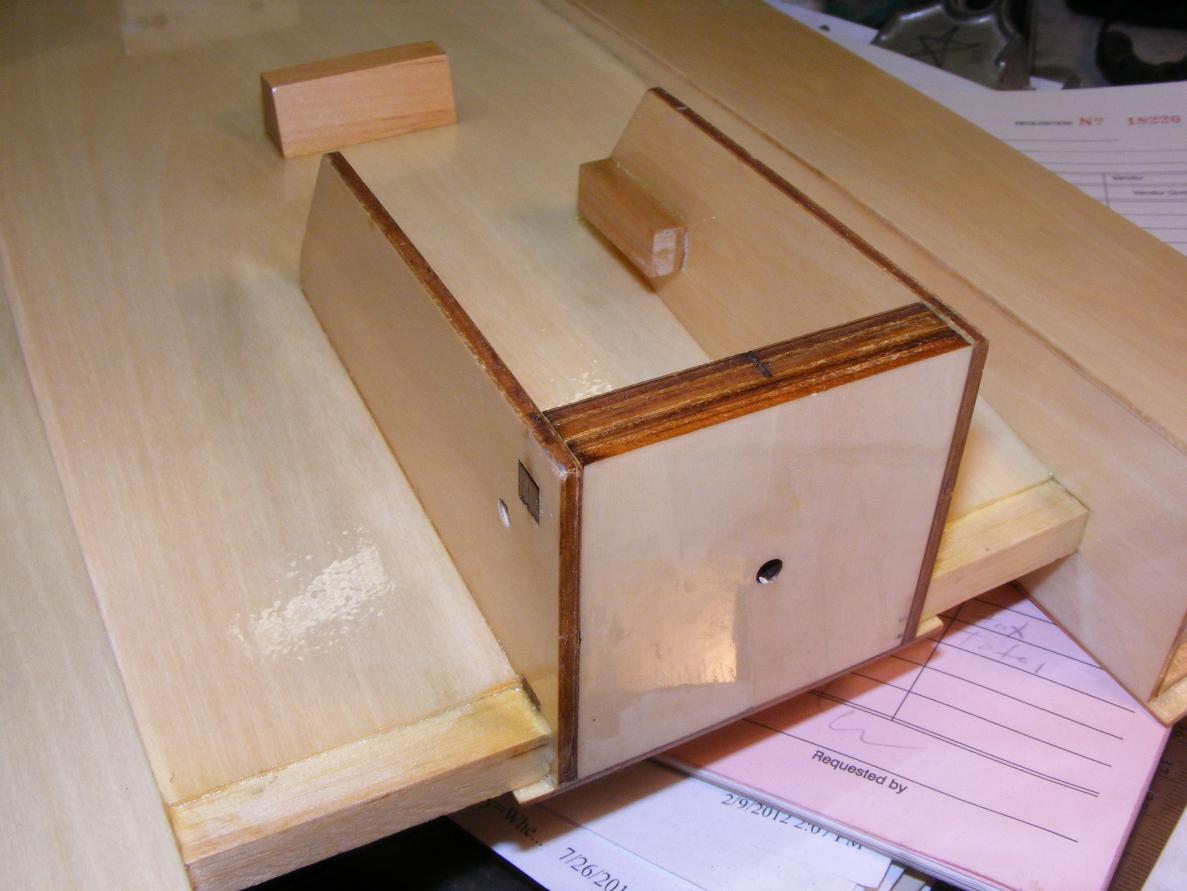

          Vibration and hull strength will be a problem. So, since this hull is held together with glue we will have to install some angle clips and some screws in the right places. In these two views you can see the engine mounting area and its supports. Inside the two vertical walls are where the fuel tank sits. What Im going to do is cut out the upper deck thats inside those walls so that I can get down to where they attach to the bottom skin. At five places Im going to strengthen those connections with some alluminum angle and stainless screws with lock nuts. After that we will reinstall the cutout piece or add a new one to restore the strength.Click image for larger version

Name:	Transfer 447.jpg
Views:	1
Size:	89.3 KB
ID:	66632Click image for larger version

Name:	Transfer 449.jpg
Views:	1
Size:	90.7 KB

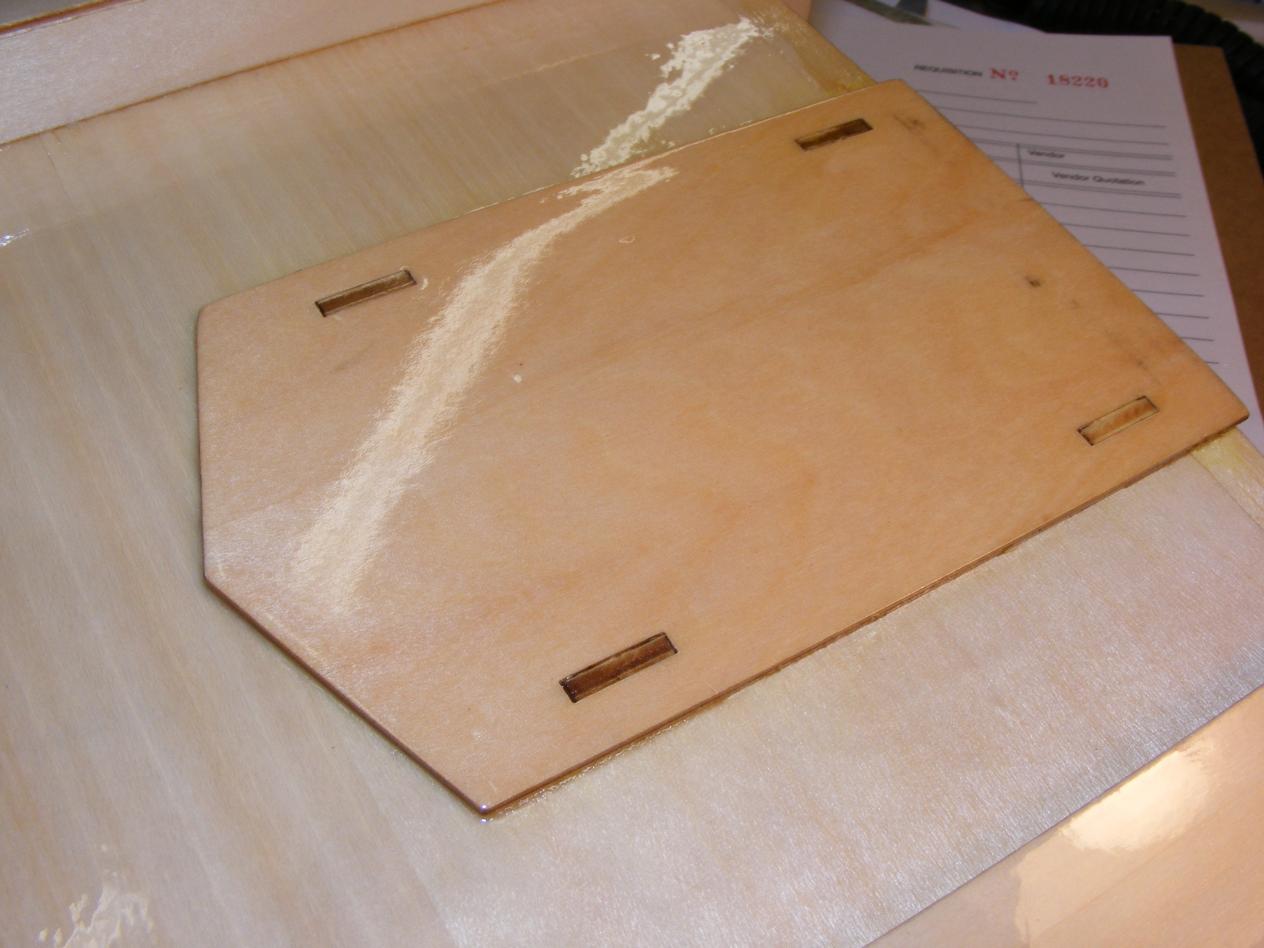

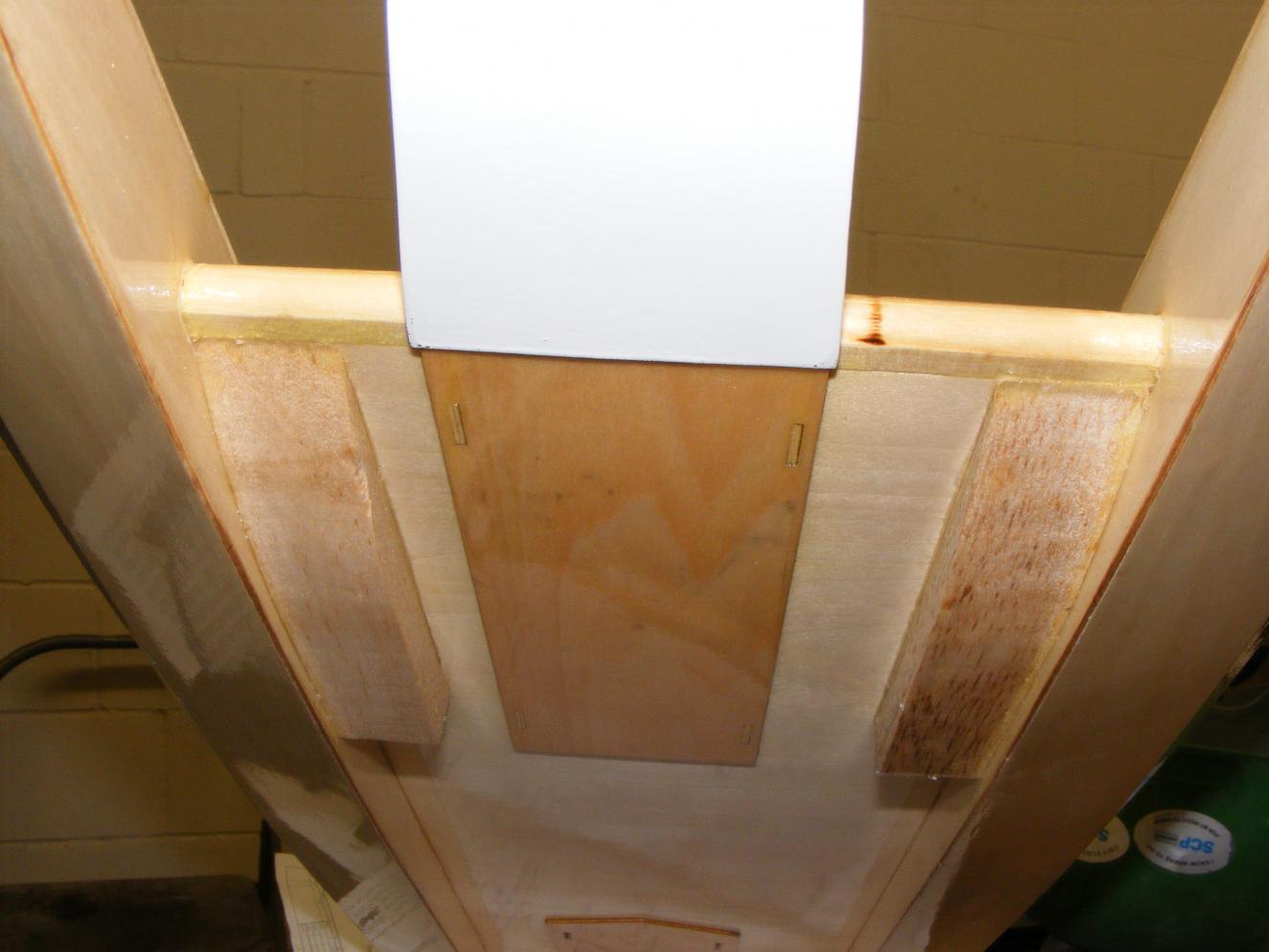

ID:	66633 You can see here from the bottom where the two uprights attach to the bottom at this doubler plate.Click image for larger version

Name:	Transfer 451.jpg
Views:	1
Size:	94.8 KB
ID:	66634
          Last edited by greenman407; 02-22-2012, 05:48 PM.
          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

          Comment

          • greenman407
            Admiral
            • Feb 2009
            • 7530

            #6
            Click image for larger version

Name:	Transfer 452.jpg
Views:	1
Size:	94.3 KB
ID:	66635Click image for larger version

Name:	Transfer 454.jpg
Views:	1
Size:	92.7 KB

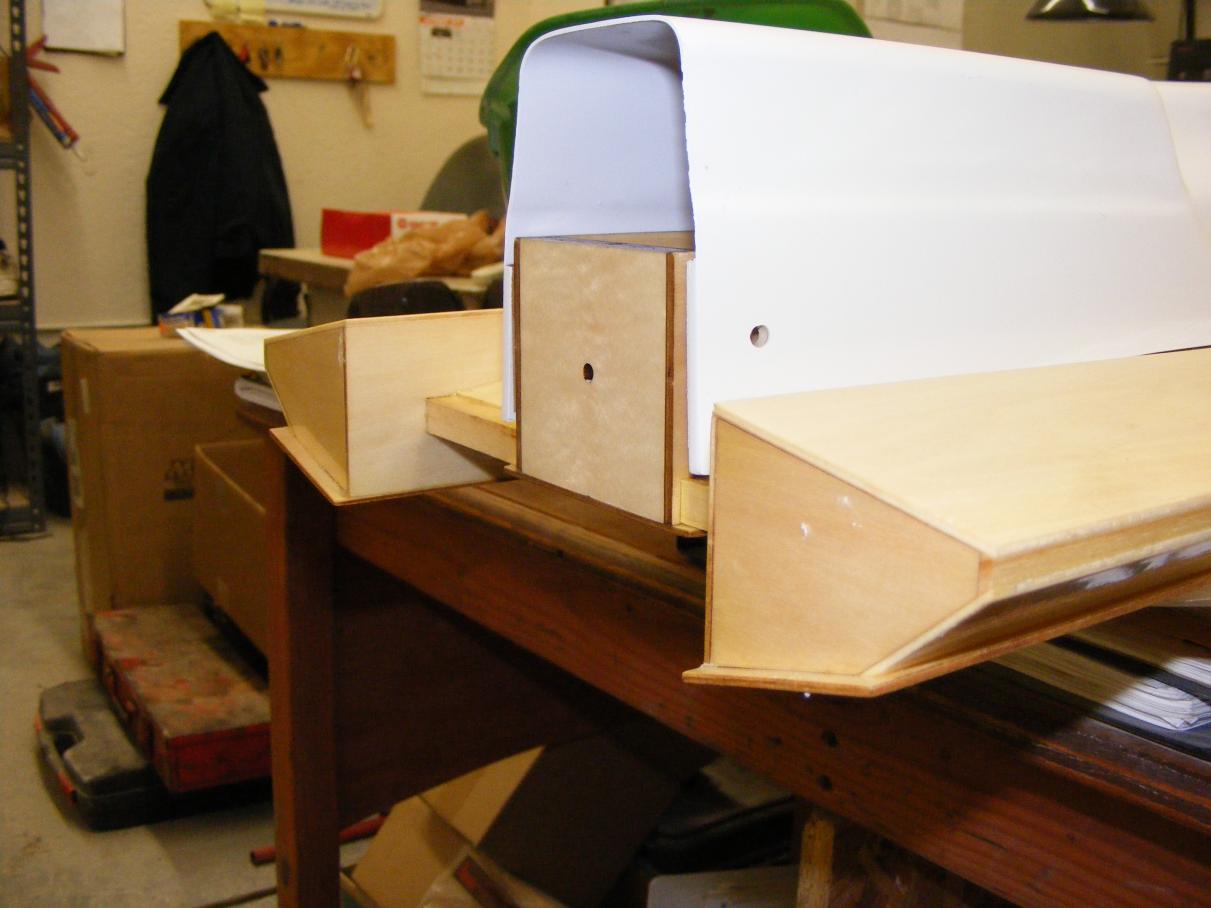

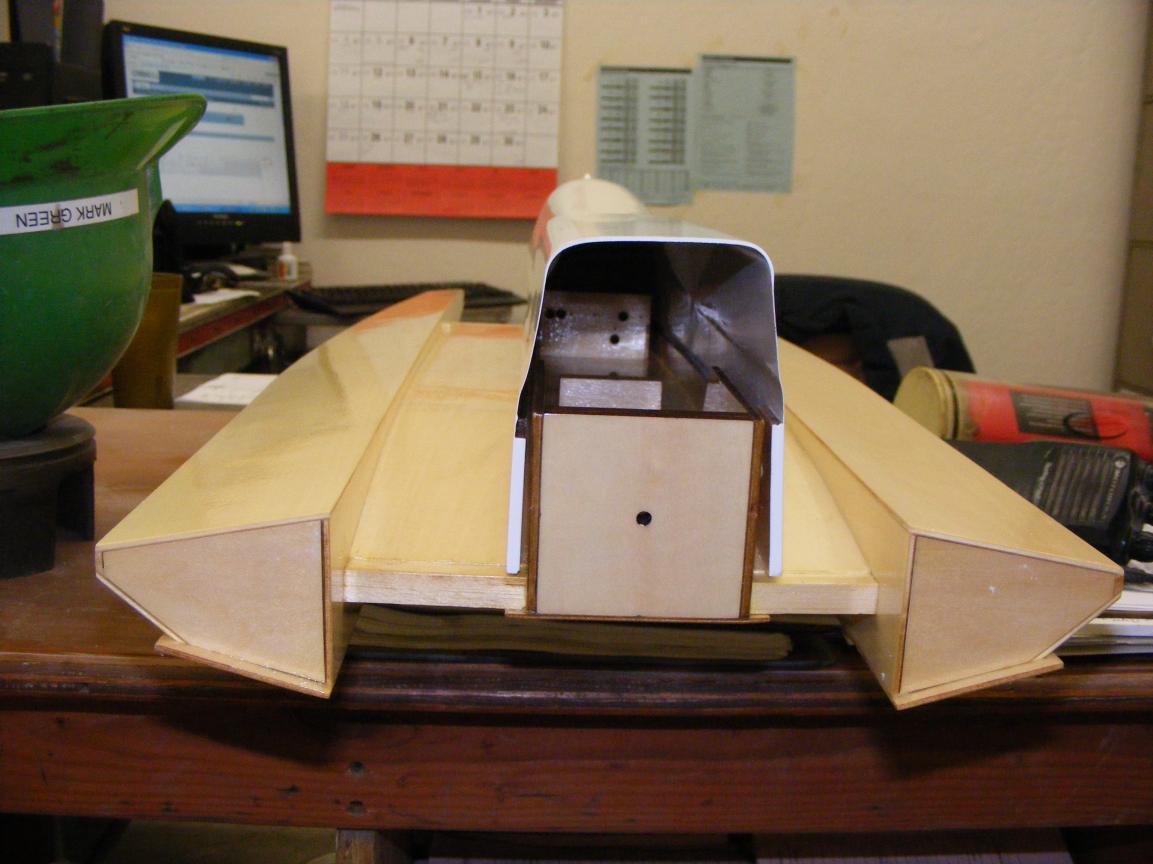

ID:	66636 In these two views you can see the overhang that we will have installing two motors on a one motor design hull. As we move along on this project we will see what we can do to disguise or minimize this.
            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

            Comment

            • greenman407
              Admiral
              • Feb 2009
              • 7530

              #7

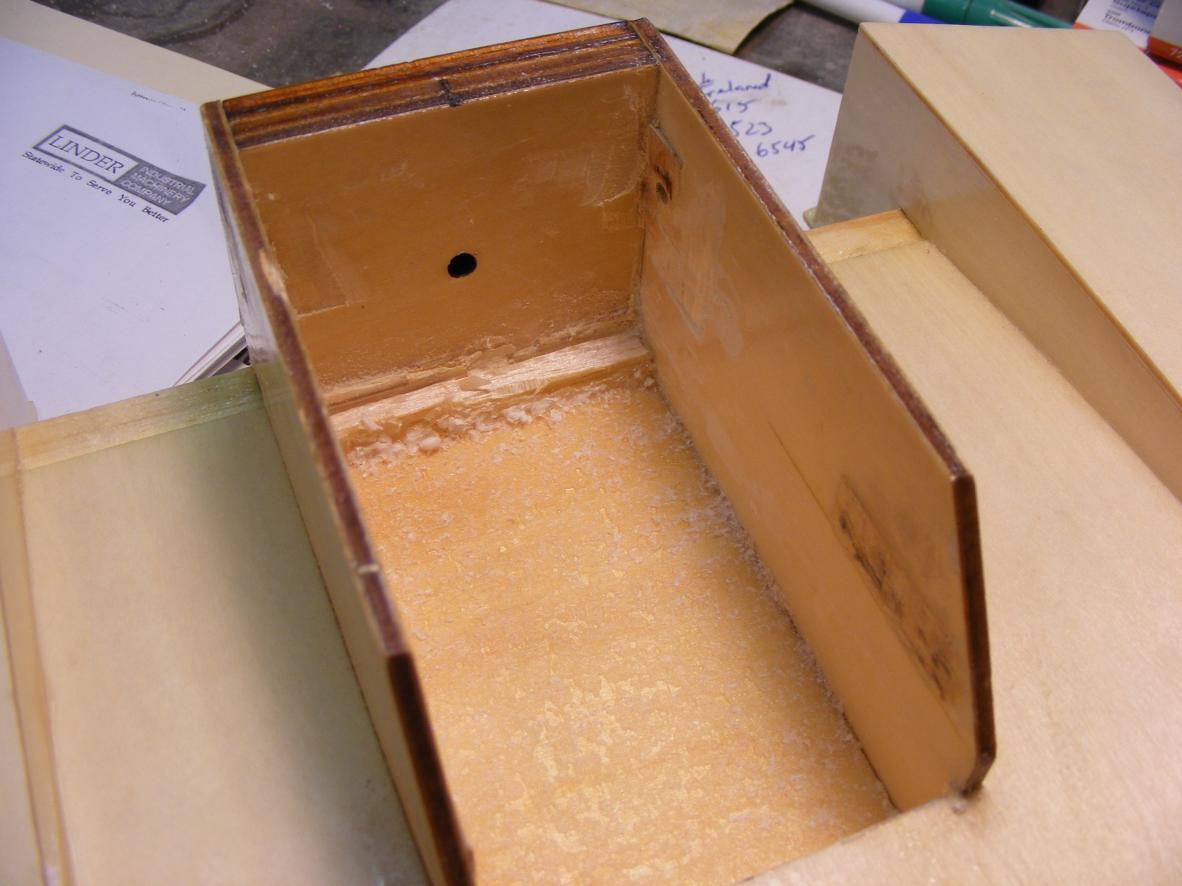

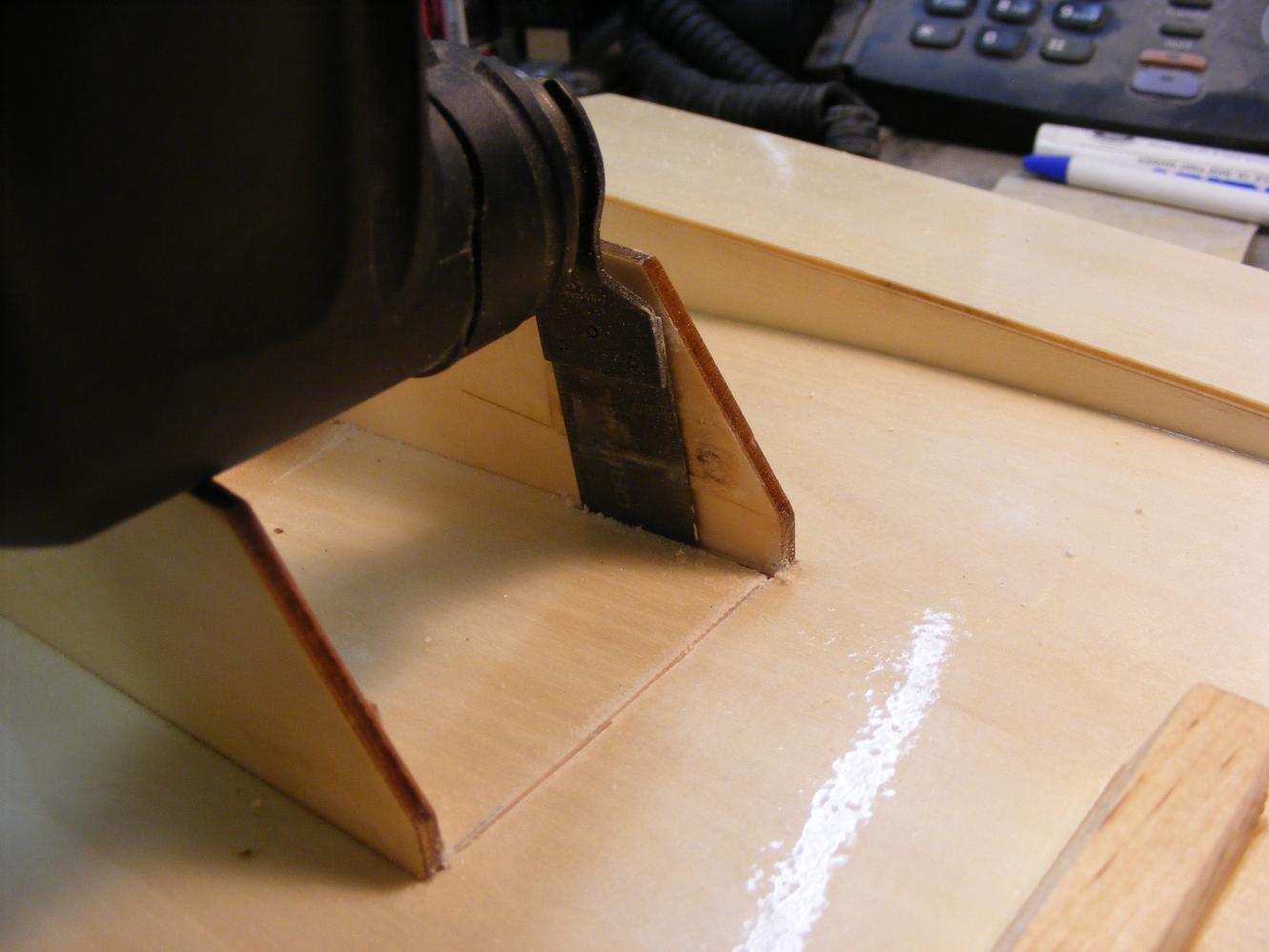

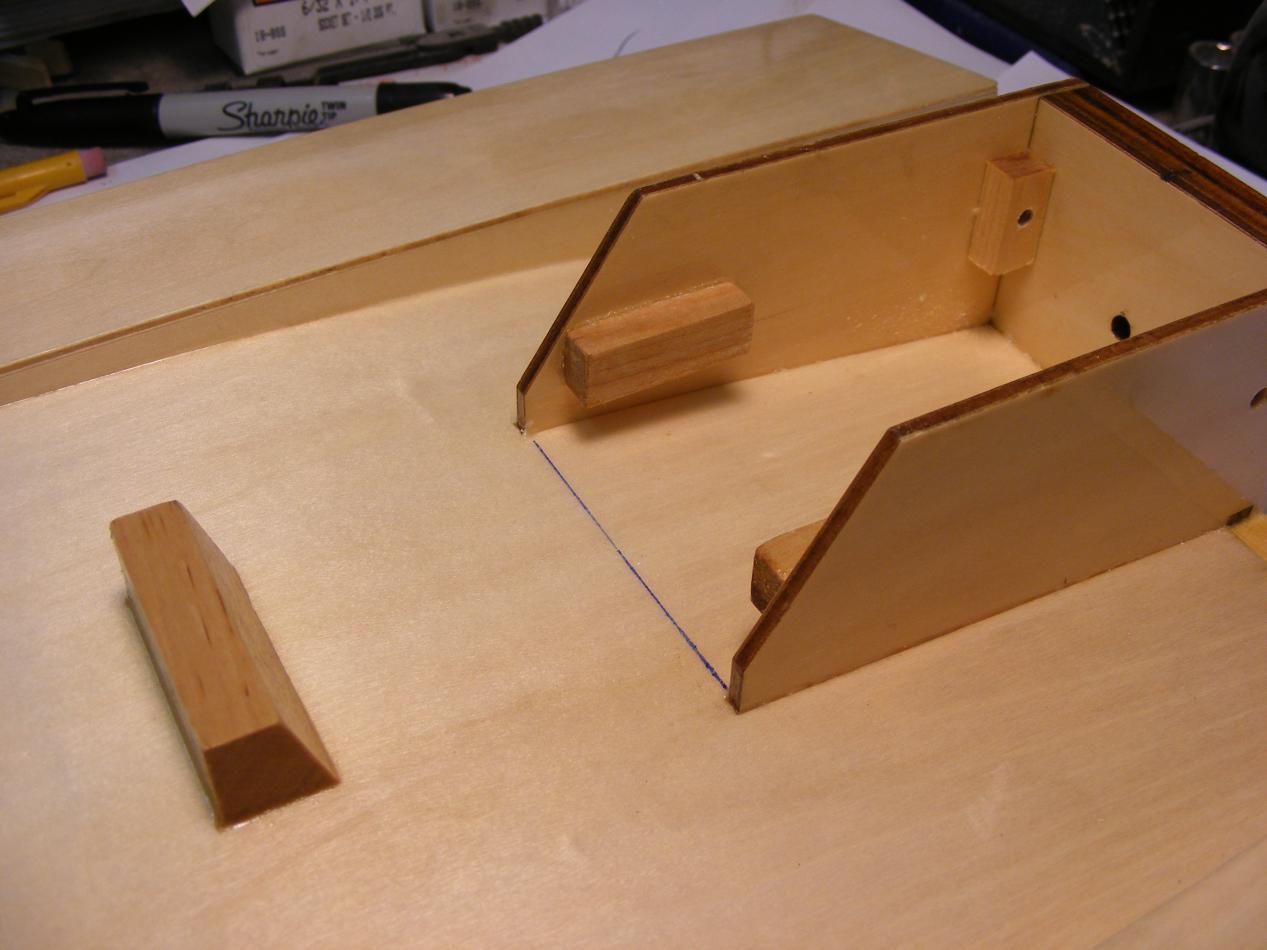

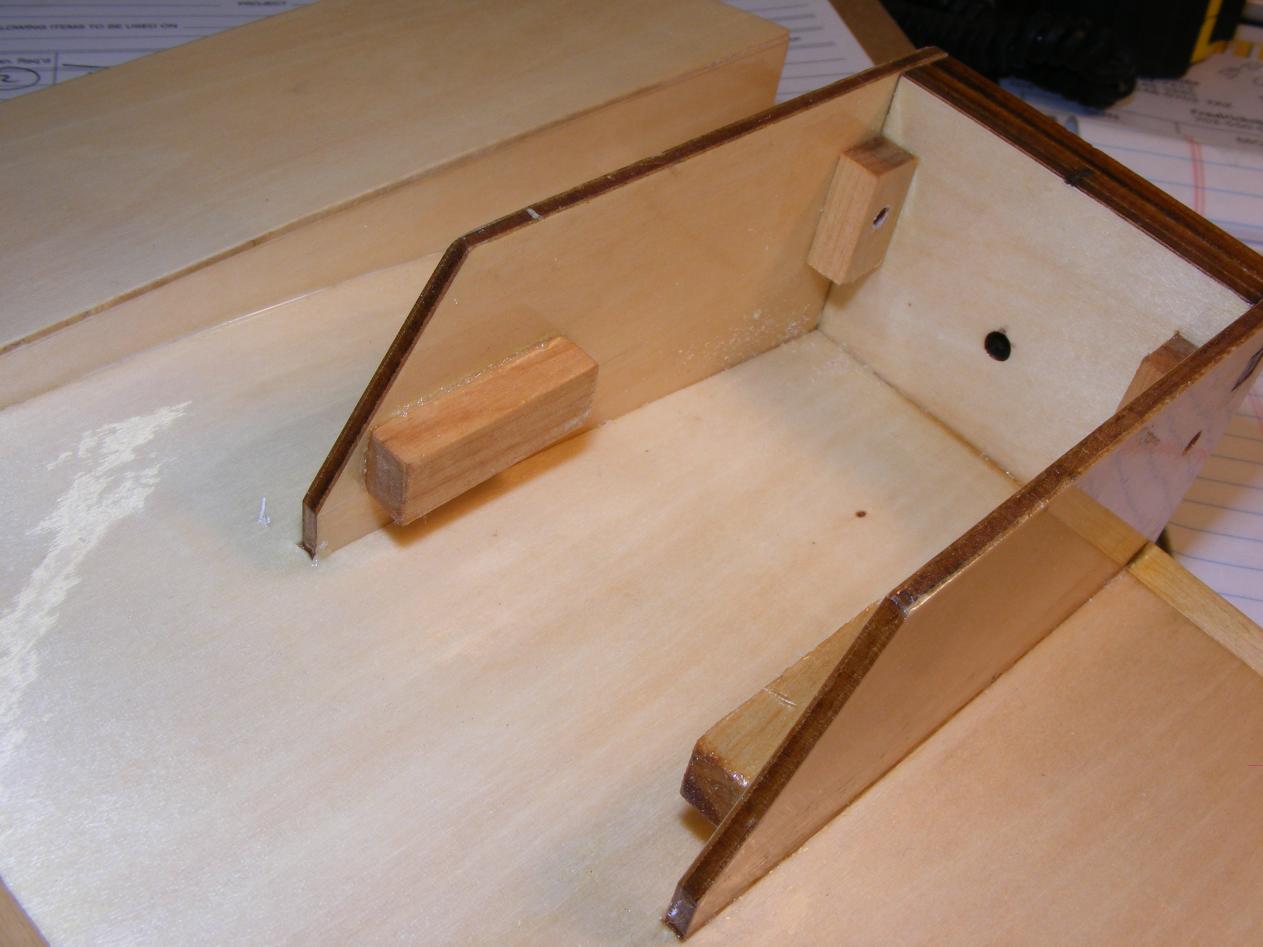

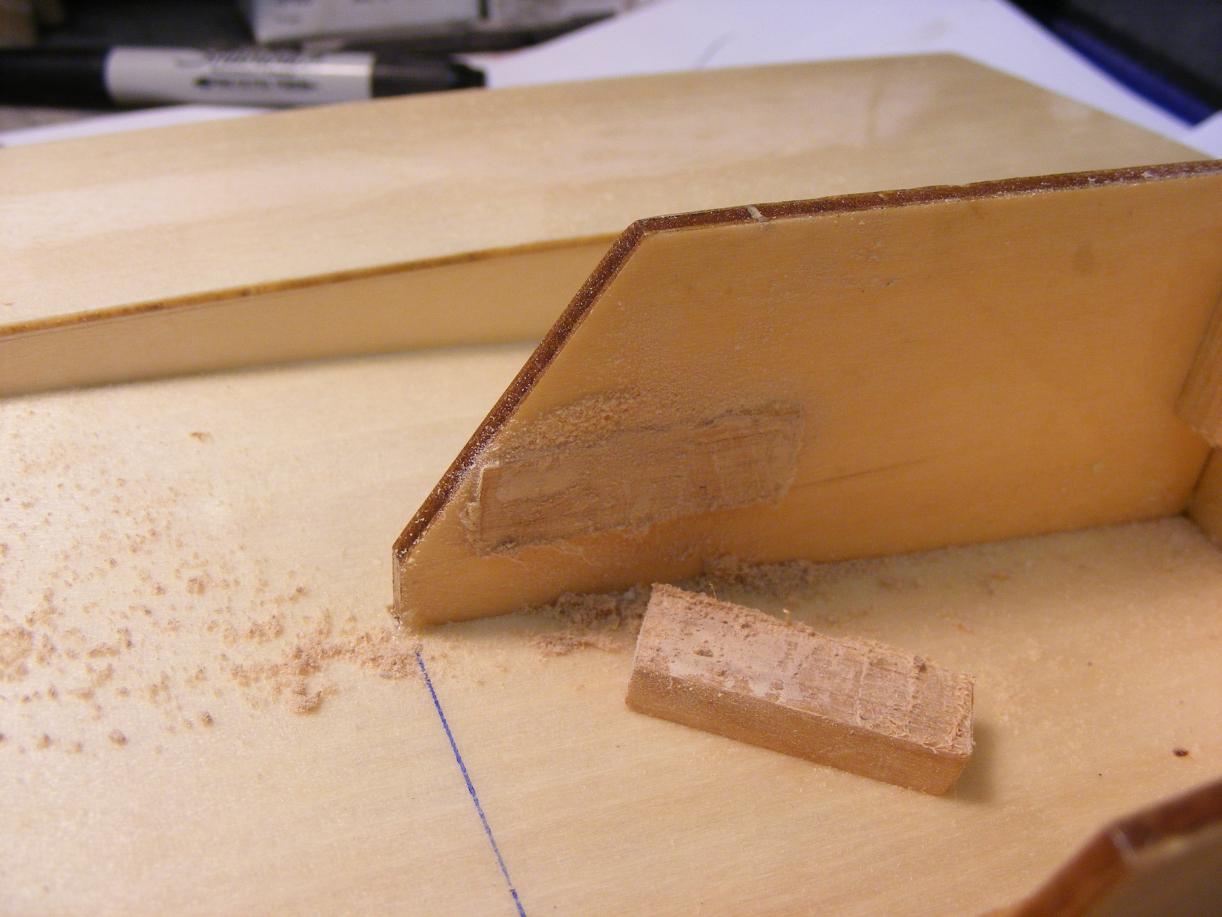

              Out comes the Fantastic...Dremel maxicut. The only way to fly. Im going to remove the deck inside the two uprights. First I need to get rid of these wood blocks. Smooth as can be and then to cut along the inside and along the line.
              Click image for larger version

Name:	Transfer 480.jpg
Views:	1
Size:	89.6 KB
ID:	66672Click image for larger version

Name:	Transfer 481.jpg
Views:	1
Size:	93.1 KB
ID:	66673Click image for larger version

Name:	Transfer 482.jpg
Views:	1
Size:	88.0 KB
ID:	66674Click image for larger version

Name:	Transfer 483.jpg
Views:	1
Size:	87.1 KB
ID:	66675Click image for larger version

Name:	Transfer 484.jpg
Views:	1
Size:	88.5 KB
ID:	66676Click image for larger version

Name:	Transfer 485.jpg
Views:	1
Size:	93.2 KB

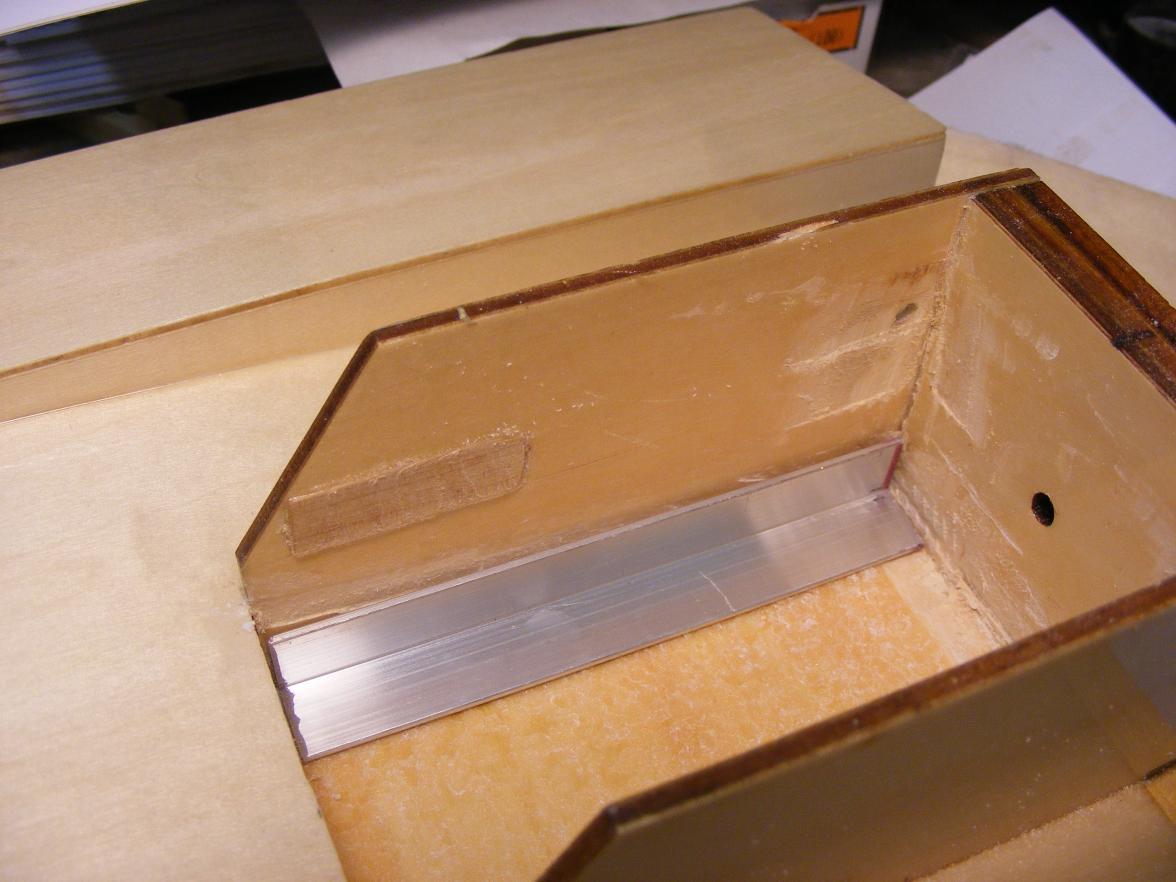

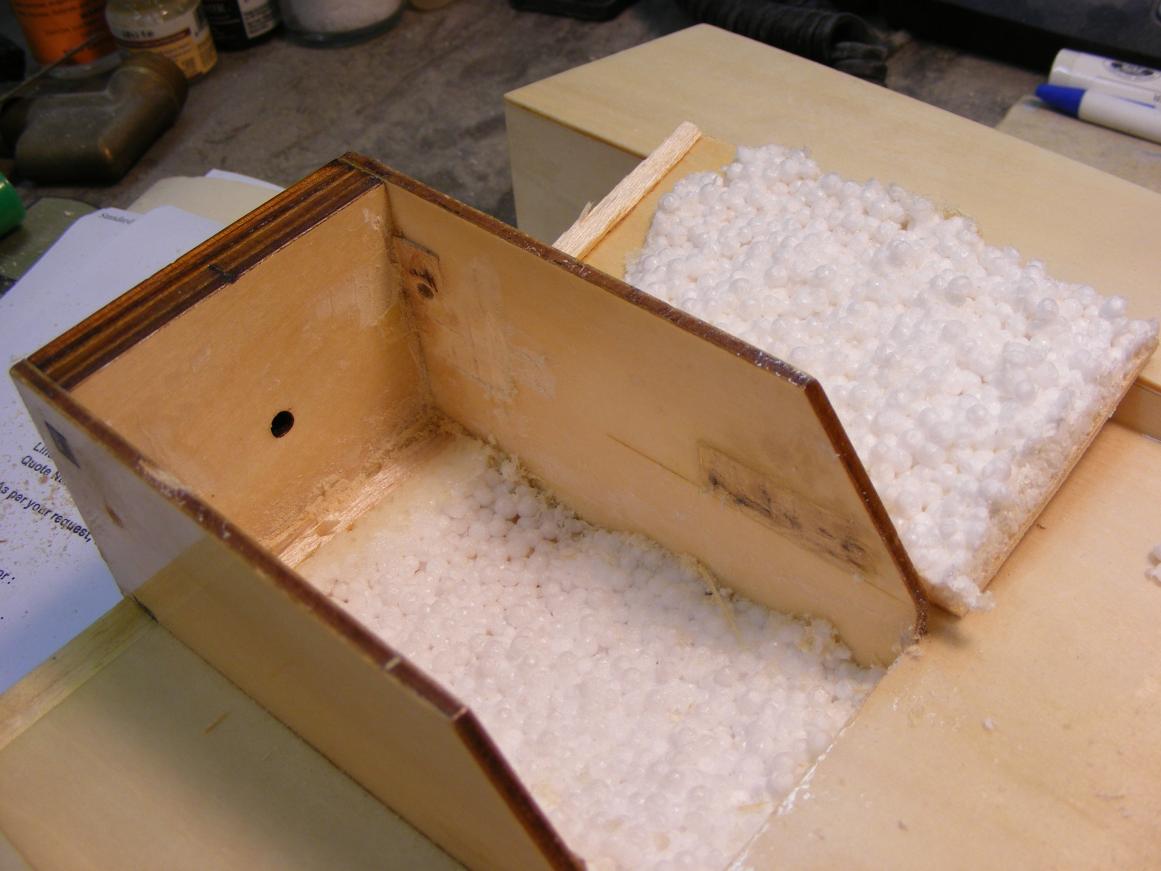

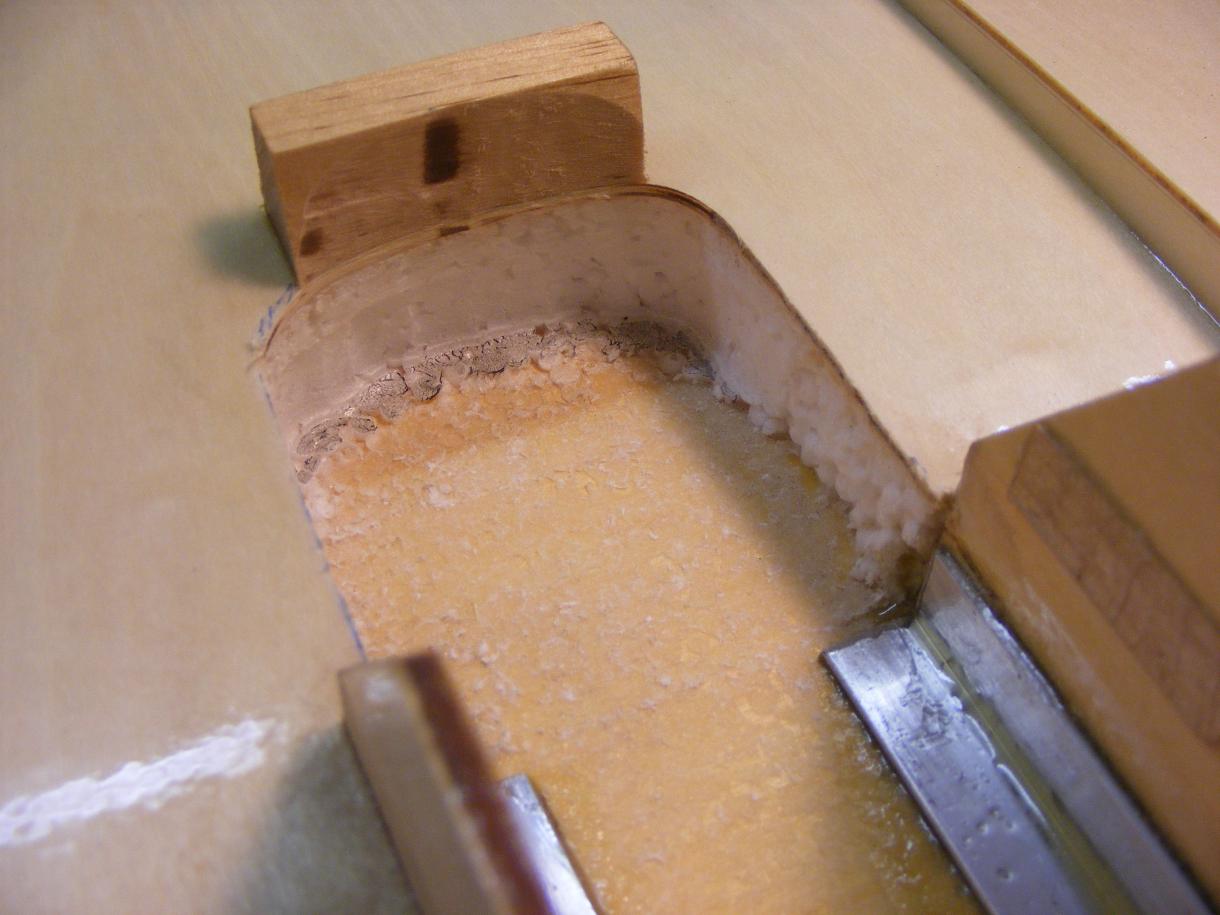

ID:	66677I was quite disappointed to see that Aquacraft has used that cheap white styrofoam in my boat. After cleaning it all out of the general area I then measured for the alluminum angle that will be both epoxied and screwed into place. I will install it on the bottom and up the sides.
              IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

              Comment

              • greenman407
                Admiral
                • Feb 2009
                • 7530

                #8

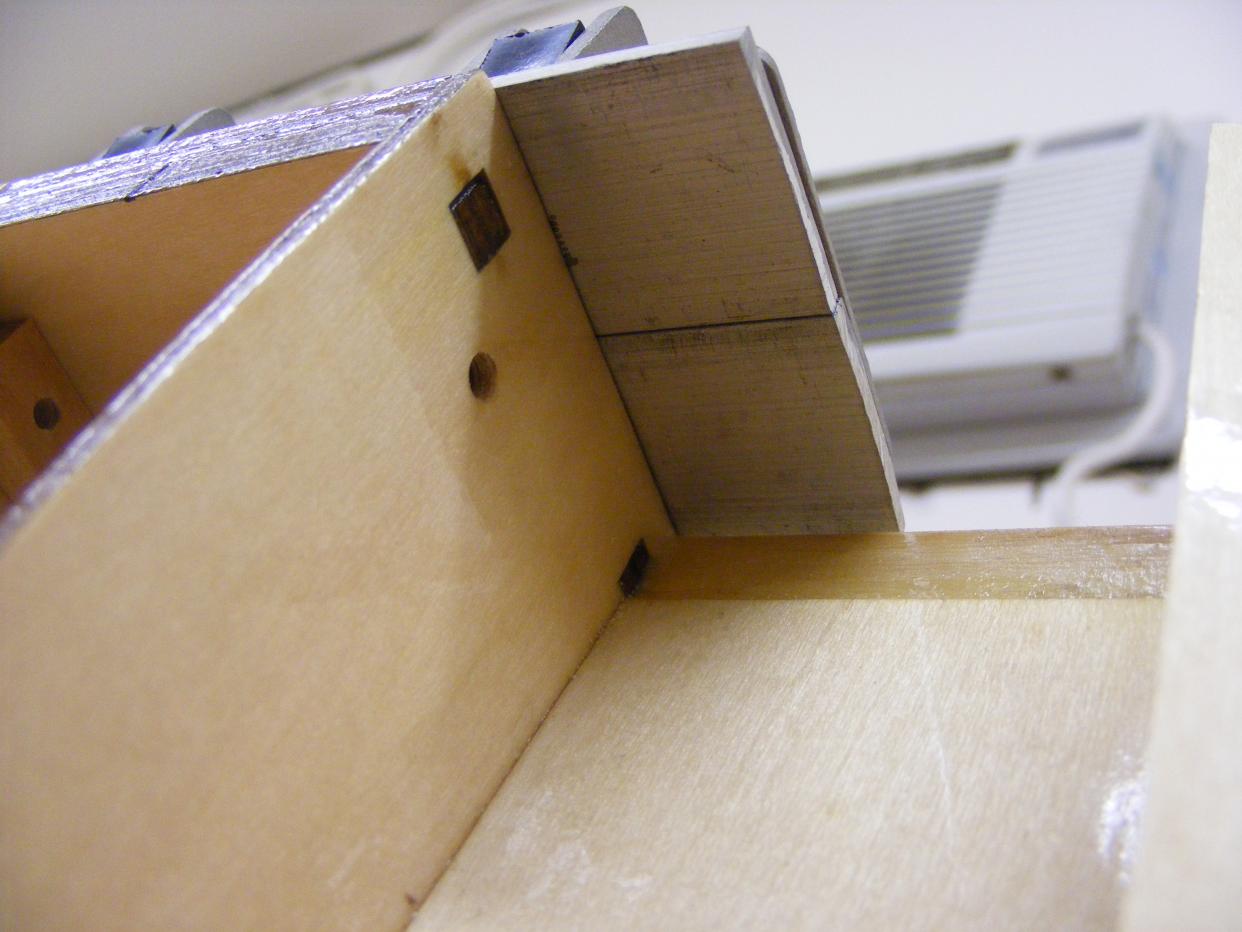

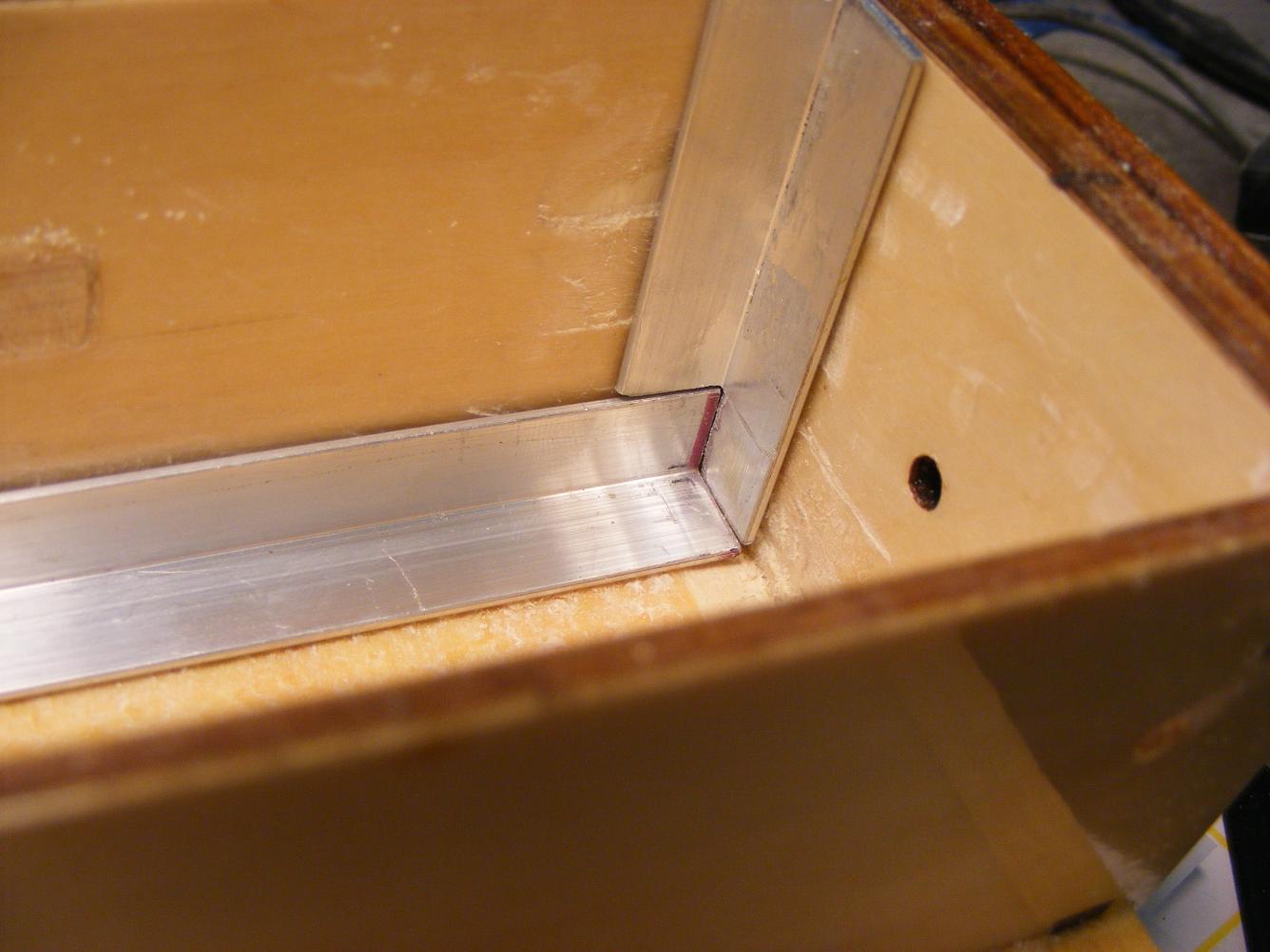

                In order to get the angle to fit like I wanted into the corner I had to cope the angle like so.
                Click image for larger version

Name:	Transfer 481.jpg
Views:	1
Size:	93.2 KB

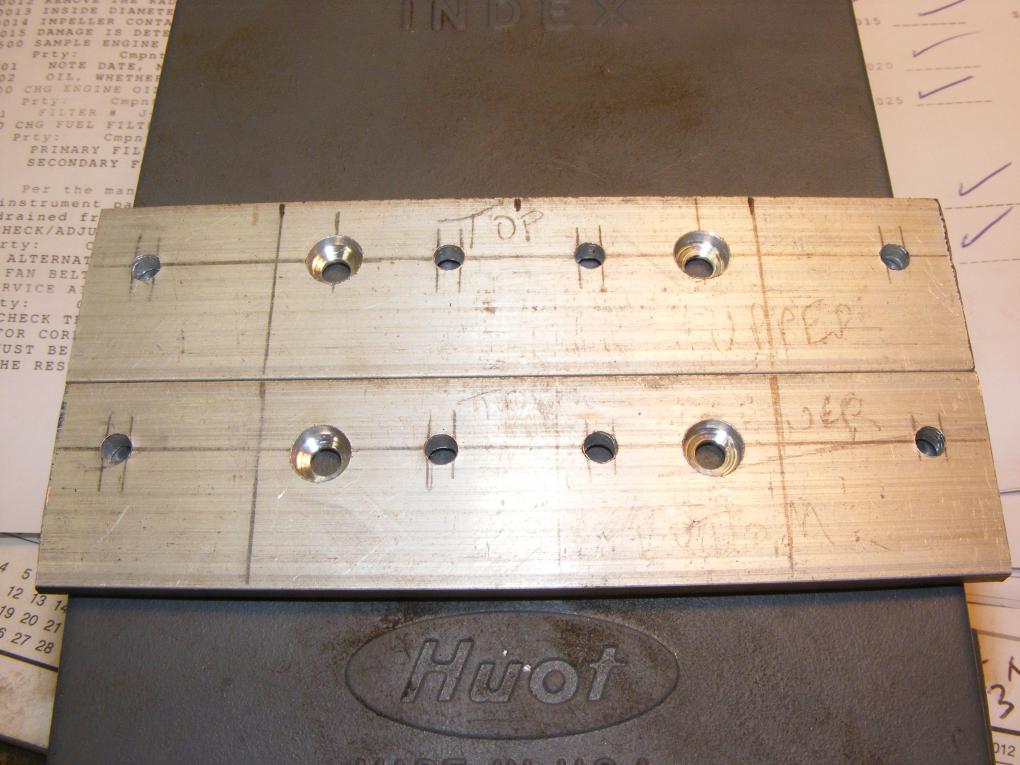

ID:	66704 Then it was on to drilling out the motor mount plate and to then drill the transom.
                Click image for larger version

Name:	Transfer 482.jpg
Views:	1
Size:	95.6 KB

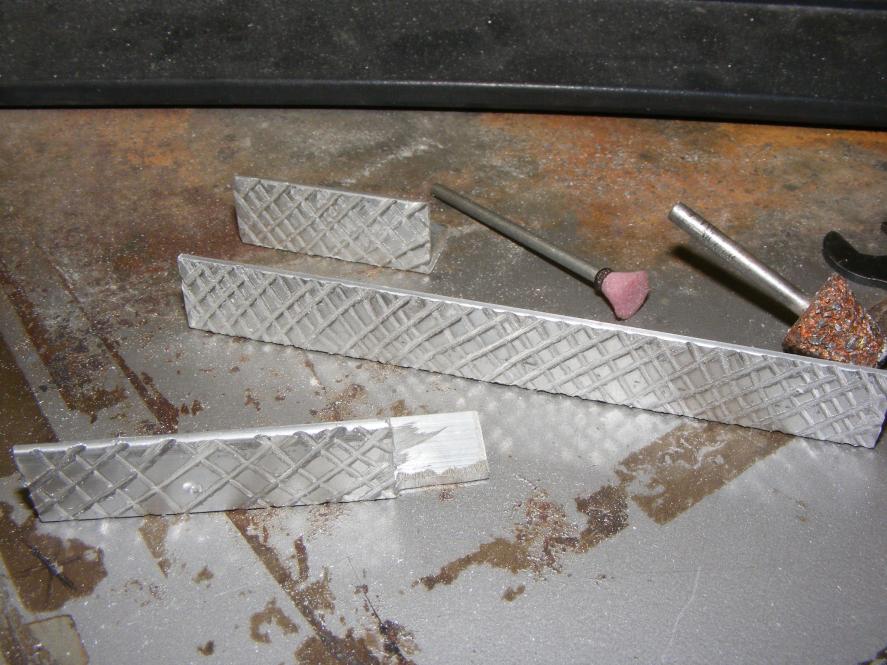

ID:	66705 In preperation for epoxying the angles, there backsides needed a cross hatched pattern cut into them for good adhesion.
                Click image for larger version

Name:	Transfer 483.jpg
Views:	1
Size:	96.6 KB

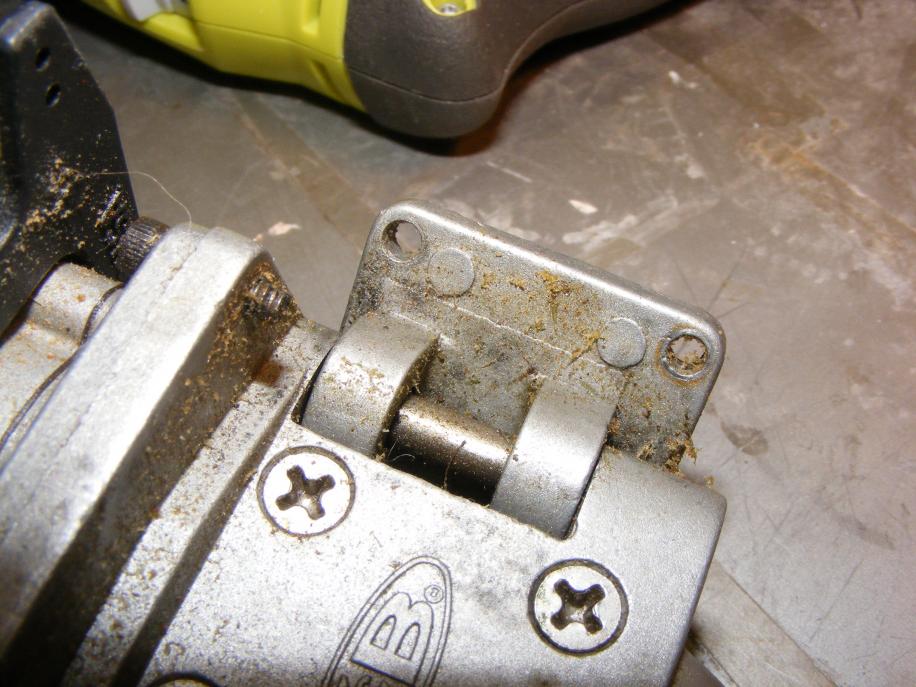

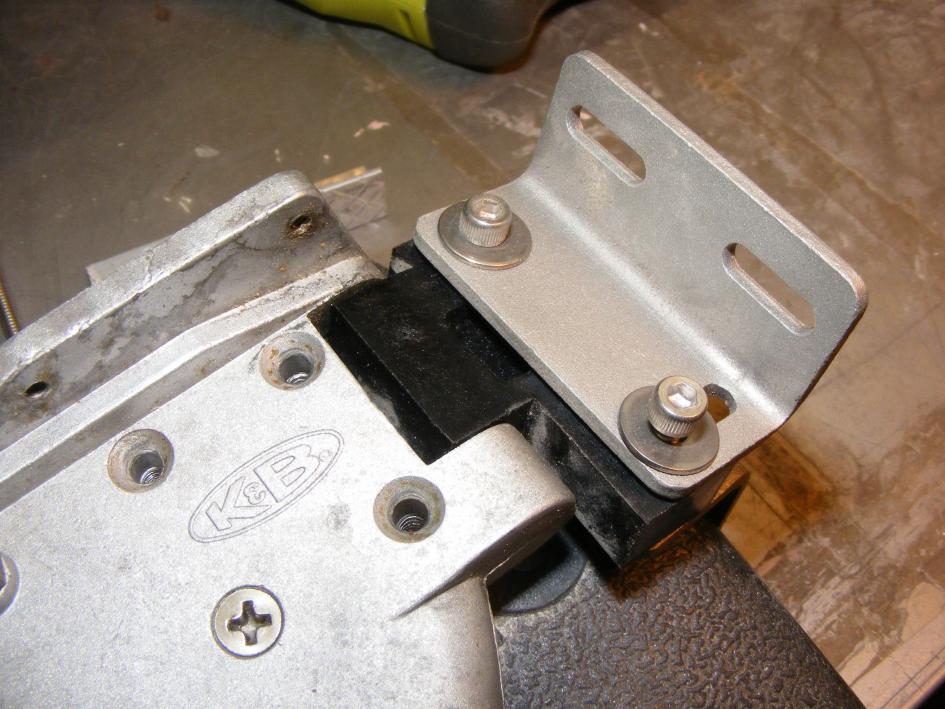

ID:	66706 I also took the liberty to change the factory motor mounts with some adjustable ones.
                Click image for larger version

Name:	Transfer 485.jpg
Views:	1
Size:	94.4 KB
ID:	66707Click image for larger version

Name:	Transfer 486.jpg
Views:	1
Size:	95.6 KB
ID:	66708 As you are reading this the epoxy is drying.
                IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                Comment

                • greenman407
                  Admiral
                  • Feb 2009
                  • 7530

                  #9

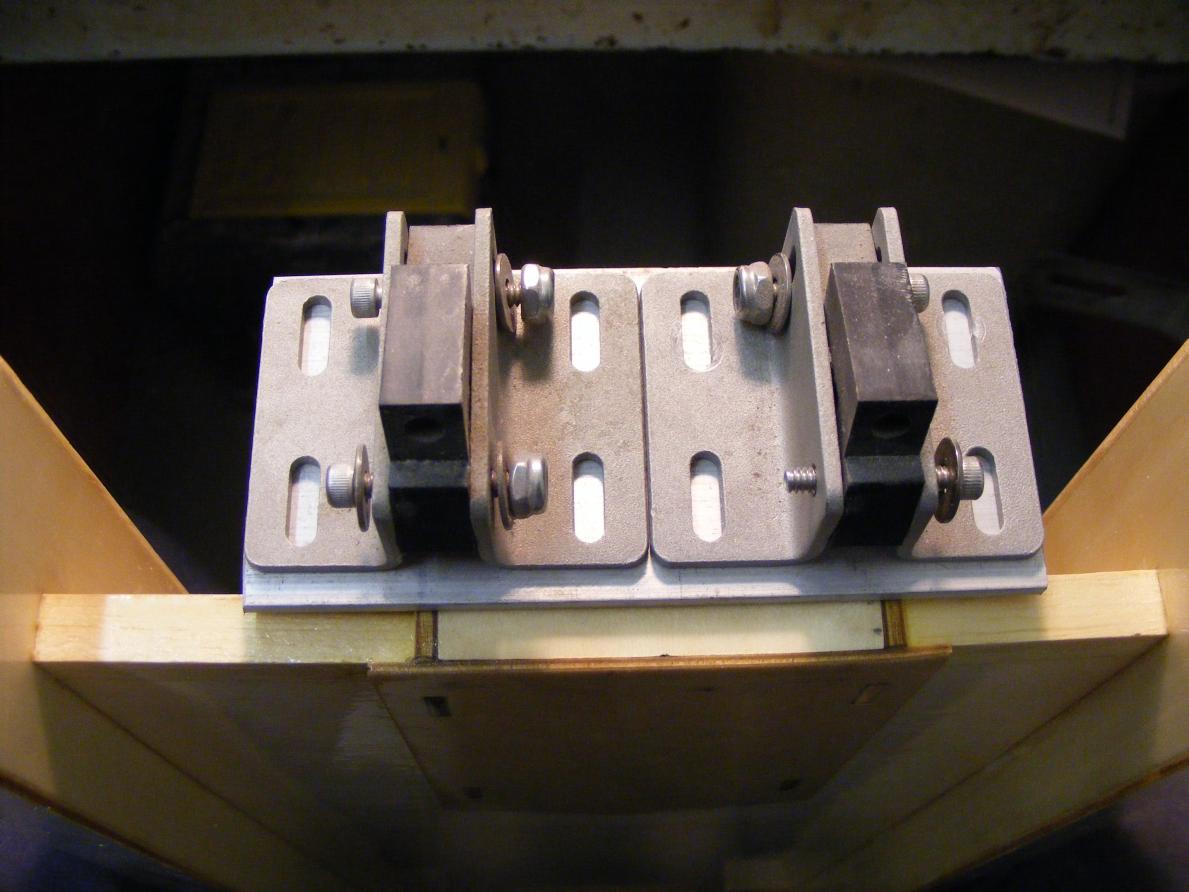

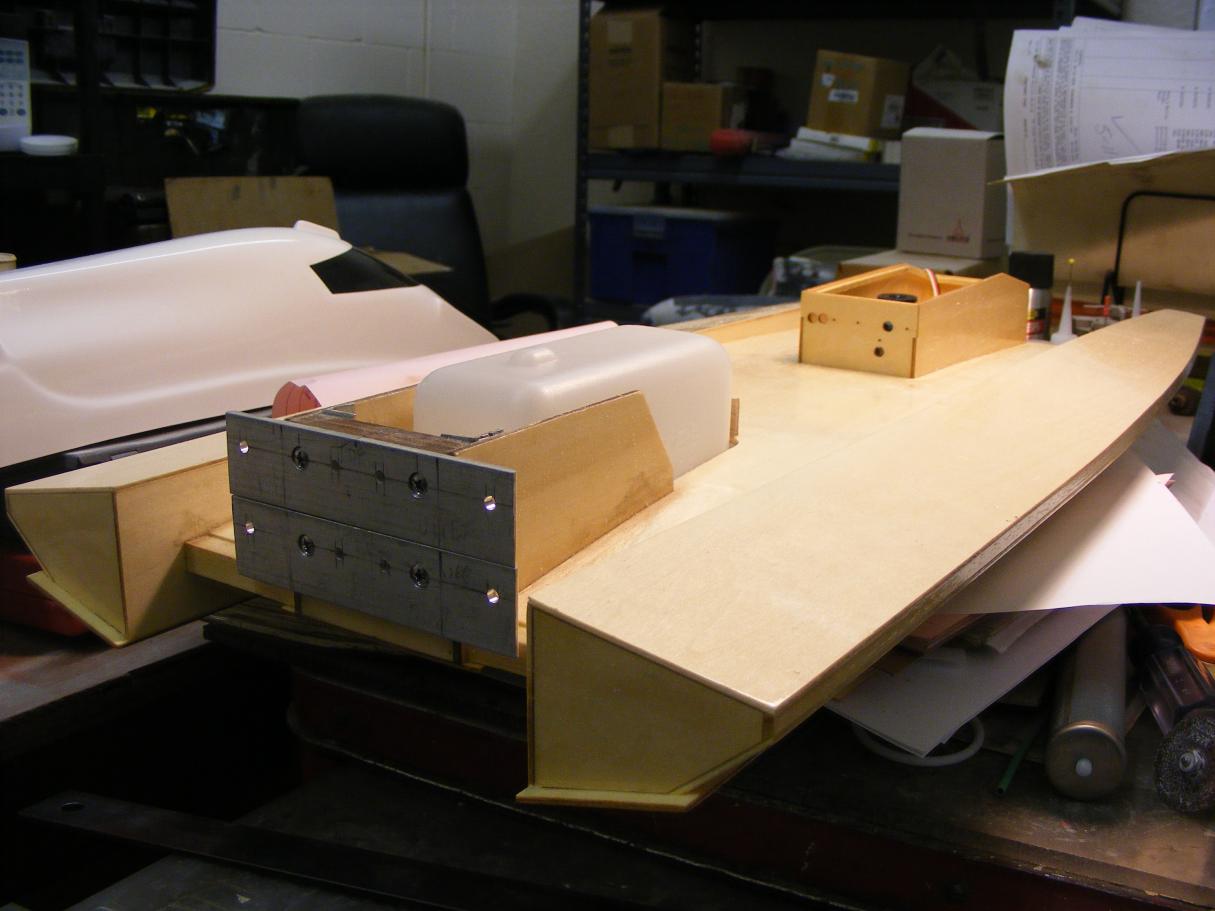

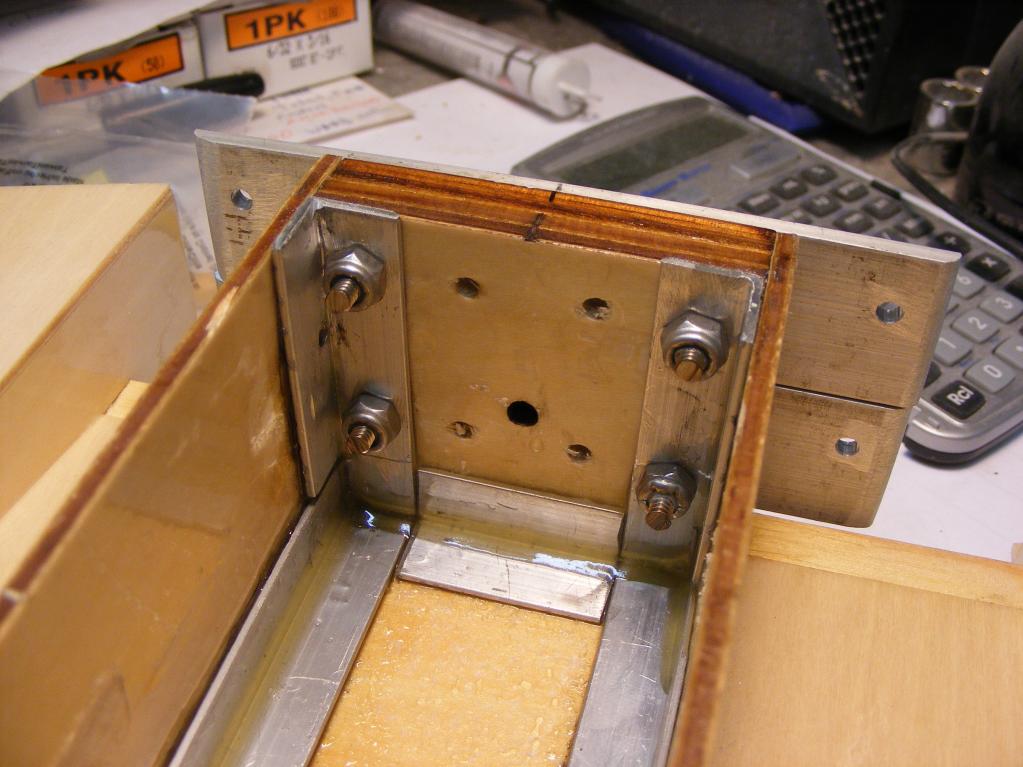

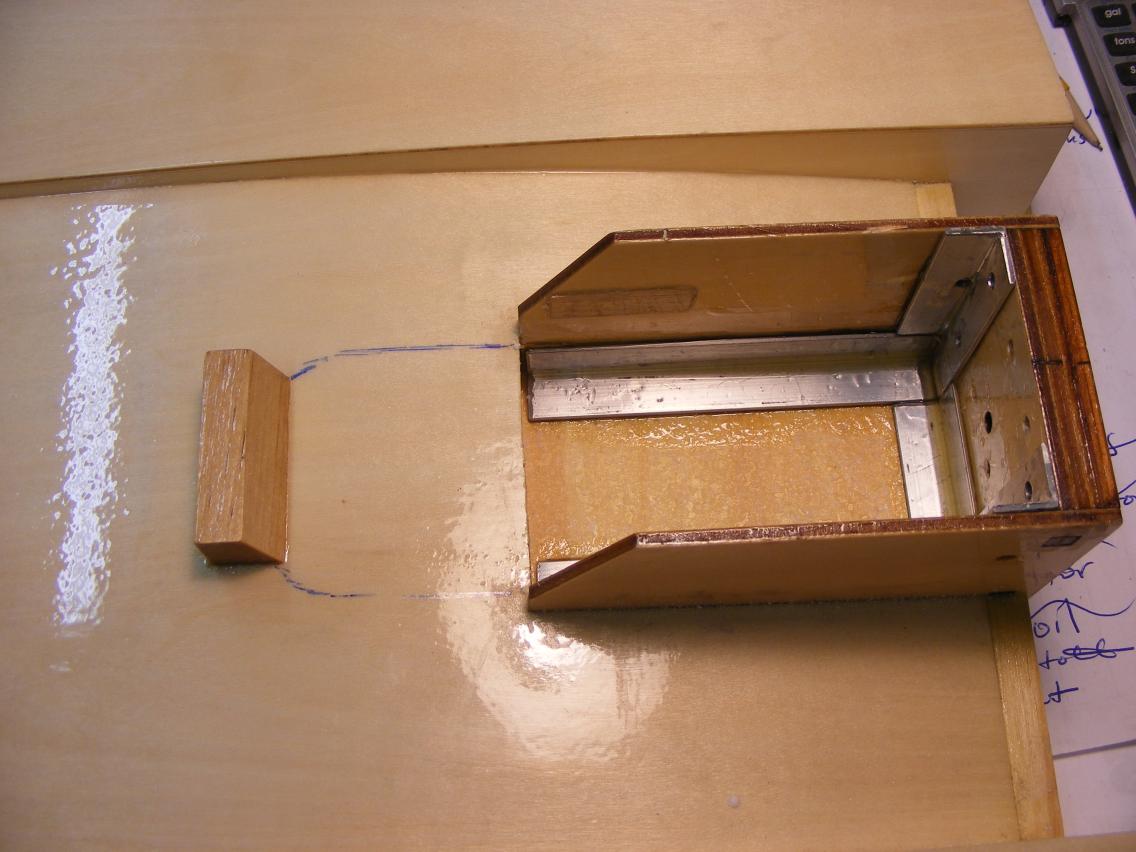

                  Then I epoxyied in the angles and attached the double motor mount to the transom.
                  Click image for larger version

Name:	Transfer 498.jpg
Views:	1
Size:	91.1 KB
ID:	66729
                  IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                  Comment

                  • greenman407
                    Admiral
                    • Feb 2009
                    • 7530

                    #10

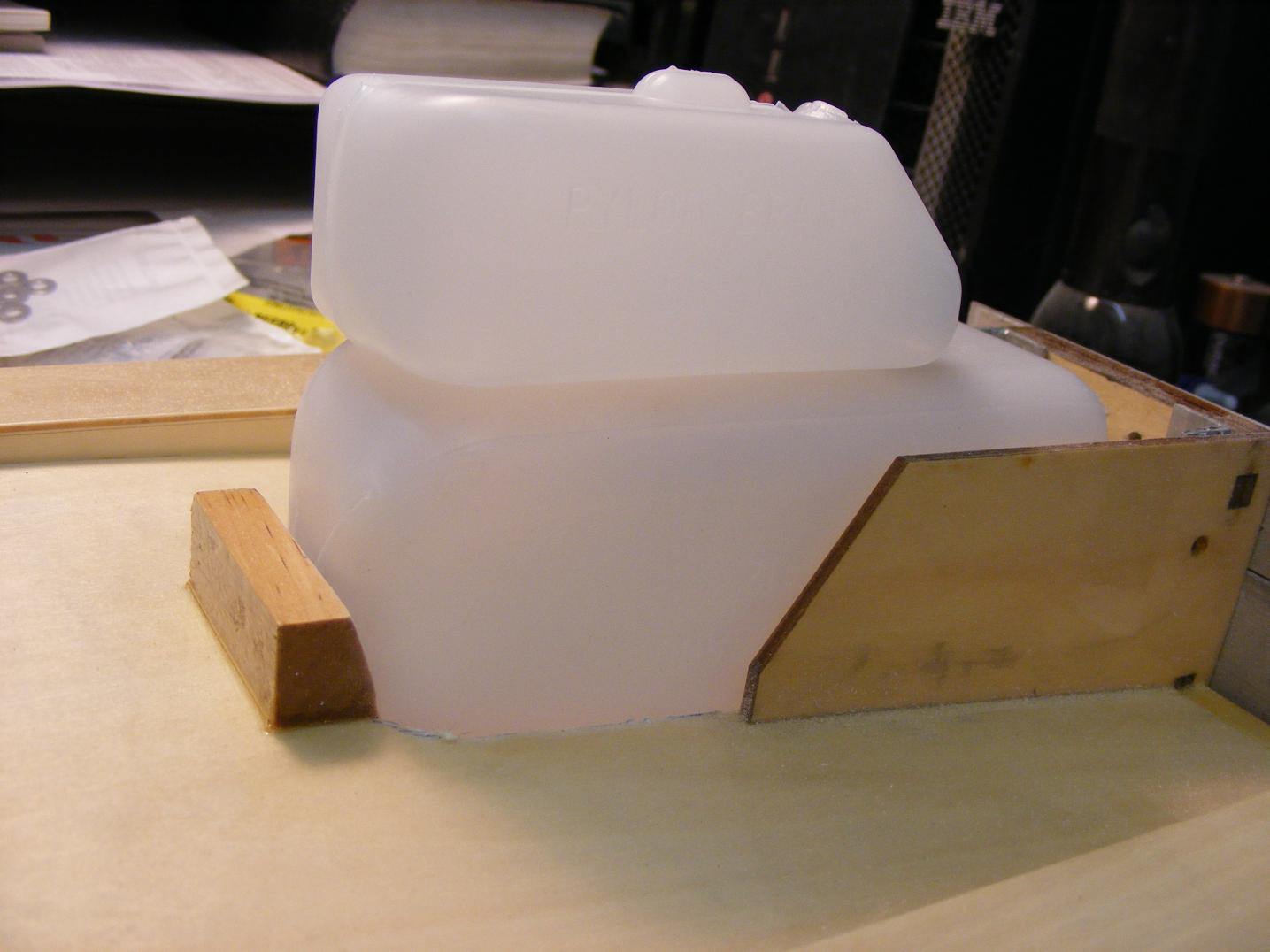

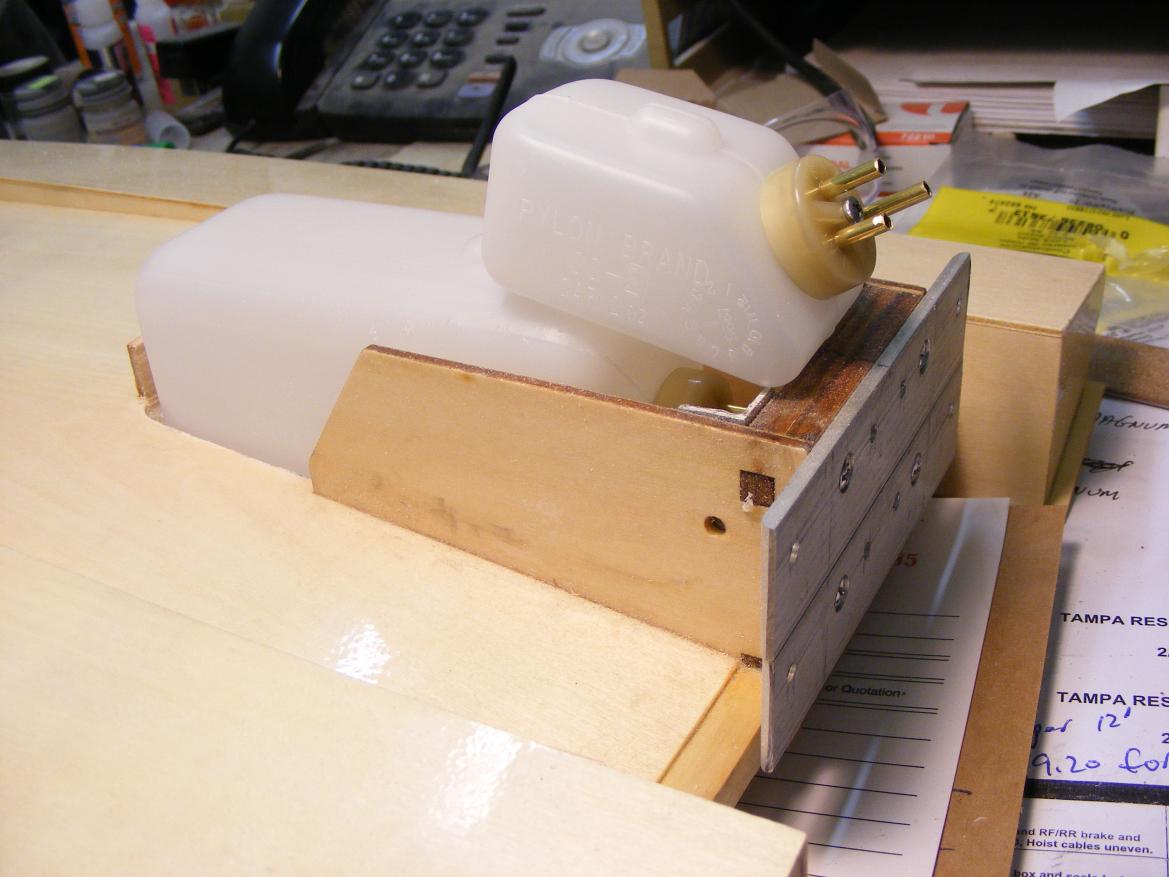

                    Now, on to fuel issues. The factory tank is unsuitable because it only has two built in lines......and that wont work. So I turn to my usual Sullivan fuel tanks. I always like using a header tank in addition to the main. In this way you increase fuel capacity and you have the tank that you draw from directly at carburator level. Since height is at a premium, I cut out the deck using a combination of standard Dremel and Dremel Multi max. In this way there is now room for a 12 oz. RST style tank and a 2 oz. header tank on top. The cowl still fits.
                    Click image for larger version

Name:	Transfer 495.jpg
Views:	1
Size:	93.5 KB
ID:	66730Click image for larger version

Name:	Transfer 497.jpg
Views:	1
Size:	92.2 KB
ID:	66731Click image for larger version

Name:	Transfer 500.jpg
Views:	1
Size:	91.6 KB
ID:	66732Click image for larger version

Name:	Transfer 499.jpg
Views:	1
Size:	93.7 KB
ID:	66733
                    IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                    Comment

                    • greenman407
                      Admiral
                      • Feb 2009
                      • 7530

                      #11
                      Ive been delayed waiting for a tubing bender that I ordered to come in to finish the fuel tank install. My other set got "Shanghied"(spelling,I think). I dont speak Chinese. Does it show?
                      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                      Comment

                      • greenman407
                        Admiral
                        • Feb 2009
                        • 7530

                        #12

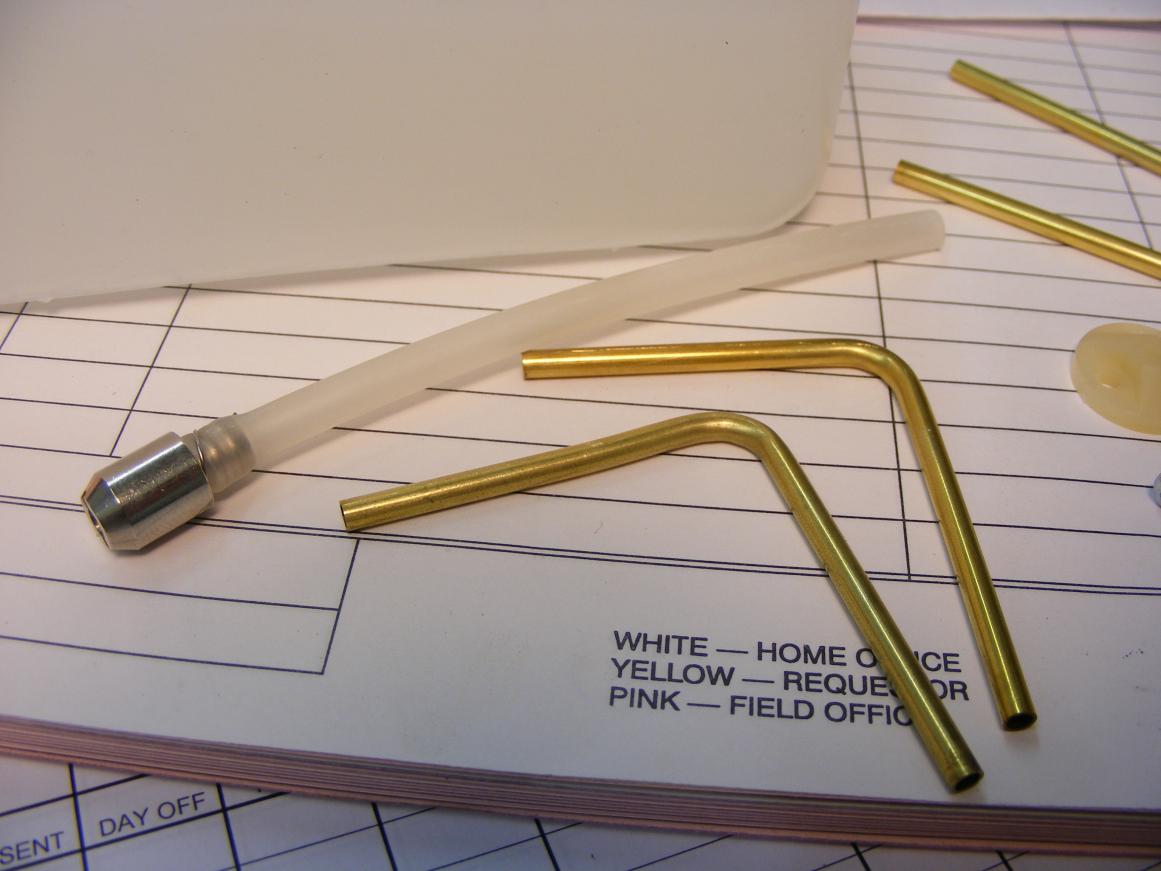

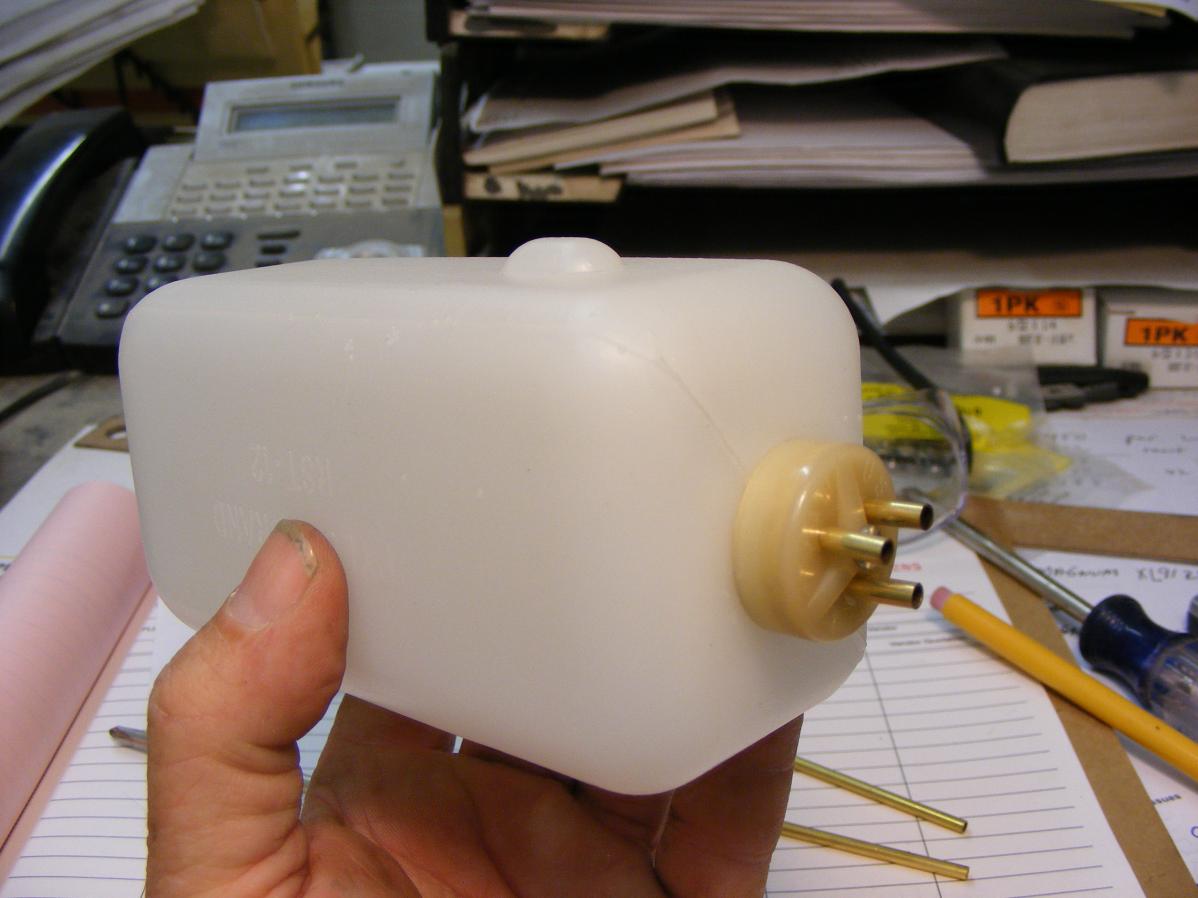

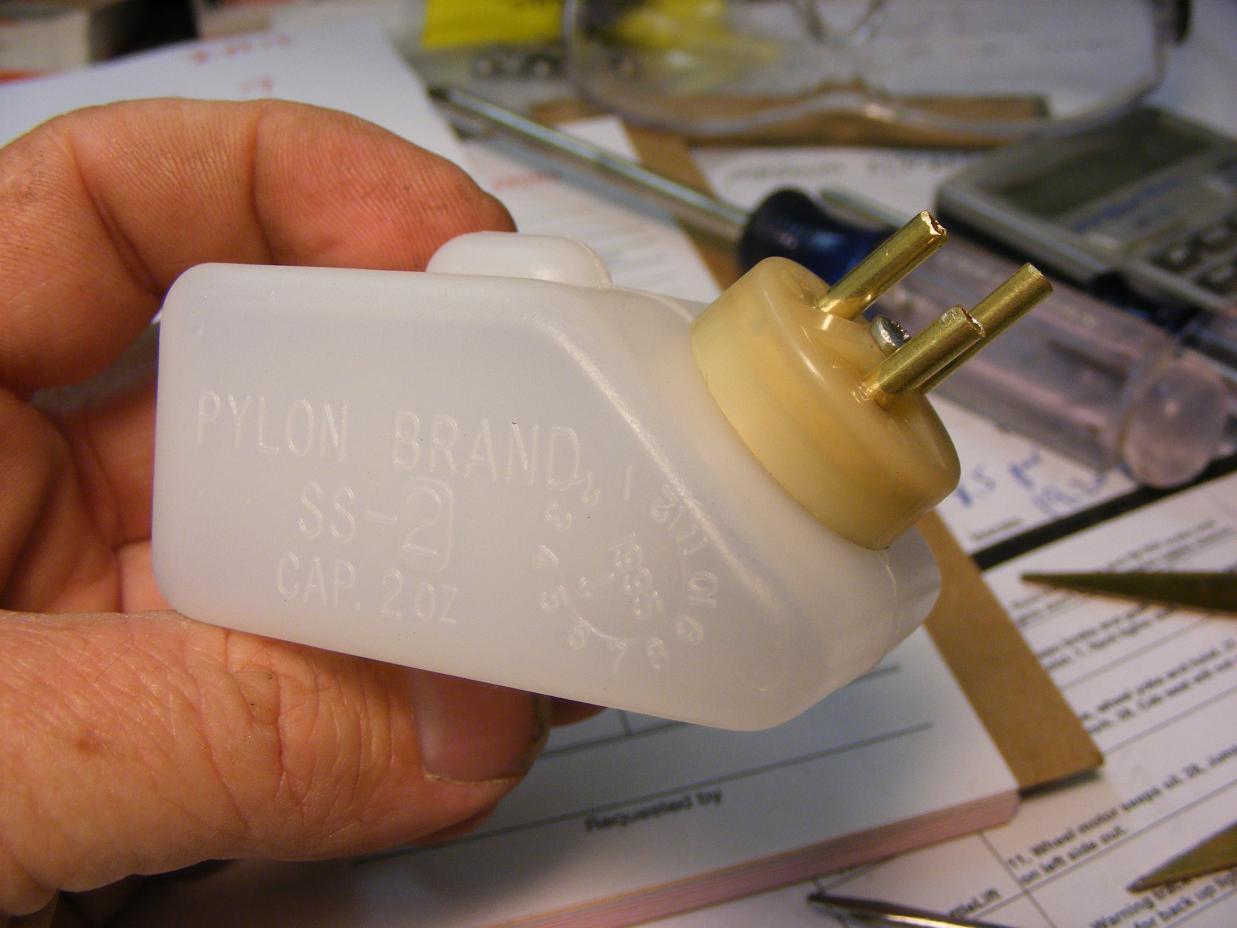

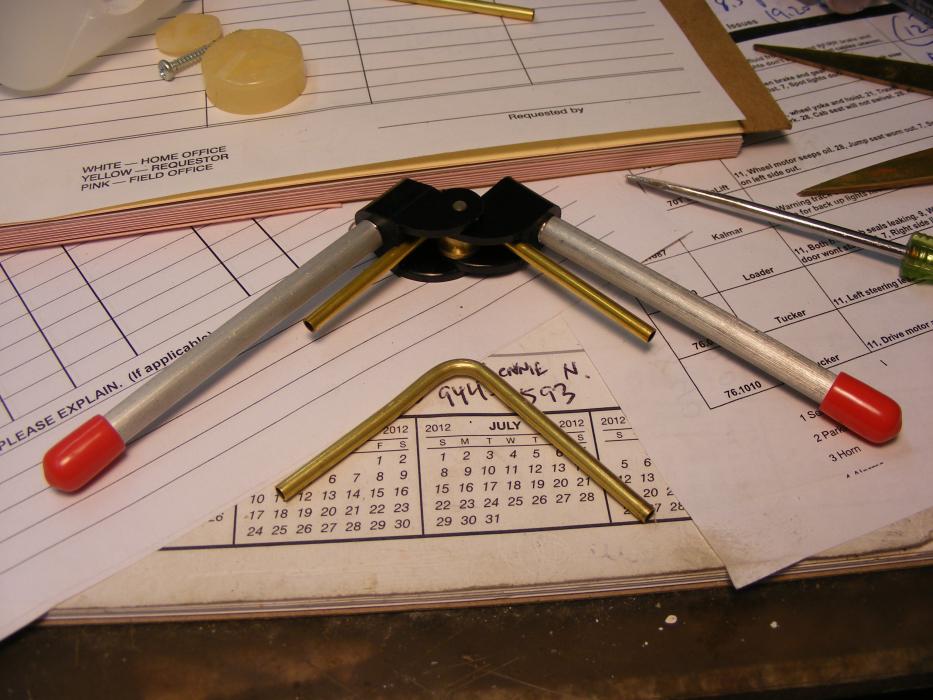

                        Got this neat tubing bender that makes short work of bending the brass fuel tubes without kinking. The 2 ounce tank was a simple matter of pushing three tubes down inside. Two of them will be fuel pickup, one for each engine. The other one will be fuel transfer from the bottom tank. The twelve ounce tank reqd. bending the exhaust pressure tubes at a 90 degree angle to have the open end terminate at the top of the tank. The other tube was attached to this hose and the weighted "klunk" at the end.
                        Click image for larger version

Name:	Transfer 567.jpg
Views:	1
Size:	92.4 KB
ID:	66847Click image for larger version

Name:	Transfer 568.jpg
Views:	1
Size:	85.6 KB
ID:	66848Click image for larger version

Name:	Transfer 569.jpg
Views:	1
Size:	82.6 KB
ID:	66849Click image for larger version

Name:	Transfer 570.jpg
Views:	1
Size:	82.5 KB
ID:	66850
                        IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                        Comment

                        • greenman407
                          Admiral
                          • Feb 2009
                          • 7530

                          #13

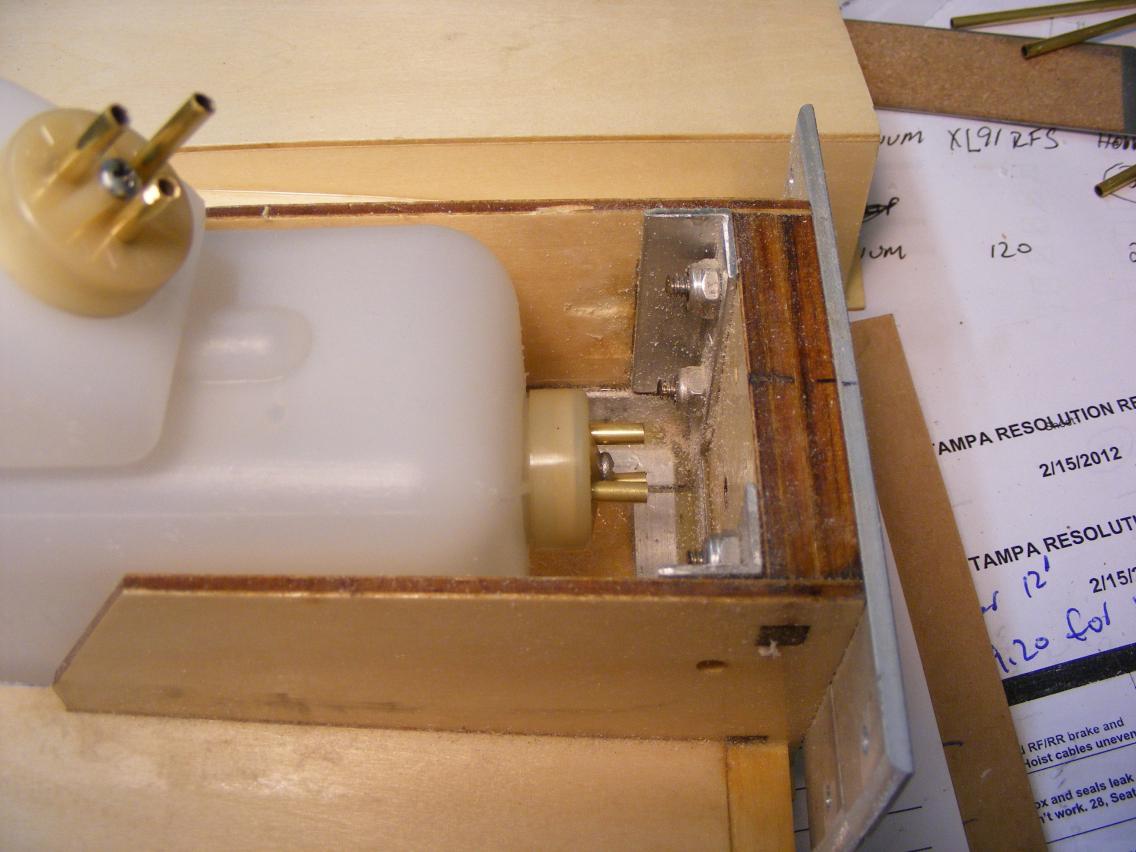

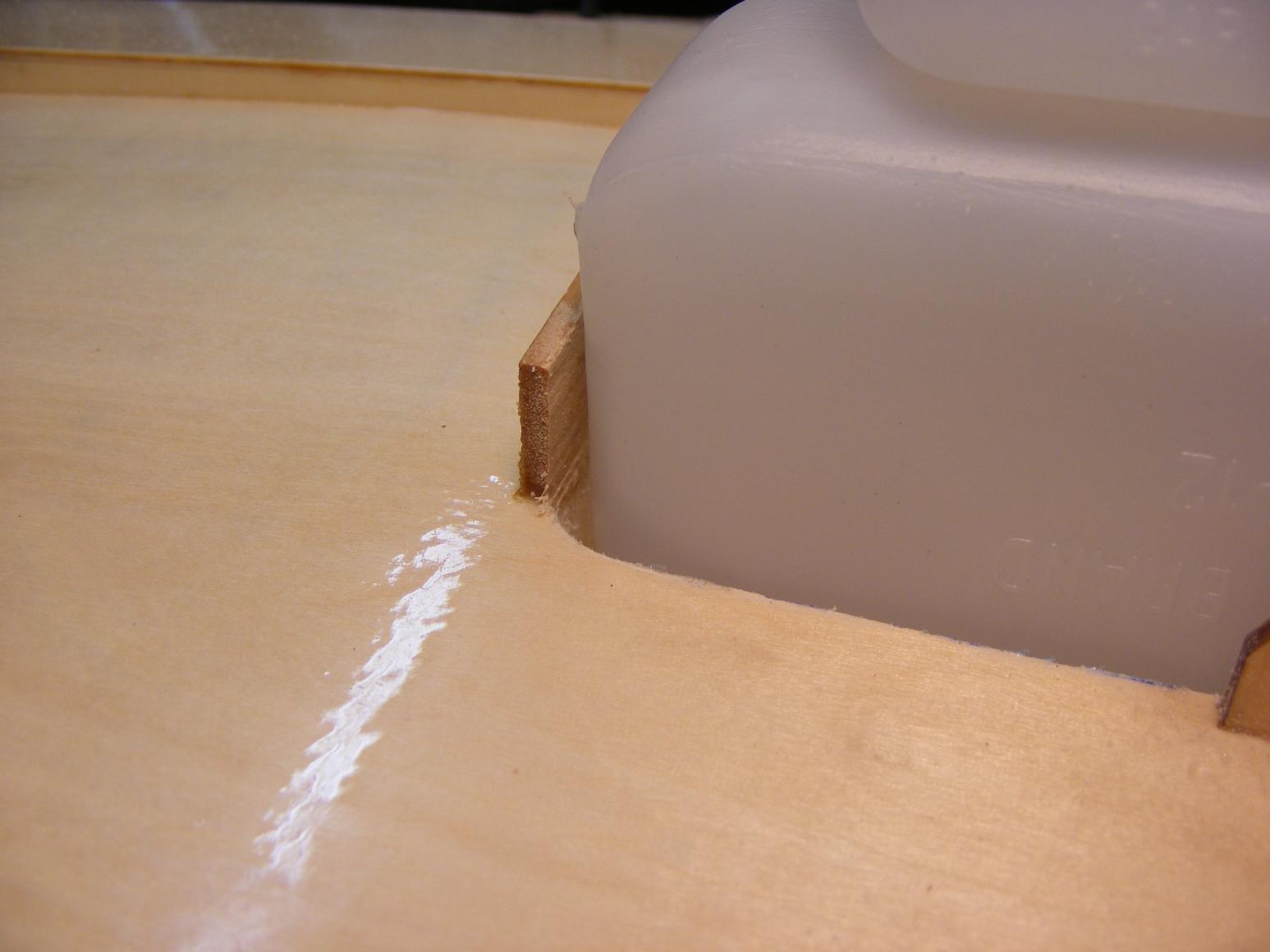

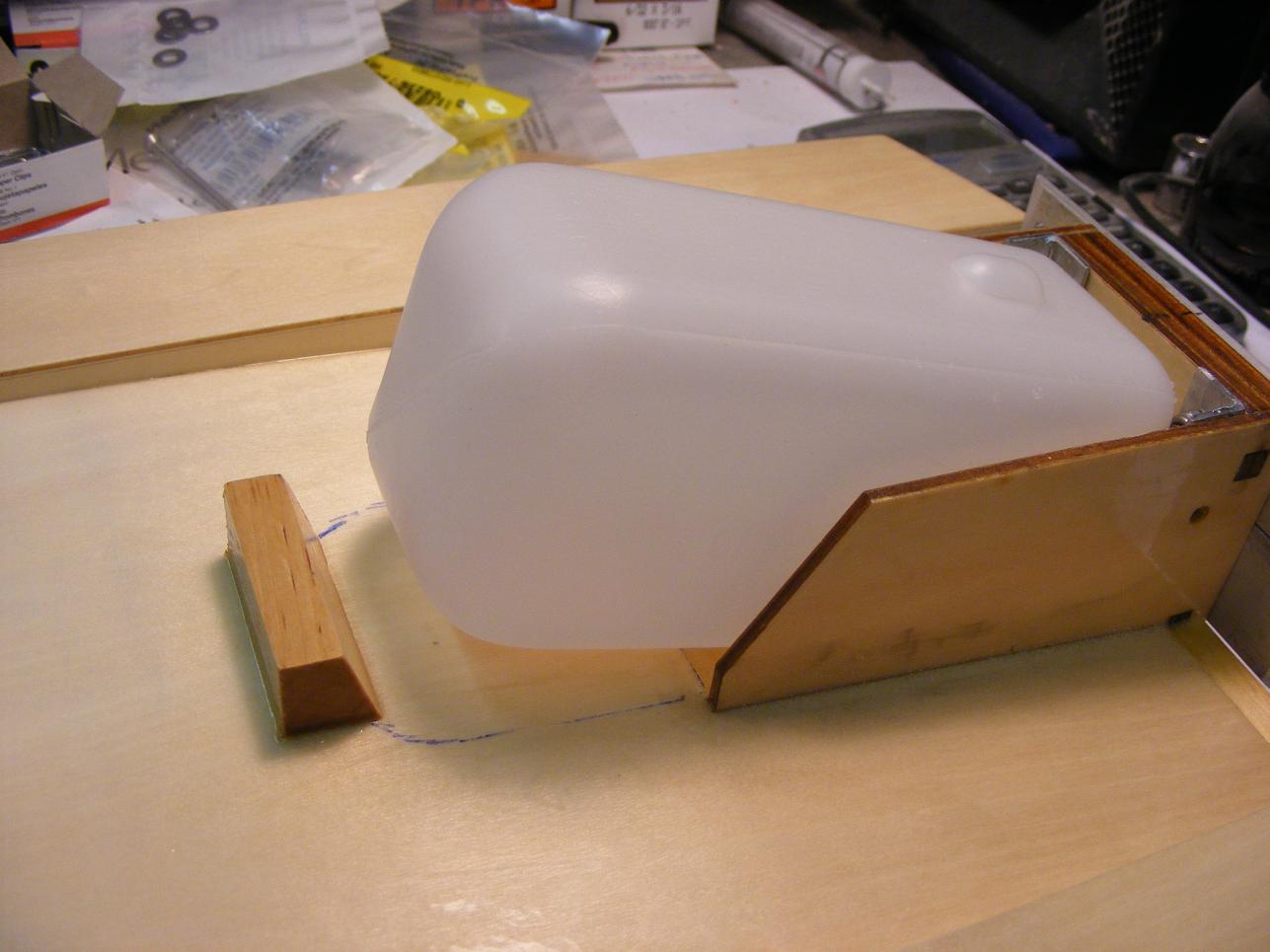

                          Because of the limited room inside the hull as respects clearance for the fuel hoses coming out of the tank it became necessary to open up the area a little more so that I was assured that there would be no kinking of hoses. So I cut out the opening a little more. There........that looks better.
                          Click image for larger version

Name:	Transfer 571.jpg
Views:	1
Size:	90.3 KB
ID:	66852Click image for larger version

Name:	Transfer 572.jpg
Views:	1
Size:	89.7 KB
ID:	66853Click image for larger version

Name:	Transfer 573.jpg
Views:	1
Size:	87.9 KB
ID:	66854
                          IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                          Comment

                          • greenman407
                            Admiral
                            • Feb 2009
                            • 7530

                            #14

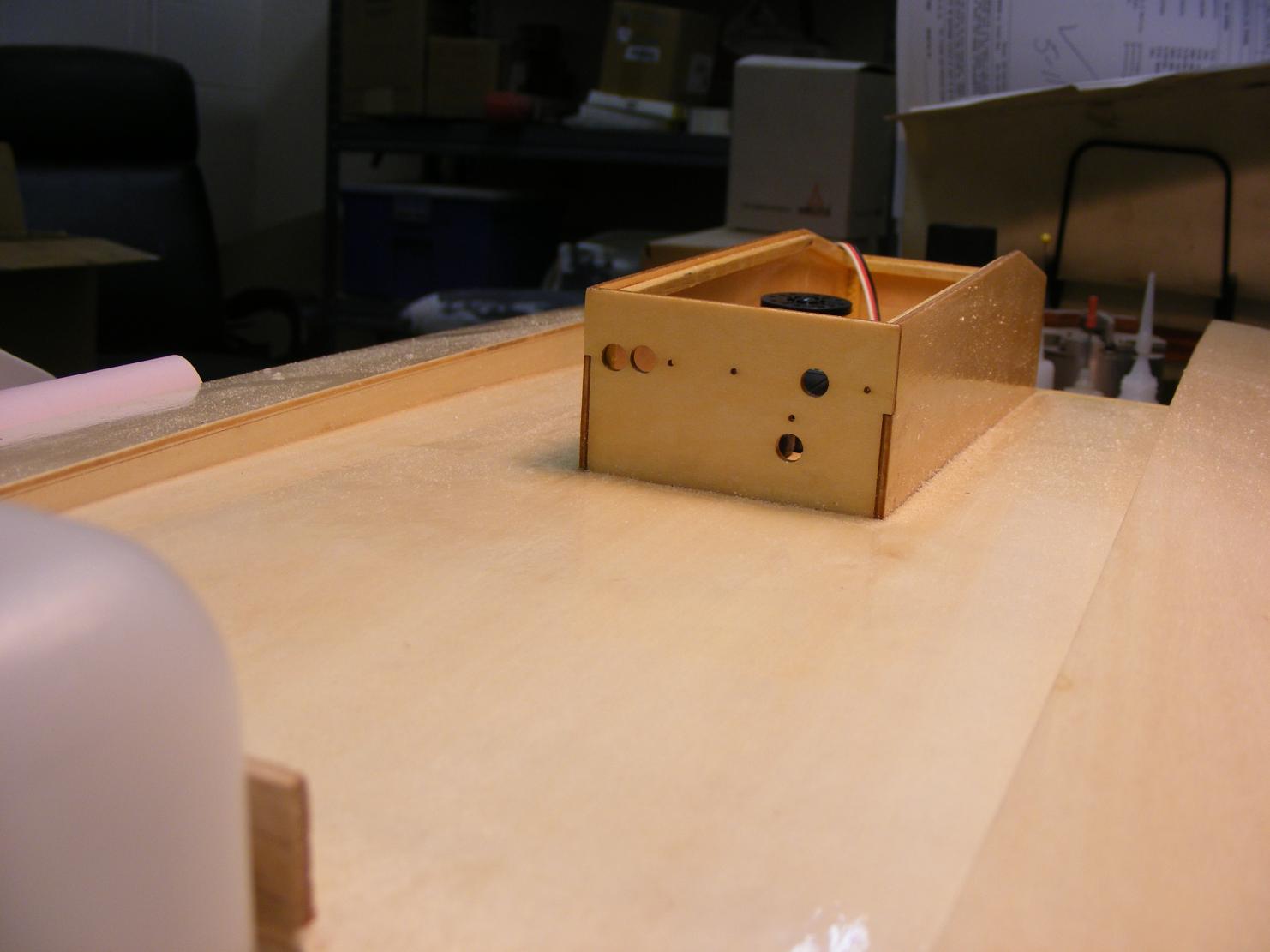

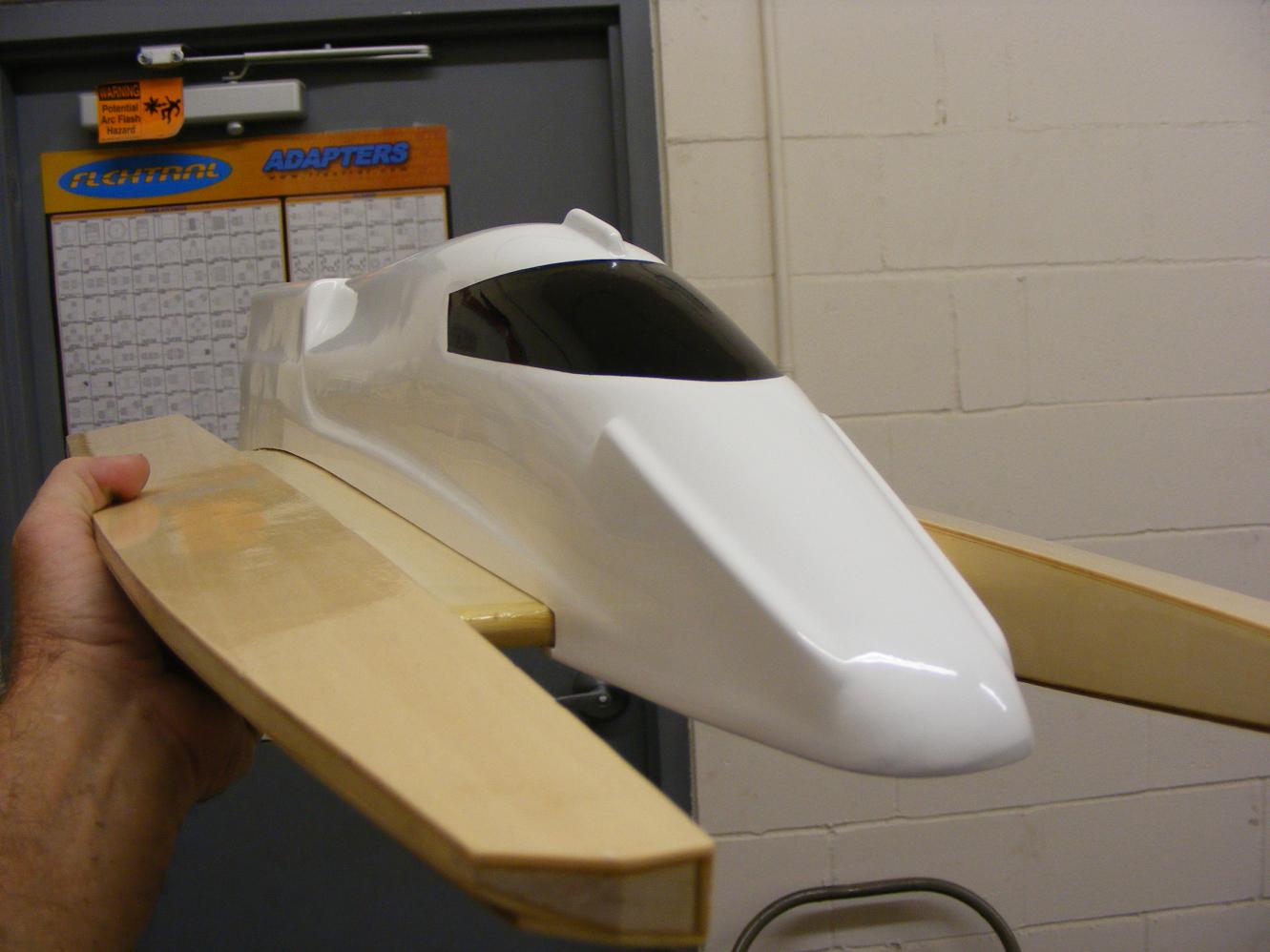

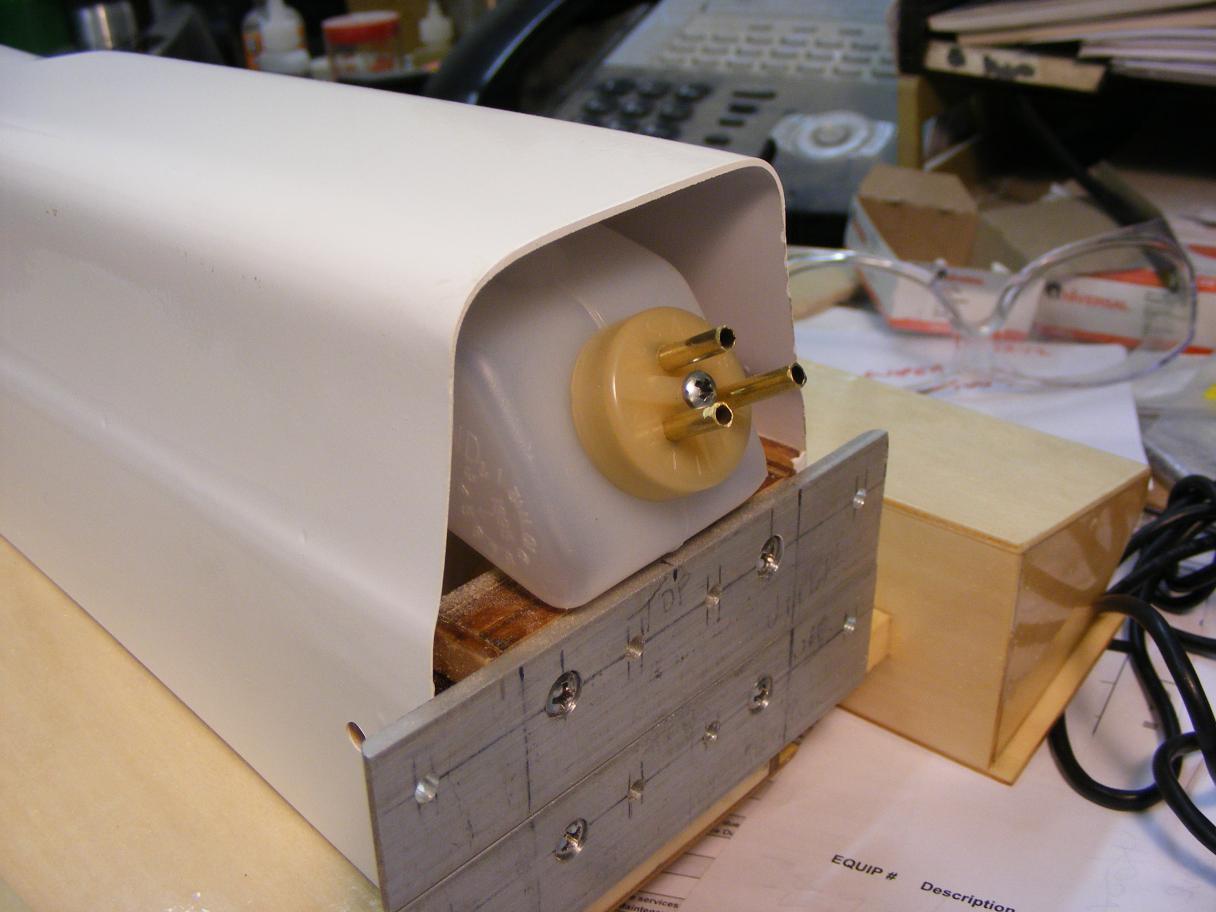

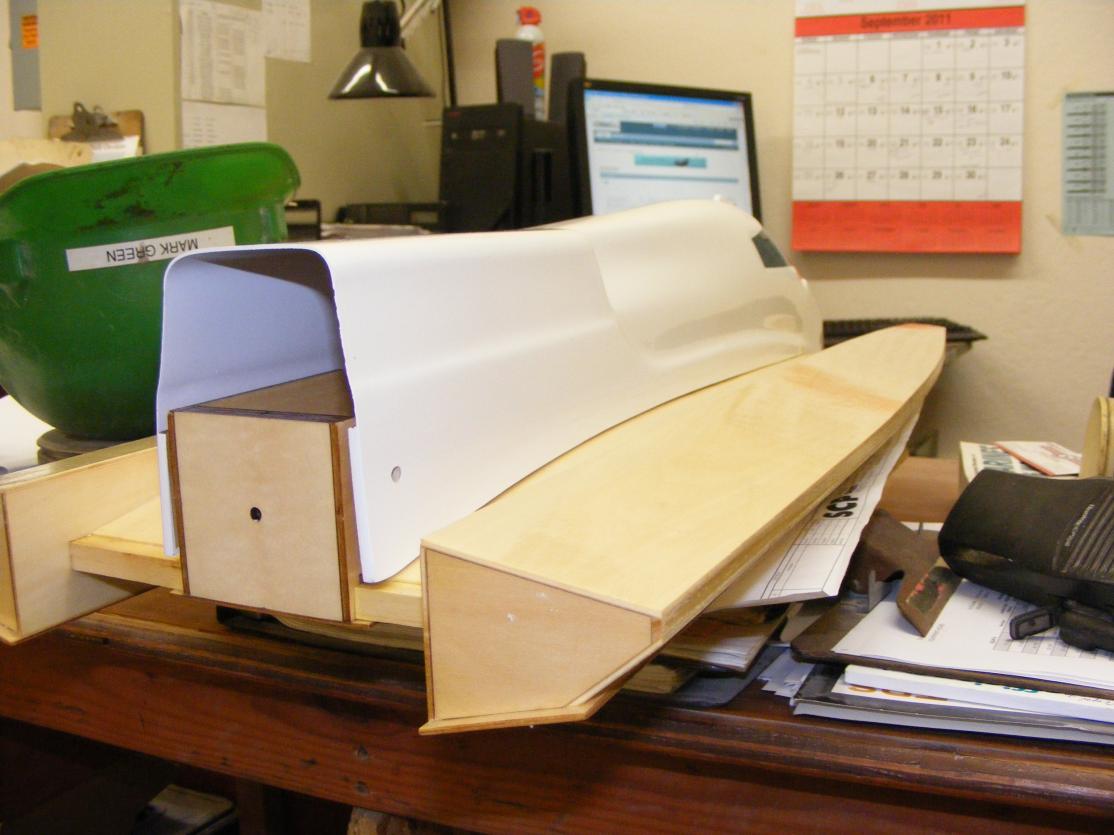

                            With the cowling in place it looks like this. I think that it will work out fine. Now , the next task will be to get the steering hardware to work.
                            Click image for larger version

Name:	Transfer 574.jpg
Views:	1
Size:	84.2 KB
ID:	66855
                            IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

                            Comment

                            • greenman407
                              Admiral
                              • Feb 2009
                              • 7530

                              #15

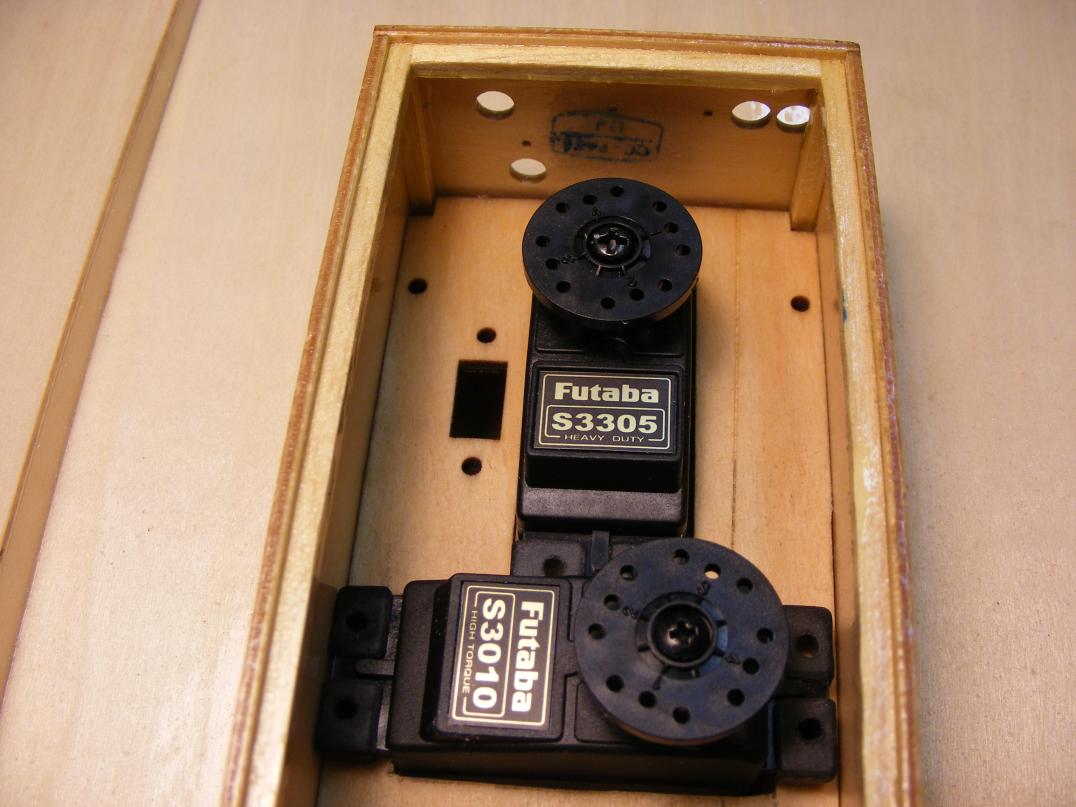

                              Just a preliminary placement of the servos. The Futaba S3305 servo has a metal gear and a whopping 124 in. ozs. of torque. Itll be used for steering. Im not going to use cables for the steering. Im going to use one rod connected to one engine and then link the two engines together.
                              Click image for larger version

Name:	Transfer 022.jpg
Views:	1
Size:	91.0 KB
ID:	67163Click image for larger version

Name:	Transfer 023.jpg
Views:	1
Size:	82.4 KB
ID:	67164Click image for larger version

Name:	Transfer 024.jpg
Views:	1
Size:	83.3 KB
ID:	67165
