    While waiting on some "subbie" bits, I began building my Dumas 1/96 USS Whitehall.
    She's PCE 856 ( Patrol Craft Escort ) and, apparently, had seen some sub-chasing duties
    in the South Pacific during WWII.

    Began with Level 01:
    Click image for larger version

Name:	01 level.jpg
Views:	1
Size:	87.8 KB
ID:	103107Die cut balsa, and some sort of die cut styrene.

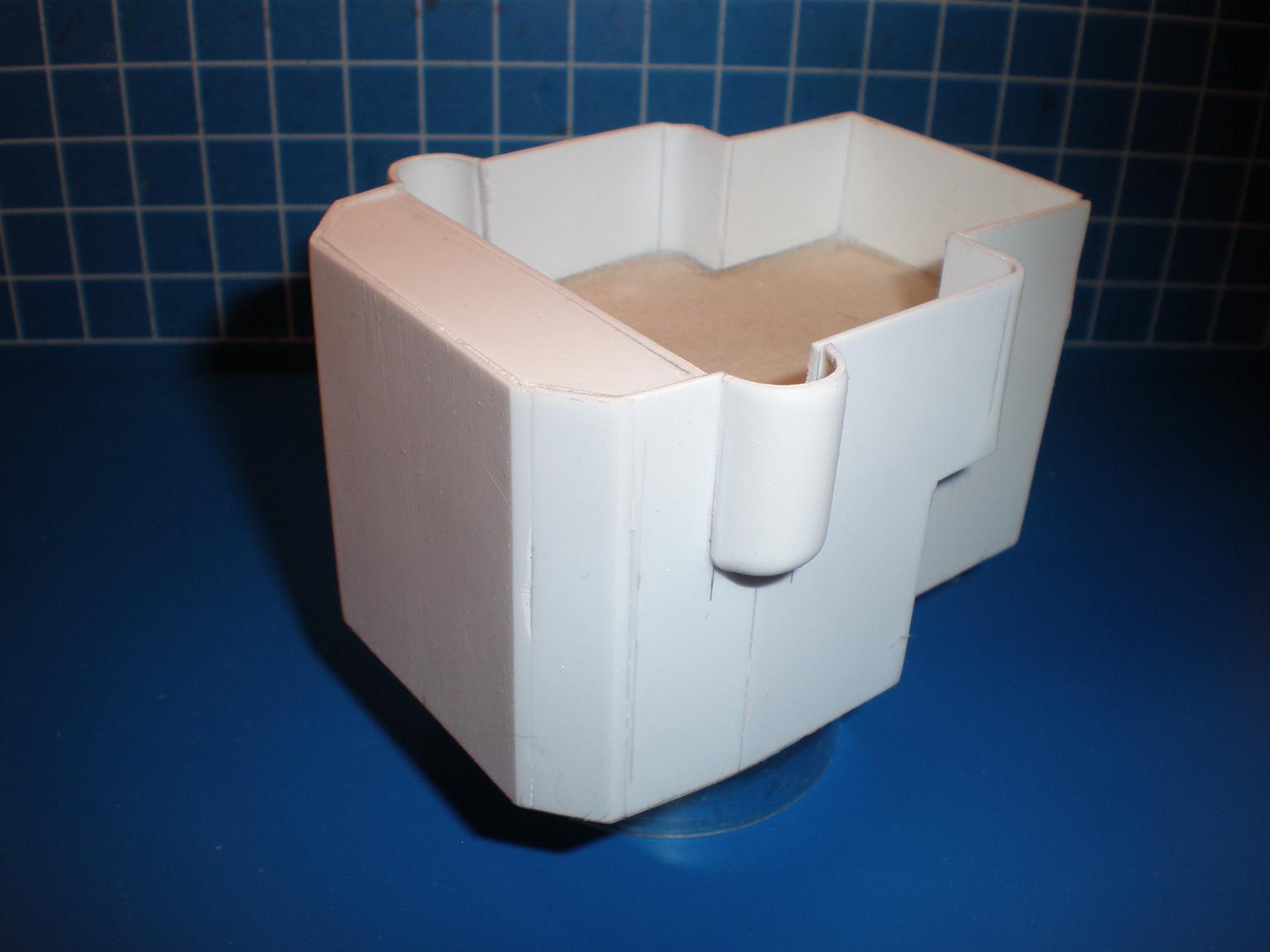

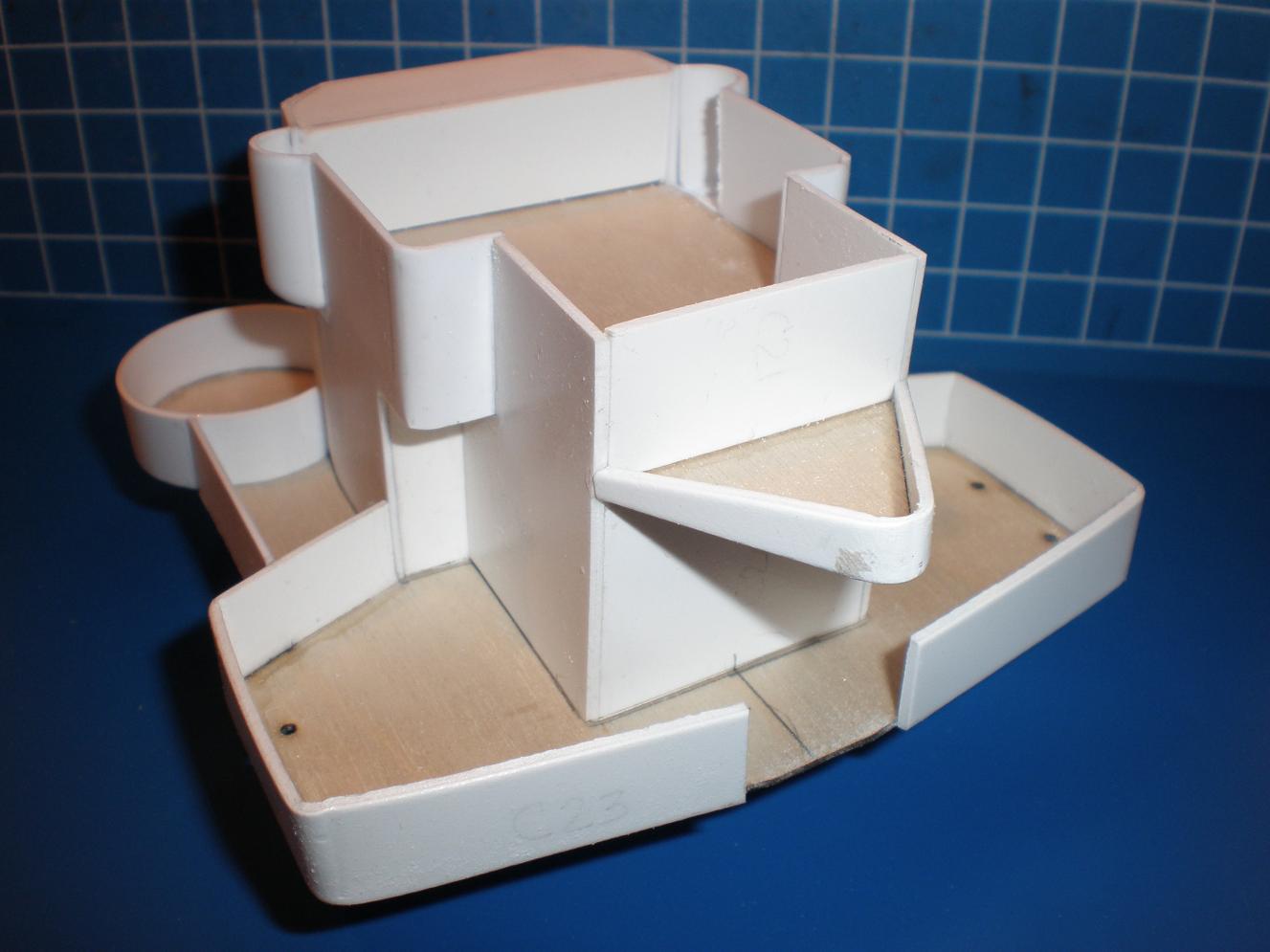

    Assembled the bridge next:
    Click image for larger version

Name:	fwd bridge.jpg
Views:	1
Size:	82.6 KB
ID:	103108Click image for larger version

Name:	aft bridge.jpg
Views:	1
Size:	82.2 KB
ID:	103109
    Also die cut balsa, and "styrene", but I didn't care for much of the die cut styrene pieces,
    so I made new parts from .040 sheet styrene! Mo' bettah!!!

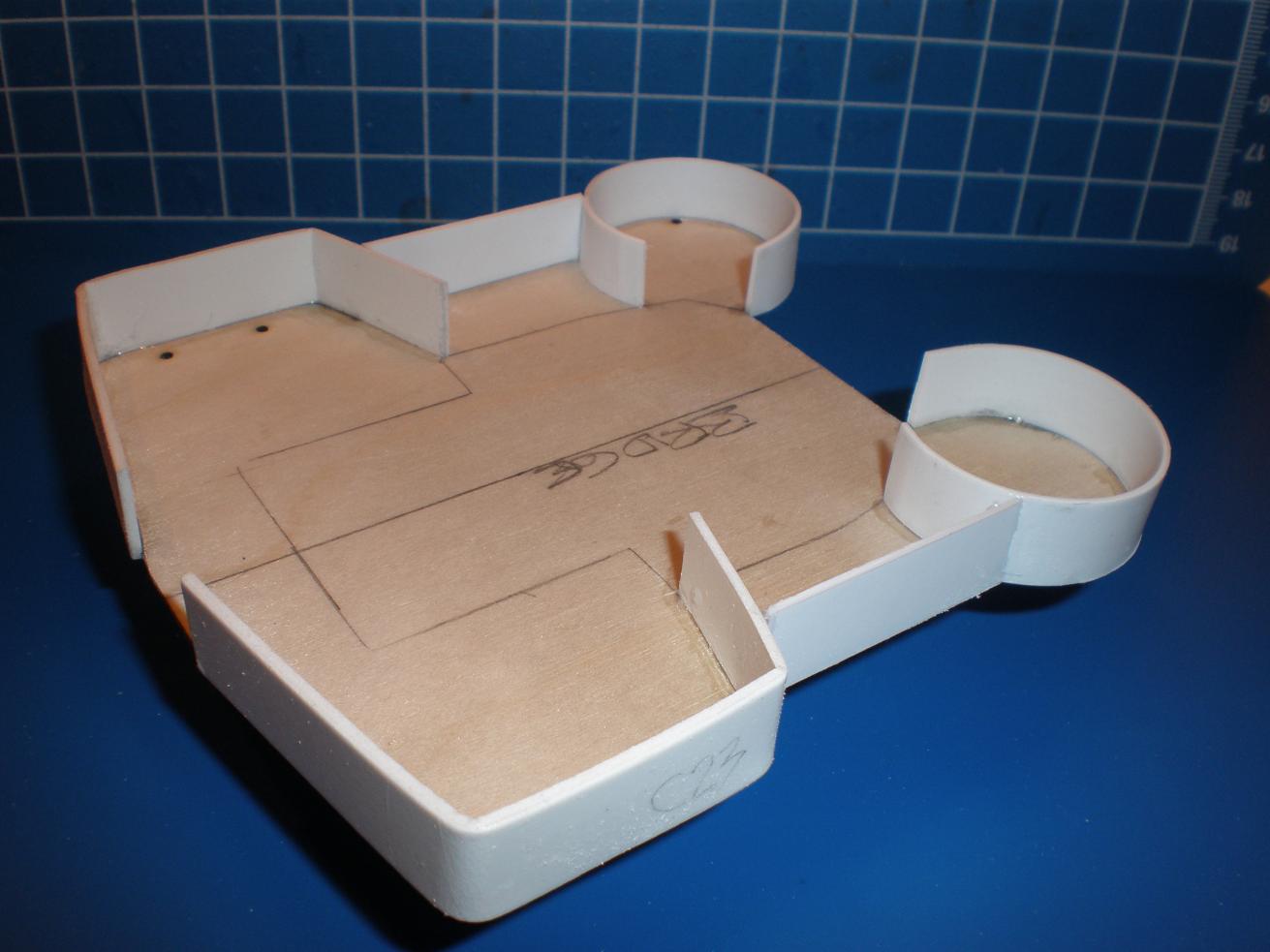

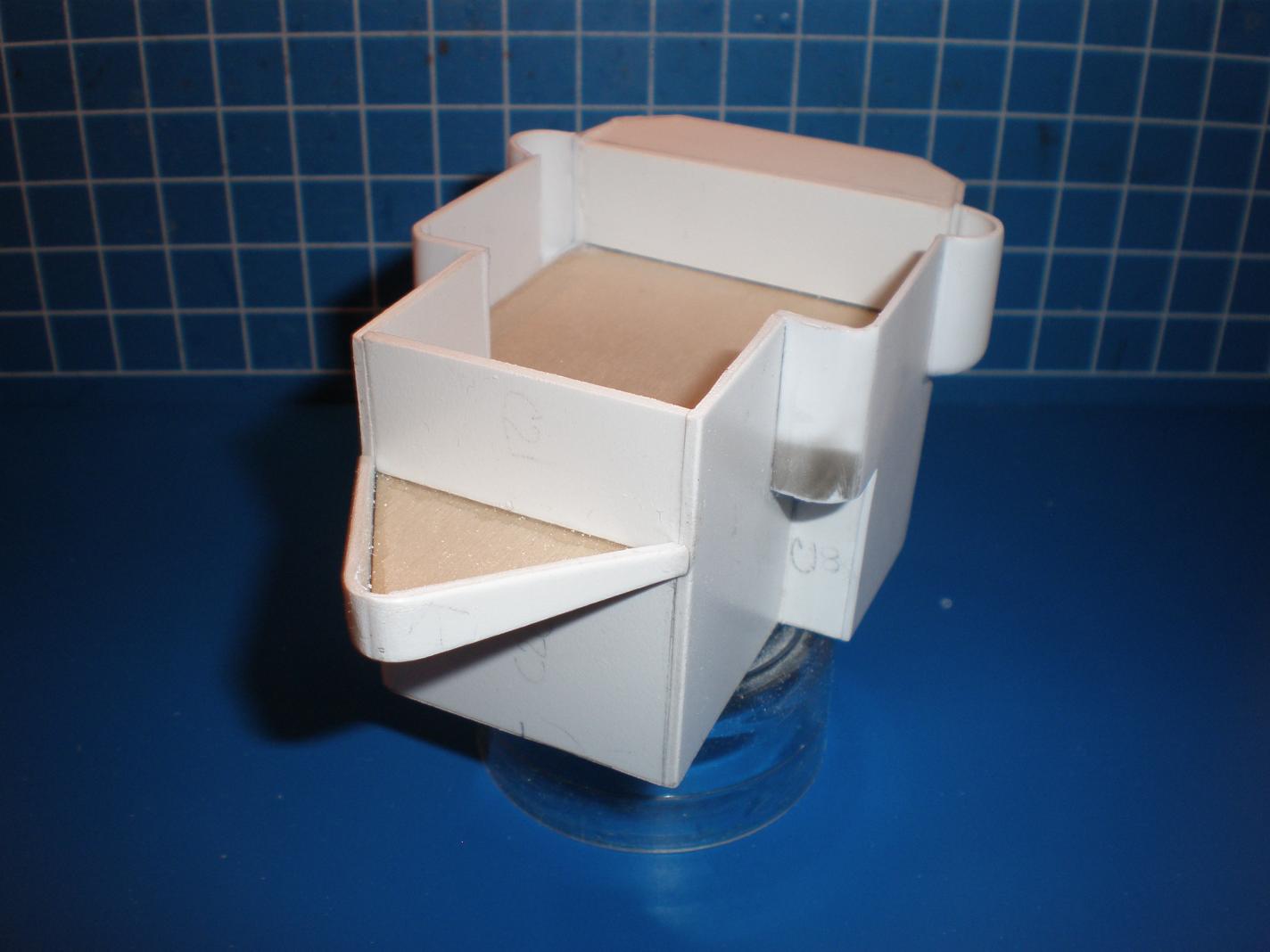

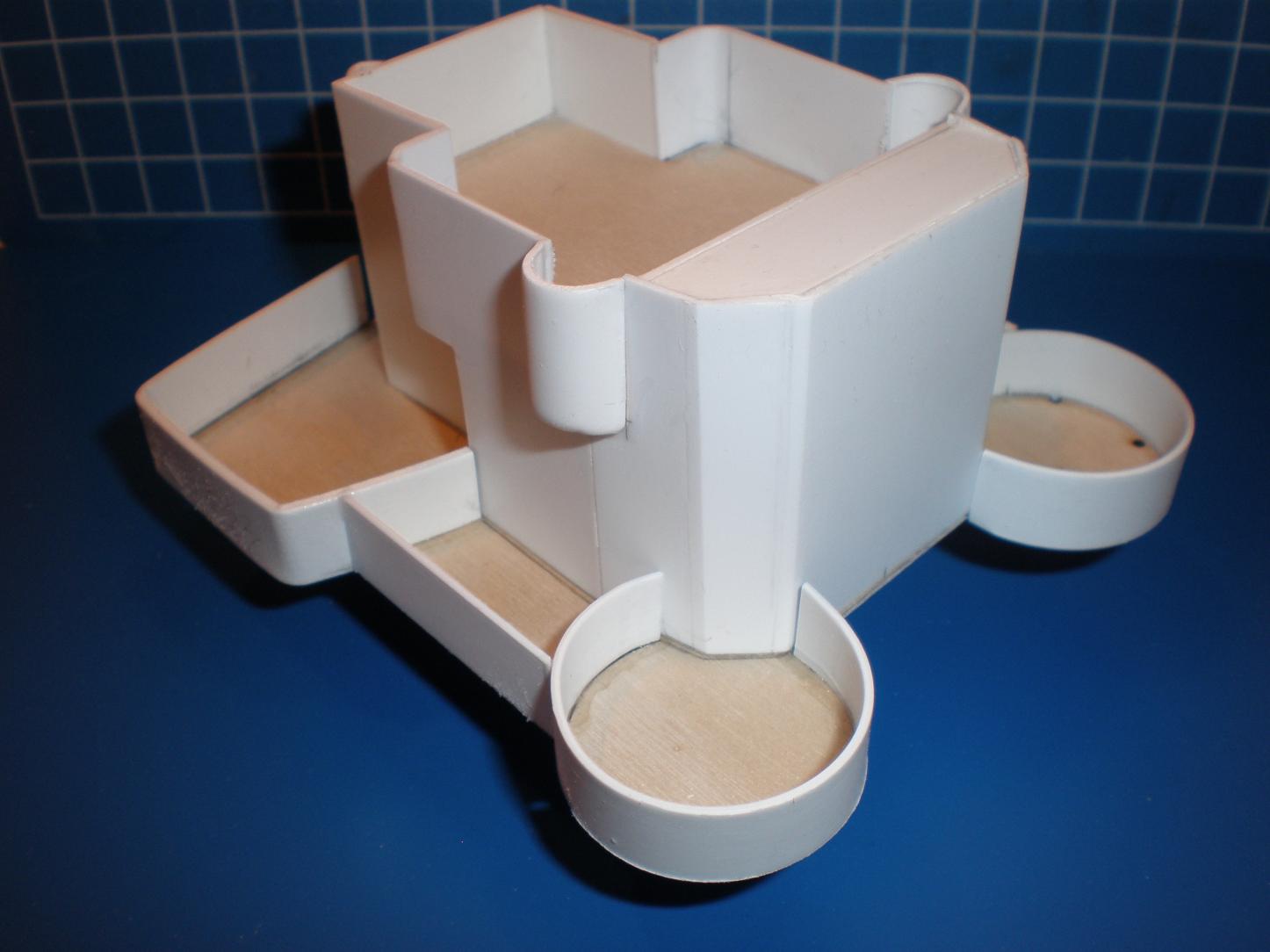

    Here is the bridge deck:
    Click image for larger version

Name:	bridge deck.jpg
Views:	1
Size:	84.8 KB
ID:	103110

    I replaced a lot of the sides with .040" thick styrene, as well! The die cut parts aren't real
    crazy about being bent or radiused!! The deck itself, is die cut plywood.

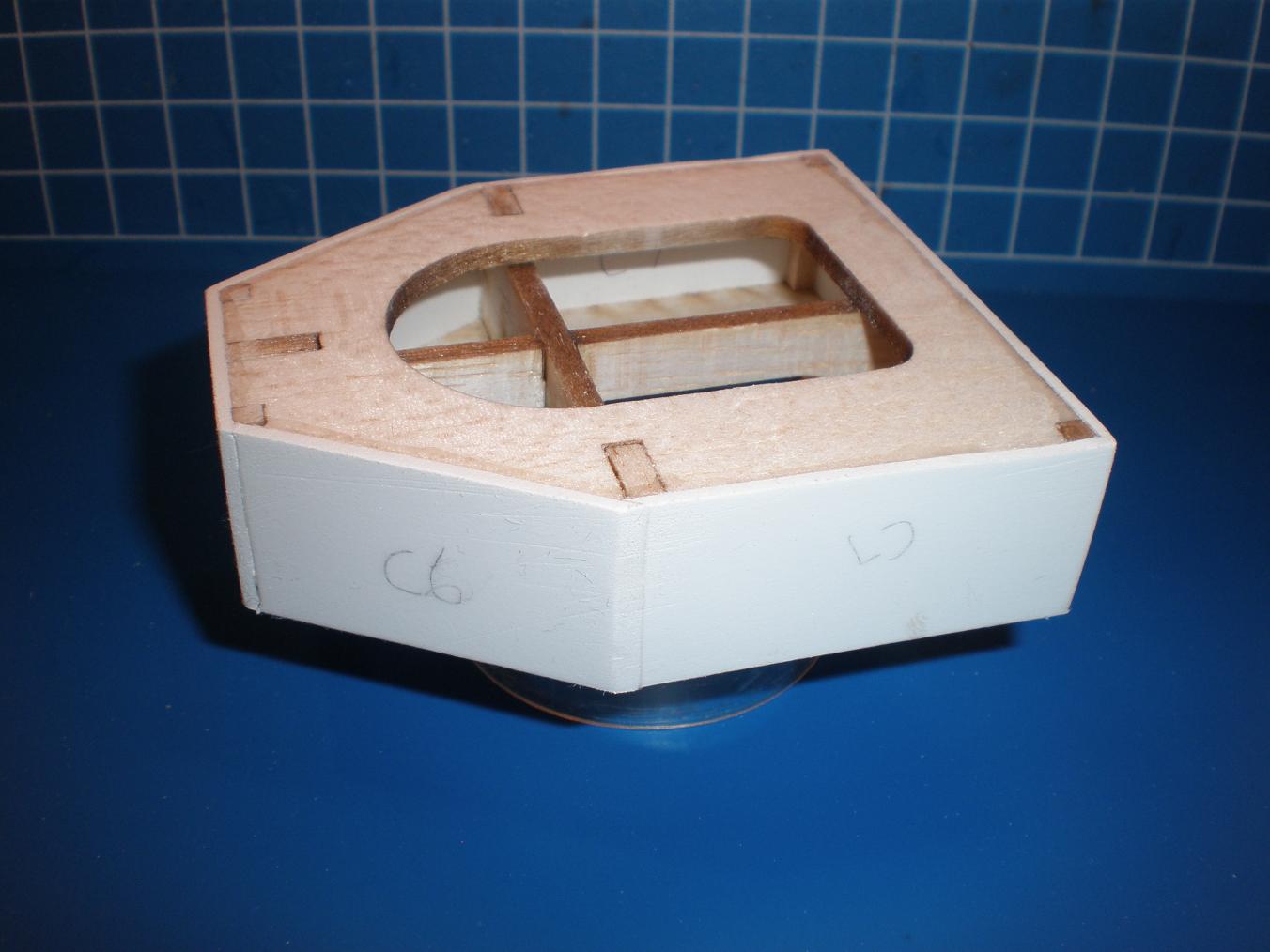

    A couple of pix of the bridge and bridge deck placed together:
    Click image for larger version

Name:	fwd br and deck.jpg
Views:	1
Size:	80.1 KB
ID:	103111Click image for larger version

Name:	aft br and deck.jpg
Views:	1
Size:	80.6 KB
ID:	103112

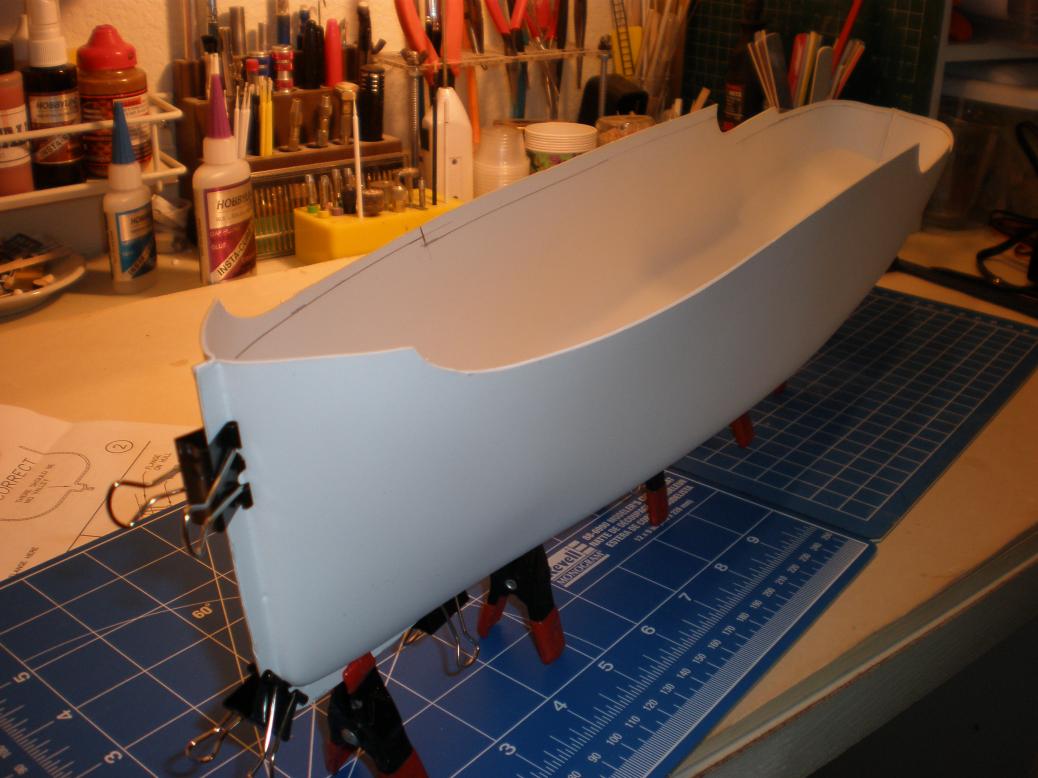

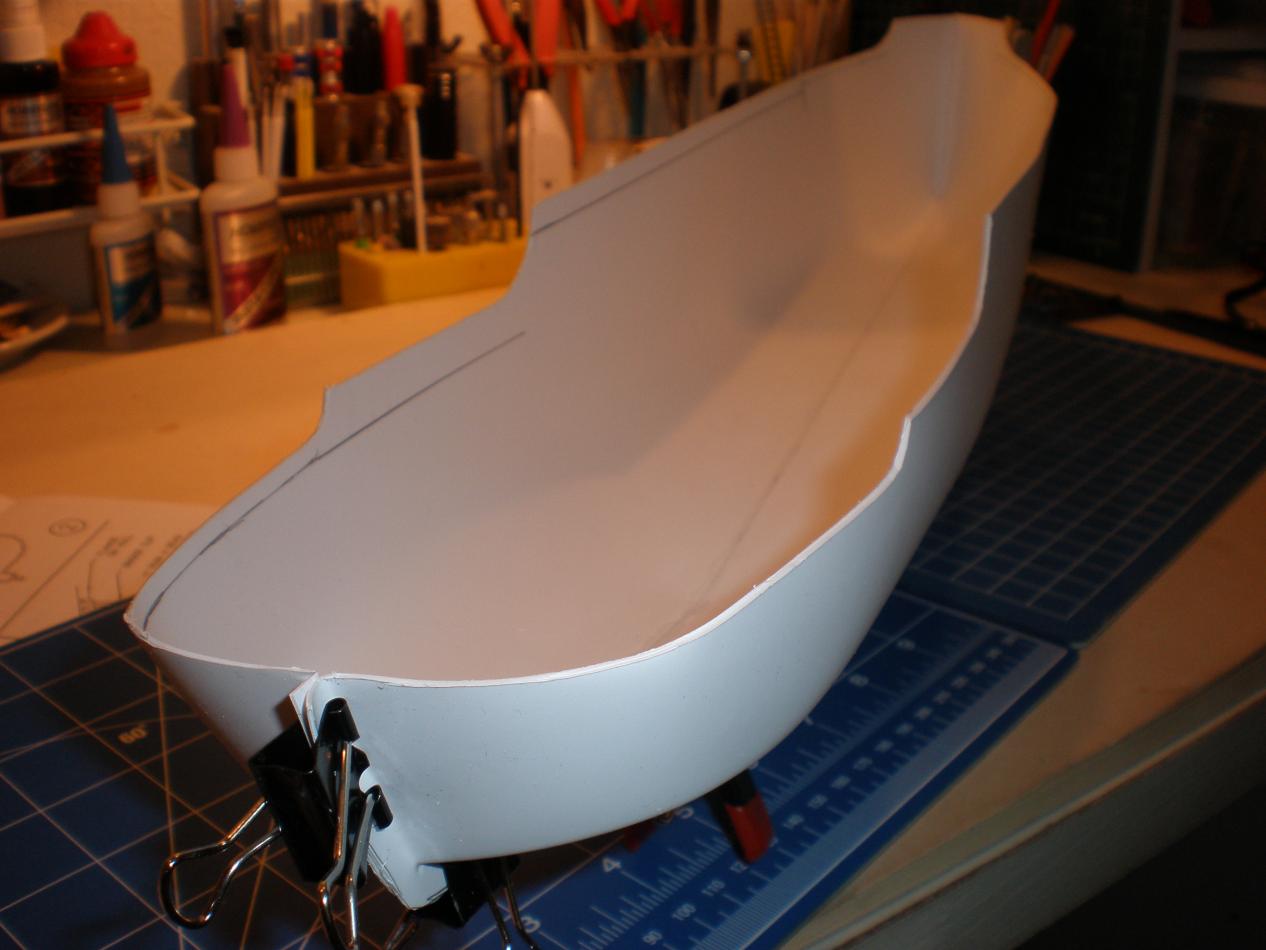

    Joined the hull halves together with a bead of thick bodied CA, and left to dry completely!
    Binder clips and a few spring clamps keep things aligned nicely!

    Click image for larger version

Name:	aft hull.jpg
Views:	1
Size:	78.6 KB
ID:	103114Click image for larger version

Name:	fw hull.jpg
Views:	1
Size:	87.9 KB
ID:	103113

    Next will be to reinforce the inside hull seam with the provided fiberglass tape,
    and wet it down with thin CA. Once that's set, I plan to go over the entire seam with
    a layer of brushed on epoxy! That'll seal her up pretty well!!

    Not sure how often I'll be adding to this thread, as once my sub parts arrive,
    I'll be back to my 1/144 Gato build!

    But, she'll be a nice addition to my few existing "targets", and should operate
    pretty well within the confines of my pool!!?? (Film at eleven!! LOL)

    CG
  • Mcgowan1
    Lieutenant
    • Feb 2013
    • 95

    #2
    She looks a nice sized ship there CG and looks like you are enjoying yourself. I reckon she will come together nicely for you but only one thing, you must have a good sized pool there matey as she looks a good size at 1/96, what are her actual dimensions please? What colour scheme will you be doing her in? Any camouflage work involved or just the straight US Navy grey etc.
    Cheers Armo
    Love is a Nimitz.

    Comment

    • crazygary
      Captain
      • Sep 2012
      • 610

      #3

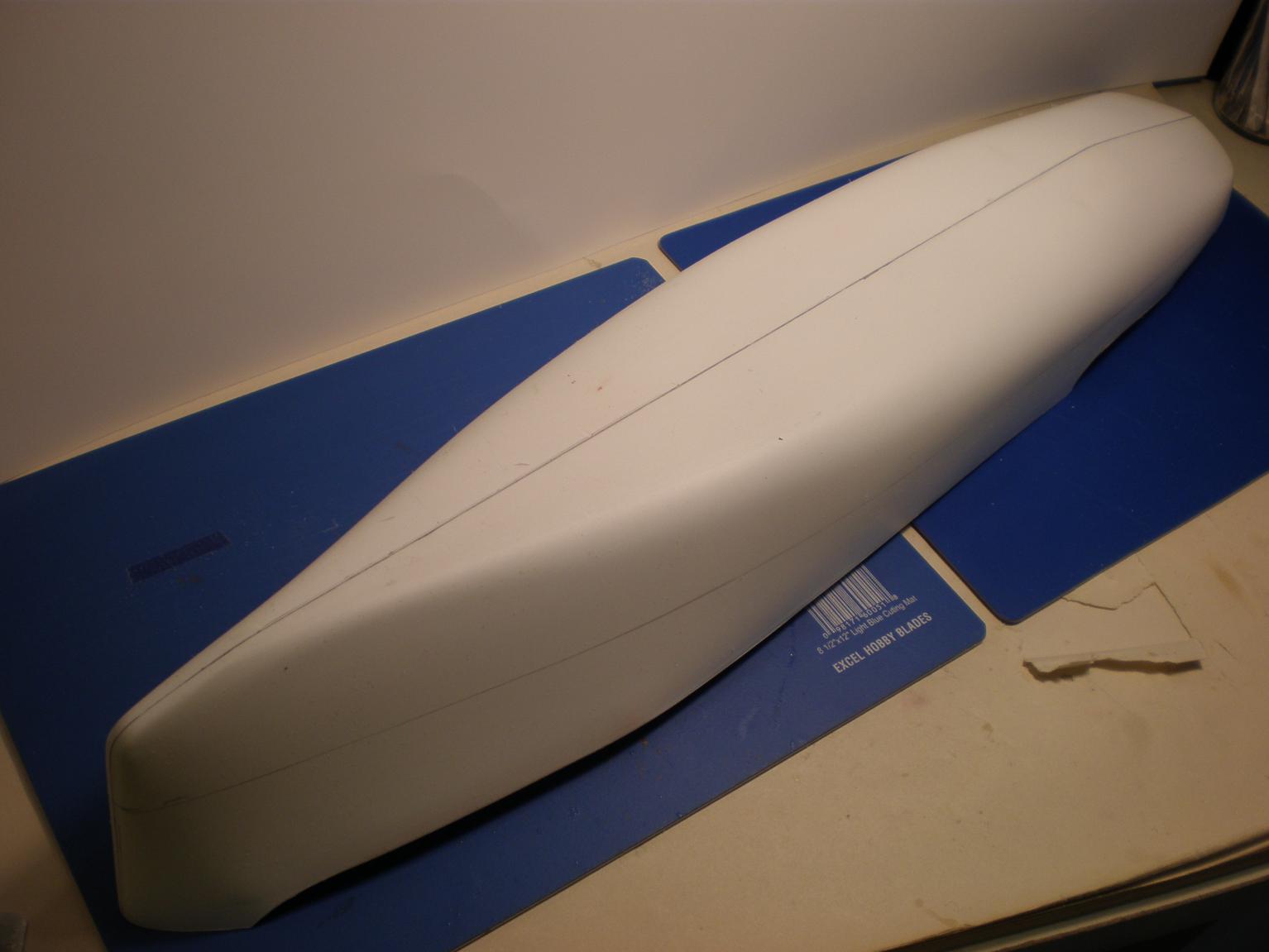

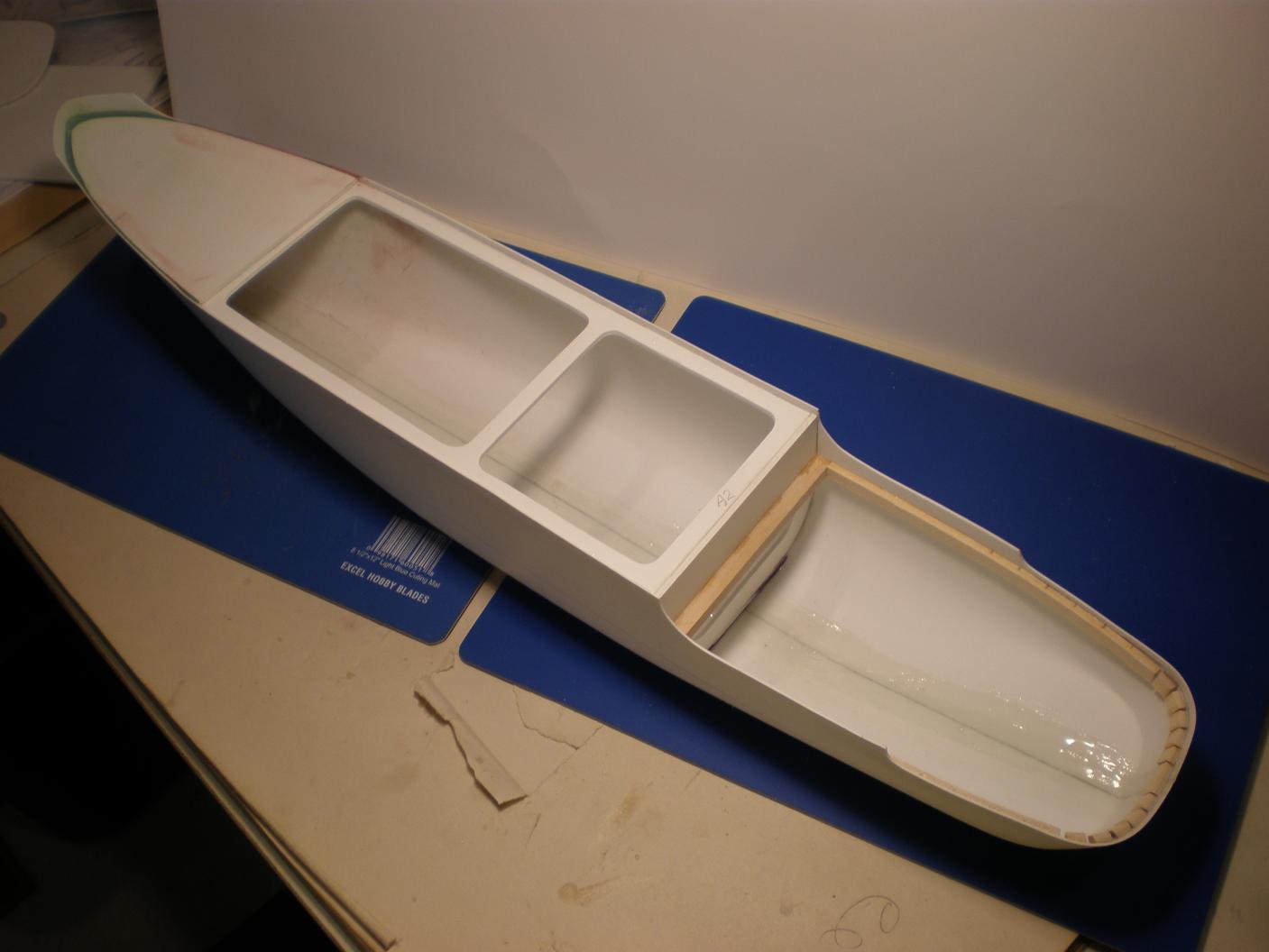

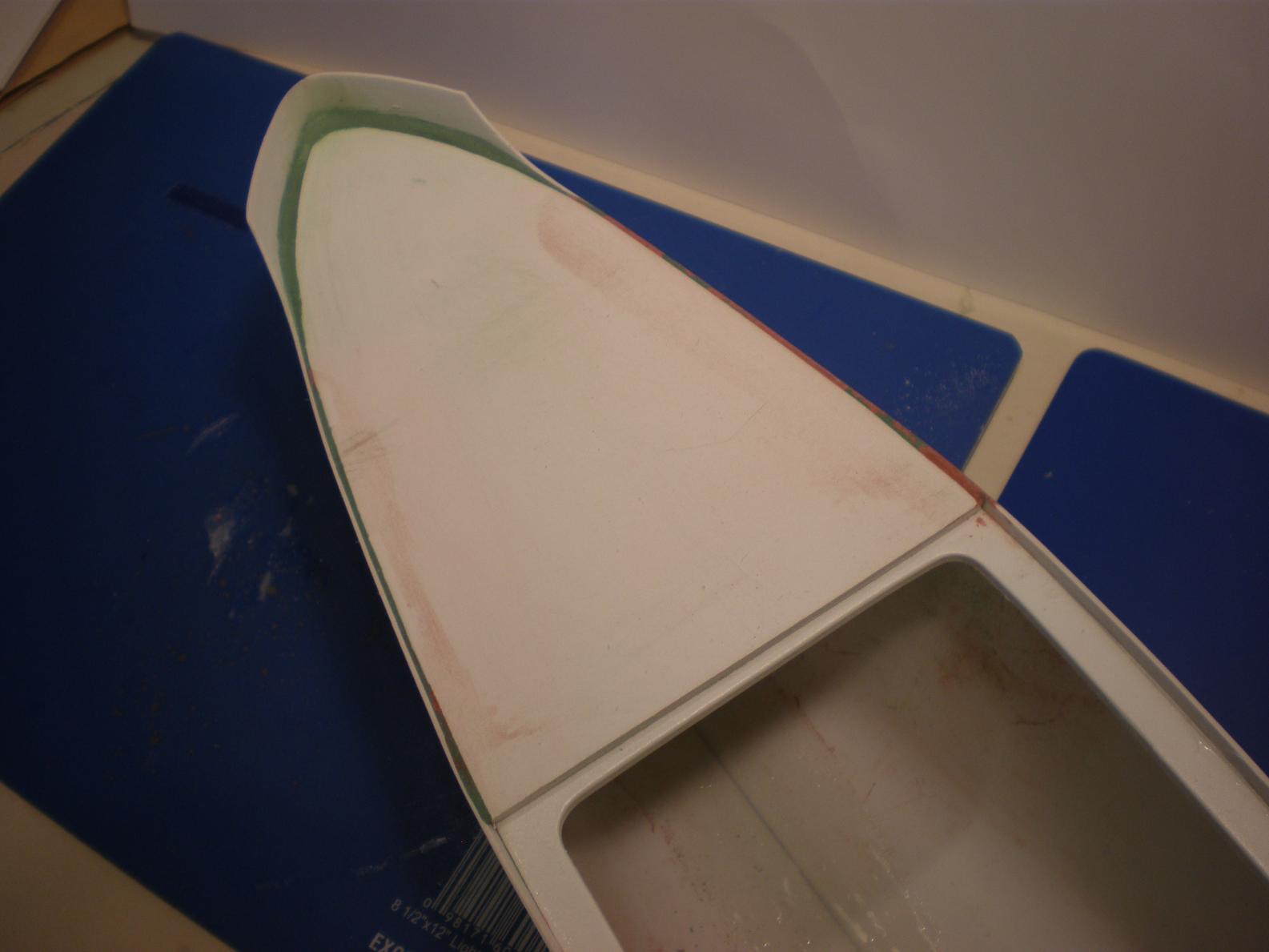

      A little progress being made! Hull exterior has been trimmed of the assembly flange, and interior has been reinforced with the included fiberglass tape, and a coat of epoxy brushed over the seam:
      Click image for larger version

Name:	hull1.jpg
Views:	1
Size:	79.1 KB
ID:	91205Click image for larger version

Name:	inside1.jpg
Views:	1
Size:	75.2 KB
ID:	91206Click image for larger version

Name:	inside2.jpg
Views:	1
Size:	79.1 KB
ID:	91208

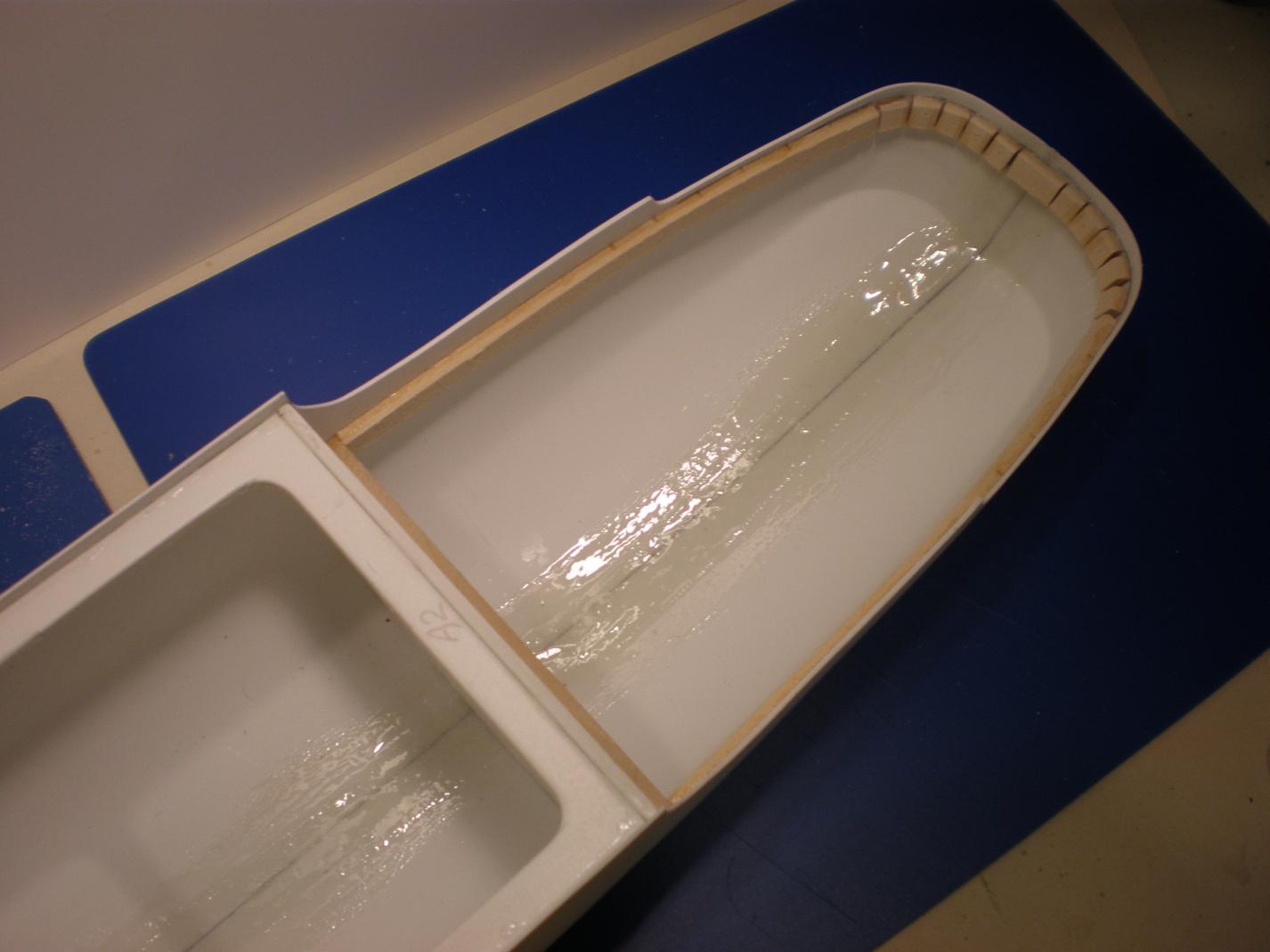

      Still need to putty the bottom seam of the hull, but wanted to get her a little more structurally sound before "manhandling" her! The center hull support and bulkhead are in place and anchored ( no pun intended! ) down with thick CA!

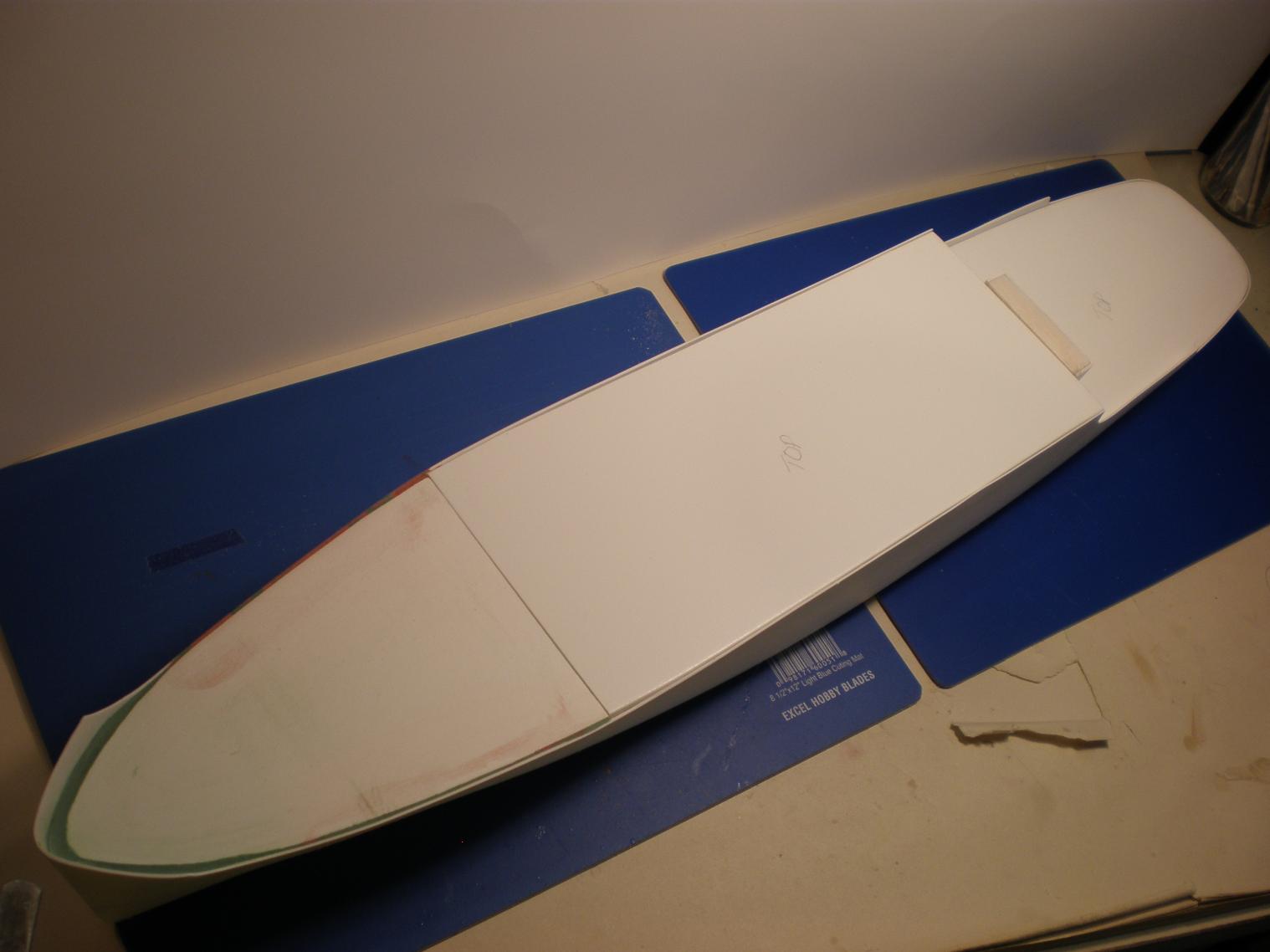

      The 3 main deck sections have been trimmed and fitted. Only the forward deck is permanently attached:
      Click image for larger version

Name:	fwd deck1.jpg
Views:	1
Size:	80.1 KB
ID:	91207Click image for larger version

Name:	decks1.jpg
Views:	1
Size:	77.7 KB
ID:	91209

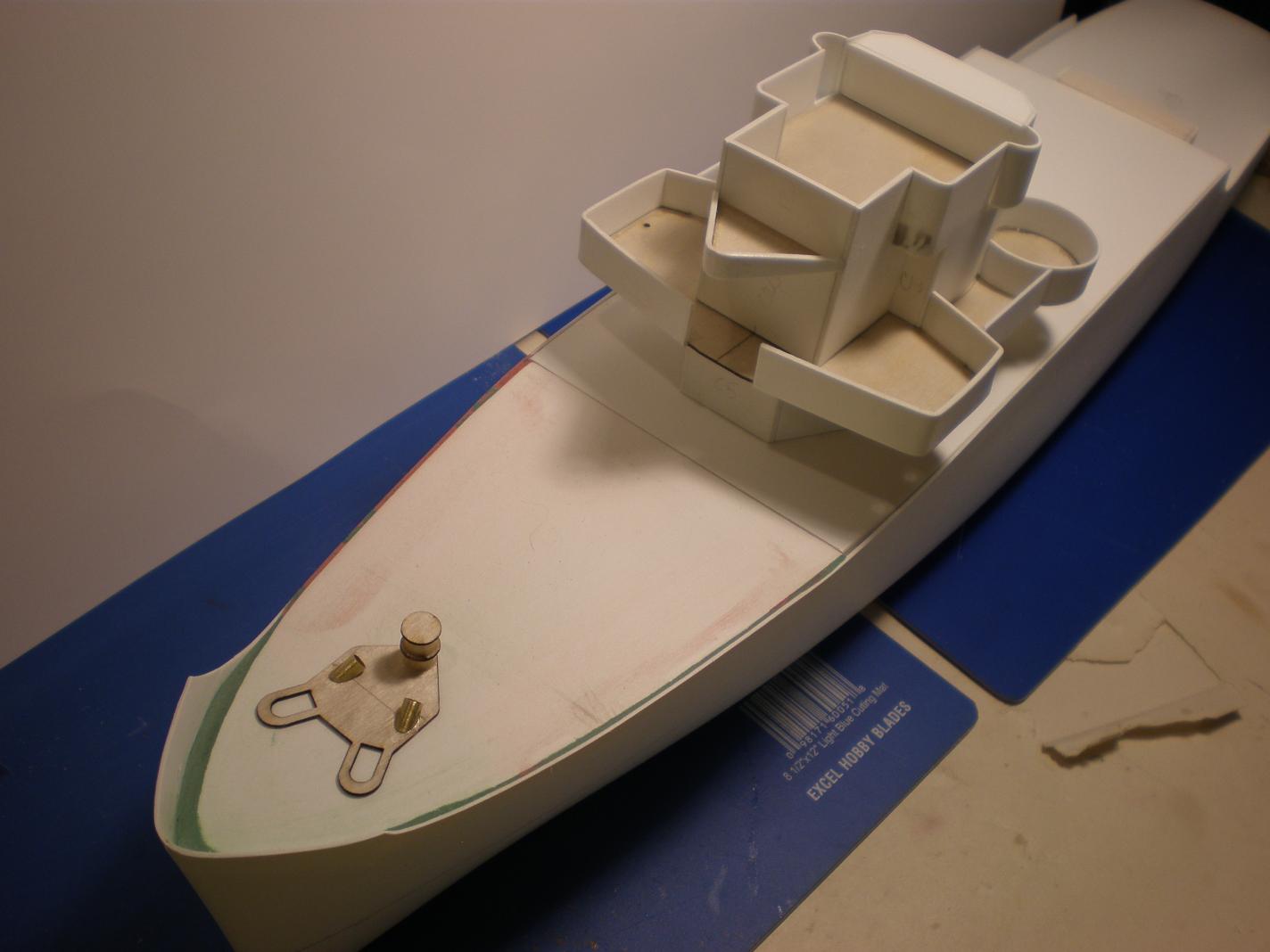

      Had to see what some of the superstructure was gonna look like, so I just placed a few of the sub-assemblies up topside just for a "looky-loo"!! Hah!!
      Resistance is futile!!!
      Click image for larger version

Name:	add ons1.jpg
Views:	1
Size:	78.0 KB
ID:	91210

      Raining today so, won't be painting on my 1/144 Gato. Therefore will while away some hours playing with me "target"!!

      Back later!

      CG

      Comment

      • Mcgowan1
        Lieutenant
        • Feb 2013
        • 95

        #4
        She is starting to look like a Warship now CG looking really good and so far a lot of work doing it correctly that's the way, No rush bit by bit, I like it a lot. Now I know where to come when I am ready to build a Dumas or my Trumpeter Target.
        Will be watching so keep up the good work matey.
        Mcgowan 1
        Love is a Nimitz.

        Comment

        • He Who Shall Not Be Named
          Moderator
          • Aug 2008
          • 12437

          #5
          Nice looking work. However ...

          ... I see a lot of Green Stuff. That stuff is crap. Get a tube of Nitro-Stan. You'll never look back.

          M
          Who is John Galt?

          Comment

          • crazygary
            Captain
            • Sep 2012
            • 610

            #6
            Thank ye much for the positive comments. Much appreciated!

            The only reason I used the "green crap" is 'cuz that's what the "engineer dude" at Dumas
            recommended! Seems to think that Bondo won't stick to plastic?? Huh?? I've always found
            Bondo products work pretty freakin' well on plastic! Oh well!!

            Also have a tube of Bondo scratch and glaze putty which I like, but will certainly pick up on
            some o' that thar Nitro-Stan!

            Had the forward deck fit a little better than a "hamburger", I wouldn'ta needed ta fill it in the
            first place, but, I digress....Hah!!

            Thanks again, Mates!!

            CG

            Comment

            • crazygary
              Captain
              • Sep 2012
              • 610

              #7
              A little more progress accomplished yesterday, after checking off one more item on the
              dreaded "honeydo" list!! S'all about priorities, although not necessarily MY priorities, but.!

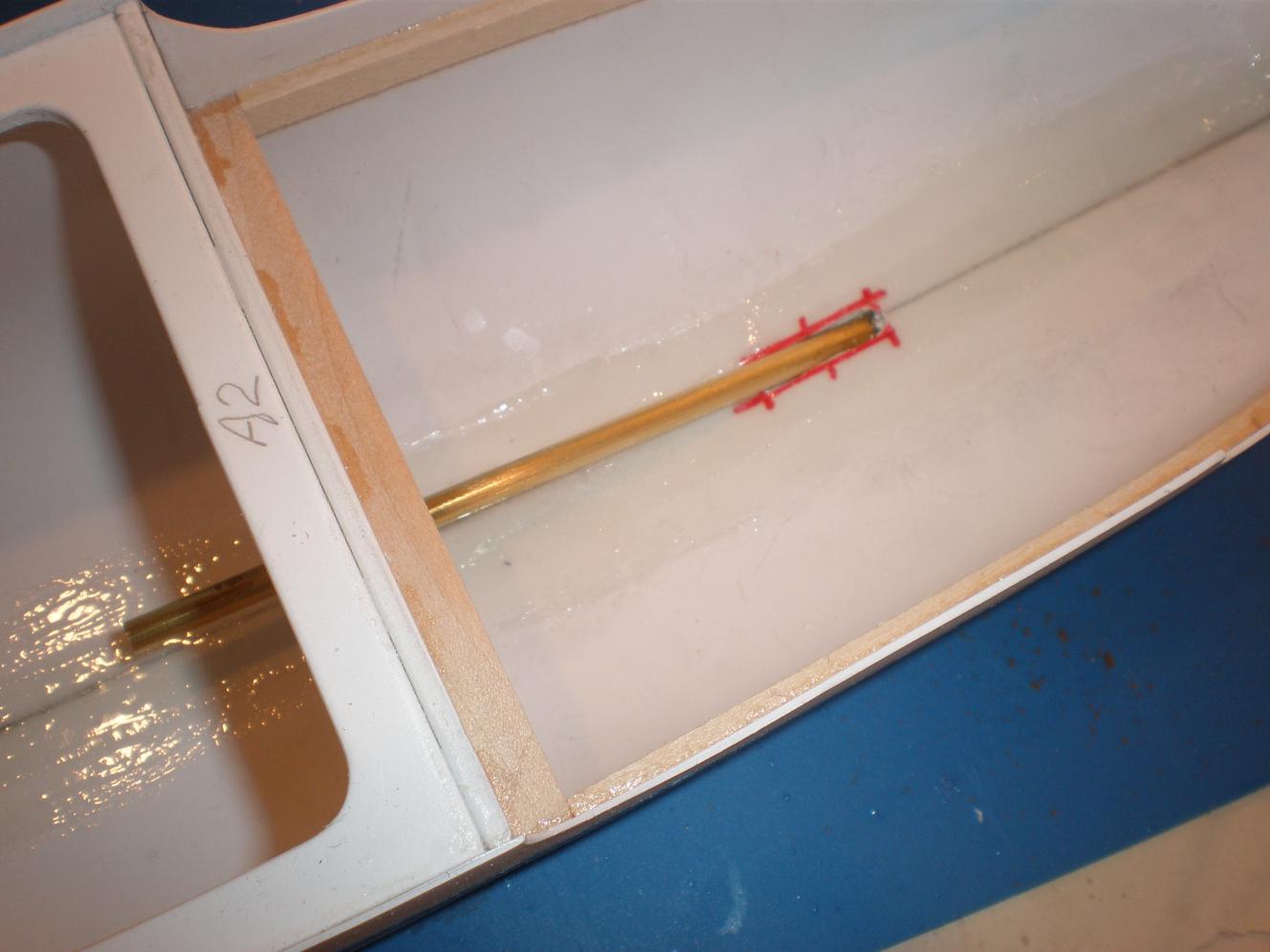

              I managed to "sandwich" the stuffing tube between the expanded a.b.s. keel parts, which
              wasn't quite the "no-brainer" it should have been! Huge difference between "expanded a.b.s."
              and styrene! One is flat and fits very nicely, the other is like trying to line up the burger with the bun
              and have it appear aesthetically pleasing!! Hah!! Guess which one we have with the kit????

              Will require filling and sanding to make it right, but should not be a big deal! Here's what it lookslike right now:
              Click image for larger version

Name:	stuff1.jpg
Views:	1
Size:	91.5 KB
ID:	91250

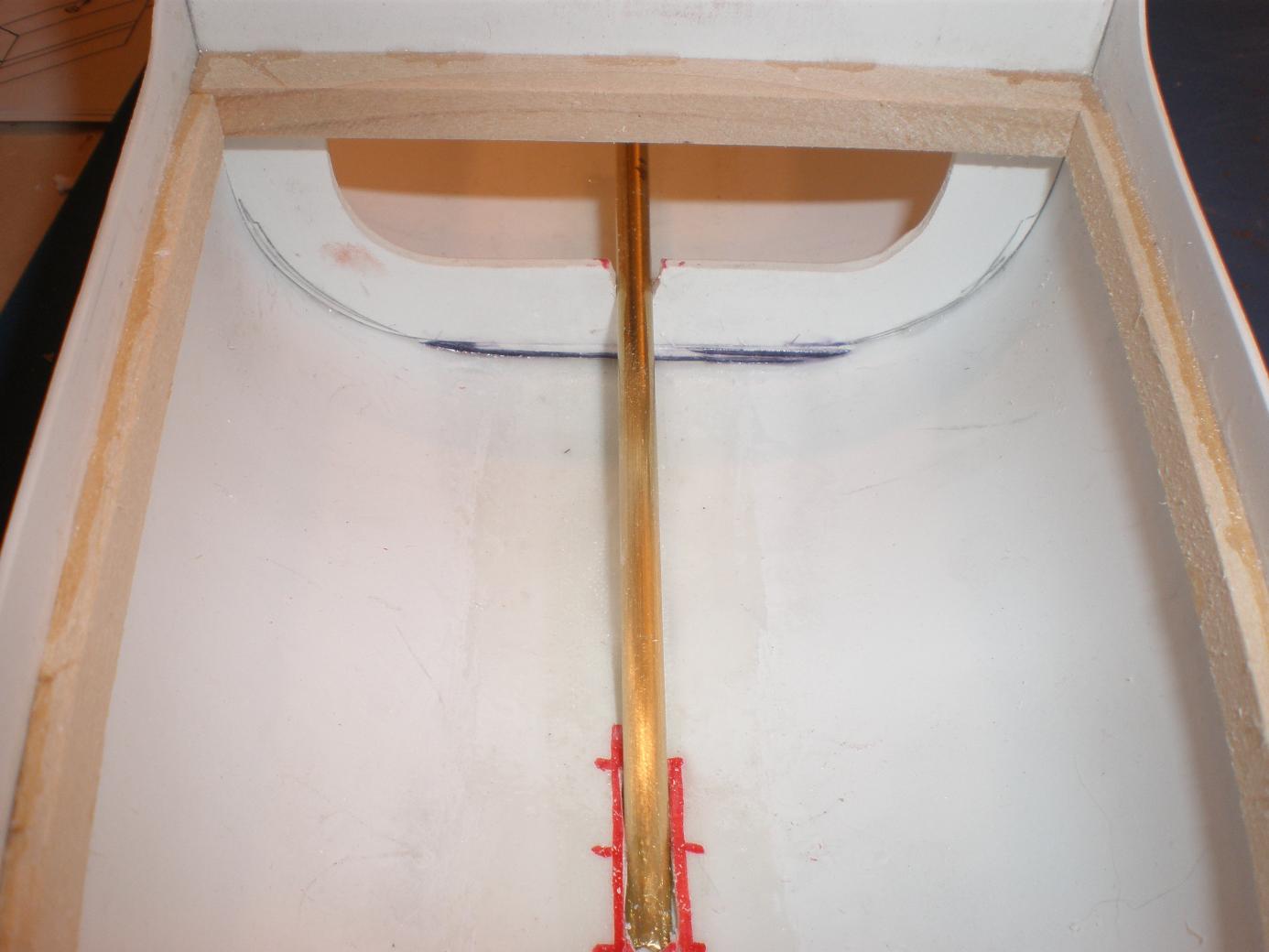

              Hull has been duly slotted to accept the stuffing tube inside the hull. The "fit" of the assembly,
              or lack thereof, necessitated that a notch be cut into the lower part of the bulkhead so the danged
              thing could go all the way in, like iss s'posed ta:
              Click image for larger version

Name:	stuffin1.jpg
Views:	1
Size:	84.0 KB
ID:	91251Click image for larger version

Name:	stuffin2.jpg
Views:	1
Size:	86.5 KB
ID:	91252

              Filler and epoxy coating to follow.

              Since everything fit together "like-a-glove" (NOT), her motor mounts will have to be "fiddled with"
              to get things aligned without creating problems!

              Die cut, expanded a.b.s.!! Really???????????

              All for now, y'all!

              CG

              Comment

              • Mcgowan1
                Lieutenant
                • Feb 2013
                • 95

                #8
                Those stuffin tubes are not fun to fit a most times methinks CG but she is coming along and you sound as though apart from the normal moan and groan that you are enjoying yourself
                she is comin together slowly matey keep going keep going,
                Mcgowan1
                Love is a Nimitz.

                Comment

                • crazygary
                  Captain
                  • Sep 2012
                  • 610

                  #9
                  The next round of "show-and-tell"!

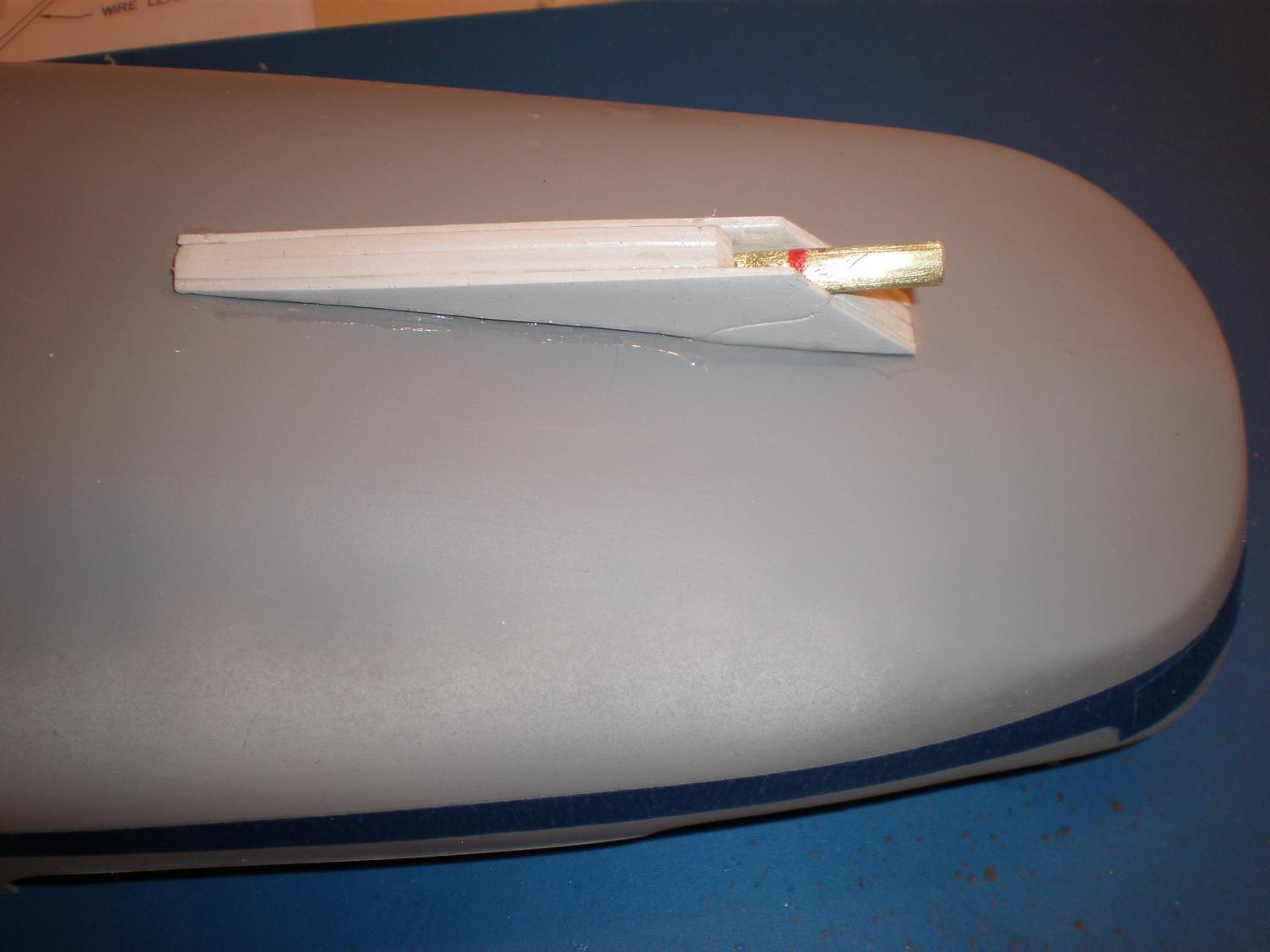

                  Prop keel is finished, and she's got a coat of primer all over, so I can
                  see exactly what I've got:
                  Click image for larger version

Name:	keel.jpg
Views:	1
Size:	92.1 KB
ID:	91288

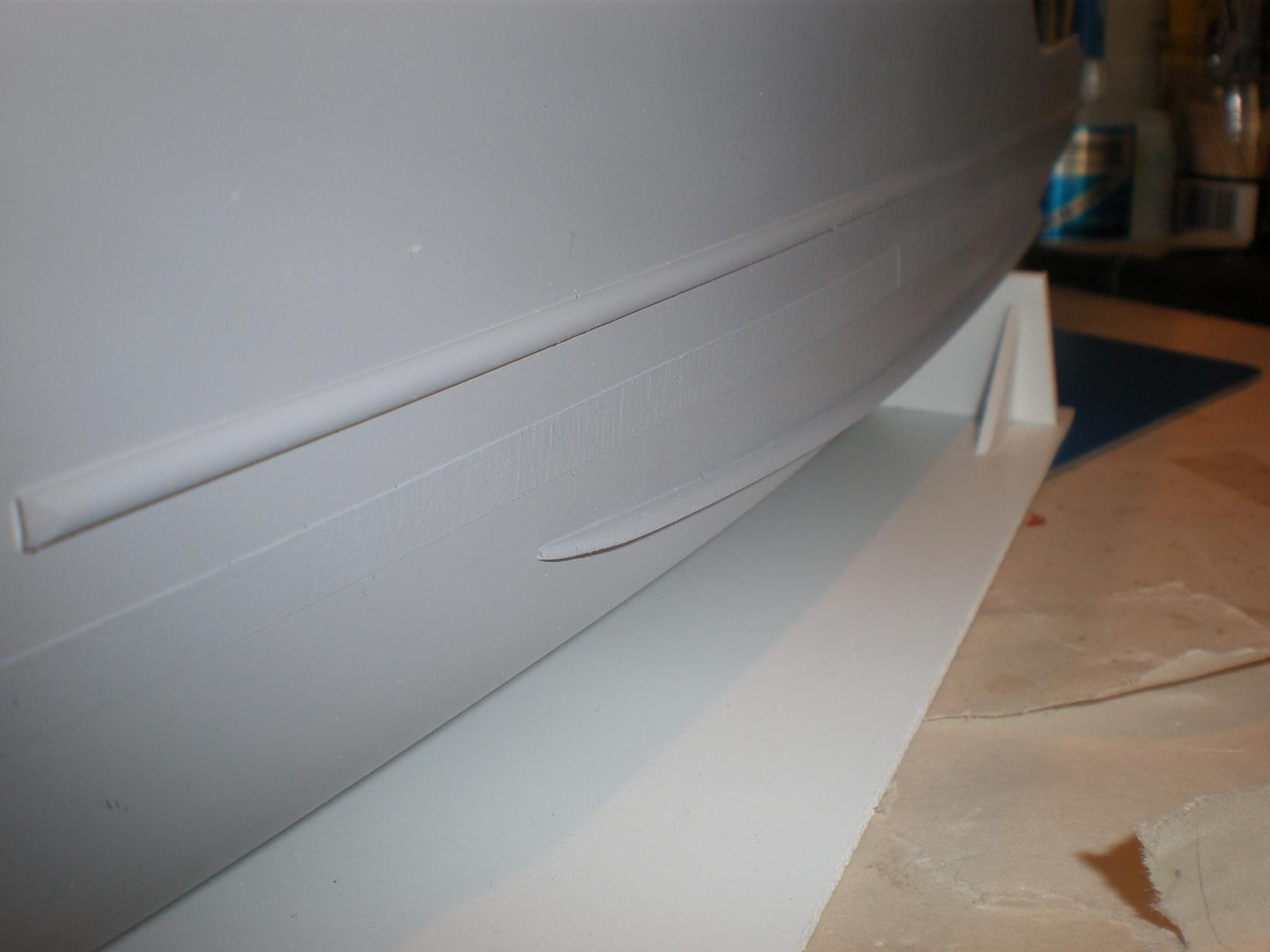

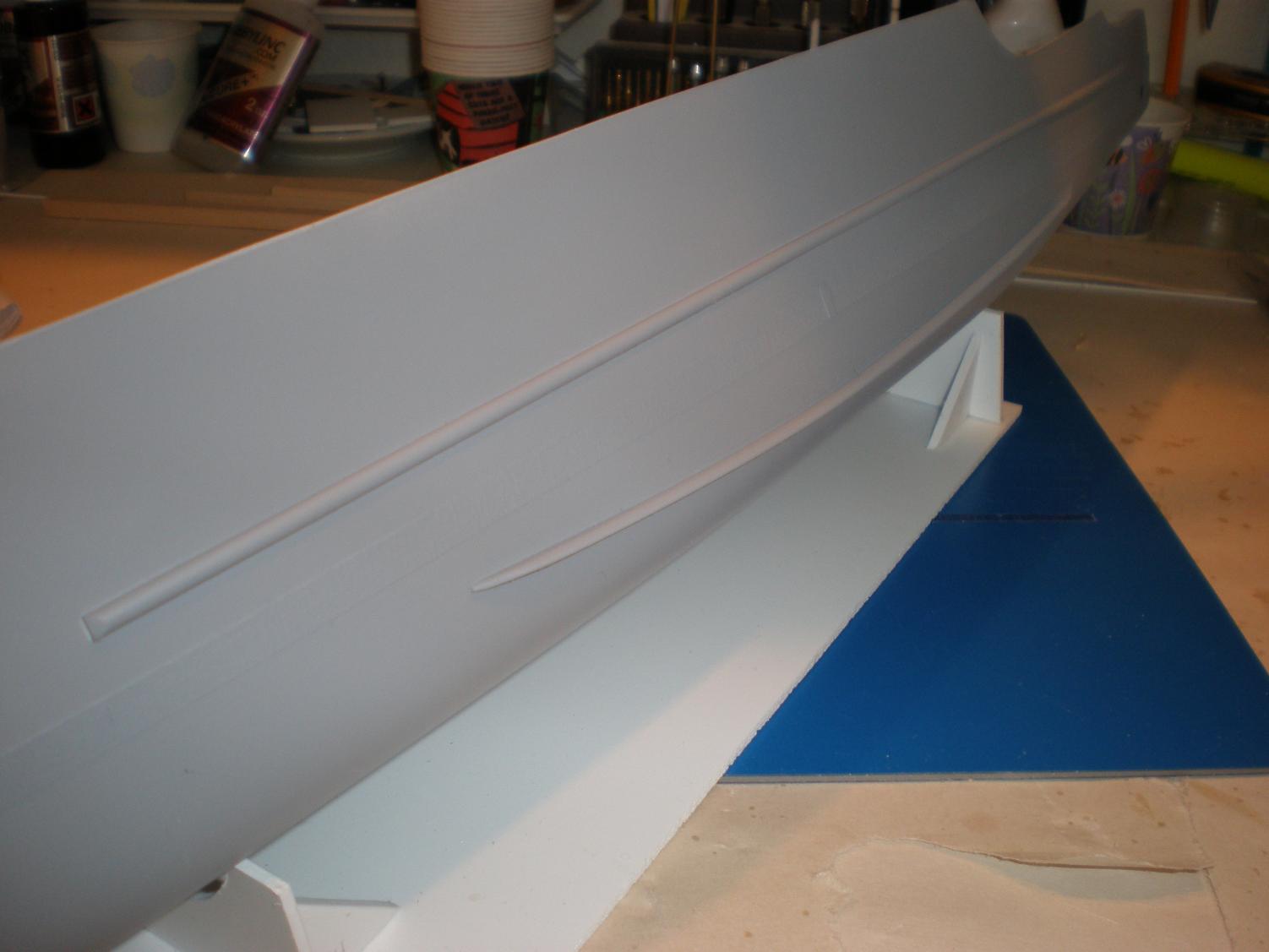

                  Rub rails and bilge keels are installed. The bilge keel strips are "interesting" to accomplish!! Hah!!
                  Click image for larger version

Name:	rub rails1.jpg
Views:	1
Size:	81.5 KB
ID:	91289Click image for larger version

Name:	rub rails2.jpg
Views:	1
Size:	89.8 KB
ID:	91290

                  Some of her internal workings in place:

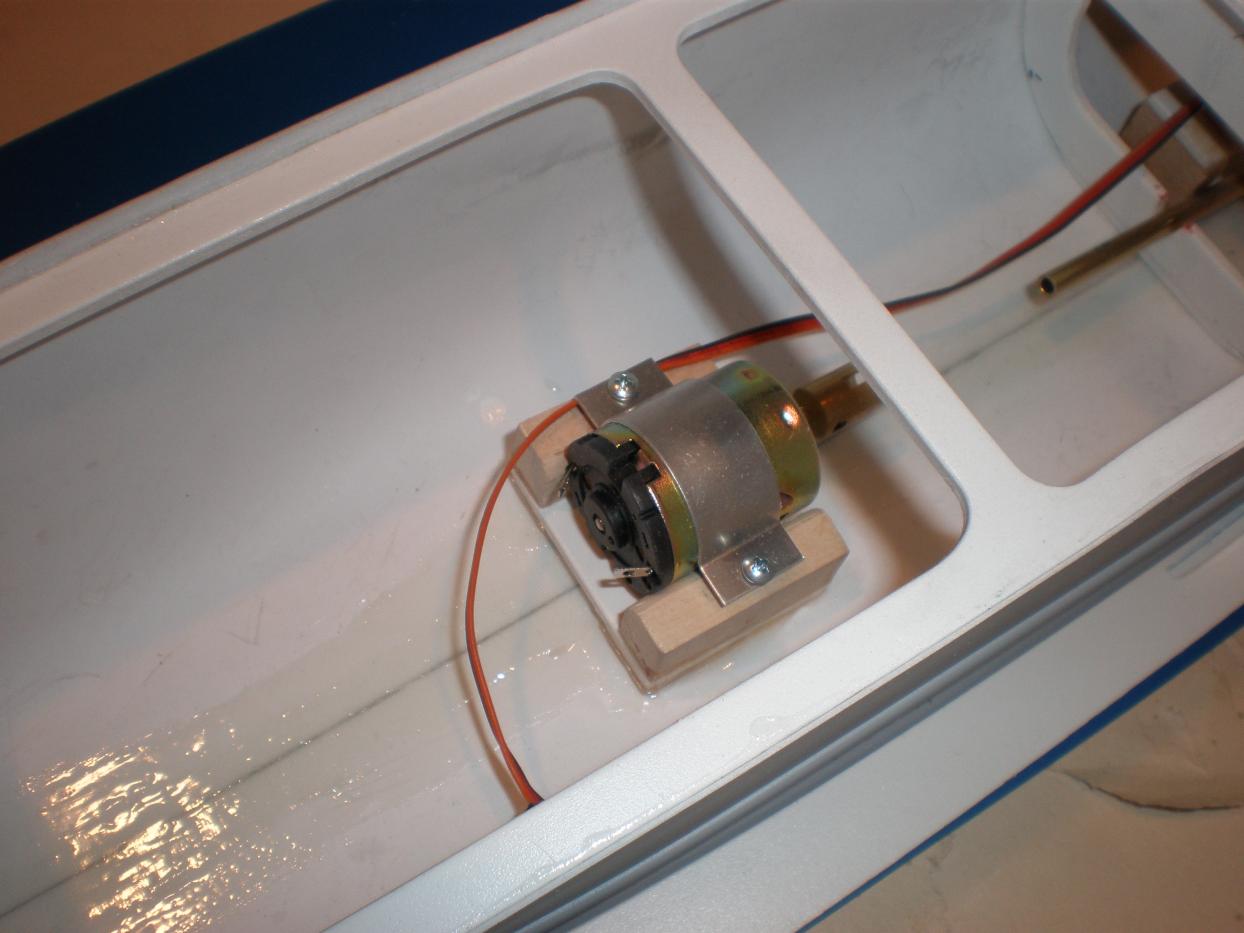

                  Motor: checkClick image for larger version

Name:	motor.jpg
Views:	1
Size:	82.7 KB
ID:	91291Although, the motor mount isn't quite the
                  "no-brainer" that the Dumas plans would have you believe!! It's pretty much
                  dependent on the stuffing tube angle, which in turn is dependent upon the fact that
                  the stuffing tube strut pieces are formed from expanded A.B.S.!! Caca stuff!! Hah!!

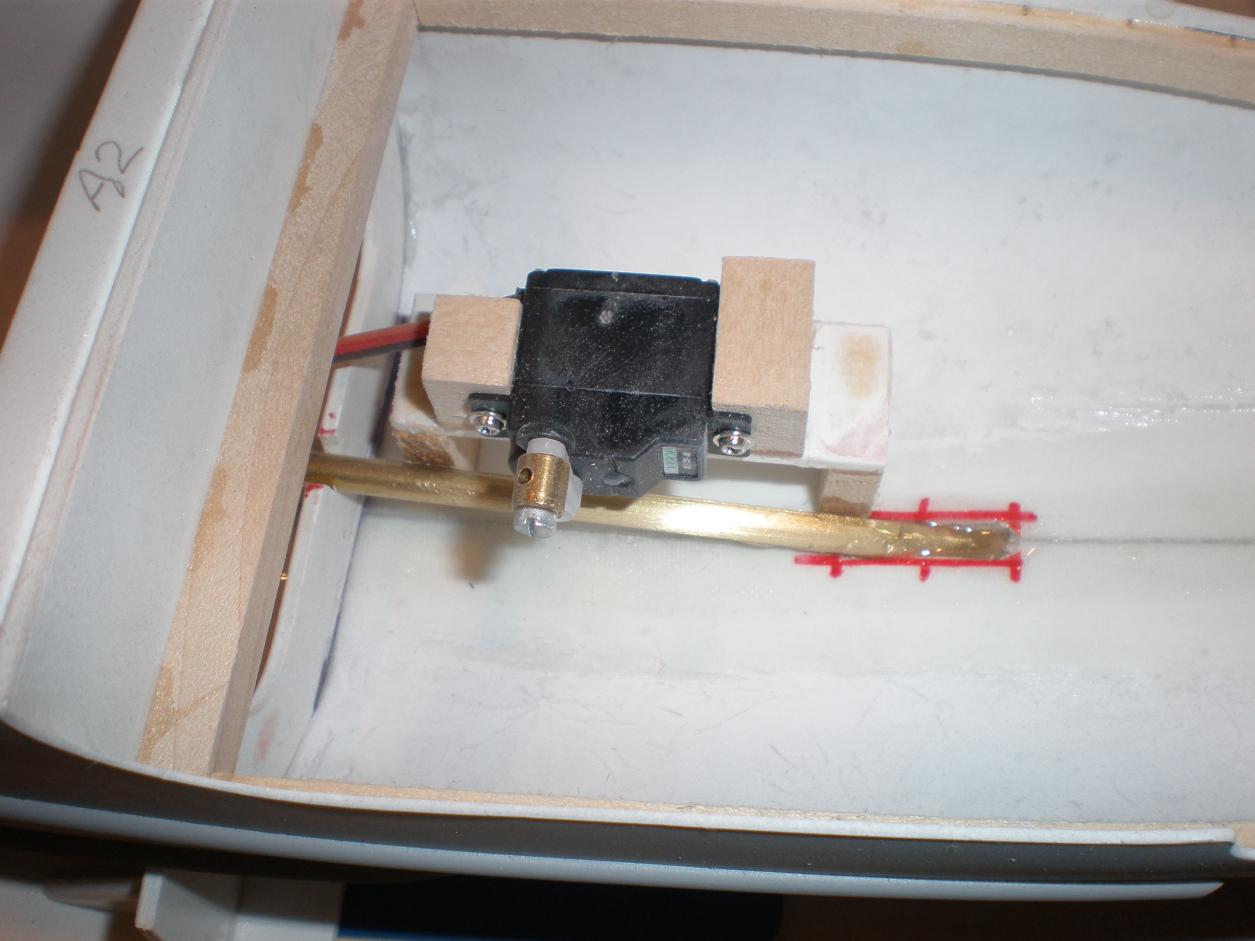

                  Servo: checkClick image for larger version

Name:	servo.jpg
Views:	1
Size:	87.3 KB
ID:	91292 This assembly is actually pretty O.K.! Just know that a standard servo is
                  to freakin' big, as the horn will not clear the underside of the rear deck!! Forewarning is a little bit of fine type ya gotta
                  be looking for!! How do I know this??? Hmmm..........!

                  O.K.! Next up will be whatever the instructions say, and YES, I actually pat attention to them, well....kind of!! After all, they're
                  strictly for people who don't know what they're doing, right??????????

                  Until next time....I'm still

                  crazygary

                  BTW: This is really a fun build, for anybody who may be thinking about this kit!

                  Comment

                  • Mcgowan1
                    Lieutenant
                    • Feb 2013
                    • 95

                    #10
                    Great work CG forgin ahead and good to see not too many complaints this time. cheers she will be in the briney before you know it. I see you are getting a lot of comments must be a lot of submarines being built at the same time as you are doing this Kit.
                    Mcgowan 1.
                    Love is a Nimitz.

                    Comment

                    • crazygary
                      Captain
                      • Sep 2012
                      • 610

                      #11
                      I'm afraid that "targets" are the "red-headed-step-child",
                      unless ye happen to be the "parent" of a couple!! Hah!!

                      CG

                      Comment

                      • crazygary
                        Captain
                        • Sep 2012
                        • 610

                        #12
                        Back again! Outside influences have kept me at bay for a while, but, she's in Oklahoma
                        for the next 2 weeks!! LOL

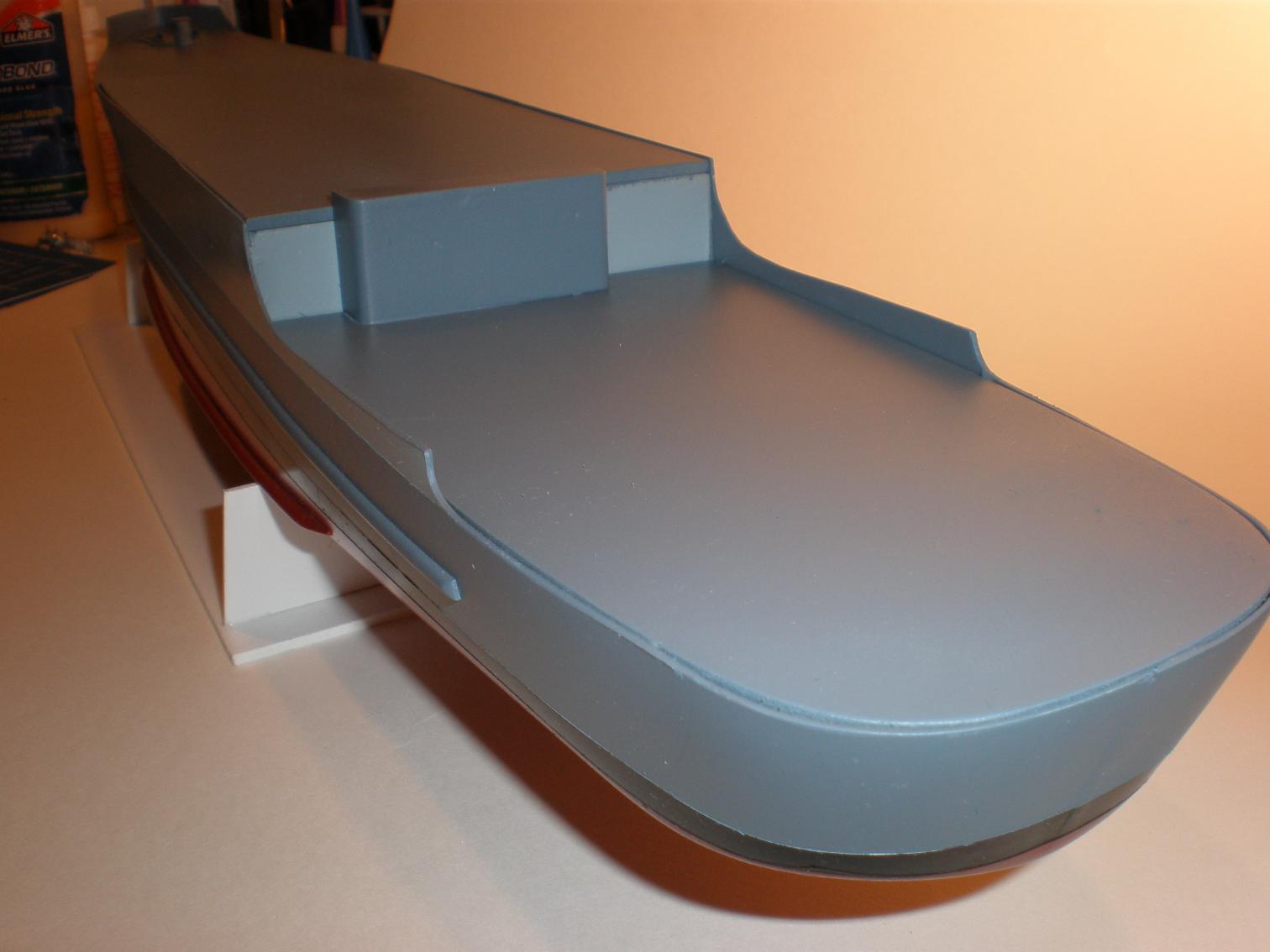

                        Hull is painted and needs a bit of cleaning up and a good coat of matte clear, but not until her superstructure
                        is in place.

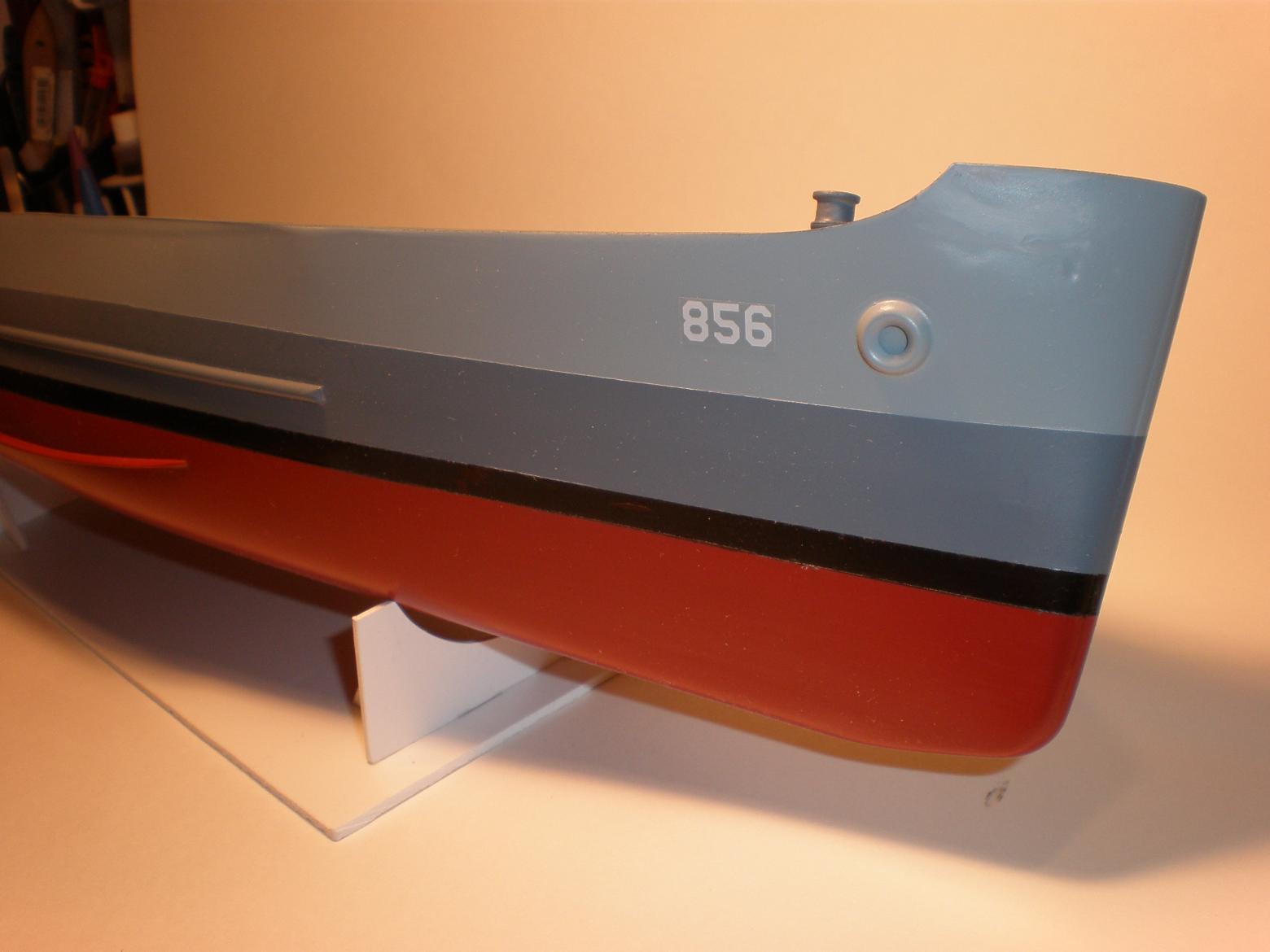

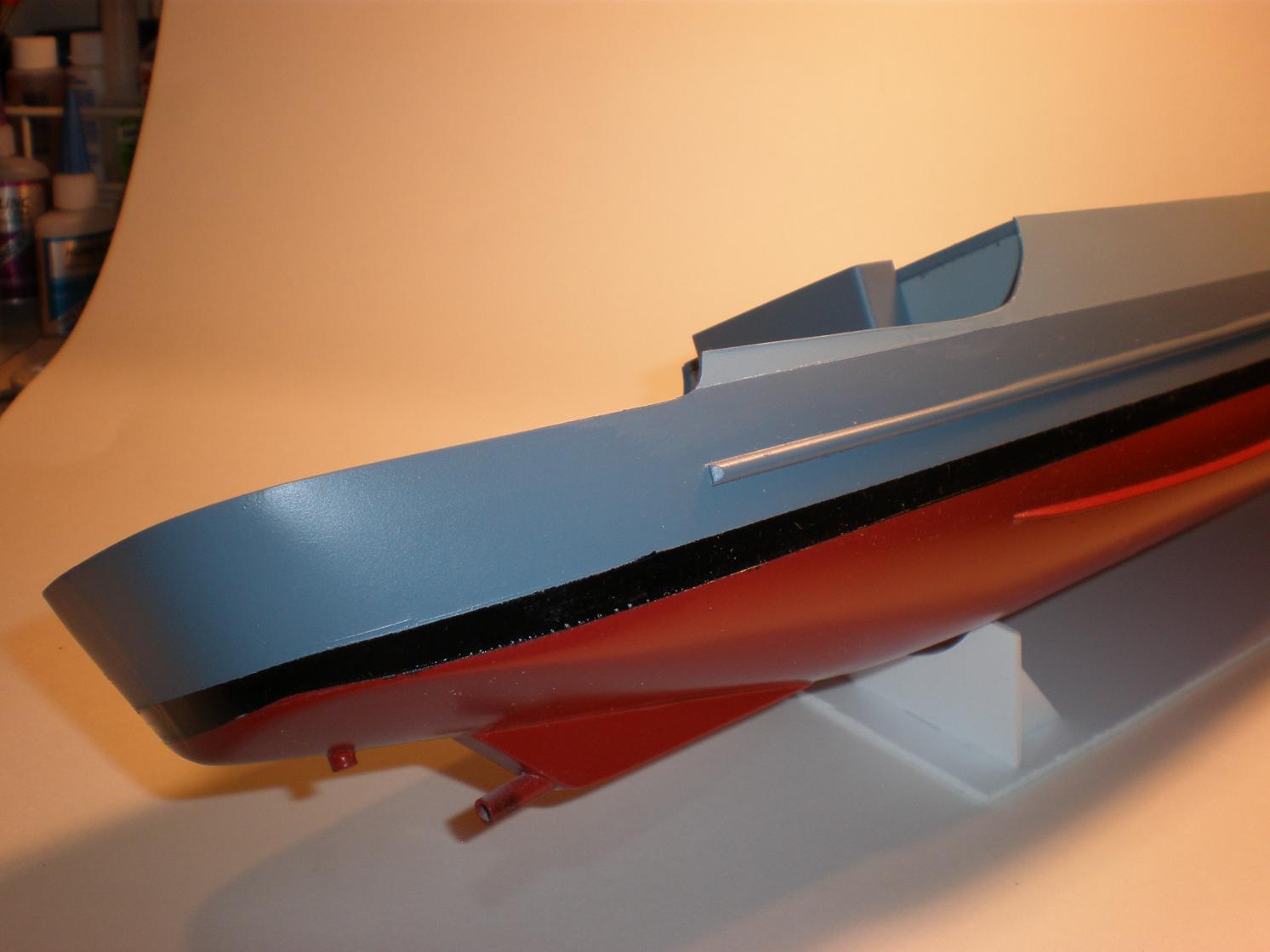

                        Just a few progress pix here:

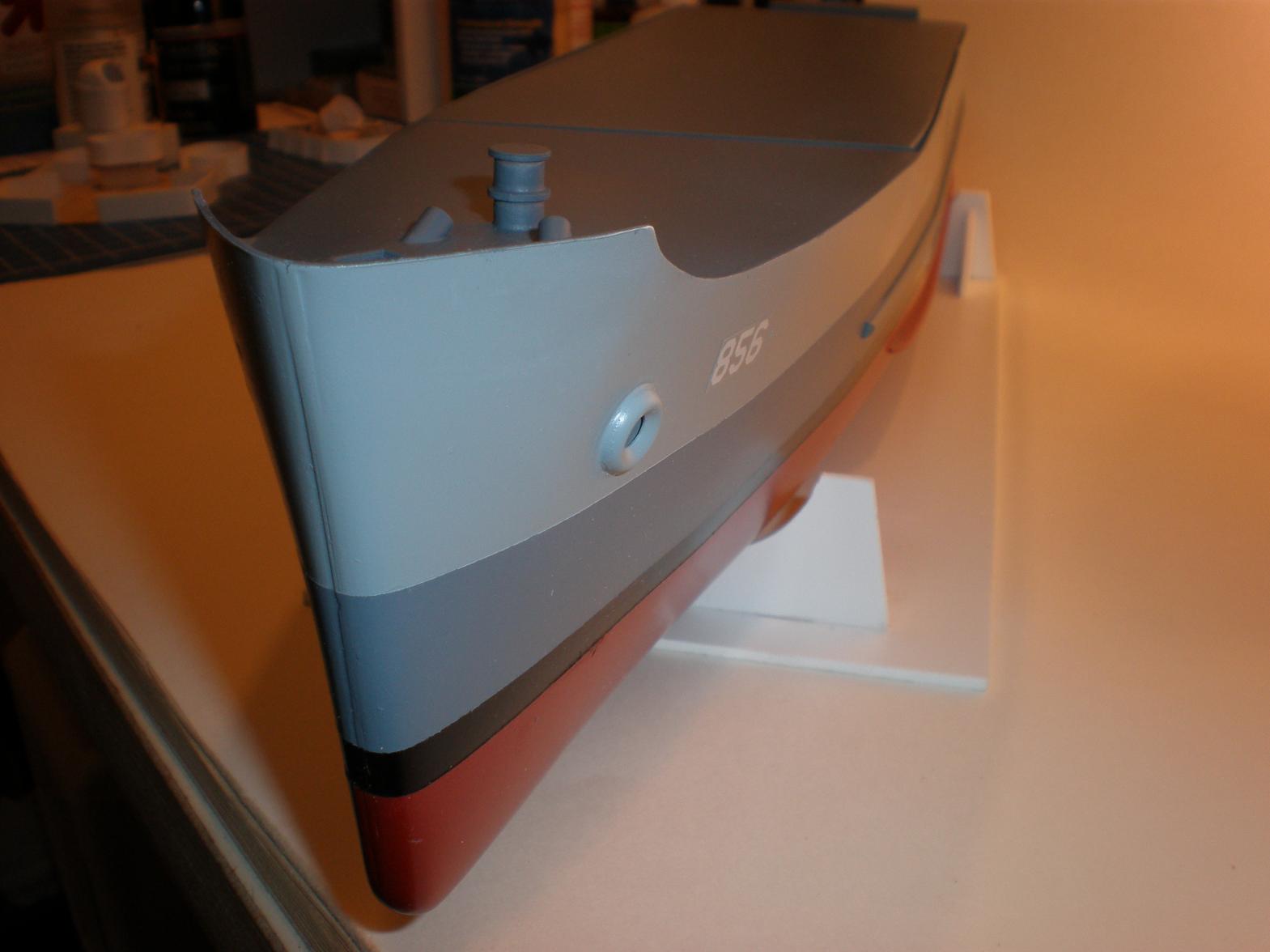

                        Click image for larger version
