Carrying Cases for Submarines SURVEY

[Kazzer]

I'd like to get as much information as possible on the overall dimensions of your models please.

With the conning tower/sail off (if it will come off), could you please post the following here.

Model Manufacturer
Model Type
Scale
Length
Width
Height

Thanks

[Anuci]

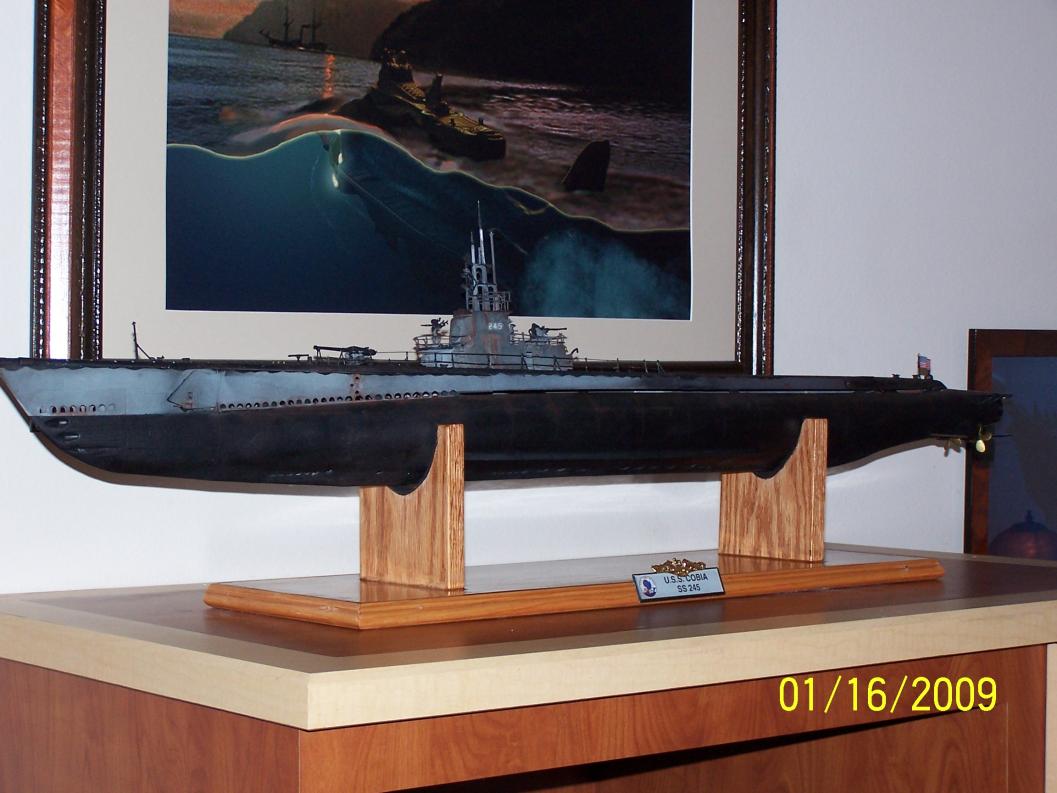

At the present, my time only permits the acquisition of just the one r/c model, and that would be the Revell Gato Class submarine by which there should be sufficient tech info provided by Revell. If there is something specific feel free to contact me further. Regards, Al,

[twierenga]

Fleet

Right now the boats that I would travel with are two Revell subs, the 1/72 Gato and 1/72 Type VII. I think most people know the sizes of those kits. Have a good day!

[Richard]

My subs - but not yet built.

1. Revell Gato.

2. A wooden 'cut-down' version of a sub loosely based on the RN "O" class (e.g. HMS Ocelot at Chatham).

I'm scaling it up from this month's free plans in "Marine Modelling".

Length: 1000mm
Max width is 84 mm.

Unsure about other dimensions as I'm making much of it up as I go along.

BW

Richard (UK)

[fgroza]

models on hand

Mike,
The following information is from memory which should be close without actually going and measuring everything;
Scale Shipyards 1/96'' Akula, approx. 40''long by 5'' dia.
Robbe U-47 1/40" approx. 60'' long by 5''wide x6'' high
Revell Gato 1/72'' approx. 52'' long x 4'' wide x 5'' high
Revell Type VII 1/72'' approx. 36'' long x 3'' wide x 4'' high
Trumpeter type 212 1/144'' approx. 12''long x 2''wide x 2.5 high

Hope this helps. I can do a actual measure if it is needed.
Frank

[Mickm]

Mike,
The following are th specs for my only sub project:
1.Model Manufacturer-OTW
2.Model Type-Type VII-U-Boat
3.Scale-1:32
4.Length-82.25"
5.Width-7.625"
6.Height-8.063"

Cheers!
Mickm

[jimster1]

Revell Gato

[Nuke Power]

Some are approximations
1 D&E Kilo
2 D&E Type 7
3 scale shipyard 1/96 Alfa 33x4x6
4 scale shipyard 1/96 Lafayette 57x4.5
5 scale ships 1/96 Akula 46x5x12
6 dumas akula 36x6
7 D&E 1/96 Skipjack 33x4
8 HKS 1/72 Permit 48x5x11
9 submarine works 1/96 Ohio 70x6x13
10 Thor 1/96 Sturgeon 36x4.5
11 Thor 1/96 Permit 35x4
12 Subtech 1/60 Albacore 36x5x12
13 Thor 1/96 LA flt 3


Moving from house to house sucks by the way

[pjdog]

Model Manufacturer - Revell
Model Type - Gato
Scale - 1/72
Length - 53 "
Width - 5 "
Height - 10" Sail attached/does not come off

Model Manufacturer - Revell
Model Type - Type VII C
Scale - 1/72
Length - 37 "
Width - 3.5 "
Height - 9" Sail attached/does not come off

Have another type VII C/41 still in box. Should be the same I think.

jack

[He Who Shall Not Be Named]

Mike, based on the big response to the survey so far, I think you are going to make a killing with these boxes. Great idea, and a product much needed by this community.

David,

[mikegranieri]

Reply to Caswell request

Submarineworks - Model Seawolf
Model Kit: 1/96 scale
Dimensions: Length 44.25”, Height 7” (top of sail); 9.5" (top of masts),
Beam 5.25"
Materials: GRP hull, urethane cast appendages, white-metal prop
Appx.2.25" removable sail

[Nuke Power]

I need some more boxes and honestly dont feel like building more after the last run. I think you will make a killing aswell. A box is just good sense.

[comcardiv1]

Revell Gato and Type VIIC

[comcardiv1]

You know, this may be a pretty good idea for small to medium sized surface runners ("targets") too. I can see a carrying case for say, the 1/35th scale Italeri PT boat or the 1/32 Lindberg PT 109. (I'm a PT boat builder, what can I say?)

[Walshe]

Reply to survey.

Dumas Akula static diver. Bought years ago.
Length 32 inches
Beam 4 inches.

Hoping to up date when the mini snort 1.144 scale u212A comes out.
Pond restrictions.

Walshe
