    How To R/C the Scott Brodeen Disney NAUTILUS

    This first video finds a customer -- under my kind and thoughtful direction -- being taught how to drive his RTR Disney NAUTILUS model.



    As time permits I'll post a bunch more video that chronicles the kit assembly, propeller gimbal mechanism, and how it all went together.

    M
    Who is John Galt?
  • matthewnimmo
    Commander
    • Dec 2011
    • 271

    #2
    I would love to see that David. This will be my next build sometime in the future:)
    ... a computer once beat me at chess, but it was no match for me with kickboxing!!

    Comment

    • greenman407
      Admiral
      • Feb 2009
      • 7530

      #3
      Dave, is there any way to make the original design planes function to control the submarine?
      IT TAKES GREAT INTELLIGENCE TO FAKE SUCH STUPIDITY!

      Comment

      • He Who Shall Not Be Named
        Moderator
        • Aug 2008
        • 12255

        #4
        Originally posted by greenman407
        Dave, is there any way to make the original design planes function to control the submarine?

        You can make them work mechanically, of course. However, Mr. Goff, as well as Cheney Bonestell (two very influential production designers specializing in SF related hardware illustration) had the mistaken idea that hydro/aero surfaces surrounded by a strake would effect useful lifting forces.

        However, in a very turbulent fluid flow -- which an exceptionally low aspect ratio surface (such as a strake or rocket stabilizing fin) is subject to -- you can't get any useful moments out of a control surface in that environment. Only with the most modest of angular displacements between centerline and fluid flow will surfaces embedded within the strake produce forces that are predictable and of significant magnitude.

        Bottom line with a control surface surrounded by a strake: The greater the angle of attack; the sloppier the fluid stream becomes; the less effective becomes the control surface.

        Goff's planes won't work in the real world.

        However, changing the thrust vector (gimbaled propeller) does.

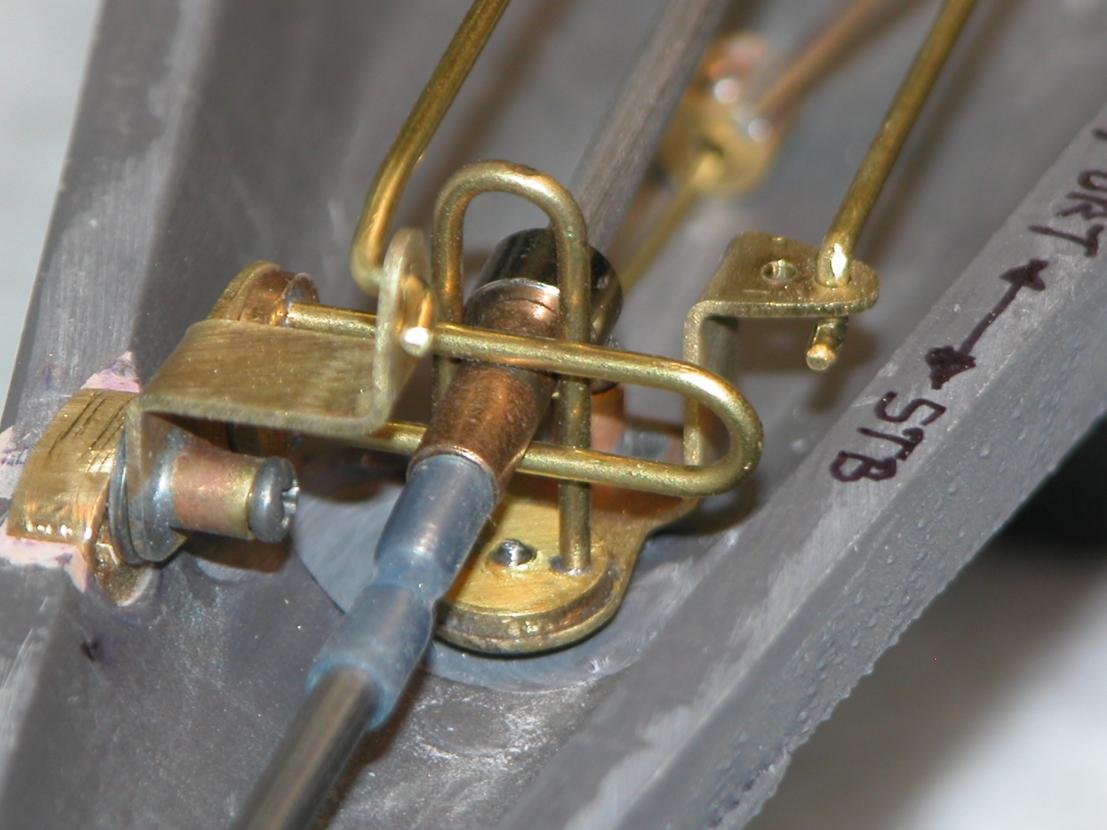

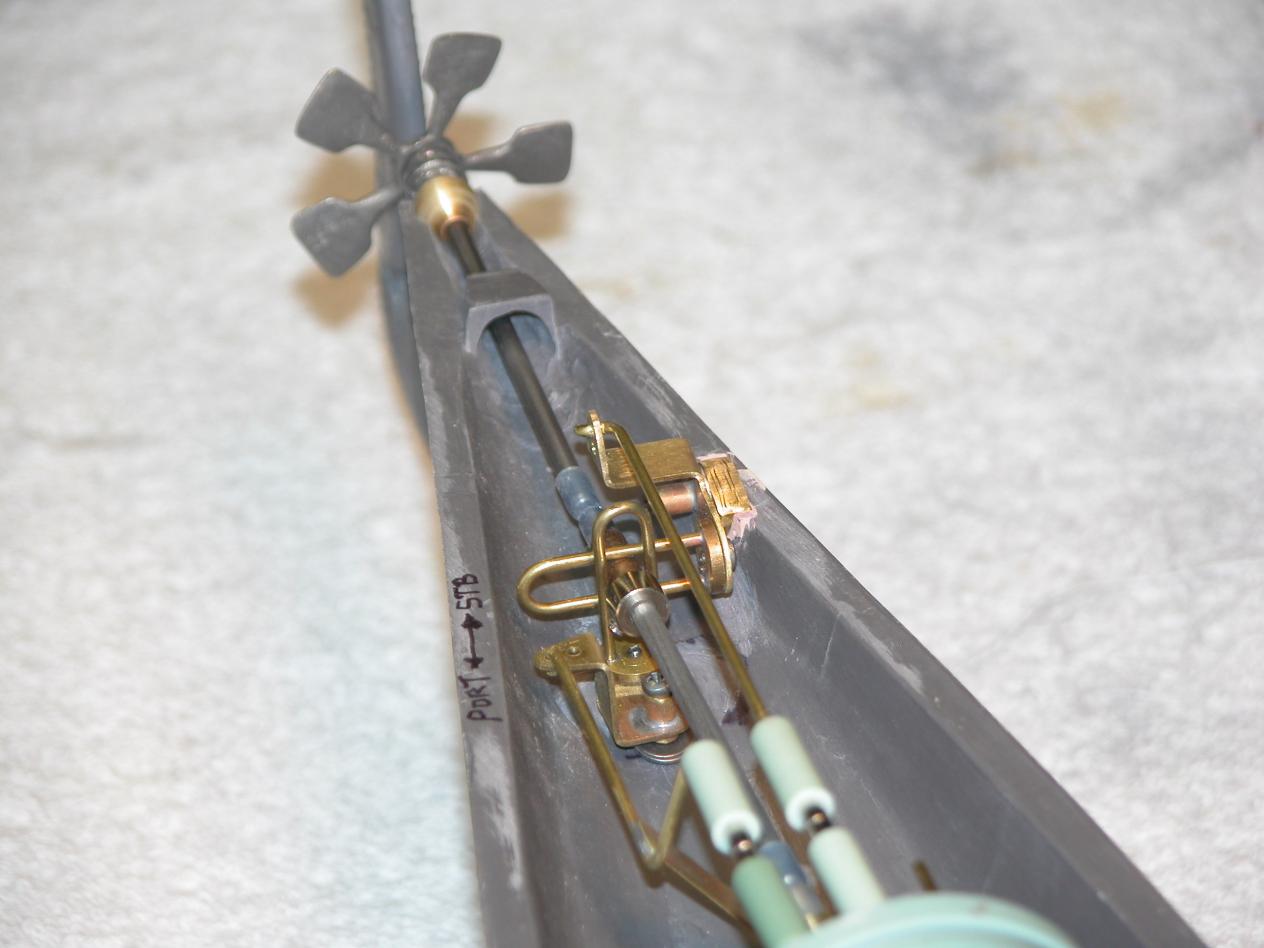

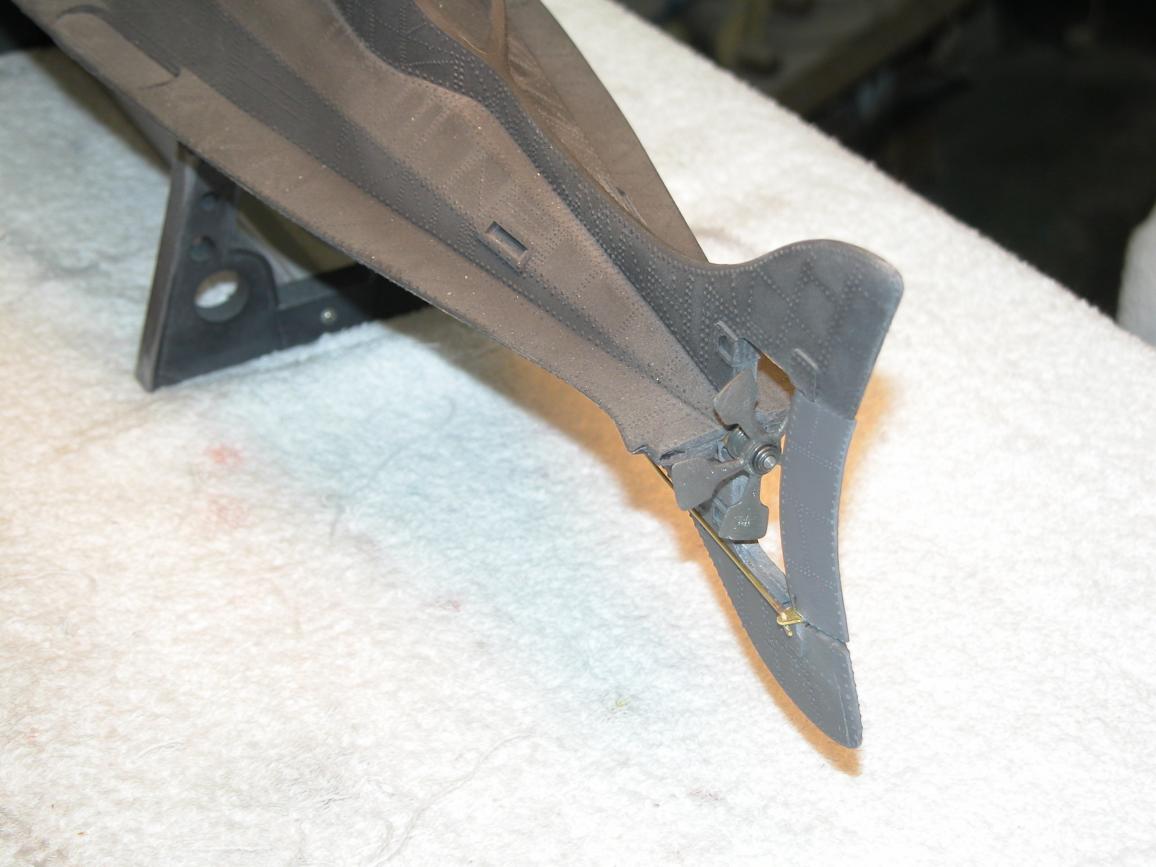

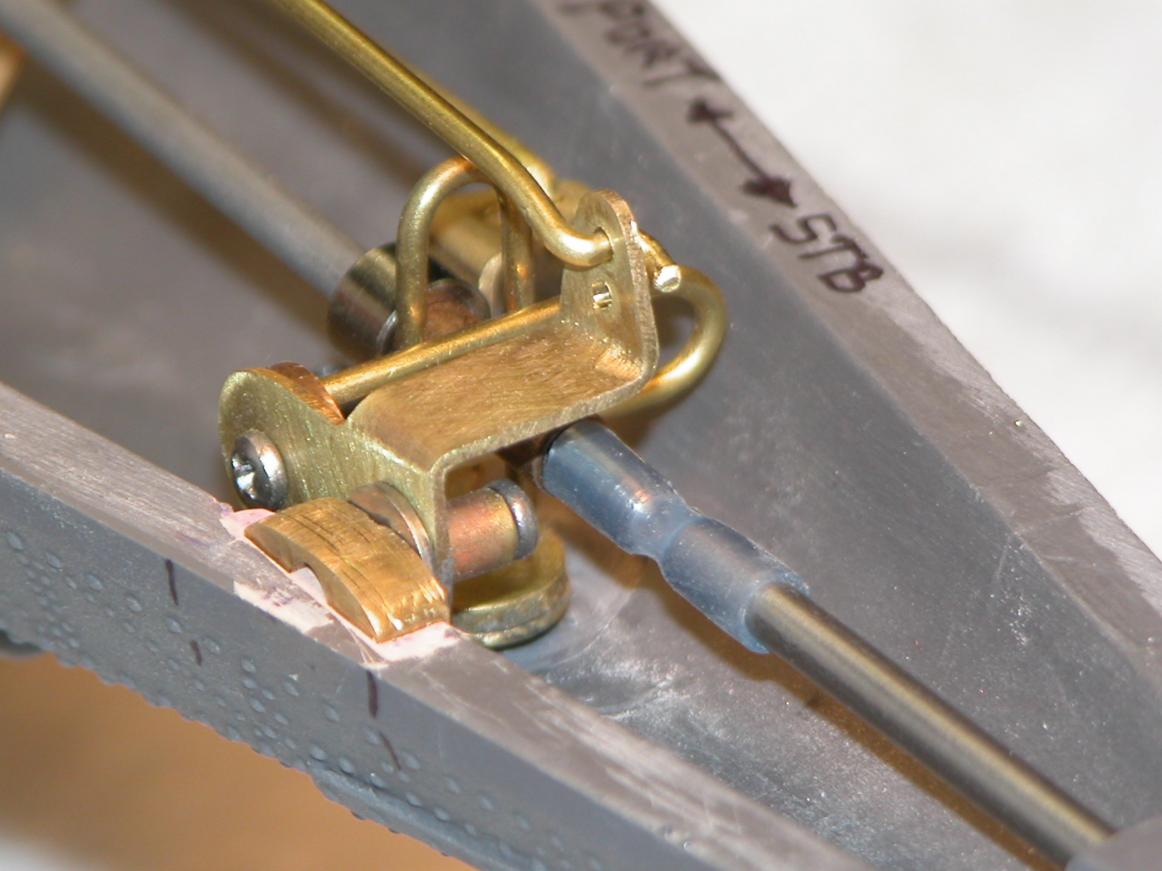

        Click image for larger version

Name:	040.jpg
Views:	2
Size:	86.5 KB
ID:	91375Click image for larger version

Name:	044.jpg
Views:	2
Size:	85.8 KB
ID:	91376Click image for larger version

Name:	048.jpg
Views:	2
Size:	79.0 KB
ID:	91377Click image for larger version

Name:	043.jpg
Views:	2
Size:	84.4 KB
ID:	91378

        (Note that Simon Lake's planes, from which Goff got the suggestion, are in the open slip-stream, not hidden within strakes or other fixed structures).

        M
        Last edited by He Who Shall Not Be Named; 05-12-2014, 05:32 PM.
