    11.1 Volt electrical system in the Revell Gato

    David,

    Im doing the assembly on the Revell Gato subdriver and I would like to know if there is anytihing I need to know or do when using the 11.1 volt battery supply? Or, can I just do the same electrical hook up as we did on the 7.4 volt seawolf and type VIIC, just adding the additional channel and servo for the retract opperation?

    I and I'm sure others would like you and or Kevin to post a good quality wiring diagram for both the 6 channel installation and also the 7 channel like the Gato when an ADF, Lipo Guard and LPB are installed.

    Regards,

    Myron
    Tags: None
    • He Who Shall Not Be Named
      Moderator

      • Aug 2008
      • 13447
      #2
      Myron,

      Yes, just slap the additional servo into an unused receiver port and you're off to the races.

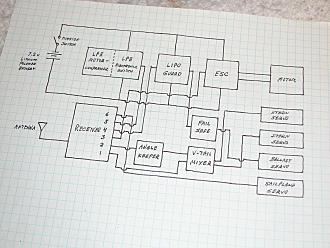

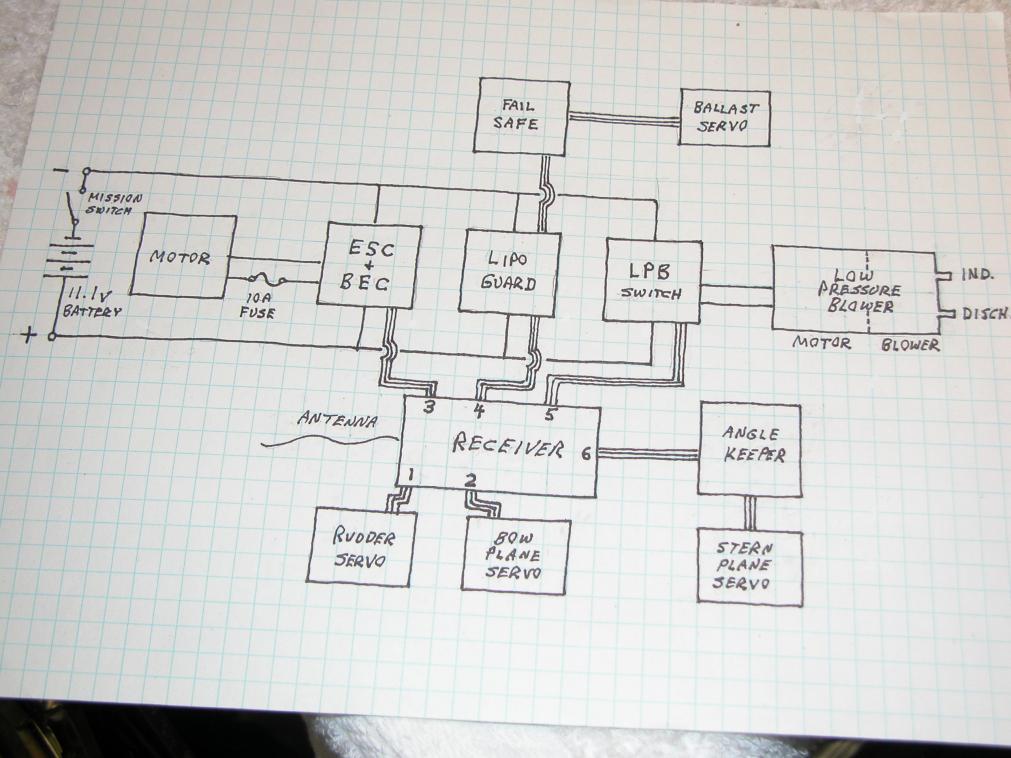

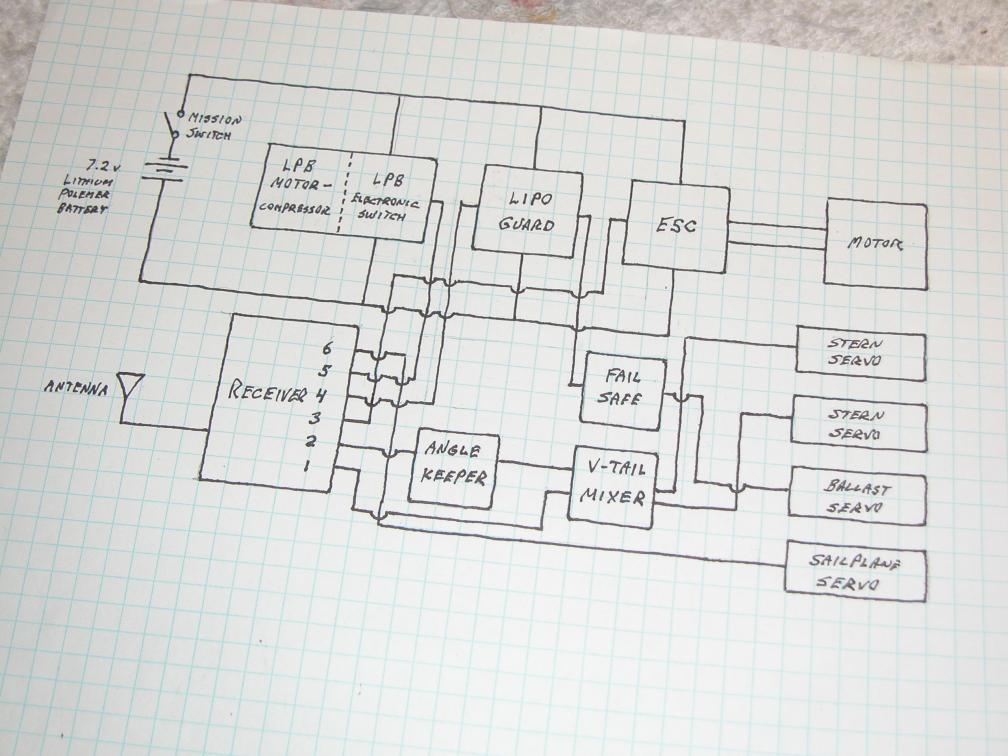

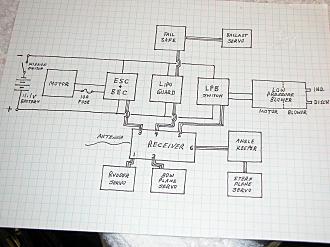

      Here's two version of block-diagrams that show device hook-up in the typical SubDriver:

      Click image for larger version Name: 034.jpg Views: 1 Size: 89.6 KB ID: 65145Click image for larger version Name: 033.jpg Views: 1 Size: 90.1 KB ID: 65144
      Who is John Galt?

        Comment

        • vital.spark
          Commander

          • May 2010
          • 304
          #3
          Thanks David,

          A while back I saw some posts on the 11.1v installation but I spent hours and couldn't find it again!

          I think I'll frame your block-diagrams! When I was ready to wire the Type VIIC, I hade to take the seawolf apart to copy it. I do hope others will copy the diagram now that it should be easy to locate in a forum search.

          Regards,

          Myron
