  • 688i angled fins?

    Just wondering what the angled fins are for on the 688i?
    Click image for larger version

Name:	ye5g9mdfimt41.jpg
Views:	127
Size:	88.4 KB
ID:	152942

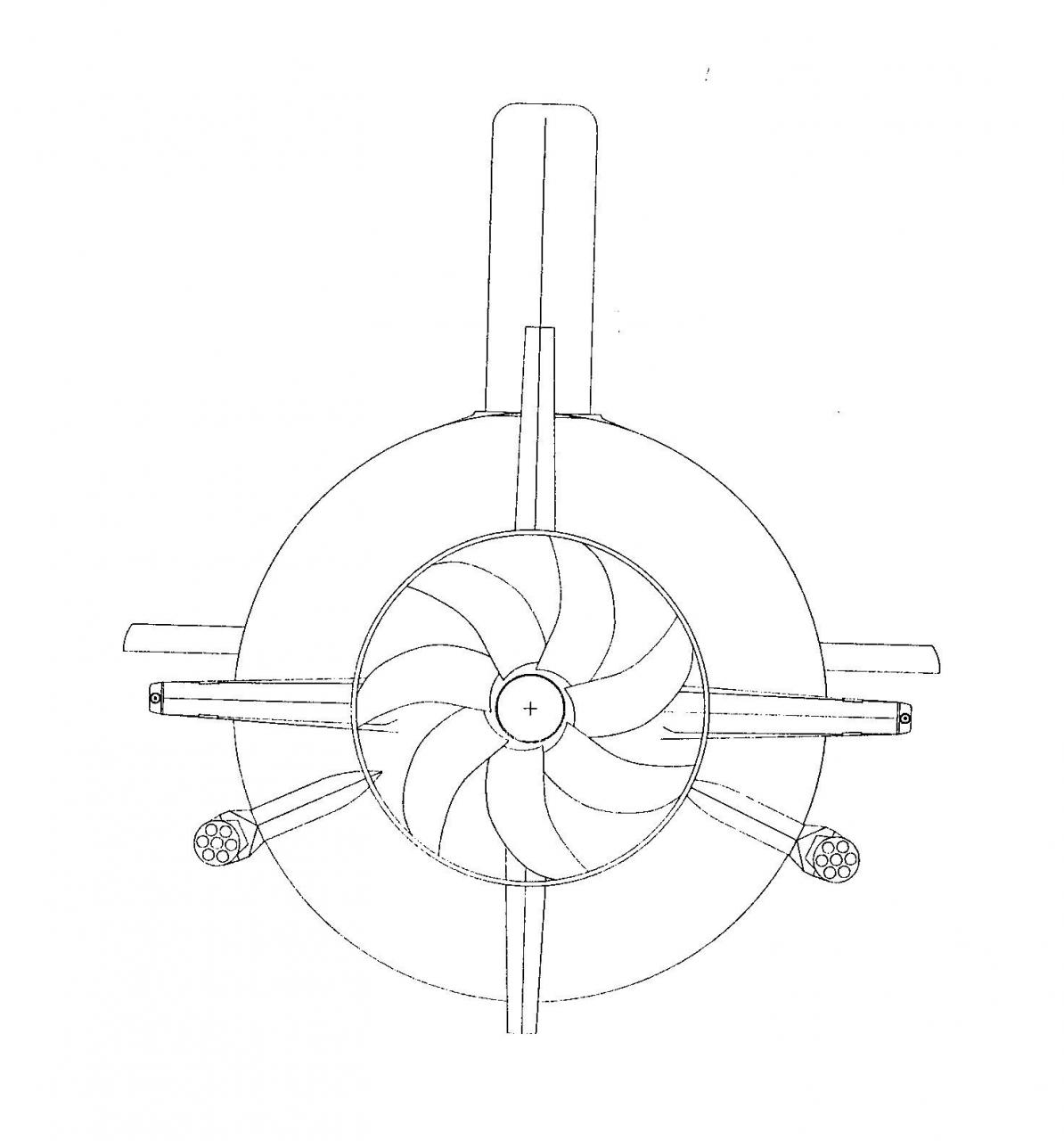

    And does anyone have a drawing they could post of their location on the hull?
    Thanks

    John
    John Slater

    Sydney Australia

    You would not steal a wallet so don't steal people's livelihood.
    Think of that before your buy "cheap" pirated goods or download others work protected by copyright. Theft is theft.



    sigpic

  • #2

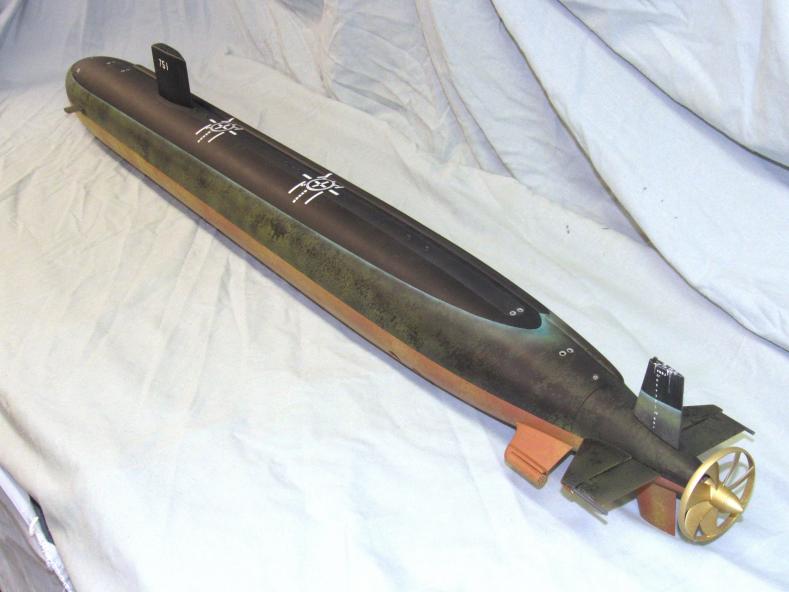

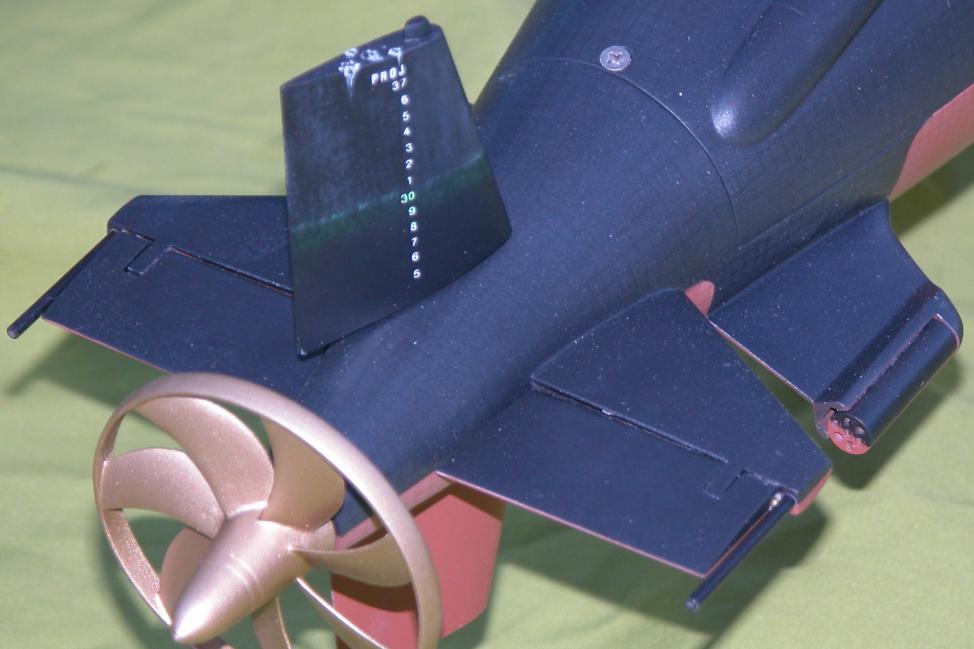

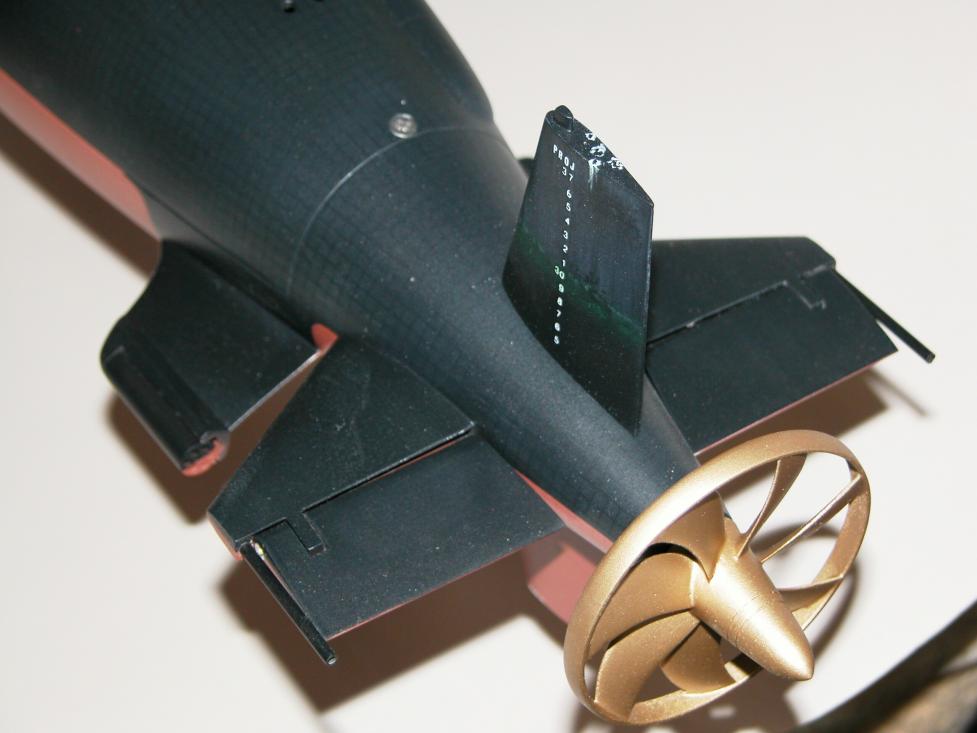

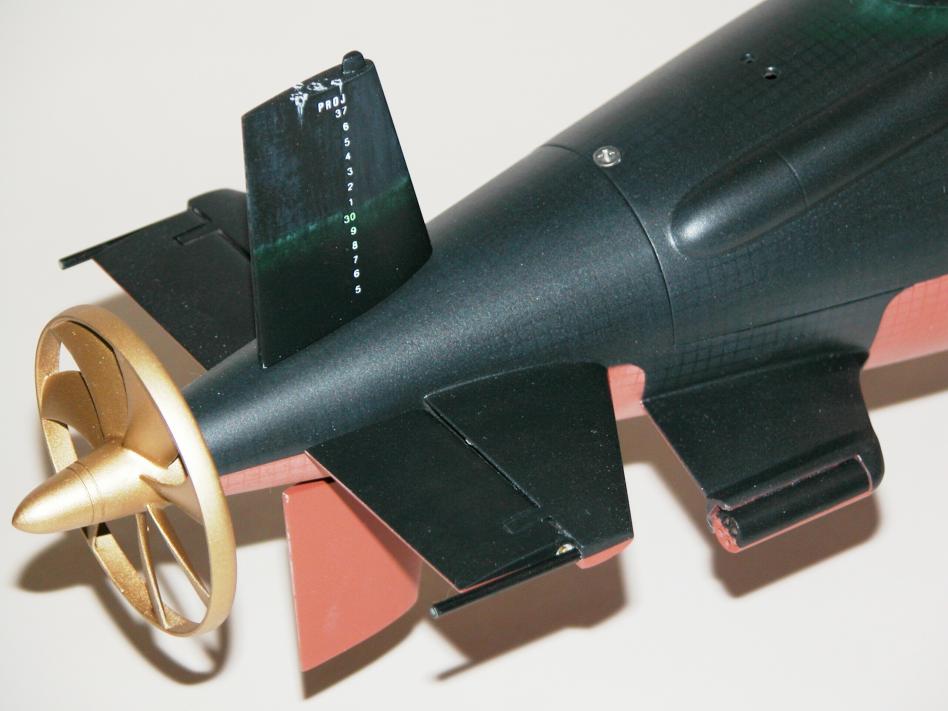

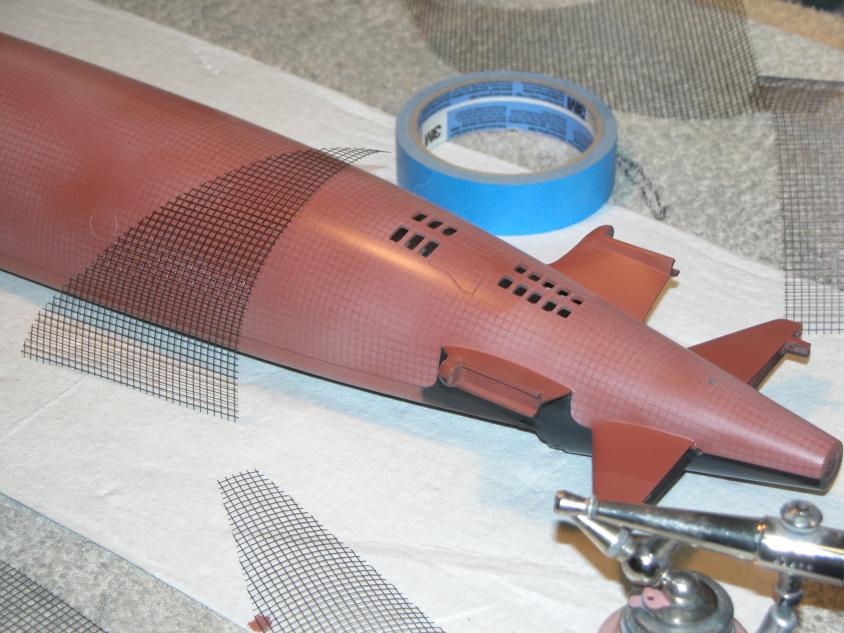

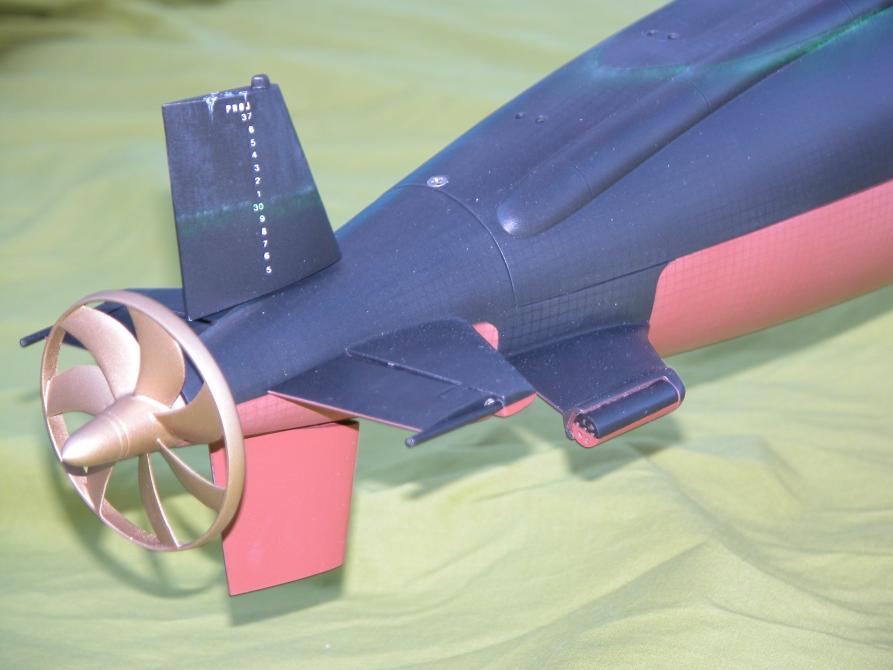

    They're called 'anhedrals'. In the case of the LA's they have attached to their outboard ends removable canasters that hold 'evasion devices'. They also produce a roll force counter to the inboard roll produced by the sail during high yaw rate turns.

    Click image for larger version  Name:	DSCN0069.JPG Views:	0 Size:	77.2 KB ID:	152944Click image for larger version  Name:	DSCN0114.JPG Views:	0 Size:	55.4 KB ID:	152945Click image for larger version  Name:	DSCN0122.JPG Views:	0 Size:	47.5 KB ID:	152946Click image for larger version  Name:	DSCN0120.JPG Views:	0 Size:	56.0 KB ID:	152947Click image for larger version  Name:	DSCN0142.JPG Views:	0 Size:	60.6 KB ID:	152948
    Click image for larger version

Name:	DSCN0172.JPG
Views:	89
Size:	76.4 KB
ID:	152950

    Click image for larger version  Name:	IMG_1611.JPG Views:	0 Size:	45.4 KB ID:	152949

    David
    Last edited by He Who Shall Not Be Named; 08-30-2021, 10:30 PM.
    Resident Luddite

    Comment


    • #3
      Thanks David - appreciate the dope. Great build too.
      Cheers
      J
      John Slater

      Sydney Australia

      You would not steal a wallet so don't steal people's livelihood.
      Think of that before your buy "cheap" pirated goods or download others work protected by copyright. Theft is theft.



      sigpic

      Comment


      • #4

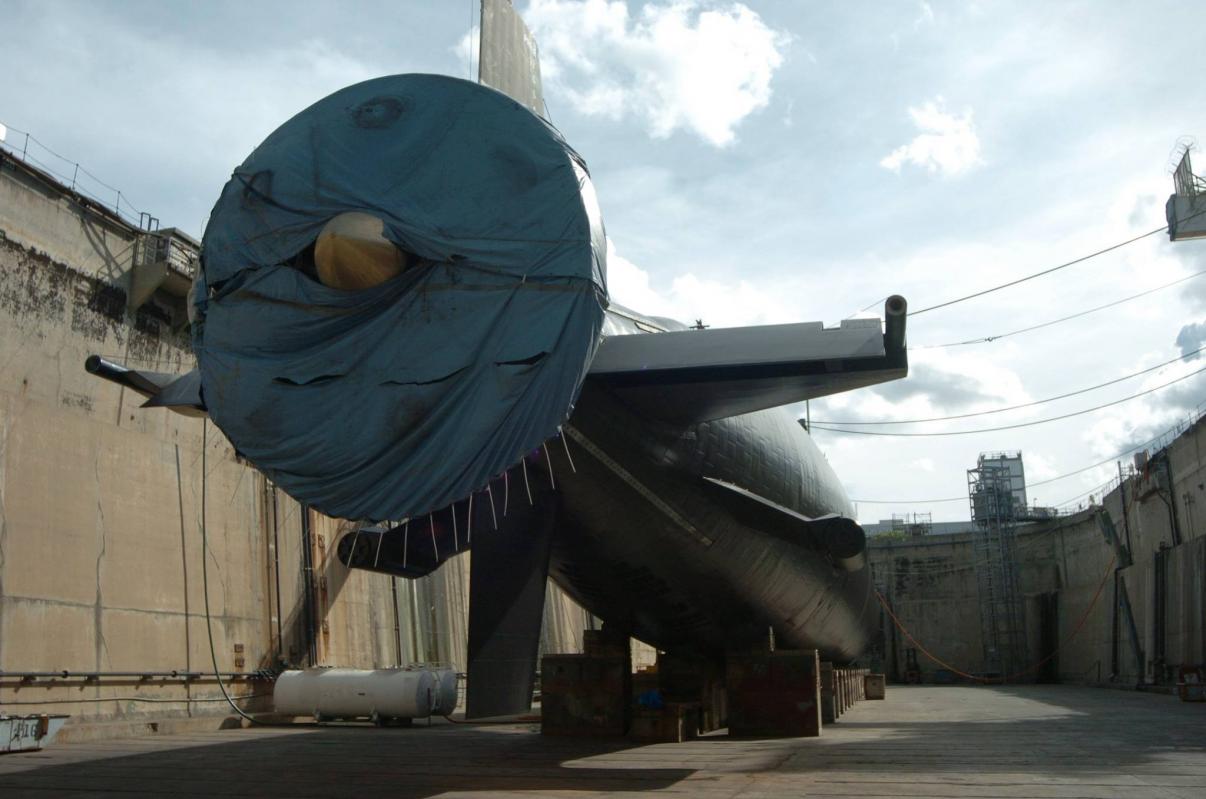

        Click image for larger version

Name:	196la-3.jpg
Views:	66
Size:	78.2 KB
ID:	152957

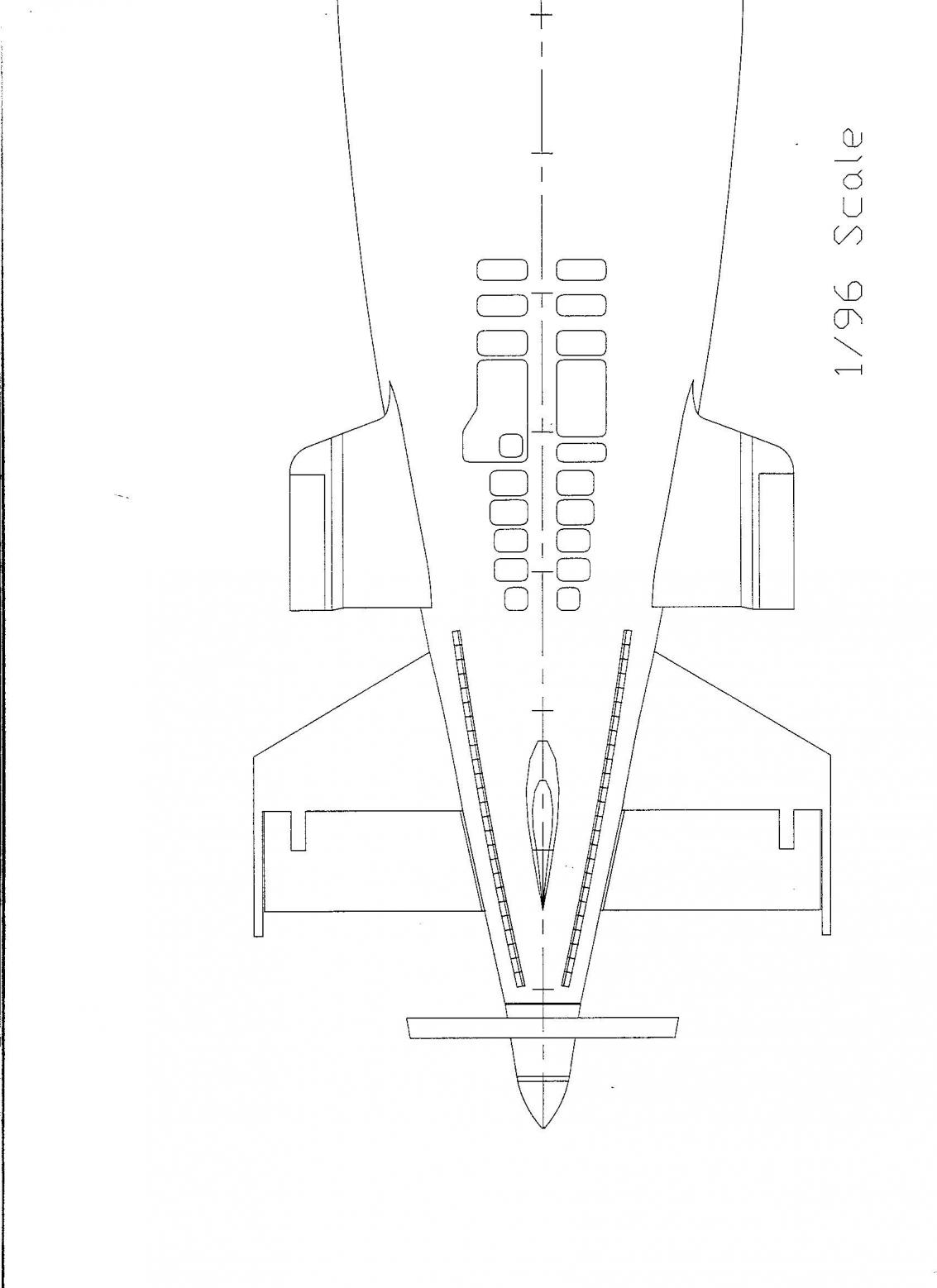

        Maybe this helps with placement,
        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

        Comment


        • #5
          Thanks - it certainly does help - much appreciate it.
          J
          John Slater

          Sydney Australia

          You would not steal a wallet so don't steal people's livelihood.
          Think of that before your buy "cheap" pirated goods or download others work protected by copyright. Theft is theft.



          sigpic

          Comment


          • #6
            does anyone have any drawings they are able to share of these parts?
            Thanks
            J
            John Slater

            Sydney Australia

            You would not steal a wallet so don't steal people's livelihood.
            Think of that before your buy "cheap" pirated goods or download others work protected by copyright. Theft is theft.



            sigpic

            Comment


            • #7

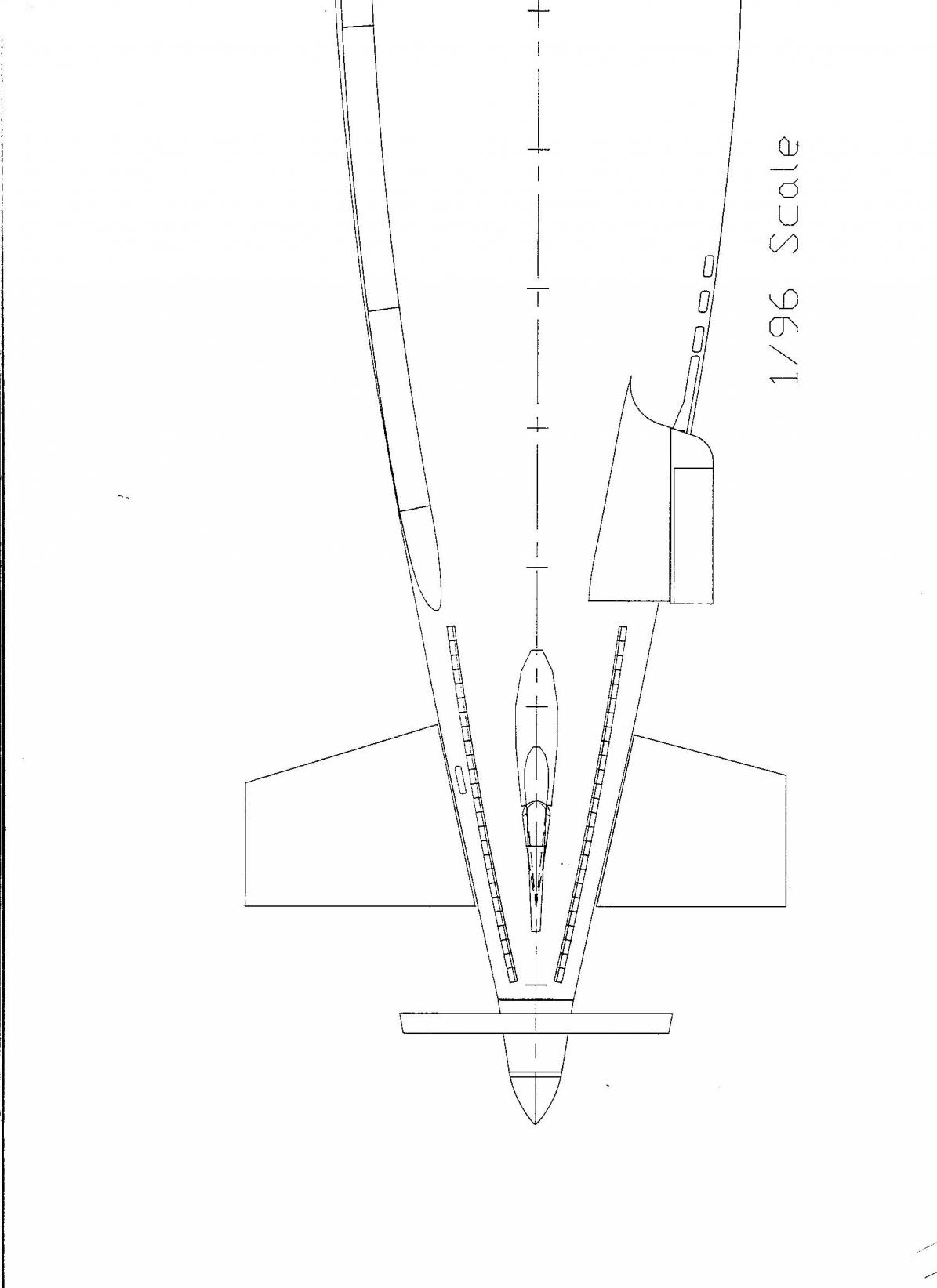

              Click image for larger version

Name:	33479165-DE29-44F6-98D0-A91A94B80972.jpeg
Views:	49
Size:	88.1 KB
ID:	152989Click image for larger version

Name:	05CE286A-2829-4BCF-AB5E-0BAEA73973E2.jpeg
Views:	53
Size:	82.9 KB
ID:	152990

              Attached Files
              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

              Comment


              • #8
                Thanks - appreciate it. J
