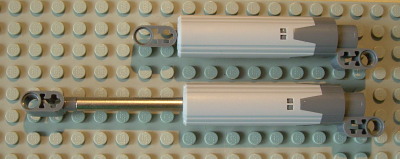

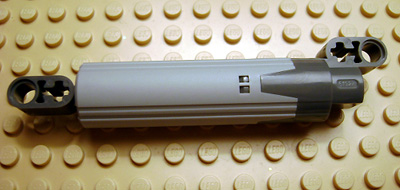

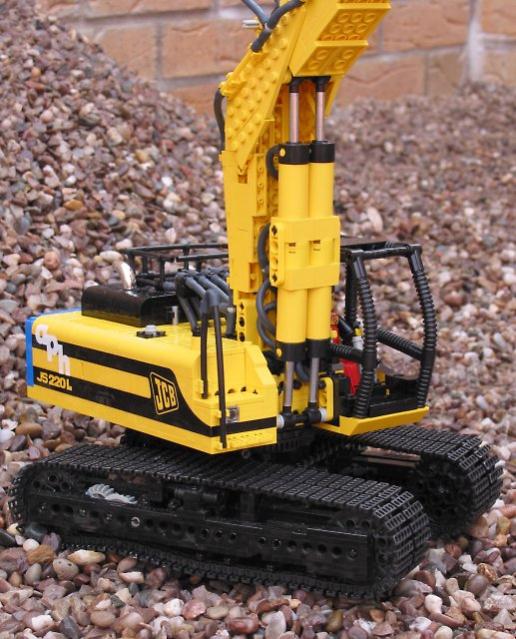

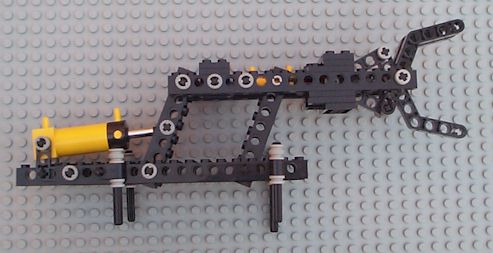

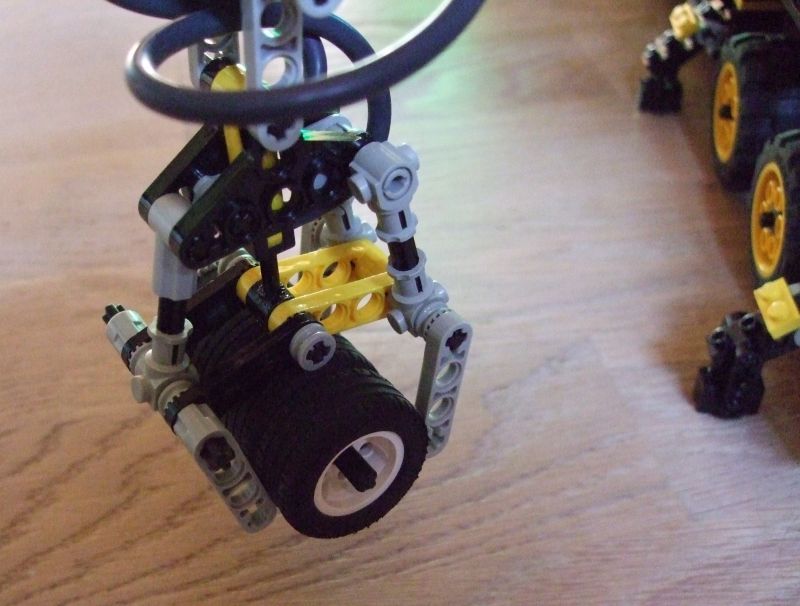

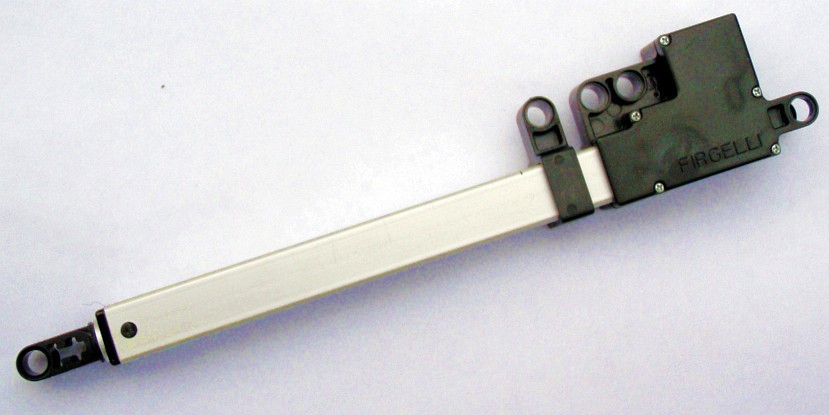

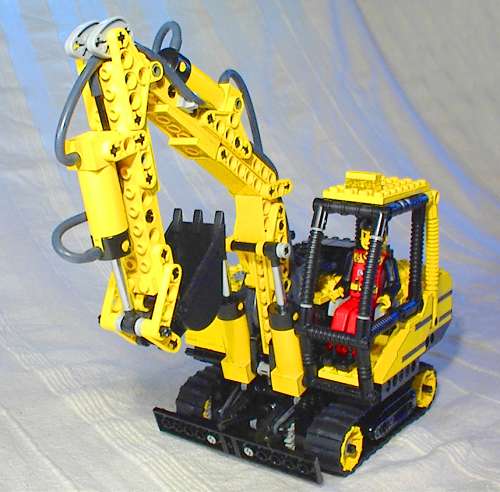

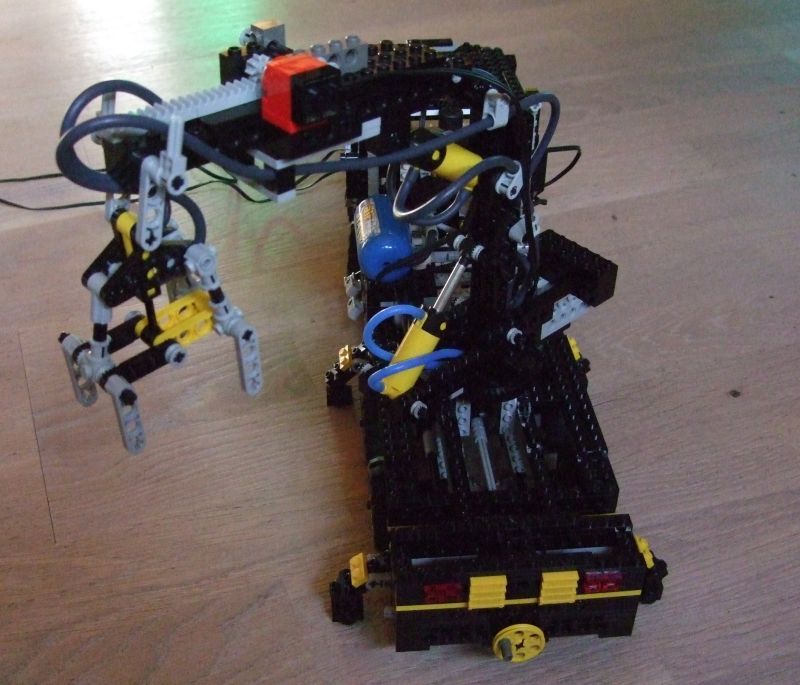

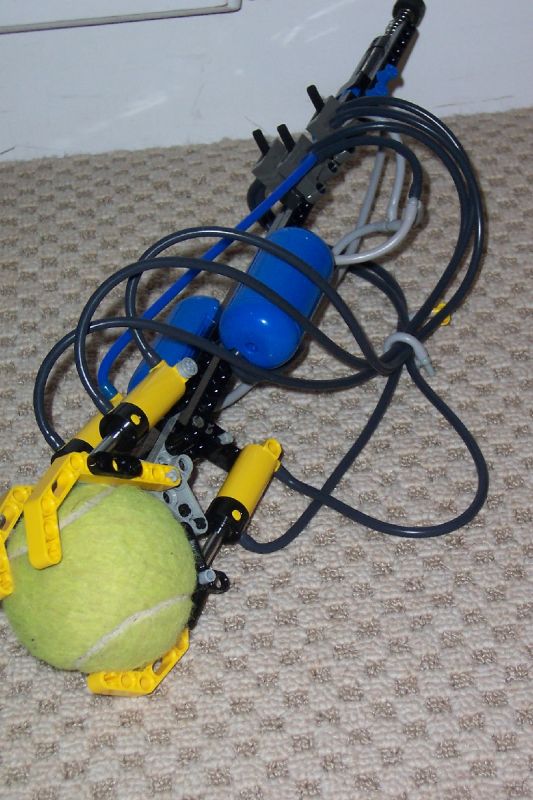

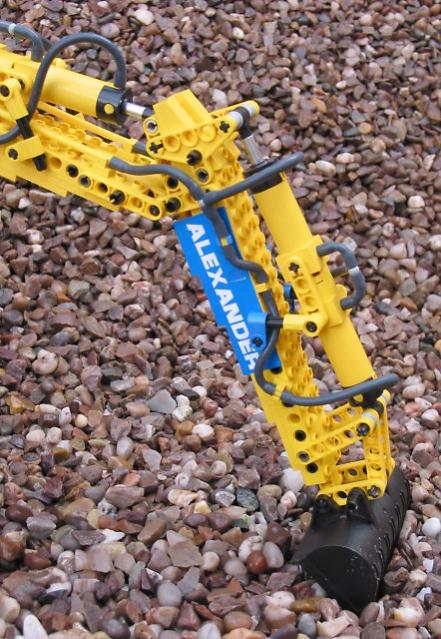

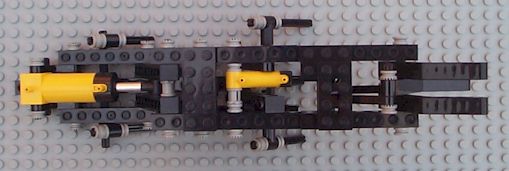

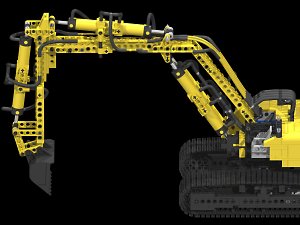

I thought that I had to make a section just dedicated to the Tecknics Lego system of interlocking not bricks but gears, shafts,U joints,gear boxes,bearing blocks and pneumatic cylinders that can be made to become hydraulic rams.
Hear you engineering ideas will come true without breaking the bank as these parts are very inexpensive yet made with incredible precision on a mass scale,the engineers at Lego's in Europe never thought that these items could also be used in a RC Sub!
I have found that they work very reliably in the wet or dry ,they can take the heat in the summer without distorting or warping,made from a special high impact plastic that is a secret and molded to perfection.
From door hinges to rams to gear boxes to U joints you will find that this is the way to make your subs scale operational items and concepts work in any Sub environment. Even and very importantly they can be used in control surfaces, say your rudder is in a very tight area, with a 90 degree gear box the rudder is turned with a shaft not a arm and pivot and all the control surfaces can be done in this way. It illuminates the push pull method.
The U joint for instance is a true micro U joint that can be taken apart and re assembled or replace individual parts, you will find also that they do not wear out fast.
The shafts there amazingly simple yet super flexible in there use,by having a cross section of a "+" they engage with the mating components at any point just cut them with a wire cutter as needed.
The assemblies that you design can be screwed together at certain points so that they can be easily serviced.
Also CA works very well on Tecknics just be care full and don't get into the bearing blocks!
Lubrication! In the wet none is needed even at high speed. A considerable amount of torque can be applied as well, for the RC Sub the amounts needed is well below the breaking point.
One could use the shafts and U joints extra in a drive for say a 25 inch sub but in anything larger the usual shafts would be better.

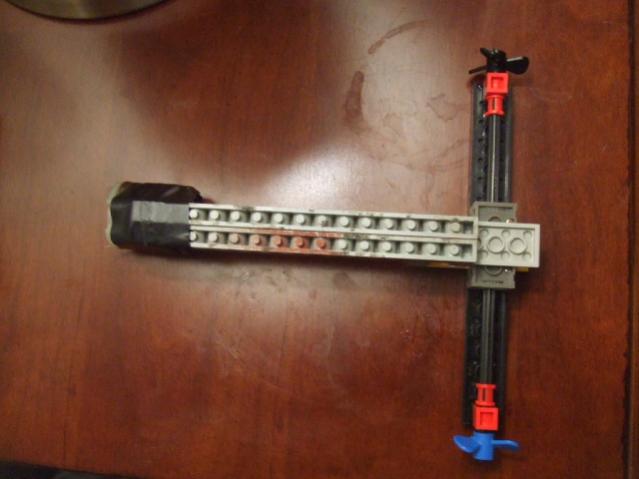

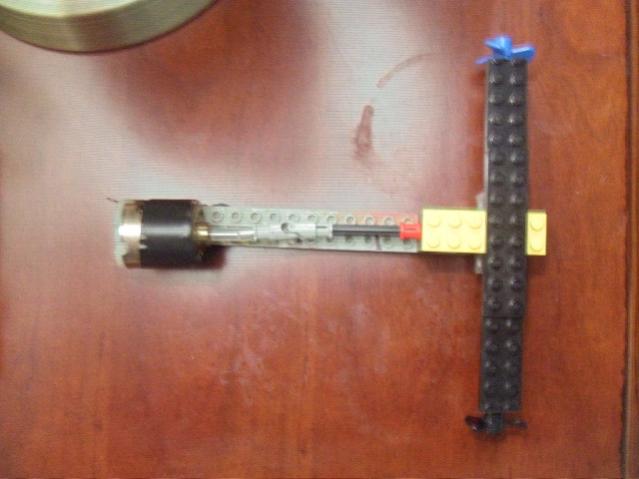

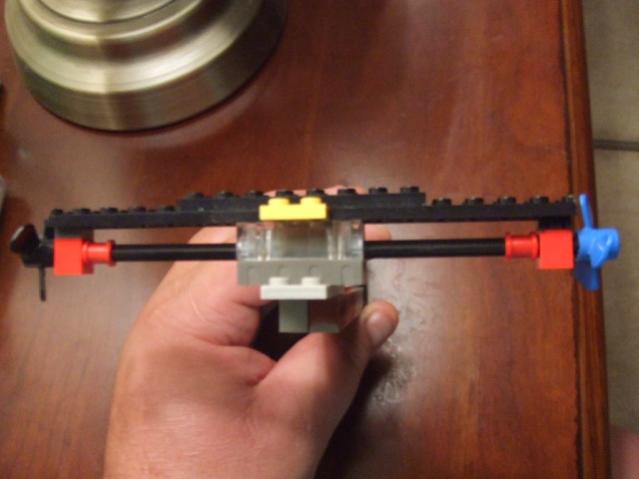

So here is one example that I made last night a bow thruster,it can be made to fit in any hulls beam by extending the cross shafts, it uses the "T" type gear box that is shown, it can be also dissembled and serviced, the beveled gears are nylon and have strong large teeth so it can take the load.

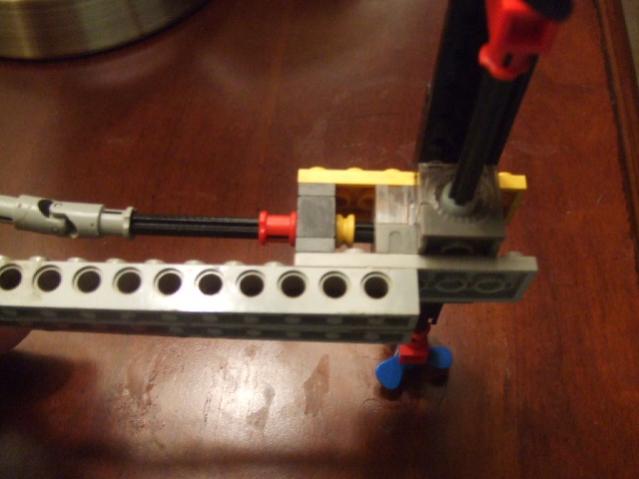

The housing itself is a brick, making it interlock with any Lego The center of the horizontal gear is a hollow plus shaft so that a shaft will pass through it making it possible to place the gearbox anywhere on the drive line. It is truly a remarkable device as are all of the Tecknics components.
The 2 props are also from Lego's and there are several sizes available. This one is 3/4 inch and produces a great deal of thrust. I plan on installing this into the bow of the SB-2.0 so that while filming a pan capability is available. I will show that mod later in that thread.
The shafts are supported by the bearing blocks and held in place by the red shaft lockers or collars.
Without even CA it holds together at high speed providing plenty of thrust for even the largest RC Sub. I was amazed at how smooth and strong the unit is and the cost about 3 bucks! Wow try that with any other make!
It is adjustable to any hull's beam, so the props are just inside of the hull with a say a PVC fitting to house the props and scale appearance, nice.
Get the parts at Bricklink.com there the best international Lego supplier with the best catalogs.
I can supply the parts list as needed.
Dave Amur Sub Yard
Hear you engineering ideas will come true without breaking the bank as these parts are very inexpensive yet made with incredible precision on a mass scale,the engineers at Lego's in Europe never thought that these items could also be used in a RC Sub!
I have found that they work very reliably in the wet or dry ,they can take the heat in the summer without distorting or warping,made from a special high impact plastic that is a secret and molded to perfection.
From door hinges to rams to gear boxes to U joints you will find that this is the way to make your subs scale operational items and concepts work in any Sub environment. Even and very importantly they can be used in control surfaces, say your rudder is in a very tight area, with a 90 degree gear box the rudder is turned with a shaft not a arm and pivot and all the control surfaces can be done in this way. It illuminates the push pull method.
The U joint for instance is a true micro U joint that can be taken apart and re assembled or replace individual parts, you will find also that they do not wear out fast.
The shafts there amazingly simple yet super flexible in there use,by having a cross section of a "+" they engage with the mating components at any point just cut them with a wire cutter as needed.
The assemblies that you design can be screwed together at certain points so that they can be easily serviced.
Also CA works very well on Tecknics just be care full and don't get into the bearing blocks!
Lubrication! In the wet none is needed even at high speed. A considerable amount of torque can be applied as well, for the RC Sub the amounts needed is well below the breaking point.
One could use the shafts and U joints extra in a drive for say a 25 inch sub but in anything larger the usual shafts would be better.
So here is one example that I made last night a bow thruster,it can be made to fit in any hulls beam by extending the cross shafts, it uses the "T" type gear box that is shown, it can be also dissembled and serviced, the beveled gears are nylon and have strong large teeth so it can take the load.
The housing itself is a brick, making it interlock with any Lego The center of the horizontal gear is a hollow plus shaft so that a shaft will pass through it making it possible to place the gearbox anywhere on the drive line. It is truly a remarkable device as are all of the Tecknics components.
The 2 props are also from Lego's and there are several sizes available. This one is 3/4 inch and produces a great deal of thrust. I plan on installing this into the bow of the SB-2.0 so that while filming a pan capability is available. I will show that mod later in that thread.
The shafts are supported by the bearing blocks and held in place by the red shaft lockers or collars.
Without even CA it holds together at high speed providing plenty of thrust for even the largest RC Sub. I was amazed at how smooth and strong the unit is and the cost about 3 bucks! Wow try that with any other make!
It is adjustable to any hull's beam, so the props are just inside of the hull with a say a PVC fitting to house the props and scale appearance, nice.
Get the parts at Bricklink.com there the best international Lego supplier with the best catalogs.
I can supply the parts list as needed.
Dave Amur Sub Yard
