The work on the sail continues...
Today's work has been on refining the fillet shape along with some body work. Also, the cap has commenced construction. Note that there is a gap around the whole thing when placed on the sail. this is to accomodate the special coating beveling. Care is taken here to ensure that the demarcation line between the sail and fillet is consistent using masking tape as a depth guide when sanding.


Check out this comparison between the Permit sail and Seawolf. I can't wait to actually have room to work on the scope rack for this model!



Joel

[ManOwaR]

Sail Part 2

Rocking and rollin’ away on this Seawolf...We’re starting to get a nice pace on her. Not breakneck, but not nothing like before, lol!
A full day and a half was spent on plug surface preparation getting it ready for intermediate moulding. No detailing has been applied as it’s much easier to polish the plug if you don’t have to worry about wrecking that stuff. The same procedure was used here as was used multiple times on the Permit/Jack project.



Now because I want to do intermediate mould-work at the same time I am working hard on the sail. Probably one of the more complex shapes on this submarine is the fillet on the front of the sail that serves as streamlining and helps counter the snap roll phenomenon.
I use the same technique as before with the basic shape:

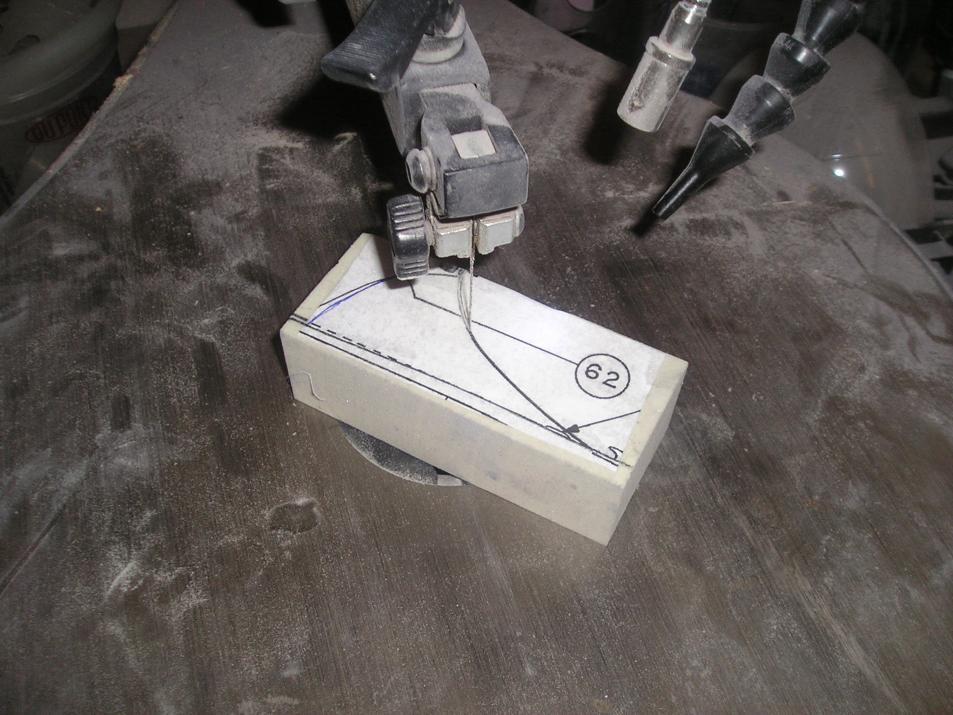

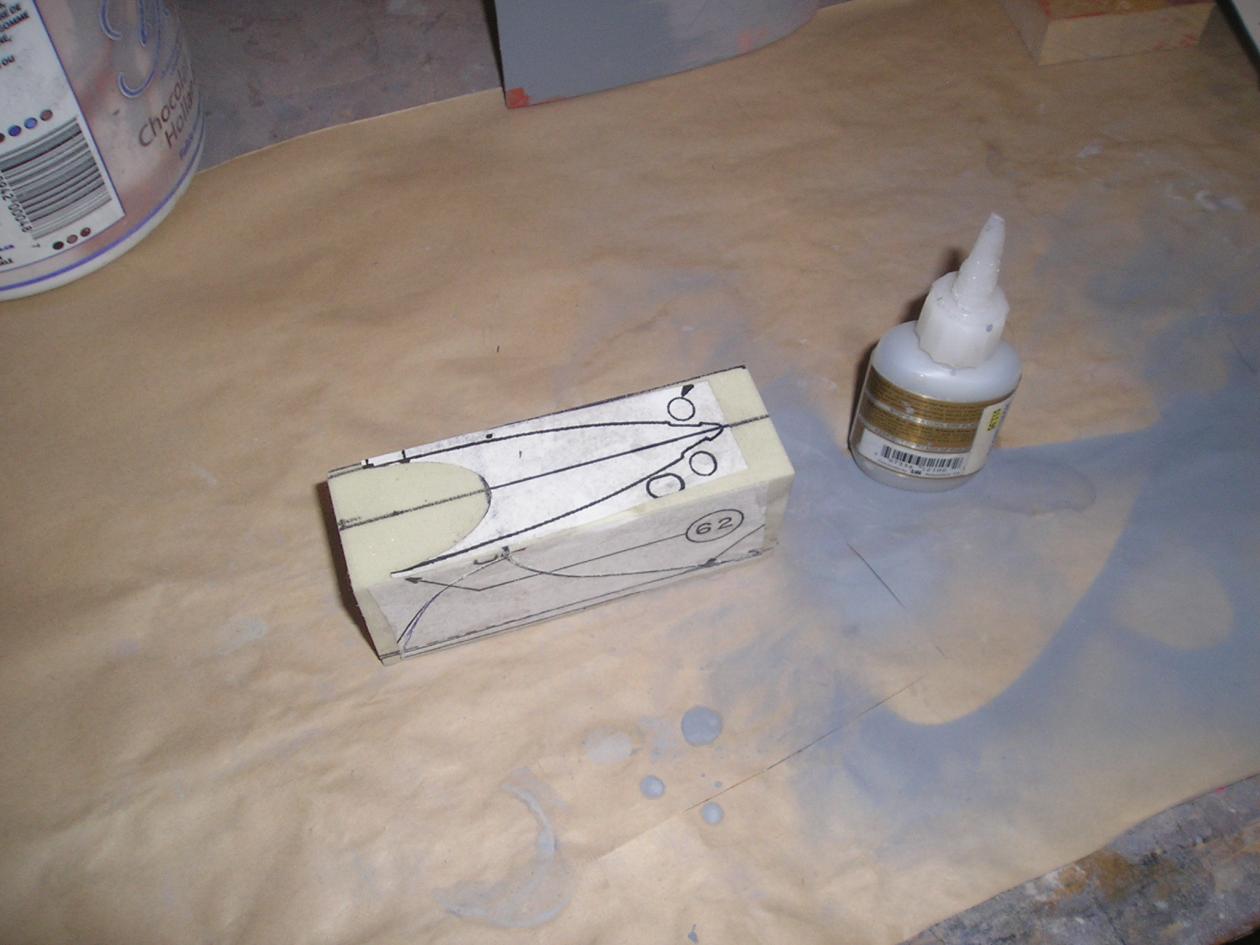

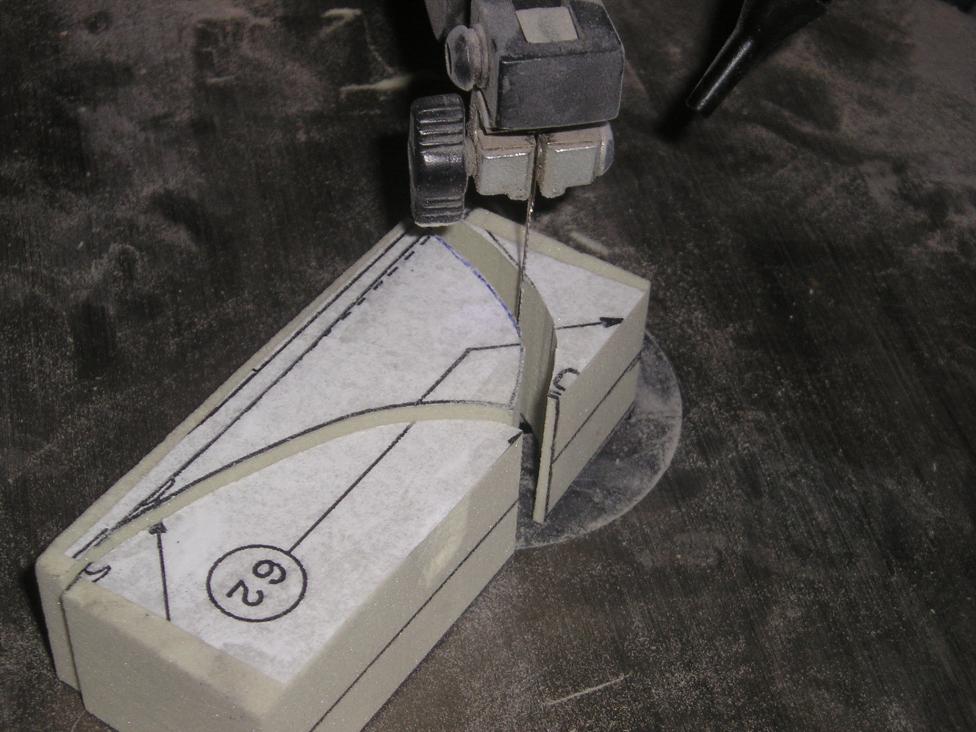

I glue the side view part of the plan to a carefully squared up piece of Renshape. I’ll cut the bottom, back and front off carefully using the scroll saw on slow, then hot melt it all back together.

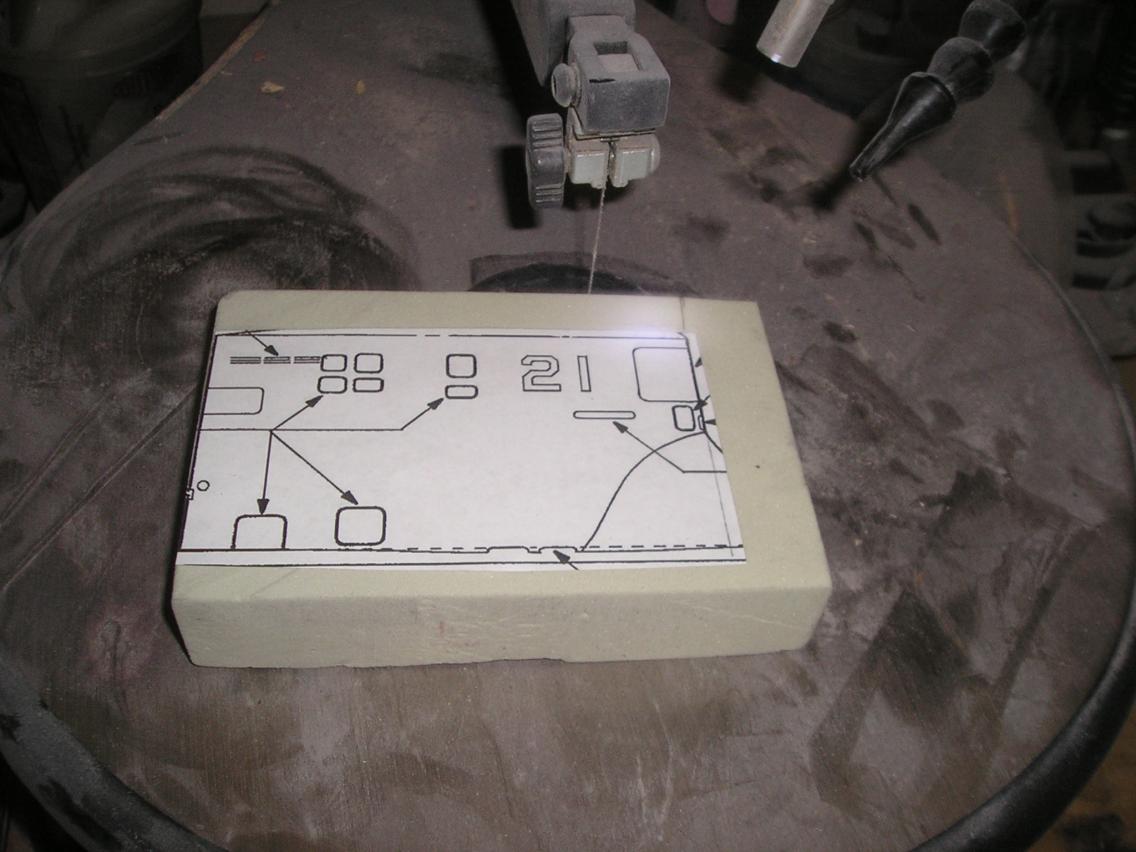

I then glue the top profile of the fillet on – care was taken to get it perfectly aligned with the side profile location.



Now I have the basic shape...


On to enabling myself to fit this part properly. I’ll adhere the top-down profile to some cereal box cardboard, and then the bottom of the side profile to some very thick, rigid cardboard. I love cardboard; it’s cheap and plentiful building material. I liked using it as a kid to make laminated finger skateboards and cardboard half pipes to sell them for exorbitant prices to my friends!



The sail Is hot melted to the top-down profile, and then this is hot melted to the bottom profile. Remember, the sail will not be perfectly flat against the round hull. Only when it is hollow will it fit right, therefore the bottom will have a kind of funny look to it for now.





The fit of the fillet was pretty good right off the get-go. Only a little sanding was needed to get the fit right.

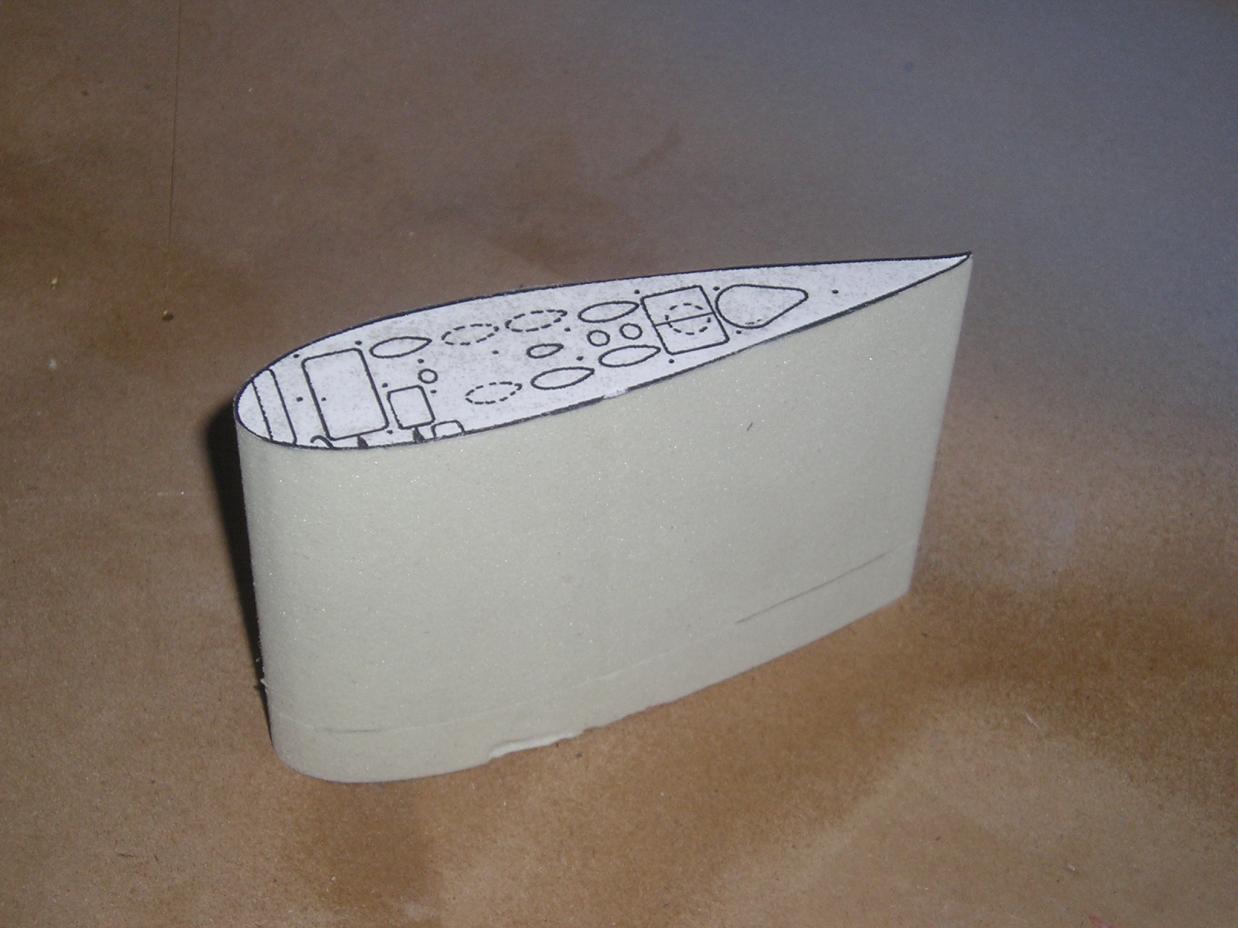

Once fit, I taped off the line that will represent the slight demarcation between the sail and the fillet. Tamiya tape was used here, cut into very thin slices.




Looking at lots of pictures of the fillet shape for reference, I simply used sandpaper to sculpt the rough shape.




More to come,
Joel

[He Who Shall Not Be Named]

YEAH!

What he just said!!!

No Justice, no peace!

David,

[Outrider]

Lots of colorful language here...but nothing to get all worked up about. It's just some putty and it seems, underneath all the scatology, to do exactly what you want it to do. (Which isn't exactly on point for the Seawolf discussion here, now is it?)

Not sure the Wizard would approve of a double standard for salty talk. I'm sure he got his ear bent a few times before the pink shorts came out, but not too many.

[Kazzer]

Today, I had the chance to use some Evercoat EasySand Not for a submarine project, but the staircase stringers in my new (old) house. They had lots of nail holes, and 30 years of dings and scrapes from furniture removals etc. (One day, I'll finish this joint and get a boat going again! Goddamit!)

I gave them a coat of primer and boy did they look rough. Some of the depressions were only 'bruises' but never the less, under a gloss coat, they would look like a badger's ass. Of course, they were also chunks missing that needed repair.
I rummaged around in the garage and found, quite by accident, (we know where nothing is in this dump at the moment) found a tube of this goop. I was in a hurry too, so in no mood to hang around waiting for single pack **** to dry.

A squeeze of the tube produced a gob of material toothpaste like, except that it slumped slowly, rather like milk fed puppy ****. I mixed some peroxide hardener in and went to work with a metal spatula. Boy! Is this stuff good! Creamy, smooth, wet enough to grab any surface and non slumping on vertical surfaces. Of course, I wasn't applying it more than 1/8" thick and feathering it to a razor edge with the blade. I used a wide blade and scraped it on so I got it on almost perfectly. 15 minutes later, I ran over it quickly with a block and sandpaper and it was done.

It would be very easy to apply this material to a curved surface using a flat plastic applicator and bending it over the curve as you drag it along.

[ManOwaR]

The Pictures

[ManOwaR]

Alright,
I got some bona-fide new work done on this model today while I was waiting for primer and filler to dry on the hull plug. I found some more low spots because I’ve been trying a firmer backer for my block sander. I went this way because looking at the plug from certain angles I could still see some nasty imperfections that my initial guide coat didn’t pick up. I figured it was my foam backer and lo and behold, I was right.
Anyways, I started out on the sail and things are going pretty good with that. I am making the sail in multiple stages. Build the base sail (no fillet, no cap), make a mould of that part, add negative detailing to the mould (anechoic coating bevelling), make a reproduction of the base with a very heavy surface coating for scribing and also make it so it will be hollow. From there, add a cap and then the front fillet. I’ll describe this better when we get to each part.

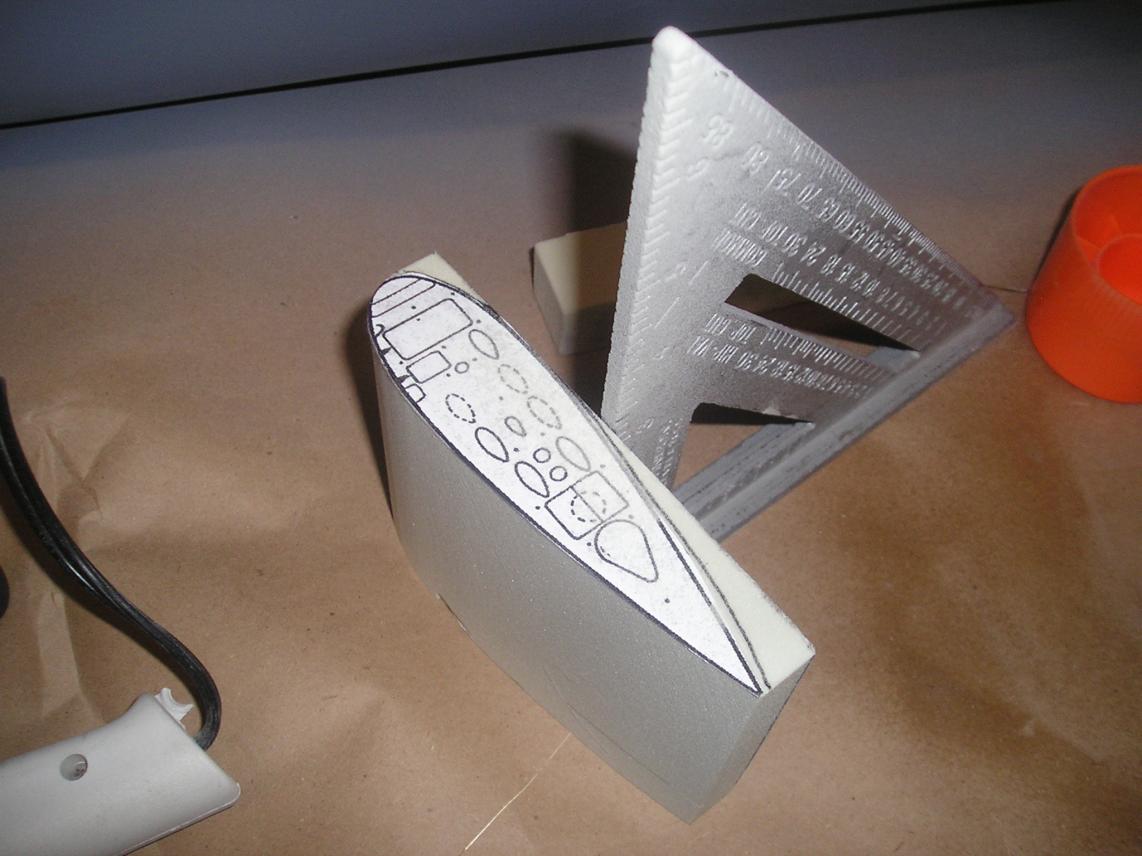

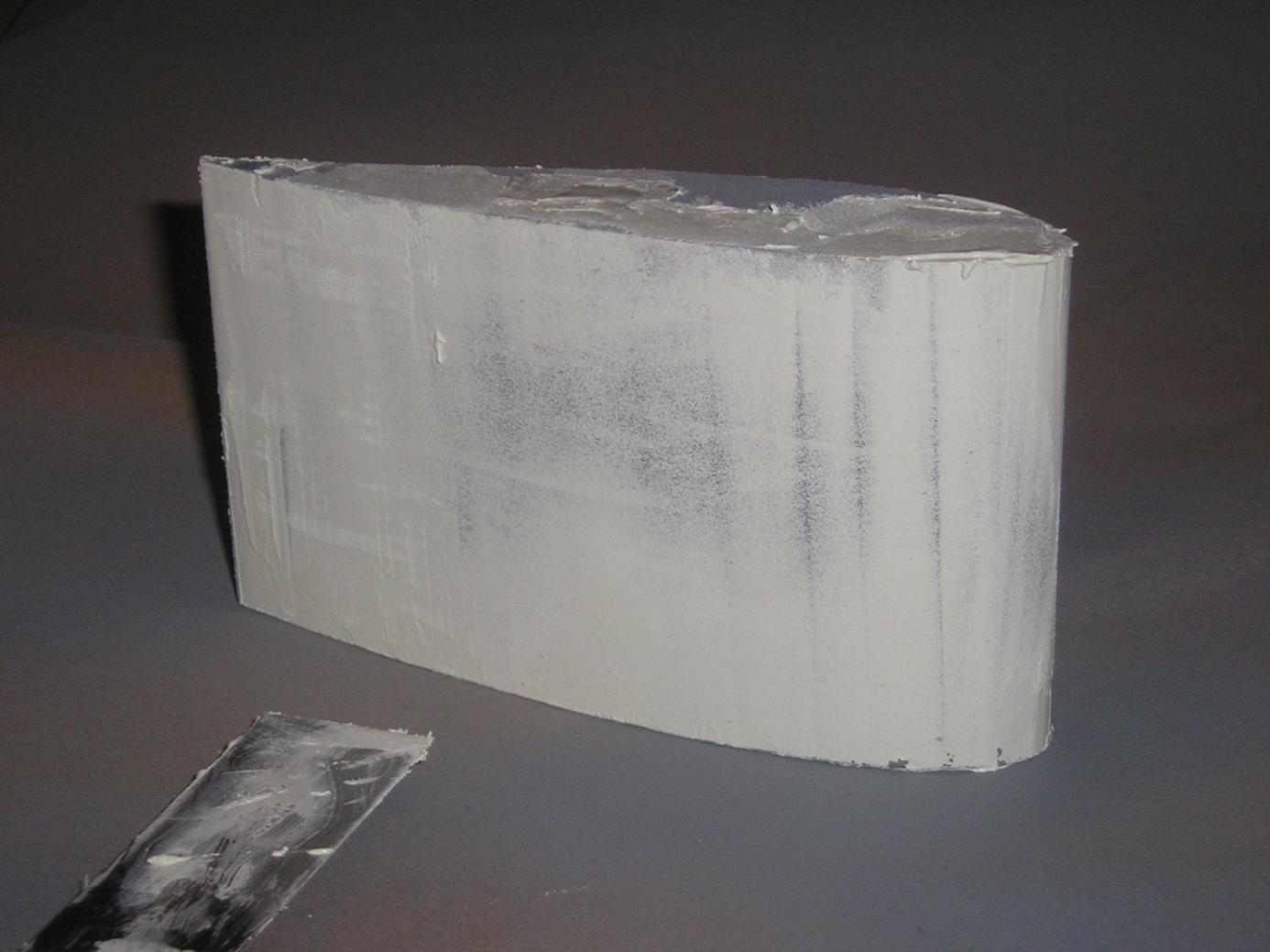

Creating the base was started by taking a perfectly square piece of Renshape and CA gluing cut-outs of the sail shape both side and top. The bottom of the sail is not perfectly straight because of its teardrop shape that follows the curing hull. I cut this line using my scroll saw and then temporarily hot melt glued it back into place. I ensured that my table for my disc sander was absolutely square in relation to the sanding disk. I hot melted the side of the Renshape block to my square let cool and went at removing material knowing that what I was doing was square. When the material from one side was removed I moved the square to the other side of the sail. This is pretty much the same thing I did on my Permit...might as well because it works very well.
