  • #76
    Moulding again !!! Here we go with the sail

    Comment


    • #77
      While still prepping the 209 for moulding and in between wax coats I dag this one out and started some corrections! Also some beautiful 3D props from Bart are on the way.

      Comment


      • #78
        Nice Yannis, is that the same boat i saw in your shop when we where on Korfu?, Bart has made some nice stuff.

        Manfred.
        Fertig zum unterwasser.

        Comment


        • #79
          Originally posted by MFR1964 View Post
          Nice Yannis, is that the same boat i saw in your shop when we where on Korfu?, Bart has made some nice stuff.

          Manfred.
          Yes, it's the one you saw Manfred !!!

          Comment


          • #80
            Some dry fitting to check things out. Still more corrections to be done.

            Comment


            • #81
              Its always nice to see things coming together
              Grtz,
              bart
              Practical wisdom is only to be learned in the school of experience.
              "Samuel Smiles"
              http://scale-submarine.com/index.html

              Comment


              • #82
                Originally posted by bwi 971 View Post
                Its always nice to see things coming together
                Grtz,
                bart
                Thank you Bart !!! Looking forword for your props to arrive !!!

                Comment


                • #83
                  Items finally arrived !!!

                  Comment


                  • #84
                    And in one piece (those antenna parts were of a concern)

                    They look great on the sub.

                    Grtz,
                    bart
                    Practical wisdom is only to be learned in the school of experience.
                    "Samuel Smiles"
                    http://scale-submarine.com/index.html

                    Comment


                    • #85
                      They arrived in perfect condition !!! Thanks, once again !!!

                      Comment


                      • #86
                        Bart, outstanding!
                        Yannis, that is amazing and the cherry on top will be those scopes. This is a fun build to watch.
                        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                        Comment


                        • #87
                          What's the absolute limit with these resin printers? The XY resolution seems to pan out at around 0.05-.0.1mm (1.25-2.5 thou) resolution, which should be adequate for all but the finest of detail. Most bureaus don't quote below 0.3mm details.
                          DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

                          Comment


                          • #88
                            Originally posted by Subculture View Post
                            What's the absolute limit with these resin printers? The XY resolution seems to pan out at around 0.05-.0.1mm (1.25-2.5 thou) resolution, which should be adequate for all but the finest of detail. Most bureaus don't quote below 0.3mm details.
                            I print at 0.05mm layers, can go to 0.02mm but that sometimes mess things up, so I stick to 0.05mm all the time. I lknow about the bureaus, they were not able to print my props, the reason is that the post processing is so abrasive.

                            Quote
                            The walls in your model are too thin for the current geometry and cannot withstand our manufacturing process without breaking. During the intense cleaning process, we blast the model with air and glass beads to achieve a powder-free model. While, for processed and premium finishes, we polish the model with thousands of ceramic pellets.
                            Unquote

                            Practical wisdom is only to be learned in the school of experience.
                            "Samuel Smiles"
                            http://scale-submarine.com/index.html

                            Comment


                            • #89
                              It seems they could just not do the finishing process, if requested, to get them professionally made.

                              Comment


                              • #90
                                I meant the x,y resolution, which is dictated by the LCD screen resolution rather than the z height.

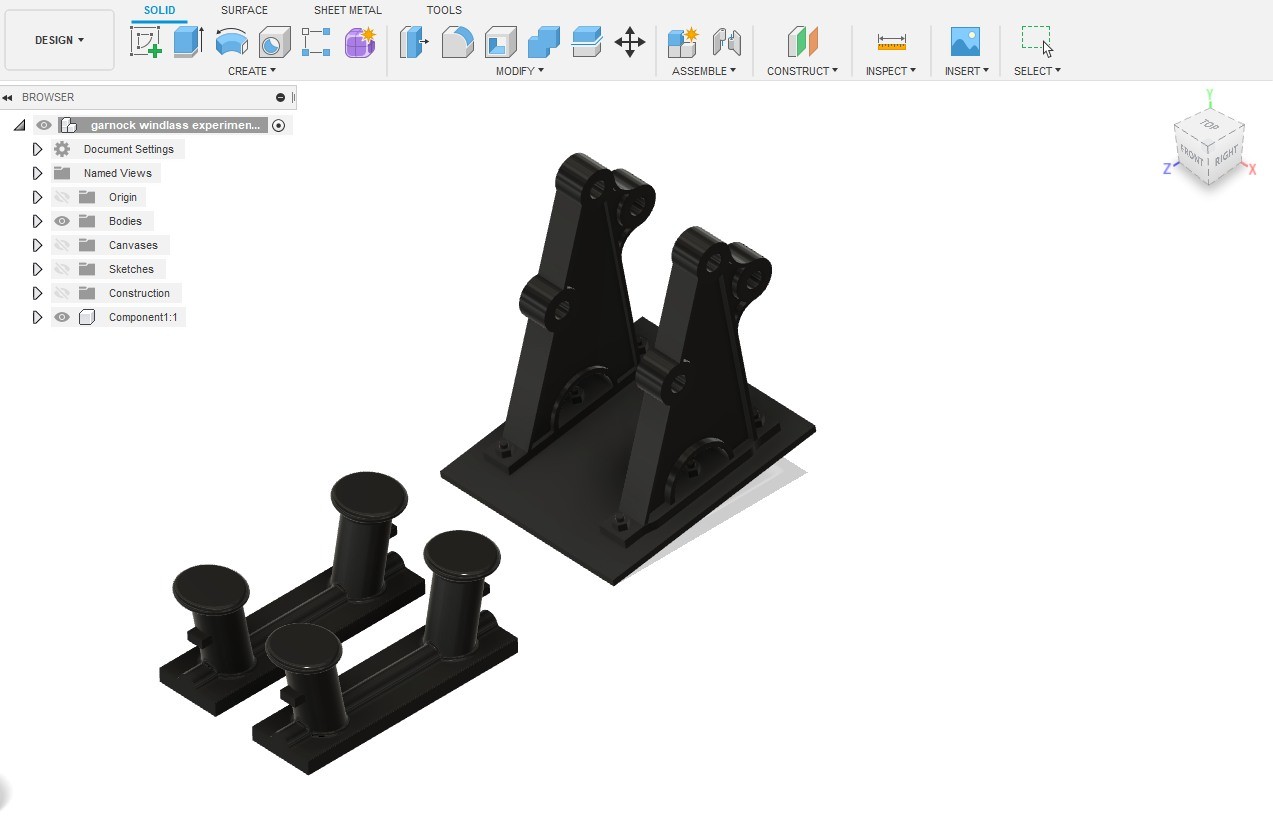

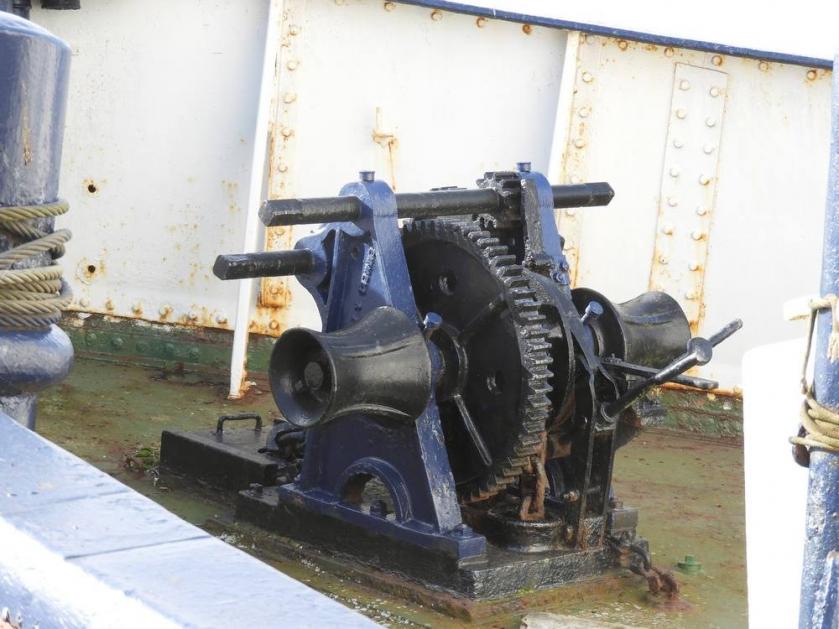

                                I was looking at resin printing for some fittings for a very small tug I made. Most parts have been hand made, just a small number of bits would benefit from 3d printing namely the bollards and the anchor windlass. The scale is very small at around 1/140, so I wondered if the resin printer could resolve detail on gears this size as i know it's well beyond the scope of FDM. The height of windlass is only about 5mm, I think the frames would be easy to render, but not sure the gear teeth would come out, as they'll be tiny.

                                Click image for larger version

Name:	windy.JPG
Views:	37
Size:	69.4 KB
ID:	142990

                                Click image for larger version

Name:	Untitled 1.jpg
Views:	43
Size:	88.0 KB
ID:	142987
                                Attached Files
                                DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

                                Comment
