  • crazygary
    replied
    Got the rudder set up! Carefully measured, marked and drilled through the top of hull and down through the
    lower rudder pivot point. Used a 1/32" diameter drill bit as I'll be using a 1/32" pin to pivot the rudder on!
    (Kinda makes some sense, no!!?)

    Drill that hole first, then the rudder can be put into place so you can drill through that,too! (Big fun! NOT!)
    Click image for larger version

Name:	rudder pin.jpg
Views:	1
Size:	91.8 KB
ID:	89991

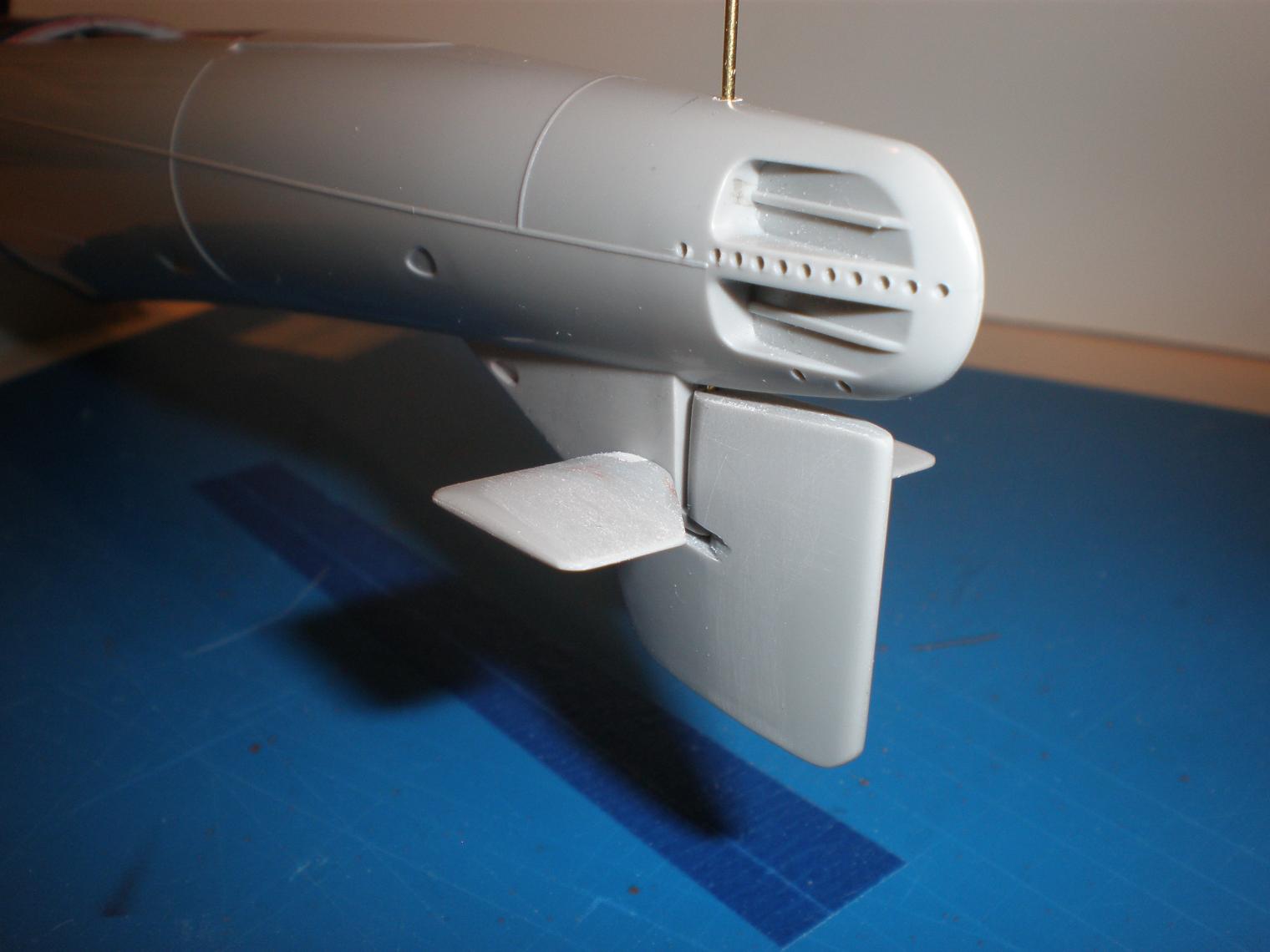

    However, due to the extremely small amount of room inside the hull way back there, the rudder linkage
    will also be a "through-the-hull" arrangement! More info to follow when I git 'er done!!


    Quite a bit of sanding and fitting of the rudder is needed in order for it to "play nicely" with the other parts of the puzzle!
    It's a P.I.A. to make happen, but works well! Got about 45 degrees of swing from side to side!! Wow!! Talk about "evasiveness"!! YEEEhah!!
    Click image for larger version

Name:	rudder.jpg
Views:	1
Size:	82.7 KB
ID:	89992

    Here's a photo of the "whole enchilada", as far as controls go!!!
    Click image for larger version

Name:	aft controls.jpg
Views:	1
Size:	85.6 KB
ID:	89993

    This one shows that the "port plane is now the starboard plane"!! (Ya had ta be there!!)
    Click image for larger version

Name:	stbd plane link.jpg
Views:	1
Size:	86.0 KB
ID:	89994

    That is all! Tune in tomorrow as the "crazy one" here attempts to fab up linkage so we can make turns, and go up-and-down!!

    crazygary, out!

    Leave a comment:


  • crazygary
    replied
    Just a quick "plan" change to my last post regarding the aft diving planes!

    Now hear this....! The port plane is now the starboard plane!! That is...the port plane is now the starboard plane!!

    How come, Grasshopper?? Well, cuz' that extra little bit fer the operating linkage is interfering with the rudder!! Cain't be there!! (Duh!!)

    Fortunately, the aft planes are interchangeable from one side to the other!!

    TA-DAAA!! Problem solved!!

    Back shortly with the rudder info!!

    crazygary, out!

    Leave a comment:


  • crazygary
    replied
    I chose the aft dive planes for this mornings adventure!

    First thing that needed to be done was to eliminate the square mounting lugs on either side of the "skeg", and fill in the
    corresponding square recesses in the dive planes themselves. The red arrows point out the areas in question.
    Click image for larger version

Name:	aft planes 1.jpg
Views:	1
Size:	94.2 KB
ID:	89987

    Prior to removal of the "square pegs", I drilled, very carefully, through the center of them to assure proper positioning of
    the dive planes. Pin vised a 3/64" drill bit through first, and followed that up with a .064" diameter drill bit. I chose to go
    with a 1/16" diameter shaft as the thickness of the "skeg" is just under 1/8", and want as much "rigidity" as possible.

    Here the "square pegs" have been removed, and the dive planes filled in. I used some styrene I had laying around to fill them in,
    and left the filler piece on the portside plane a little longer so I can insert the operating linkage, which will be "through-the-hull"! I may not have left enough, but will find out later!!
    Click image for larger version

Name:	aft planes 2.jpg
Views:	1
Size:	93.5 KB
ID:	89988
    I used the same procedure to drill the shaft holes in the dive planes
    except the holes were drilled with a 1/16" drill for a nice fit with the 1/16" diameter shaft.

    Next photos show the 1/16" shaft in place and the assembly of the dive planes.
    Click image for larger version

Name:	aft plane pin.jpg
Views:	1
Size:	94.2 KB
ID:	89989Click image for larger version

Name:	aft plane assy.jpg
Views:	1
Size:	82.7 KB
ID:	89990

    Off to "tackle" the rudder next! Will be using 1/32" diameter brass wire for the rudder shaft as I'm still
    having to deal with a pretty narrow assembly!!

    Film at eleven!! Hah!!

    crazygary, out!

    Leave a comment:


  • crazygary
    replied
    Piece of cake!!! NOT!!!!!

    But, us old poop machinists can handle whatever gets thrown our way!!

    Hardy old dawgs we are!! AAAAARGH!!

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    Originally posted by crazygary
    Fairleads???? Was ist los???

    Being relatively new to the sub world, are the fairleads the parts that attach to the hull where the prop shafts exit??

    If those are what you're referring to, I'll need to cut off the injection molded prop shafts and drill through for 1/16"
    brass shafts. Si?? No??
    A fairlead is any fixed item that passes a line or shaft that has to move within with minimum friction. With the running gear on your little GATO, the strut bearing and stern tube fairleads the propeller shaft.

    Yeah, you'll have to bore those out to pass the 1/16" propeller shaft.

    M

    Leave a comment:


  • crazygary
    replied
    WTC saddles have been "massaged" so that my 1 1/4"SD sits in there pretty nicely!
    A little hobby knifing, a little filing, a little sanding, and she's good to go!

    Forward saddle looking aft...
    Click image for larger version

Name:	fwd saddle.jpg
Views:	1
Size:	84.9 KB
ID:	89971

    Aft saddle looking aft...
    Click image for larger version

Name:	aft saddle.jpg
Views:	1
Size:	84.3 KB
ID:	89972

    The SD from my little 1:230 Skipjack will be driving the Gato, too!
    Will have to lengthen one of the tubes so it overlaps the two saddles. As it is now, only 1 of the saddles is holding the SD. Got a foot of
    1 1/4" lexan tubing coming from McMaster-Carr! Great place! Their motto should be, "If we don't have it, you don't need it"!

    Top view of SD installation...
    Click image for larger version

Name:	SD ctr.jpg
Views:	1
Size:	91.1 KB
ID:	89973

    Forward saddle with SD...
    Click image for larger version

Name:	SD fwd.jpg
Views:	1
Size:	82.4 KB
ID:	89974

    Aft saddle with SD...
    Click image for larger version

Name:	SD aft.jpg
Views:	1
Size:	81.9 KB
ID:	89975

    Next I'll be working out rear dive plane linkage and rudder linkage. Want to do this now so that
    I can glue the hull halves together. I won't be using the forward dive planes, as they're probably
    gonna make for a pretty unstable sub. However, I'm kind of thinking I'll make them manually
    retractable for show, and fold them up for "go"!!

    Too much fun stuff here!

    crazygary, out!

    Leave a comment:


  • crazygary
    replied
    Fairleads???? Was ist los???

    Being relatively new to the sub world, are the fairleads the parts that attach to the hull where the prop shafts exit??

    If those are what you're referring to, I'll need to cut off the injection molded prop shafts and drill through for 1/16"
    brass shafts. Si?? No??

    Leave a comment:


  • crazygary
    replied
    Roger that. M!!
    Many thanks!

    Leave a comment:


  • crazygary
    replied
    Roger that. M!!
    Many thanks!

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    The plastic is a fine bushing here, and don't apply any lubricate -- it will screw up the later putty, primer, and paint work. The only real loads on the shafts are axial and they are presented to the motor and idler gear bearings (a flat-head machine screw serves as an astern thrust bearing for the free-floating idler gear). The stern tube (that the proper term, not stuffing tube -- were not stuffing anything in there!) and strut 'bearings' only see lateral loads and those are small if you bore those plastic fairleads with .068" holes. Propeller shafts are .062" brass or stainless rod.

    M

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    The plastic is a fine bushing here, and don't apply any lubricate -- it will screw up the later putty, primer, and paint work. The only real loads on the shafts are axial and they are presented to the motor and idler gear bearings (a flat-head machine screw serves as an astern thrust bearing for the free-floating idler gear). The stern tube (that the proper term, not stuffing tube -- were not stuffing anything in there!) and strut 'bearings' only see lateral loads and those are small if you bore those plastic fairleads with .068" holes. Propeller shafts are .062" brass or stainless rod.

    M

    Leave a comment:


  • crazygary
    replied
    Wasn't sure if the plastic props would actually function as needed!!

    Apparently they will!!?

    Still need to incorporate some brass tubing and prop shafting. I'll want to bush the stuffing tube areas of the struts so a prop shaft can
    spin in there without f*#*#*g up the plastic.

    Later for that!

    Back to the drydock!

    Leave a comment:


  • He Who Shall Not Be Named
    replied
    For Christ's Sake!.... what the hell's the problem using the kit provided propellers!?????.......

    KISS, ******!.... KISS!

    Less talki-talki. More workie-workie!

    M

    Leave a comment:


  • crazygary
    replied
