  • 1/32 scratchbuilt U571

    started with the DKM blueprints of a type VIIc and a Revell 1/72 as a guide for approximate measurements and detail I used PVC and wood to build the hull
    Click image for larger version

Name:	boat 006.jpg
Views:	2
Size:	90.5 KB
ID:	101608Click image for larger version

Name:	boat 007.jpg
Views:	1
Size:	86.6 KB
ID:	101609

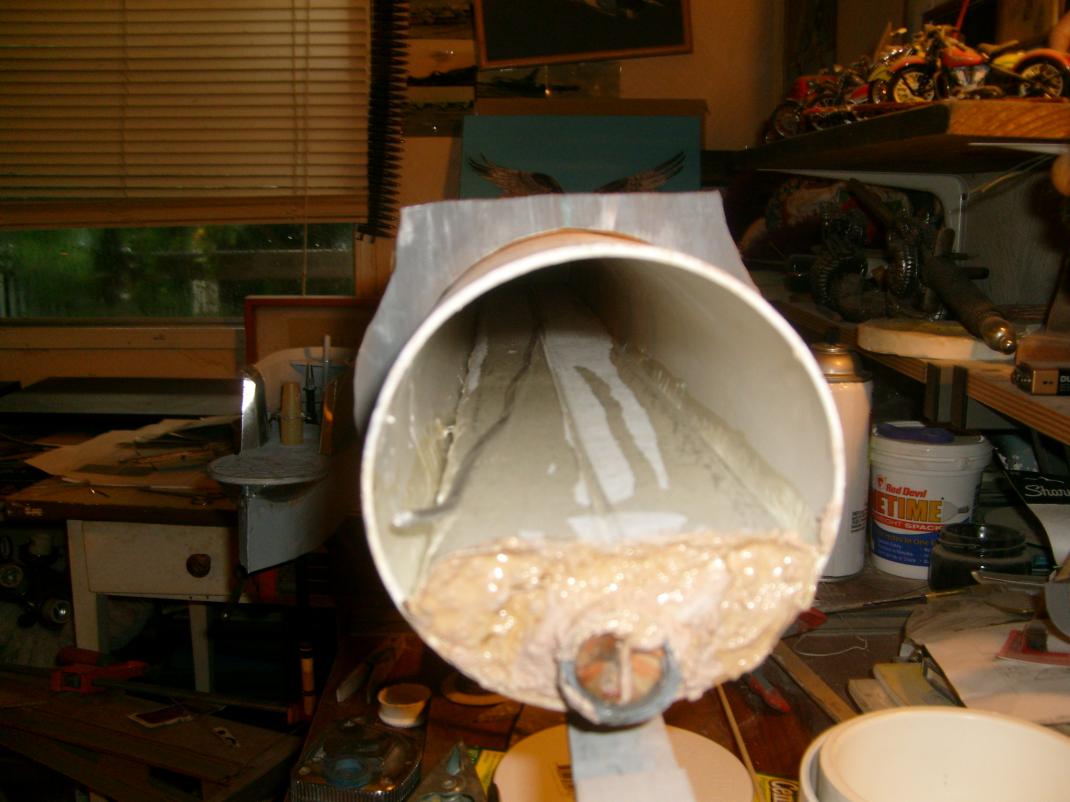

    a piece of scrap aluminium for the compartment deck with $6 of pennies in a pvc pipe for ballast in the center section
    Click image for larger version

Name:	018.jpg
Views:	1
Size:	89.7 KB
ID:	101610Click image for larger version

Name:	Ukeel.jpg
Views:	1
Size:	64.1 KB
ID:	101611

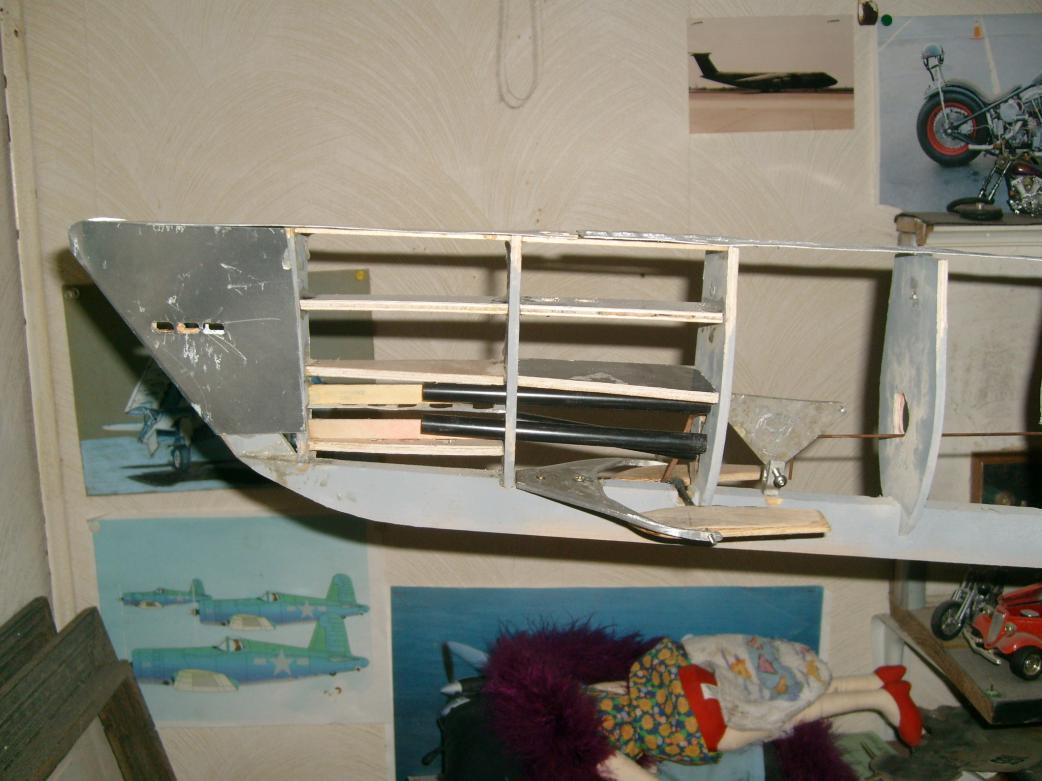

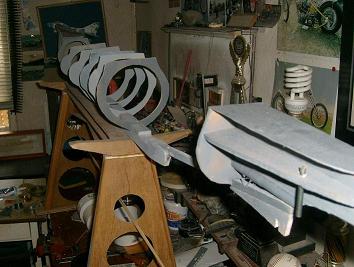

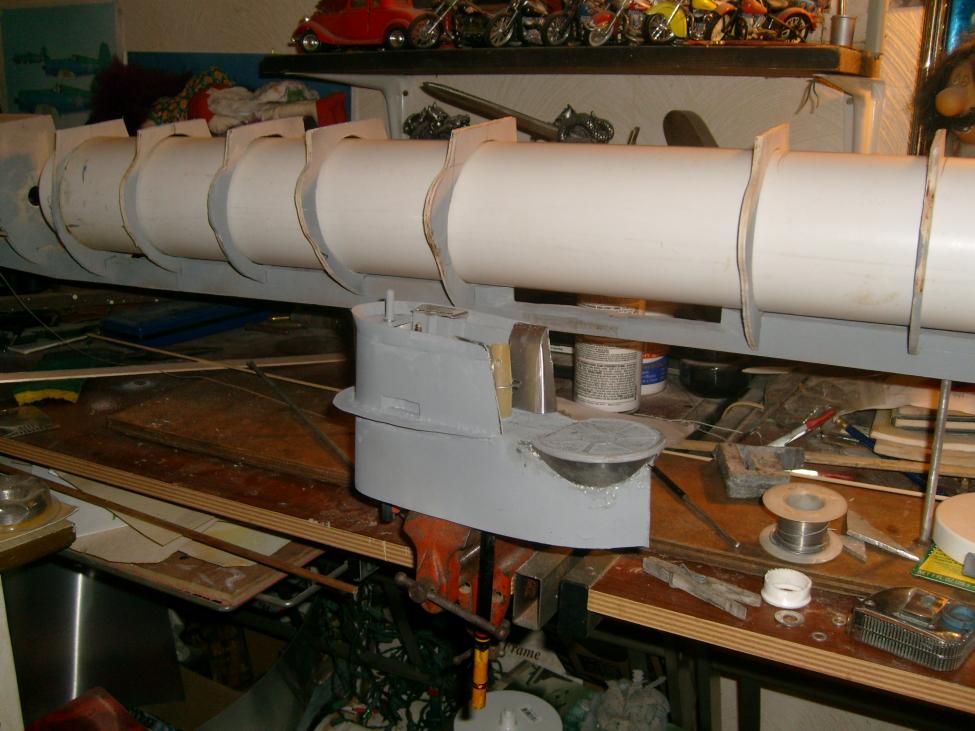

    constructed the framework for the basic bow and stern
    Click image for larger version

Name:	262.jpg
Views:	1
Size:	86.1 KB
ID:	101612Click image for larger version

Name:	boat 003.jpg
Views:	1
Size:	86.9 KB
ID:	101613

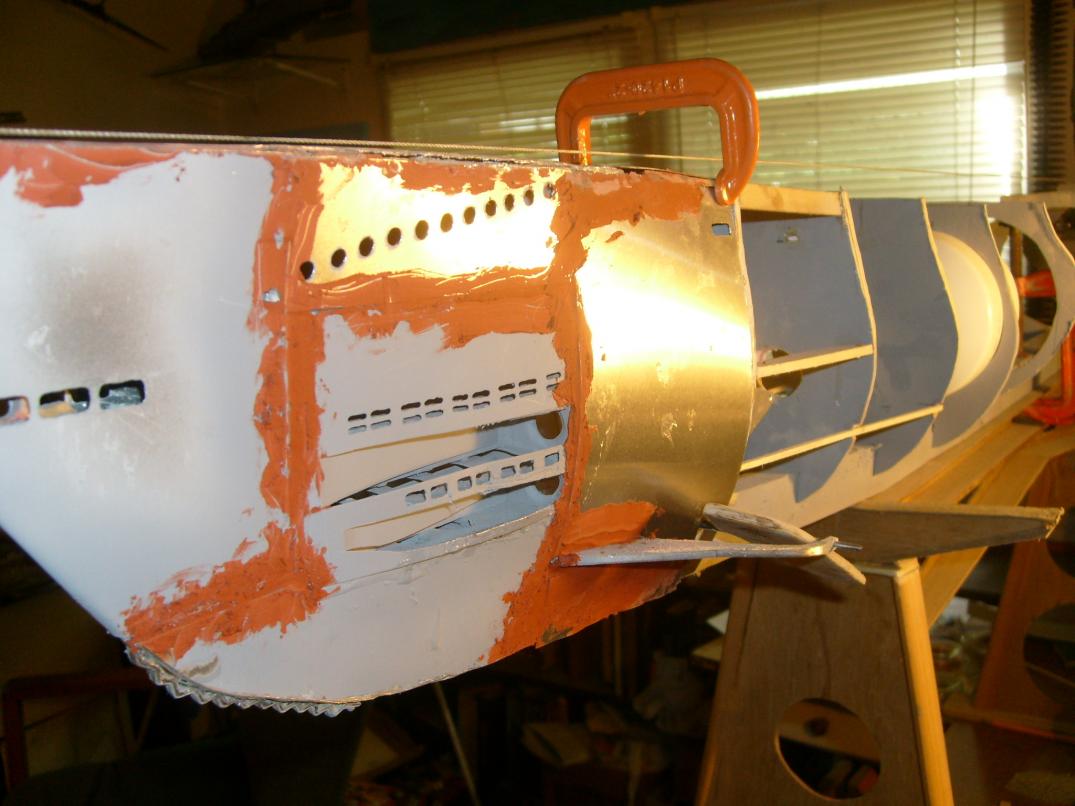

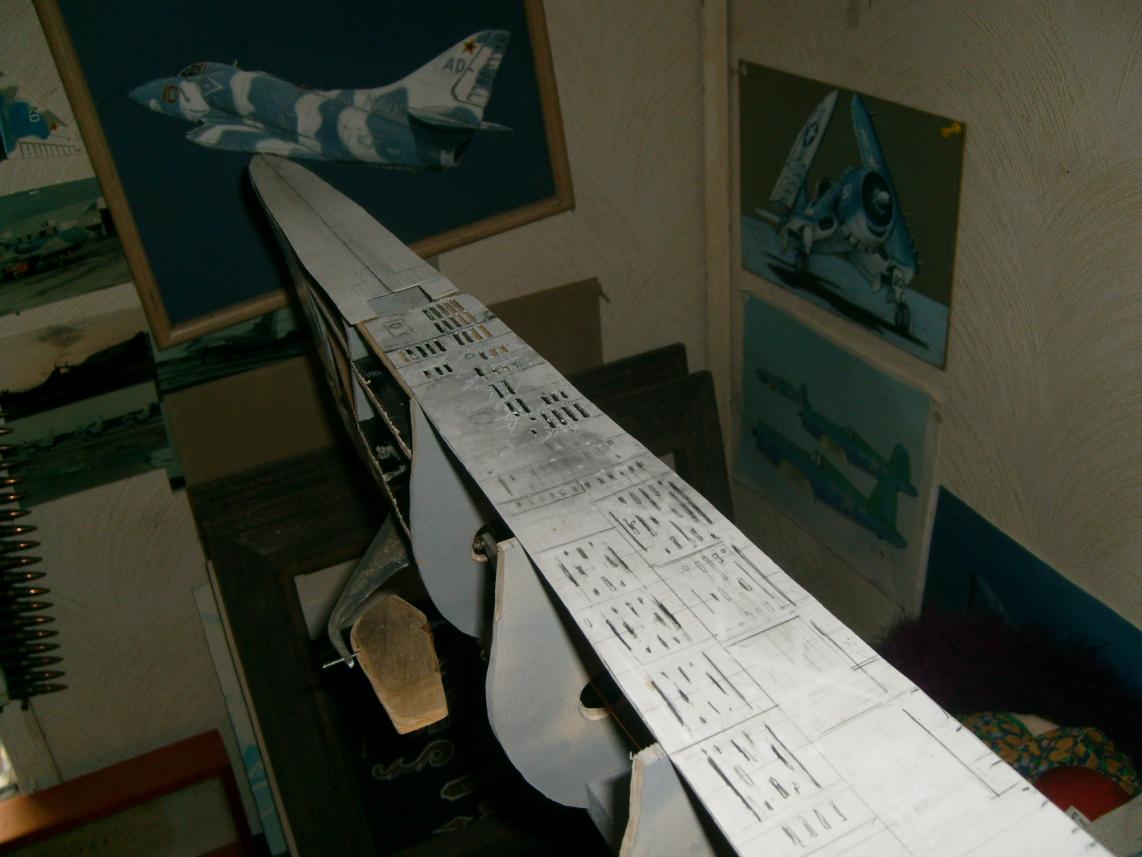

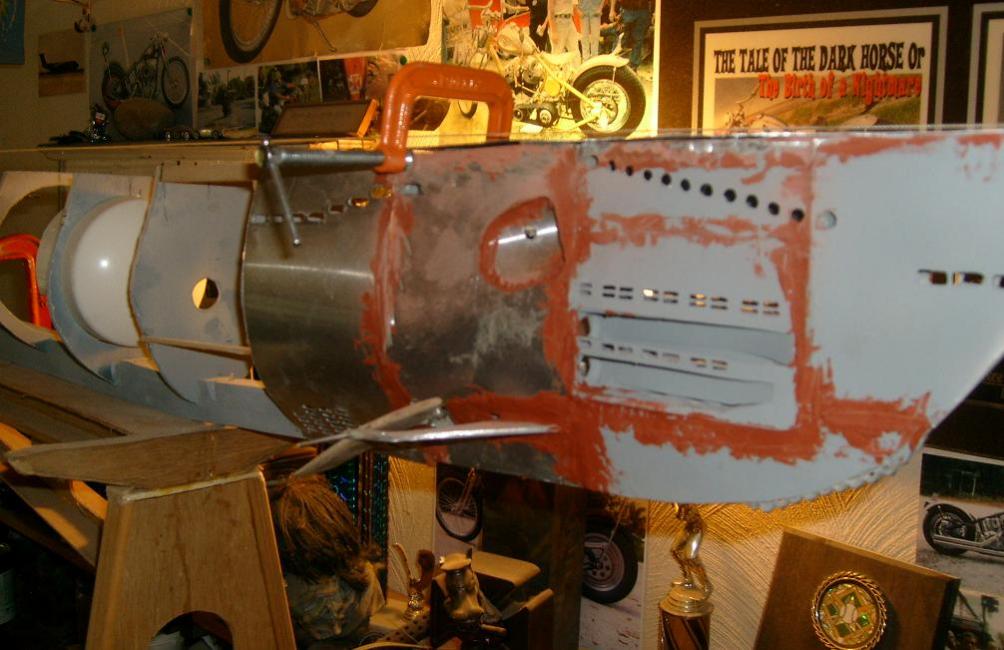

    sheeting the hull with aluminium flashing after making construction paper, templates and cutting holes with a dremmel before gluing with epoxy and filling seams with auto body glazing putty
    Click image for larger version

Name:	foredeck.jpg
Views:	1
Size:	87.8 KB
ID:	101614Click image for larger version

Name:	019.jpg
Views:	1
Size:	94.2 KB
ID:	101615

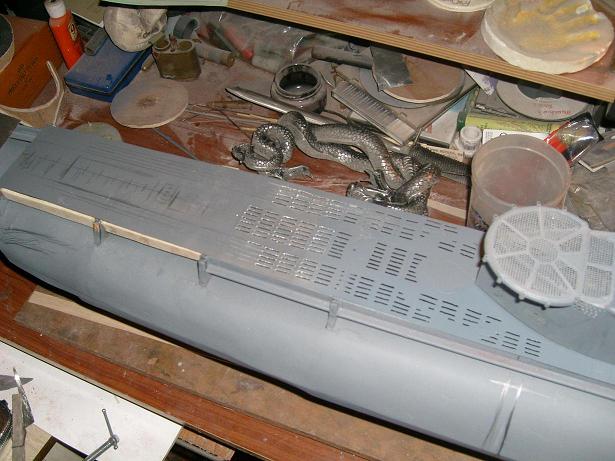

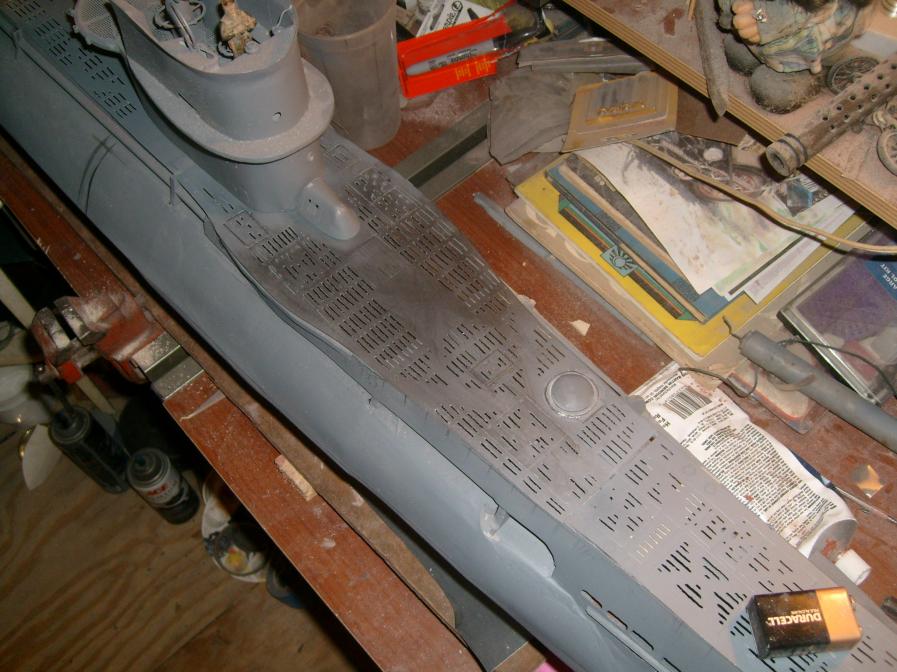

    deck sections were cut from aluminium flashing with the holes cut with the dremmel
    Click image for larger version

Name:	boot 001.jpg
Views:	1
Size:	94.7 KB
ID:	101616Click image for larger version

Name:	boot 002.jpg
Views:	1
Size:	94.0 KB
ID:	101617Click image for larger version

Name:	tower1.jpg
Views:	1
Size:	90.1 KB
ID:	101618Click image for larger version

Name:	boat 004.jpg
Views:	1
Size:	90.4 KB
ID:	101619

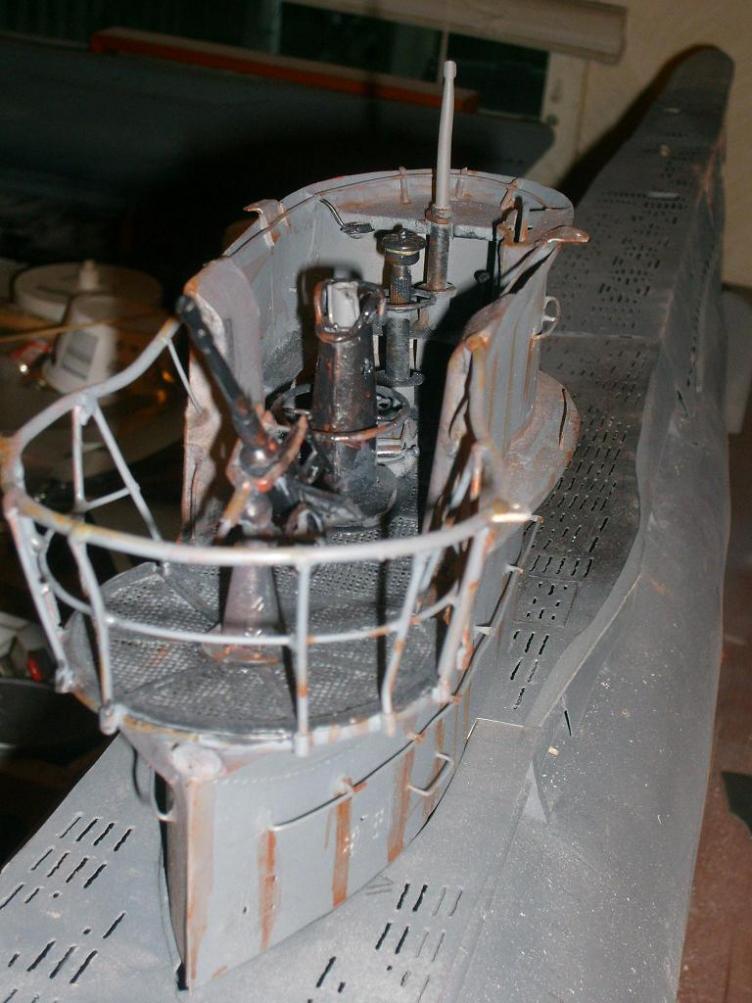

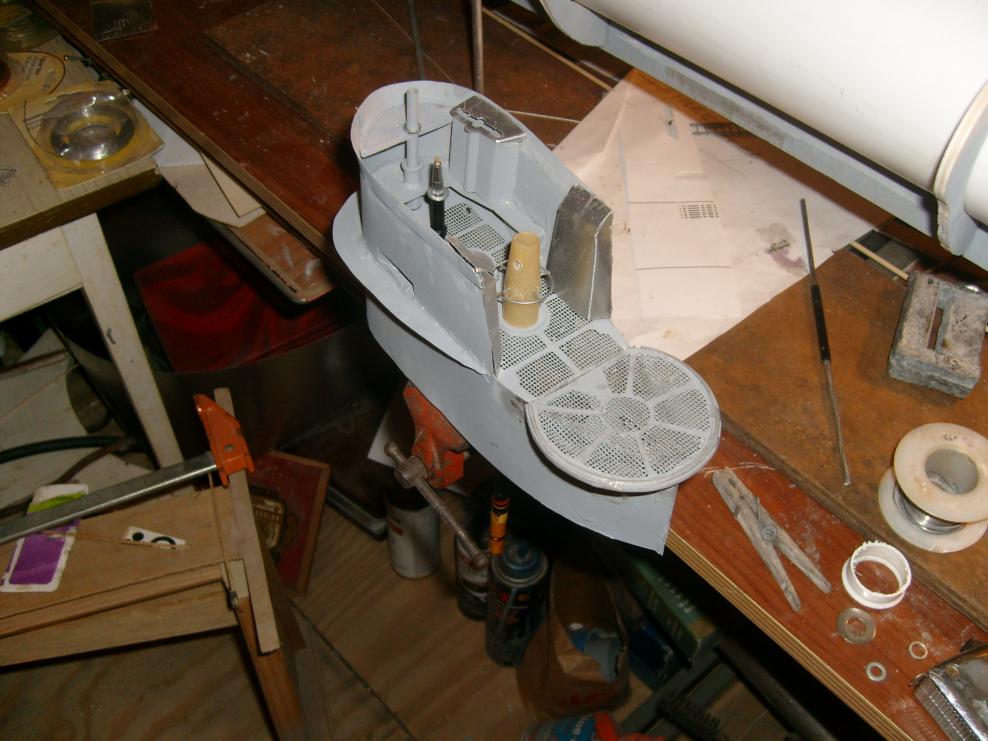

    first attempt at the tower
    Click image for larger version

Name:	bow detail 001.jpg
Views:	2
Size:	97.0 KB
ID:	101620Click image for larger version

Name:	bow detail 002.jpg
Views:	2
Size:	95.5 KB
ID:	101621Click image for larger version

Name:	bow detail 003.jpg
Views:	2
Size:	95.1 KB
ID:	101622

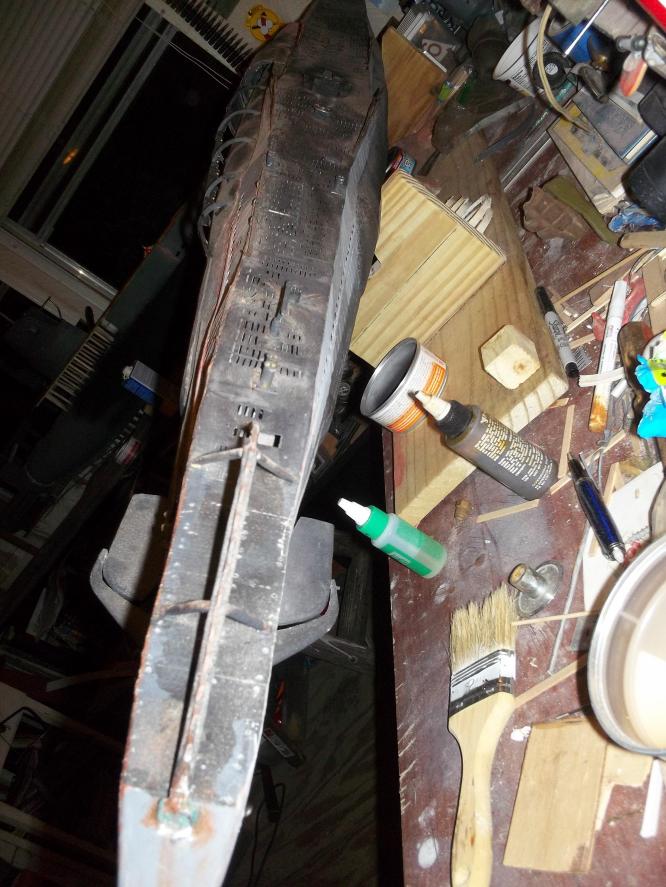

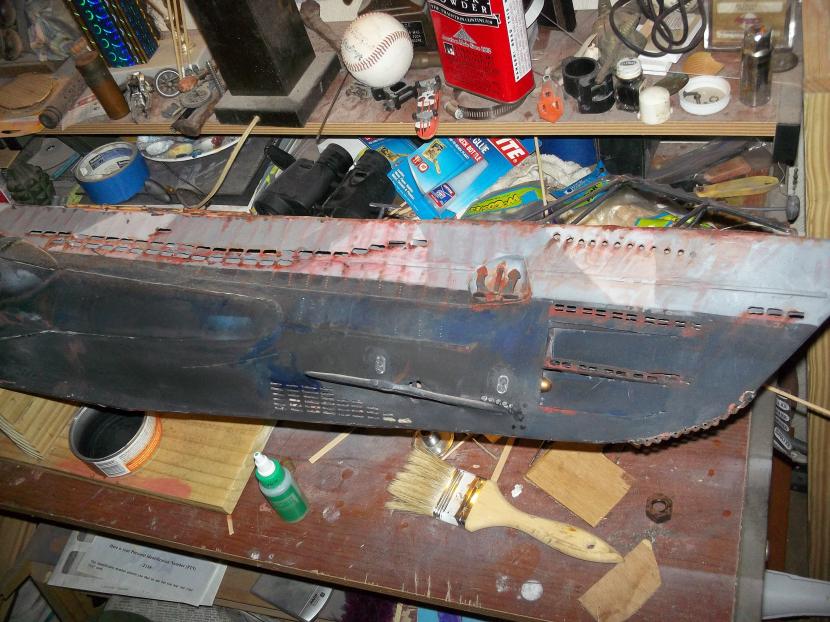

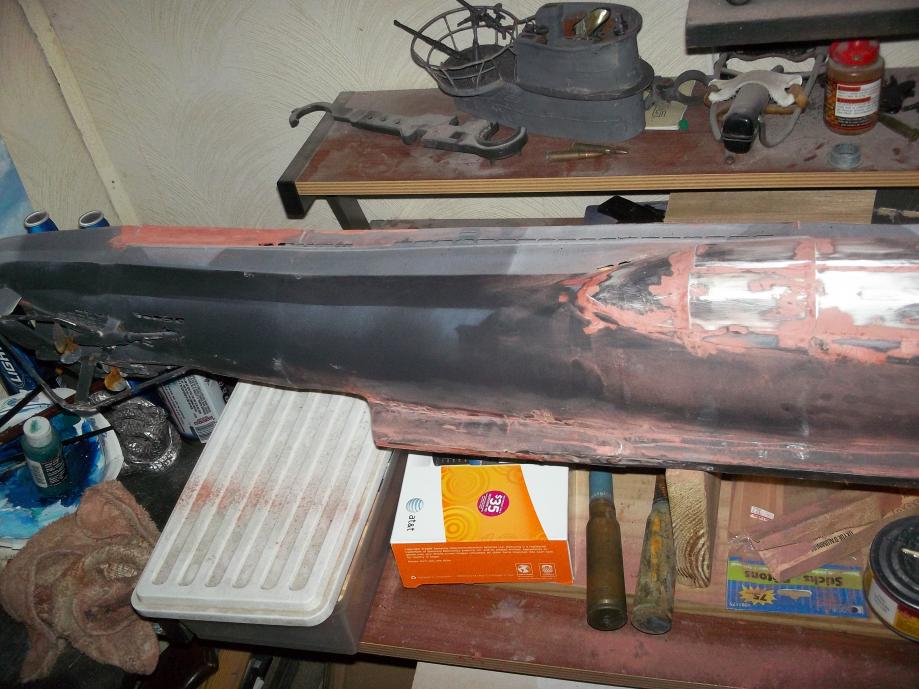

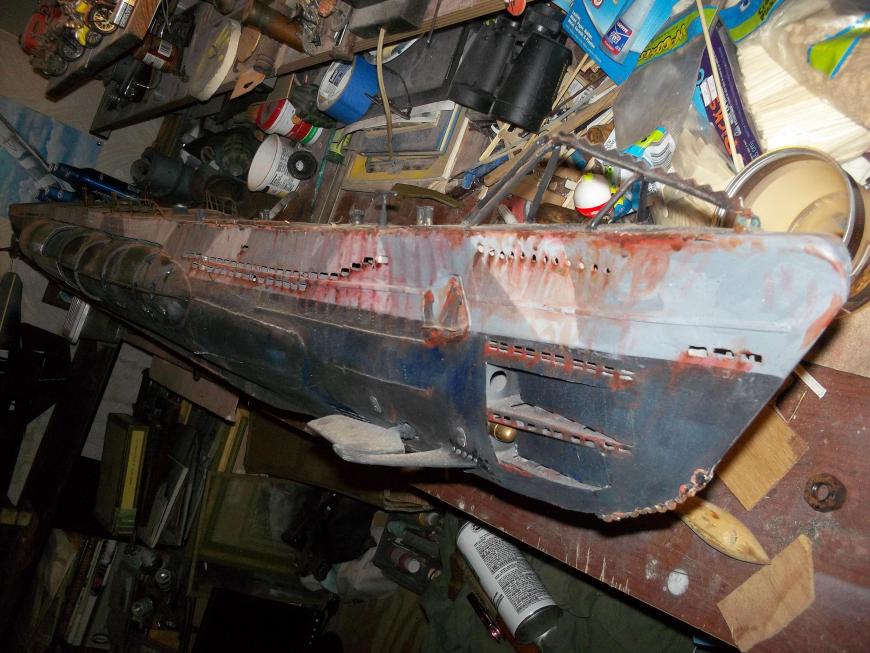

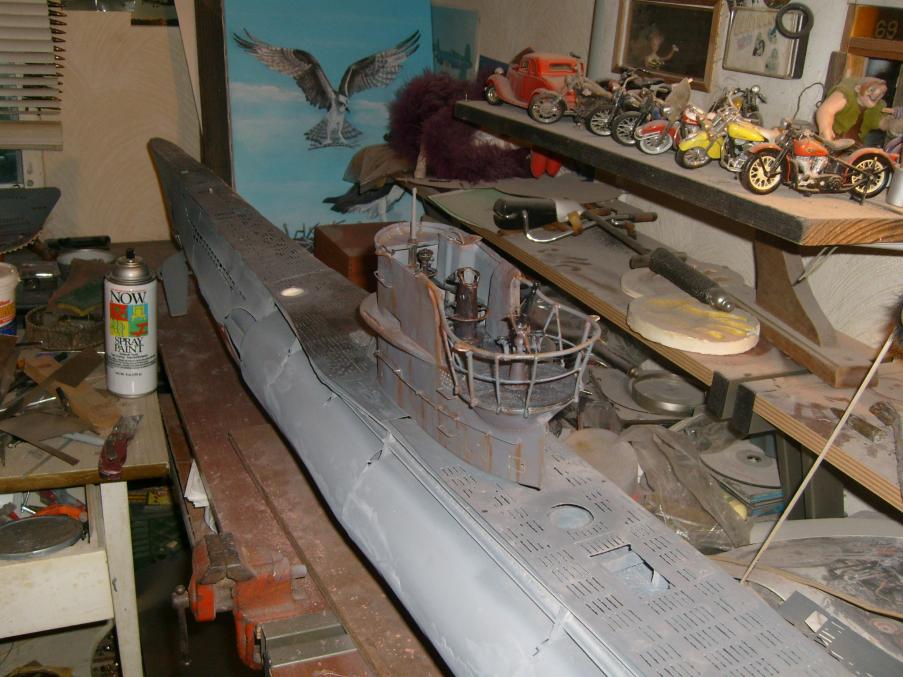

    various shades of auto primer to seal the aluminium and some acrylac, dry brushed for weathering, then will be wet sanded.
    Click image for larger version

Name:	bow detail 005.jpg
Views:	2
Size:	93.8 KB
ID:	101623Click image for larger version

Name:	bow detail 006.jpg
Views:	1
Size:	96.0 KB
ID:	101624Click image for larger version

Name:	bow detail 004.jpg
Views:	2
Size:	87.3 KB
ID:	101625

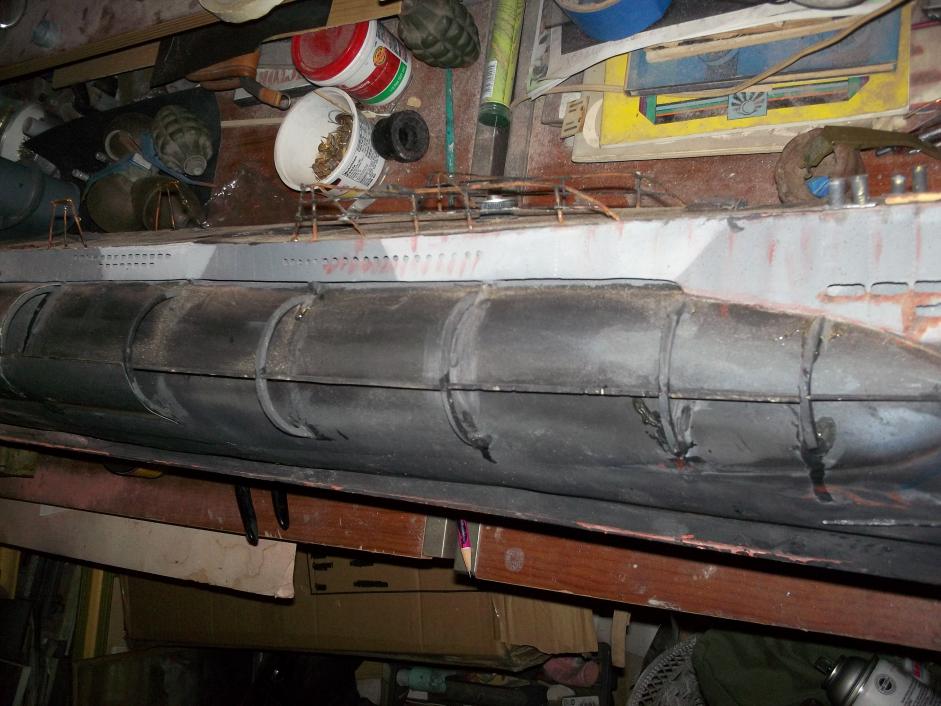

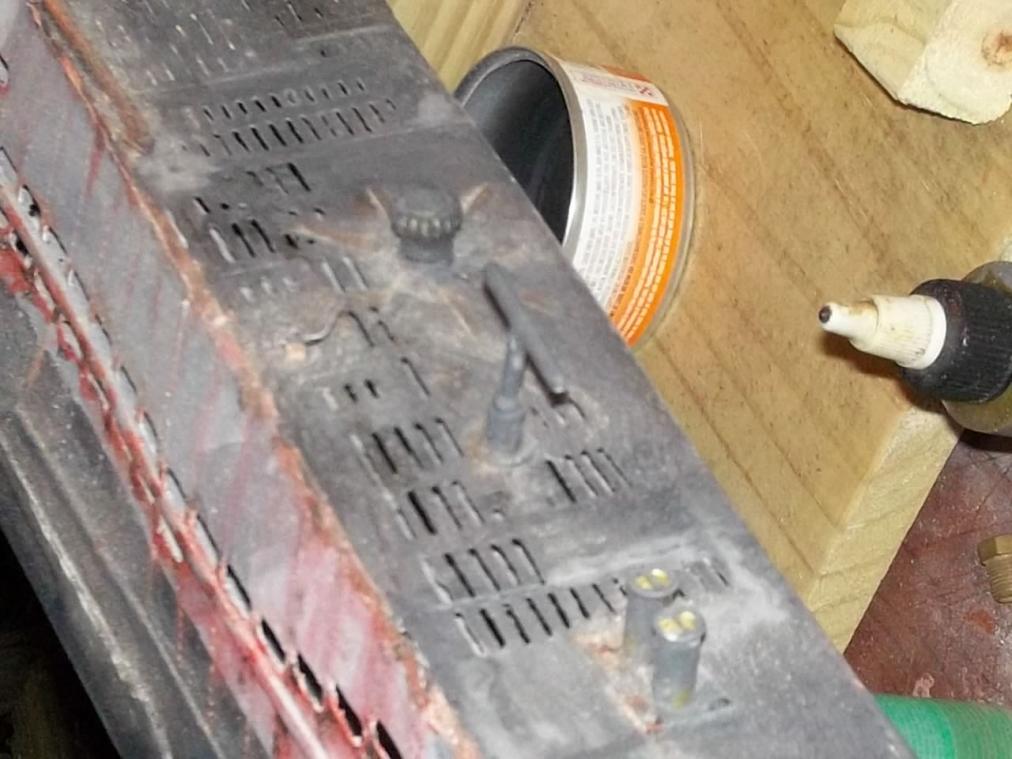

    external balast is framed and sheeted with aluminium. They will be filled with styrofoam and sealed. The internal balast air bleed valve for setting the neutral buoyancy is hooked up to the sound antenna in the deck fwd of the winch. Basiclly a needle valve with a piece of plastic sprue epoxyed to the stem at the end of a piece of tubing that vents the main balast. This is so you can pre set how high the boat rides in the water. At this point, my friend, who is the Head of Archiology dept at the Mel Fisher Marine museum, in Key West, stopped by to look at some u boat models for a possible WWII display. When he saw this one he wanted it, so all the work in design for power/controls/driver instalation ect is out the window, and its destined for display. I'll use the money to get one of those new 3" drivers and radio gear for the big 1/24 type II im building, or maby just a driver and equipment for one the 1/72 type VII boats of which I have several of, that could be equipped. Also 1/72 type IXD vacuformed hull, as well. I could get one driver and interchange hulls for the operating experienc while I save up and plan for the big boat. Anyway Ill keep Updating this build as I add detail untill I actually have the money in hand to let it go. As it is, the shafts are in place as well as all the belcranks and rods for dive planes and rudders. All I would have to do is remove a section of rear deck to access the hull for driver instalation. The tower is removable to be able to change the two styles I have built already, So if I end up keeping the boat I can change them out, and may even build a 3rd tower with the extra wintergarden for a flak boat type VII
    Last edited by Von Hilde; 01-22-2012, 08:13 AM.

  • #2
    An unconventional approach. Interesting.

    David
    "... well, that takes care of Jorgenson's theory!"
