    S.M. U9 - Das Werk - 1/72 (static)

    After the little UB1 project it's time for something bigger again. As a big fan of the German Imperial Navy submarines I instantly fell in love with the S.M. U9 kit by Das Werk in 1/72 scale and bought it right away when it hit the stores. RC Subs provides an excellent PE enhancement kit that also went into the shopping card. And now I feel like getting this boat done.

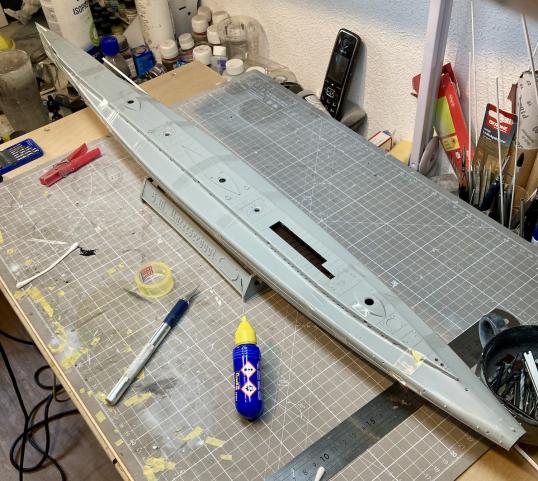

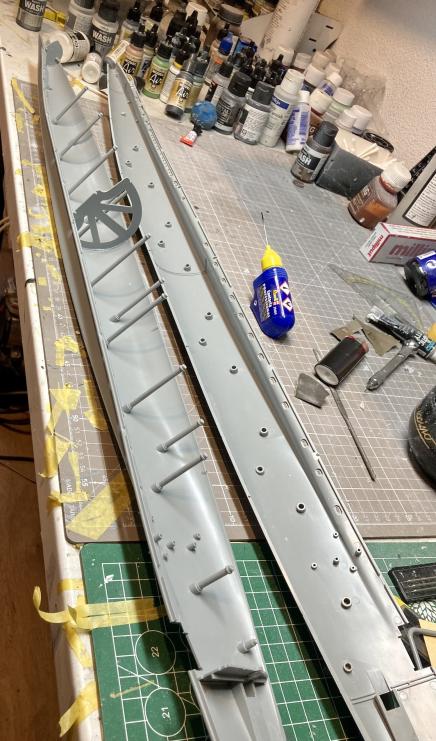

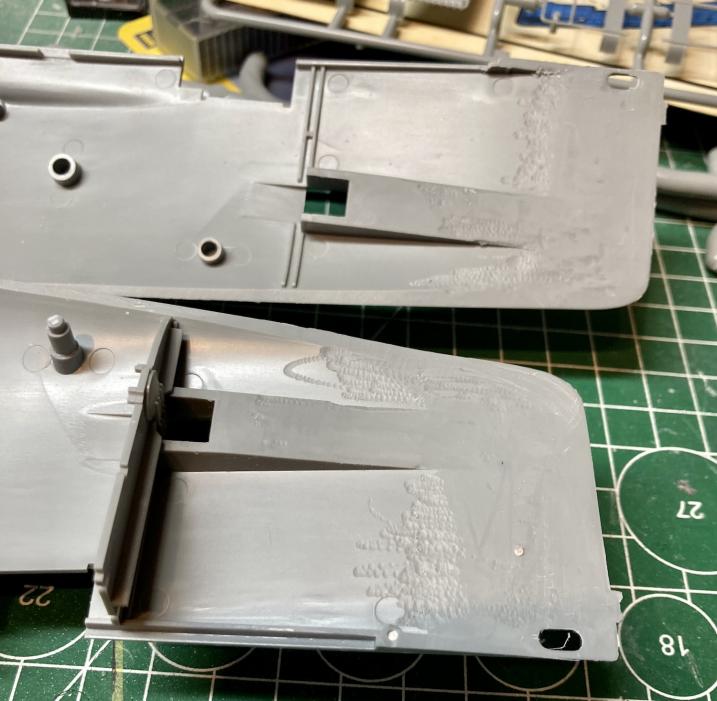

    First part of the build is joining the halves of the hull. The hull is detailed quite beautifully and has an excellent fit. But I knew from other build blogs and also from the manual of the RC Subs PE kit, that the bow is much too wide., about 3-4 mm. In reals that would have meant a bow with 25 - 30 cm width (10-12 Inches). Now way. So the first thing I did was to thin down the bow line and adjust the hull line back to the muzzle door bulkhead. In the end I came up with a bow of about 0,3 mm width, about 20 mm in real. That's O.K.. After that everything was pretty much straight forward: One has to install three bulkheads and a good amount of cross bracings. I glued everything to one hull and joined that hulls provisionally to get a proper alignment of bulkheads and bracings. After letting everything set over night, I glued the two halves together. Looks good so far...

    Click image for larger version

Name:	U9-001.jpg
Views:	388
Size:	56.0 KB
ID:	175668

    Click image for larger version

Name:	U9-002.jpg
Views:	384
Size:	59.4 KB
ID:	175669

    Click image for larger version

Name:	U9-003.jpg
Views:	384
Size:	54.4 KB
ID:	175670

    Click image for larger version

Name:	U9-004.jpg
Views:	388
Size:	72.3 KB
ID:	175671

    Click image for larger version

Name:	U9-005.jpg
Views:	380
Size:	65.0 KB
ID:	175672

    Click image for larger version

Name:	U9-006.jpg
Views:	385
Size:	53.0 KB
ID:	175673

    Click image for larger version

Name:	U9-007.jpg
Views:	378
Size:	47.4 KB
ID:	175674
  • roedj
    Captain
    • Sep 2008
    • 559

    #2
    I, too, like the look of the "older" boats. Your work seems to be very nice but I have questions mainly on your use of the word -- STATIC.

    1) Is this model intended to be a "shelf queen" and never get wet,

    OR...

    2) Are you, somehow, going to cram a bunch of RC stuff in there and get wet?

    Captain Confused
    Born in Detroit - where the weak are killed and eaten.

    Comment

    • DrSchmidt
      Captain
      • Apr 2014
      • 903

      #3
      It's going to be staticdisplay model. So no, it's ot going to be a functional RC model. But I'm working on the SM U1 which will be RC

      Comment

      • redboat219
        Admiral
        • Dec 2008
        • 2722

        #4
        Click image for larger version

Name:	image007.jpg
Views:	433
Size:	57.2 KB
ID:	175712 Click image for larger version

Name:	image003.jpg
Views:	425
Size:	61.4 KB
ID:	175713 Click image for larger version

Name:	image005.jpg
Views:	425
Size:	64.9 KB
ID:	175714 Das Werk 1/72 U9 in pool. Not sure if it's RC
        Make it simple, make strong, make it work!

        Comment

        • DrSchmidt
          Captain
          • Apr 2014
          • 903

          #5

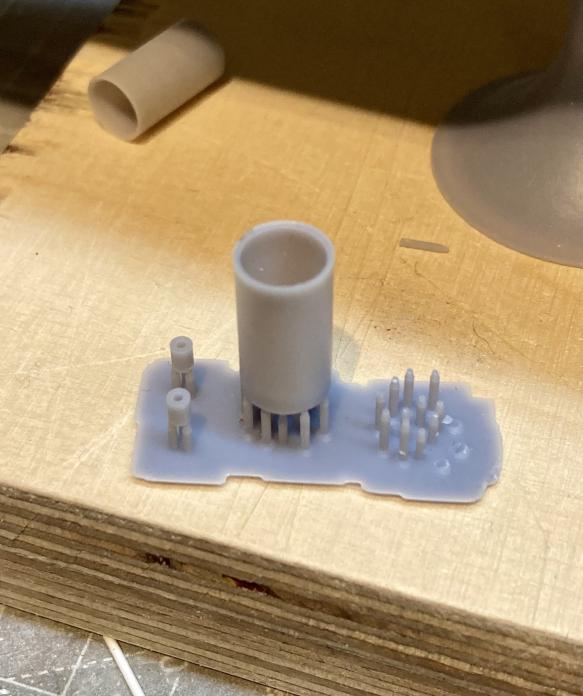

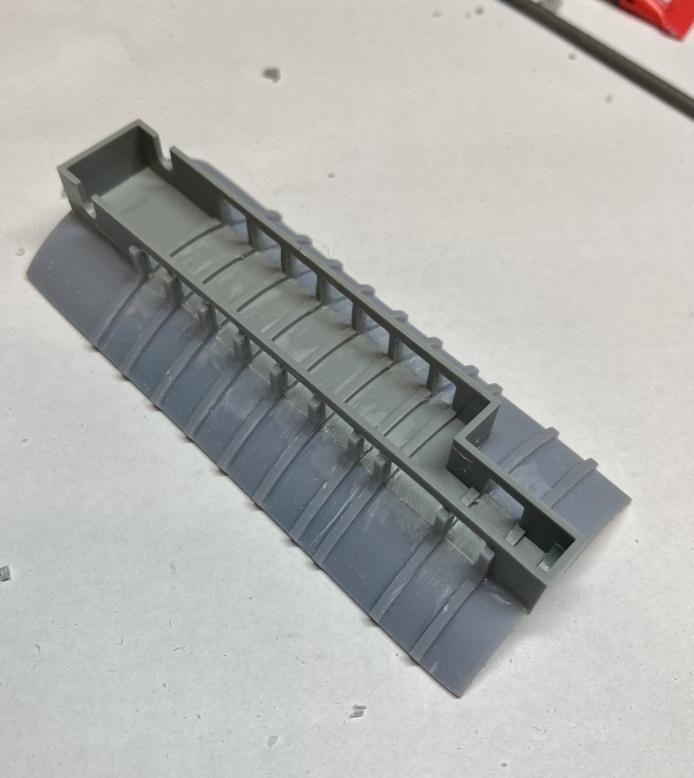

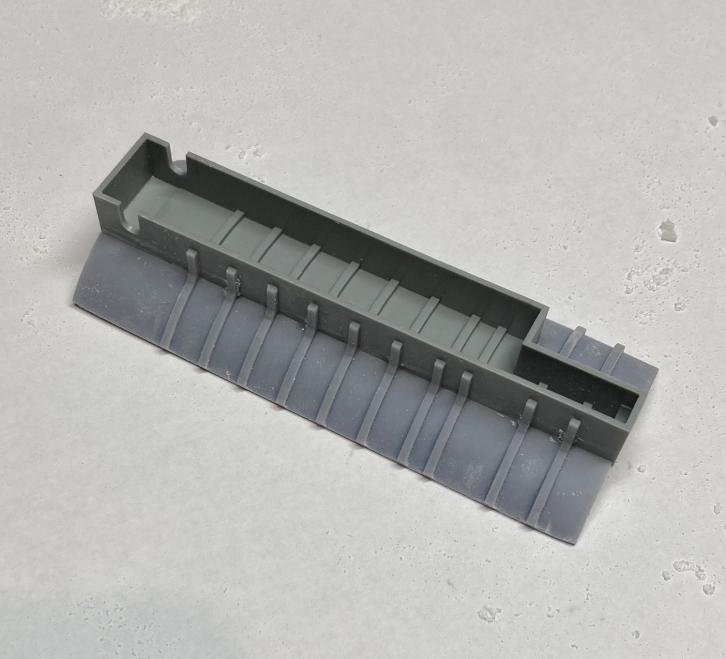

          Before the installation of the deck, I improved the hold for the exhaust mast. It's already a nice part that shows the upper side of the pressure hull, but of course it was not closed but open to deck superstructure. RC Subs offers a replacement, but I took the dimensions of the original part, designed extensions and printed them. They were then glued to the left and right of the styrene part using superglue and then the styrene between the struts was drilled and filed away, Voila, an open structure with a bit more of the pressure hull.

          Click image for larger version

Name:	U9-008.jpg
Views:	343
Size:	36.9 KB
ID:	175722

          Click image for larger version

Name:	U9-009.jpg
Views:	349
Size:	40.2 KB
ID:	175723 Click image for larger version

Name:	U9-010.jpg
Views:	350
Size:	37.8 KB
ID:	175724

          Click image for larger version

Name:	U9-011.jpg
Views:	343
Size:	42.5 KB
ID:	175725

          Click image for larger version

Name:	U9-012.jpg
Views:	341
Size:	41.3 KB
ID:	175726

          Click image for larger version

Name:	U9-013.jpg
Views:	342
Size:	42.8 KB
ID:	175727

          Comment

          • DrSchmidt
            Captain
            • Apr 2014
            • 903

            #6
            I continued with the deck. One has to glue two shafts to the underside of the deck. The shafts are made of three parts and seem to house winches or valves. I'll have to look up their original function. Nevertheless, nice detailing.

            Click image for larger version

Name:	U9-014.jpg
Views:	314
Size:	52.4 KB
ID:	175806

            Click image for larger version

Name:	U9-015.jpg
Views:	330
Size:	61.0 KB
ID:	175807

            Click image for larger version

Name:	U9-016.jpg
Views:	324
Size:	53.4 KB
ID:	175808

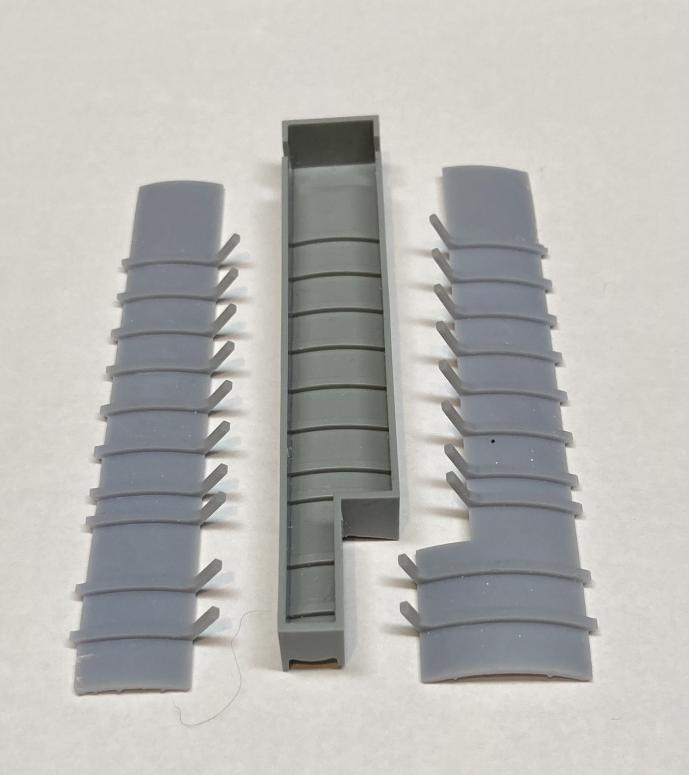

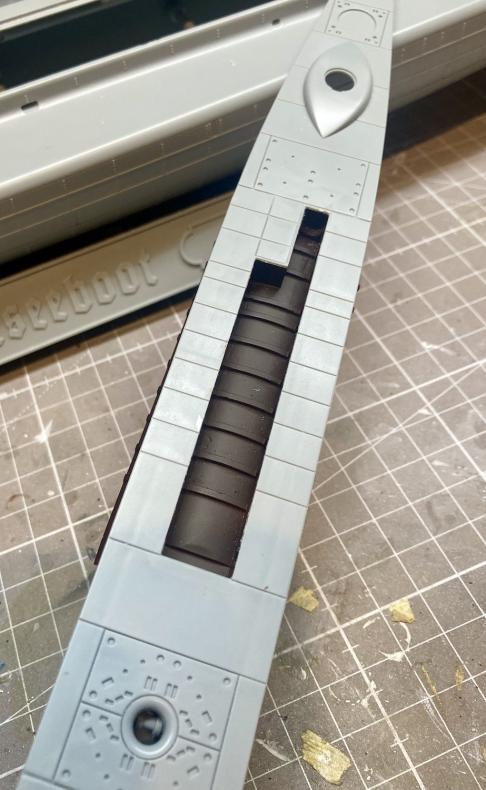

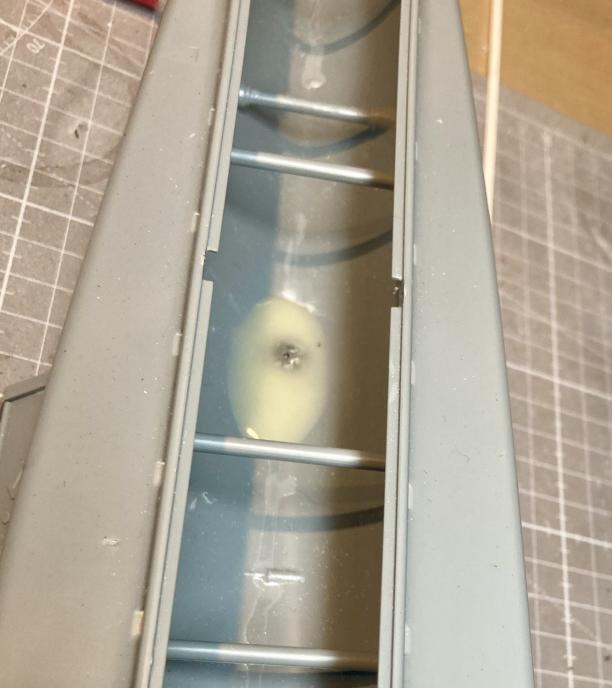

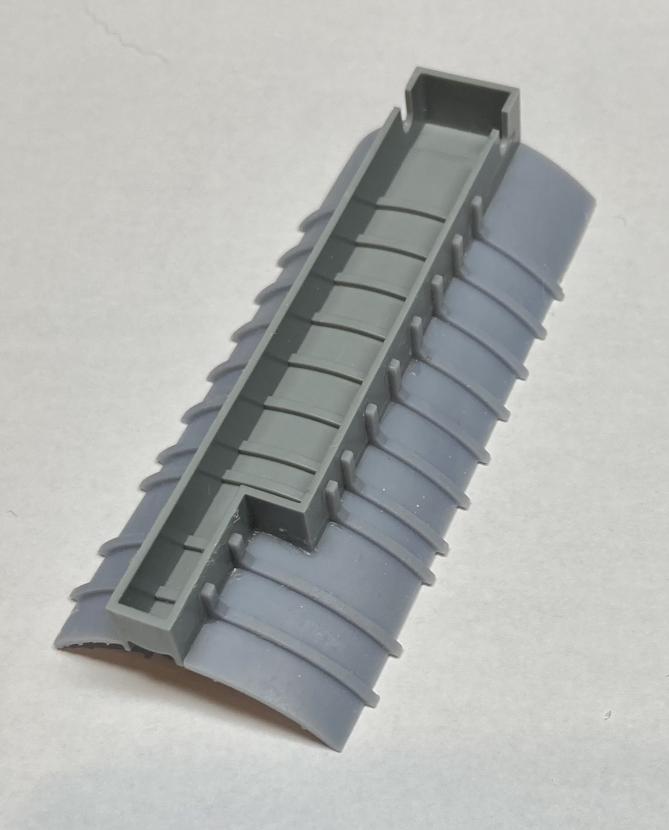

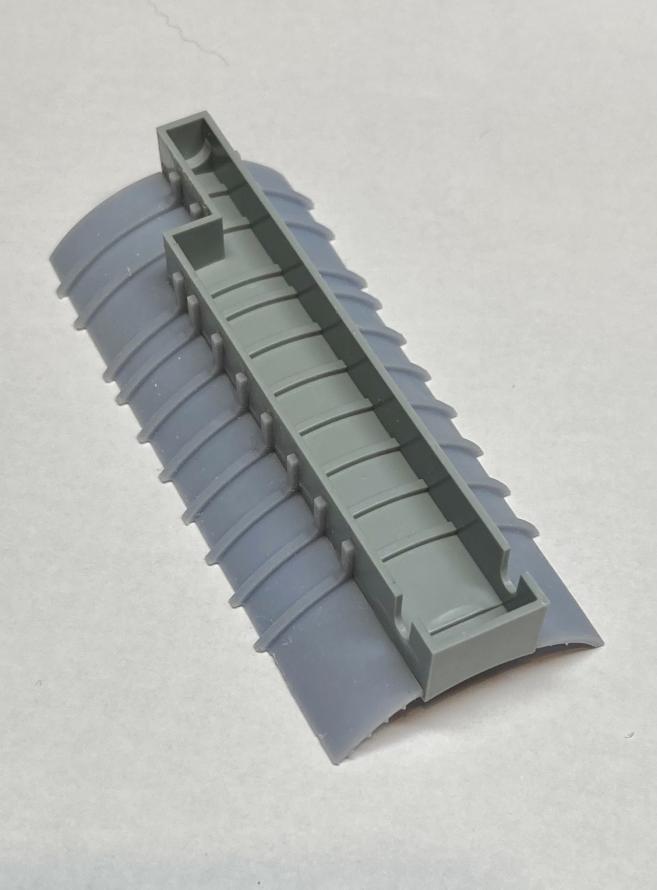

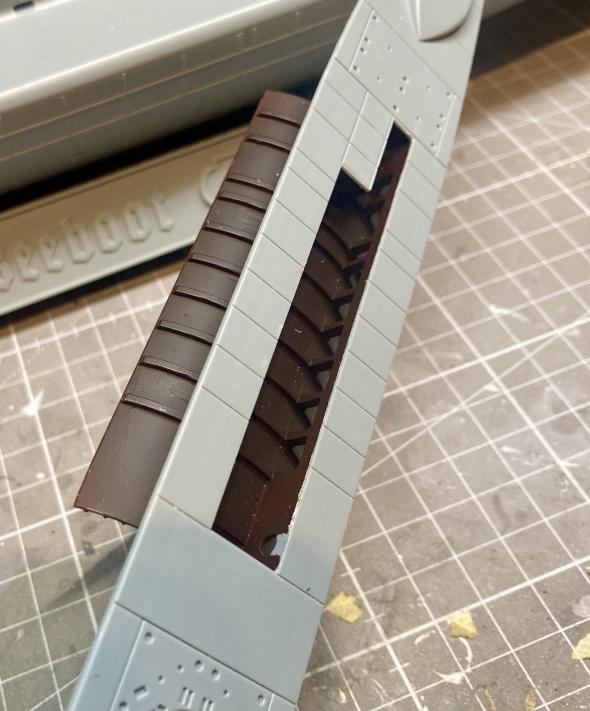

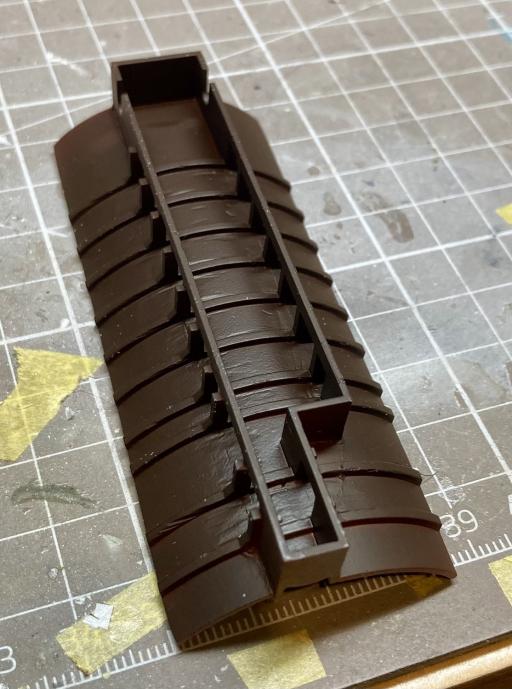

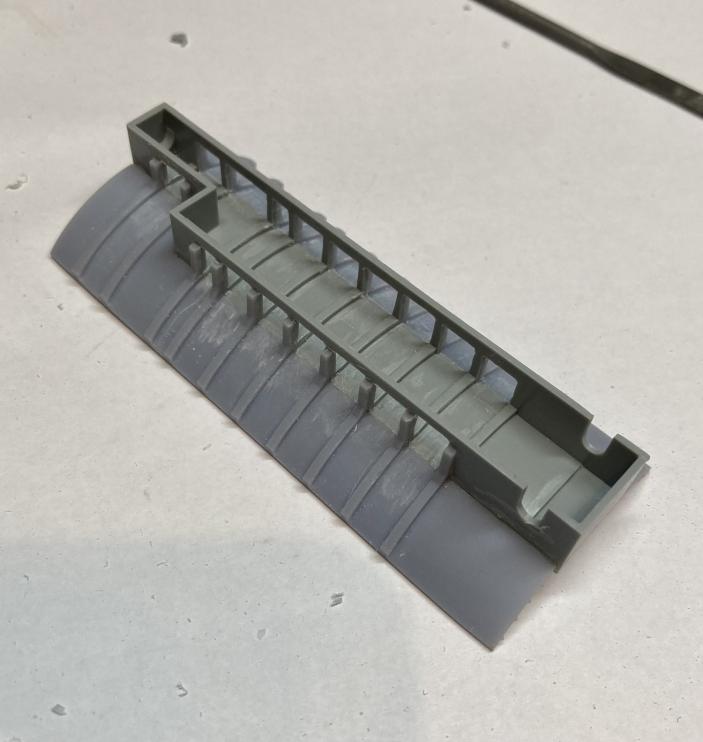

            The well for the exhaust mast got its primer and was then painted in Vallejo hull red. I applied a good chunk of Miliput below the position of the mast which will be used to fix the mast with a bolt. Here I deviate from the normal installation order, as normally the mast would have been installed movable together with the well. I'll keep it fixed, so the Miliput and the bolt. Nevertheless, the well looks quite fine under the deck.

            Click image for larger version

Name:	U9-017.jpg
Views:	321
Size:	55.0 KB
ID:	175809

            Click image for larger version

Name:	U9-018.jpg
Views:	323
Size:	50.9 KB
ID:	175810

            Click image for larger version

Name:	U9-019.jpg
Views:	323
Size:	56.7 KB
ID:	175811

            Click image for larger version

Name:	U9-020.jpg
Views:	320
Size:	51.6 KB
ID:	175812

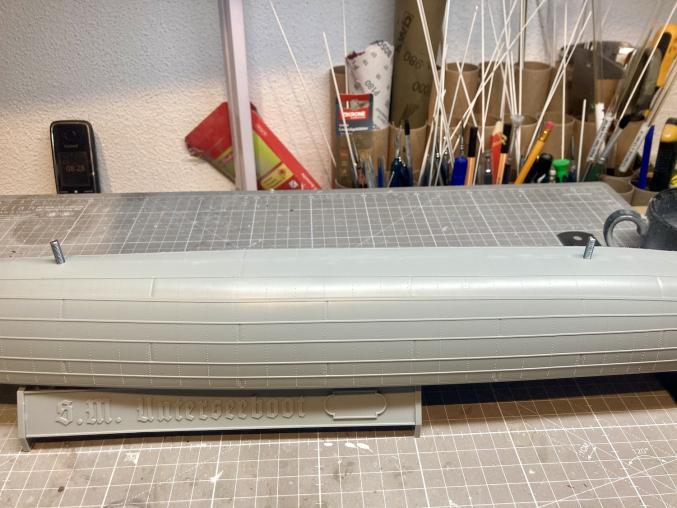

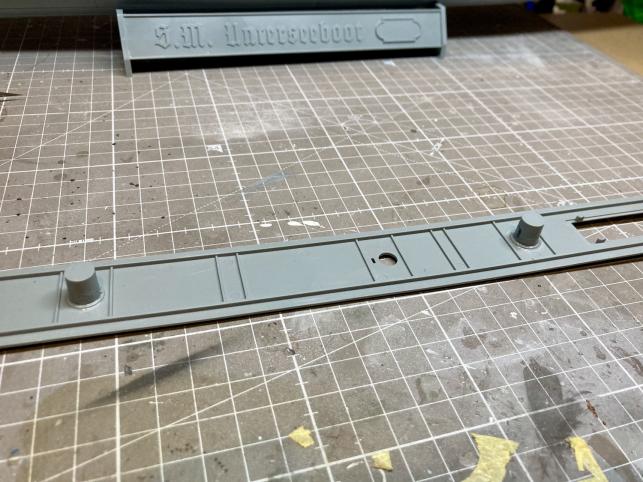

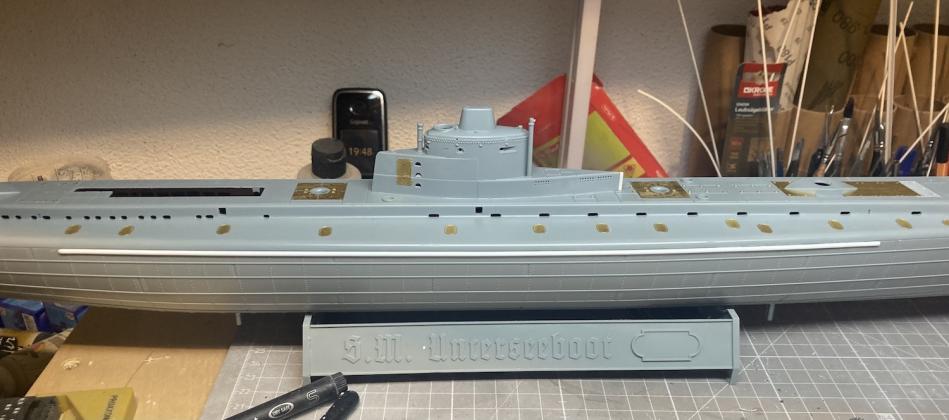

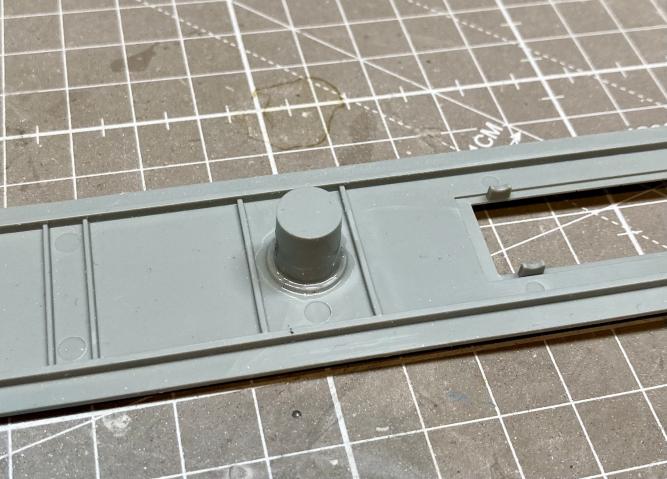

            I'll also replace the stand of the kit. So I glued two M4 screws to the bottom of the hull from inside using Epoxy.

            Click image for larger version

Name:	U9-021.jpg
Views:	325
Size:	39.3 KB
ID:	175813

            Click image for larger version

Name:	U9-022.jpg
Views:	328
Size:	58.2 KB
ID:	175814

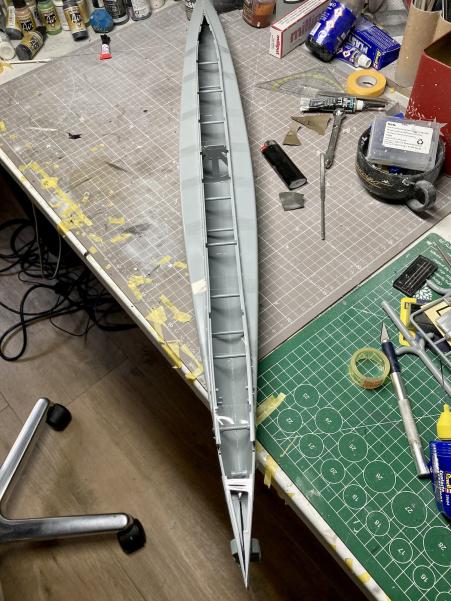

            Finally I glued the deck into place. I'd had to adjust the width of the deck to be able to install it. I might have pulled together the hulls a bit too much when I assembled the hull. With all the cross bracings there is no flexibility whatsoever, so I had to make the adjustments on the deck. But that was no major issue.

            Click image for larger version

Name:	U9-023.jpg
Views:	325
Size:	60.8 KB
ID:	175815

            Comment

            • DrSchmidt
              Captain
              • Apr 2014
              • 903

              #7

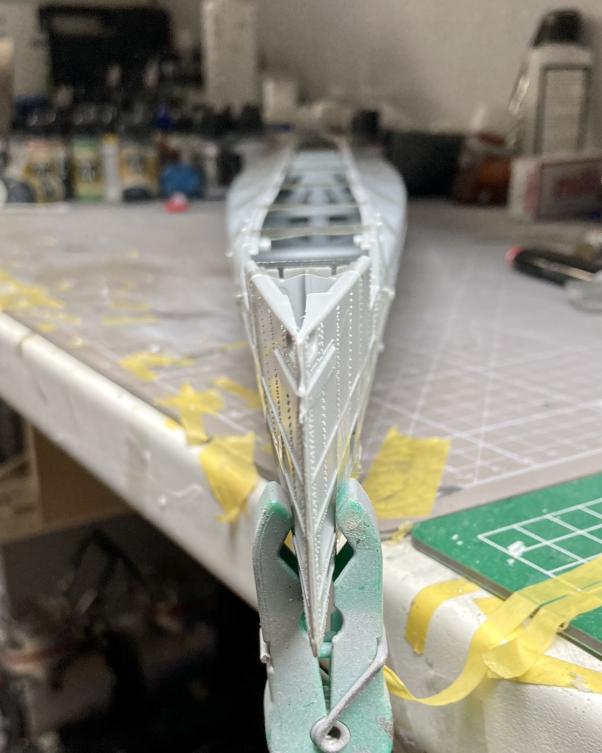

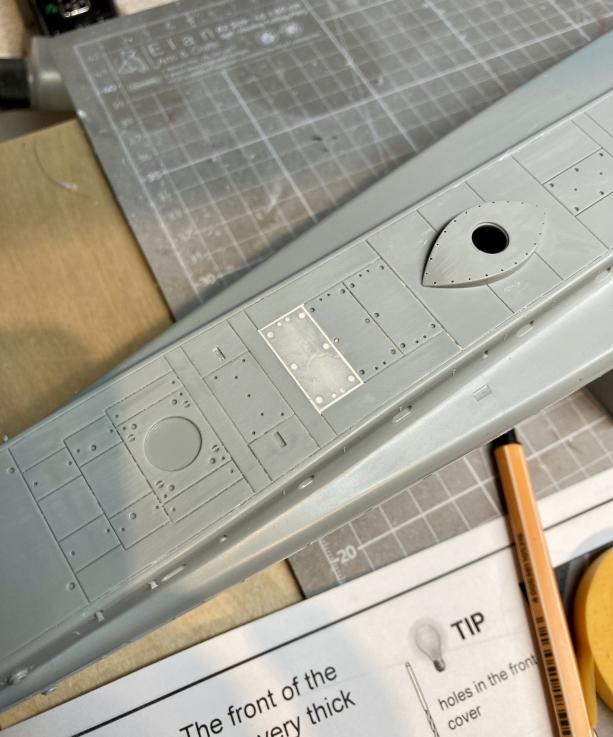

              The conning tower is made of a few, well fitting parts. The only drawback is again the too wide nose. This time I fixed it with some styrene that I filed into shape. Then the conning tower is glued to the hull....looks nice.

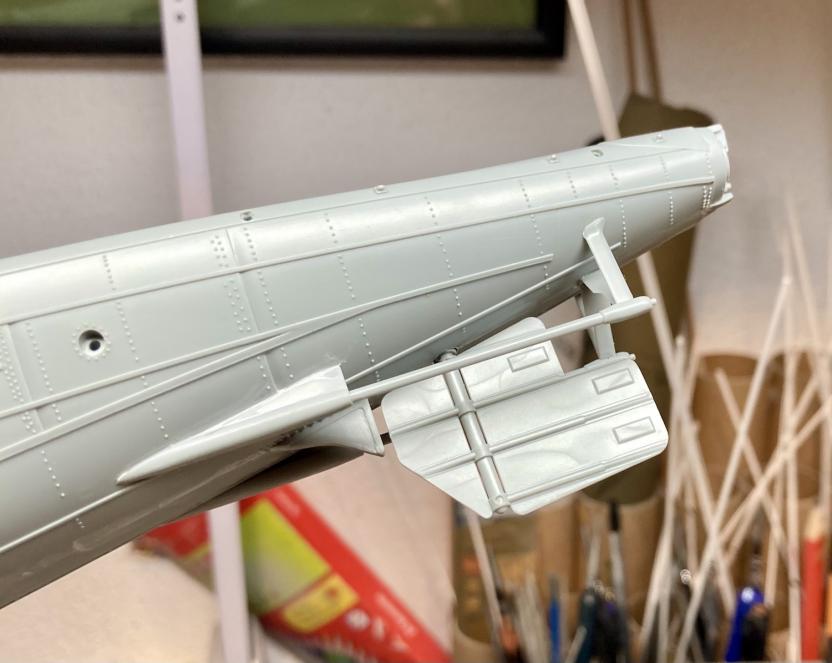

              The stern had two muzzle doors. The kit recreates this assembly nicely using three parts. Onto the stern and this section is done, too.

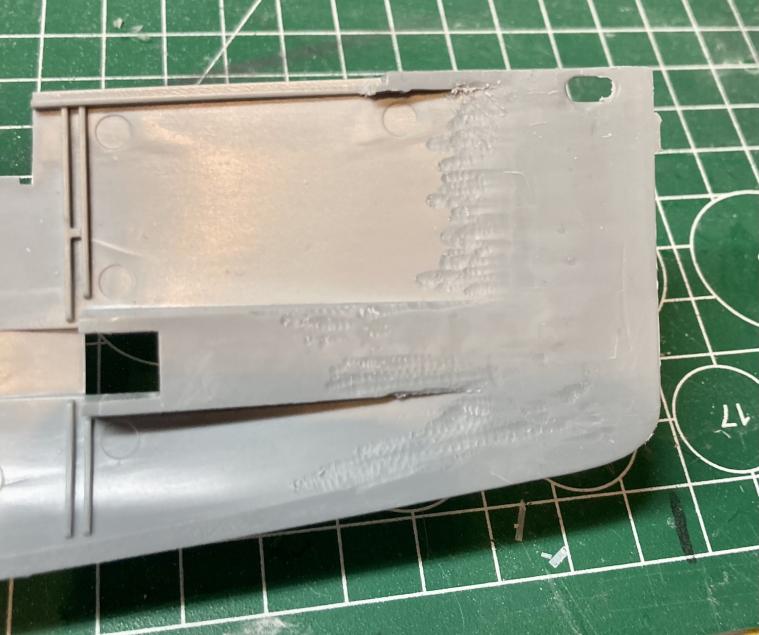

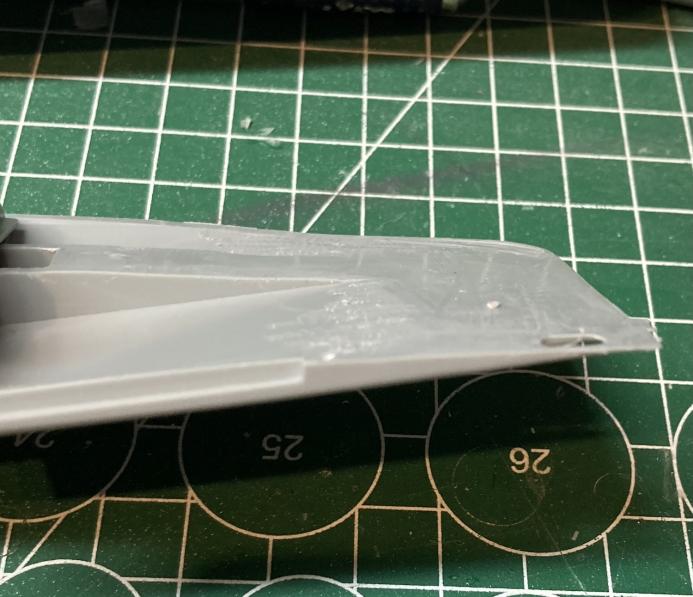

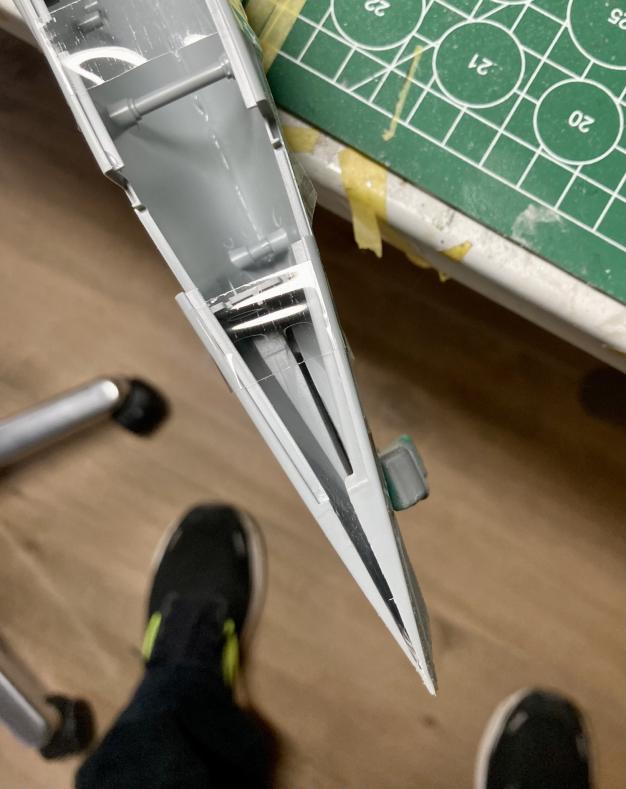

              The gap, originating from the re-shaped bow, was then closed using styrene sheet material and putty.

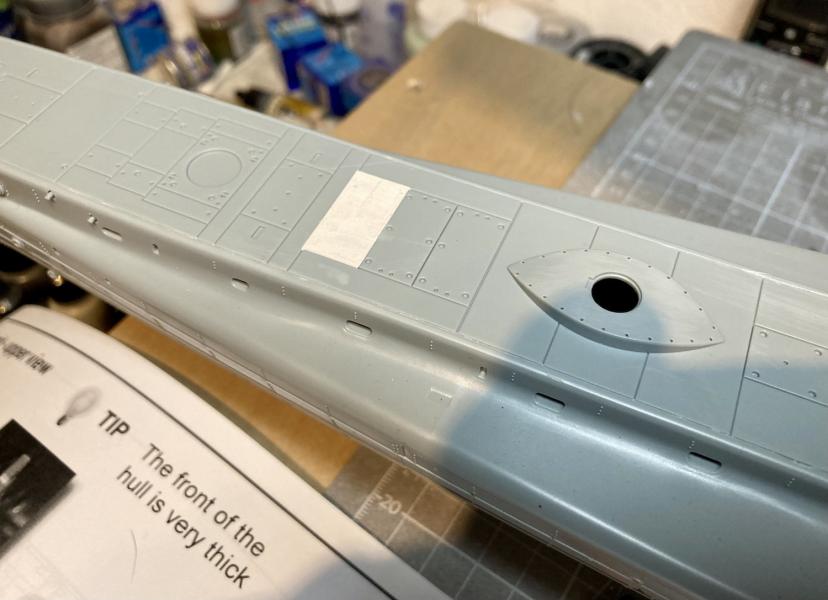

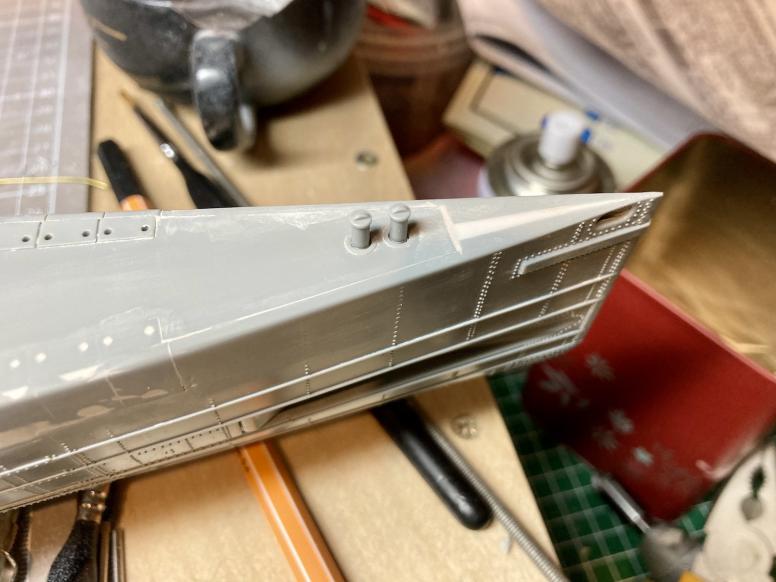

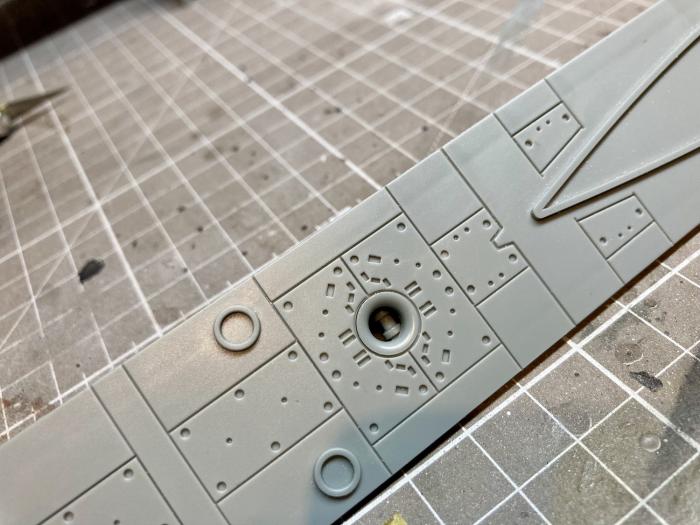

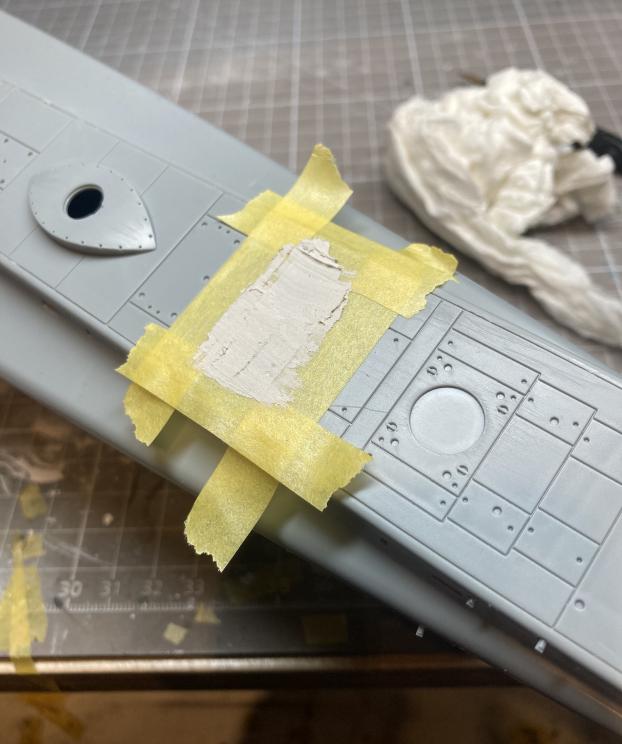

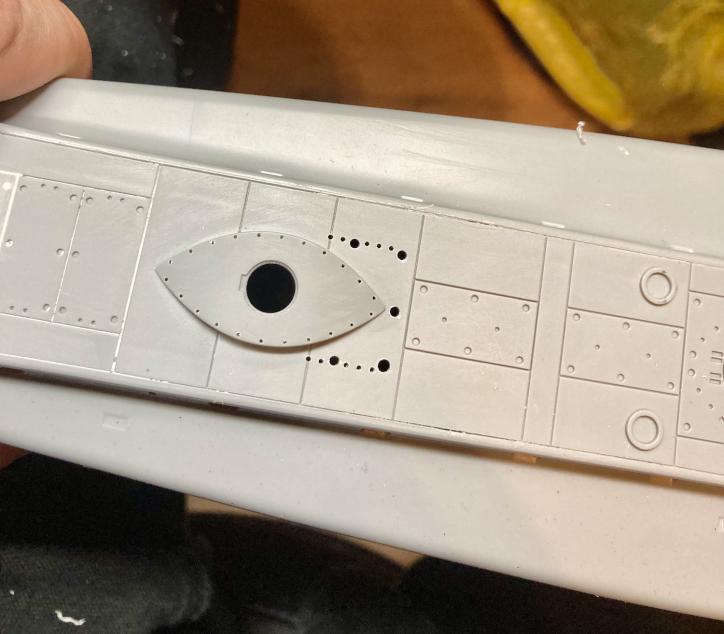

              Then I continued with the first details on the deck. Some of the vent openings were drilled open and a deck panel that was not present on the original (according to RCSubs) was removed using putty.

              Click image for larger version  Name:	U9-034.jpg Views:	0 Size:	49.6 KB ID:	175872

              Click image for larger version  Name:	U9-035.jpg Views:	0 Size:	51.5 KB ID:	175873

              Click image for larger version  Name:	U9-036.jpg Views:	0 Size:	56.6 KB ID:	175874

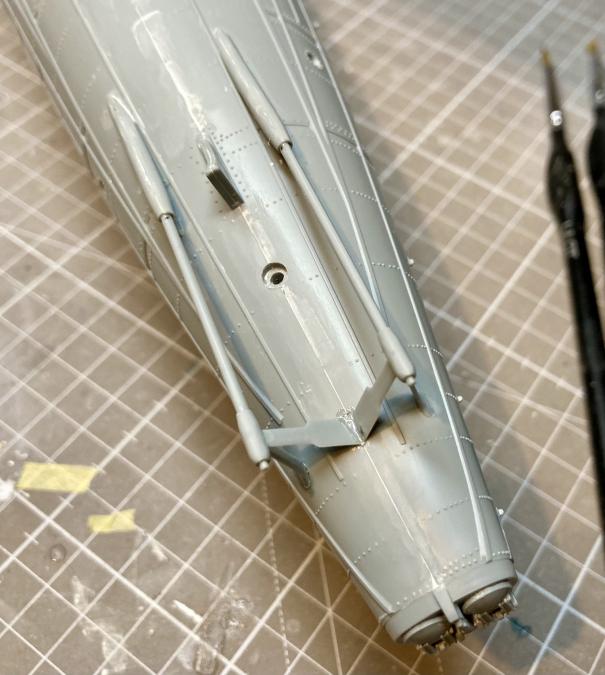

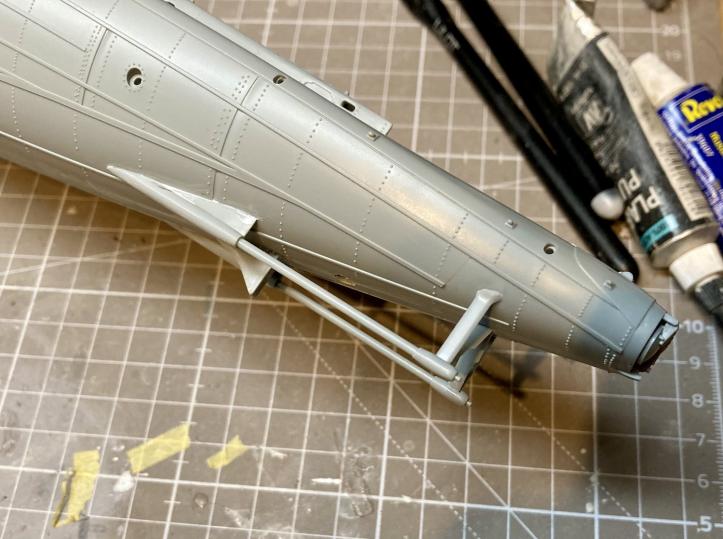

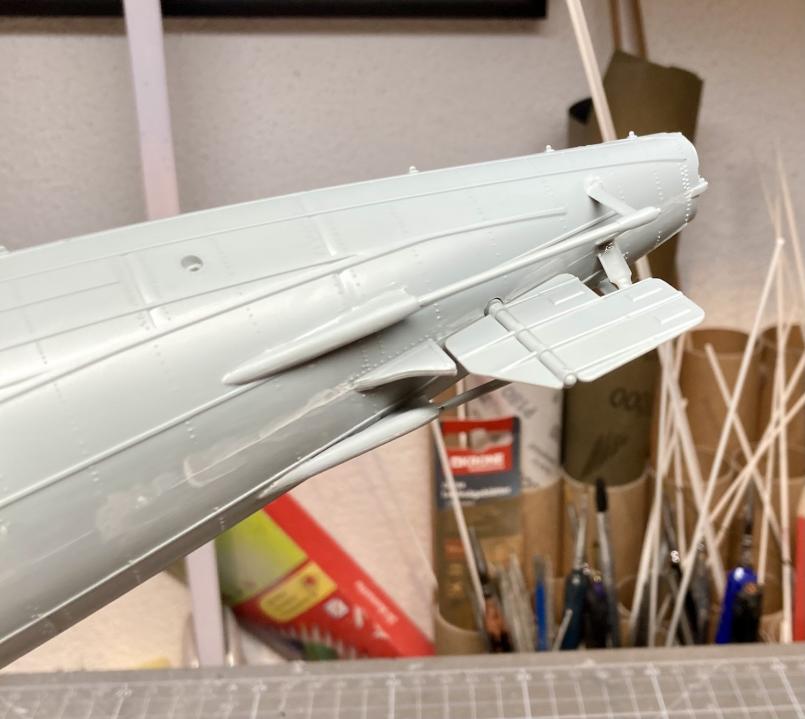

              Finally I assembled the propeller axis the respective supports and the rudder and glued them into place. Again nicely fitting parts. So far I like the kit...

              Click image for larger version  Name:	U9-037.jpg Views:	0 Size:	58.8 KB ID:	175875

              Click image for larger version  Name:	U9-038.jpg Views:	0 Size:	54.5 KB ID:	175876

              Click image for larger version  Name:	U9-039.jpg Views:	0 Size:	53.8 KB ID:	175877

              Click image for larger version  Name:	U9-040.jpg Views:	0 Size:	55.1 KB ID:	175878
              Attached Files
              Last edited by DrSchmidt; 11-22-2023, 02:10 AM.

              Comment

              • DrSchmidt
                Captain
                • Apr 2014
                • 903

                #8

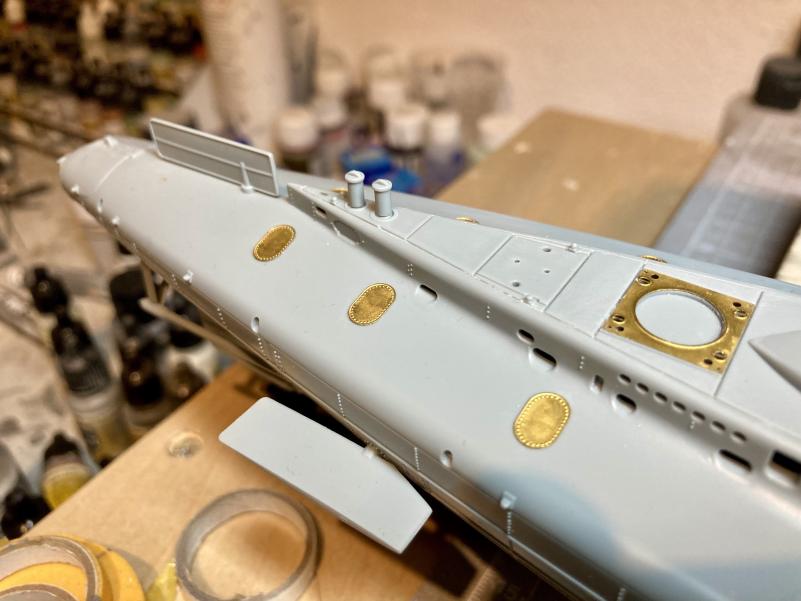

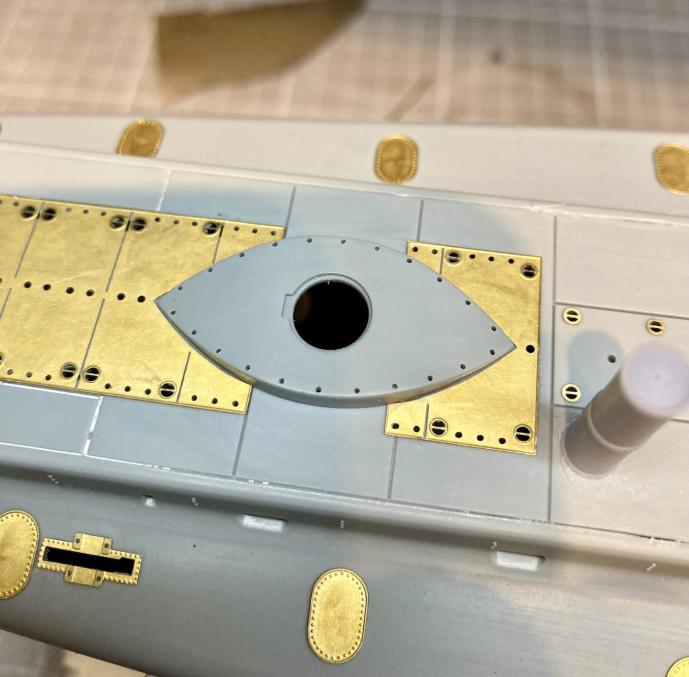

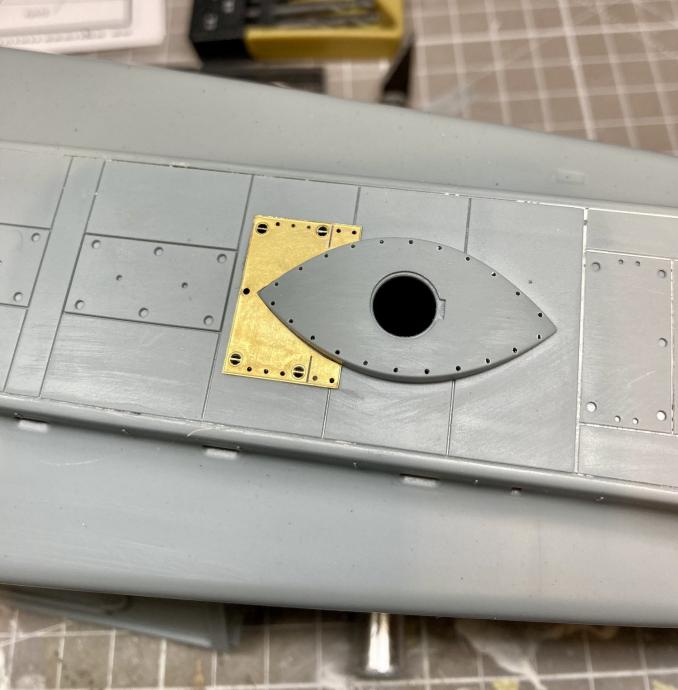

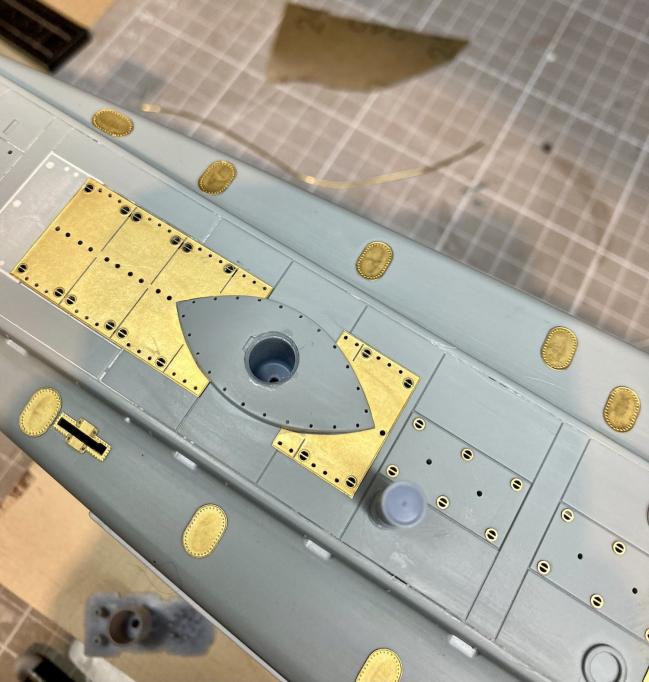

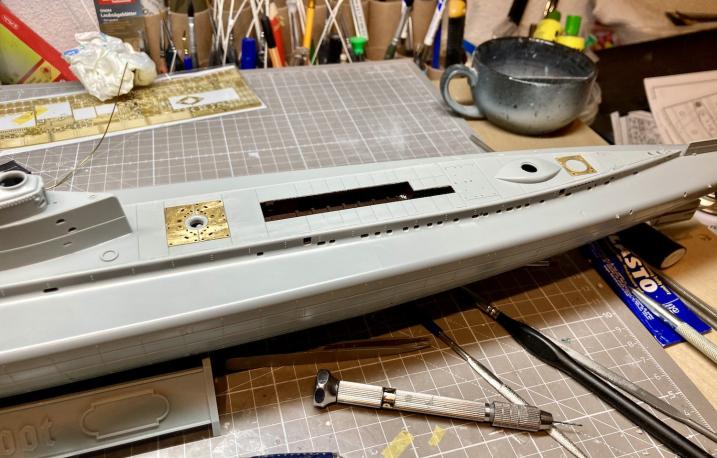

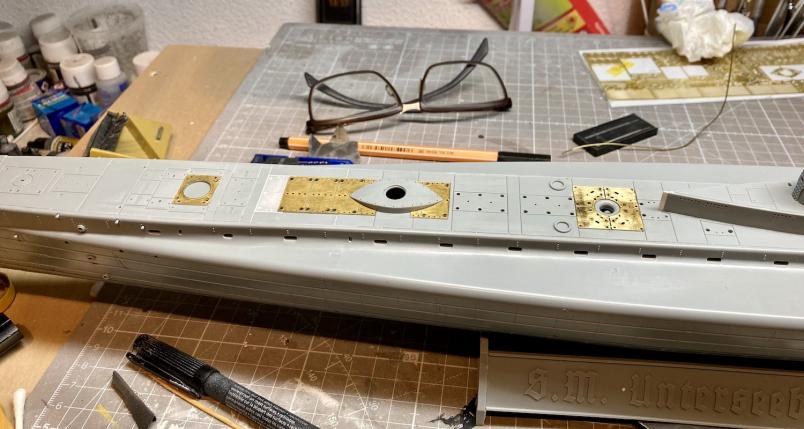

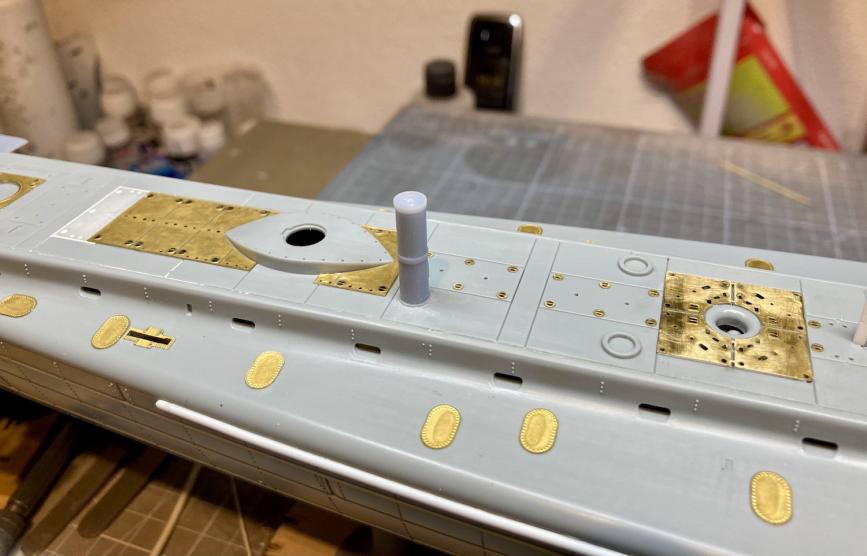

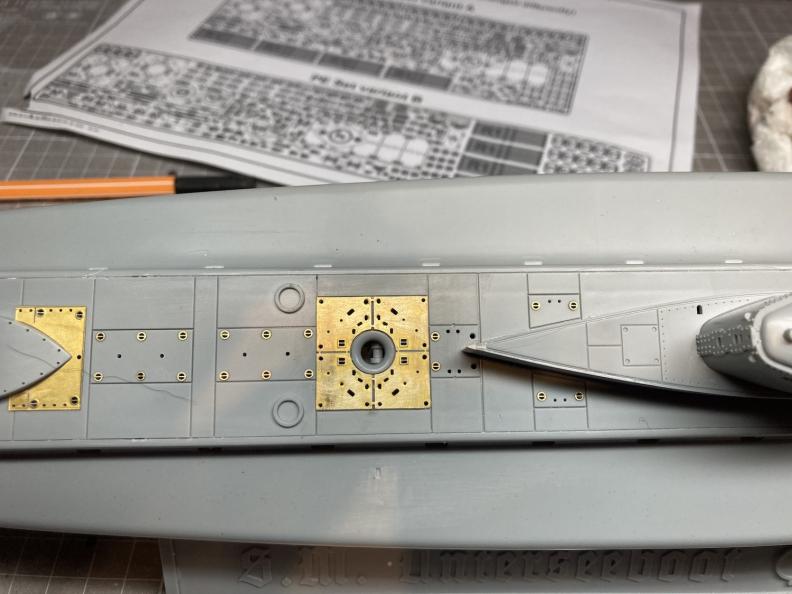

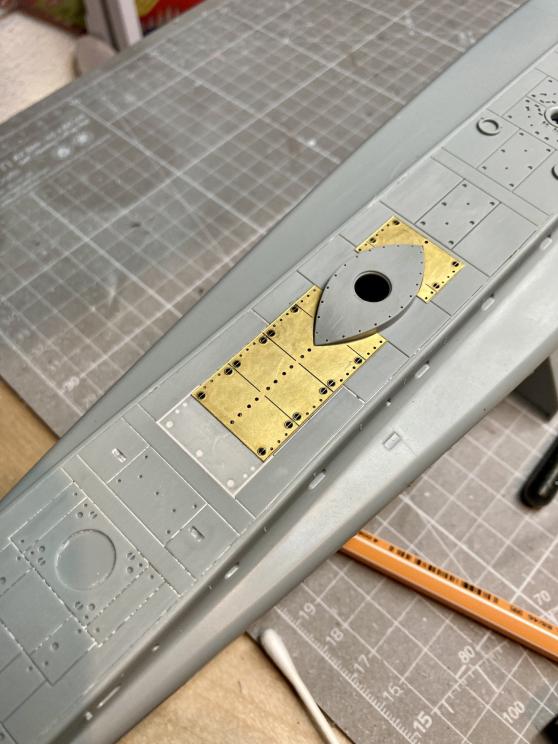

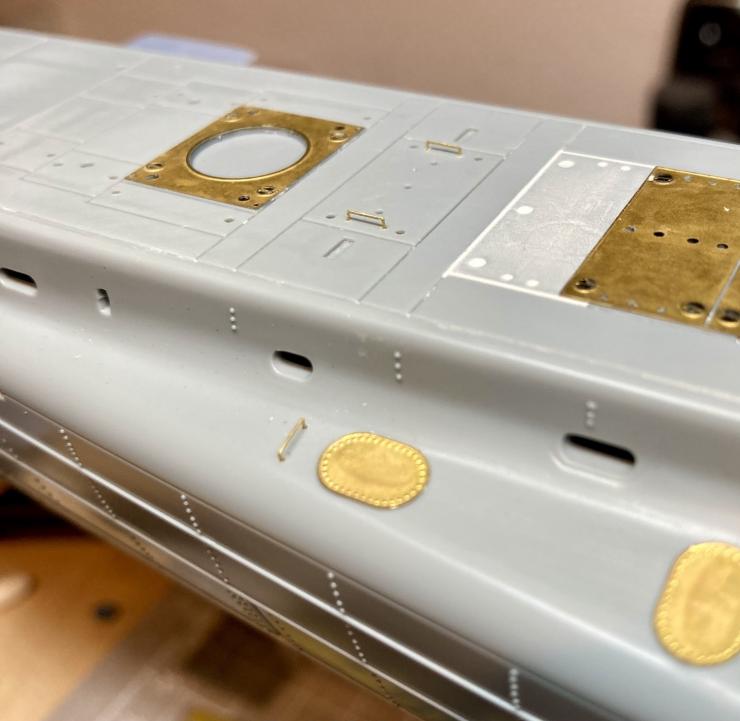

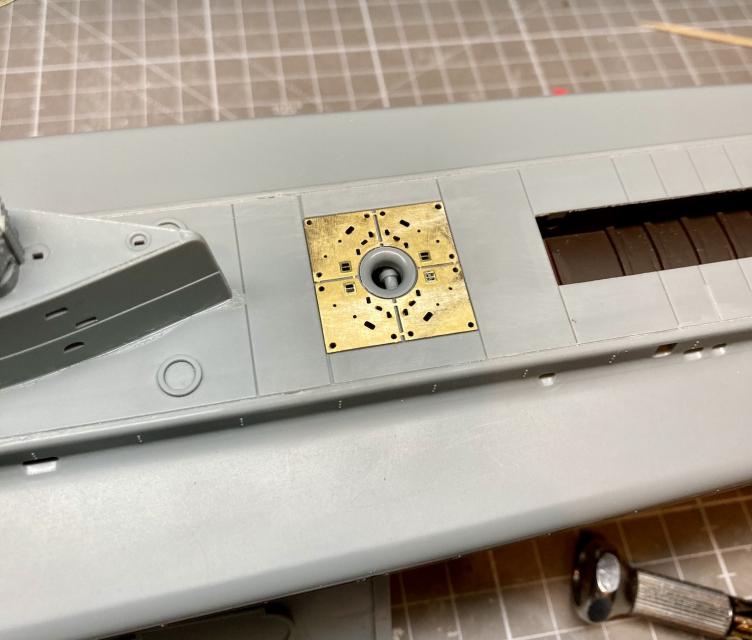

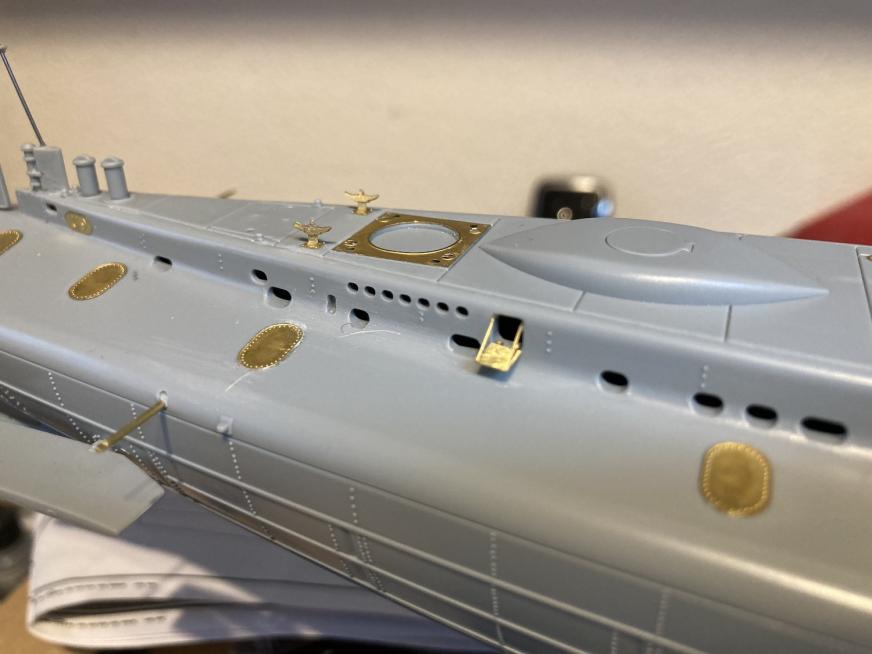

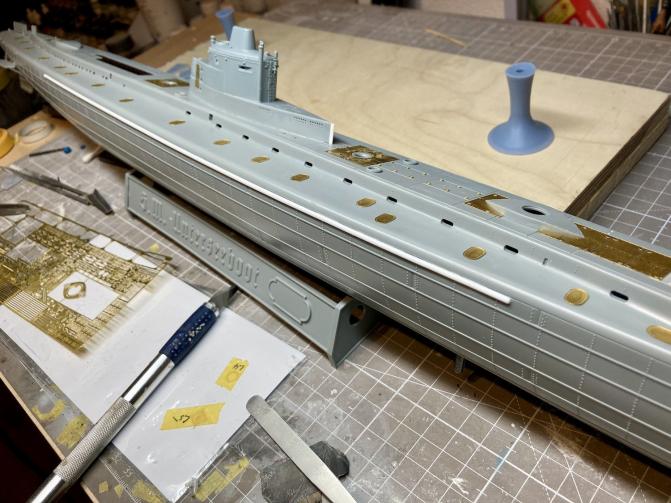

                I continued with adding the RCSubs PE parts to the dec. For the ones who love drilling....that's ine for you. All the holes in the deck have to be opened with the respective drill bits. Problem: The holes in the deck do not line up with the holes in the PE parts. That makes drilling challenging as the drill tends to deviate for its ideal track. That has then to be corrected, either by a cutting with a scalpel or by drilling with a larger diameter. When that's done one can glue on the PE panels. I used slow drying super glue to do this, as it allows for re-positioning of the panels.

                Click image for larger version

Name:	U9-041.jpg
Views:	278
Size:	44.4 KB
ID:	175984

                Click image for larger version

Name:	U9-042.jpg
Views:	282
Size:	45.0 KB
ID:	175985

                Click image for larger version

Name:	U9-044.jpg
Views:	282
Size:	57.7 KB
ID:	175986

                Click image for larger version

Name:	U9-045.jpg
Views:	285
Size:	45.0 KB
ID:	175987

                Click image for larger version

Name:	U9-046.jpg
Views:	283
Size:	46.2 KB
ID:	175988

                Click image for larger version

Name:	U9-047.jpg
Views:	277
Size:	58.1 KB
ID:	175989

                Attached Files

                Comment

                • DrSchmidt
                  Captain
                  • Apr 2014
                  • 903

                  #9

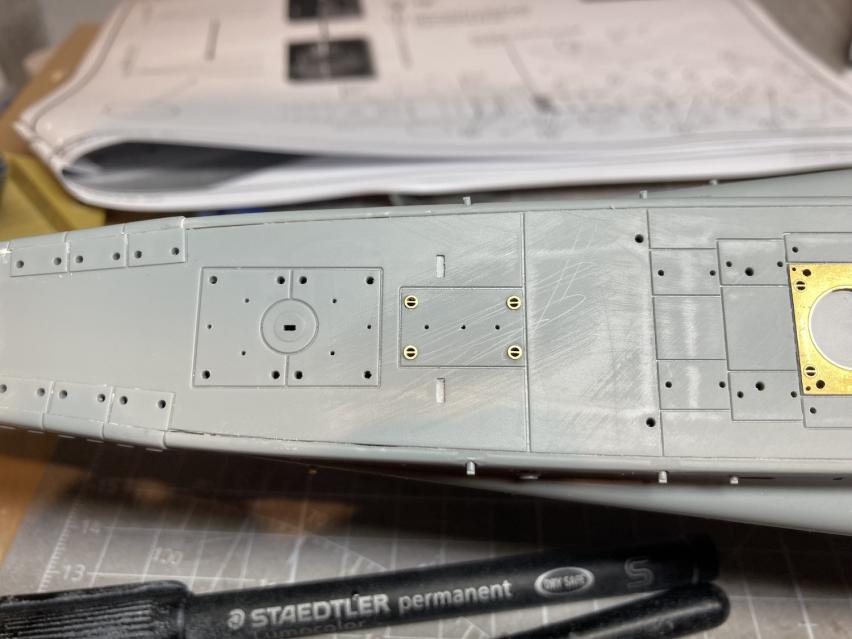

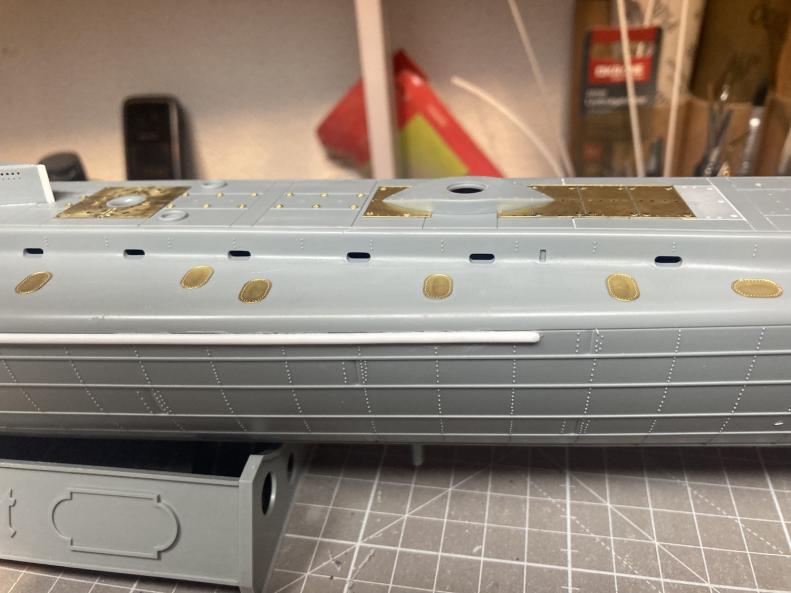

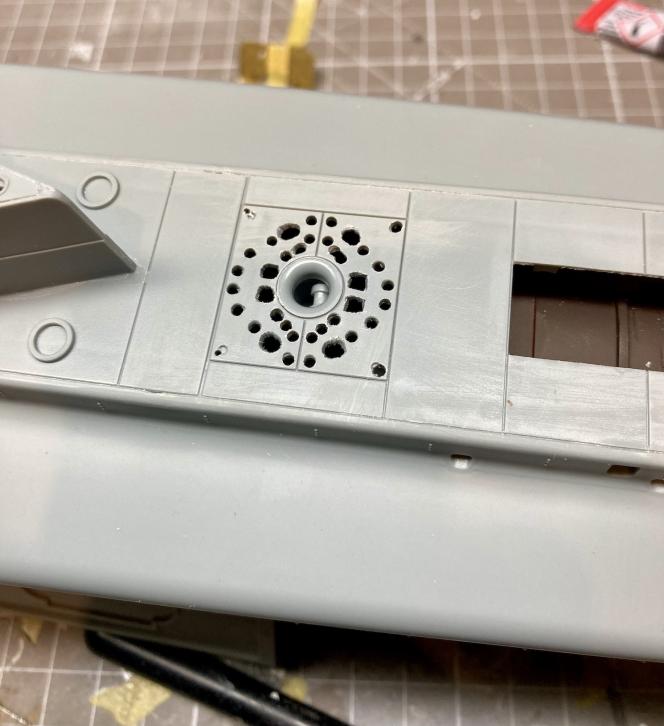

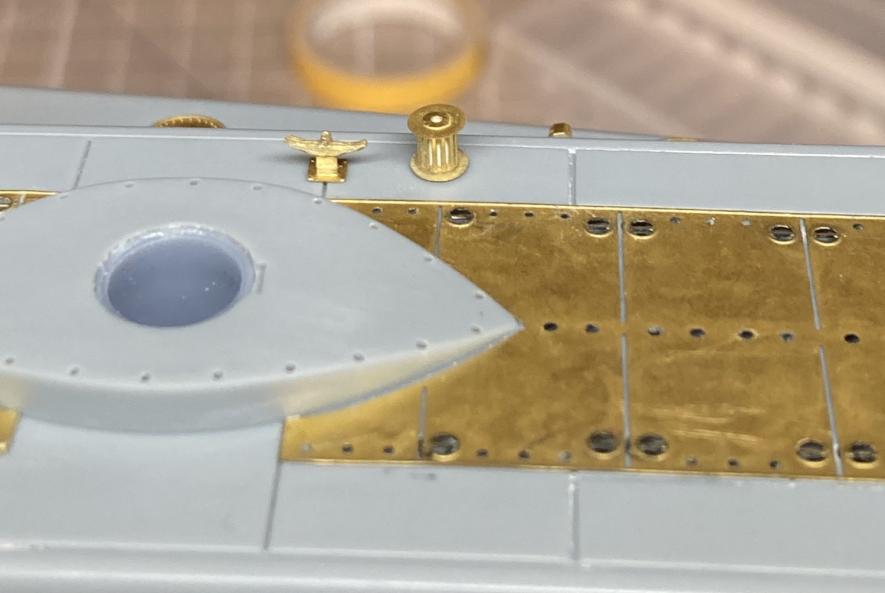

                  On with the finer deck details. After the relatively large deck panels I glued some hatch handles into place. About 2,5 mm diameter and about 30 pieces. Really nothing for the impatient but worth the work....

                  Click image for larger version

Name:	U9-049.jpg
Views:	270
Size:	53.0 KB
ID:	176011

                  Click image for larger version

Name:	U9-050.jpg
Views:	268
Size:	52.7 KB
ID:	176012

                  Click image for larger version

Name:	U9-051.jpg
Views:	269
Size:	42.4 KB
ID:	176013

                  Comment

                  • DrSchmidt
                    Captain
                    • Apr 2014
                    • 903

                    #10
                    I made a mistake and started some research about the boat, i.e. I asked Bernhard Wenzel, who did the CAD files for the kit, about some details and got all the shortcomings of the kit as reply. E.g. the fairing for the chain locker..only on the port side. So I filed the starboard side flat and evened it out using putty. The rubbing strakes are missing...easy fix using 2 mm half-round styrene profile. Besides that allot of PE...tons of manholes on the side tanks, PE on the aft torpedo tubes, on the conning tower, PE replacing the hinges on the chain locker, and much more....getting there.

                    Click image for larger version

Name:	U9-052.jpg
Views:	245
Size:	57.9 KB
ID:	176216

                    Click image for larger version

Name:	U9-053.jpg
Views:	243
Size:	61.8 KB
ID:	176217

                    Click image for larger version

Name:	U9-054.jpg
Views:	242
Size:	52.2 KB
ID:	176218

                    Click image for larger version

Name:	U9-055.jpg
Views:	239
Size:	50.3 KB
ID:	176219

                    Click image for larger version

Name:	U9-056.jpg
Views:	235
Size:	62.8 KB
ID:	176220

                    Click image for larger version

Name:	U9-057.jpg
Views:	249
Size:	54.2 KB
ID:	176221

                    Click image for larger version

Name:	U9-058.jpg
Views:	244
Size:	56.5 KB
ID:	176222



                    Comment

                    • DrSchmidt
                      Captain
                      • Apr 2014
                      • 903

                      #11

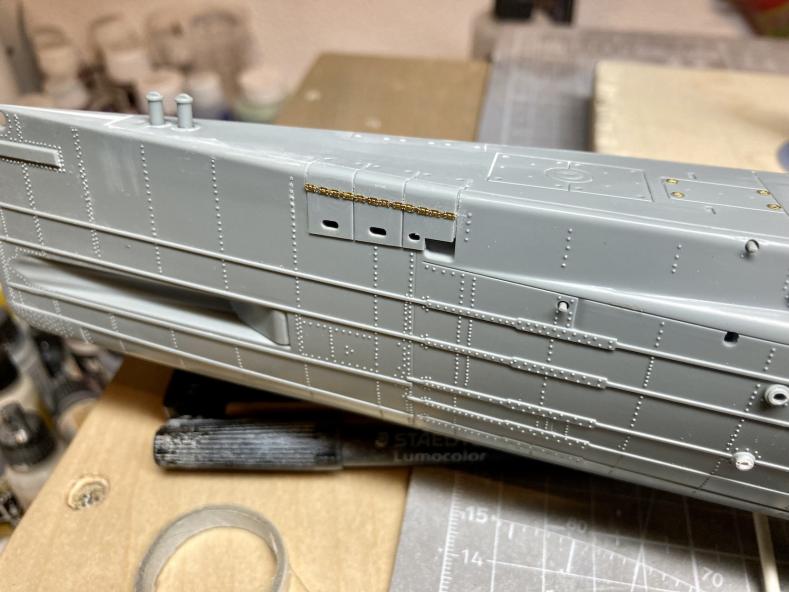

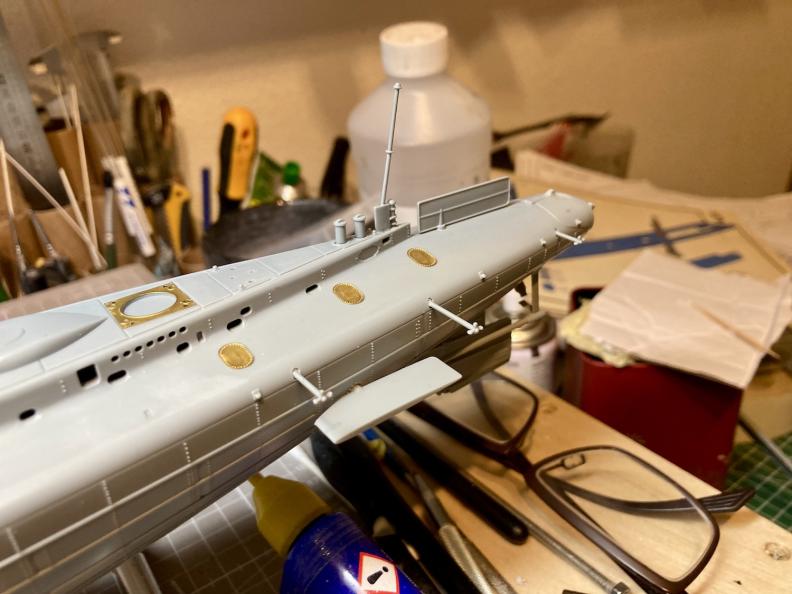

                      continued with changes on the model to closer match the original. I'll build the later version, where the antennae masts could be set upright using a pneumatic actuator. This version of the boat hat an insulator mast for the antennae cables. I made a CAD drawing and 3D-printed it. Looks good to me. I also decided to depict the forward deck hatch open. Late decision, after the deck has been glued into place. So I widened the hatch opening a bit, 3D-printed the shaft into the boat and glued it into the hatch opening. If you do your boat, do that before attaching the deck. Much easier....

                      Click image for larger version

Name:	U9-059.jpg
Views:	219
Size:	51.7 KB
ID:	176344

                      Click image for larger version

Name:	U9-060.jpg
Views:	222
Size:	47.7 KB
ID:	176345

                      Click image for larger version

Name:	U9-061.jpg
Views:	225
Size:	46.9 KB
ID:	176346

                      Click image for larger version

Name:	U9-062.jpg
Views:	220
Size:	56.6 KB
ID:	176347

                      On the left side tank one can also the opening for the pneumatic actuaor for the forward antennae mast nicely hidden under a PE detail by RC Subs

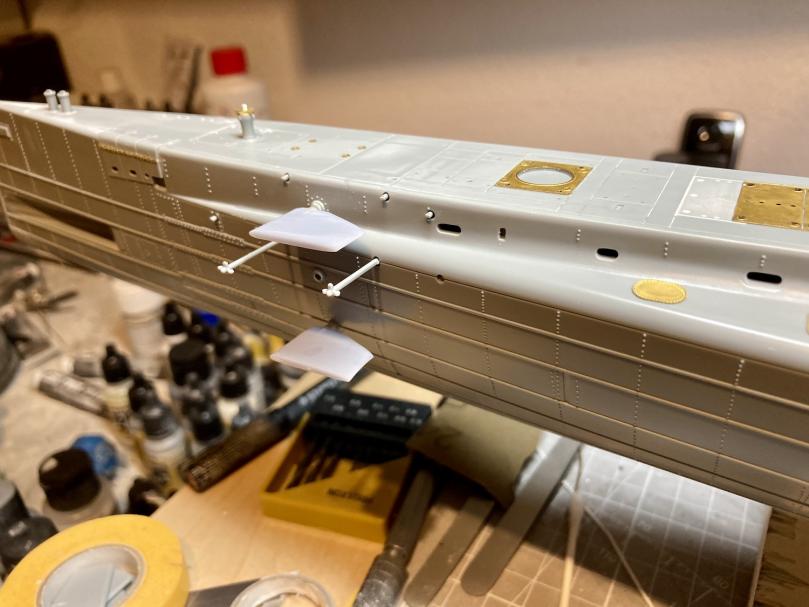

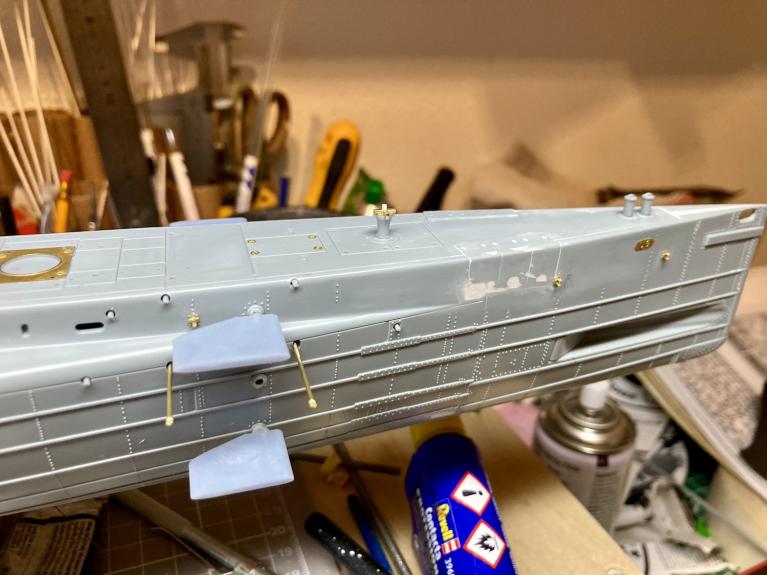

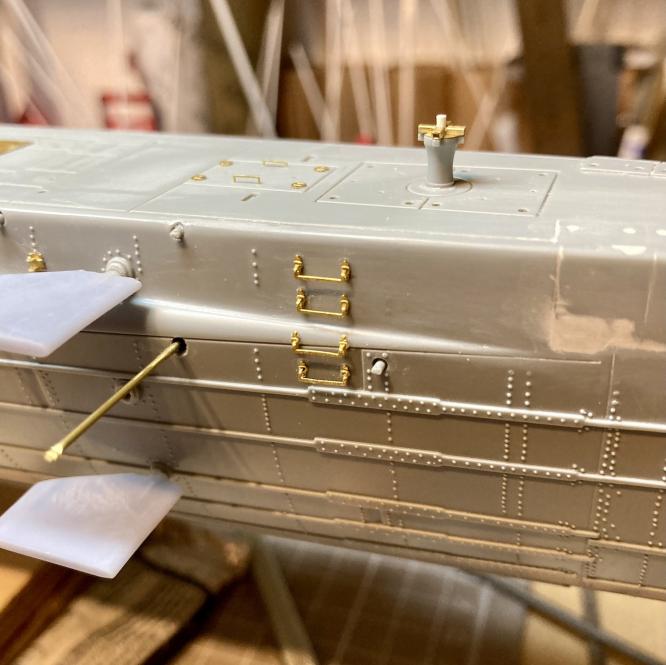

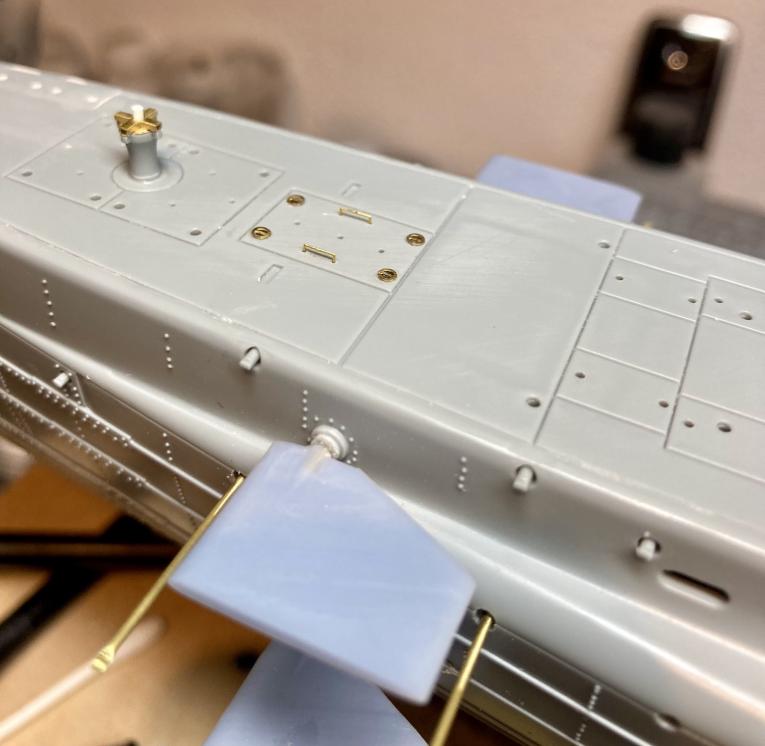

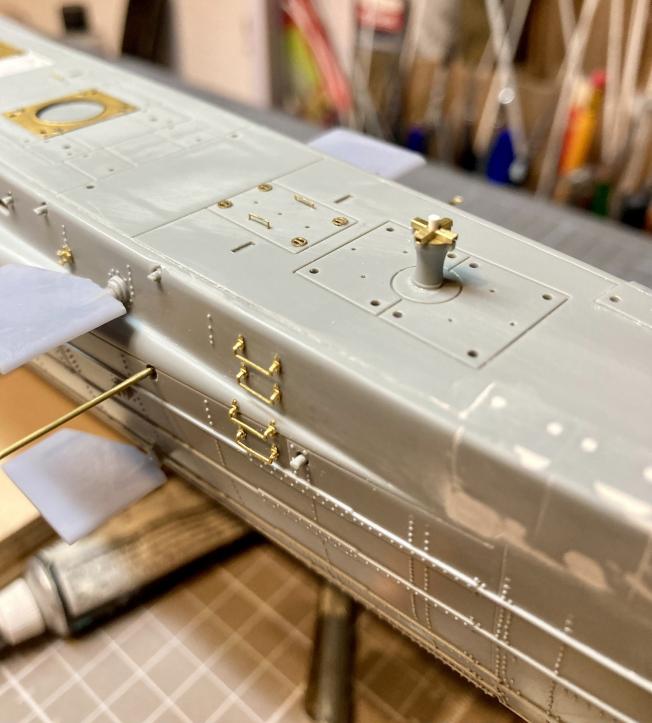

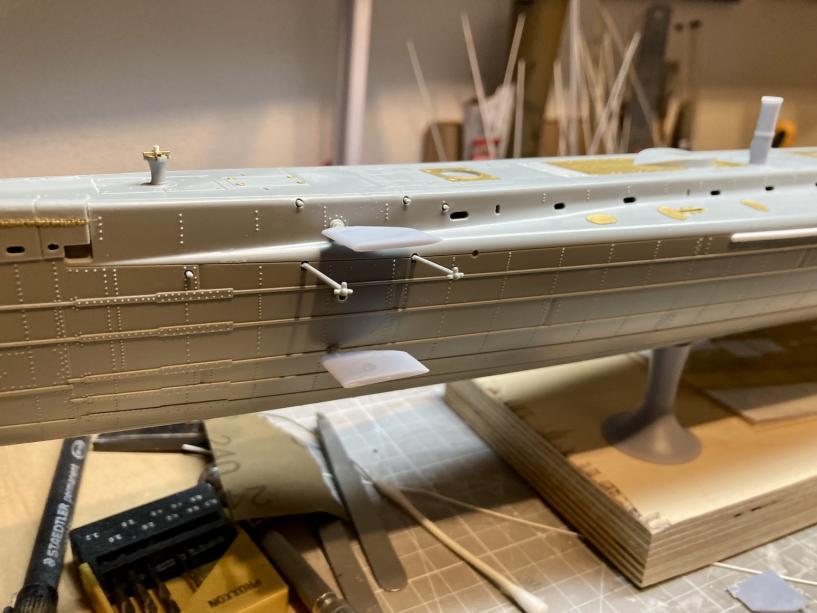

                      The next fix were the bow dive planes. The U9 had two pairs installed on two levels (I guess to improve their effect). There was also a third attachment point, that was not used. The kit wrongly places the planes on the top two levels. The real boat had them on the lowes and the tp level, leving the middle point free. The planes didn't have proper streamlined profiles, the ones in the kit do. So I printed new ones and installed them on the correct positions. Finally the rods for the plane protection were glued into place, too.

                      Click image for larger version

Name:	U9-063.jpg
Views:	222
Size:	57.7 KB
ID:	176348

                      Click image for larger version

Name:	U9-064.jpg
Views:	229
Size:	57.7 KB
ID:	176349

                      The stern also got plane protectors and the flag pole....

                      Click image for larger version

Name:	U9-65.jpg
Views:	225
Size:	57.7 KB
ID:	176350

                      Comment

                      • Thorbrandr
                        Lieutenant Commander
                        • Mar 2022
                        • 124

                        #12
                        Nice!

                        My wife got me one of these a year or so back. After looking it over, I got another to build as RC. Space in the hull is tight, but I found a WTC that should work.

                        Comment

                        • redboat219
                          Admiral
                          • Dec 2008
                          • 2722

                          #13
                          Originally posted by Thorbrandr
                          Nice!

                          My wife got me one of these a year or so back. After looking it over, I got another to build as RC. Space in the hull is tight, but I found a WTC that should work.
                          Any info or photo of that wtc?
                          Make it simple, make strong, make it work!

                          Comment

                          • Alucard
                            Lieutenant Commander
                            • Aug 2023
                            • 101

                            #14
                            I like the detail you are doing to the sub.

                            Comment

                            • DrSchmidt
                              Captain
                              • Apr 2014
                              • 903

                              #15

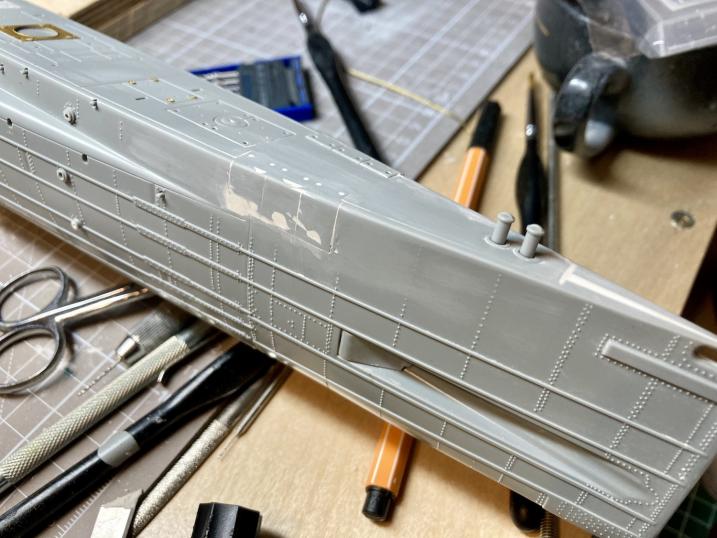

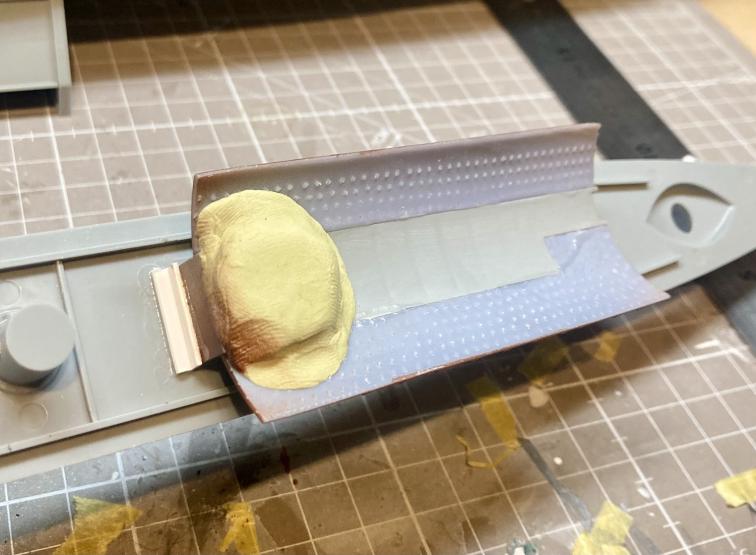

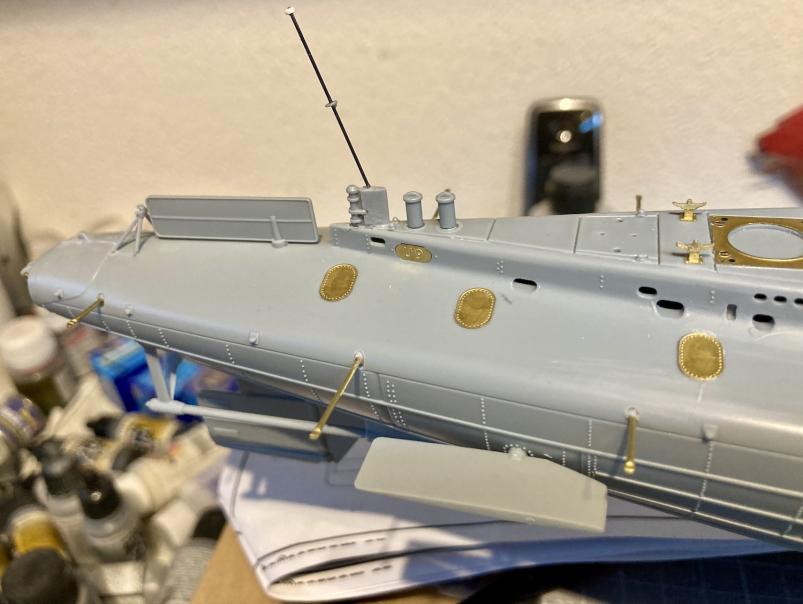

                              Not for punishment, just for practice.....one drawback of the kit is the hard an brittle plastic. This results in fragile parts like the flag post or the rods for the plane protectors are super susceptible to break. I won't go into details, but those parts are now made of brass with steel interior, the flag post is pure steel. The advantage, besides better stability the diameters are now closer to the original. So no accident, just an improvement ;-). Besides that....PE, PE, and more PE parts. Lugs, steps, handles, and whatnot. Looks good....

                              Click image for larger version

Name:	U9-066.jpg
Views:	198
Size:	57.2 KB
ID:	176517

                              Click image for larger version

Name:	U9-067.jpg
Views:	200
Size:	50.2 KB
ID:	176518

                              Click image for larger version

Name:	U9-068.jpg
Views:	200
Size:	45.8 KB
ID:	176519

                              Click image for larger version

Name:	U9-069.jpg
Views:	195
Size:	40.8 KB
ID:	176520

                              Click image for larger version

Name:	U9-070.jpg
Views:	196
Size:	44.7 KB
ID:	176521

                              Click image for larger version

Name:	U9-071.jpg
Views:	199
Size:	46.5 KB
ID:	176522

                              Click image for larger version

Name:	U9-072.jpg
Views:	197
Size:	50.5 KB
ID:	176523 Click image for larger version

Name:	U9-073.jpg
Views:	197
Size:	53.3 KB
ID:	176524

                              Comment
