    TRITON-2_scale 1/10_950mm_37.5"

    Apperently another sub lived on my harddrive that I completly forgot about.
    It's 99% completed so it will find its way to the printer in short time.

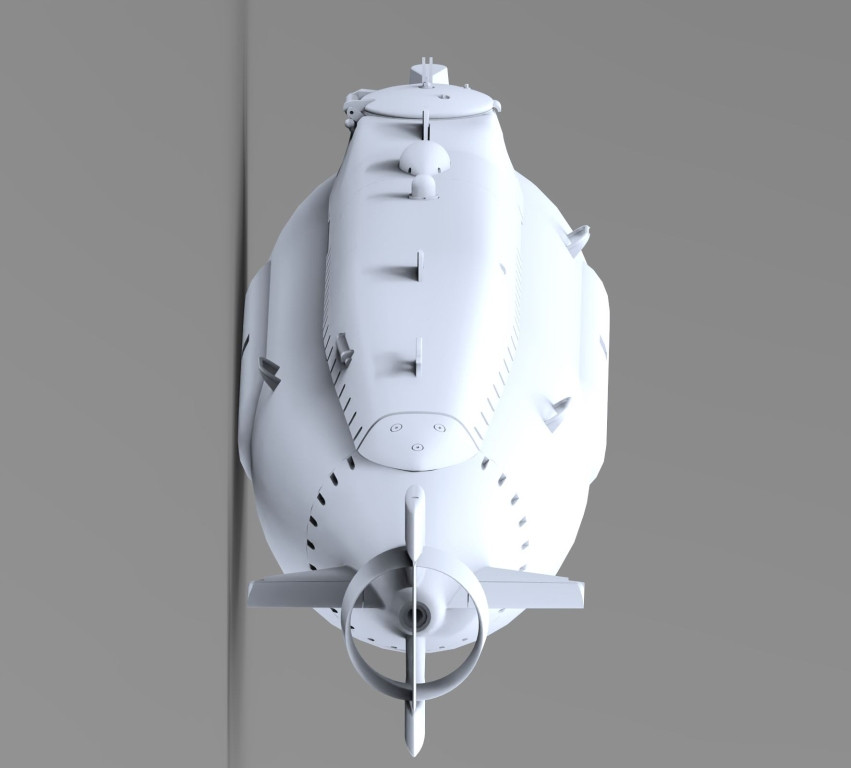

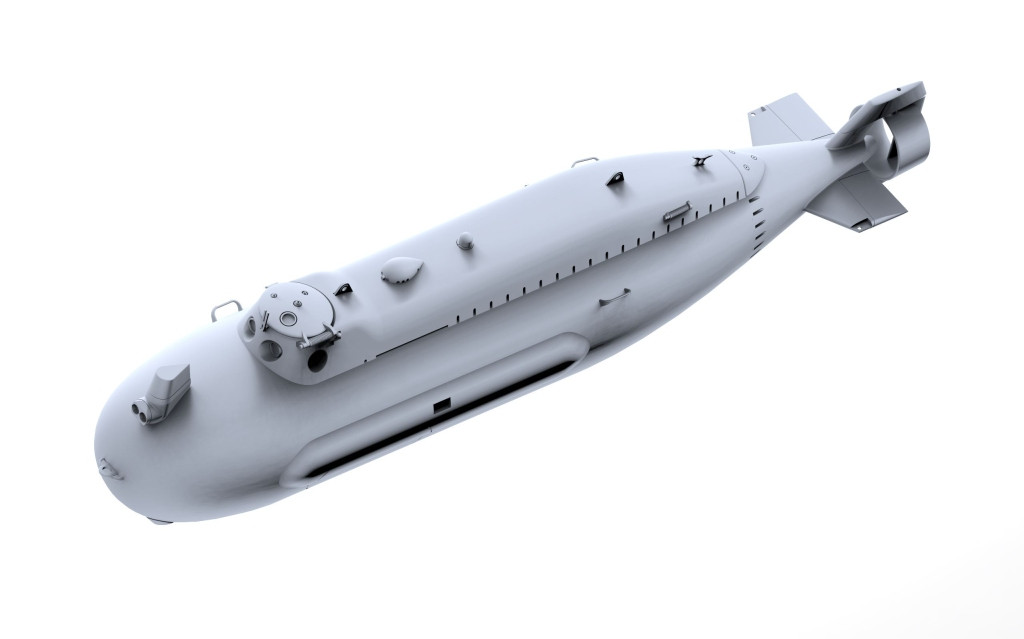

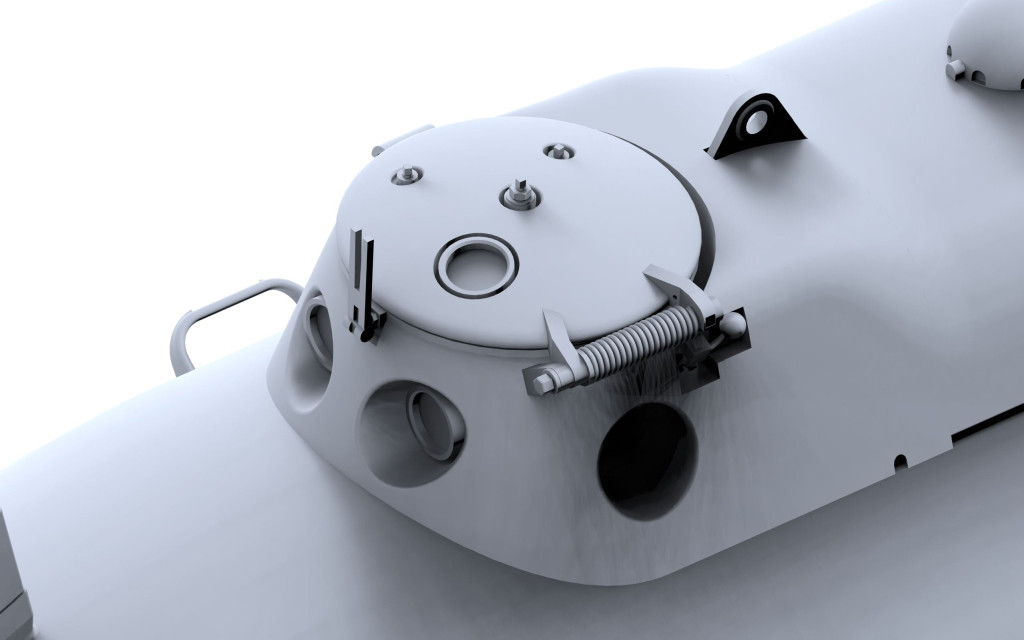

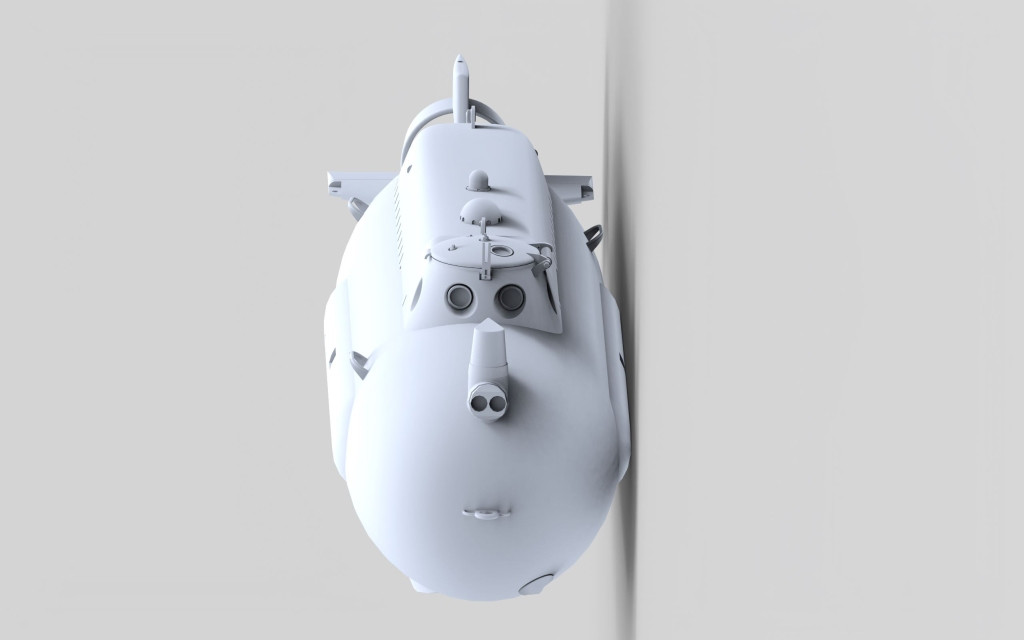

    Below some pictures of the 3D model.
    Grtz,
    bart

    Click image for larger version  Name:	image001.jpg Views:	0 Size:	48.2 KB ID:	174129

    Click image for larger version  Name:	image003.jpg Views:	0 Size:	63.0 KB ID:	174131

    Click image for larger version  Name:	image004.jpg Views:	0 Size:	41.4 KB ID:	174128

    Click image for larger version  Name:	image002.jpg Views:	0 Size:	48.7 KB ID:	174130
    Last edited by bwi 971; 09-21-2023, 09:49 AM.
    Practical wisdom is only to be learned in the school of experience.
    "Samuel Smiles"
  • Marylandradiosailor
    Lieutenant, Junior Grade
    • Nov 2021
    • 26

    #2

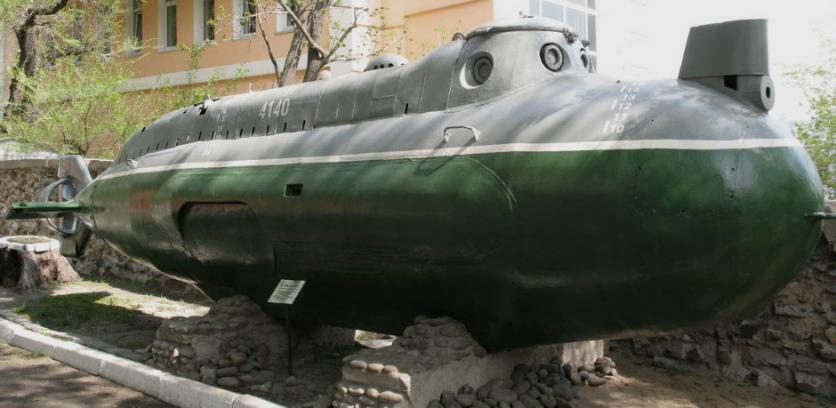

    Very cool! Information on this seems limited but I have been interested in this as a potential model, does anyone know more about what the vertical "thing - sorry not sure that it is all about" on the top front of the sub is all about? Other photographs I have seen then to show it with only one forward hole? Khim

    Click image for larger version

Name:	triton2_gateguard.jpg
Views:	133
Size:	46.7 KB
ID:	174134

    Comment

    • Wizzard033
      Lieutenant, Junior Grade
      • Sep 2023
      • 41

      #3
      Very cool!

      Comment

      • He Who Shall Not Be Named
        Moderator
        • Aug 2008
        • 12301

        #4
        Towing fixture ala NR-1?
        Who is John Galt?

        Comment

        • bwi 971
          Captain
          • Jan 2015
          • 901

          #5
          Originally posted by Marylandradiosailor
          Very cool! Information on this seems limited but I have been interested in this as a potential model, does anyone know more about what the vertical "thing - sorry not sure that it is all about" on the top front of the sub is all about? Other photographs I have seen then to show it with only one forward hole? Khim

          Click image for larger version  Name:	triton2_gateguard.jpg Views:	0 Size:	46.7 KB ID:	174134

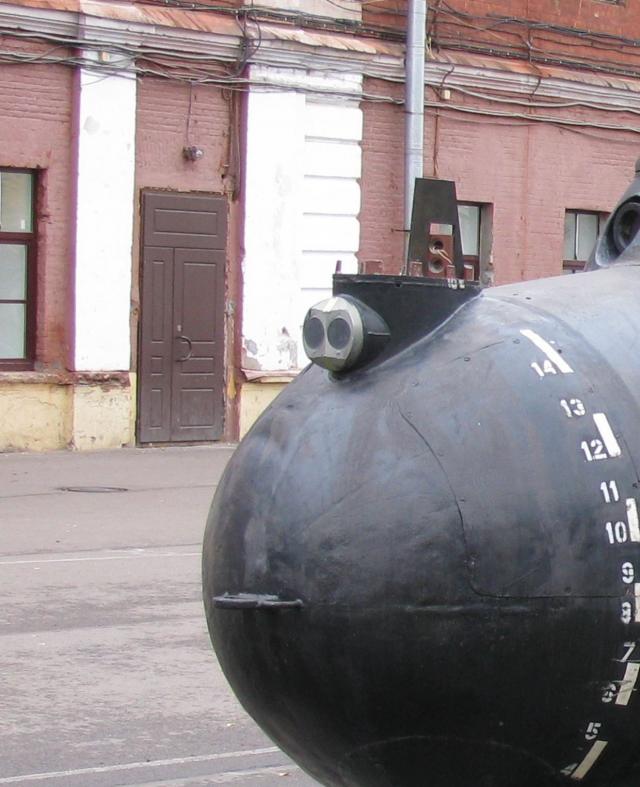

          The one eyed version is missing a component that bolds on.....you can see the boldholes Top and bottom of the vertical flange.
          If I'm correct its the sonar.

          I have drawed it up from pictures with the main particulars in mind, counting, estimating, measuring brings you quite far.......o yeah time is also a key factor.
          Last edited by bwi 971; 09-21-2023, 11:40 AM.
          Practical wisdom is only to be learned in the school of experience.
          "Samuel Smiles"

          Comment

          • bwi 971
            Captain
            • Jan 2015
            • 901

            #6
            Originally posted by He Who Shall Not Be Named
            Towing fixture ala NR-1?
            the nude version....think its sonar


            Click image for larger version  Name:	sonar detail.jpg Views:	0 Size:	64.1 KB ID:	174141
            Practical wisdom is only to be learned in the school of experience.
            "Samuel Smiles"

            Comment

            • He Who Shall Not Be Named
              Moderator
              • Aug 2008
              • 12301

              #7
              Originally posted by bwi 971

              the nude version....think its sonar


              Click image for larger version Name:	sonar detail.jpg Views:	0 Size:	64.1 KB ID:	174141
              Bingo! Yes... sonar
              Who is John Galt?

              Comment

              • gantu
                Commander
                • Apr 2009
                • 360

                #8
                Some more
































                Regards Gantu

                Comment

                • Subculture
                  Admiral
                  • Feb 2009
                  • 2121

                  #9
                  Looks like a great subject, and should be fun to sail. Bit like a Loses and Perry submersible had a baby!
