Working on an End Cap using magnets

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Working on an End Cap using magnets

    https://www.youtube.com/watch?v=DRDKM5qlv9I

    Wouldn't it be nice if we did not have to worry about seals? No cup seals, no bellows, and no o-rings?
    So I prototyped this and will be testing soon. (this is Nick's fault! just say'n - LOL)
    If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

  • #2
    Originally posted by trout View Post
    https://www.youtube.com/watch?v=DRDKM5qlv9I

    Wouldn't it be nice if we did not have to worry about seals? No cup seals, no bellows, and no o-rings?
    So I prototyped this and will be testing soon. (this is Nick's fault! just say'n - LOL)

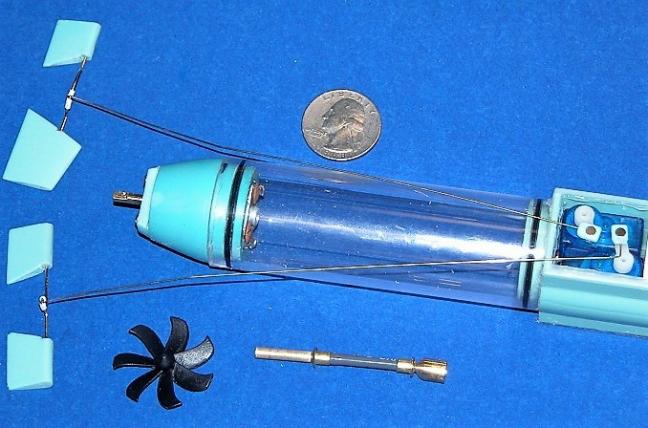

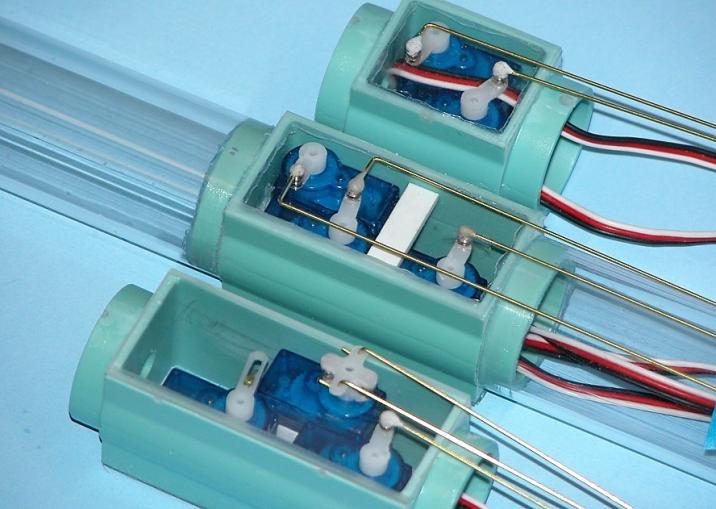

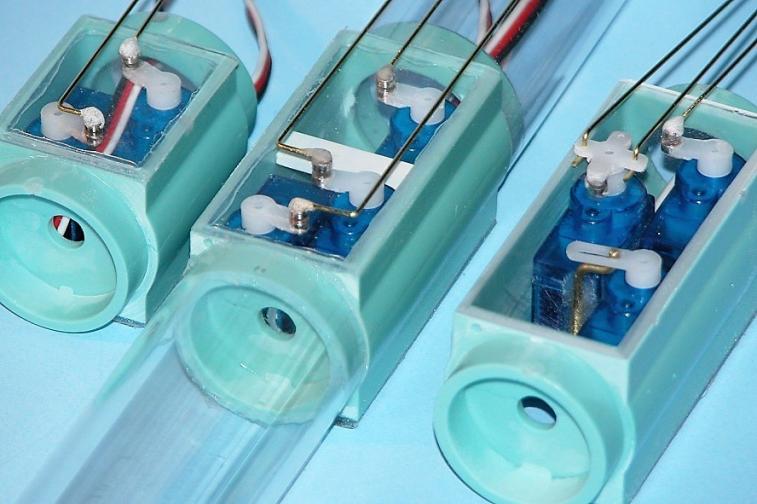

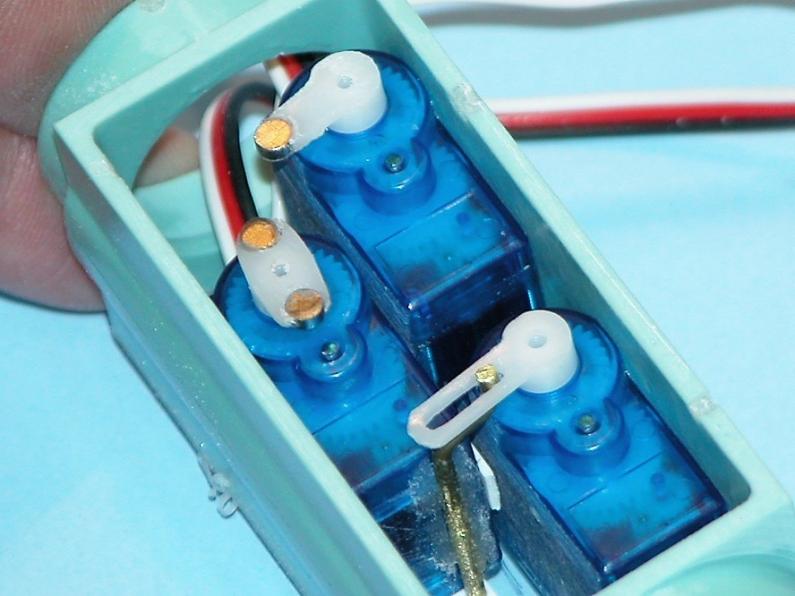

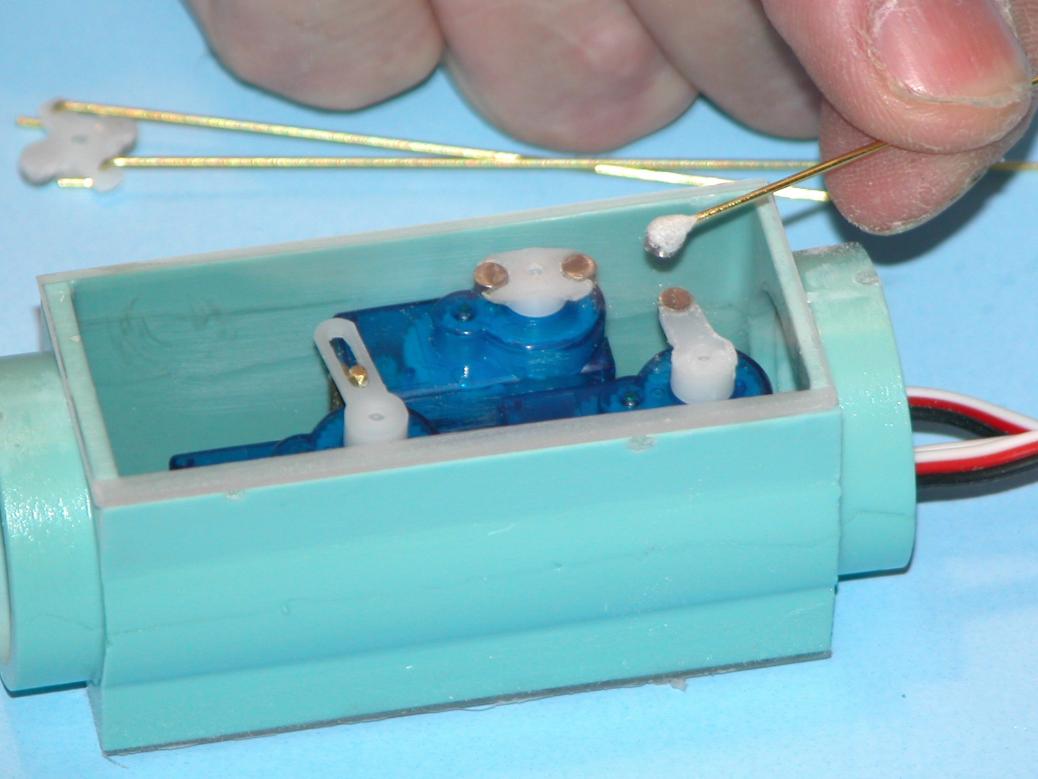

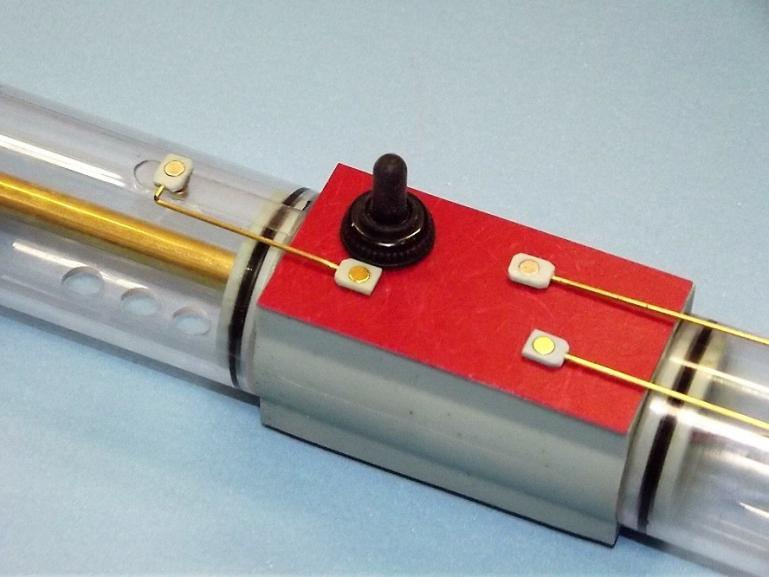

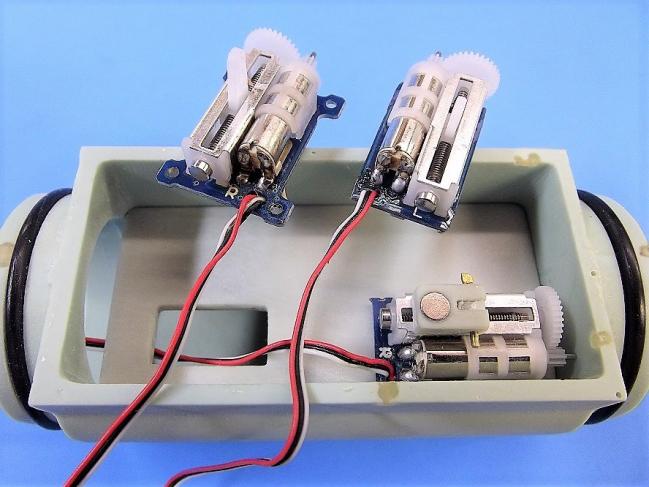

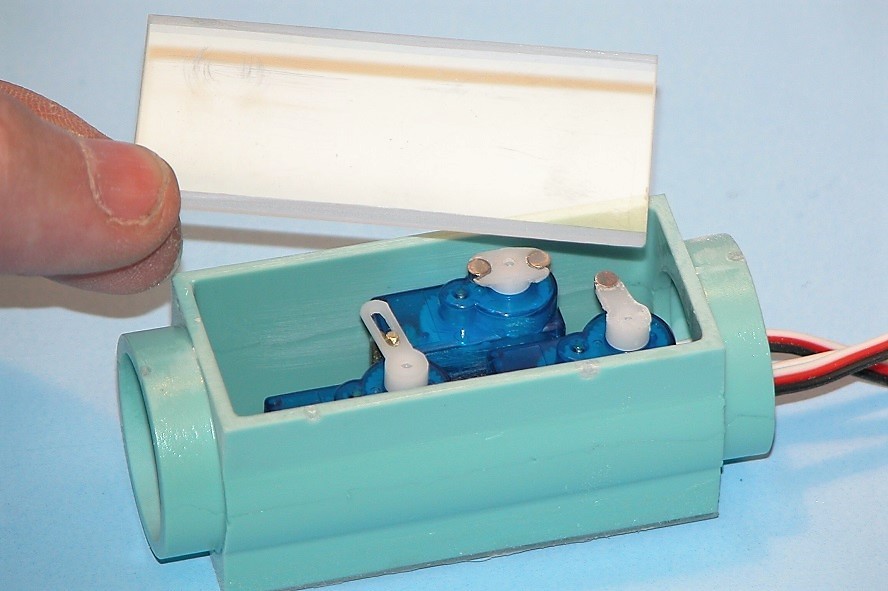

    Examples of magnetically coupled linkages: Mast lifting systen - The Sub-drivers Forum (rc-sub.com)

    Click image for larger version

Name:	DSCN0081 (2).JPG
Views:	160
Size:	46.2 KB
ID:	157835

    Click image for larger version

Name:	001_DSCN0133.jpg
Views:	152
Size:	52.8 KB
ID:	157836

    Click image for larger version

Name:	000_DSCN0128.jpg
Views:	140
Size:	54.9 KB
ID:	157837

    Click image for larger version

Name:	002 (2).JPG
Views:	143
Size:	45.5 KB
ID:	157838

    Click image for larger version

Name:	005_DSCN0140.jpg
Views:	143
Size:	84.9 KB
ID:	157839

    Click image for larger version

Name:	004_DSCN0139.jpg
Views:	141
Size:	62.5 KB
ID:	157840

    Click image for larger version

Name:	007_DSCN0142.jpg
Views:	139
Size:	52.2 KB
ID:	157841

    Click image for larger version

Name:	028.JPG
Views:	137
Size:	46.7 KB
ID:	157842

    Click image for larger version

Name:	DSCF0821.JPG
Views:	142
Size:	44.4 KB
ID:	157843



    Resident Luddite

    Comment


    • #3
      Nice Tom,

      Question, how high is the friction of the coupler to the propellorshaft, the sliding action is a clever move, did you measure the amount of pull?

      Manfred.
      I went underground

      Comment


      • #4
        David, some of my thinking was from this. I certainly am building on your shoulders. Thank you! I may change the design of the pushrods for a more compact version. Using something similar to what you have used in the 1" tube. I can put the magnet horizontally and make a square tube that it slides in. I would rather have the tube going inwards rather than outwards for protection. Many ideas......First, I want to test this current design to get it to work. How will the nipples hold up with the spinning prop drive running on it? There is some interference of magnets between pushrod and drive. So, I just need to play.
        If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

        Comment


        • #5
          Nice work Tom!

          Regarding the friction at the shaft connection. I always envisioned using a ball bearing type thrust bearing sandwiched between the bulkhead and the magnetic shaft coupler. The video that was floating around a while back of the submarine using a Tupperware container and lego components used a adhesive sided slippery film on the face where the magnetic part contacted the bulkhead. If the resin nipples don’t hold up to wear, maybe replace them with one made of metal like brass or stainless steel.

          Anyways, keep up the great work. Happy to see you having fun playing around with your magnetic design again. Still not my fault!!! LOL

          Nick

          Comment


          • #6
            I played with this years ago, but ended up shelving the idea. Primarily, I couldn't get a solid binding of linkage output to linkage that didn't jump a bit during actuation. Having full, precise, proportional control is pretty important.

            It's a good thought, for sure.

            Comment


            • #7
              Bob, me too, but applying “Home Improvement” mentality to this, the internal shaft connector and external shaft connector do not slip…….so far. I will keep you posted.
              If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

              Comment


              • #8
                Tom & Bob,

                Where is your go to source for this type magnets?

                Thanks,

                Rob
                "Firemen can stand the heat"

                Comment


                • #9
                  I get mine from K&J Magnetics. Always good to have many sources and they have a large variety to chose from. I usually order a variety of sizes at one time.

                  https://www.kjmagnetics.com/

                  Comment


                  • #10

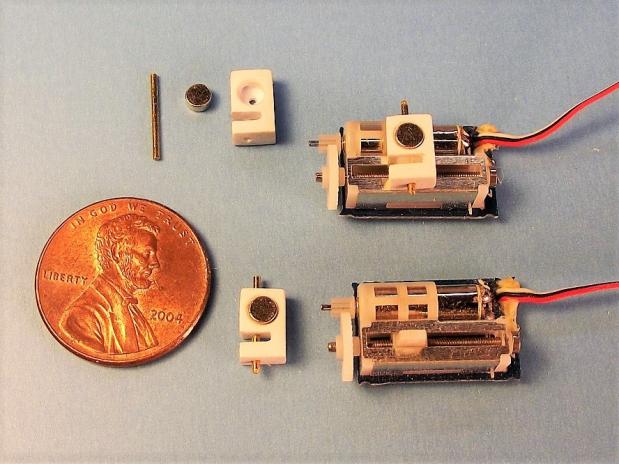

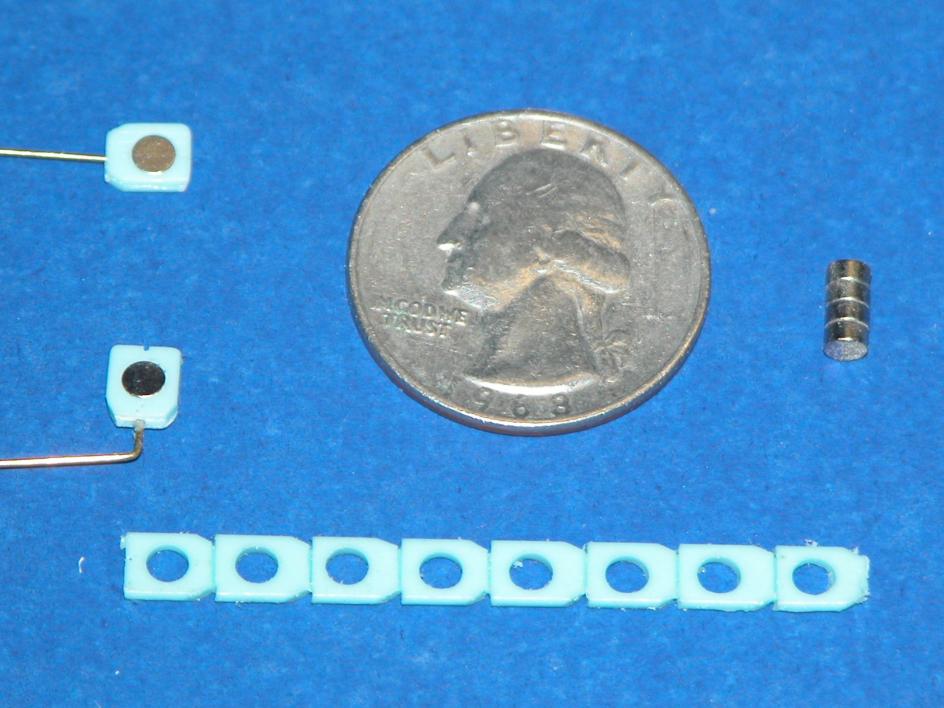

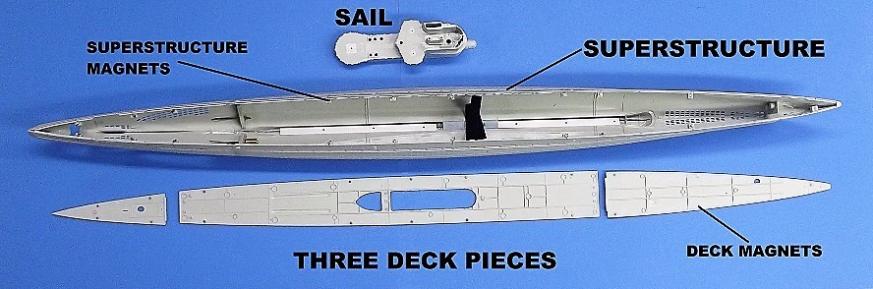

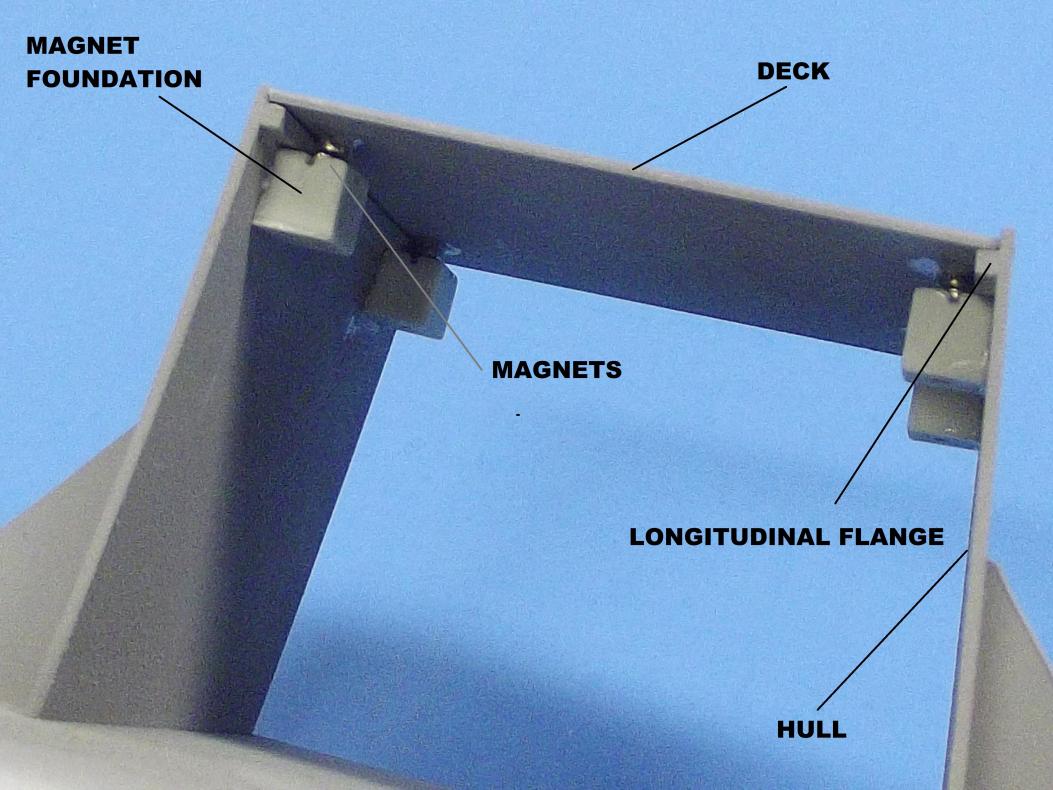

                    Gaussboys Super Magnets - Neodymium Magnets and Rare Earth Magnets

                    Click image for larger version

Name:	DSCF4576 - Copy.JPG
Views:	98
Size:	107.4 KB
ID:	157995Click image for larger version

Name:	DSCF4601.JPG
Views:	92
Size:	45.3 KB
ID:	157996Click image for larger version

Name:	DSCN0056.JPG
Views:	87
Size:	80.7 KB
ID:	157997Click image for larger version

Name:	DSCN0087.JPG
Views:	89
Size:	80.4 KB
ID:	157998
                    Resident Luddite

                    Comment


                    • #11
                      David, the klic-ons where did you source the threaded pieces with 1/16 on the other end?
                      I got my magnets same as Ken, K&J magnets.
                      If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                      Comment


                      • #12
                        Originally posted by trout View Post
                        David, the klic-ons where did you source the threaded pieces with 1/16 on the other end?
                        I got my magnets same as Ken, K&J magnets.

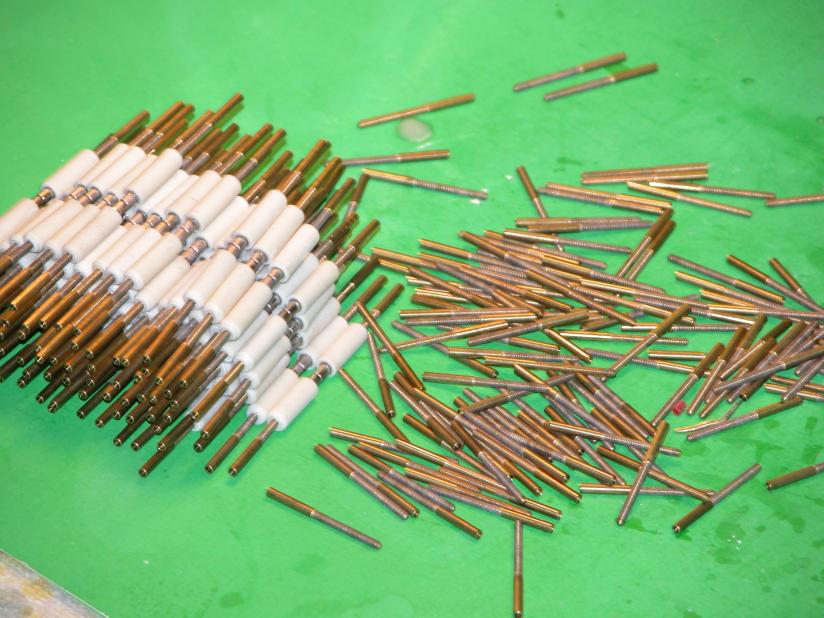

                        Du-Bro. Part No. #111
                        Resident Luddite

                        Comment


                        • #13
                          Originally posted by He Who Shall Not Be Named View Post

                          Du-Bro. Part No. #111
                          Thank you!
                          If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.

                          Comment


                          • #14
                            Here is a video I should have posted a long time ago, but here was the test in the tub:
                            https://youtu.be/wV6aS3EYx7I

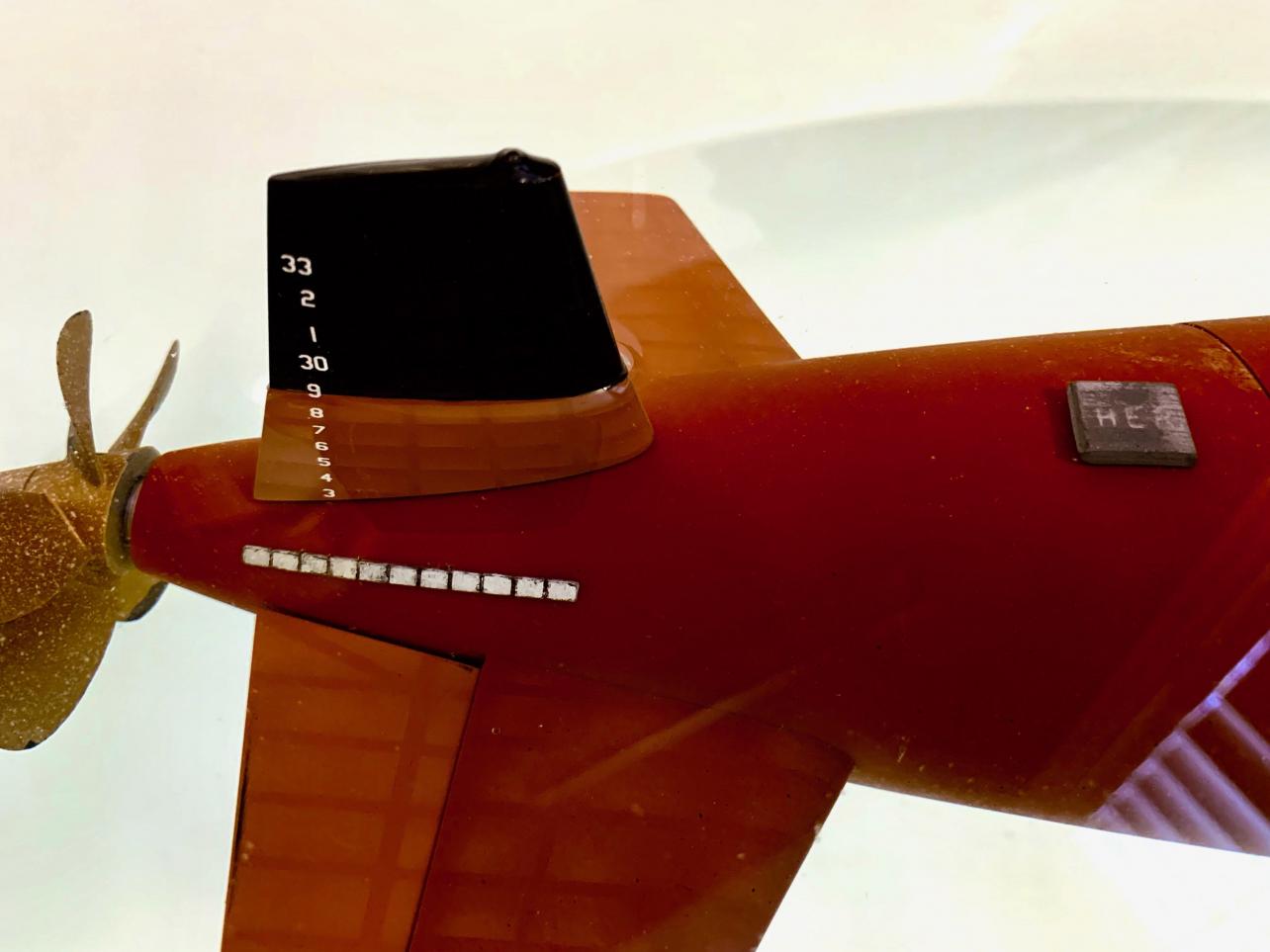

                            Now I needed to re-trim the sub. Added a small weight and placed it between its current location and the sail. Slowly moved it back (because the aft was light) until it leveled out and sank gently.
                            Click image for larger version  Name:	Skipjack_Trim_05.jpg Views:	0 Size:	39.6 KB ID:	162298

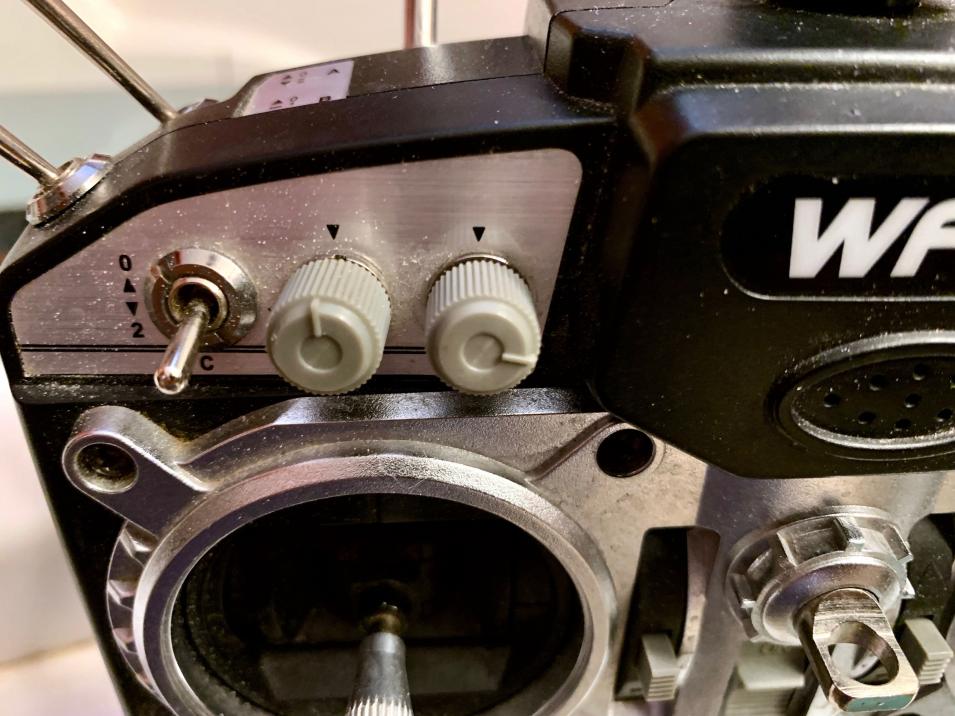

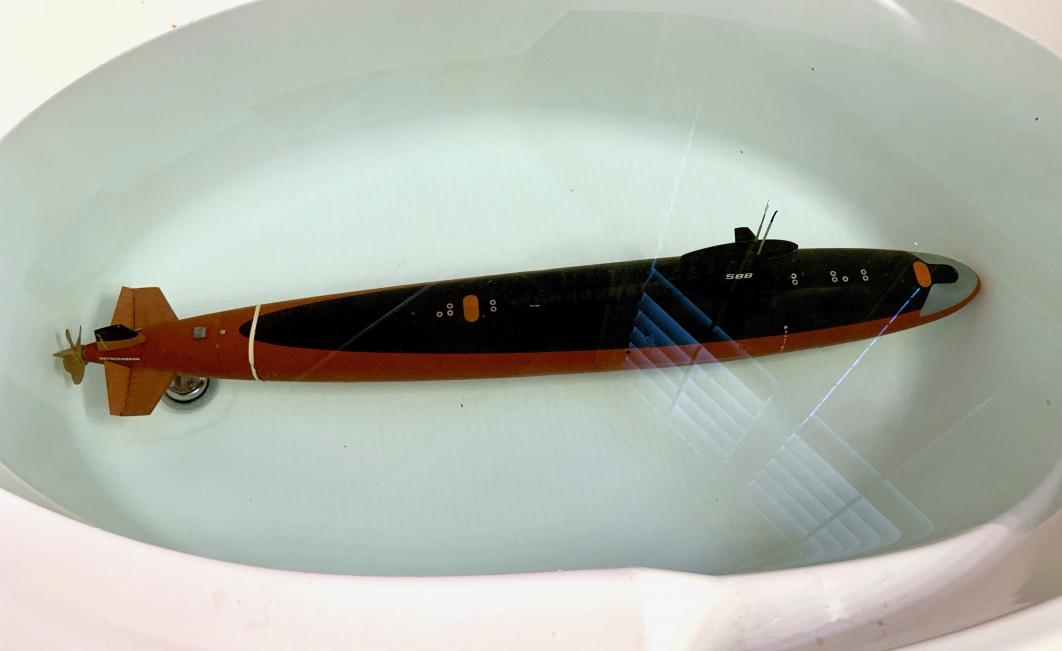

                            Moved the piston control (knob to the right) to just past 3/4s and got the sub to get a neutral or as close as possible neutral buoyancy.
                            Click image for larger version  Name:	Skipjack_Trim_06.jpg Views:	0 Size:	93.3 KB ID:	162300

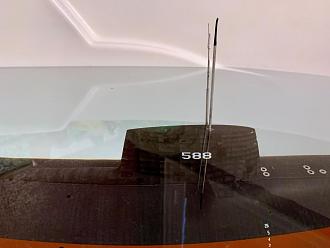

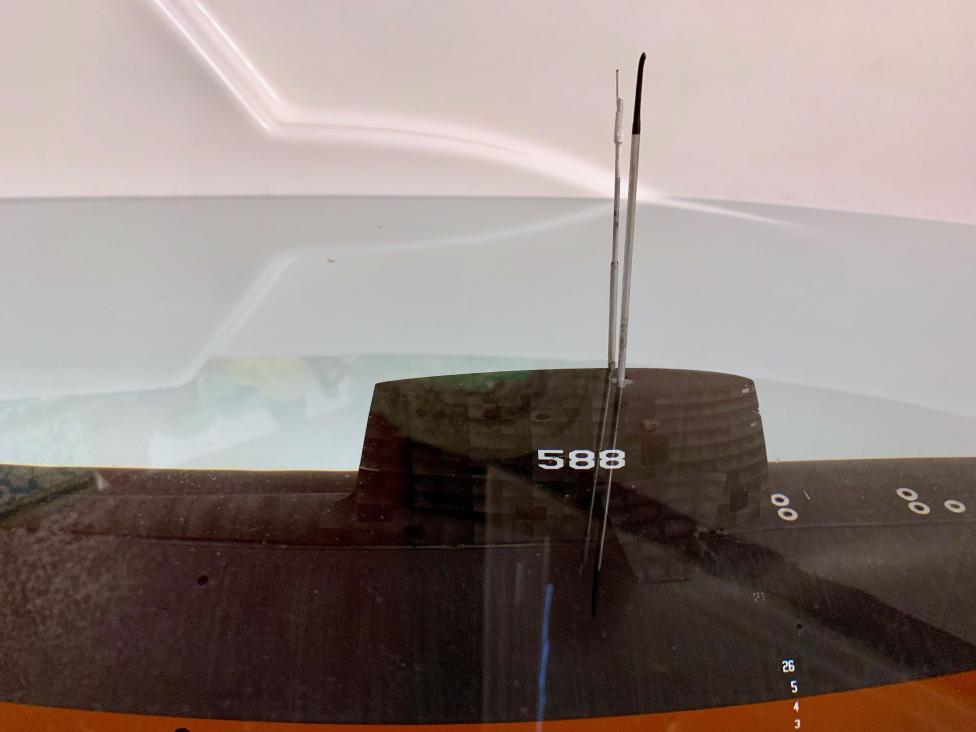

                            Let the sub settle down to make sure the trim was good.
                            Click image for larger version  Name:	Skipjack_Trim_07.jpg Views:	0 Size:	50.3 KB ID:	162299
                            Click image for larger version  Name:	Skipjack_Trim_08.jpg Views:	0 Size:	45.2 KB ID:	162301

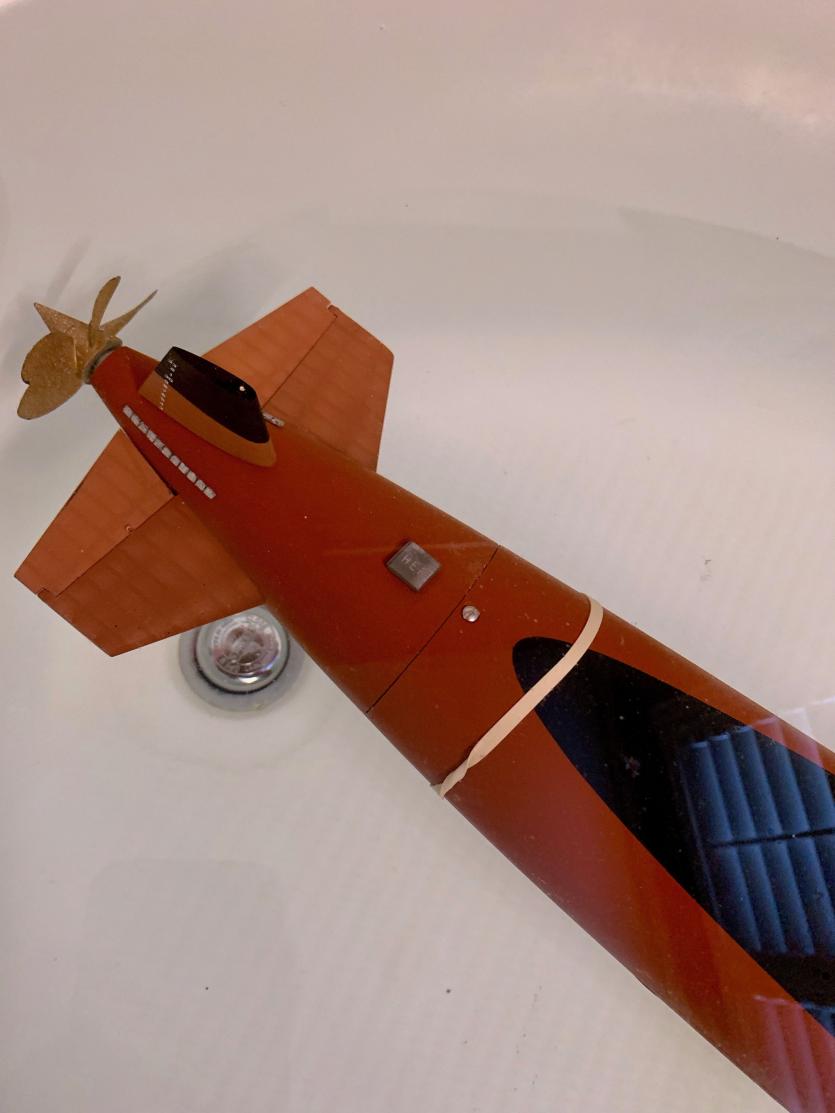

                            Brought the sub to the surface to check trim and It came out good.

                            Click image for larger version  Name:	Skipjack_Trim_09.jpg Views:	0 Size:	67.9 KB ID:	162297
                            Now get that weight affixed to the inside bottom of the hull and fix servo travel. Then get out to the river and film (David says no photos or film it did not happen).
                            If you can cut, drill, saw, hit things and swear a lot, you're well on the way to building a working model sub.
