  • Originally posted by Davidh View Post
    Hello David and all,

    Thanks for the advice on the last questions regarding molds for the sail/ conning tower. I have created the molds for this and the parts have turned out well. My next question is regarding the main hull which I am almost at the stage of creating all the molds for. I intend on doing a seven part mold. Yes, seven. The reason is that the hull unlike my usual Soviet boats ain’t simple.

    The stern and the bow sections have some really intricate undercuts and design features that mean I need molds that will need to be removed at various angles. It will also be a hybrid mold, the stern and bow section will be silicon glove/ hard shell and the middle will be a glass hard shell mould spilt down the axis to make the box keel easier to deal with. I have some drawings of what I intend to do and would like your feedback if possible. I would be able to mold the bow and stern sections individually or bolt them onto the middle section and layup in one go. Will there be expansions and contraction problems with the two different types of molds combined?
    Are there any other issues that your experience tells you I need to be aware of?

    Anyway, if you could look at the drawings and tell me what you think..

    Click image for larger version

Name:	07615CB7-9343-4B14-8887-00C2AAD3A1B1.jpeg
Views:	122
Size:	86.7 KB
ID:	153371Click image for larger version

Name:	315945BD-D62B-47BB-B45C-EB1BB3E19D58.jpeg
Views:	106
Size:	85.2 KB
ID:	153372
    David,

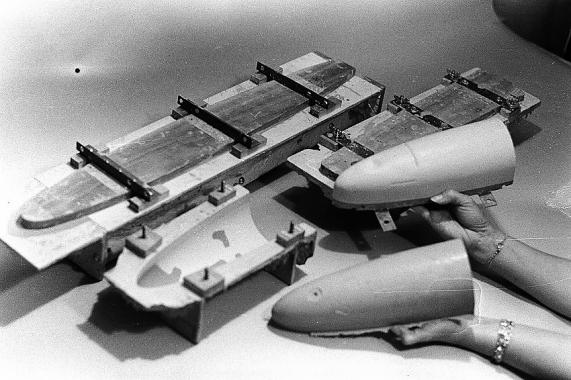

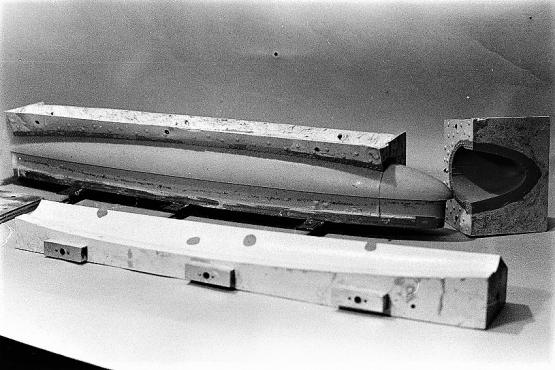

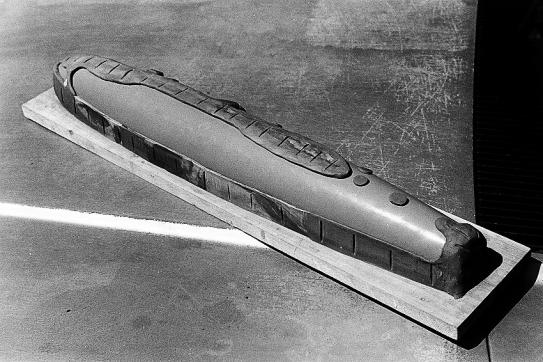

    First off, I apologize for the poor quality black-and-white photography here. Ellie and I chronicled this work over 35 years ago when I was doing my own photo lab work to save a few dimes.

    What you see here are three of the eventual five iterations of highbred tooling we produced to manufacture thin walled 1/96 SKIPJACK hull parts for our first commercially available kit. As confusing as some of this may be you will see that our work, very closely, follows your shop-sketches of your proposed tool making methodology: multi-piece tools comprising both hard-shell, and rubber glove surfaces.

    Also note that we incorporated a 'displacing plug' to form the inside of the hull pieces as well. This item not only set a specific wall thickness, but also permitted us to only one glass-resin lay-up operation to produce a GRP hull part. Only complication to that was the necessity of pressurizing the entire assembly to two atmospheres during the curing process.

    You examine the photos and if any specific questions as to process come to mind address them here and I'll take them on, point by point.

    I so enjoy watching you embrace these techniques and processes, David.












    Resident Luddite

    Comment


    • Originally posted by He Who Shall Not Be Named View Post

      David,

      First off, I apologize for the poor quality black-and-white photography here. Ellie and I chronicled this work over 35 years ago when I was doing my own photo lab work to save a few dimes.

      What you see here are three of the eventual five iterations of highbred tooling we produced to manufacture thin walled 1/96 SKIPJACK hull parts for our first commercially available kit. As confusing as some of this may be you will see that our work, very closely, follows your shop-sketches of your proposed tool making methodology: multi-piece tools comprising both hard-shell, and rubber glove surfaces.

      Also note that we incorporated a 'displacing plug' to form the inside of the hull pieces as well. This item not only set a specific wall thickness, but also permitted us to only one glass-resin lay-up operation to produce a GRP hull part. Only complication to that was the necessity of pressurizing the entire assembly to two atmospheres during the curing process.

      You examine the photos and if any specific questions as to process come to mind address them here and I'll take them on, point by point.

      I so enjoy watching you embrace these techniques and processes, David.












      David,

      I think the Black & White photos gives your work a great sense of history! The stunning detail showing the light and shadows! Great photos in my opinion!!

      Rob
      "Firemen can stand the heat"

      Comment


      • David and Rob,

        I second what Rob said. I love the old pics. I have seen these before and always wondered how you made the insert. Certainly a complex mold. I have been thinking further over my design and have been looking for ways to possibly reduce the complexity but not reduce the quality of what comes out. I have decided that the small stern section will be a single mold rather that a spit mold. The glass piece just slides out forward. Its going to be quite small too.

        Click image for larger version

Name:	bow outline..jpg
Views:	86
Size:	72.8 KB
ID:	153521

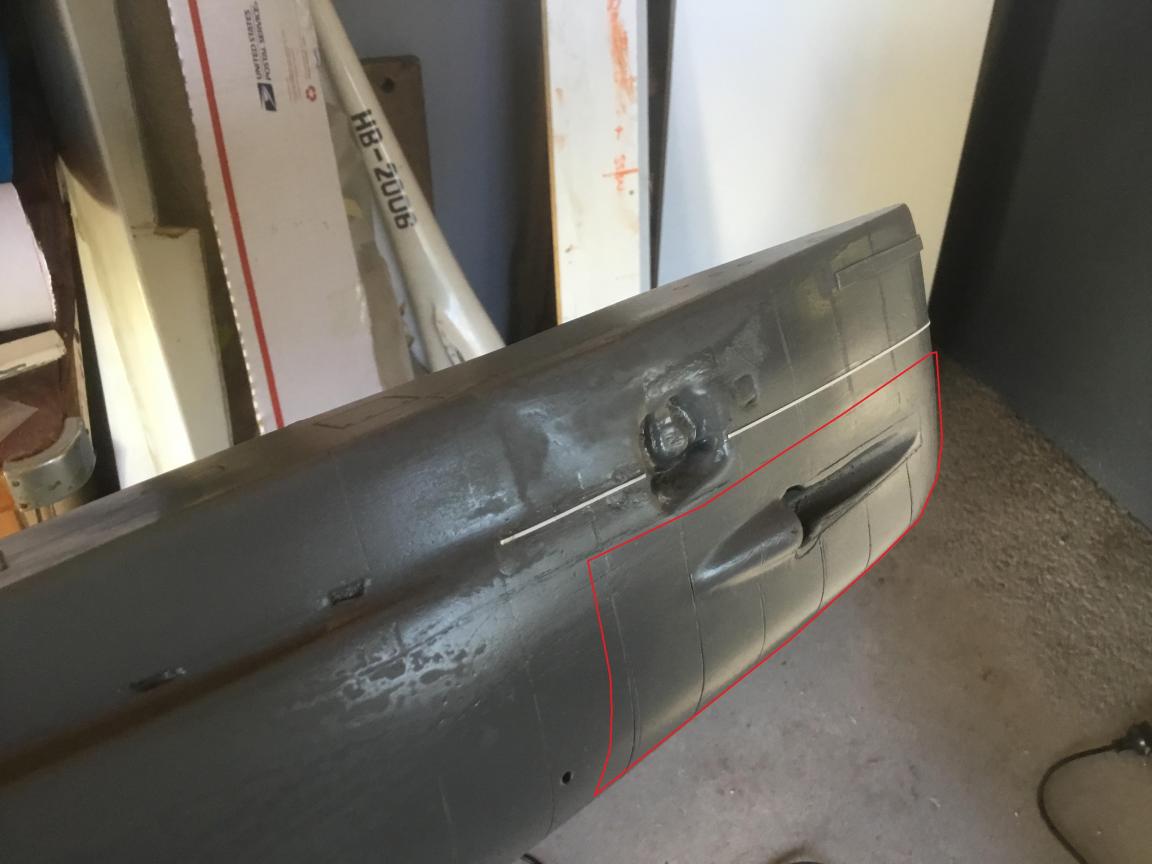

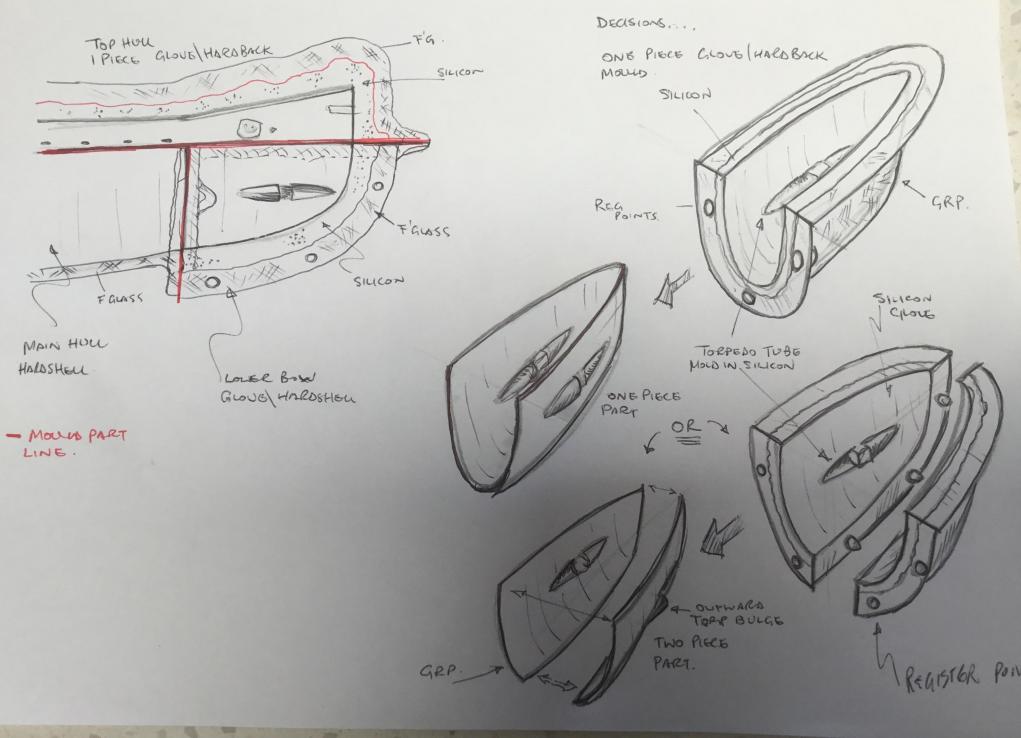

        I do have a question regarding the molding of the lower bow section where the torpedo tubes are located. Just to familiarize you with the geometry I have included a photo of the area I am going to mold. its in red. The issue is with the Torpedo tubes and undercuts/ Draft angles. I am tossing up whether to make this a one piece mold or stay with the initial two piece mold that originally envisaged. The issue is with the curves and shape of the tube bilges at the back of the tube and the "scoops' at the front, for want of a better word.


        Two piece Mold:
        Advantages:
        Easier to get gel coat and resin over all surface, Easier to get into all corners. Easy to pull finished part. If left for modeler may be easier to put in extra detail and or working tubes before closing both sides.
        Disadvantages:
        Trickier to initially fabricate and make. If parts molded separately, then joining could possibly reveal slight part line differences? If joined together to mold getting silicon edges to line up perfectly?

        One piece mold:
        Advantages:
        Easier to make. Eradicate an extra part line that runs along the keel. Neater part. More strength built into initial layups? Easier to bolt to main hard shell mold and do one continuous layup.
        Disadvantages:
        Undercuts caused by torpedo tubes. I know that I can easily pull out the silicon and peal off the part. Hard to get brush in and layup underneath bulges inside caused by torpedo tube doors.

        Click image for larger version

Name:	unnamed (1).jpg
Views:	62
Size:	70.3 KB
ID:	153522

        A lot to think about.

        Thanks David.


        Comment


        • How about cutting out the tubes with an rectangular cut around right in front of the protruding tube and casting them in urethane?

          Comment


          • Originally posted by Davidh View Post
            David and Rob,

            I second what Rob said. I love the old pics. I have seen these before and always wondered how you made the insert. Certainly a complex mold. I have been thinking further over my design and have been looking for ways to possibly reduce the complexity but not reduce the quality of what comes out. I have decided that the small stern section will be a single mold rather that a spit mold. The glass piece just slides out forward. Its going to be quite small too.

            Click image for larger version

Name:	bow outline..jpg
Views:	86
Size:	72.8 KB
ID:	153521


            I do have a question regarding the molding of the lower bow section where the torpedo tubes are located. Just to familiarize you with the geometry I have included a photo of the area I am going to mold. its in red. The issue is with the Torpedo tubes and undercuts/ Draft angles. I am tossing up whether to make this a one piece mold or stay with the initial two piece mold that originally envisaged. The issue is with the curves and shape of the tube bilges at the back of the tube and the "scoops' at the front, for want of a better word.


            Two piece Mold:
            Advantages:
            Easier to get gel coat and resin over all surface, Easier to get into all corners. Easy to pull finished part. If left for modeler may be easier to put in extra detail and or working tubes before closing both sides.
            Disadvantages:
            Trickier to initially fabricate and make. If parts molded separately, then joining could possibly reveal slight part line differences? If joined together to mold getting silicon edges to line up perfectly?

            One piece mold:
            Advantages:
            Easier to make. Eradicate an extra part line that runs along the keel. Neater part. More strength built into initial layups? Easier to bolt to main hard shell mold and do one continuous layup.
            Disadvantages:
            Undercuts caused by torpedo tubes. I know that I can easily pull out the silicon and peal off the part. Hard to get brush in and layup underneath bulges inside caused by torpedo tube doors.

            Click image for larger version

Name:	unnamed (1).jpg
Views:	62
Size:	70.3 KB
ID:	153522

            A lot to think about.

            Thanks David.

            David,

            Like old black and white photos, your pencil hand drawings of your sub build are also to be admired! Great work David!!

            Rob
            "Firemen can stand the heat"

            Comment


            • Hi Rob,

              Thanks for the comments, appreciated, I just need to get David’s thoughts on the last entry as it will affect the formwork for the molds in a big way and I am on the verge of starting fabrication.

              Regards,
              David H

              Comment


              • Originally posted by Davidh View Post
                Hi Rob,

                Thanks for the comments, appreciated, I just need to get David’s thoughts on the last entry as it will affect the formwork for the molds in a big way and I am on the verge of starting fabrication.

                Regards,
                David H
                Make the entire bow section a hard-shell mold, but before laying that up clay over the torpedo tube protuberance, like what I've illustrated in the SKIPJACK tooling here.

                Click image for larger version

Name:	PICT0013.JPG
Views:	59
Size:	46.0 KB
ID:	153630

                When you pull the cured mold, you scoop out the clay; drill a big sprue hole over the torpedo tube cavity (where the clay left a void); reinstall the tool over the master; then pour in rubber. You now have a solid hard-shell tool with a rubber element that will tolerate moderate and negative drafts during tool and part separation.

                In these two shots you can see the white hard-shell with the darker rubber inserts flush with it. The hard-shell will not flex, but the rubber elements -- over portions of the master with high and even negative draft detailing -- will flex, avoiding entrapment of master and eventual GRP parts formed in this hybrid tool.

                Click image for larger version

Name:	PICT0024.JPG
Views:	42
Size:	42.6 KB
ID:	153631Click image for larger version

Name:	PICT0027.JPG
Views:	40
Size:	41.4 KB
ID:	153632

                David

                Resident Luddite

                Comment


                • I recall you mentioning you got some issues with the hybrid tooling though, Dave.

                  Was it ridges between where the rubber areas transition to the hard case?
                  DIVE IN! Go on, go on, go on, go on, GO ON! http://www.diveintomodelsubmarines.co.uk

                  Comment


                  • Originally posted by Subculture View Post
                    I recall you mentioning you got some issues with the hybrid tooling though, Dave.

                    Was it ridges between where the rubber areas transition to the hard case?

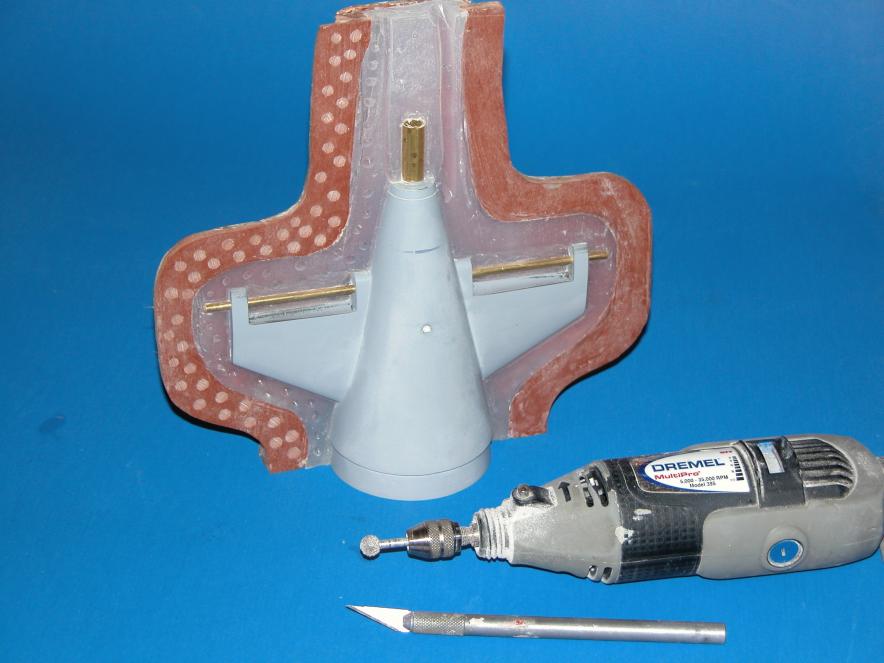

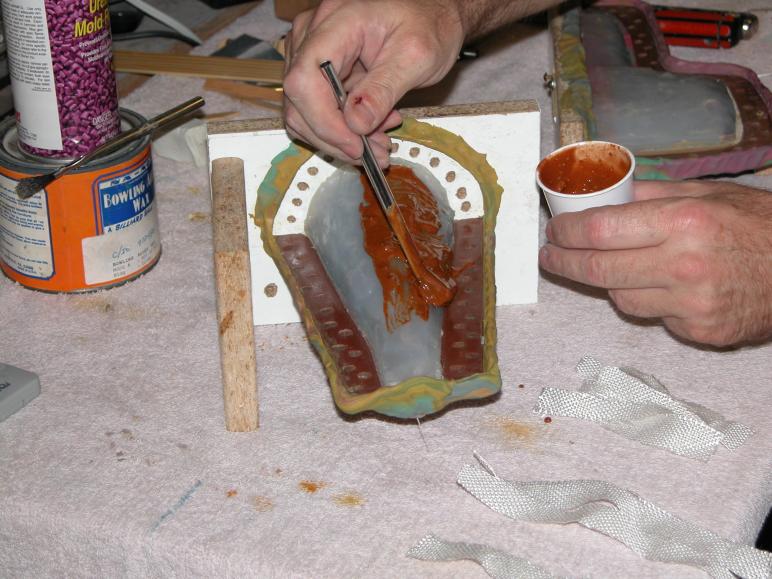

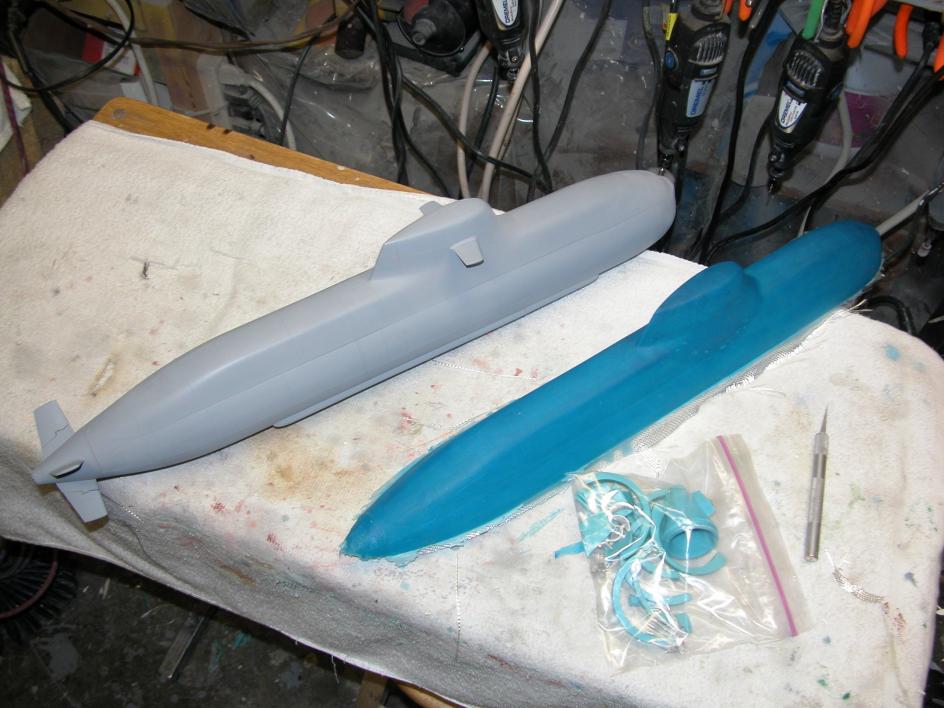

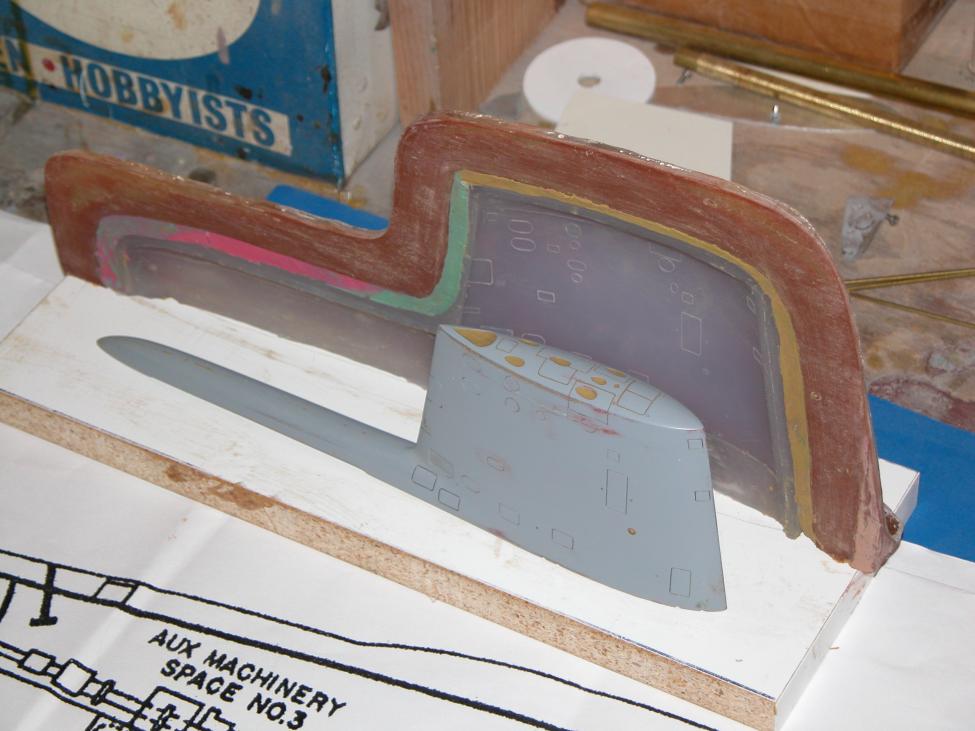

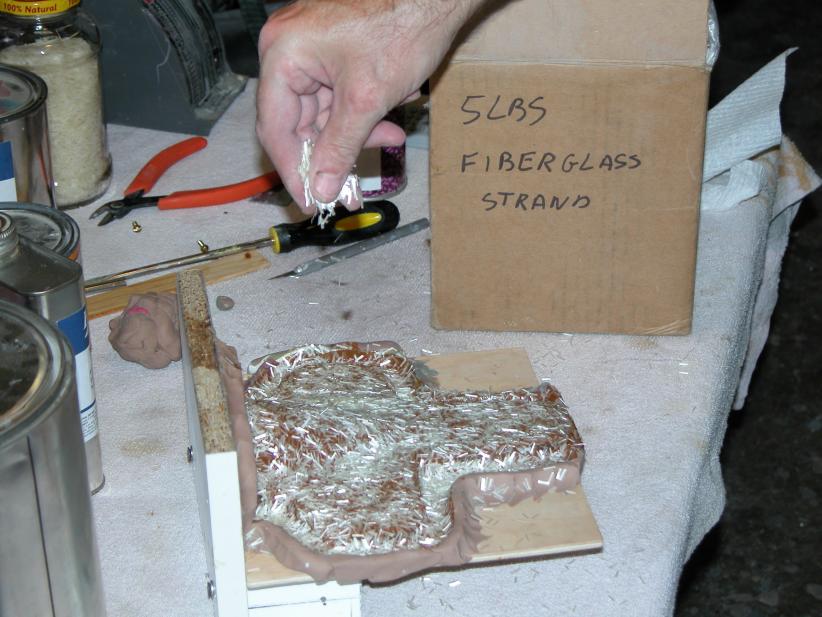

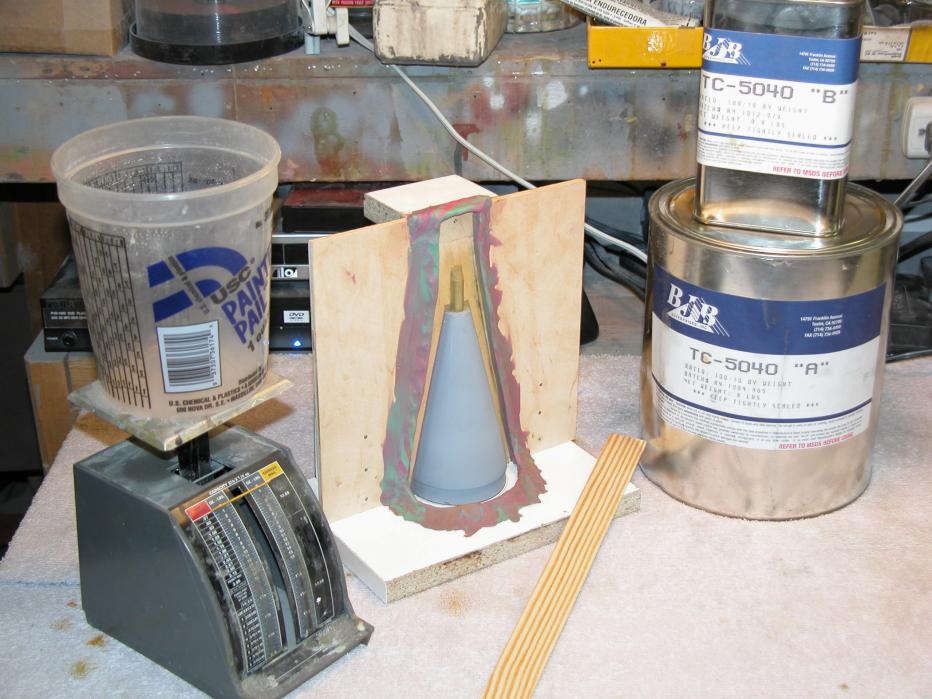

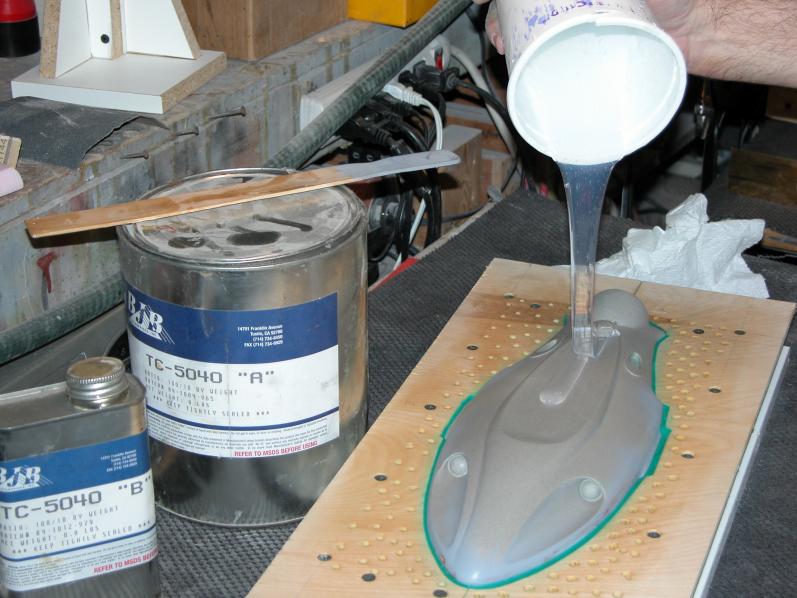

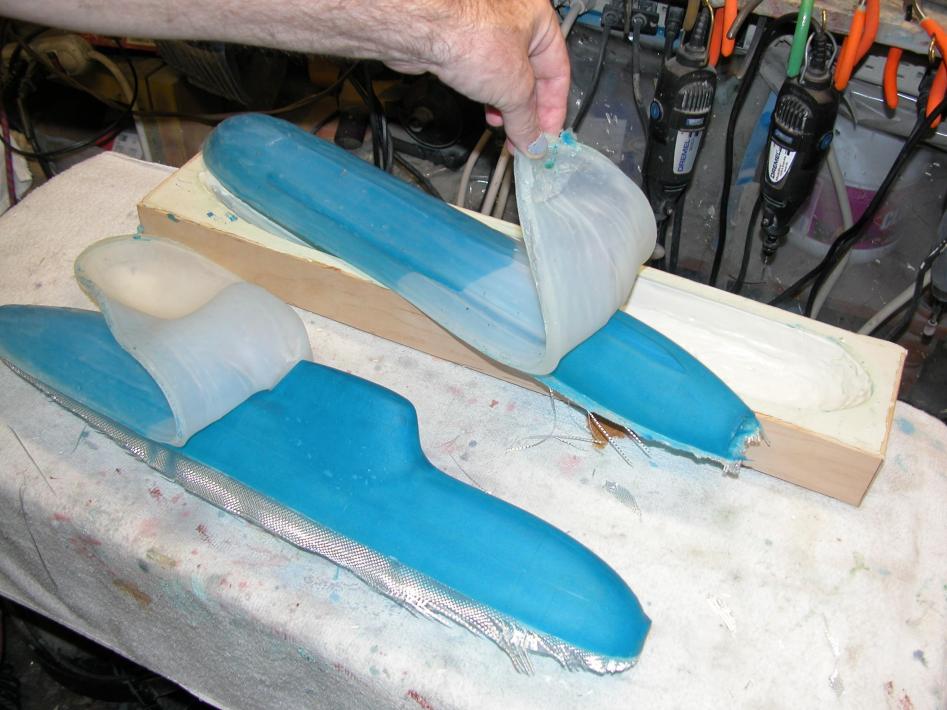

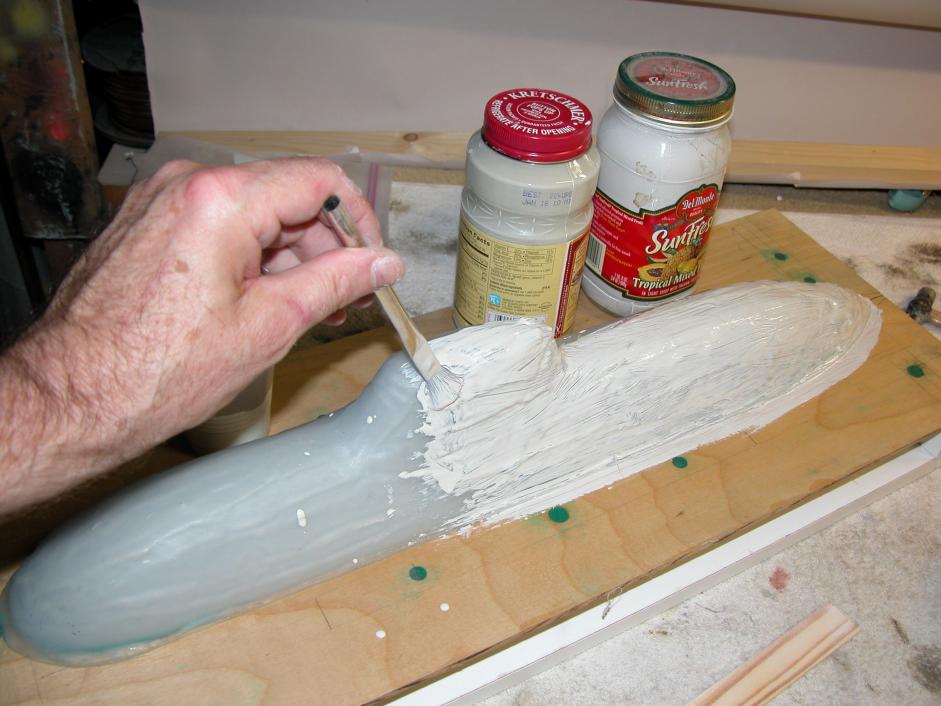

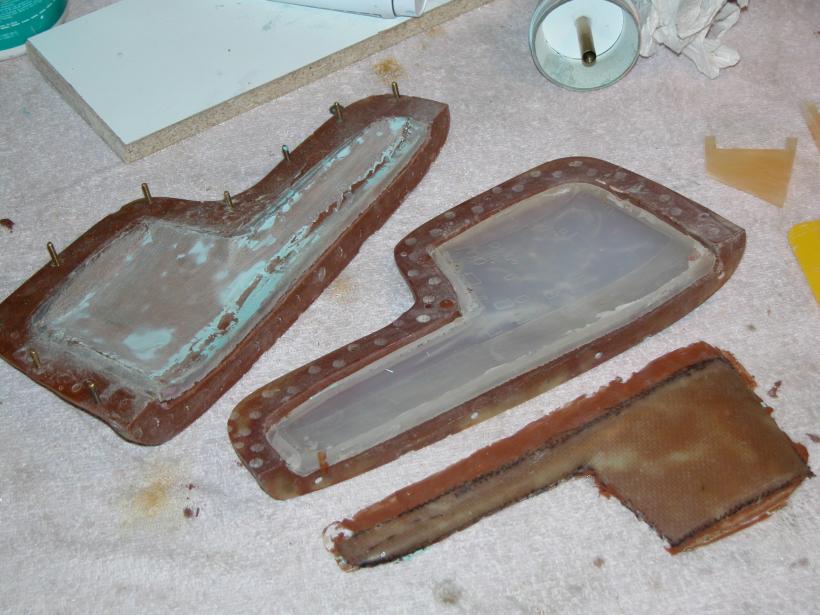

                    Exactly. Those tools produced parts that were labor intensive to clean up -- multiple flash lines and some slightly out of register height problems. The ultimate solution was to go with all rubber glove molds, and all resin hard-shell mother molds backing up the rubber.

                    Click image for larger version

Name:	DSCN0038 (2).JPG
Views:	54
Size:	90.0 KB
ID:	153636Click image for larger version

Name:	DSCN0039.JPG
Views:	39
Size:	86.7 KB
ID:	153637Click image for larger version

Name:	DSCN0116.JPG
Views:	46
Size:	72.4 KB
ID:	153638Click image for larger version

Name:	DSCN0099.JPG
Views:	39
Size:	77.6 KB
ID:	153639Click image for larger version

Name:	DSCN0075.JPG
Views:	37
Size:	76.4 KB
ID:	153640Click image for larger version

Name:	DSCN0165.JPG
Views:	38
Size:	75.6 KB
ID:	153641Click image for larger version

Name:	DSCN0164.JPG
Views:	38
Size:	65.3 KB
ID:	153642Click image for larger version

Name:	DSCN0185.JPG
Views:	38
Size:	53.8 KB
ID:	153643Click image for larger version

Name:	DSCN0035_0001.JPG
Views:	44
Size:	95.4 KB
ID:	153644Click image for larger version

Name:	DSCN0050_0001.JPG
Views:	38
Size:	77.0 KB
ID:	153645Click image for larger version

Name:	DSCN0107 (2).JPG
Views:	44
Size:	70.8 KB
ID:	153646

                    David
                    Resident Luddite

                    Comment


                    • Thanks David,

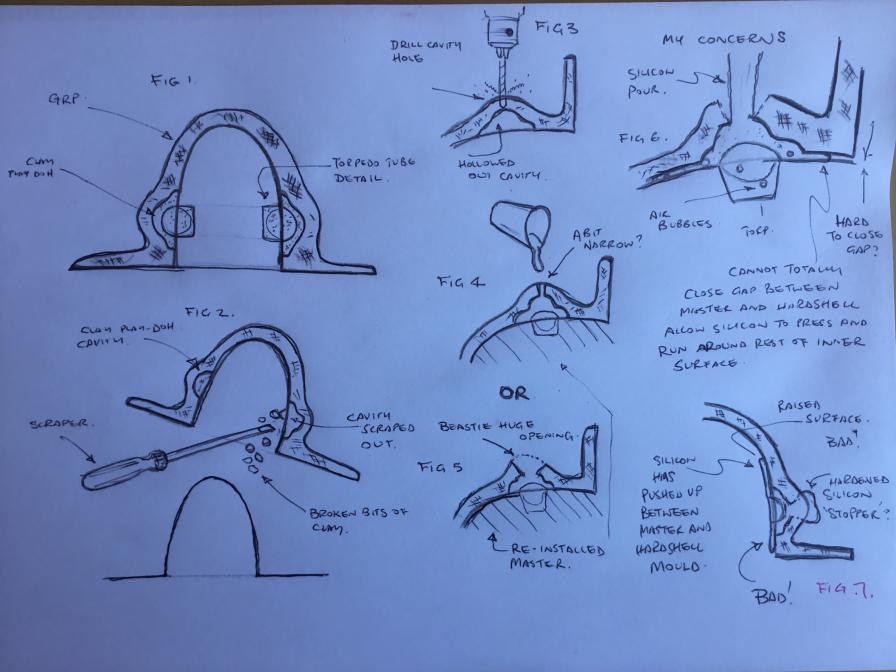

                      That has really thrown me. I did notice that there were ‘discolored’ sections in your mold but didn’t think anything more of it for some reason and didn’t even suspect that it was because of a change in surface medium. It makes sense. I have read your response thoroughly and have once again drawn what I understand you to be saying and to make sure that I’ve got it right. So the drawing beneath shows 7 illustrations that go through what I think you are describing and the lest two illustrate what concerns me.

                      Click image for larger version

Name:	0747582A-1329-4D2C-8277-9006CE4B8710.jpeg
Views:	45
Size:	63.3 KB
ID:	153660

                      My biggest concern I’d shown in fig 7. I really don’t feel confident that I will be able to get the master hull back into the hard shell cavity with an absolutely 100 perfect fit without there being some tiny gap between the hard shell and the silicon cavity. I am concerned that the silicon will find a gap and ride out of the intended cavity area. Then I pull off the whole ensemble and there is a wide flash of excess silicon. Is this a justified concern?

                      With the undercut draft angle of the torpedo tube outward bulge I will have to pull the mold off, forward.

                      I hope this makes sense.

                      Thanks for your guidance.

                      David H

                      Comment


                      • Hi David,

                        Another thing, referring back to the earlier response, should I make it one part or two?

                        Dave H

                        Comment


                        • Make it a two-piece mold.

                          The gap -- that undesired small annular space between surface of hard-shell mold and re-inserted master -- is addressed by rolling a very thin-walled 'O-ring' of clay and placing it on the master, forming a dam around the area that will get the rubber element. Yes, that will later evidence as a disparity of depth between the hard and rubber elements on the eventual GRP parts. But, them's the breaks, pal. The big reason Ellie and I went to all rubber glove-type inner molds over three decades ago.

                          David
                          Resident Luddite

                          Comment
