Rudder Actuation in close tolerance sterns, i.e. Type XXI, TXXIII style?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Rudder Actuation in close tolerance sterns, i.e. Type XXI, TXXIII style?

    Might the fellows having built similar to the above in 1/72 scale, or smaller, share how they accomplished reliable rudder actuation in their projects? Pictures would be wonderful!! I have a 1/72 Foxtrot project going and am in need of a good system to make the turny-thing work! I did the work in a 1/35 Bronco Type XXIII, but there's a whole lot more room in that beast.

    TIA, Happy 4th!!

    Bill

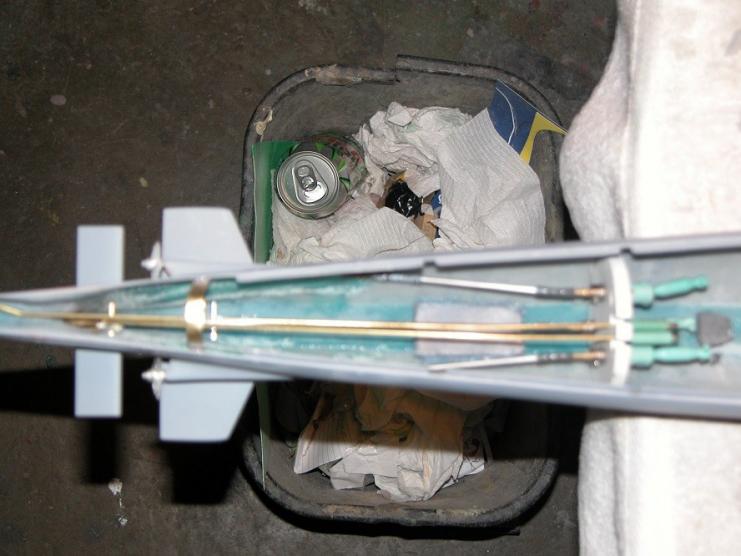

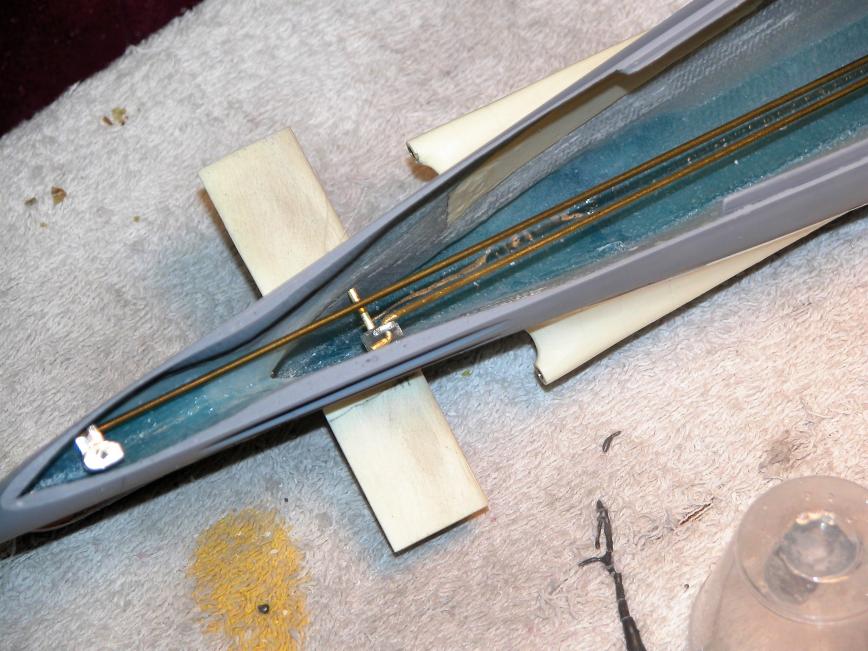

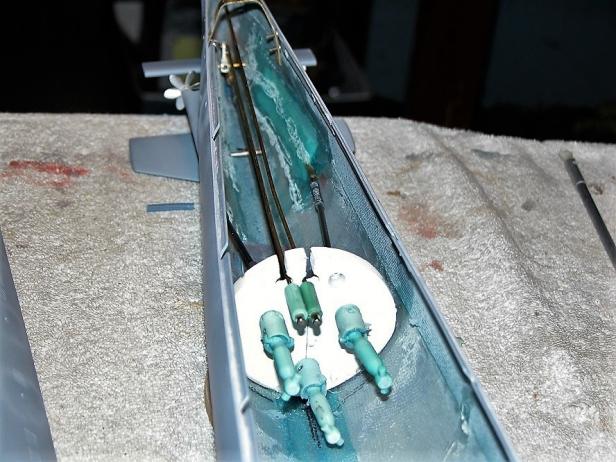

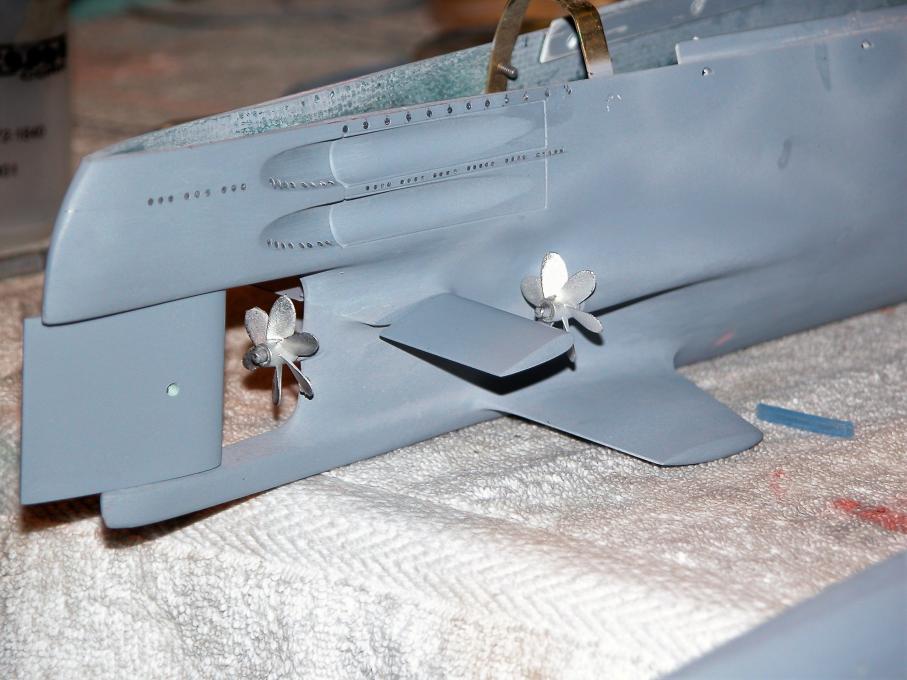

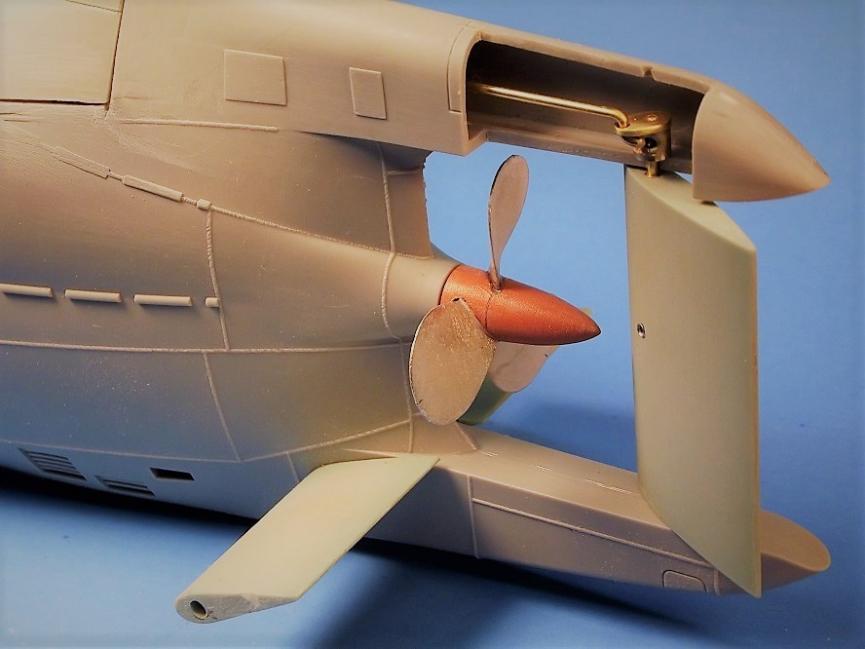

  • #2
    Click image for larger version

Name:	125.JPG
Views:	183
Size:	63.1 KB
ID:	162656Click image for larger version

Name:	123.JPG
Views:	182
Size:	93.0 KB
ID:	162657Click image for larger version

Name:	DSCN0115.JPG
Views:	181
Size:	49.1 KB
ID:	162658Click image for larger version

Name:	DSCN0117.JPG
Views:	184
Size:	72.4 KB
ID:	162659Click image for larger version

Name:	DSCN0114.JPG
Views:	185
Size:	56.6 KB
ID:	162660
    Attached Files
    Resident Luddite

    Comment

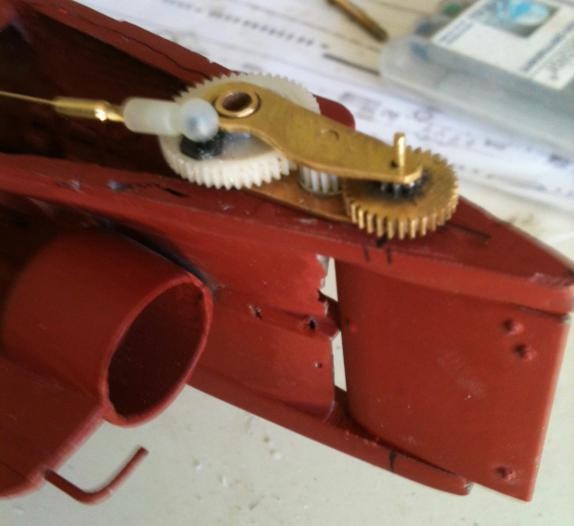

    • #3
      Click image for larger version

Name:	image_34326.jpg
Views:	202
Size:	38.8 KB
ID:	162662
      Make it simple, make strong, make it work!

      Comment


      • #4
        Thank you!

        Bill

        Comment


        • #5
          Bill,

          I have an idea on paper for using a robotics timing belt and pulleys. I also have a stainless chain from some old school radio gear that may work if I find the right size sprockets.

          Comment


          • #6
            Cool, Tim! I have a bag full of plastic gears that was amongst Bob hoard of goodies. Something will work to make this happen!!

            Bill

            Comment

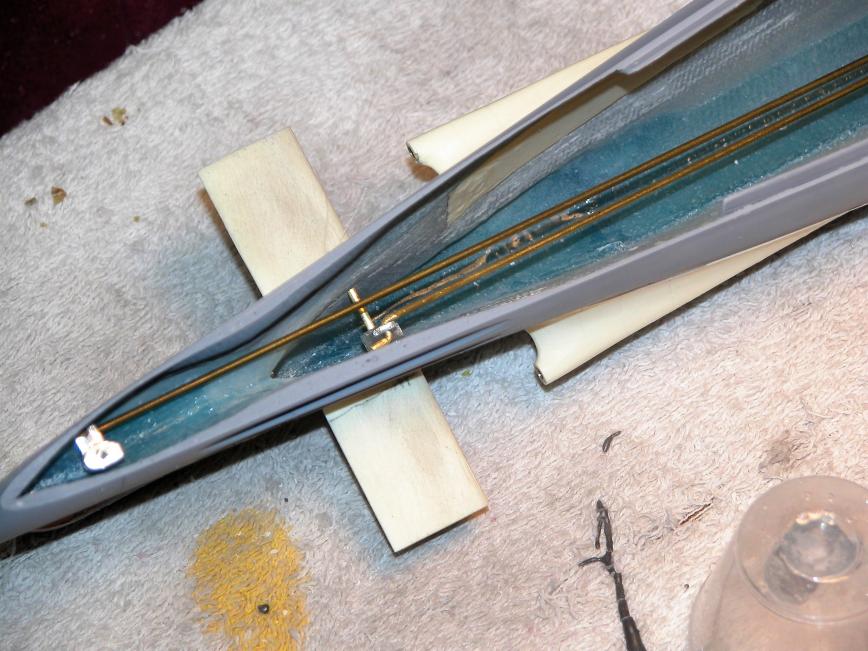

            • #7
              Originally posted by wlambing View Post
              Cool, Tim! I have a bag full of plastic gears that was amongst Bob hoard of goodies. Something will work to make this happen!!

              Bill
              You ham-fisted Idiot!

              Just throw a horn in there and be done with it!

              You Complexity Worshiping, knuckle-dragging A-Ganger types frost my ass! Who brought you up, anyway... Rub Goldberg???

              Click image for larger version

Name:	123.JPG
Views:	195
Size:	93.0 KB
ID:	162739Click image for larger version

Name:	123.JPG
Views:	169
Size:	93.0 KB
ID:	162740Click image for larger version

Name:	123.JPG
Views:	168
Size:	93.0 KB
ID:	162741Click image for larger version

Name:	123.JPG
Views:	165
Size:	93.0 KB
ID:	162742Click image for larger version

Name:	123.JPG
Views:	167
Size:	93.0 KB
ID:	162743Click image for larger version

Name:	123.JPG
Views:	166
Size:	93.0 KB
ID:	162744Click image for larger version

Name:	123.JPG
Views:	168
Size:	93.0 KB
ID:	162745Click image for larger version

Name:	123.JPG
Views:	165
Size:	93.0 KB
ID:	162746Click image for larger version

Name:	123.JPG
Views:	168
Size:	93.0 KB
ID:	162747Click image for larger version

Name:	123.JPG
Views:	168
Size:	93.0 KB
ID:	162748

              David
              The Intolerant
              Resident Luddite

              Comment


              • #8
                Hey! Hey! Hey! I know exactly where these flat-tipped, stubby meat-grabbin' digits can go and what they can do! Had enough trouble getting a horn to work in the Type XXIII. I also know how much fun it is tryin' to use hot-metal glue to make teenie-weenie little horns without removing my fingerprints by accident!!! ;)

                Comment


                • #9
                  Originally posted by wlambing View Post
                  Hey! Hey! Hey! I know exactly where these flat-tipped, stubby meat-grabbin' digits can go and what they can do! Had enough trouble getting a horn to work in the Type XXIII. I also know how much fun it is tryin' to use hot-metal glue to make teenie-weenie little horns without removing my fingerprints by accident!!! ;)
                  https://youtu.be/nwGY2o1Po38
                  Resident Luddite

                  Comment


                  • #10
                    Well, now I'm looking for a source for a teenie-tiny rack and pinion set up, suitable for use in only 3/16" of space. The smallest horn I have still will not clear the hull side and pivot the rudder stock (1/16" brass rod). I could cut a slot in the hull, or manufacture "blisters" for each side with a slot underneath for horn arm clearance, but that would destroy the fine lines of this racy looking subject. She's one of the RPM Tech 1/72 Foxtrot hulls, and a production hull that seems to differ greatly from the one HWSNBN built in some areas. Can anyone share a source for really small rack and pinion sets? Such info could be of benefit to us all for actuating little features. TIA.

                    Bill

                    PS- I did look at the Servo R&P Bob has, and it is too big also.
                    Last edited by wlambing; 07-22-2022, 11:01 AM.

                    Comment


                    • #11
                      I found a small plastic rack and pinion set among some stuff from a friends estate. ID'd the pieces to use and will be making those pieces fit, post haste!

                      Comment


                      • #12
                        You could draw a rack and pinion out in cad then have it 3d printed in nylon.

                        Or use a pair of small bevel gears, then you can the control shaft can use a rotary seal.
                        Time to DIVE IN! https://www.facebook.com/groups/133360626703083/

                        Comment
