Trimming circular bulkheads

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Trimming circular bulkheads

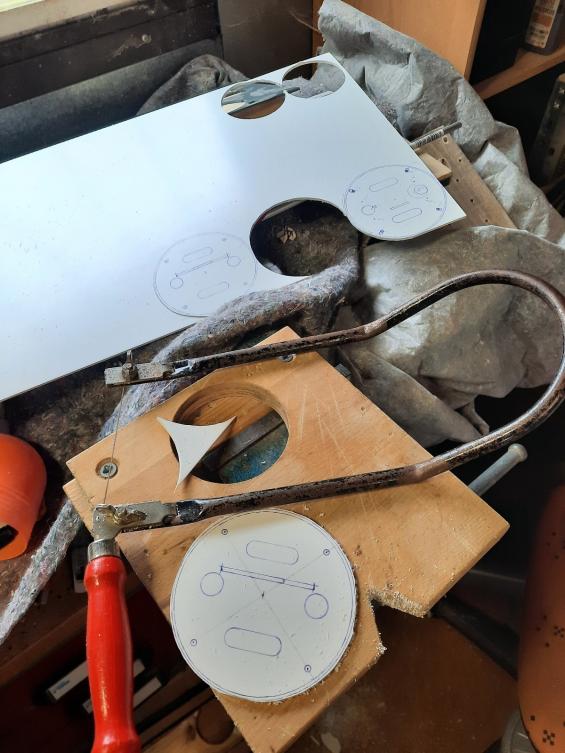

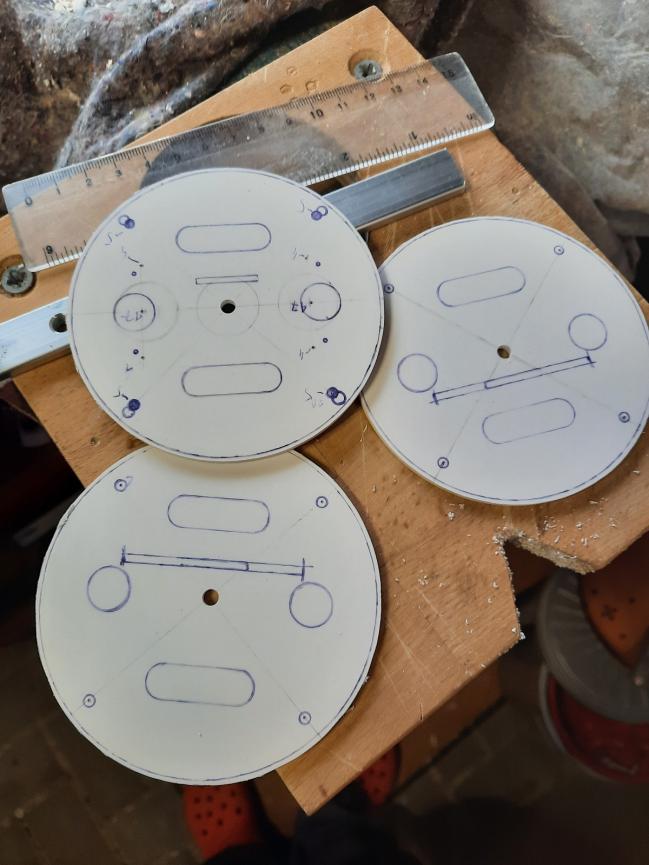

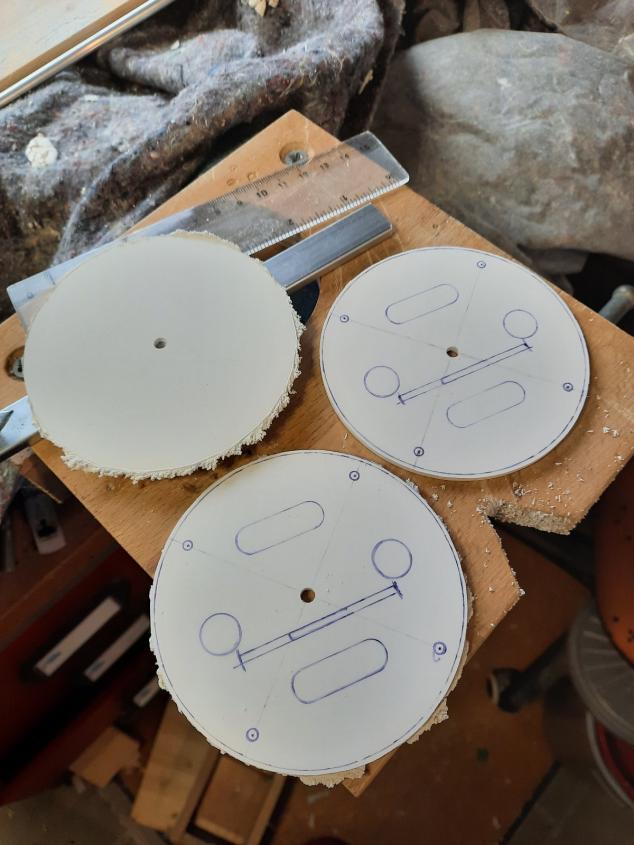

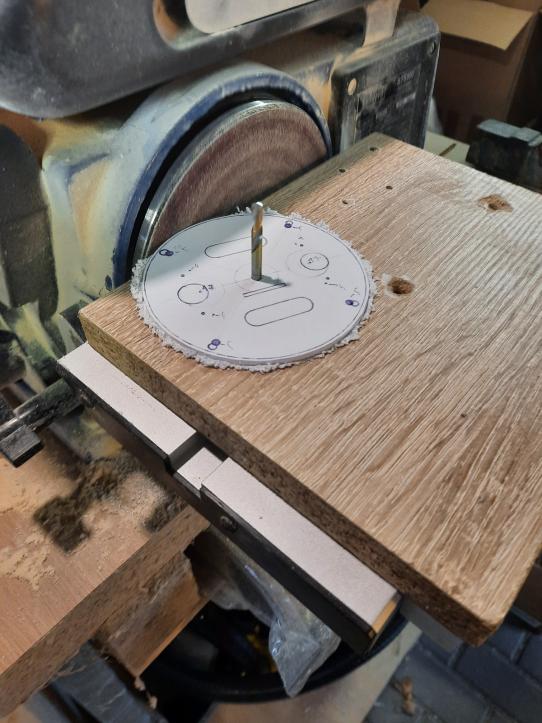

    A simple low-tech jig for the belt grinder in case you don't print your bulkheads:

    Click image for larger version

Name:	20220122_140105_copy_1200x1600.jpg
Views:	70
Size:	61.7 KB
ID:	158299Click image for larger version

Name:	20220122_143152_copy_1200x1600.jpg
Views:	68
Size:	63.6 KB
ID:	158301Click image for larger version

Name:	20220122_143535_copy_1200x1600.jpg
Views:	113
Size:	63.2 KB
ID:	158297Click image for larger version

Name:	20220122_143711_copy_1200x1600.jpg
Views:	66
Size:	62.6 KB
ID:	158298
    Attached Files

  • #2
    Perfect work good idea because i do have no lathe.
    Regards Gantu

    Comment


    • #3
      I love to see the ingenuity! Like Carbine Williams...BG

      Comment


      • #4
        Variations on the theme:



















        David
        Resident Luddite

        Comment


        • #5
          Thank you! Gantu, i do most of my work with my drill press and several jigs. I even got a simple, heavy cross-table with two axis and milling bits to mill for it. Cost 50€! Besides, the best tool is the stationary belt-grinder that allows numerous applications. For the tech-rack i am constructing, i also use it with another jig installation to grind distance tubes to identical length and perpendicular edges.

          Thanks Bob Gato! There are other installions depicted in my Mike build, too.

          David, i am right, the thick roto-scribed ring is PU? How dimension-stable is such a large product? No shrinking over time?
          WHAT DO I SEE, a tolerance gap between thorn and pivot hole!?! FROM YOU!?!

          In case Manfred is reading this, the big 700' engines are in! I went for the muscles!

          Jörg

          Comment


          • #6
            Originally posted by JHapprich View Post
            Thank you! Gantu, i do most of my work with my drill press and several jigs. I even got a simple, heavy cross-table with two axis and milling bits to mill for it. Cost 50€! Besides, the best tool is the stationary belt-grinder that allows numerous applications. For the tech-rack i am constructing, i also use it with another jig installation to grind distance tubes to identical length and perpendicular edges.

            Thanks Bob Gato! There are other installions depicted in my Mike build, too.

            David, i am right, the thick roto-scribed ring is PU? How dimension-stable is such a large product? No shrinking over time?
            WHAT DO I SEE, a tolerance gap between thorn and pivot hole!?! FROM YOU!?!

            In case Manfred is reading this, the big 700' engines are in! I went for the muscles!

            Jörg
            Those bulkheads were glass-shard reinforced epoxy resin -- that chemistry chosen just for the reason you identified, Jorg. Good catch. (I should never have removed those lonitudinal flanges!).

            That slop de-tunes the work. If it was a tight tolerance the work would start to sing till it grabbed the blade resulting in a sudden kick-back (and possible loss of a finger or two). Ever see a grounded helicopter get into 'ground resonance'? Not pretty.

            David
            Resident Luddite
