  • #16
    A little tough holding it together at this point. Not glued up as of yet! The boat is 21.50" long with a 5.25" beam at the widest point.

    Rob
    "Firemen can stand the heat"

    Comment


    • #17

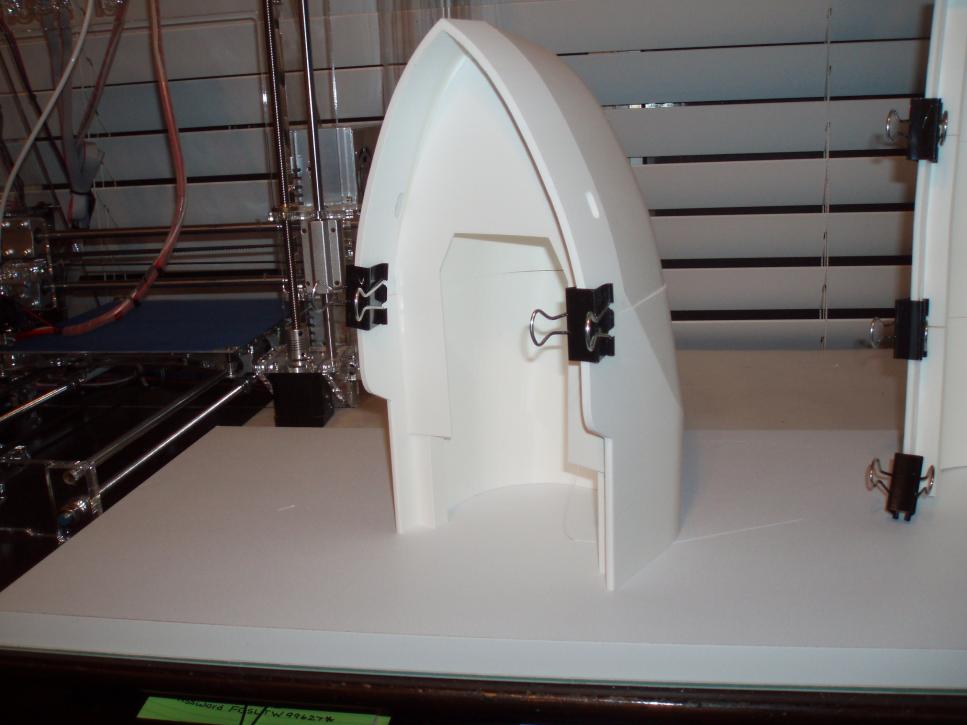

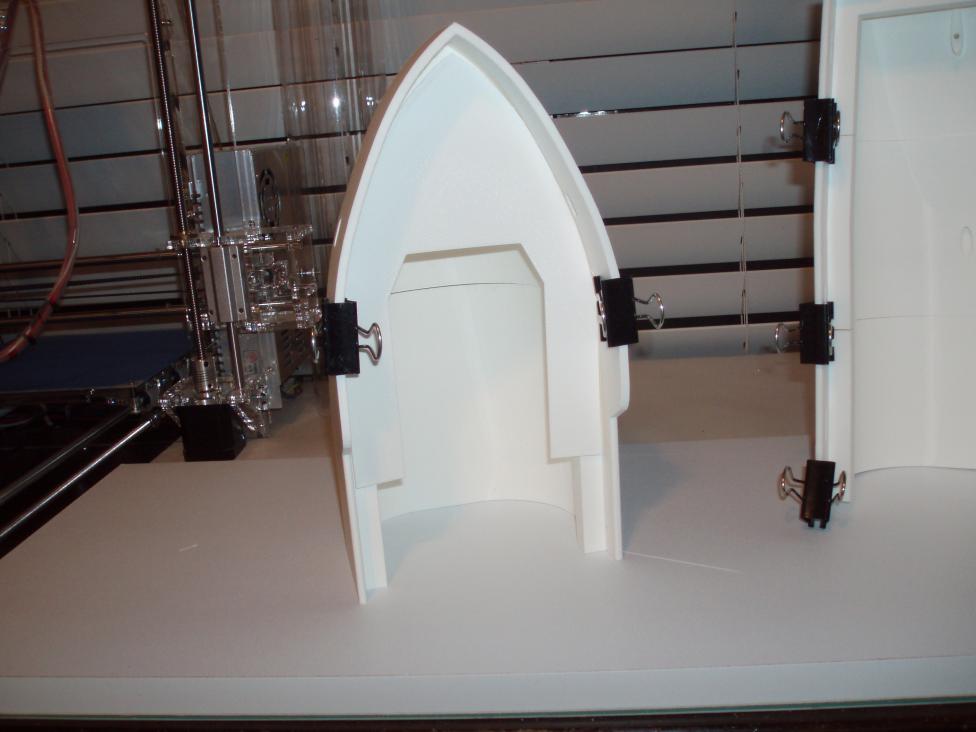

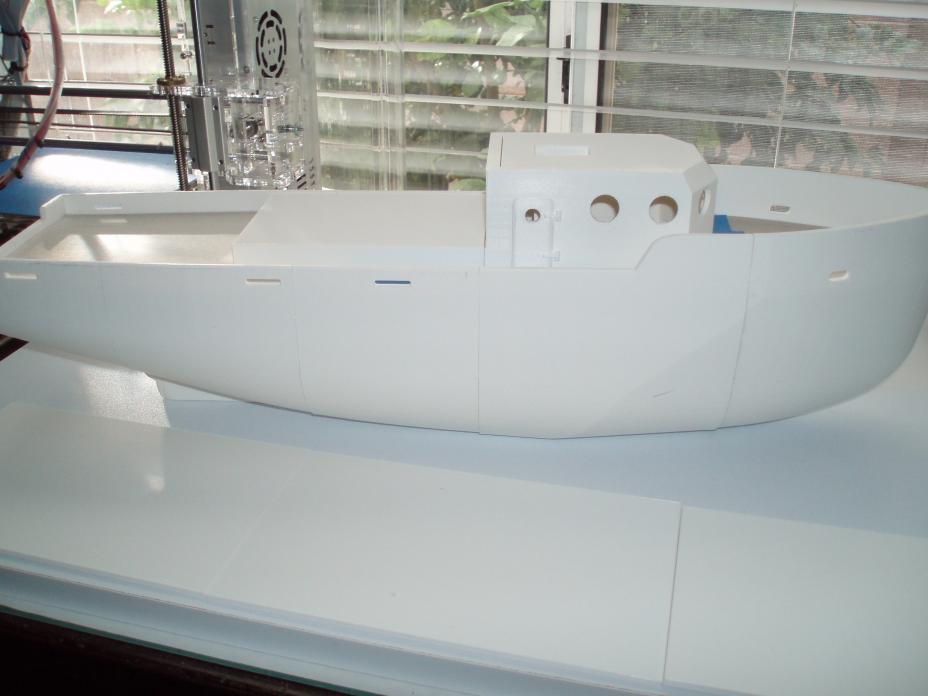

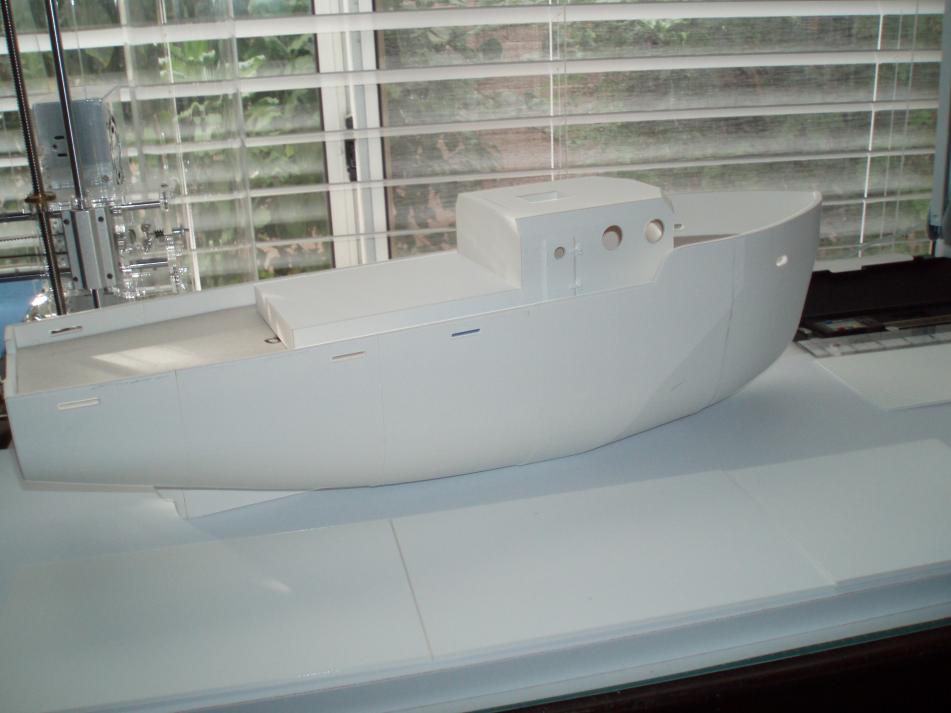

      Now that the main hull is completed, I am starting on the deck parts.

      Click image for larger version

Name:	Bow Deck.jpg
Views:	123
Size:	55.1 KB
ID:	156531Click image for larger version

Name:	Bow Deck 2.jpg
Views:	114
Size:	59.1 KB
ID:	156532

      The bow deck section will need some sanding and fitting work. May need to do some re-design work on the decking sections.

      Rob
      "Firemen can stand the heat"

      Comment


      • #18
        What powerplant are you putting in?
        Make it simple, make strong, make it work!

        Comment


        • #19
          Originally posted by redboat219 View Post
          What powerplant are you putting in?
          Not sure on the powerplant as of yet, but most likely in the 550 series brushed motor!

          Rob
          "Firemen can stand the heat"

          Comment


          • #20

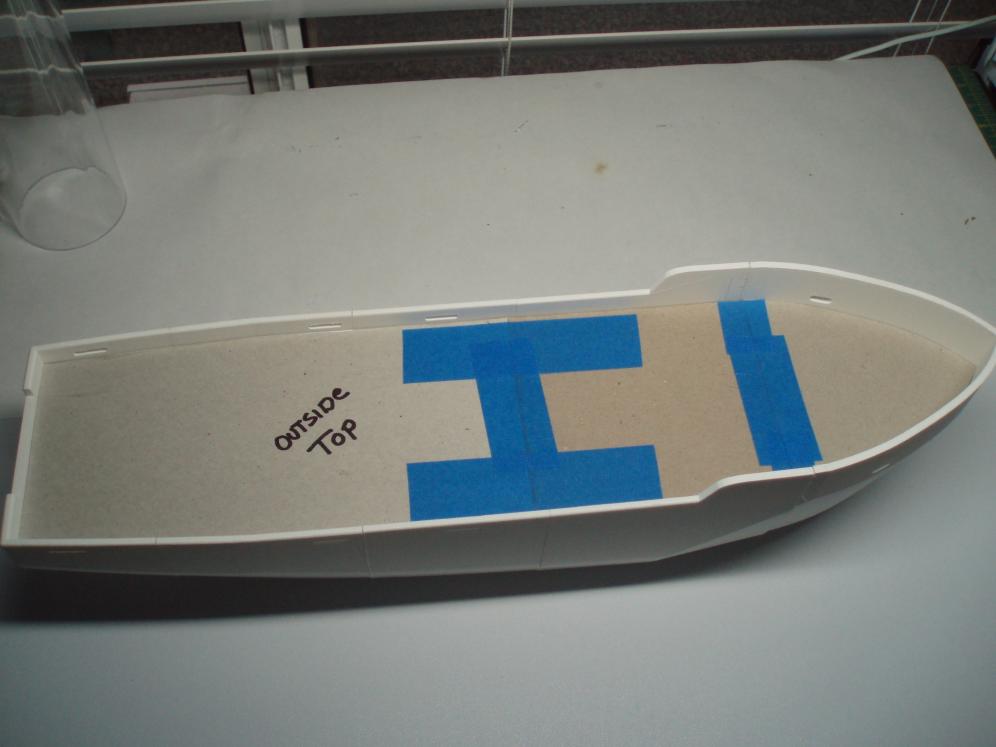

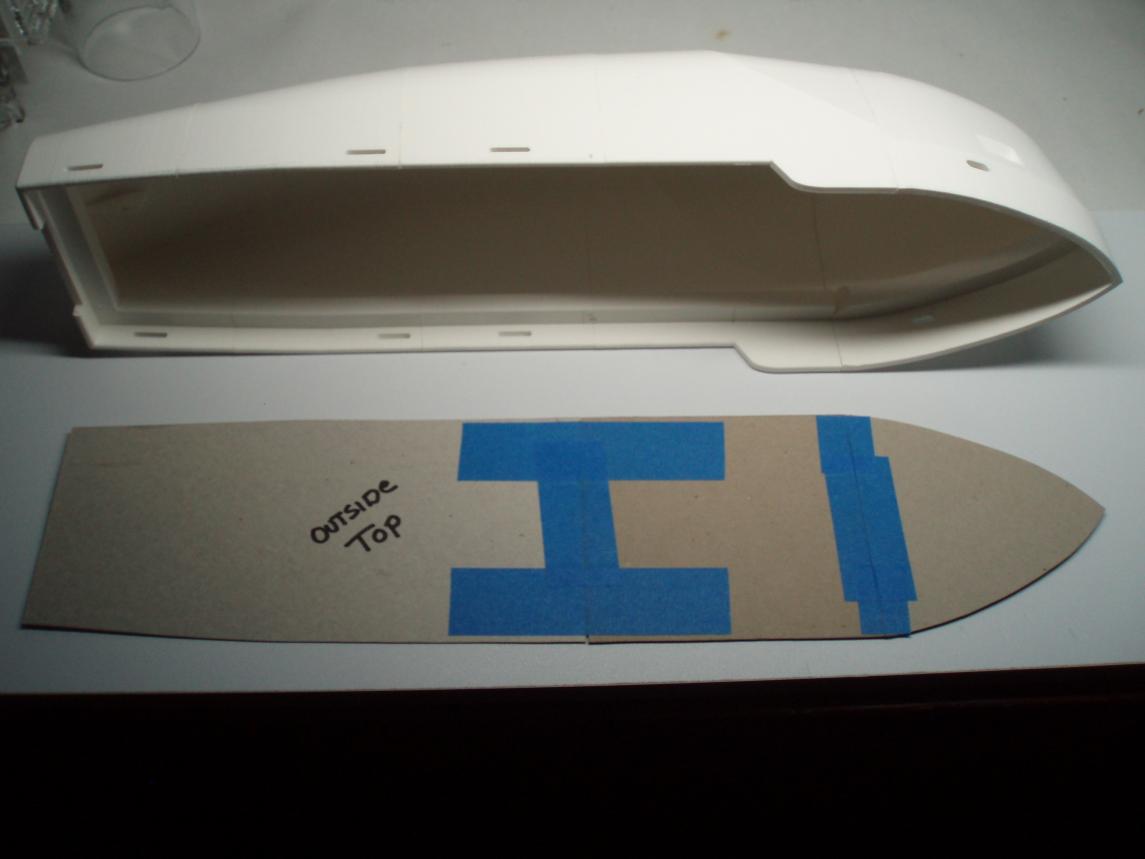

            The 3D files for the Utility Boat I am building did not come out all! And what you see below is my cardboard deck pattern.

            Click image for larger version  Name:	Deck Pattern.jpg Views:	0 Size:	48.3 KB ID:	156593Click image for larger version  Name:	Deck Top.jpg Views:	0 Size:	47.3 KB ID:	156594

            The design of the deck itself did not fit the hull structure, and also the superstructure was way off as to size and design. So needless to say, I will go to scratch building the deck and the superstructure on this boat.
            Currently my printer is fabricating the 3 deck plate sections required to build a solid piece deck. The superstructure will be mounted permanently to the deck, and the deck and superstructure will be removeable as a one piece unit to gain access to the hull interior. This will be a much better design for sure!

            Rob
            "Firemen can stand the heat"

            Comment


            • #21
              You only need full access to the hull when installing the running gear and electronics. After that you only need to access it to charge or swap out batteries. Having the entire deck removable lends to water getting into the hull through the gap. You could semi-permanently bond the deck to the hull using RTV silicone. A small access port with raised edges under the superstructure for accessing the battery.
              Make it simple, make strong, make it work!

              Comment


              • #22
                Originally posted by redboat219 View Post
                You only need full access to the hull when installing the running gear and electronics. After that you only need to access it to charge or swap out batteries. Having the entire deck removable lends to water getting into the hull through the gap. You could semi-permanently bond the deck to the hull using RTV silicone. A small access port with raised edges under the superstructure for accessing the battery.
                Not my first boat, and I totally understand what you are saying.

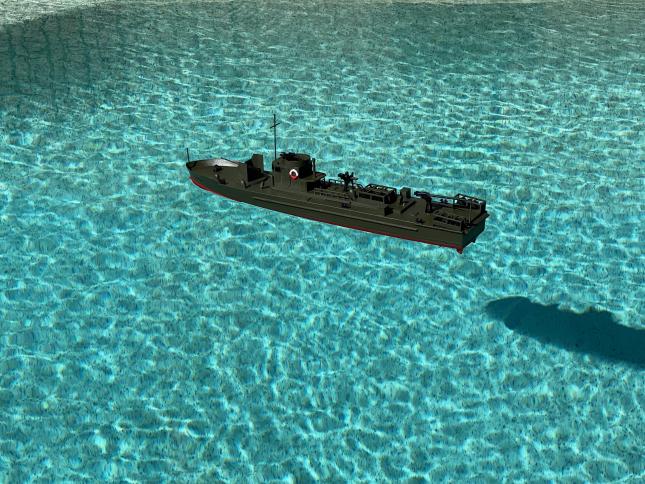

                Click image for larger version

Name:	IMG_1328[6591].jpg
Views:	119
Size:	83.1 KB
ID:	156598

                As I get further into the build, I will certainly take everything into consideration. None of my submarines or surface boats go any further than my swimming pool (no waves nor white caps) and most of the time it is only one time just to make sure they work, and then its's onto the shelf. As I have stated before, health issues keep me home bound! Thank you for your input!

                Rob
                "Firemen can stand the heat"

                Comment


                • #23
                  Nice looking gunboat.
                  Make it simple, make strong, make it work!

                  Comment


                  • #24

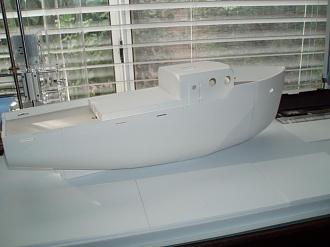

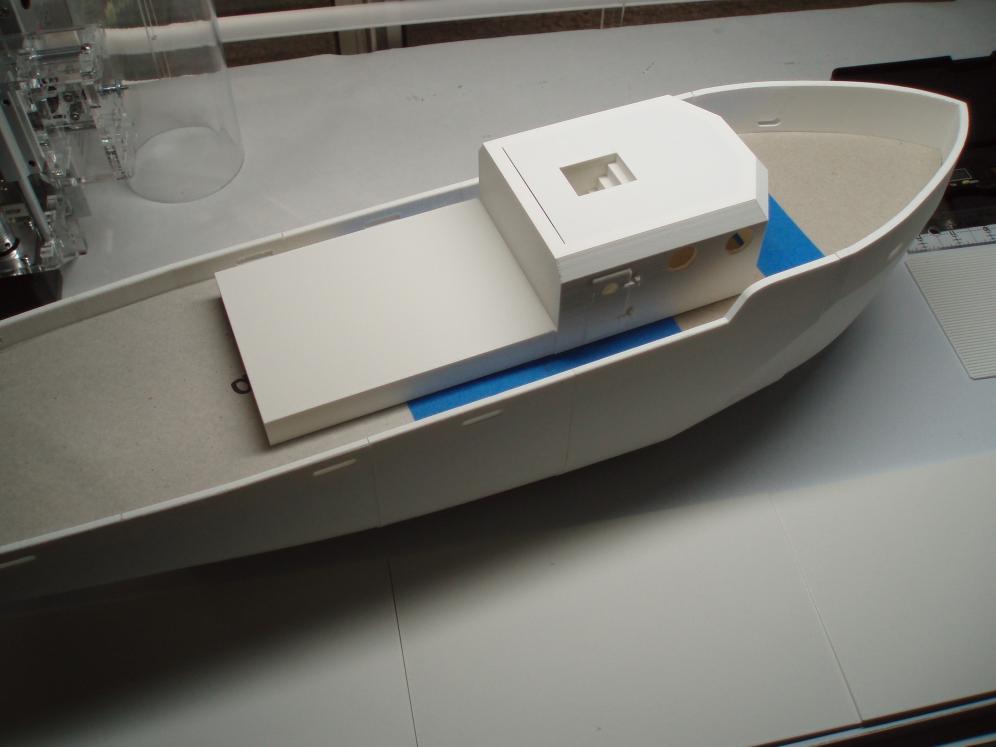

                    I have been working on a new super-structure and wheelhouse for the Utility Boat.

                    Click image for larger version

Name:	Wheelhouse 1.jpg
Views:	98
Size:	48.9 KB
ID:	156660Click image for larger version

Name:	Wheelhouse 2.jpg
Views:	93
Size:	56.9 KB
ID:	156661

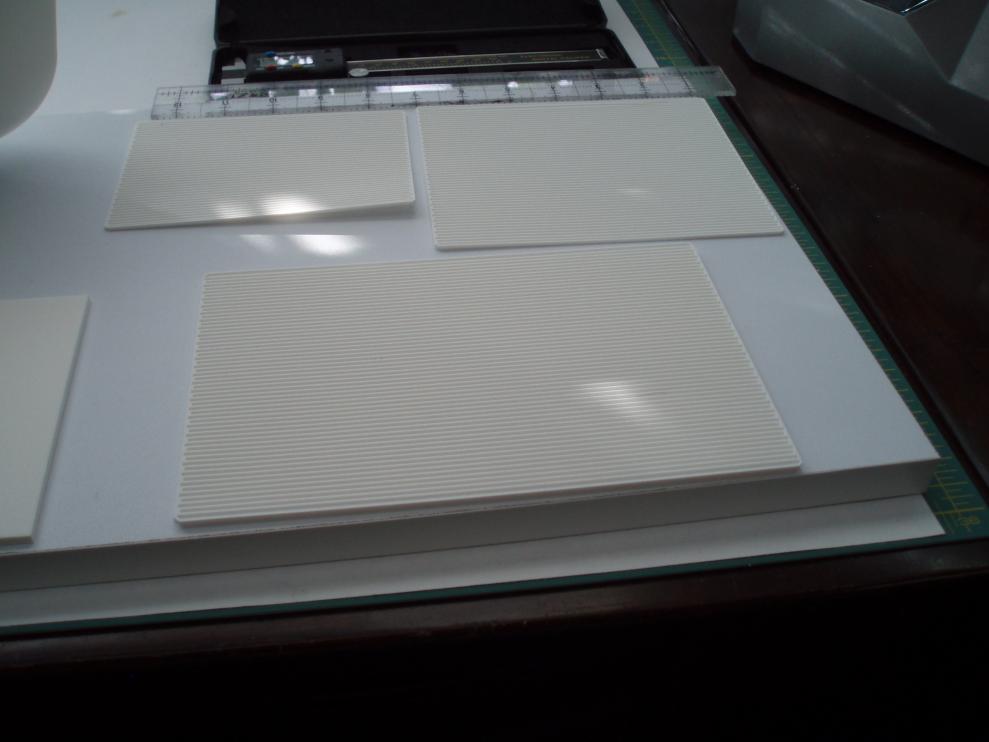

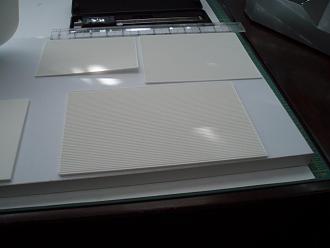

                    Click image for larger version

Name:	Wheelhouse decking 1.jpg
Views:	98
Size:	51.0 KB
ID:	156662Click image for larger version

Name:	Wheelhouse decking.jpg
Views:	96
Size:	51.1 KB
ID:	156664

                    I have been using TinkerCad, and re-designing other Thingiverse Tug Boat wheelhouses for my boat. The last photo is a simulated wood deck material I will use on top of the actual decking that you see in the 1st bottom photo.

                    Rob
                    "Firemen can stand the heat"
                    Attached Files

                    Comment


                    • #25

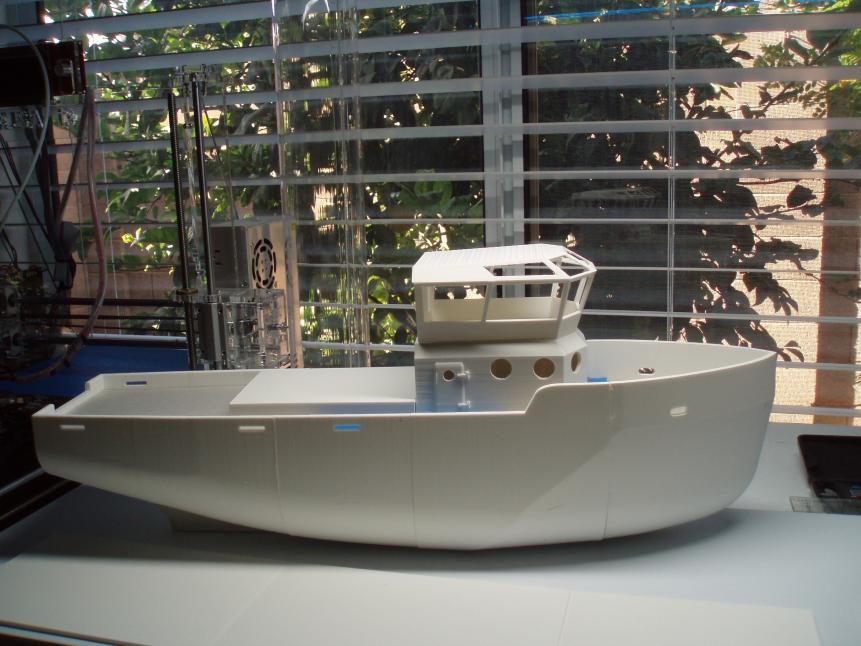

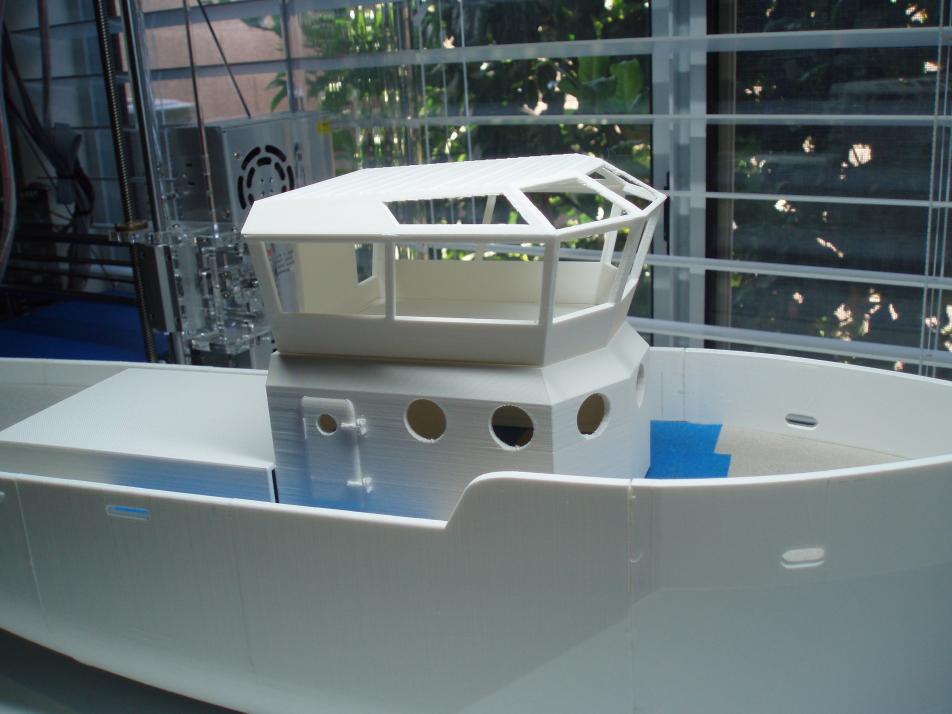

                      The main parts of the wheelhouse are complete.

                      Click image for larger version

Name:	Wheelhouse 4.jpg
Views:	93
Size:	65.1 KB
ID:	156673Click image for larger version

Name:	Wheel house 3.jpg
Views:	83
Size:	78.9 KB
ID:	156674

                      I will be adding some detailed items on the top of the house, as well as a helm interior unit (working on a design)

                      Rob
                      "Firemen can stand the heat"

                      Comment


                      • #26
                        "SPECIAL NOTE"

                        I am closing out this Utility Boat build! Just can't get into it! I want to thank all those that did contribute to my build!!! It's Submarines for me!! Another lesson learned! At pushing 80, it sure seems I am still learning a lot about what not to do!! :-))

                        Rob
                        "Firemen can stand the heat"

                        Comment


                        • #27
                          Originally posted by rwtdiver View Post
                          "SPECIAL NOTE"

                          I am closing out this Utility Boat build! Just can't get into it! I want to thank all those that did contribute to my build!!! It's Submarines for me!! Another lesson learned! At pushing 80, it sure seems I am still learning a lot about what not to do!! :-))

                          Rob
                          "Firemen can stand the heat"
                          How much you want for it?
                          Of the 40,000 men who served on German submarines, 30,000 never returned.”

                          Comment


                          • #28
                            Originally posted by Das Boot View Post

                            How much you want for it?
                            Et tu, Brute?....
                            Resident Luddite

                            Comment


                            • #29
                              Originally posted by Das Boot View Post

                              How much you want for it?
                              Sorry! I glued it up and gave it to our Grandson!

                              Rob
                              "Firemen can stand the heat"

                              Comment


                              • #30
                                Originally posted by He Who Shall Not Be Named View Post

                                Et tu, Brute?....
                                No betrayal. I like targets too.
                                Of the 40,000 men who served on German submarines, 30,000 never returned.”

                                Comment
