  • Fictional Large coastal SSK

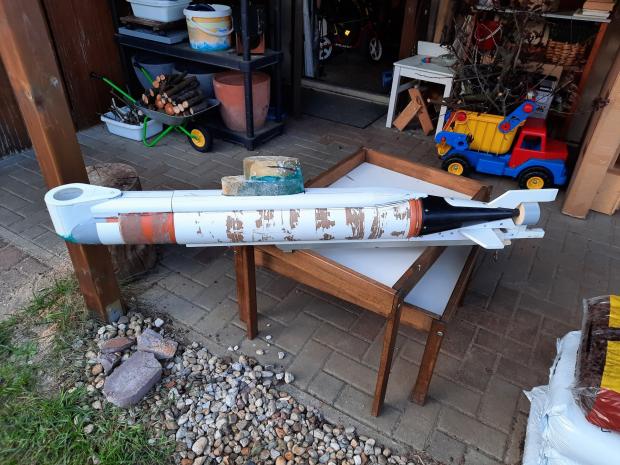

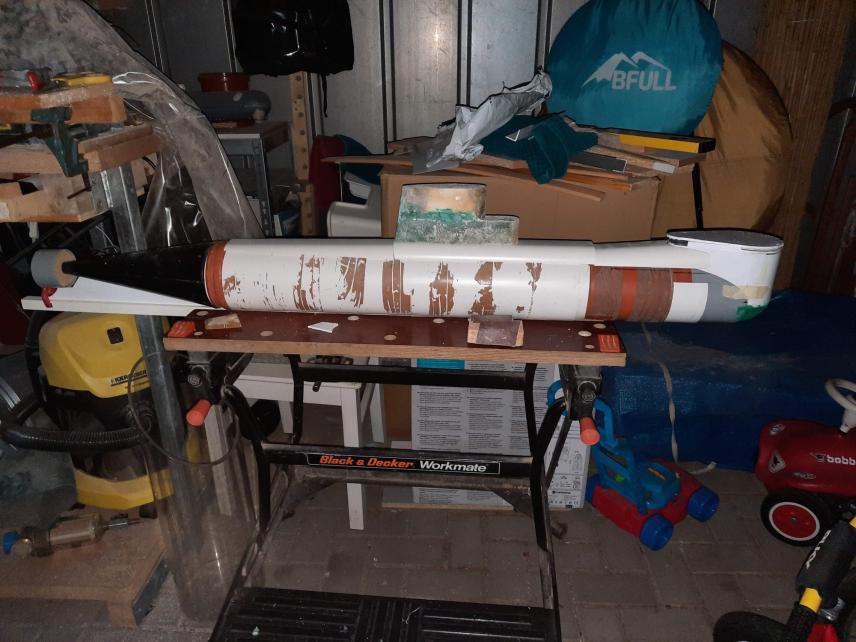

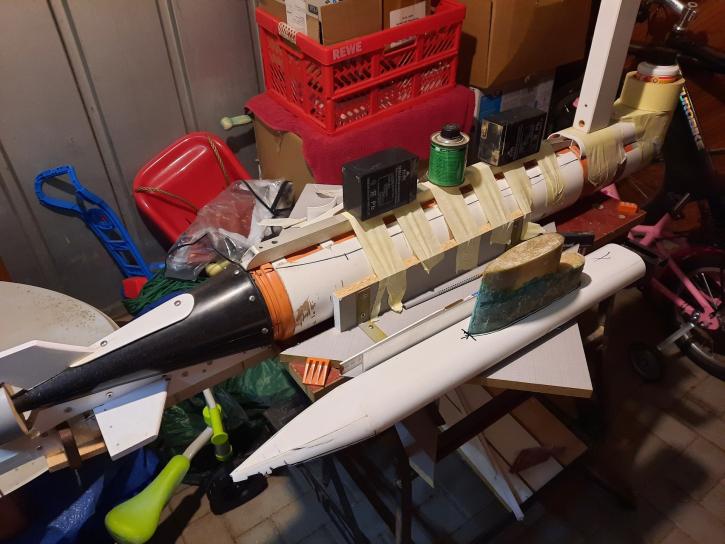

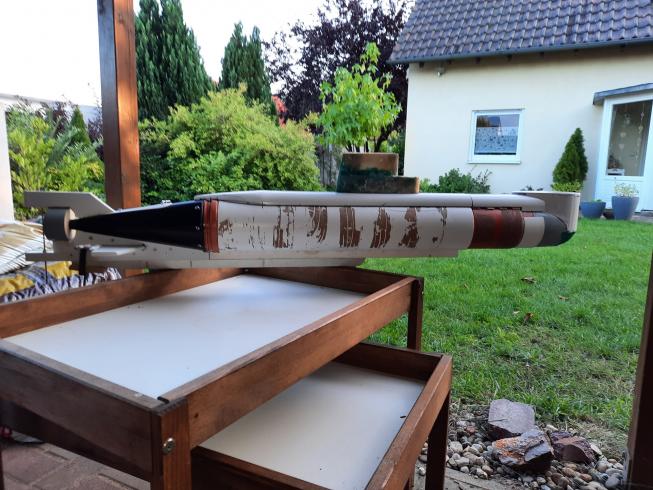

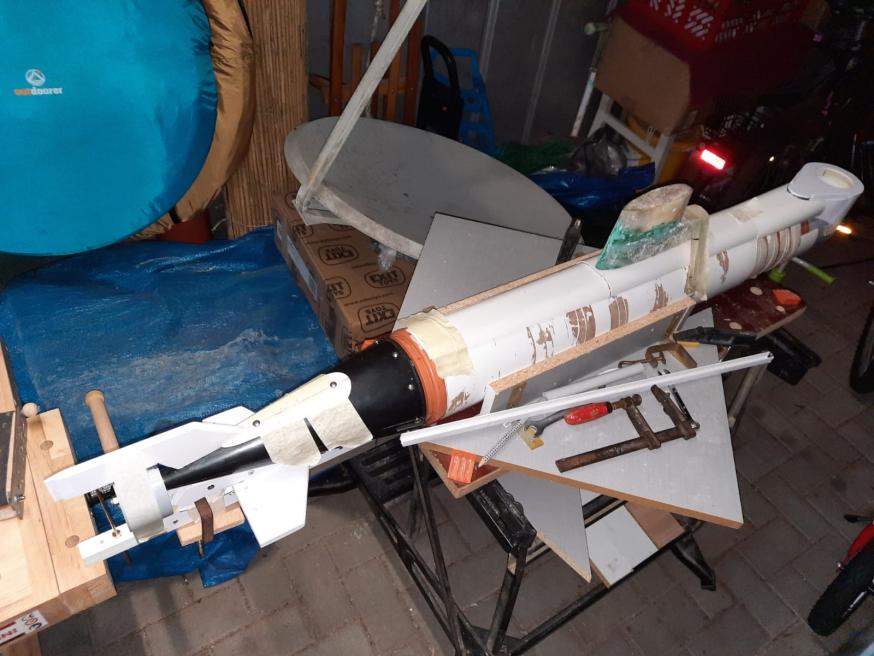

    Greetings! Some shots of an old project, a fictional submarine. Designation "Large Coastal Submarine". Objective was to build a hull from mostly prefabricated components from the hardware store around a possibly large battery. I started in 2013. A single hull design with a very large dry compartment, tech rack type. Large wet bow and stern. Pressure hull is a 110mm drain pipe. Mostly pvc, parts weld glued or screwed down. Snort System will be used.

    Click image for larger version

Name:	IMG-20230614-WA0007.jpg
Views:	410
Size:	76.4 KB
ID:	172823Click image for larger version

Name:	IMG-20230614-WA0008.jpg
Views:	245
Size:	70.8 KB
ID:	172824Click image for larger version

Name:	IMG-20230715-WA0002.jpg
Views:	251
Size:	84.8 KB
ID:	172825Click image for larger version

Name:	IMG-20230624-WA0004.jpg
Views:	255
Size:	73.6 KB
ID:	172827Click image for larger version

Name:	1000007707.jpg
Views:	242
Size:	40.1 KB
ID:	172826Click image for larger version

Name:	IMG-20230721-WA0006.jpg
Views:	261
Size:	85.5 KB
ID:	172829Click image for larger version

Name:	IMG-20230721-WA0007.jpg
Views:	256
Size:	85.4 KB
ID:	172830Click image for larger version

Name:	IMG-20230721-WA0004.jpg
Views:	247
Size:	80.2 KB
ID:	172831Click image for larger version

Name:	IMG-20230723-WA0003.jpg
Views:	243
Size:	66.6 KB
ID:	172832
    Attached Files

  • #2
    Fictional? Looks like a Type 206.

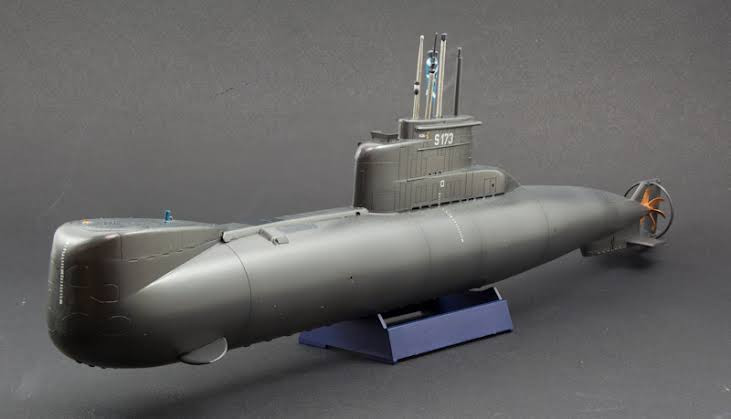

    Click image for larger version  Name:	images (1) (1).jpg Views:	0 Size:	30.7 KB ID:	172834
    Make it simple, make strong, make it work!

    Comment


    • #3
      Indeed, but i want it to look like the 206' big brother

      Comment


      • #4

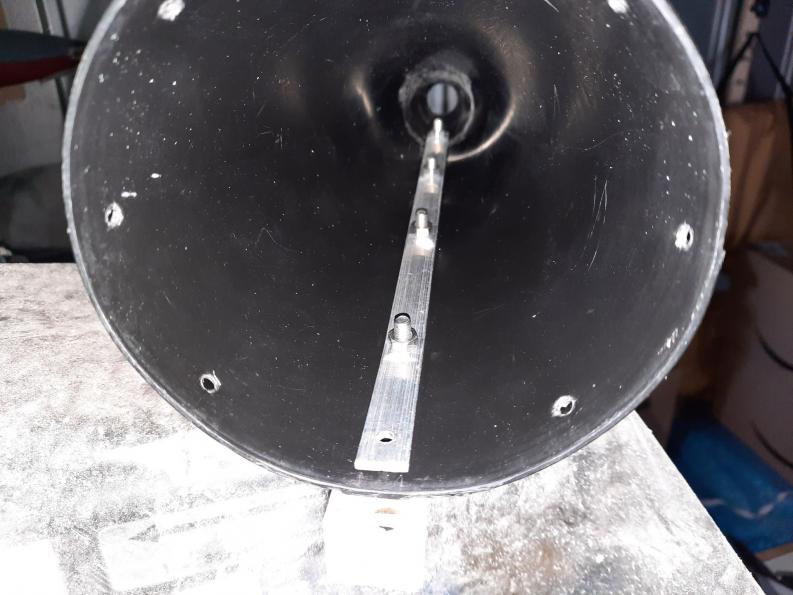

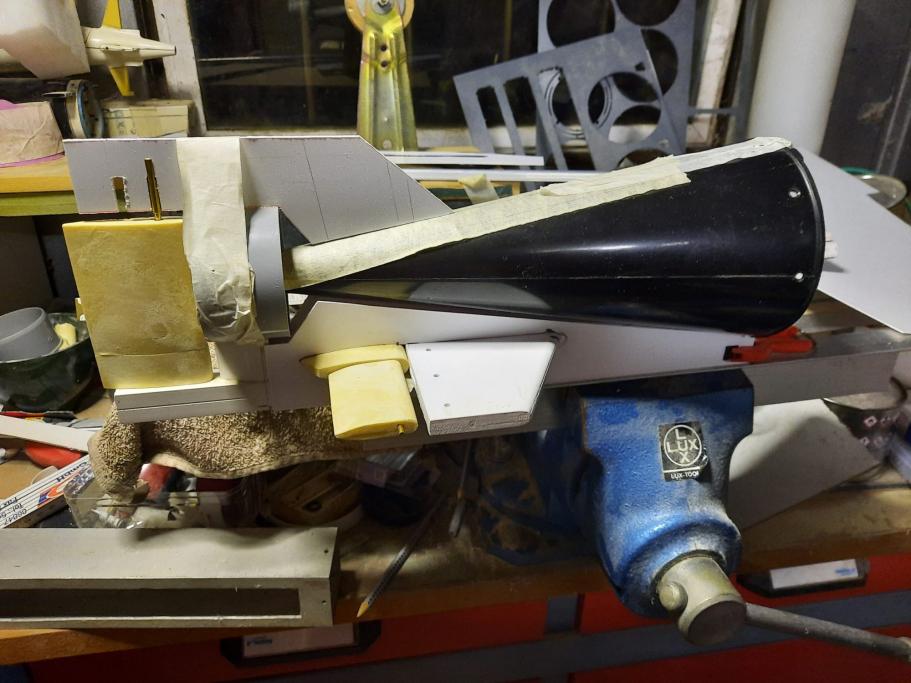

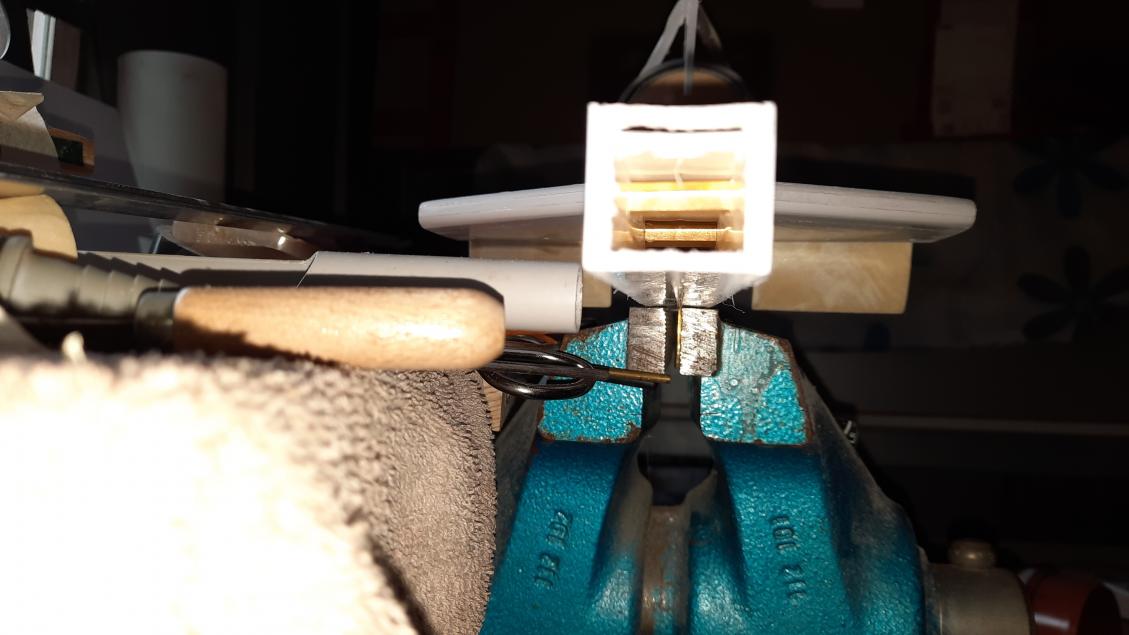

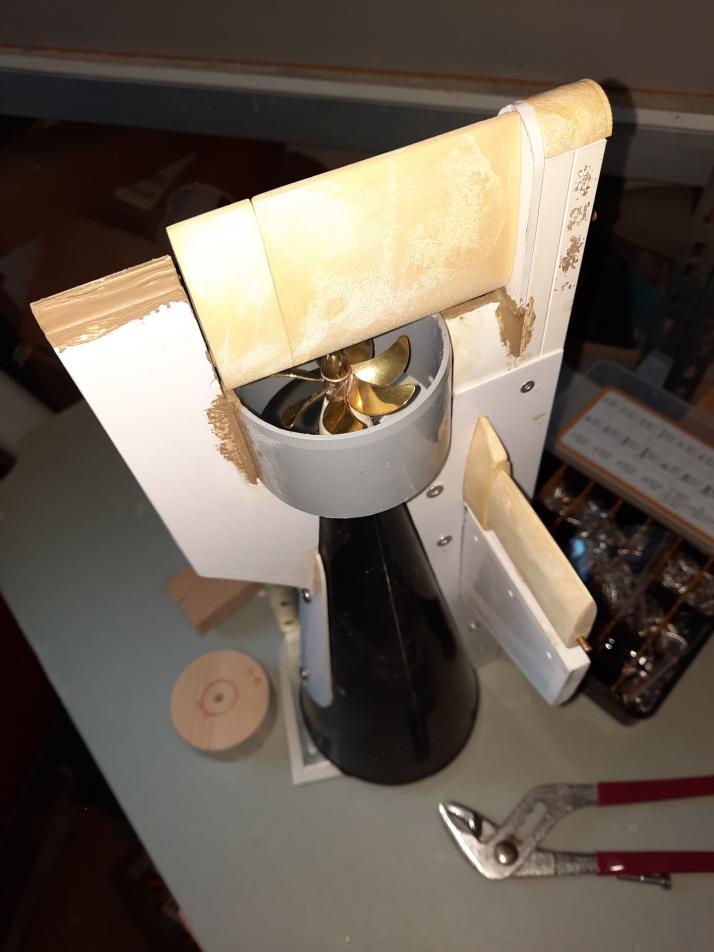

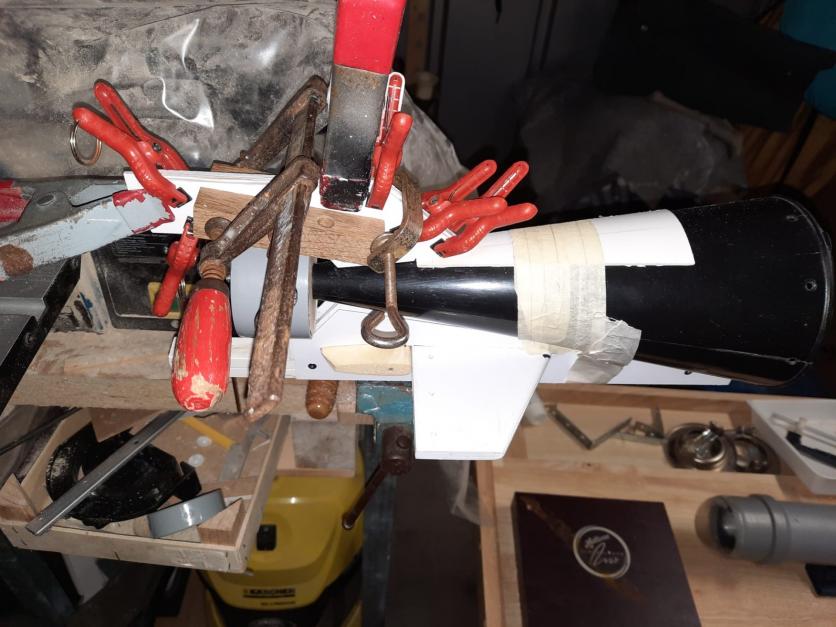

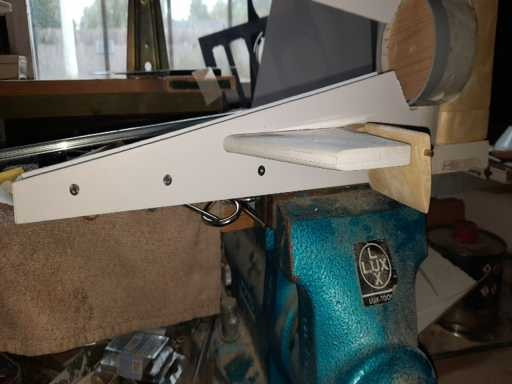

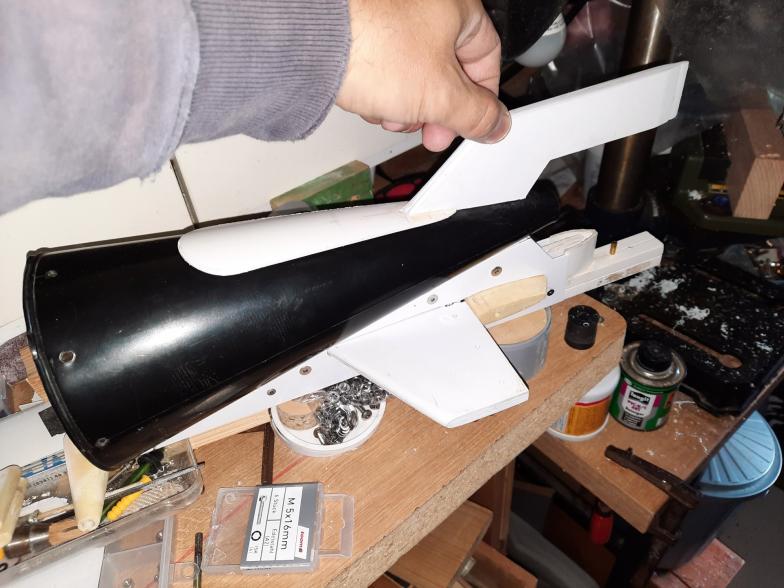

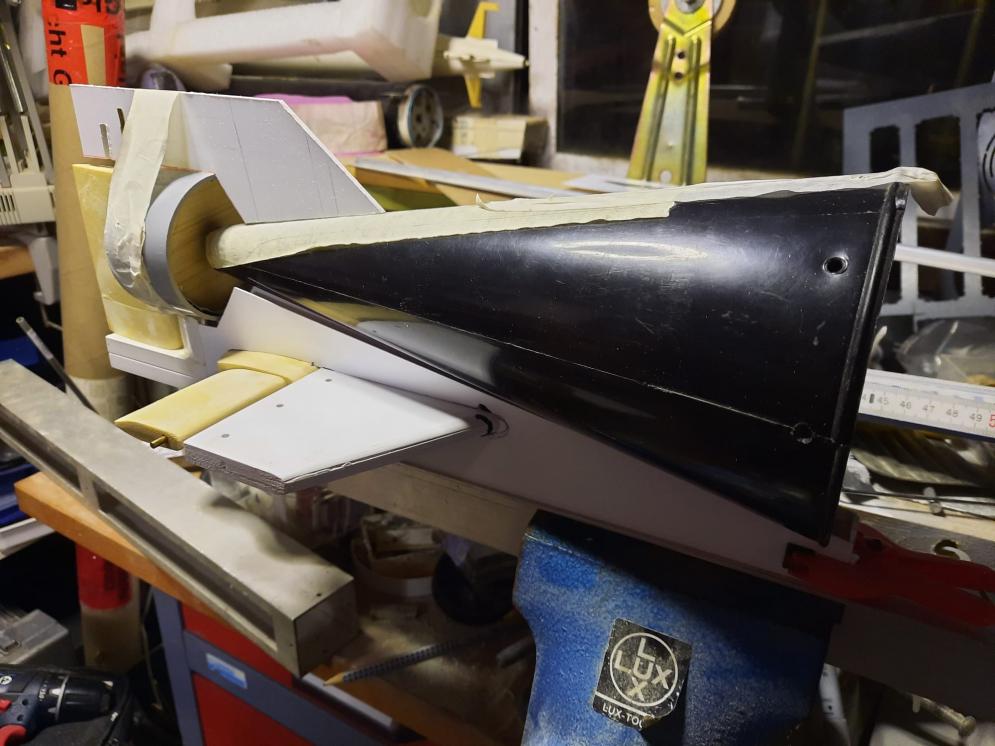

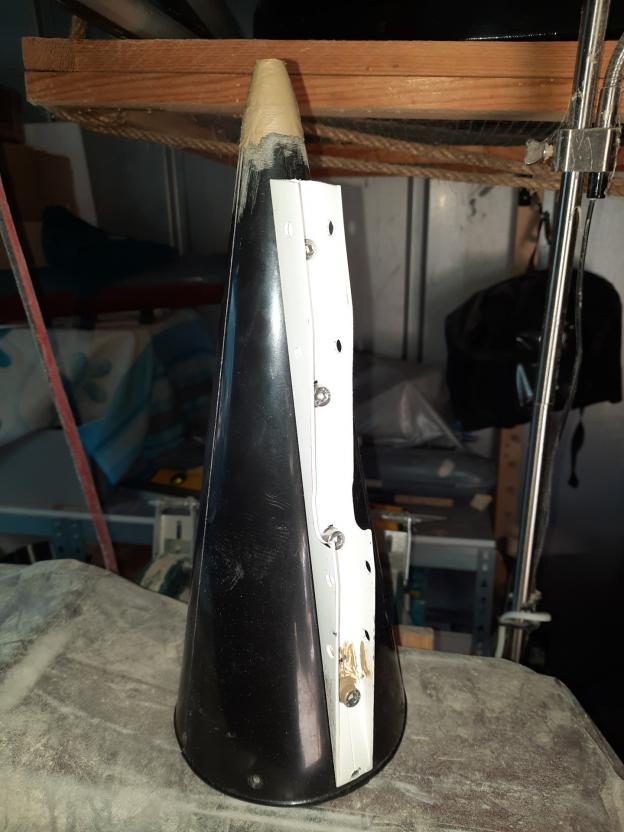

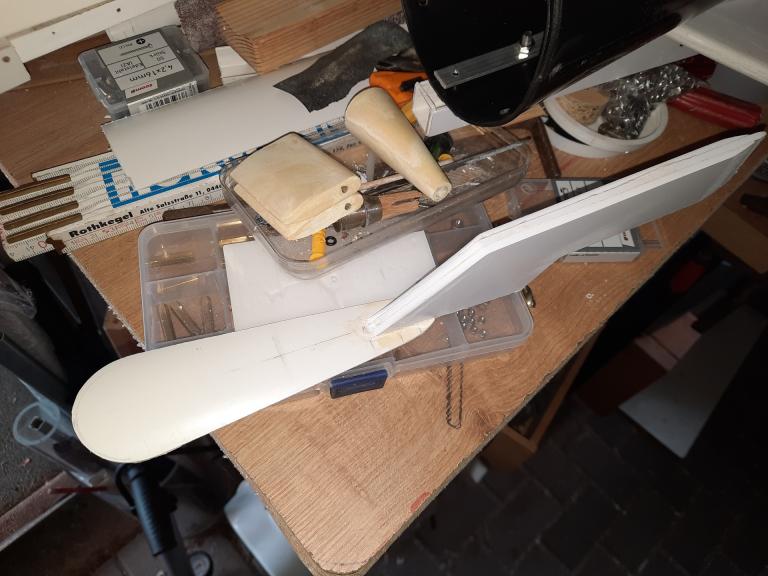

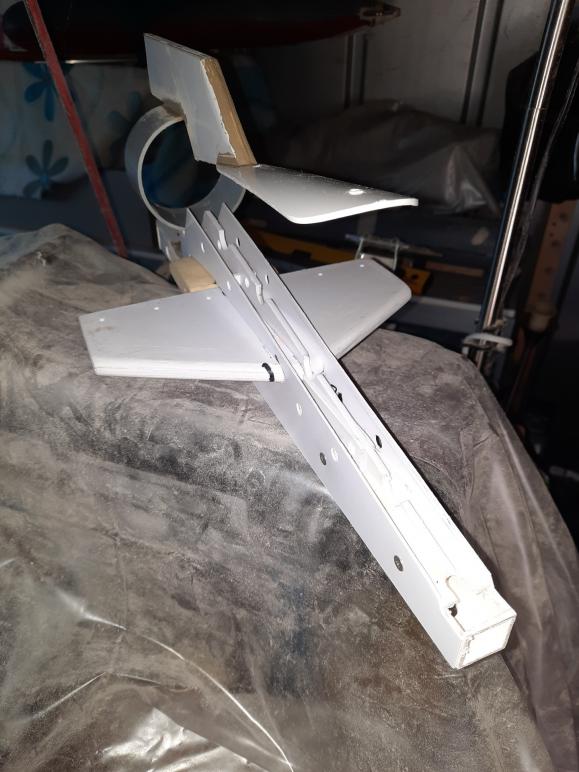

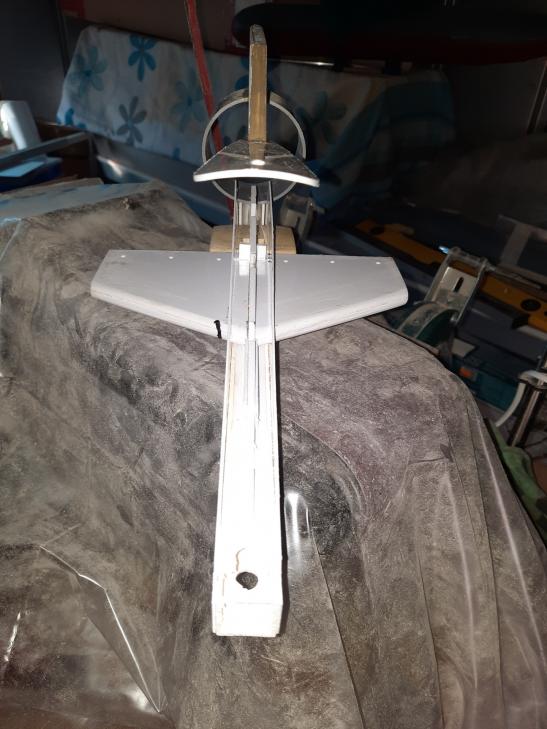

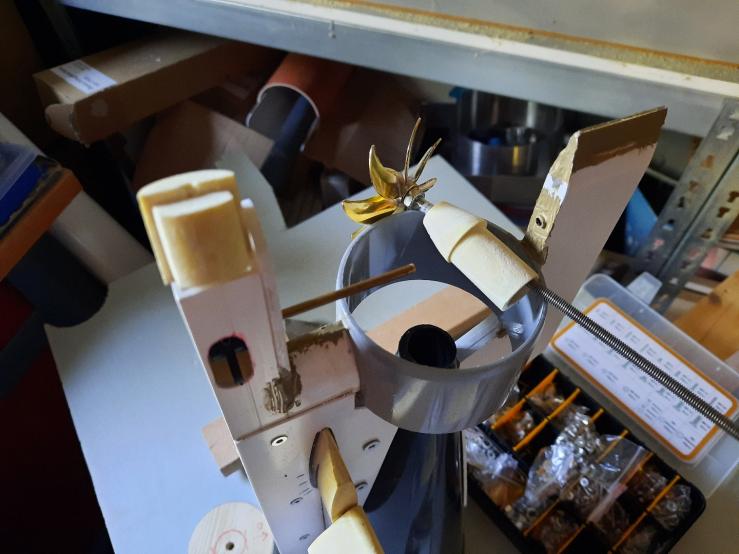

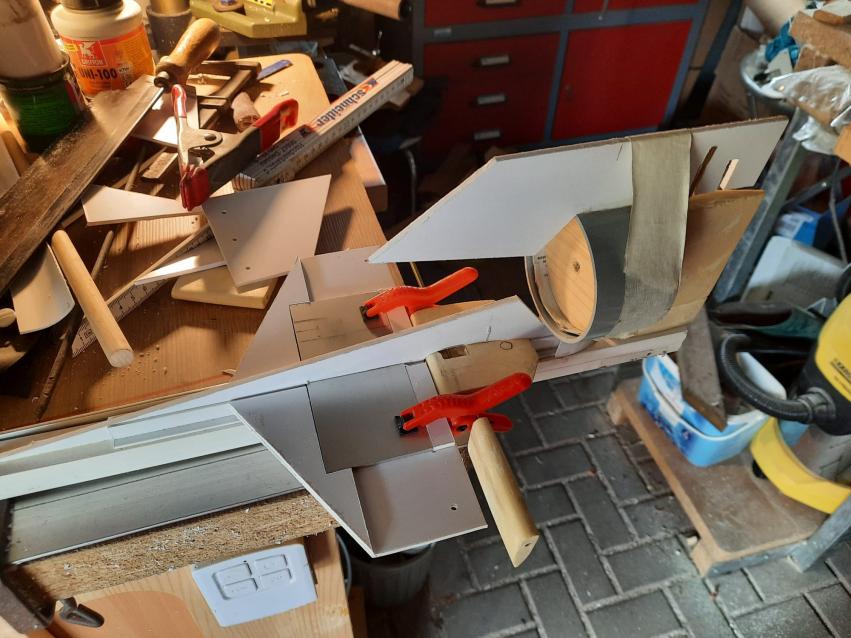

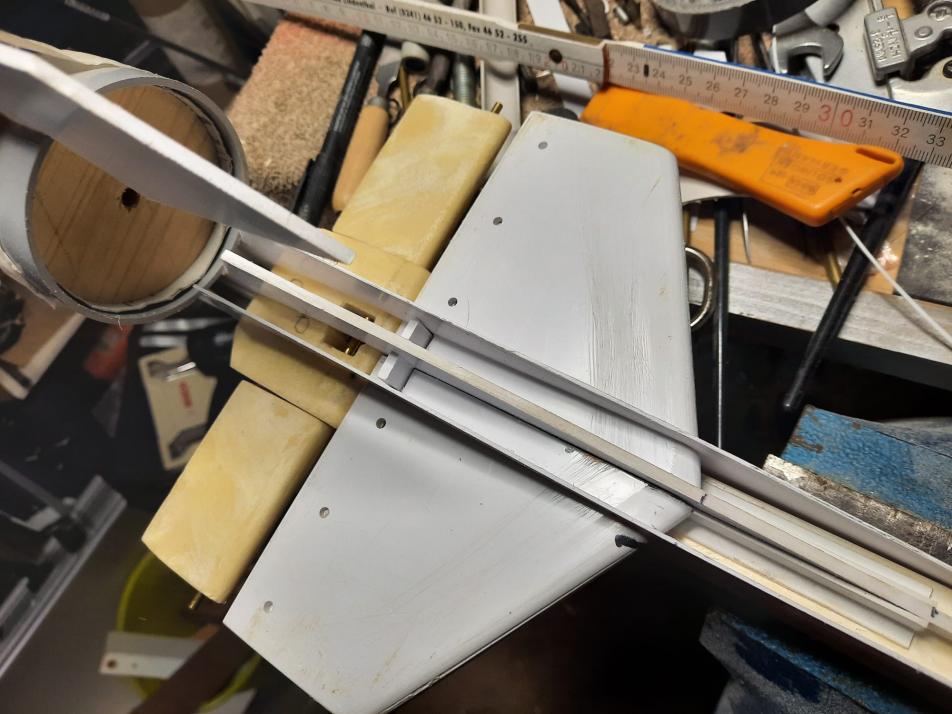

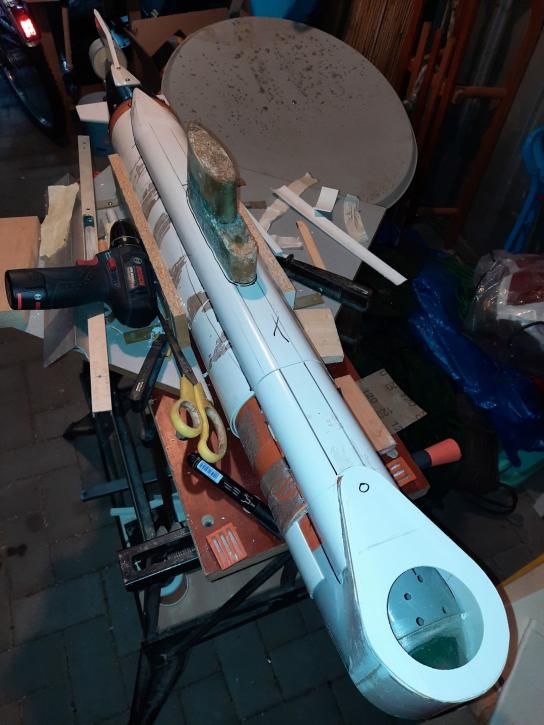

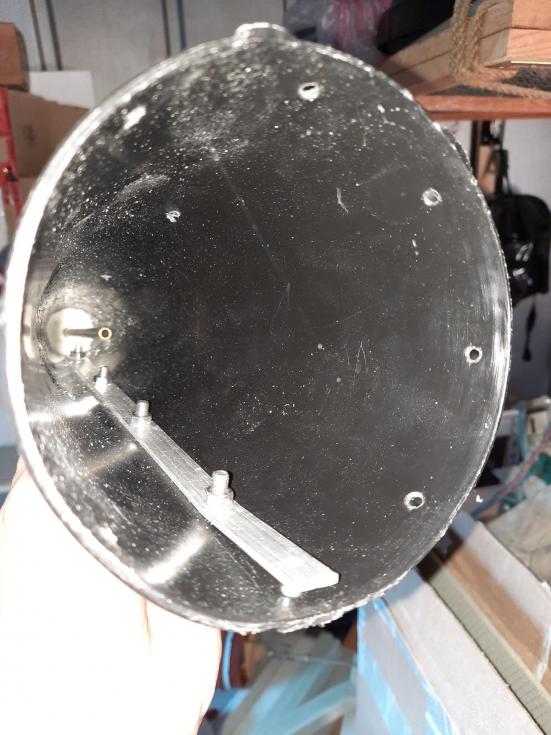

        Some more work done. lower rudder support has been screwed onto the stern cone. Upper rudder support almost ready for installation. An aluminum bar and a "cheat" propeller shaft help aligning the parts to the cone. Therefore, the hull has been installed upside-down onto the bench. Click image for larger version

Name:	20230810_112828_copy_1920x1440.jpg
Views:	223
Size:	56.5 KB
ID:	172942Click image for larger version

Name:	20230810_112835_copy_1920x1440.jpg
Views:	215
Size:	56.1 KB
ID:	172944Click image for larger version

Name:	IMG-20230726-WA0004_copy_1920x1440.jpg
Views:	206
Size:	70.6 KB
ID:	172943Click image for larger version

Name:	IMG-20230726-WA0003_copy_1920x1440.jpg
Views:	214
Size:	72.3 KB
ID:	172945Click image for larger version

Name:	20230810_113206_copy_1920x1440.jpg
Views:	212
Size:	59.4 KB
ID:	172946Click image for larger version

Name:	20230810_113224_copy_1920x1440.jpg
Views:	211
Size:	65.5 KB
ID:	172948Click image for larger version

Name:	20230810_112904_copy_1920x1440.jpg
Views:	213
Size:	55.1 KB
ID:	172947

        Comment


        • #5
          I love watching old tools used well.

          David
          Who is John Galt?

          Comment


          • #6
            Thank you! I see the rust, need to do something about that. My current garage is not very tool-friendly. Steel walls and metal ceiling. Only good for dry humor...

            It will not survive that year, planning for a proper garage with proper shop and WINDOWS ( I envie your's, David Hughes!)

            Comment


            • #7

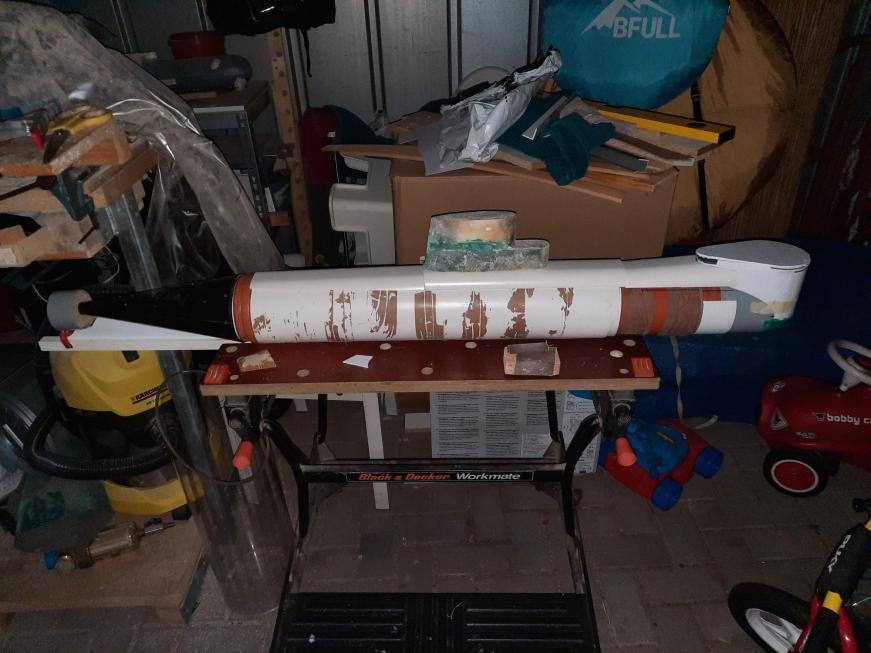

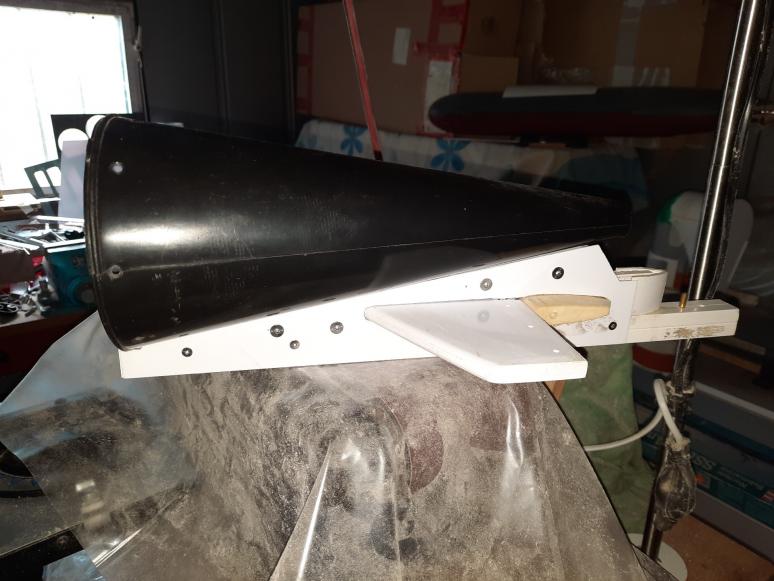

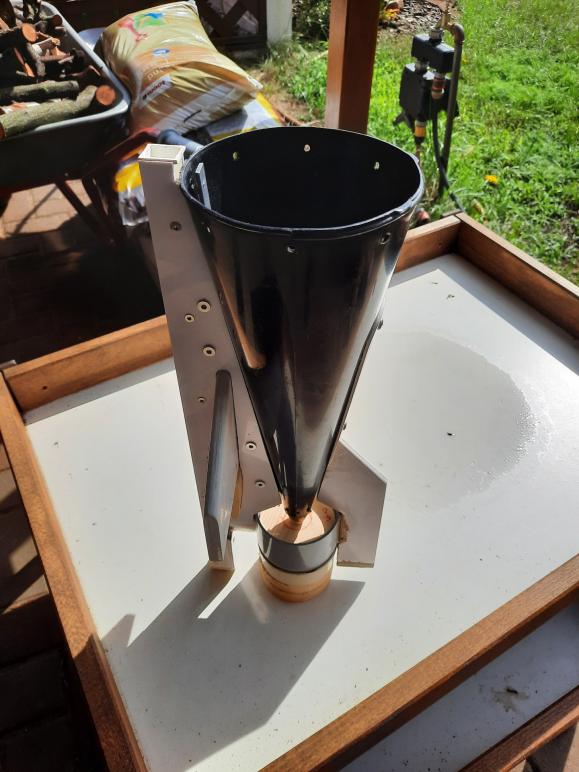

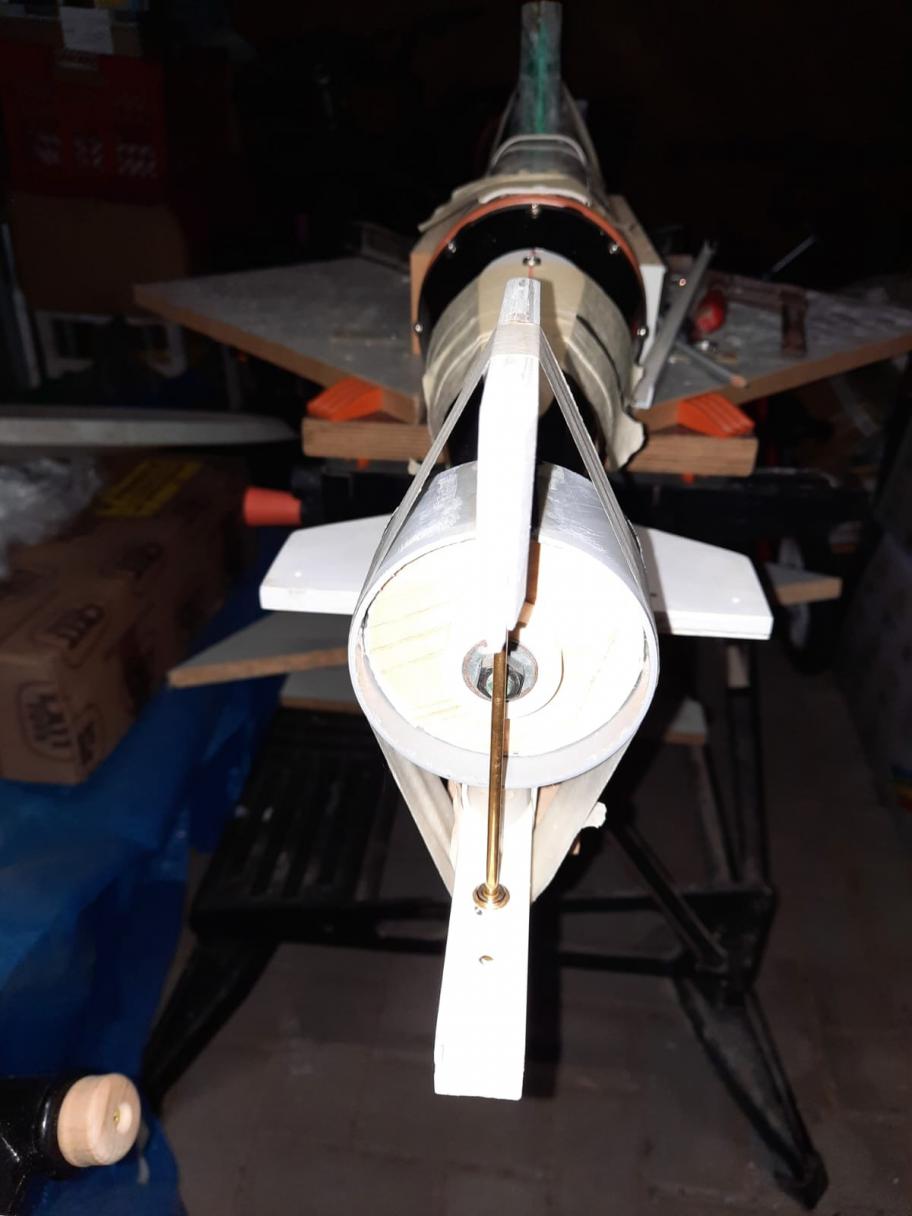

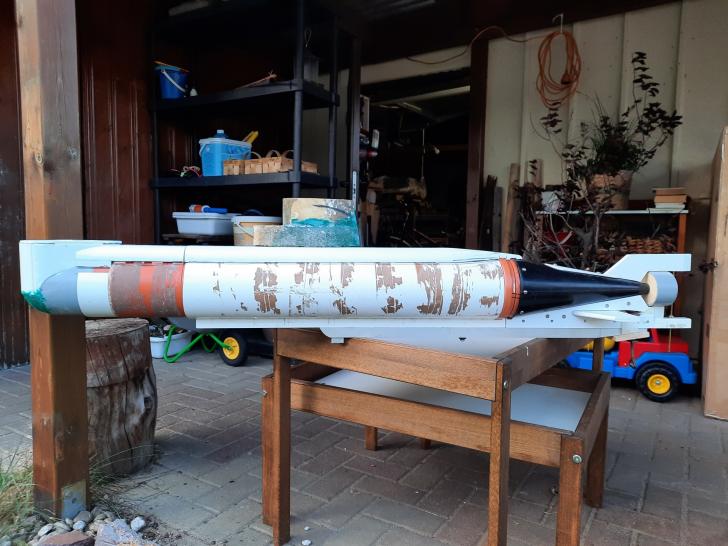

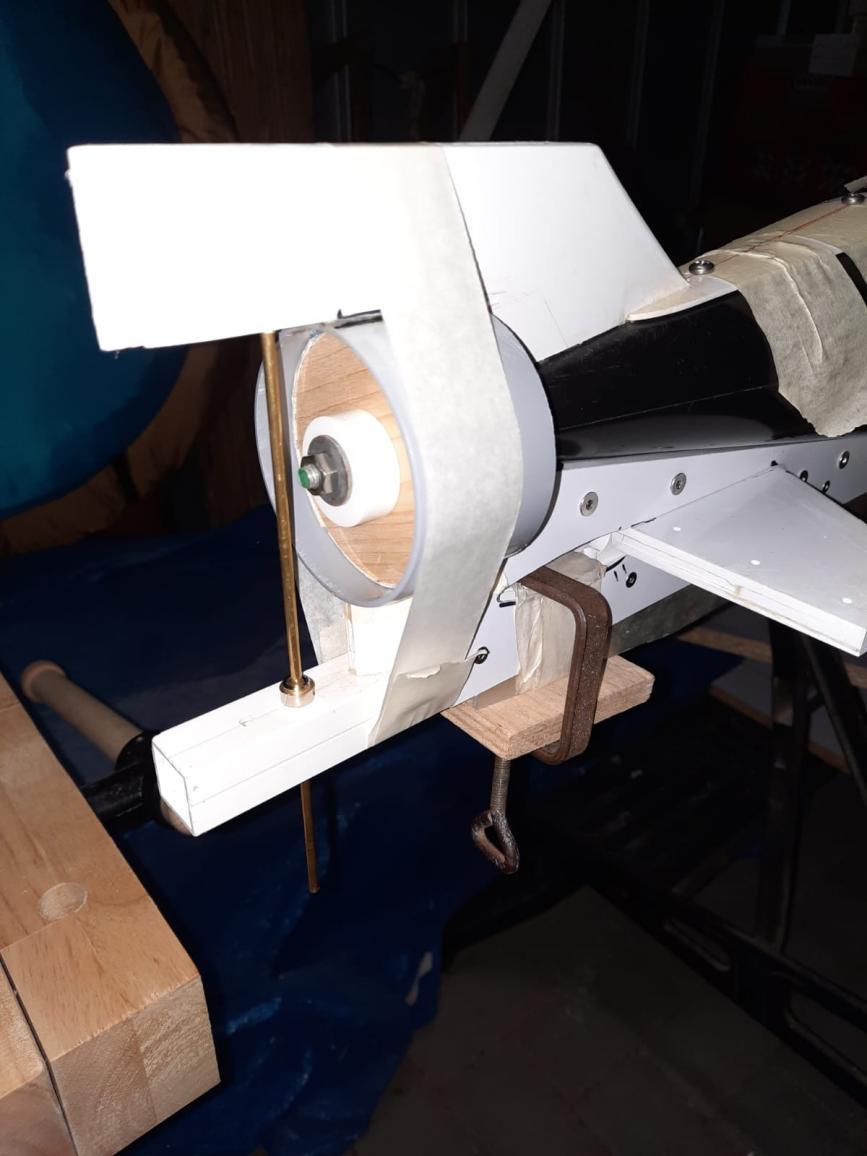

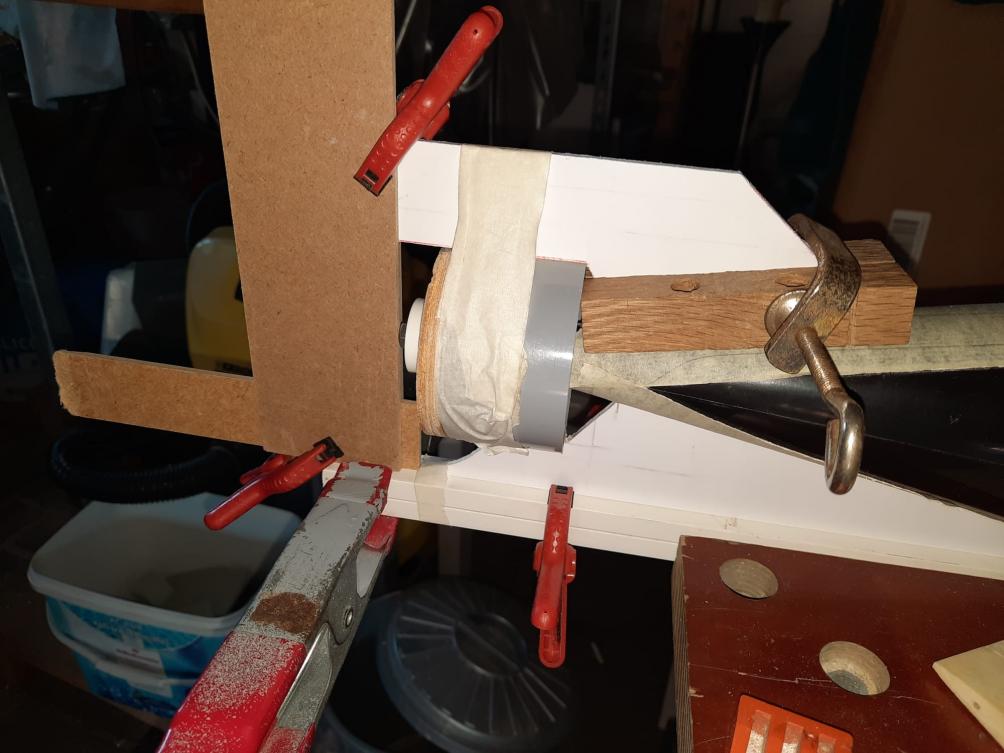

              The stern has been assembled. Next will be completion of the bow and installation of the deck.

              Click image for larger version

Name:	IMG-20230816-WA0002.jpg
Views:	187
Size:	70.1 KB
ID:	173138Click image for larger version

Name:	IMG-20230816-WA0003.jpg
Views:	193
Size:	67.6 KB
ID:	173140Click image for larger version

Name:	IMG-20230816-WA0004.jpg
Views:	186
Size:	73.8 KB
ID:	173139

              Comment


              • #8

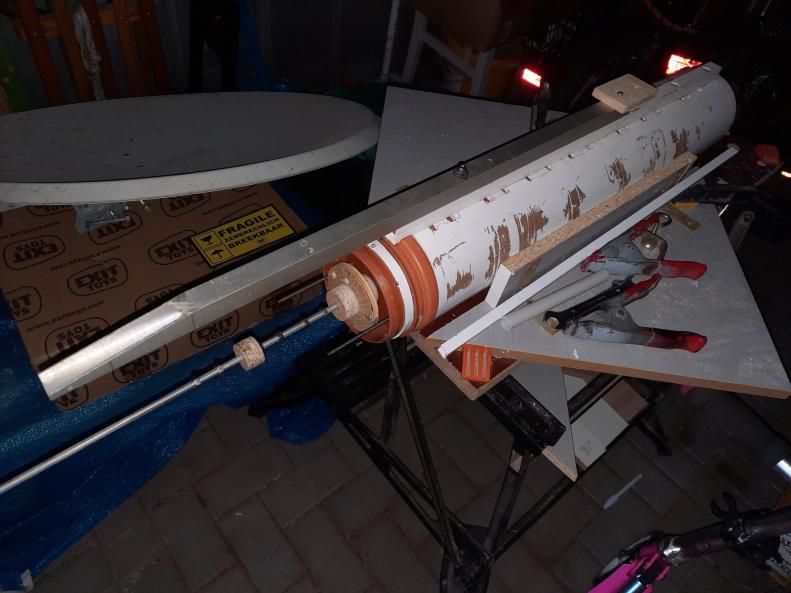

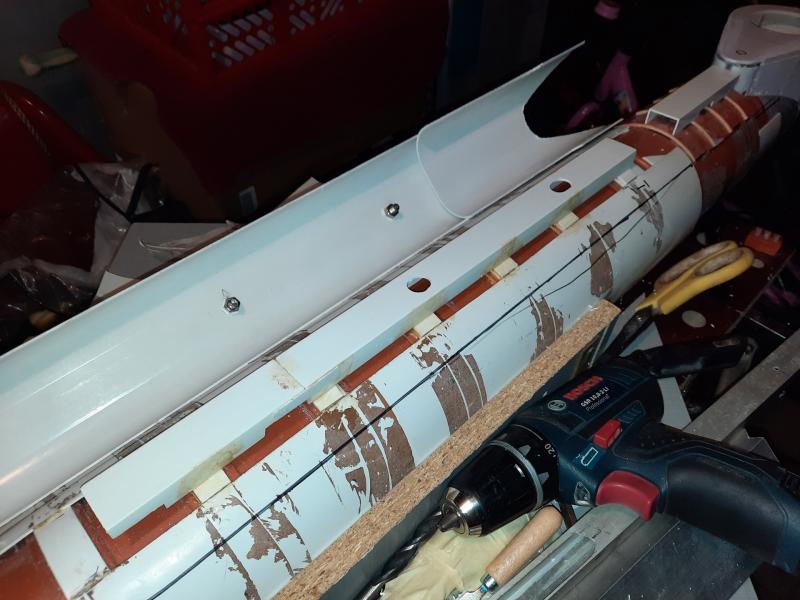

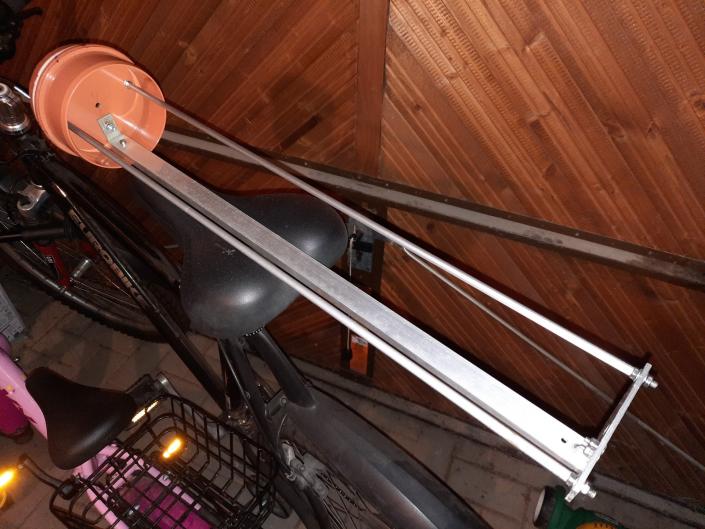

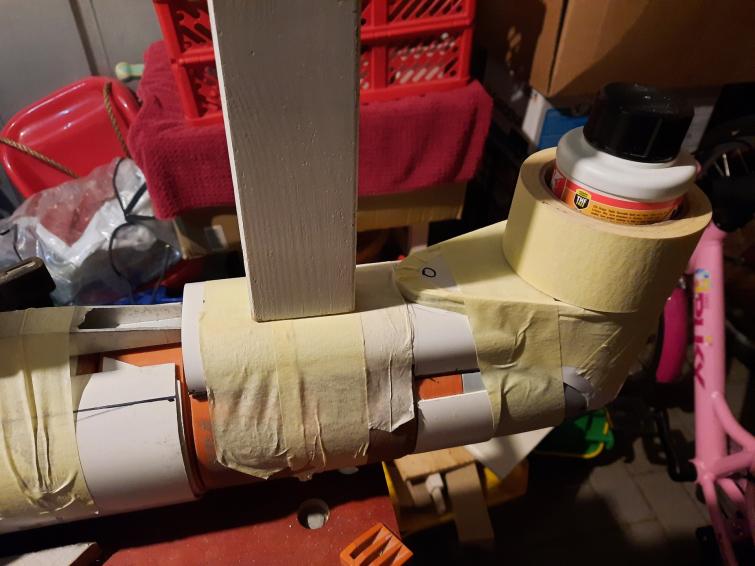

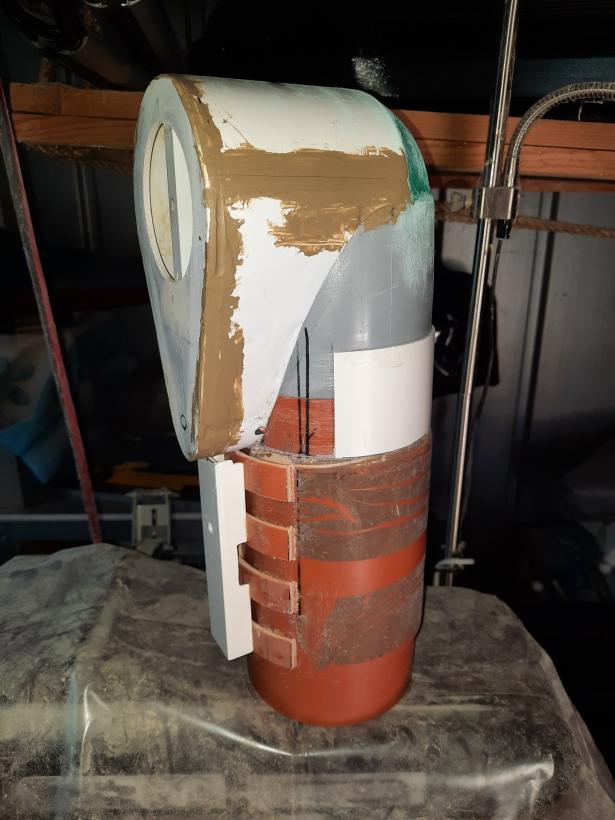

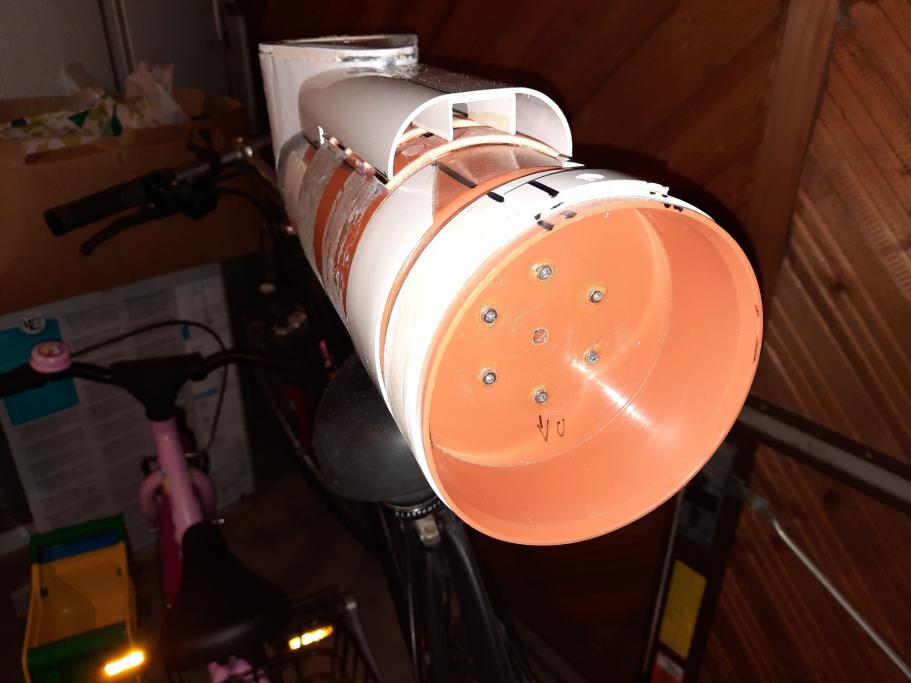

                Greetings! The bow compartment is basically finished. Ech time glueing makes the boat look like a mummy!I made a new, higher deck for the bow and the main hull instead of using a raised bow, so i can accomodate the snorkel line much simpler. The conning tower is held in place by two stainless M6 threaded rods epoxied all the way through the fwd and sternwd sail portion with two stainless nuts under the deck. both deck portions will be bolted down onto a rail thats been glued down onto the outer casing.

                Click image for larger version

Name:	20230829_223542_copy_1920x1440.jpg
Views:	172
Size:	52.2 KB
ID:	173460 Click image for larger version

Name:	20230829_223528_copy_1920x1440.jpg
Views:	160
Size:	59.0 KB
ID:	173463 Click image for larger version

Name:	20230829_223635_copy_1080x1440.jpg
Views:	169
Size:	34.2 KB
ID:	173467 Click image for larger version

Name:	20230829_223700_copy_1920x1440.jpg
Views:	167
Size:	44.9 KB
ID:	173468 Click image for larger version

Name:	20230902_191004_copy_1080x1440.jpg
Views:	167
Size:	54.3 KB
ID:	173466 Click image for larger version

Name:	20230902_191041_copy_1920x1440.jpg
Views:	163
Size:	61.7 KB
ID:	173462 Click image for larger version

Name:	20230902_191432_copy_1920x1440.jpg
Views:	166
Size:	61.3 KB
ID:	173461 Click image for larger version

Name:	20230902_191437_copy_1920x1440.jpg
Views:	165
Size:	63.0 KB
ID:	173464 Click image for larger version

Name:	20230902_191416_copy_1920x1440.jpg
Views:	157
Size:	65.8 KB
ID:	173465

                Jörg

                Comment


                • #9
                  Very nice.
                  Of the 40,000 men who served on German submarines, 30,000 never returned.”

                  Comment


                  • #10
                    Thank you!

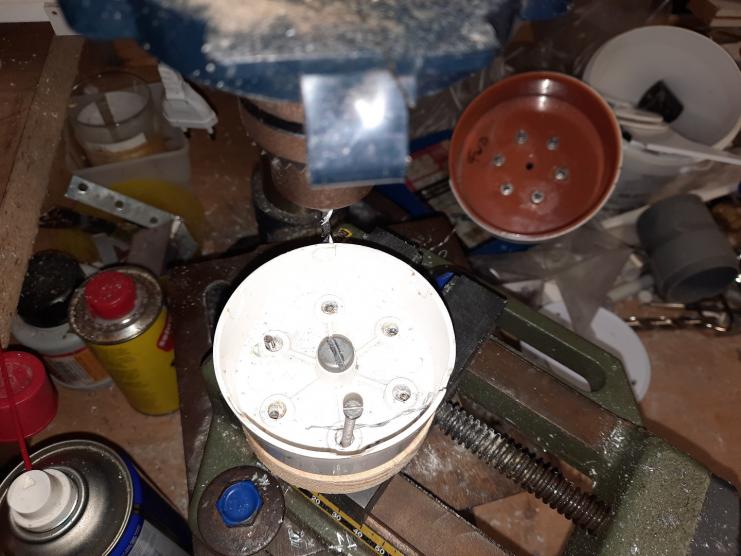

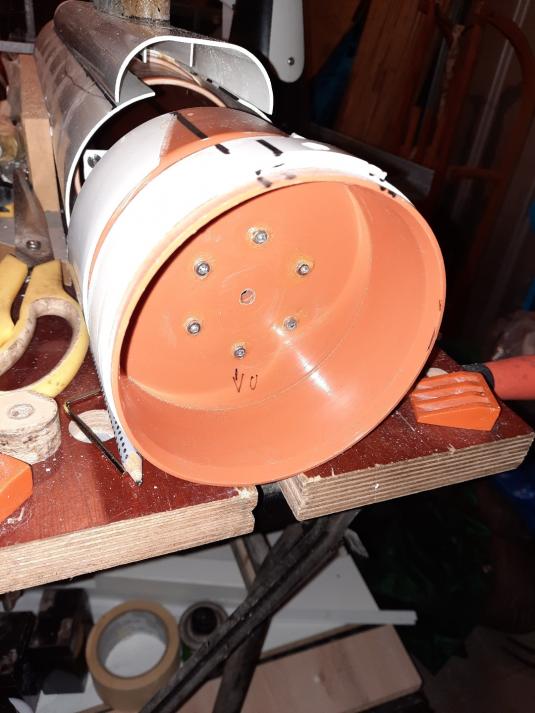

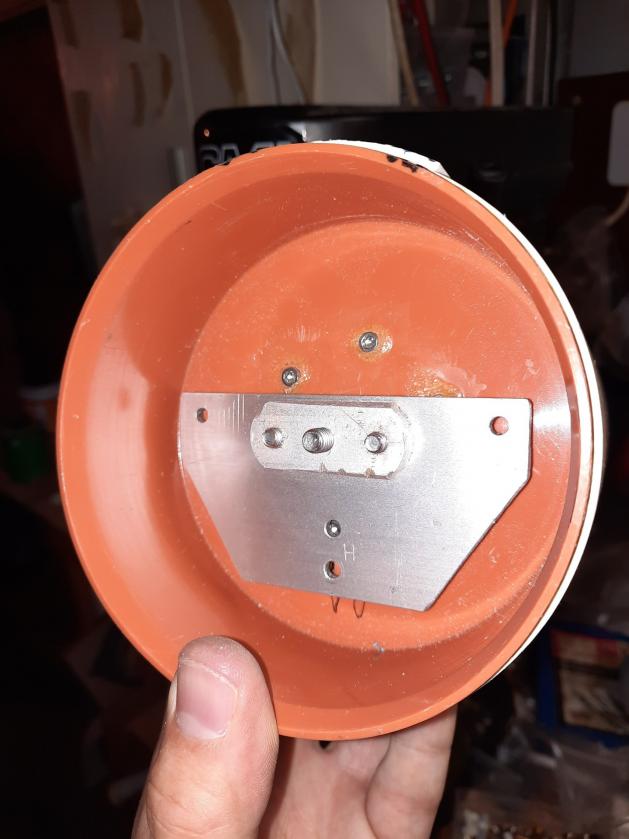

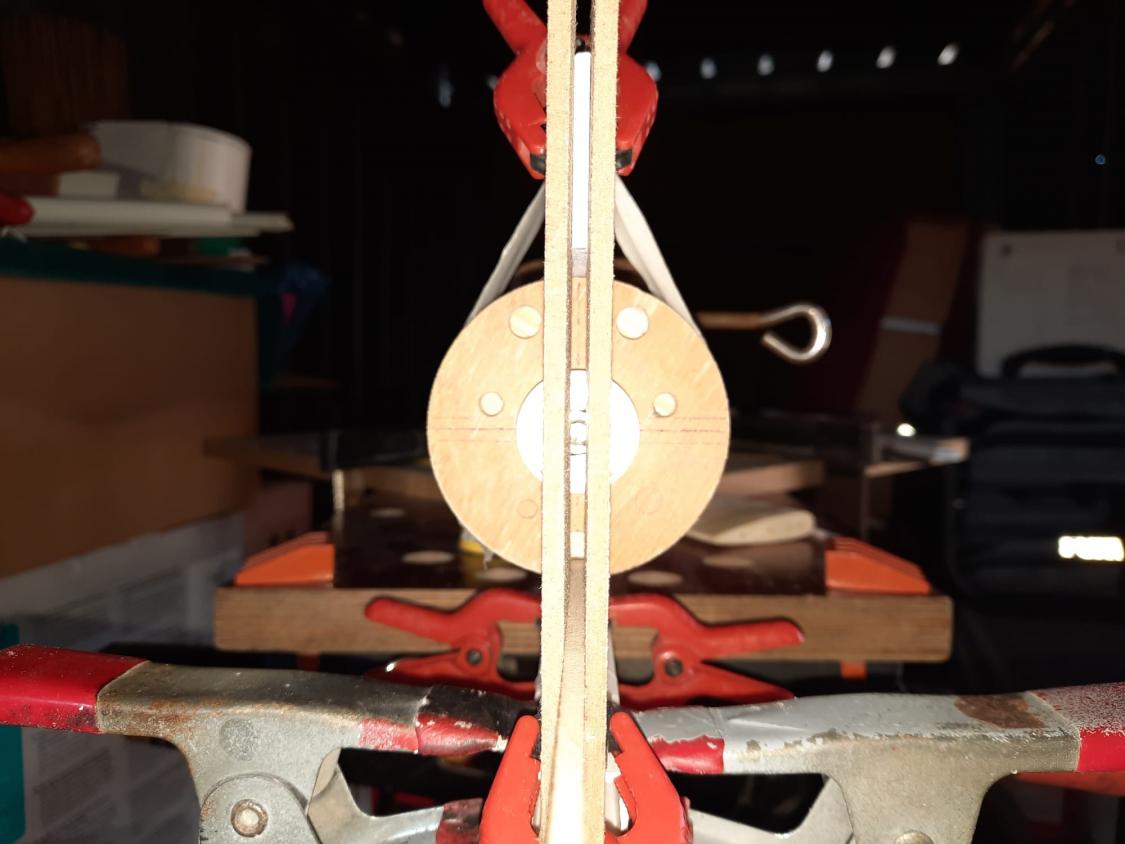

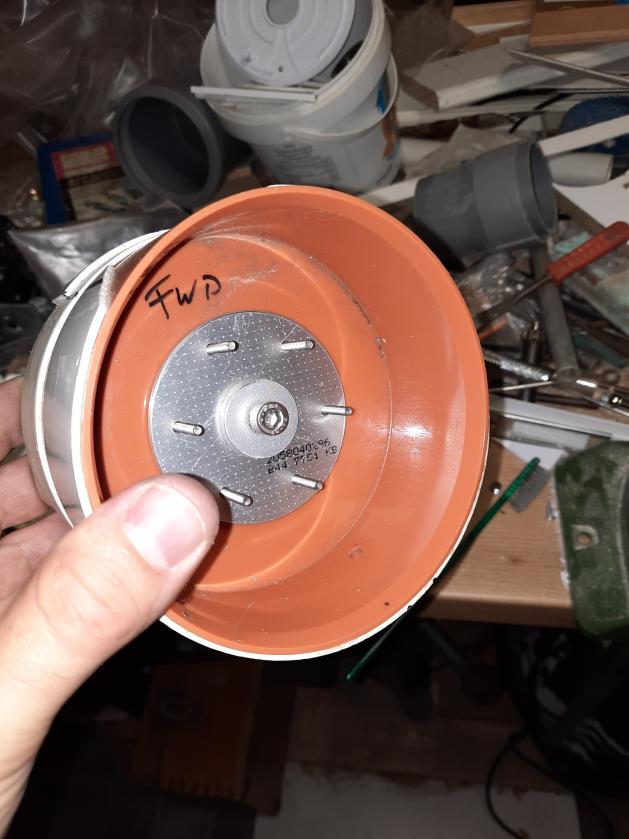

                    Prior to permanently glueing the forward bulkhead to the hull, i prepated the upper deck for installation and disassembled the hull sections to check for proper alignment of the parts. First pictures show the fwd bulkhead that will hold the bow section with radial bolts just like the stern. You can also see the electrobics tray and the stern bulkhead. One large o-ring placed into the rim of the draining pipe will make the seal. Click image for larger version

Name:	20230905_233630_copy_1080x1440.jpg
Views:	116
Size:	54.0 KB
ID:	173526 Click image for larger version

Name:	20230905_233555_copy_1080x1440.jpg
Views:	113
Size:	51.2 KB
ID:	173522 Click image for larger version

Name:	20230905_235431_copy_1920x1440.jpg
Views:	129
Size:	50.1 KB
ID:	173519 Click image for larger version

Name:	20230905_235439_copy_1920x1440.jpg
Views:	118
Size:	53.3 KB
ID:	173521 Click image for larger version

Name:	20230905_235618_copy_1920x1440.jpg
Views:	110
Size:	48.1 KB
ID:	173520 Click image for larger version

Name:	20230905_233705_copy_1080x1440.jpg
Views:	108
Size:	44.3 KB
ID:	173528 Click image for larger version

Name:	20230905_233725_copy_1080x1440.jpg
Views:	113
Size:	37.0 KB
ID:	173527 Click image for larger version

Name:	20230905_233716_copy_1080x1440.jpg
Views:	111
Size:	39.4 KB
ID:	173529 Click image for larger version

Name:	20230905_233525_copy_1080x1440.jpg
Views:	111
Size:	51.1 KB
ID:	173530 Click image for larger version

Name:	20230905_234015_copy_1920x1440.jpg
Views:	117
Size:	54.9 KB
ID:	173523 Click image for larger version

Name:	20230905_233829_copy_1920x1440.jpg
Views:	117
Size:	66.3 KB
ID:	173525 Click image for larger version

Name:	20230905_233855_copy_1920x1440.jpg
Views:	121
Size:	59.9 KB
ID:	173524

                    Comment


                    • #11

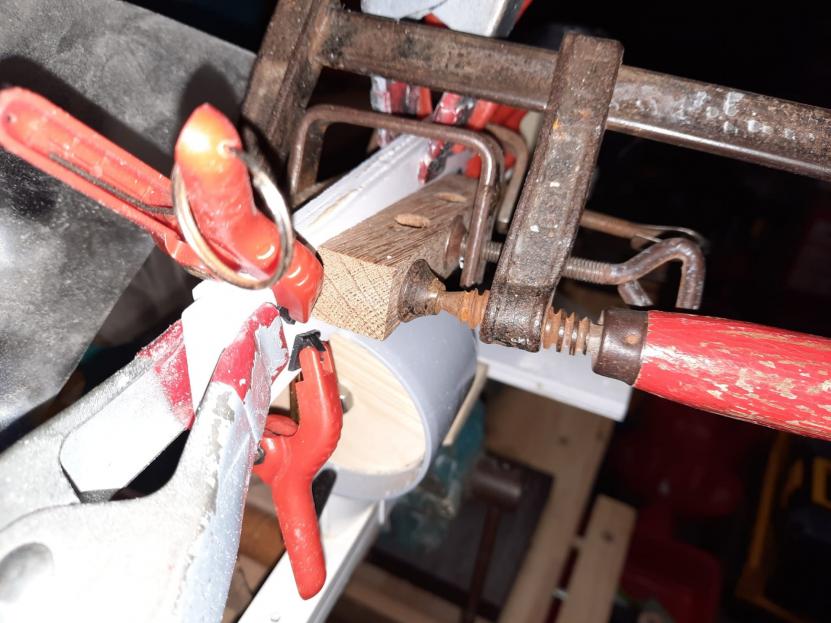

                      Making covers for the maintenance openings.

                      Click image for larger version

Name:	20230910_131213_copy_1440x1080.jpg
Views:	96
Size:	50.9 KB
ID:	173646 Click image for larger version

Name:	20230910_130913_copy_1440x1920.jpg
Views:	108
Size:	52.9 KB
ID:	173643 Click image for larger version

Name:	20230910_131712_copy_1440x1920.jpg
Views:	101
Size:	50.2 KB
ID:	173644 Click image for larger version

Name:	20230910_131755_copy_1440x1920.jpg
Views:	95
Size:	46.6 KB
ID:	173645

                      Comment


                      • #12
                        Installation of ther stern cone' tip.

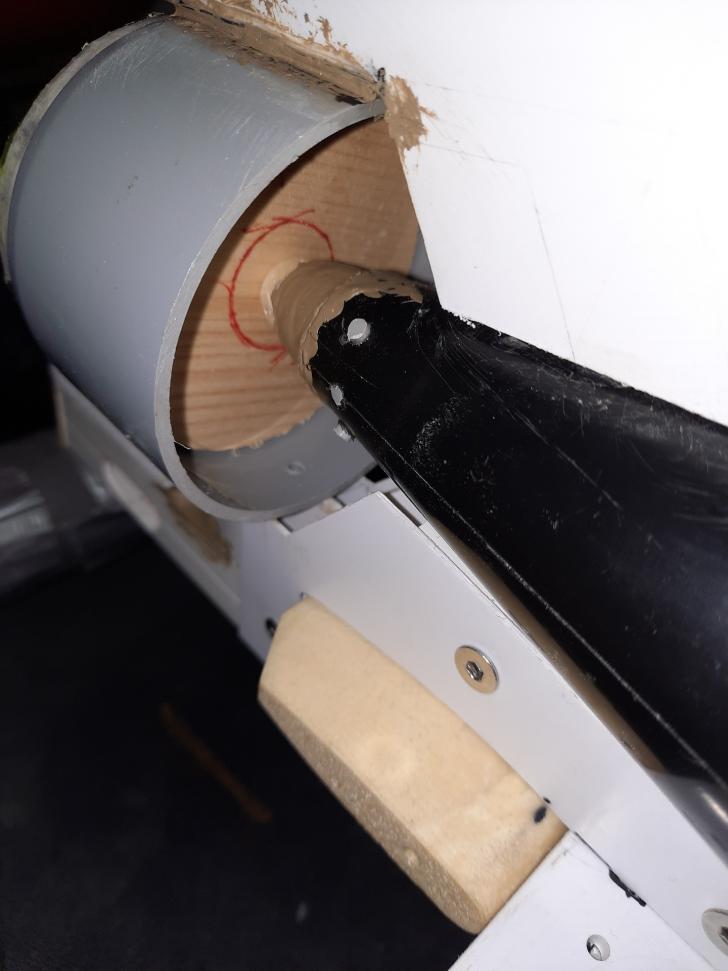

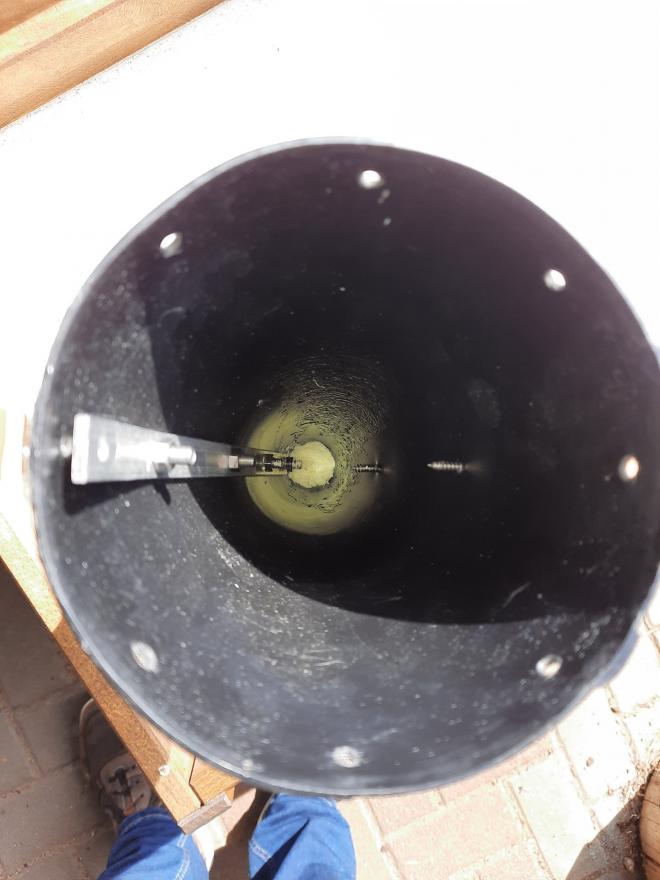

                        The cast urethane tip was aligned with the "shaft" / threaded M6 rod punching both through the stern bulkhead and the centering discs inside the propeller guard. Nitrofiller was pushed into the gap between cone and tip.after curing, 6 3mm holes were drilled through and plastic dowels were inserted to hold the tip in position. Now the bilkhead could be removed and epoxy glue, thickened with urethane particles, could be filled in from the inside. More pictures from the drive shaft installation to come.

                        Click image for larger version

Name:	20230913_201923_copy_1440x1920.jpg
Views:	93
Size:	48.2 KB
ID:	173732 Click image for larger version

Name:	20230913_131951_copy_1440x1920.jpg
Views:	84
Size:	62.7 KB
ID:	173734 Click image for larger version

Name:	20230913_132004_copy_1440x1920.jpg
Views:	83
Size:	51.1 KB
ID:	173733

                        Comment


                        • #13

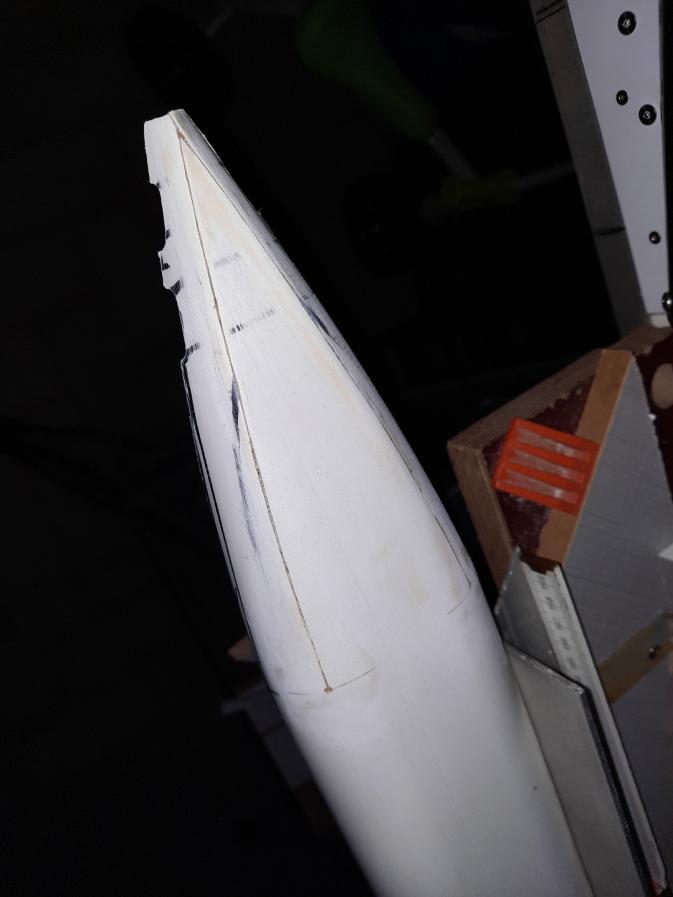

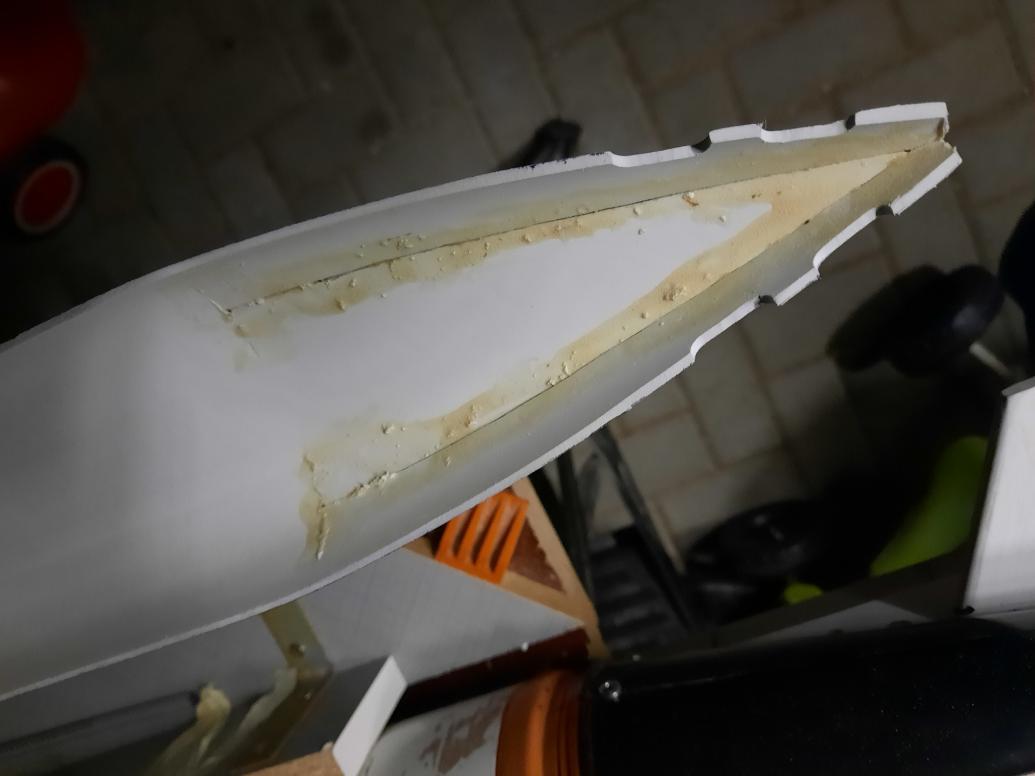

                          More filling on the stern. Hopefully i'll finish sanding all the filled spots this evening and will cast-in the stern tube. To ease work, i dissassembled the sterns maon components. Bow's been filled,too.

                          Click image for larger version

Name:	20230915_155144_copy_1440x1920.jpg
Views:	92
Size:	59.7 KB
ID:	173754 Click image for larger version

Name:	20230915_155135_copy_1440x1920.jpg
Views:	75
Size:	62.0 KB
ID:	173755 Click image for larger version

Name:	20230915_155207_copy_1440x1920.jpg
Views:	75
Size:	60.2 KB
ID:	173756 Click image for larger version

Name:	20230915_155212_copy_1440x1920.jpg
Views:	75
Size:	55.6 KB
ID:	173757 Click image for larger version

Name:	20230915_155331_copy_1440x1920.jpg
Views:	75
Size:	58.8 KB
ID:	173759 Click image for larger version

Name:	20230915_155244_copy_1440x1920.jpg
Views:	74
Size:	58.3 KB
ID:	173758

                          Comment


                          • #14

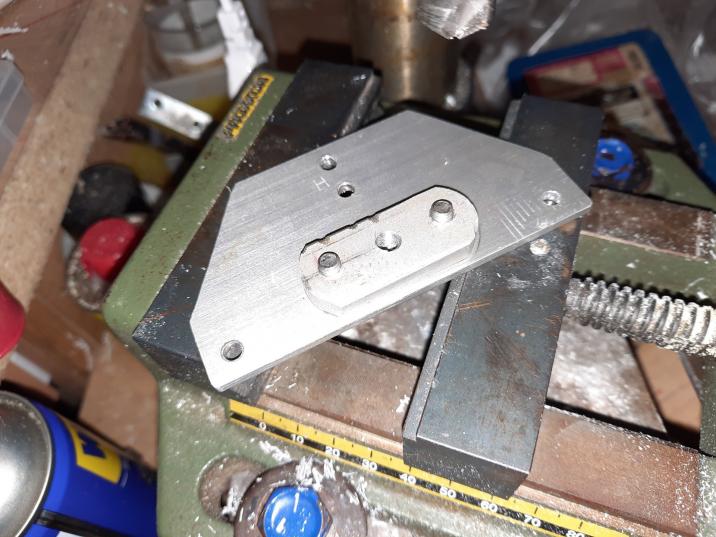

                            Building the counter-nut for the M6 main setscrew that will lock the stern and the inner tray to the main hull. My preferred modification of the ROBBE design. 2 m5 screws secure it to the forward tray bulkhead.

                            Click image for larger version

Name:	20230916_181155_copy_1920x1440.jpg
Views:	84
Size:	61.3 KB
ID:	173838 Click image for larger version

Name:	20230916_184008_copy_1920x1440.jpg
Views:	72
Size:	62.4 KB
ID:	173839 Click image for larger version

Name:	20230916_183837_copy_1920x1440.jpg
Views:	72
Size:	65.2 KB
ID:	173840

                            Comment


                            • #15

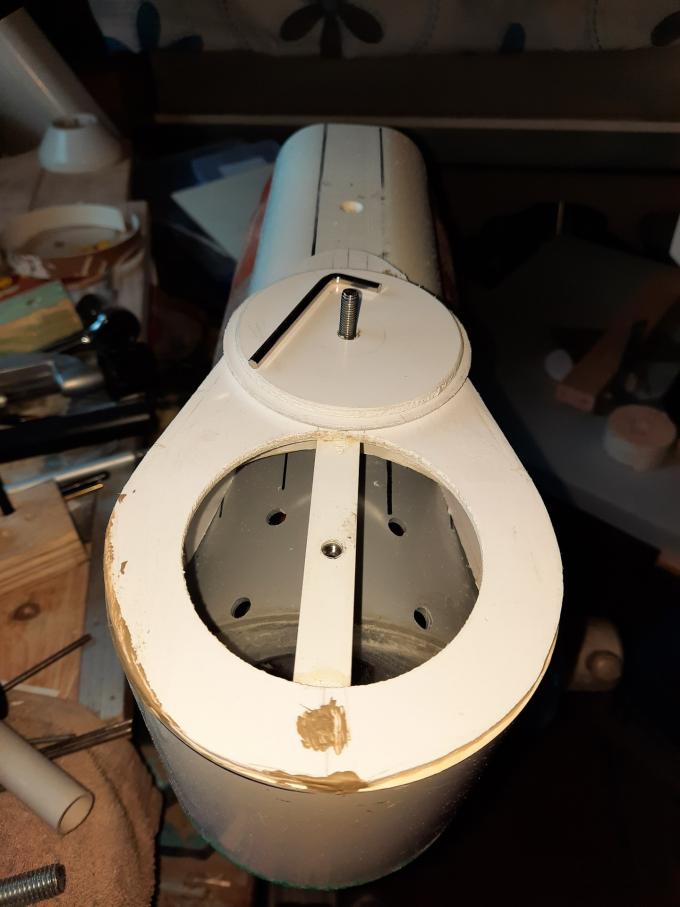

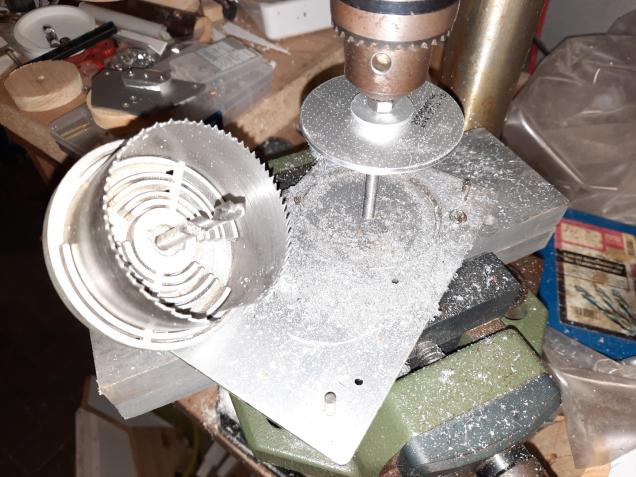

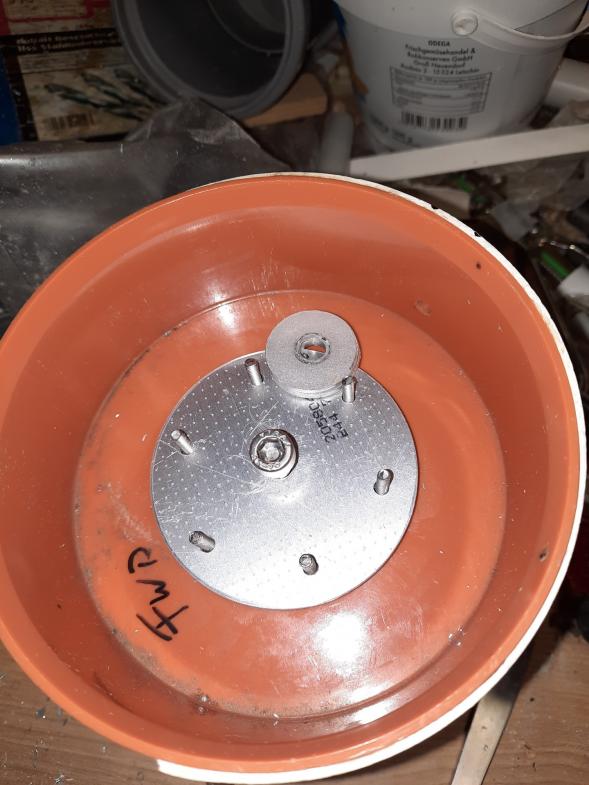

                              This evening i made the sealing disc that will a) hold an O-ring between itself and the outer face of the Bow bulkhead that seals the locking bolt radially and b) acts as a large washer to counter the force of the tightened locking bolt against the bulkhead. A second o-ring will sit between the disc and the smaller aluminum washer, beeing compressed when tightened. 1-2 large cylinder screws , threaded through the forward bulkhead to the inside will slide into corresponding holes in the tray bulkhead to prevent twisting of the frame when locking down the boat.

                              Click image for larger version  Name:	20230919_222611_copy_1440x1080.jpg Views:	0 Size:	57.6 KB ID:	173977 Click image for larger version  Name:	20230919_224400_copy_1440x1080.jpg Views:	0 Size:	57.3 KB ID:	173980 Click image for larger version  Name:	20230919_225514_copy_1440x1920.jpg Views:	0 Size:	57.0 KB ID:	173978 Click image for larger version  Name:	20230919_230722_copy_1440x1920.jpg Views:	0 Size:	59.8 KB ID:	173976 Click image for larger version  Name:	20230919_230806_copy_1440x1920.jpg Views:	0 Size:	49.1 KB ID:	173979
                              Last edited by JHapprich; 09-19-2023, 05:53 PM.
